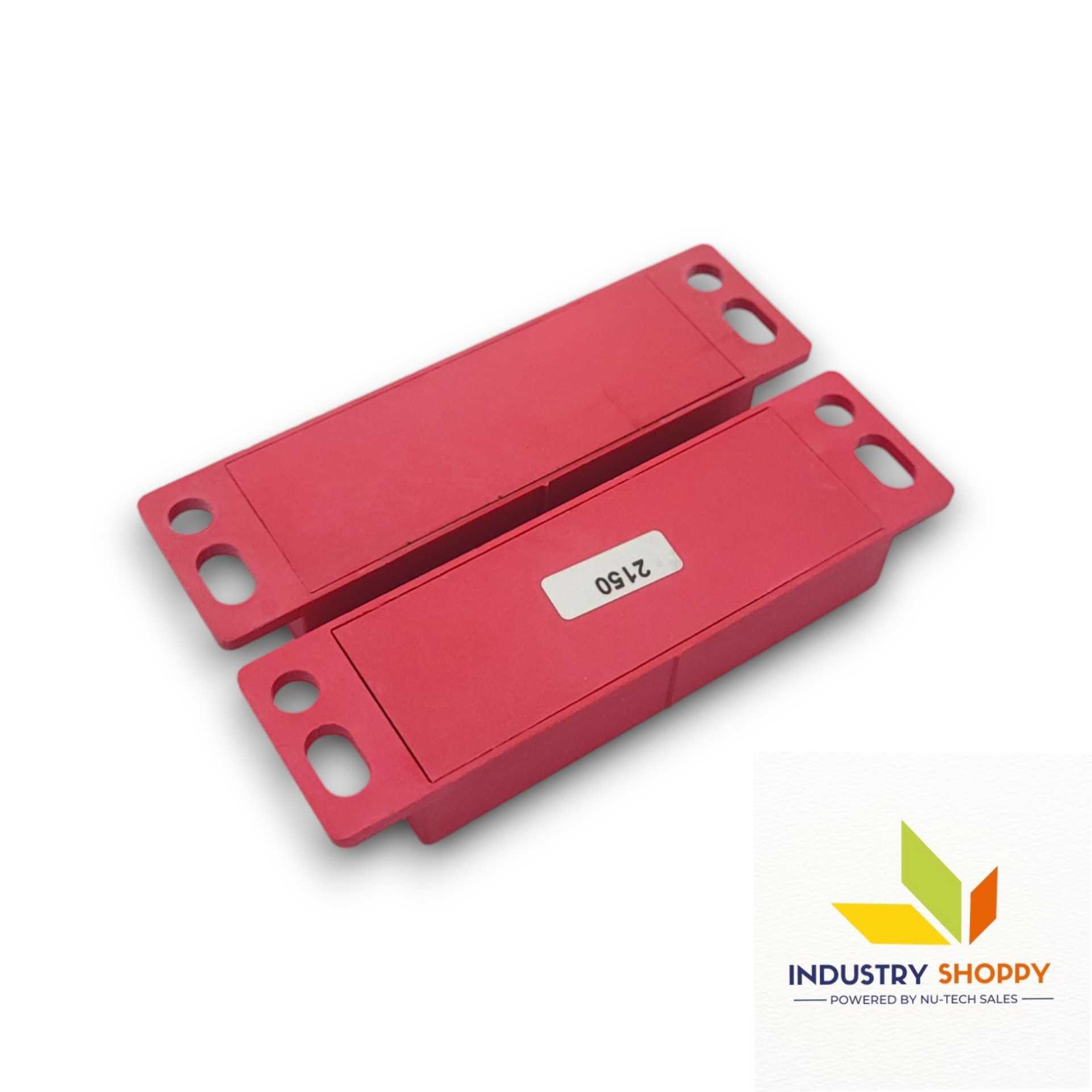

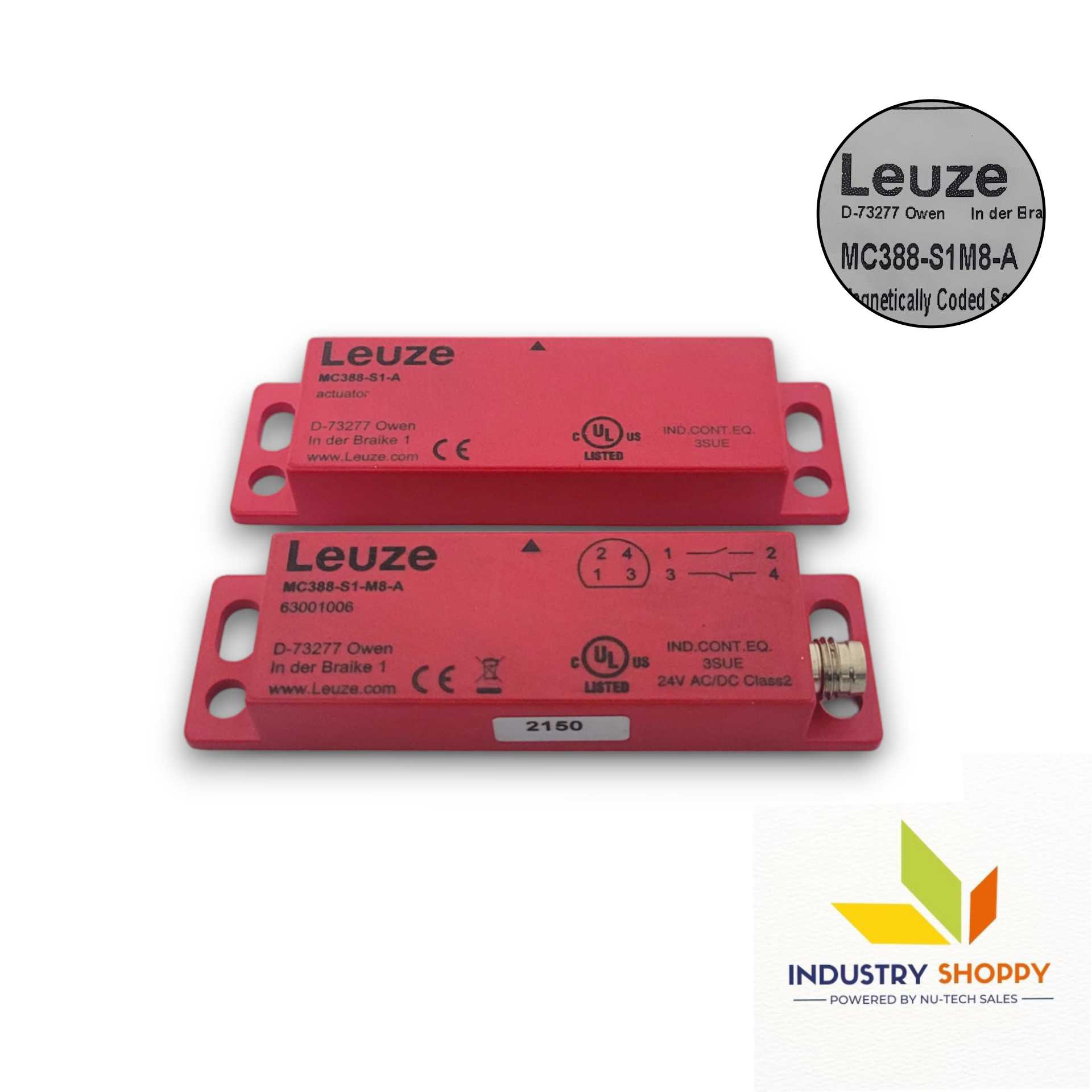

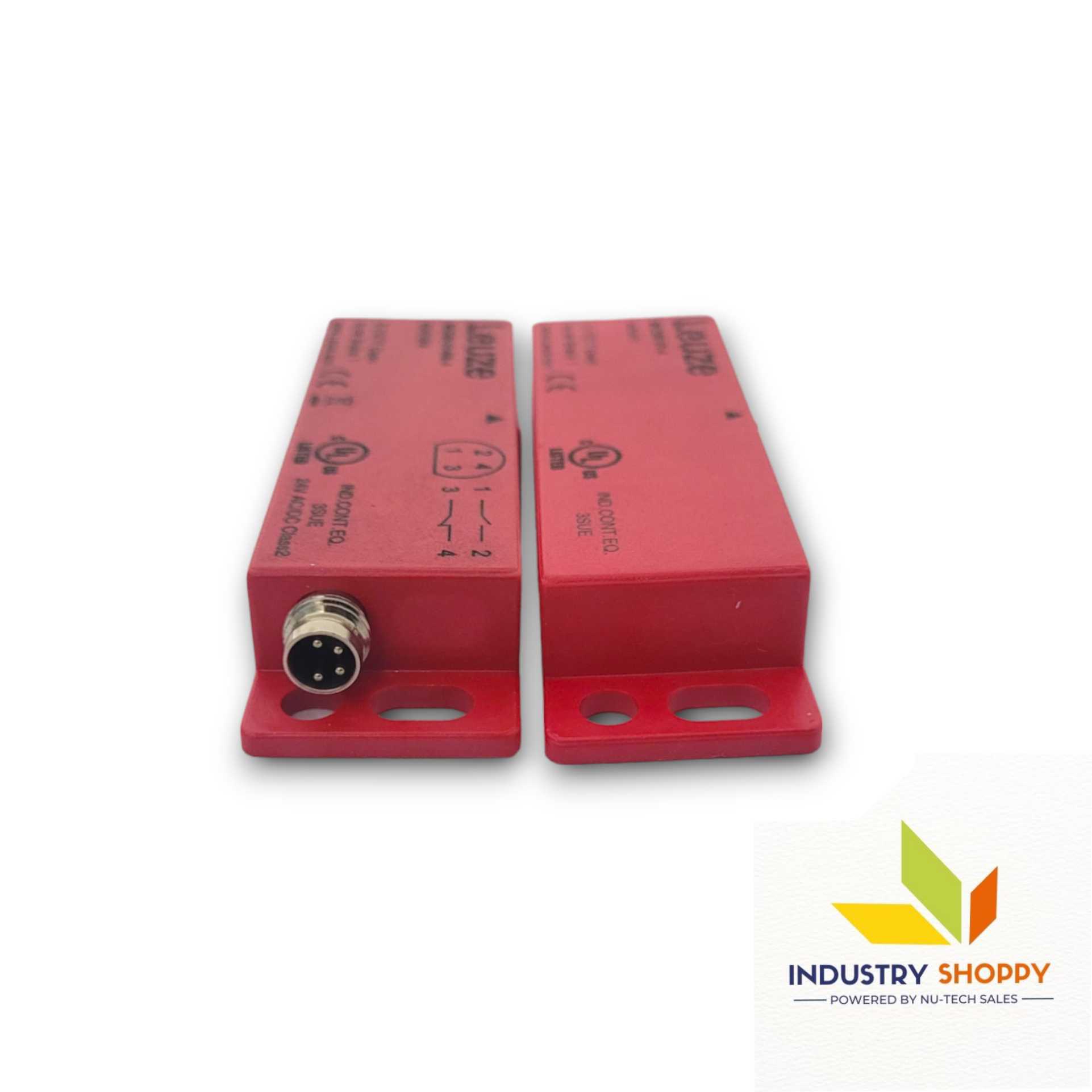

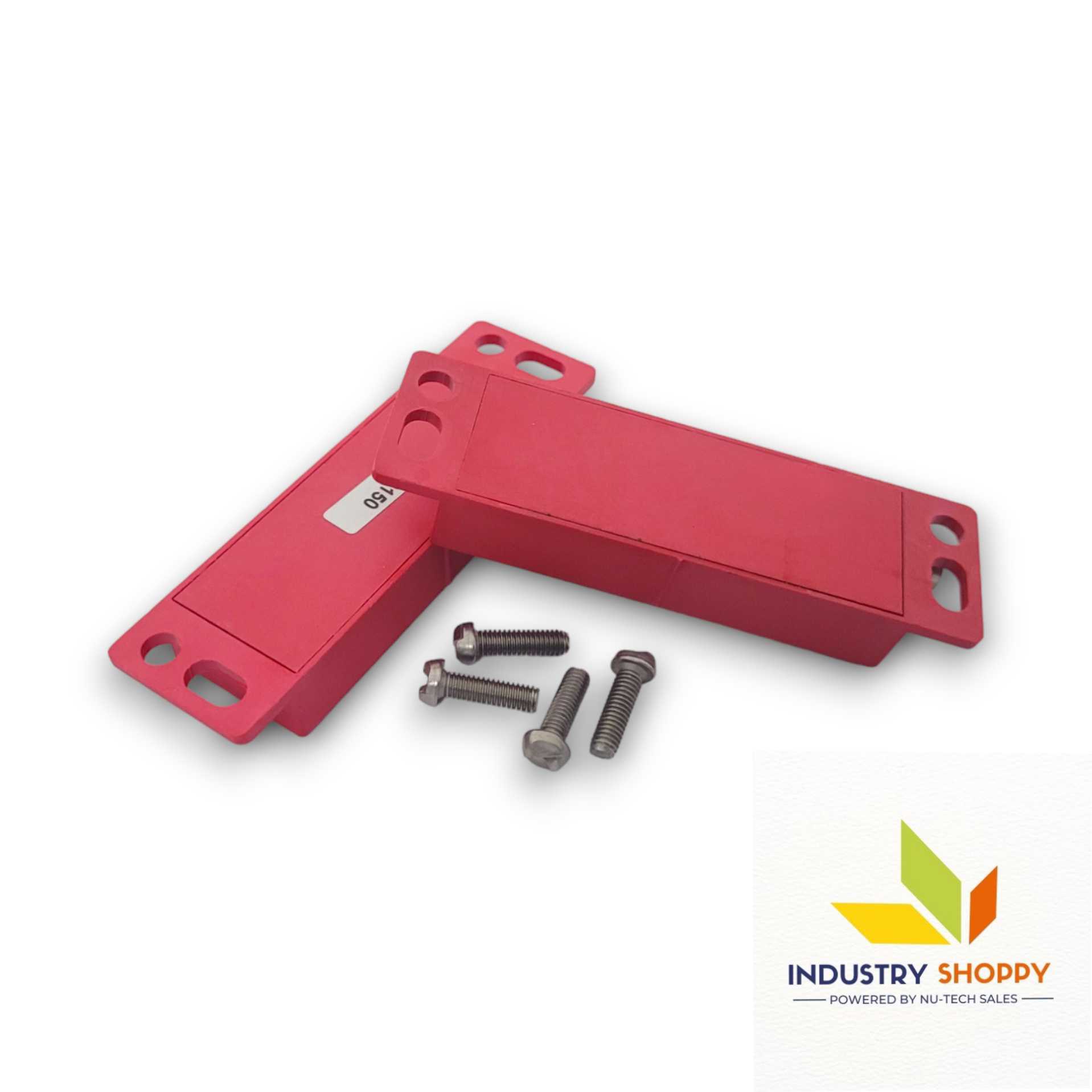

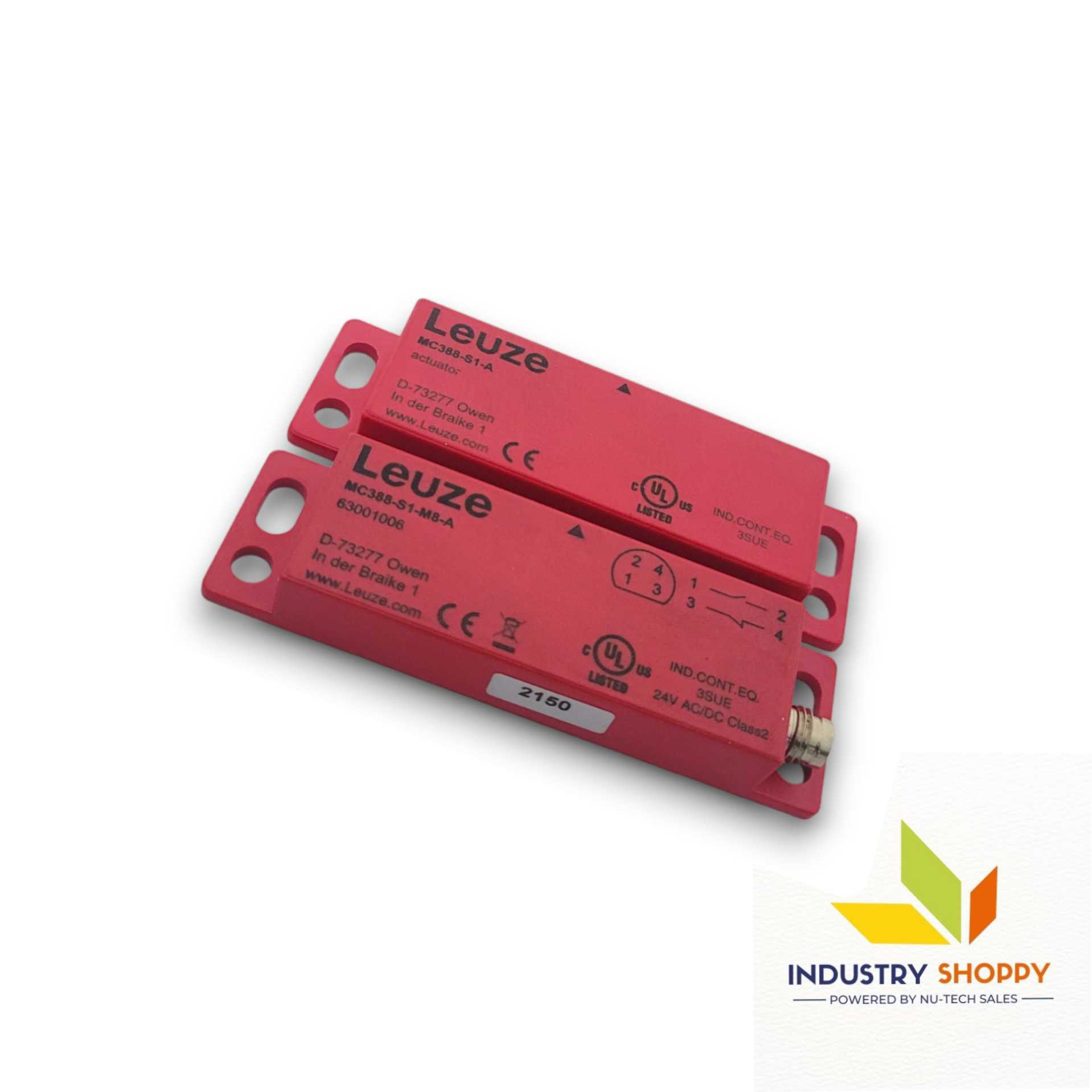

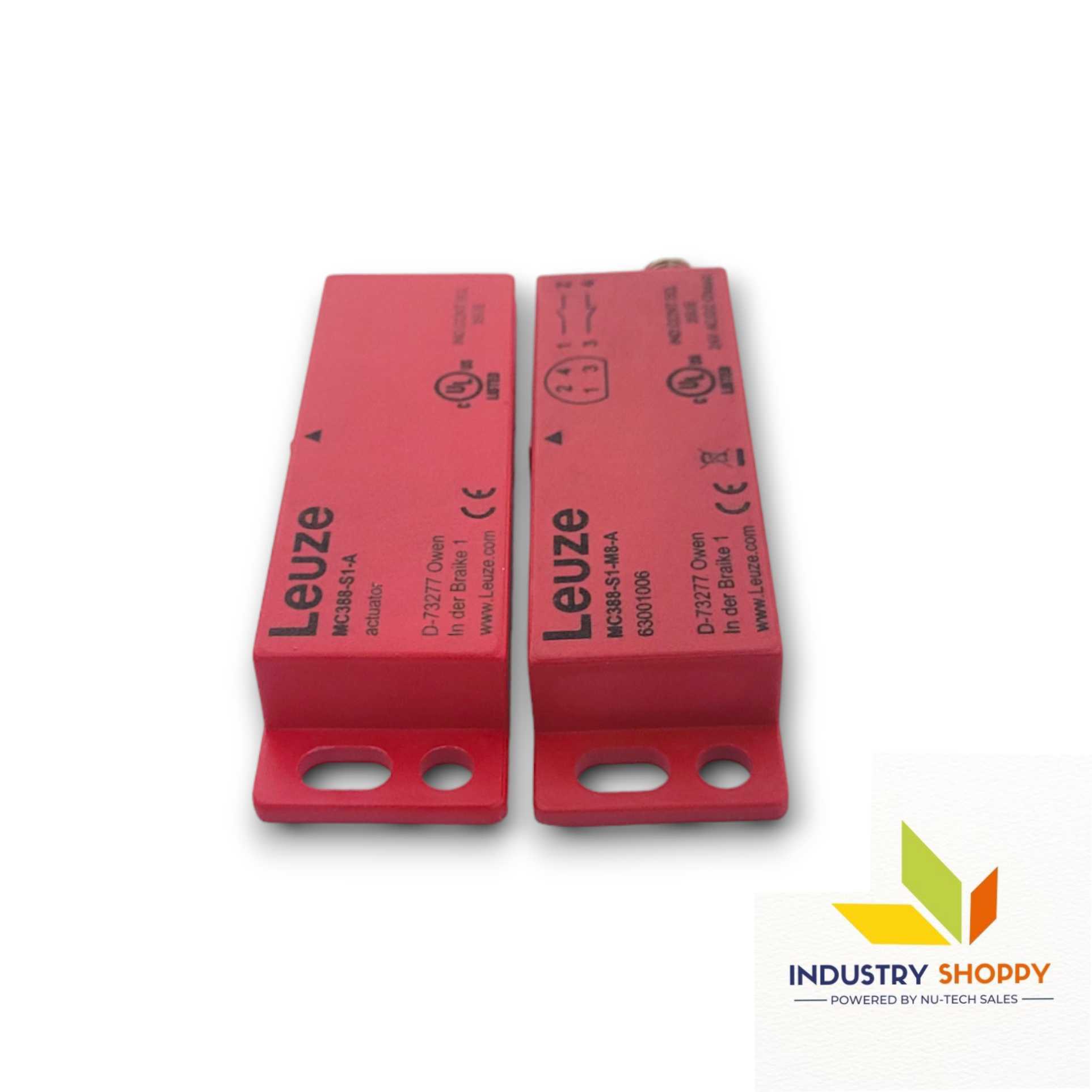

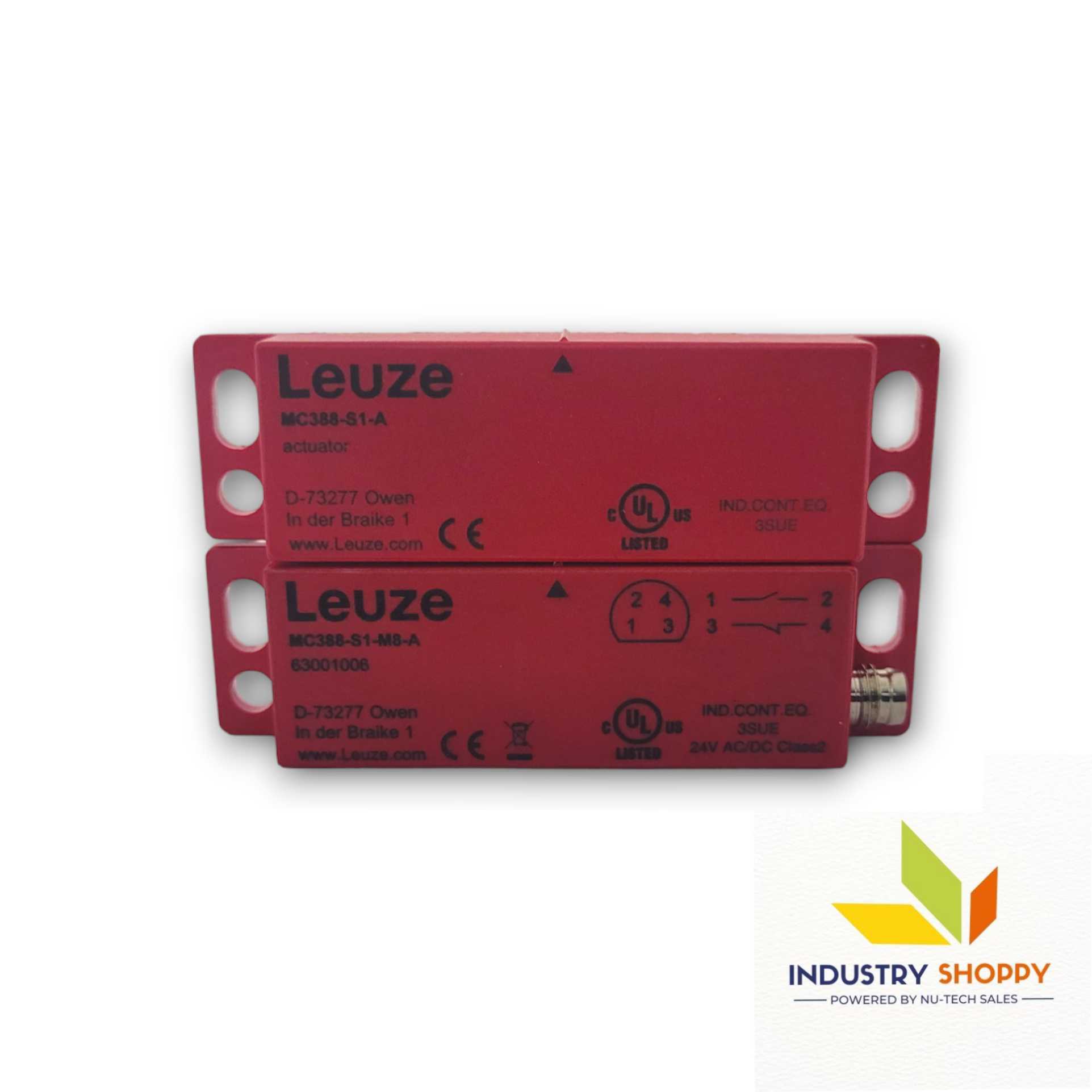

Leuze MC388-S1M8-A Magnetically coded sensor

Product SKU: NTSSEN00026
Available:
Only 6 items in stock
6 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply voltage : 27 V AC/DC
  • Response time : 3 ms
  • No. of Pins  : 4 -pin
  • Type of connection : M8
  • Warranty : 12 Months
Rs. 4,935.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Leuze MC388-S1M8-A Magnetically coded sensor

The Leuze MC388-S1M8-A Magnetically coded sensor sensor from the MC388 series is a magnetically coded safety sensor designed for contactless interlocking applications in high-safety environments. It is suitable for integration into control circuits up to Category 4 in accordance with EN ISO 13849-1, especially when used with evaluation units such as the MSI-MC310 safety relay or MSI 400 safety controller.

The sensor features 1NC + 1NO reed contacts, offering fail-safe operation with a B10d rating of 20 million cycles, ensuring long-term mechanical reliability. The response time is a fast 3 ms, supporting safety-critical, high-speed applications. Its magnetically coded actuator ensures Type 4 safety classification according to EN ISO 14119, with 3D actuation capability.

With a switching current of up to 500 mA and a maximum switching voltage of 27 V AC/DC, the unit is short-circuit protected via the evaluation unit. It operates at an assured cut-in distance (Sao) of up to 6 mm, and an assured cut-out distance (Sar) of at least 30 mm, providing a secure safety gap.

The self-extinguishing glass fiber reinforced PPS housing offers a durable and compact cubic design (25 x 13 x 88 mm), while IP67 protection ensures reliability in harsh environments. With a 4-pin M8 metal connector, arbitrary installation position, and a mechanical life of 10 million actuations, it delivers both flexibility and robust performance in safety applications.



Our engineers actively inputted all the required details of this sensor in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. However, despite our sincere efforts, it’s important to remain cautious. Despite this, inaccuracies can still occur nonetheless.

IndustryShoppy.In is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience; furthermore, our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.In today!

Facebook, YouTube,


Product NumberMC388-S1M8-A
Part Number63001006
SeriesMC388
FunctionsIntegration in control circuits up to category 4 in accordance with EN ISO 13849-1; Safety system in combination with an evaluation unit such as the MSI-MC310 safety relay or the MSI 400 safety controller
Mission time20 years, EN ISO 13849-1
CategoryUp to 4, depending on evaluation, 1 sensor connected, EN ISO 13849-1
B10d20,000,000 number of cycles
Protective circuitCurrent limitation
Short circuit protectedVia e.g. MSI-MC310, MSI 400
Contact allocation1NC + 1NO
Contact typeReed contacts (magnetically sensitive)
Requirement on the voltage supply (UL 508)Class 2 Circuits
Max. switching voltage27 V AC/DC
Switching current, max.500 mA
Response time3 ms
Number of connections1 Piece(s)
FunctionContact connection
Type of connectionConnector
Thread sizeM8
MaterialMetal
No. of pins4-pin
DesignCubic
Dimension (W x H x L)25 mm x 13 mm x 88 mm
Housing materialPlastic
Plastic housingGlass fiber reinforced (PPS), self-extinguishing
Housing colorRed
Type of fasteningThrough-hole mounting
Installation positionArbitrary, provided housing markings are aligned
Switch typeType 4 interlock device, contactless actuation, EN ISO 14119
Approach actuation directions3-dimensional
Mechanical life time10,000,000 actuation cycles
External actuatorMagnetically coded
Cut-out point (OFF), min.13 mm
Assured cut-out distance (Sar), min.30 mm
Assured cut-in distance (Sao), max.6 mm
Switching tolerance-1 ... 1 mm (without ferromagnetic materials in immediate vicinity)
Distance to other magnetic sensors, min.50 mm
Approach speed, min.0.05 m/s
Ambient temperature, operation-20 ... 70 °C
Degree of contamination3, EN 60947-1
Degree of protectionIP67
Country of originItaly
