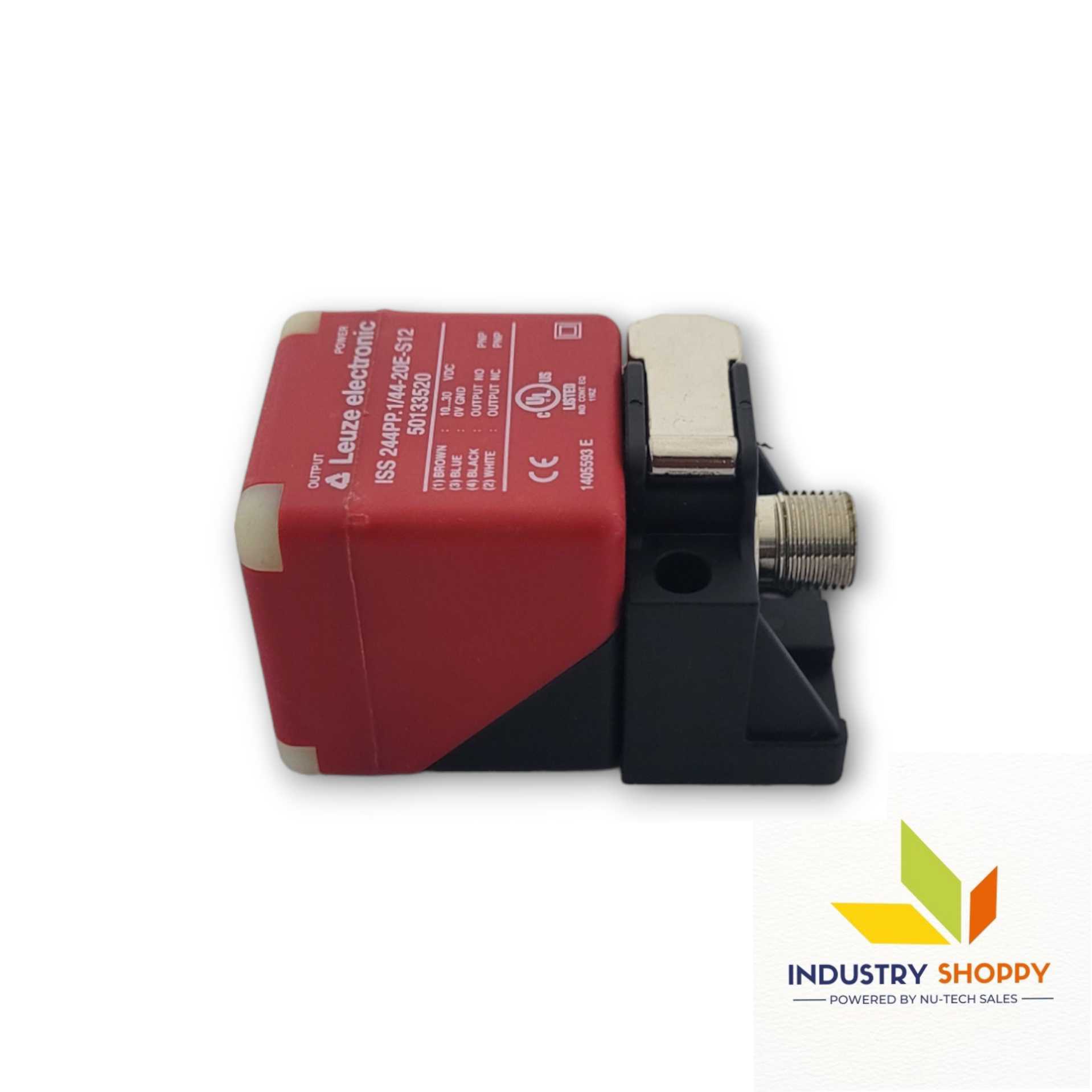

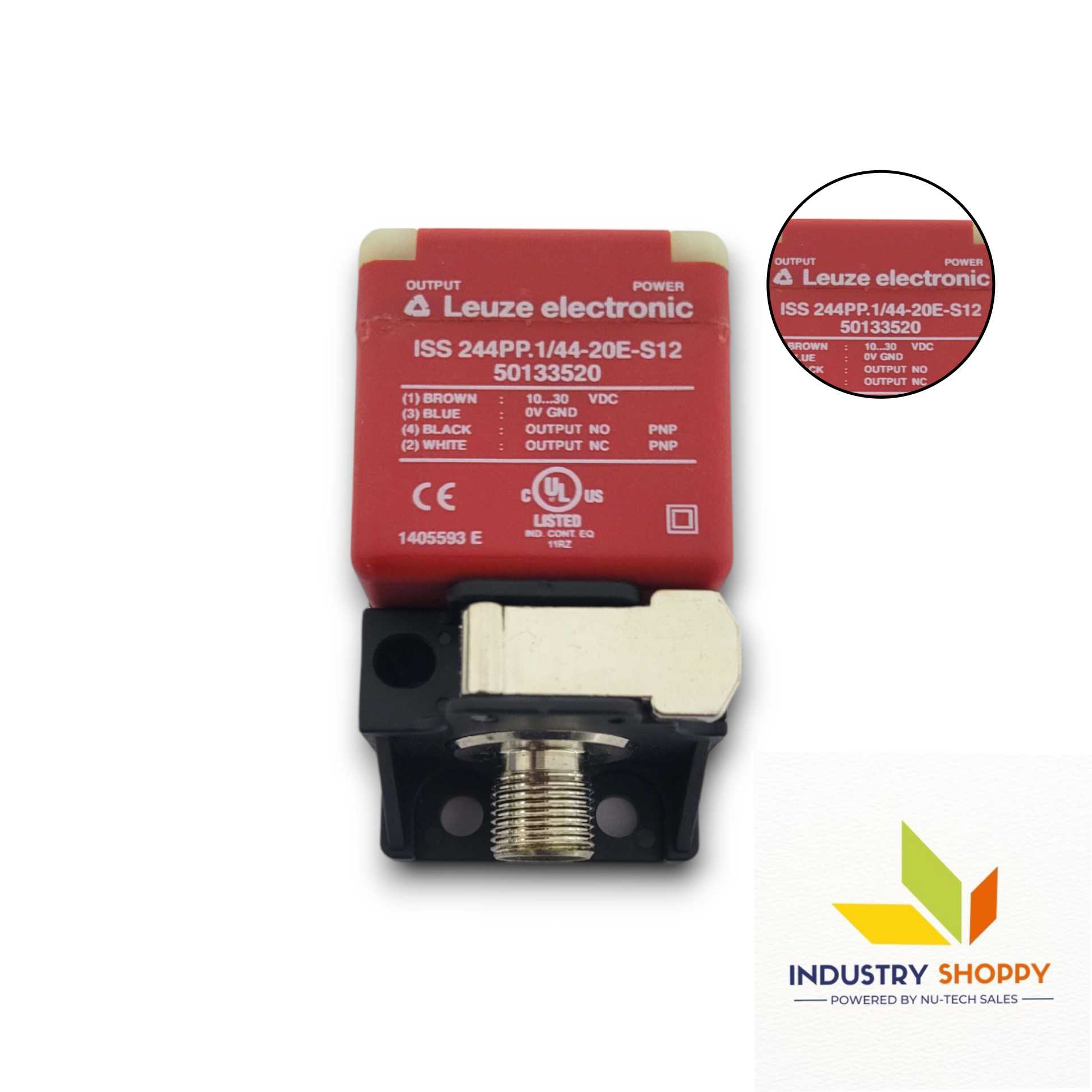

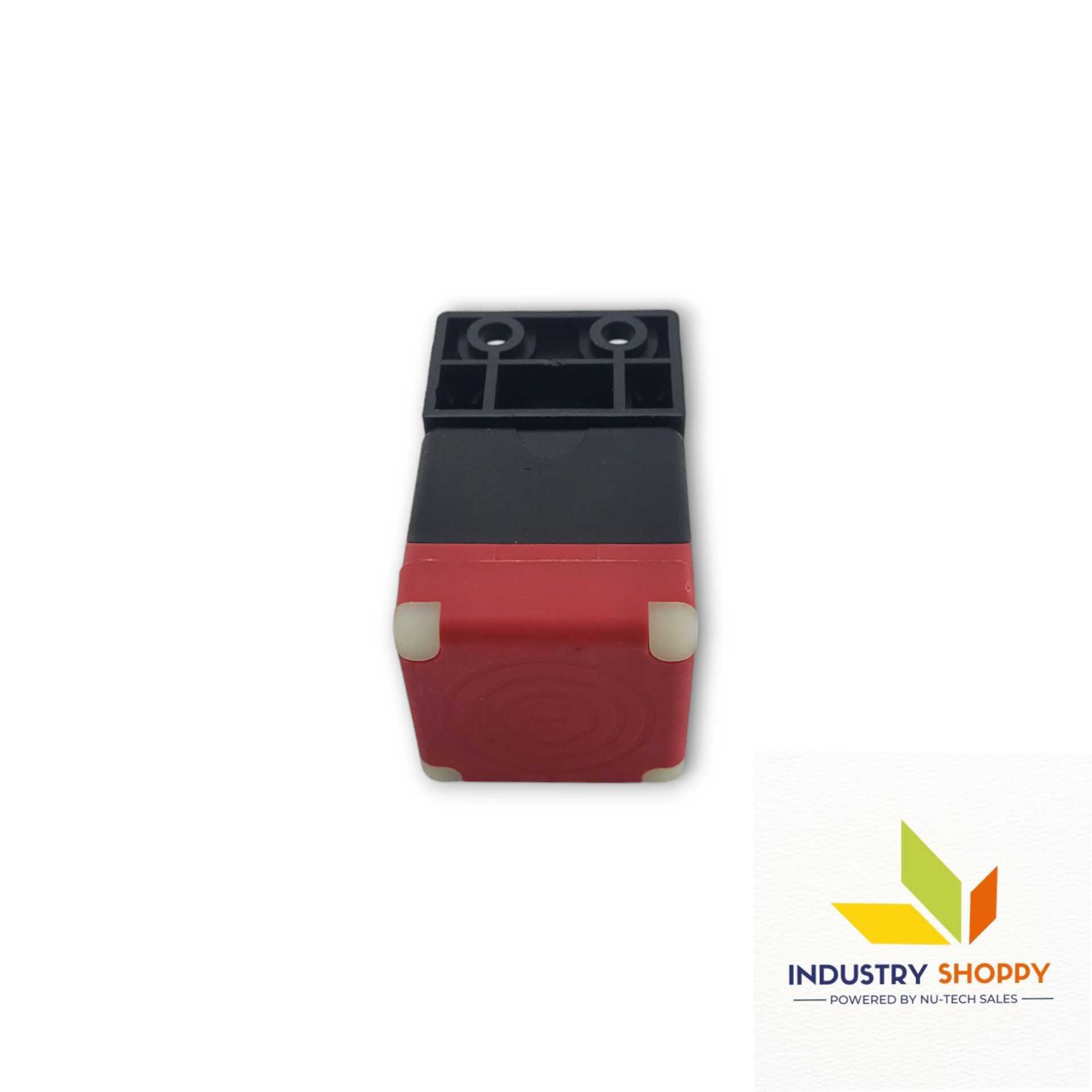

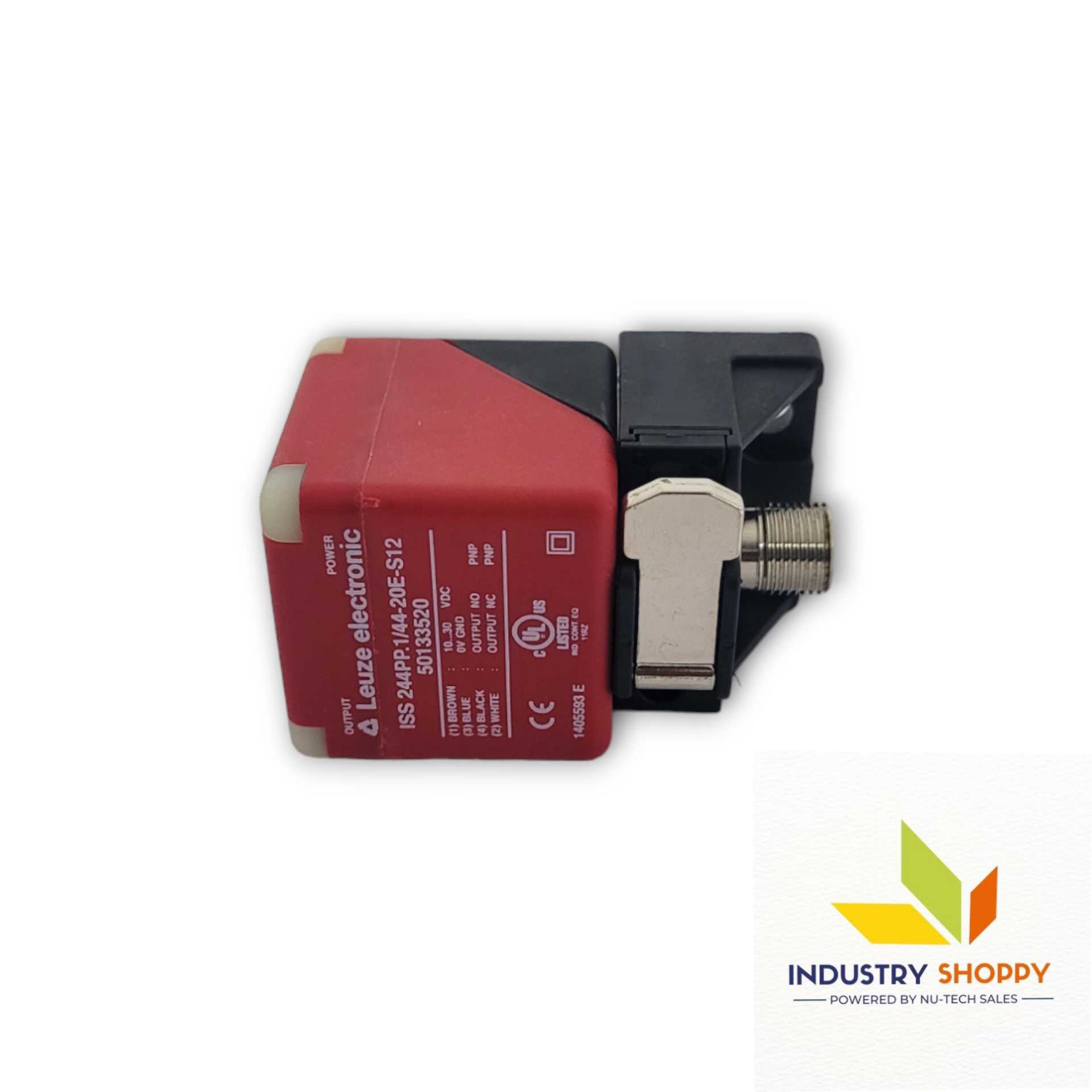

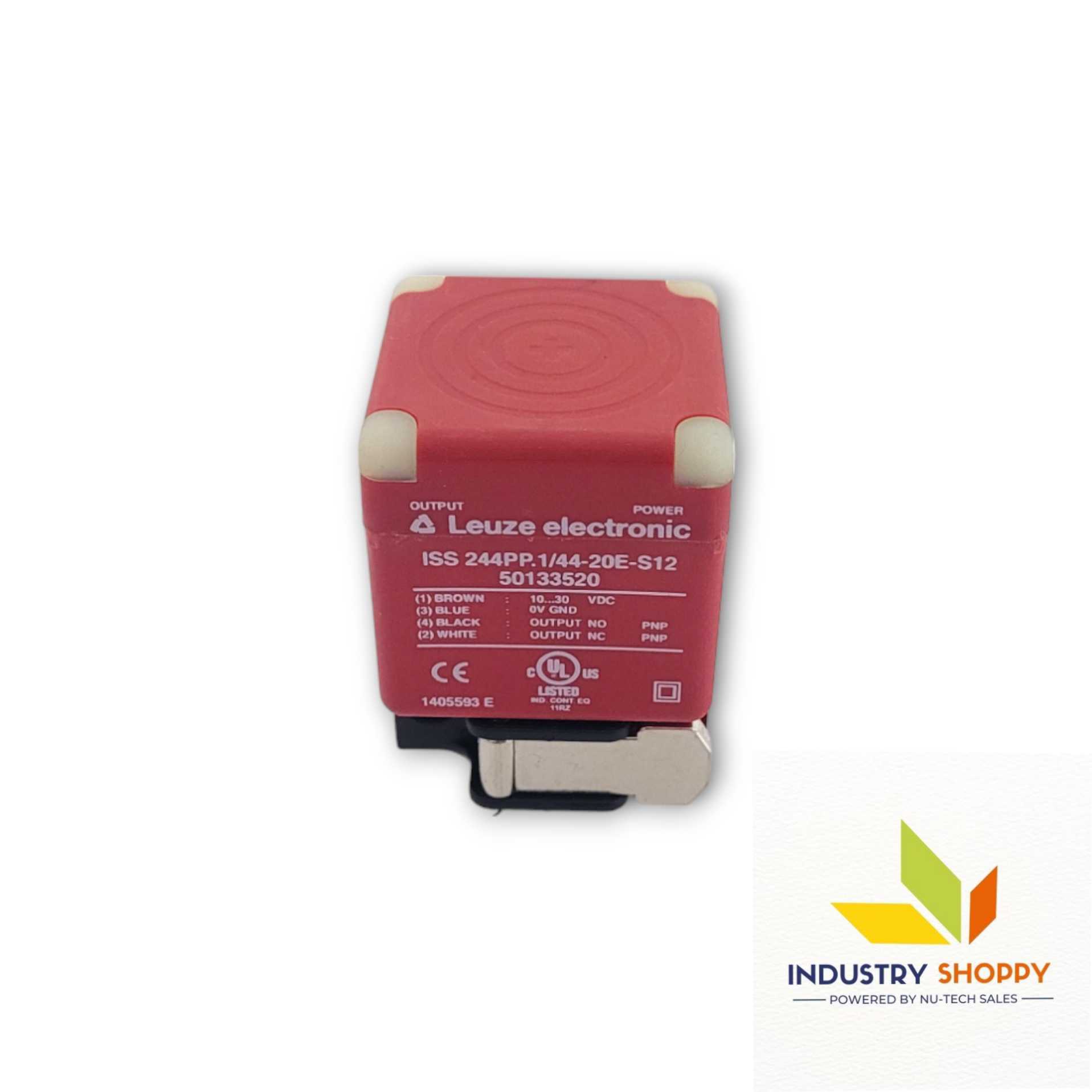

Leuze ISS244PP.1-44-20E-S12 Inductive Switch

The Leuze ISS244PP.1-44-20E-S12 Inductive Switch (ISS244PP14420ES12) part number 50133520, is from the 244 series, is a cubic inductive proximity sensor from the 244 series, designed for rugged and reliable object detection. With a nominal sensing range of 20 mm and an assured range up to 16.2 mm, this sensor suits extended detection needs. It uses a PNP transistor output with both NO and NC antivalent switching for control flexibility. It supports switching currents up to 200 mA and operates at 100 Hz, ensuring fast response in dynamic settings.

Built-in protective circuits guard against short circuits, polarity reversal, and overcurrent, ensuring long-term operational safety. A residual voltage drop ≤ 2 V and minimal residual current (≤ 0.01 mA) help maintain signal integrity. The sensor operates on a 10–30 V DC supply with a 30 mA max current draw, and features a temperature drift and repeatability of max 10% of Sr, ensuring reliable accuracy across the –25°C to +85°C temperature range.

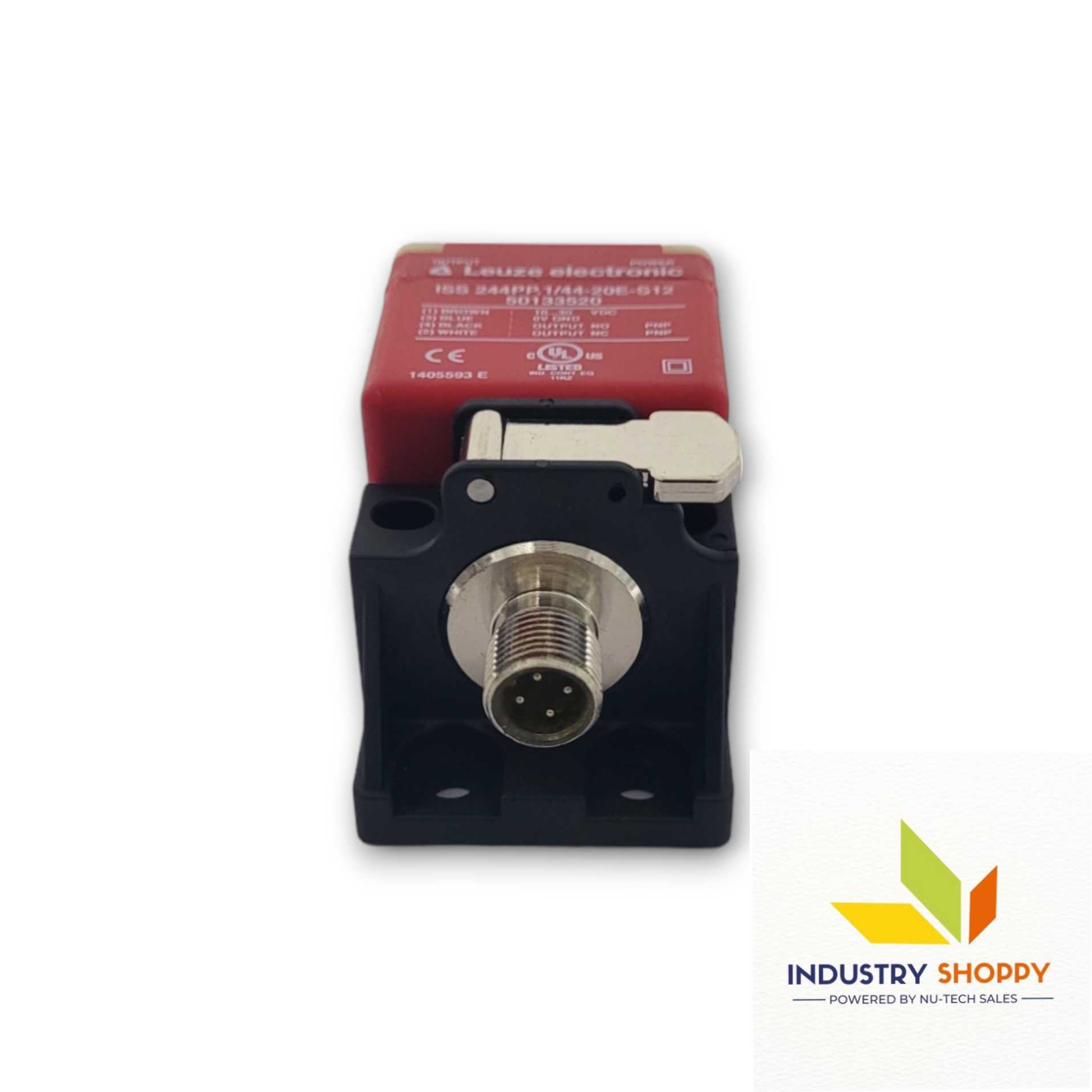

Housed in robust PA66 plastic, the unit actively resists dust, water immersion, and high-pressure cleaning thanks to its IP68/IP69K rating. The M12 male connector (4-pin, A-coded) ensures a secure and standardized wiring interface. Through-hole mounting simplifies setup, while four integrated LEDs actively guide alignment and indicate operating status.. The standard sensing target is a 60 × 60 mm² Fe360 plate, and the sensor’s compact 40 × 40 × 67 mm form factor makes it well-suited for embedded applications.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberISS244PP.1/44-20E-S12
Part Number50133520
Series244
Typ. operating range limit Sn20 mm
Operating range Sa0 ... 16.2 mm
Supply voltage UB10 ... 30 V DC
Residual ripple0 ... 20 %, From UB
Open-circuit current0 ... 30 mA
Temperature drift, max. (in % of Sr)10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr)10 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
Switching hysteresis15%
Voltage typeDC
Switching current, max.200 mA
Residual current, max.0.01 mA
Voltage drop≤ 2 V
Switching elementTransistor, PNP
Switching principleNO contact – Antivalent / NC contact – Antivalent
Switching frequency100 Hz
Readiness delay100 ms
FunctionSignal OUT / Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialMetal
No. of pins4-pin
EncodingA-coded
DesignCubic
Dimension (W x H x L)40 mm x 40 mm x 67 mm
Type of installationEmbedded
Housing materialPlastic
Plastic housingPA 66
Sensing face materialPlastic, Polyamide (PA 66)
Housing colorBlack / Red, RAL 3000
Type of fasteningThrough-hole mounting
Standard measuring plate60 x 60 mm², Fe360
Type of displayLED
Number of LEDs4 pieces
Ambient temperature, operation-25 ... 85 °C
Ambient temperature, storage-25 ... 85 °C
Degree of protectionIP 68 / IP 69K
Protection classII
Certificationsc UL US
Country of originChina
