Leuze IPRK18-AL.46 Sensor
Leuze IPRK18-AL.46 Sensor
Leuze IPRK18-AL.46 Sensor
Leuze IPRK18-AL.46 Sensor
Leuze

Leuze IPRK18/A L.46 Photoelectric Sensor

Product SKU: NTSSEN00013
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply voltage : 26.5 ... 31.6 V
  • Response time : 0.5 ms
  • Thread size : M12
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 35,640.00
Rs. 38,596.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Accessories
  • Description
  • Specifications
  • Shipping & Returns
This product: Leuze IPRK18/A L.46 Photoelectric Sensor
Leuze KDU-M12-5A-V1-050 Connection Cable
Rs. 36,490.00

Leuze IPRK18/A L.46 Photoelectric Sensor

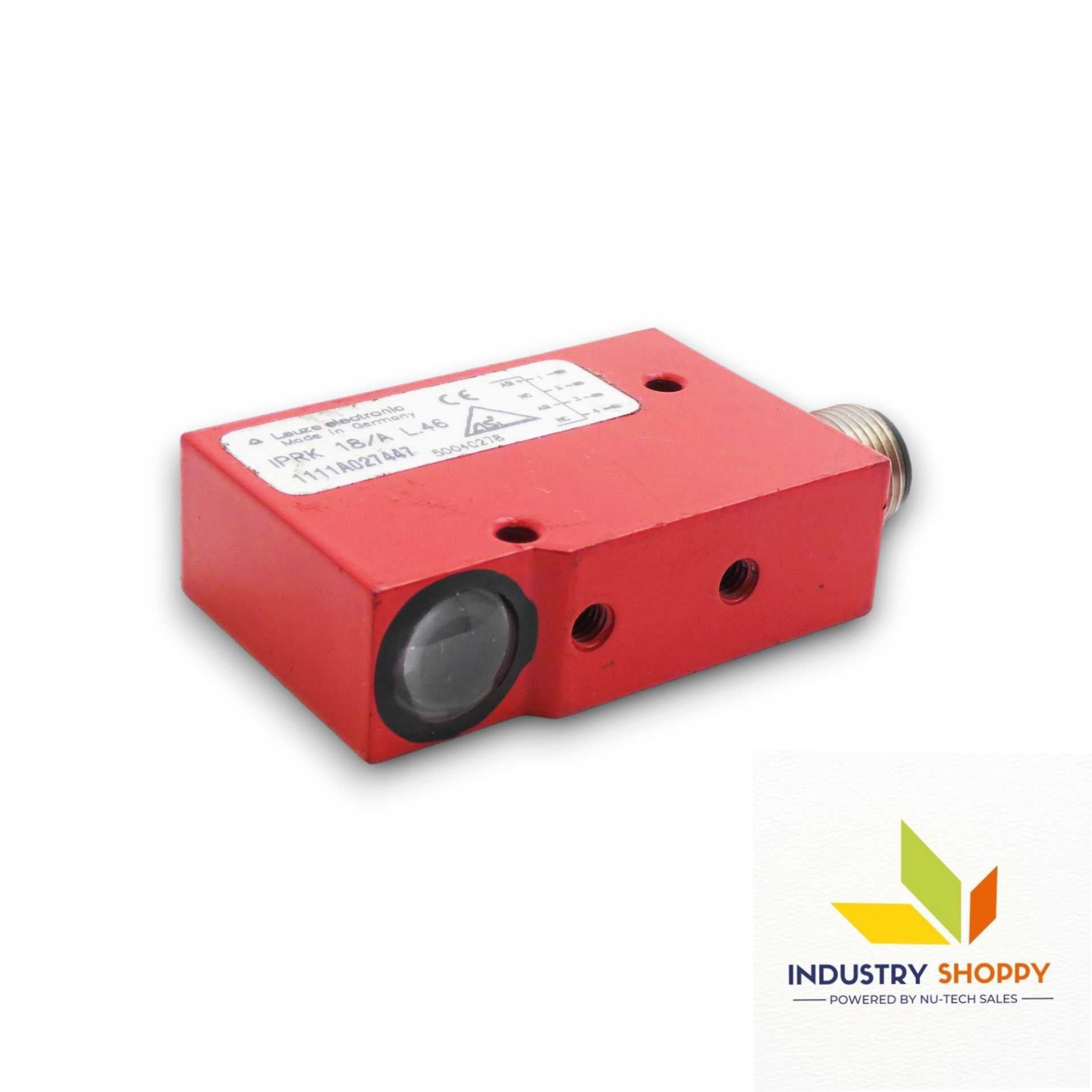

The Leuze IPRK18/A L.46 Photoelectric Sensor, part of the Series 18 range, leverages the reflection principle to deliver reliable detection of highly transparent objects, including films, bottles, and glass panes. It maintains a guaranteed operating range of 0 to 2.4 meters, with a typical range extending up to 3 meters, ensuring accurate performance in challenging transparency conditions.

Powered by a red LED light source with a wavelength of 660 nm, the sensor emits a round light spot that ensures consistent target detection. Its high switching frequency of 1,000 Hz and response time of 0.5 ms make it ideal for fast-paced automation environments.

The device integrates AS-Interface (AS-i) functionality for both data communication and power supply, streamlining installation and control. It operates on a supply voltage of 26.5 to 31.6 V, with minimal current draw (0–35 mA). A step switch provides user-friendly operational control.

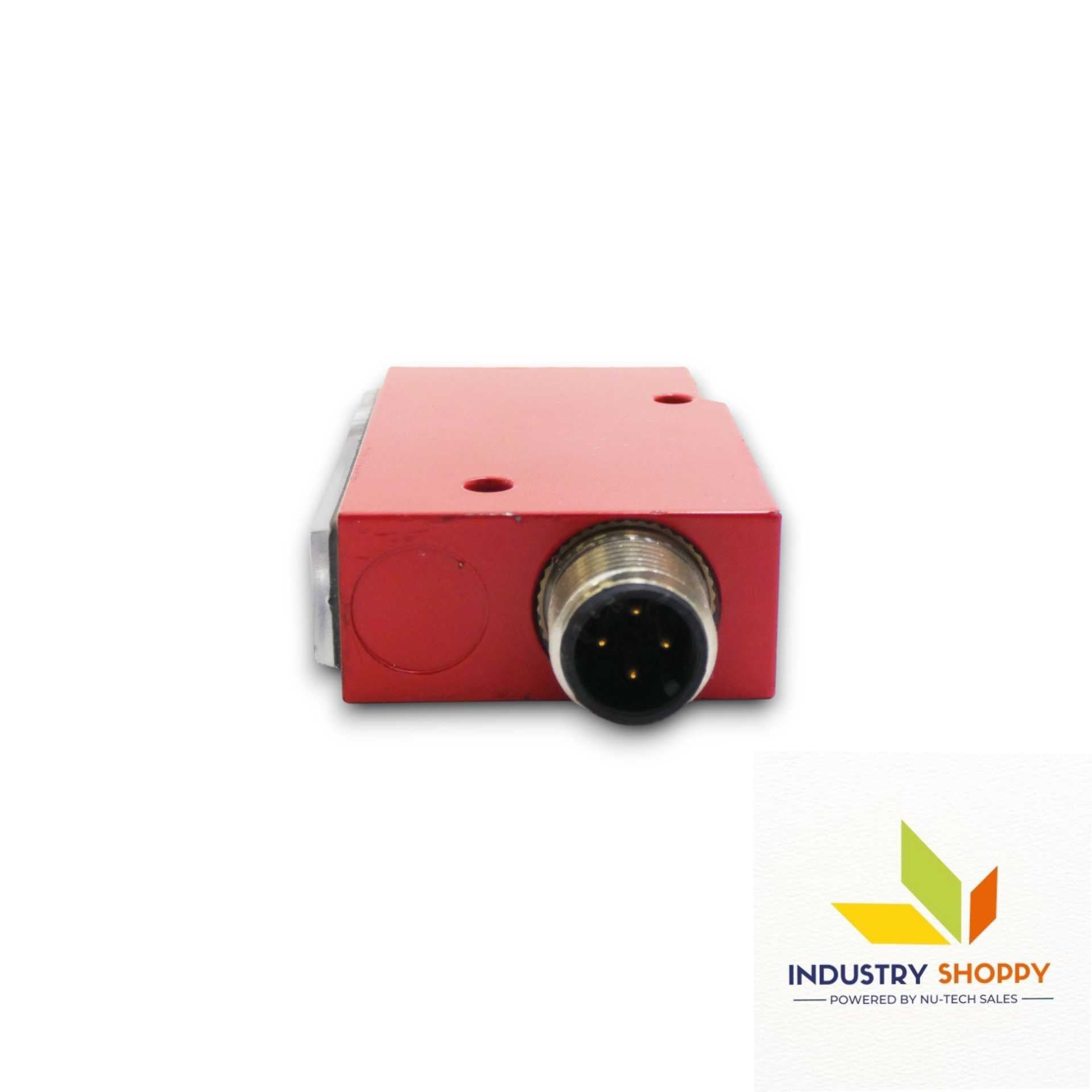

Housed in a robust zinc metal enclosure with a glass lens cover, it withstands harsh conditions and offers IP67 and IP69K protection, making it suitable for washdown and industrial environments. Its compact dimensions (15 × 50 × 33 mm), M12 5-pin male connector, and A-coding ensure easy integration into tight spaces.

The sensor complies with IEC 60947-5-2 standards and carries cULus certification, further affirming its industrial reliability and safety compliance.



Our engineers actively inputted all the required details about this item accordance with the datasheet. Even though we strive to ensure accuracy at every step, some errors may still occur. It remains essential to stay vigilant. Some inaccuracies could still appear despite our efforts. Furthermore, all trademarks and trade names featured on our site are, without exception, the property of their respective owners. As a result, maintaining caution and awareness is key throughout the process. In addition, it is important to stay alert to ensure accuracy at every stage. Therefore, we recommend careful attention to avoid potential issues.

Ultimately, combining vigilance with proactive efforts can help minimize potential errors.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


Product NumberIPRK18/A L.46
Part Number50040278
Series18
Operating principleReflection principle
ApplicationDetection of highly transparent bottles
Detection of highly transparent films and glass panesGuaranteed operating range
Operating range0 ... 2.4 m
Operating rangeGuaranteed operating range
Operating range limitTypical operating range
Operating range limit0 ... 3 m
Light sourceLED, Red
Wavelength660 nm
LED group1
Type of light spot geometryRound
Supply voltage UB26.5 ... 31.6 V
Open-circuit current0 ... 35 mA
Switching frequency1,000 Hz
Response time0.5 ms
Readiness delay300 ms
TypeAS-Interface IO
FunctionAS-i interface, Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialStainless steel
No. of pins5-pin
EncodingA-coded
Dimension (W x H x L)15 mm × 50 mm × 33 mm
Housing materialMetal
Metal housingZinc
Lens cover materialGlass
Housing colorRed
Type of fasteningMounting thread, Through-hole mounting
Type of displayLED
Operational controlsStep switch
Ambient temperature, operation-25 ... 55 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP67 / IP69K
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
Country of originGermany
