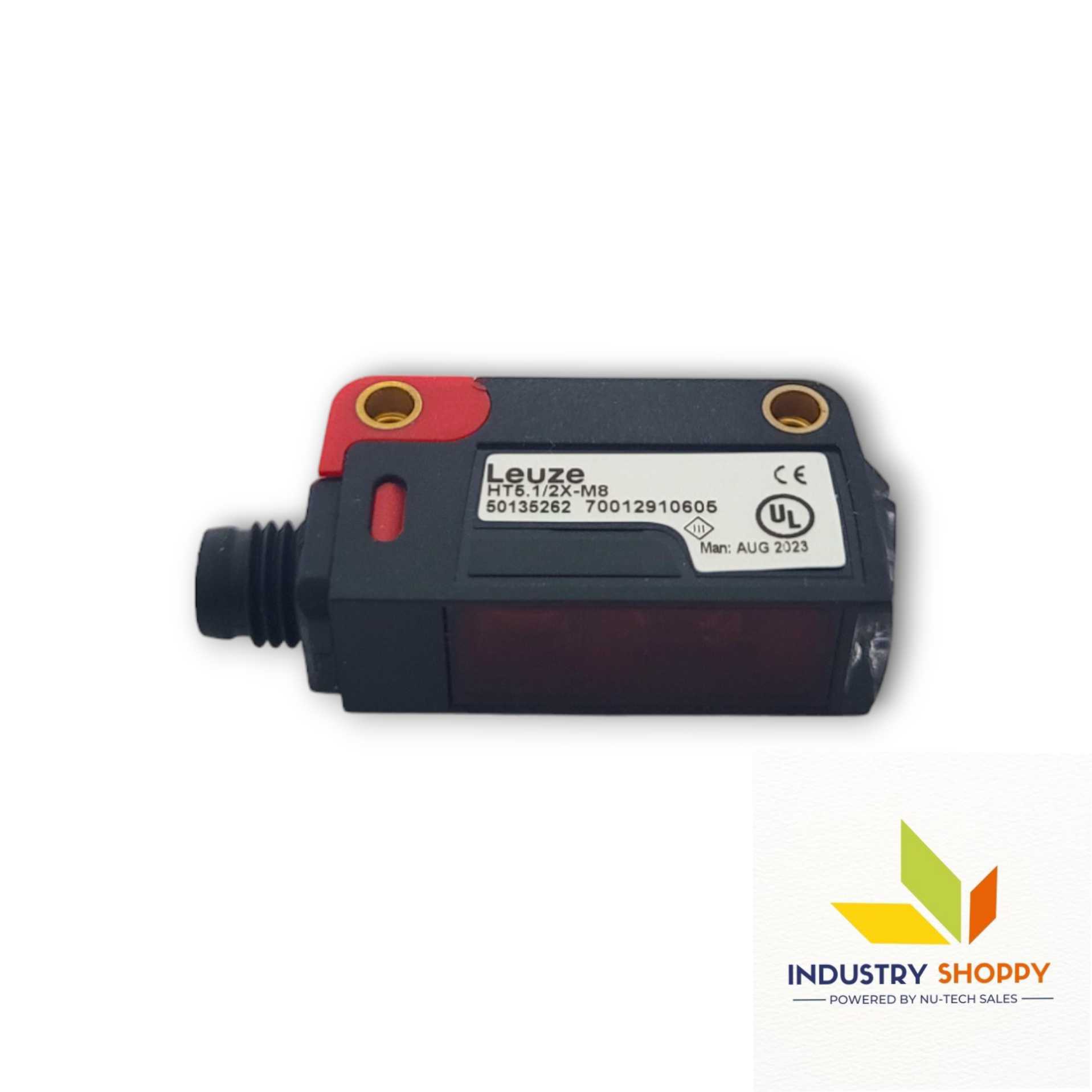

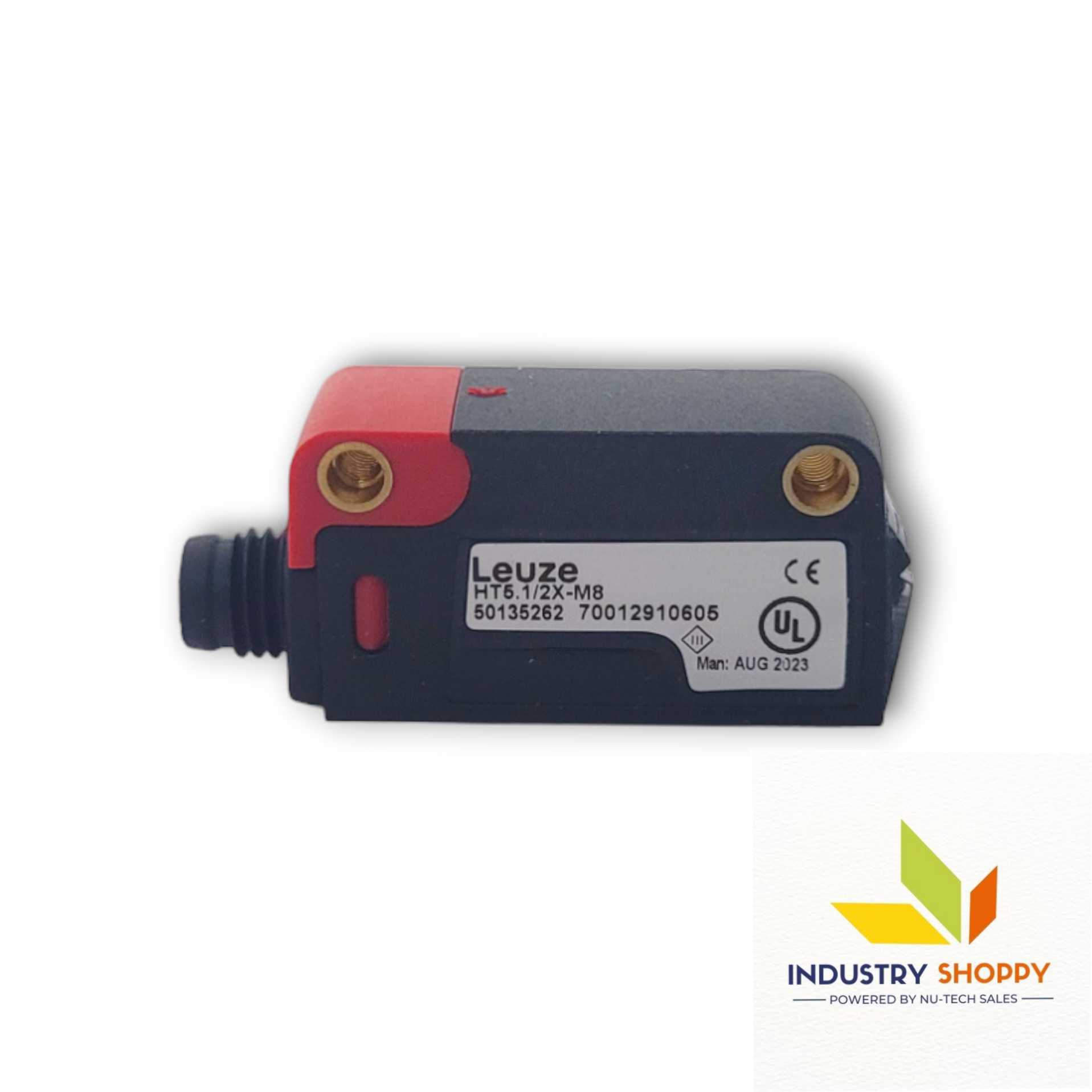

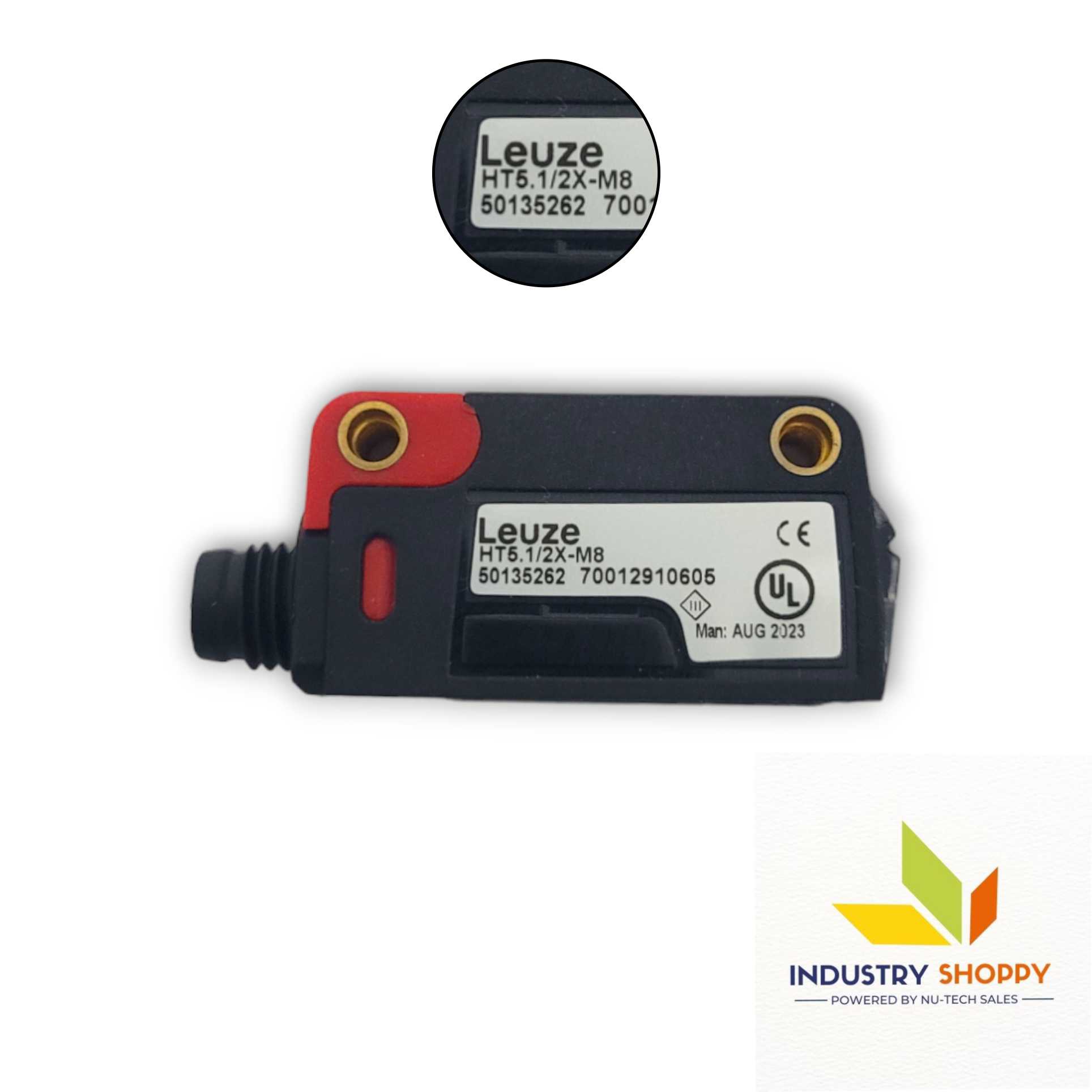

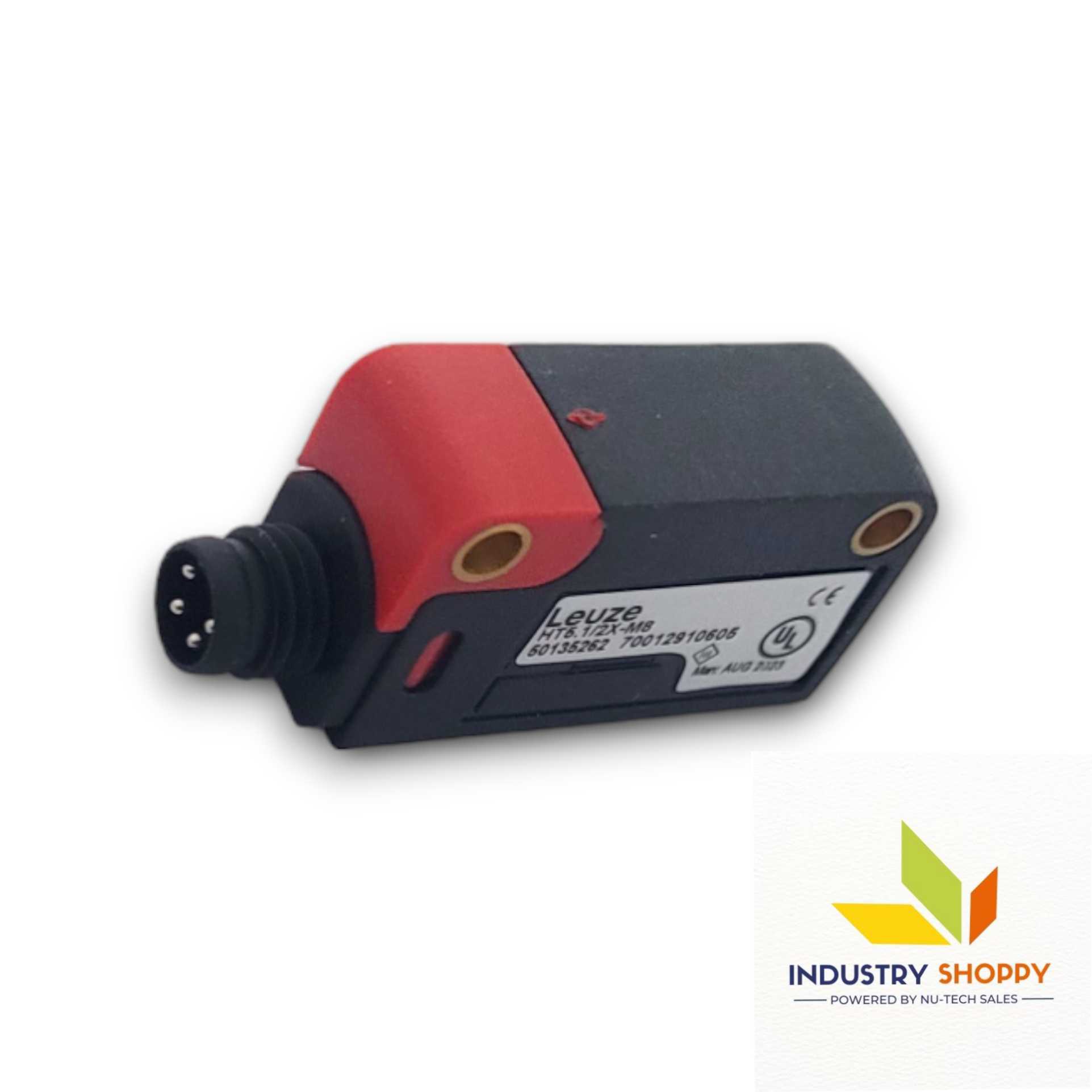

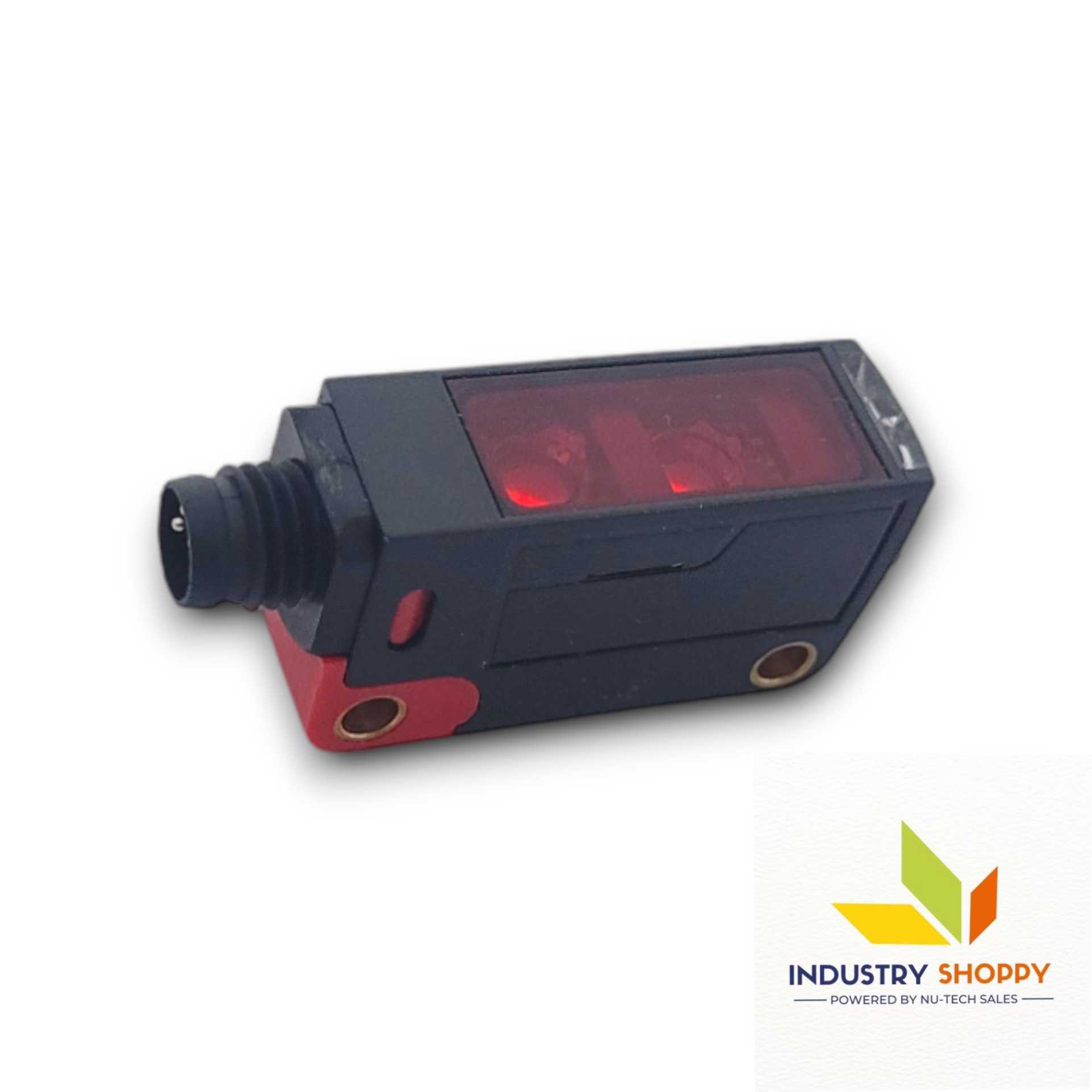

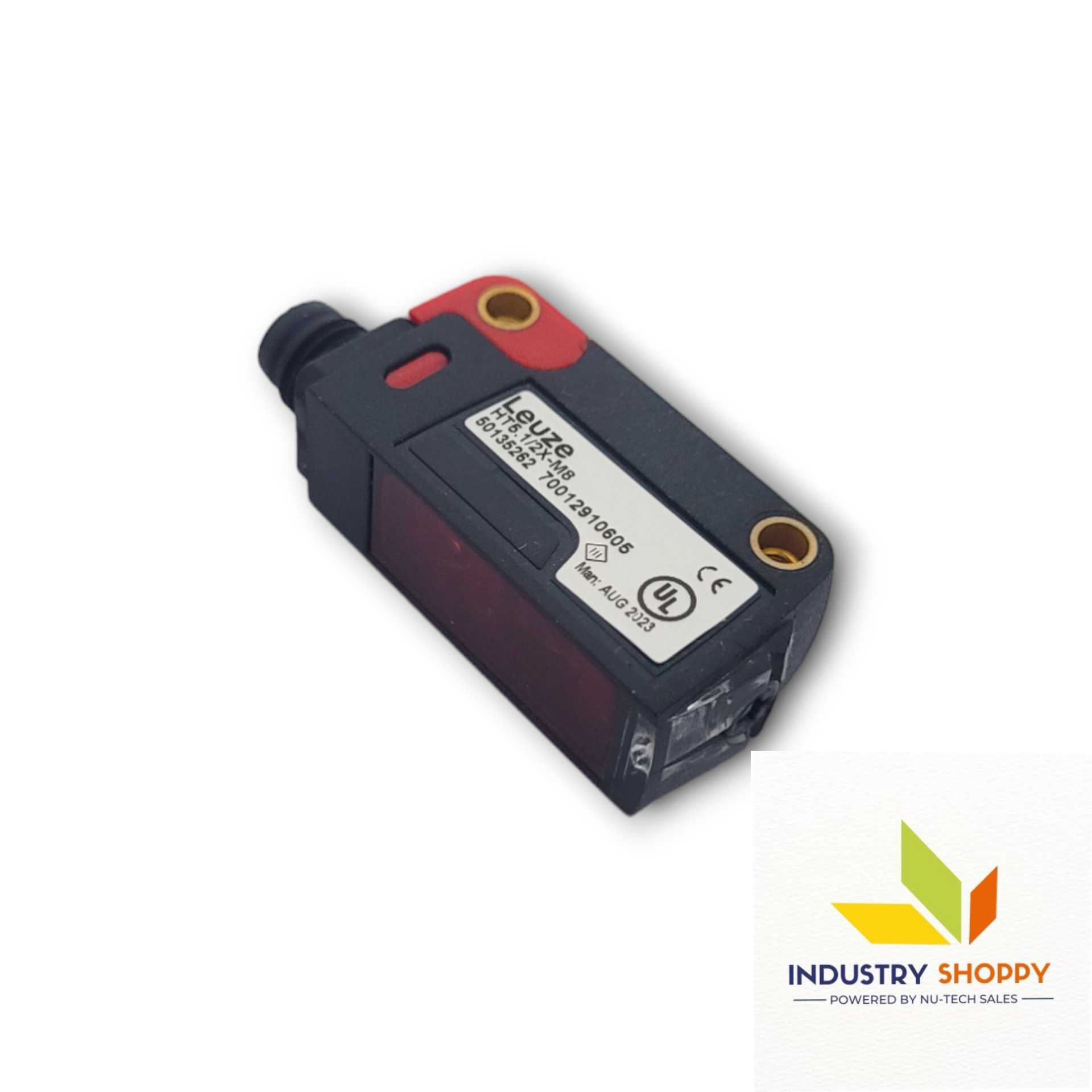

Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze HT5.1/2X-M8 Diffuse Sensor
Leuze

Leuze HT5.1/2X-M8 Diffuse Sensor

Product SKU: NTSSEN00238
Available:
Only 9 items in stock
9 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 15 mA
  • Switching element : Transistor, NPN
  • Type of connection : M8 Connector 4 Pins
  • Warranty : 12 Months
Rs. 2,925.00
Rs. 4,425.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Leuze HT5.1/2X-M8 Diffuse Sensor

The Leuze HT5.1/2X-M8 Diffuse Sensor (HT512XM8), with part number 50135262, belongs to Series 5 and operates on the diffuse reflection principle with background suppression. It ensures reliable performance with a black-white error of less than 15% up to 200 mm. The operating range varies depending on the color of the object, with guaranteed ranges for white, gray, and black surfaces. The adjustment range spans from 15 to 400 mm, providing flexibility in application.

The Leuze HT5.1/2X-M8 Diffuse Sensor is featuring a focused beam path and a red LED light source with a wavelength of 645 nm, this sensor offers precise detection capabilities. Its compact design, with dimensions of 11.4 mm x 32.1 mm x 17.8 mm and a lightweight of 10 g, makes it suitable for various installations. The sensor operates within a wide temperature range, from -40 to 60 °C during operation and -40 to 70 °C for storage, ensuring reliability in diverse environments. With an IP 67 degree of protection and certifications including cUL US, it meets stringent industry standards for quality and safety.

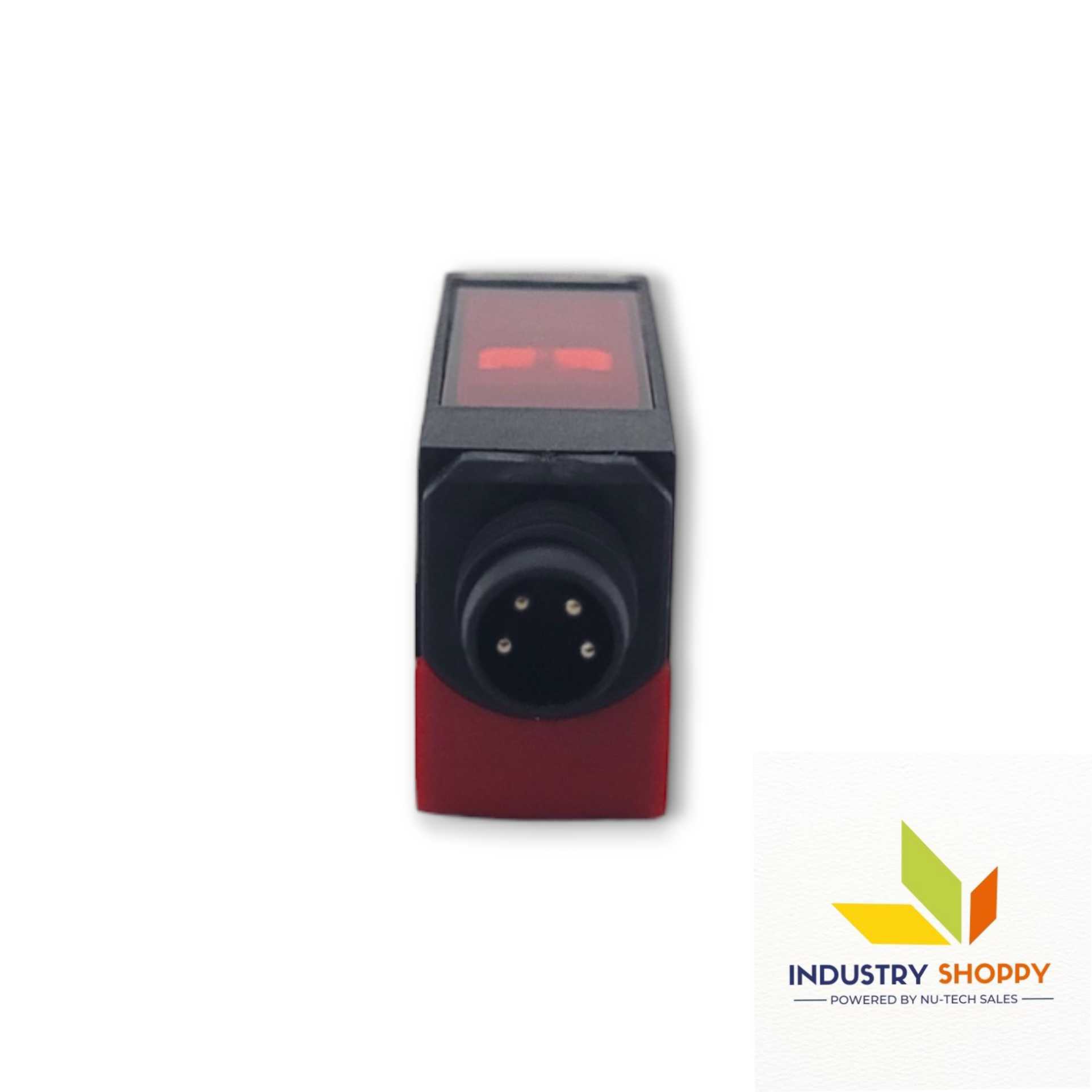

The Leuze HT5.1/2X-M8 Diffuse Sensor has equipped with a four-pin male connector for easy installation and features operational controls including a multiturn potentiometer for range adjustment. Its robust construction, made of plastic housing with PC-ABS material and PMMA lens cover, ensures durability.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


Product NumberHT5.1/2X-M8
Part Number50135262
Series5
Operating principleDiffuse reflection principle with background suppression
Black-white error< 15% up to 200 mm
Operating rangeGuaranteed operating range
Operating range, white 90%0.005 ... 0.4 m
Operating range, gray 18%0.01 ... 0.3 m
Operating range, black 6%0.015 ... 0.2 m
Operating range limitTypical operating range
Operating range limit0.005 ... 0.4 m
Adjustment range15 ... 400 mm
Beam pathFocused
Light sourceLED, Red
Wavelength645 nm
LED groupExempt group (in acc. with EN 62471)
Type of light spot geometryRound
FocusFixed
Focal distance200 mm
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA
Switching elementTransistor, NPN
Switching principleLight switching
Switching frequency1,000 Hz
Response time0.5 ms
Readiness delay300 ms
FunctionSignal OUT
 Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialPlastic
No. of pins4 -pin
Dimension (W x H x L)11.4 mm x 32.1 mm x 17.8 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorBlack
 Red
Type of fasteningTwo M3 threaded sleeves
 Via optional mounting device
Type of displayLED
Operational controlsMultiturn potentiometer
Function of the operational controlRange adjustment
Ambient temperature, operation-40 °C to 60 °C
Ambient temperature, storage-40 °C to 70 °C
Degree of protectionIP 67
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
