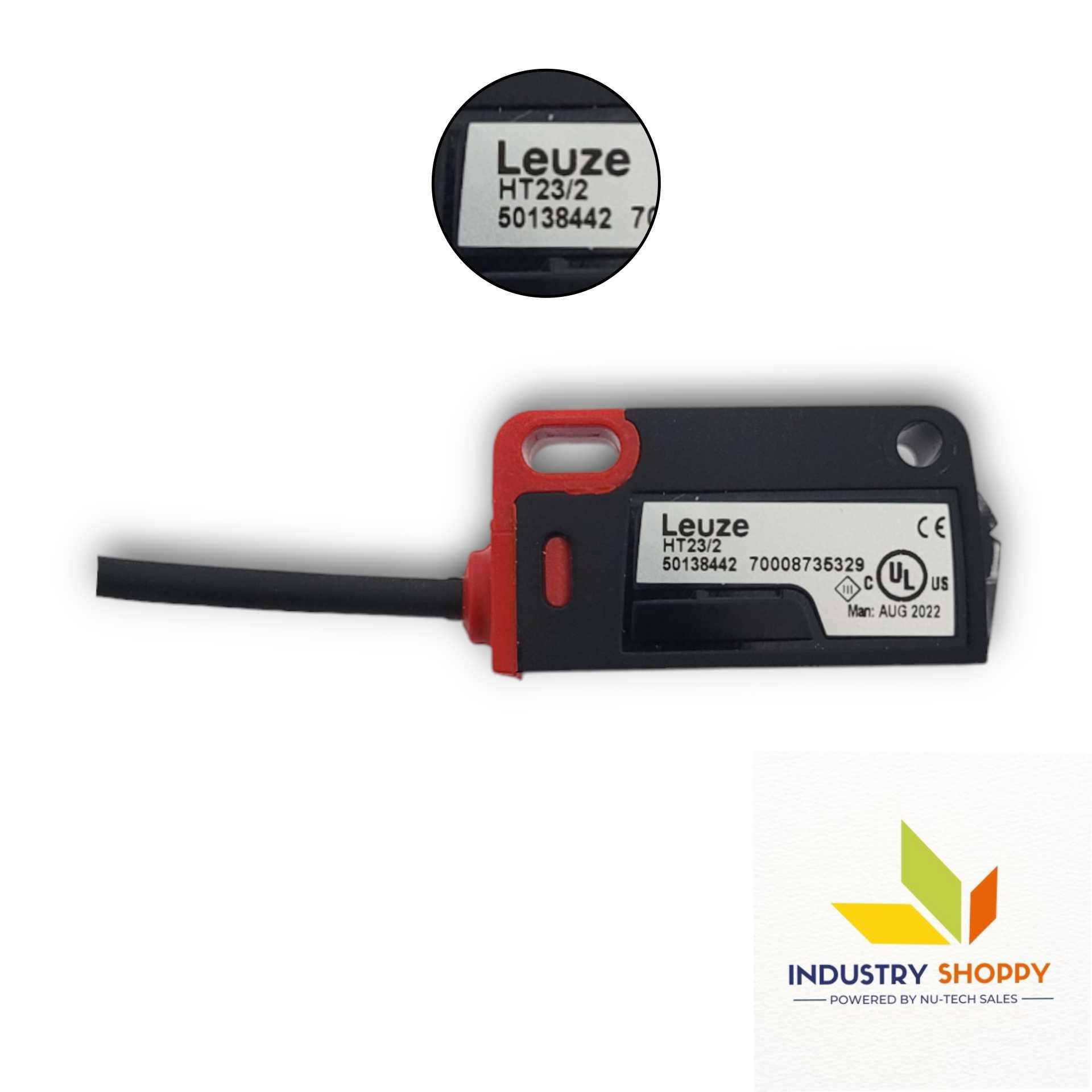

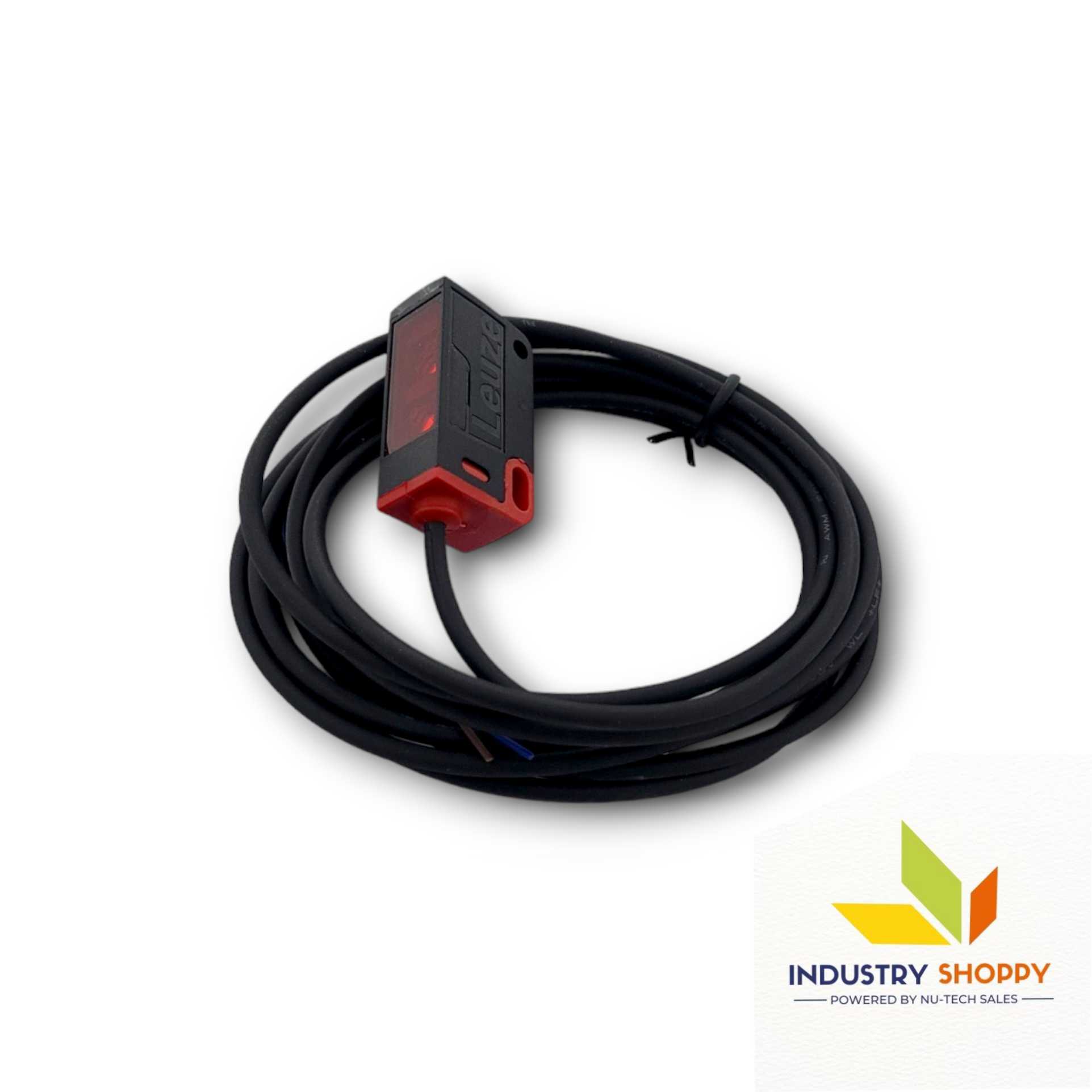

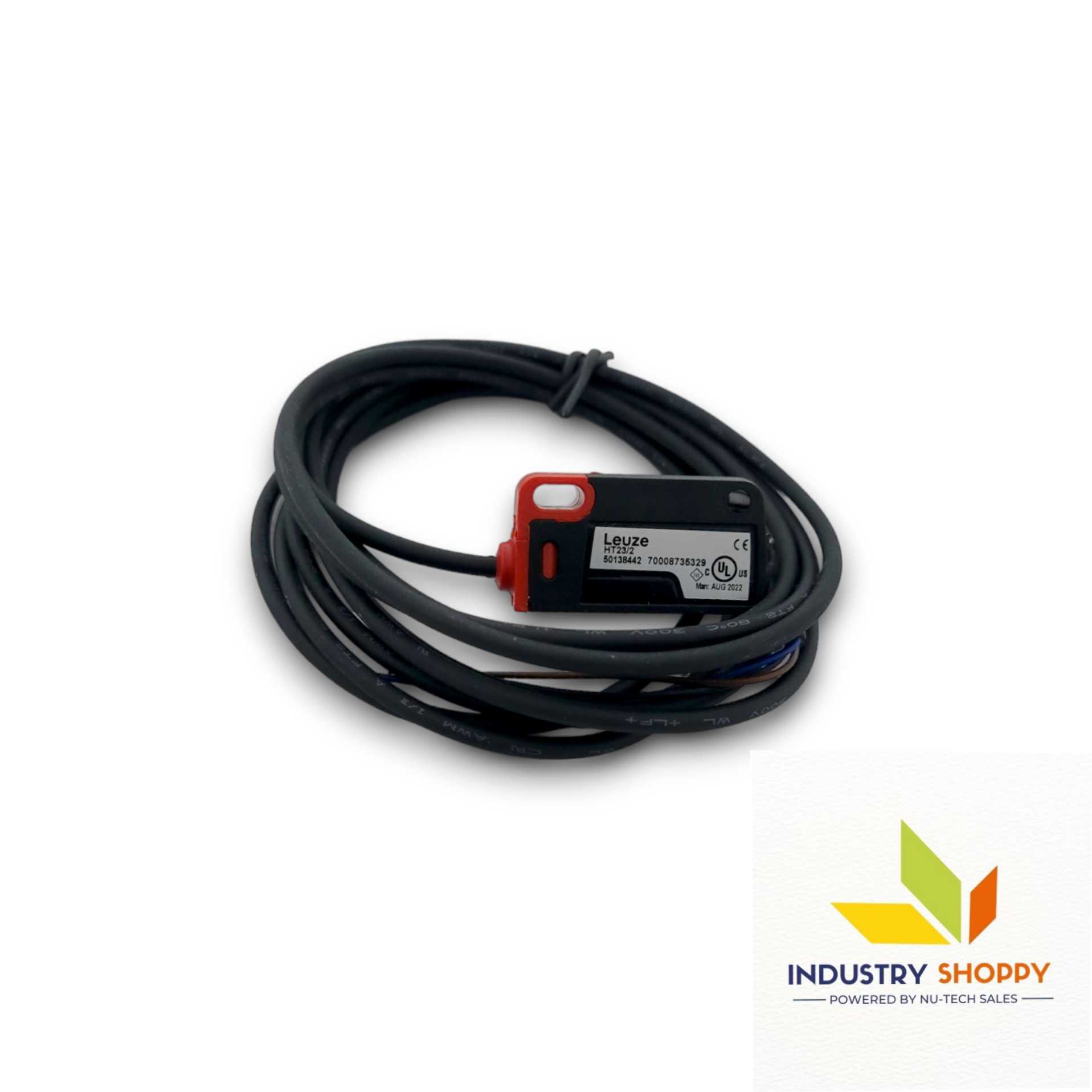

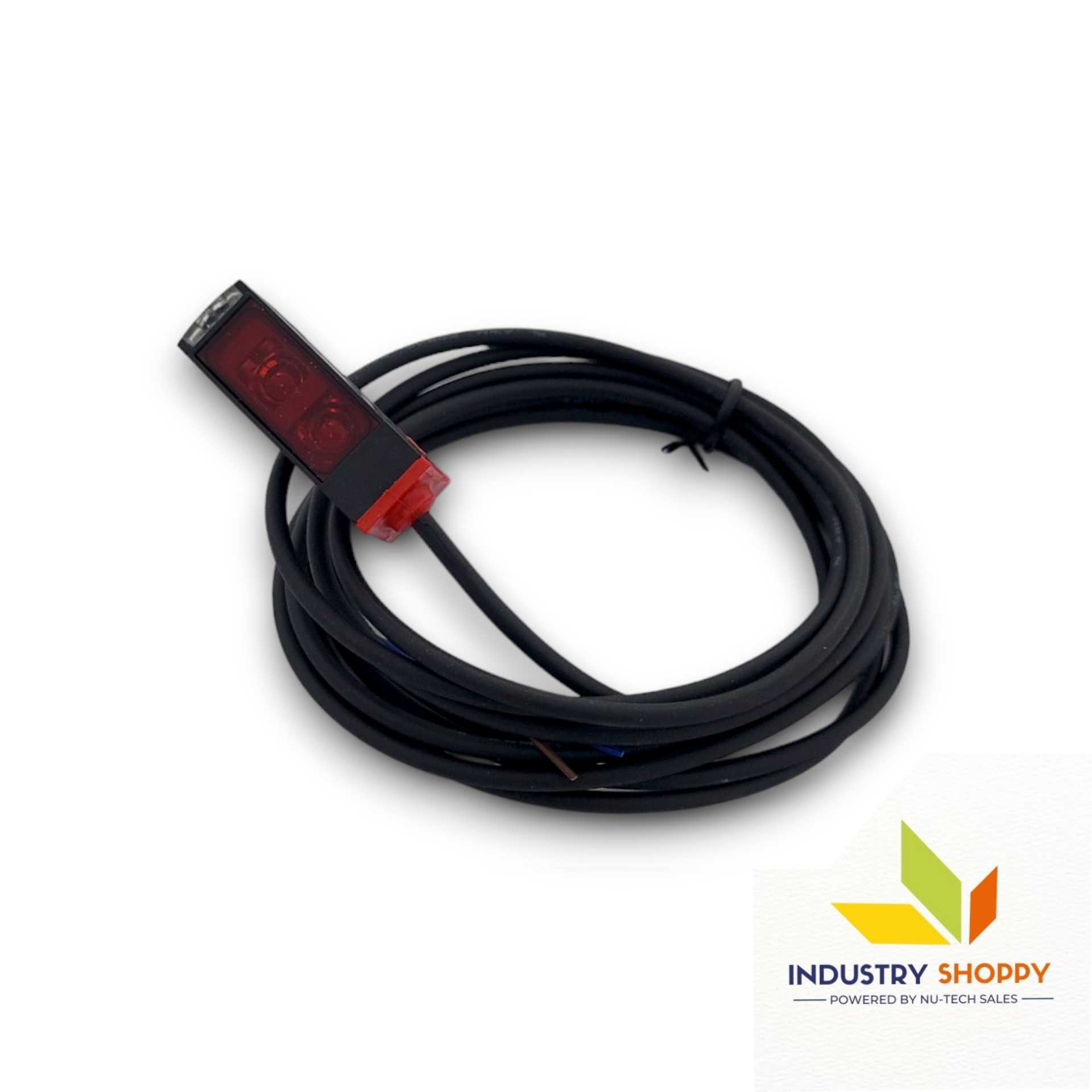

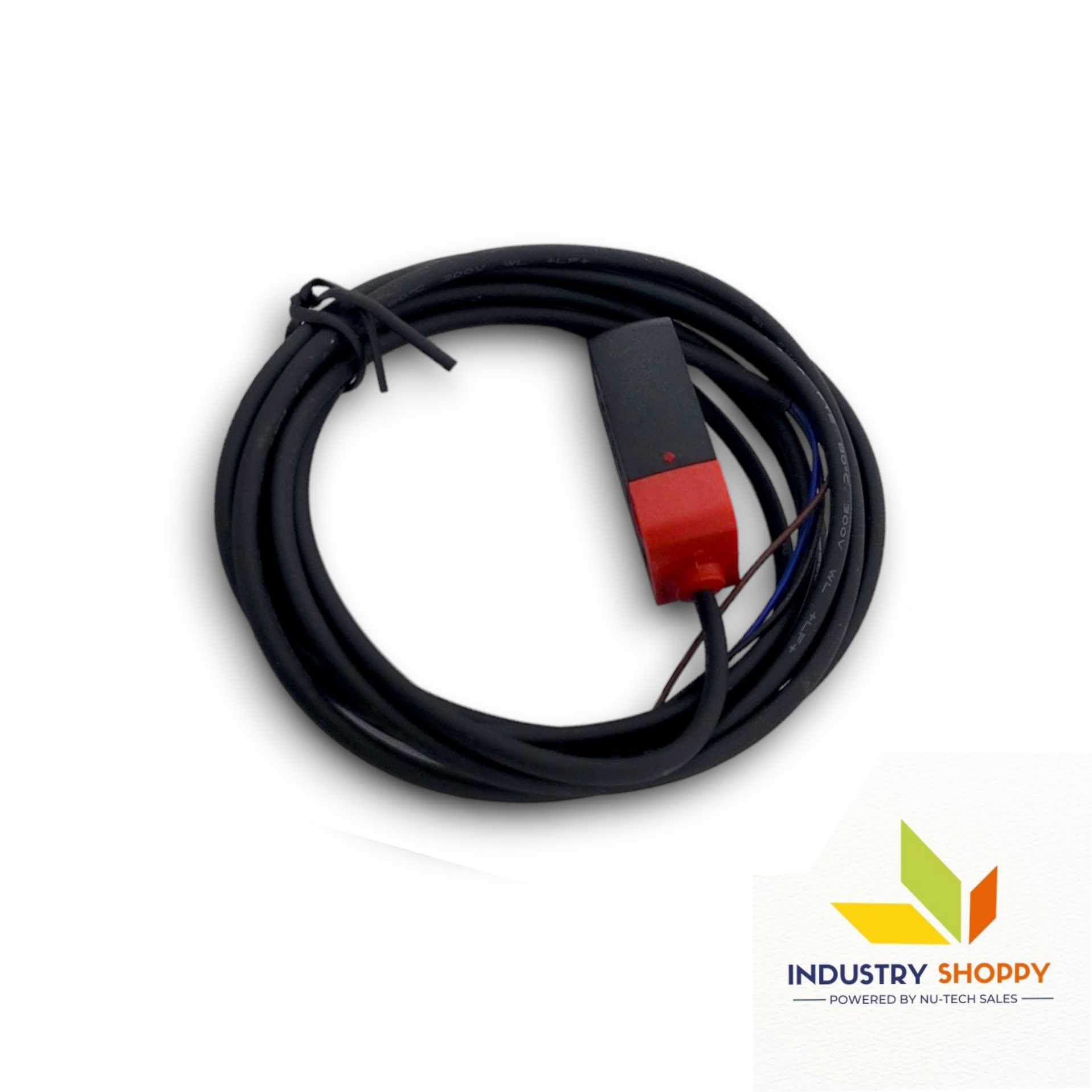

Leuze HT23/2 Diffuse Sensor with Background Suppression

The Leuze HT23/2 Diffuse sensor with background suppression (Part No. 50138442) from the Series 23 is a compact diffuse reflective photoelectric sensor with background suppression, ideal for precise object detection at short distances. It offers a focused red LED beam (645 nm) with a fixed focal distance of 200 mm, delivering reliable detection up to 400 mm, even for low-reflectivity targets.

Engineered for accuracy, it maintains a <15% black-white error up to 200 mm and operates with a fast 0.5 ms response time and 1,000 Hz switching frequency. The NPN output supports light switching mode. A multiturn potentiometer allows easy range adjustment, while a status LED provides at-a-glance diagnostics.

The sensor features a durable PC-ABS housing, IP67 protection, and a 2-meter PUR cable for industrial use in temperatures ranging from -40°C to +60°C. Certified to IEC 60947-5-2 and c UL US standards.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


Product NumberHT23/2
Part Number50138442
Series23
Operating PrincipleDiffuse reflection with background suppression
Black-White Error<15% up to 200 mm
Operating Range (Guaranteed)White 90%: 0.005–0.4 m
Gray 18%: 0.01–0.3 m
Black 6%: 0.015–0.2 m
Operating Range (Typical)0.005–0.4 m
Adjustment Range15–400 mm
Beam PathFocused
Light SourceLED, Red
Wavelength645 nm
LED GroupExempt group (EN 62471)
Light Spot GeometryRound
FocusFixed
Focal Distance200 mm
Supply Voltage UB10–30 V DC (incl. residual ripple)
Residual Ripple0–15% of UB
Open-Circuit Current0–15 mA
Switching ElementTransistor, NPN
Switching PrincipleLight switching
Switching Frequency1,000 Hz
Response Time0.5 ms
Readiness Delay300 ms
FunctionSignal OUT / Voltage supply
Type of ConnectionCable
Cable Length2,000 mm
Sheathing MaterialPUR
Cable ColorBlack
Number of Conductors3-wire
Wire Cross Section0.14 mm²
Dimension (W × H × L)11.4 × 34.2 × 18.3 mm
Housing MaterialPlastic
Plastic HousingPC-ABS
Lens Cover MaterialPlastic / PMMA
Housing ColorBlack / Red
Type of FasteningVia optional mounting device
Type of DisplayLED
Operational ControlsMultiturn potentiometer
Function of Operational ControlRange adjustment
Ambient Temperature (Operation)-40 to 60 °C
Ambient Temperature (Storage)-40 to 70 °C
Degree of ProtectionIP67
Protection ClassIII
CertificationscUL US
Standards AppliedIEC 60947-5-2
