Product SKU: NTSSEN00288
Available:
Only 2 items in stock
2 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  18 – 30 V, DC
  • Open-circuit current : 0 … 60 mA
  • No. of Pins  : 5 Pins
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 24,840.00
Rs. 33,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

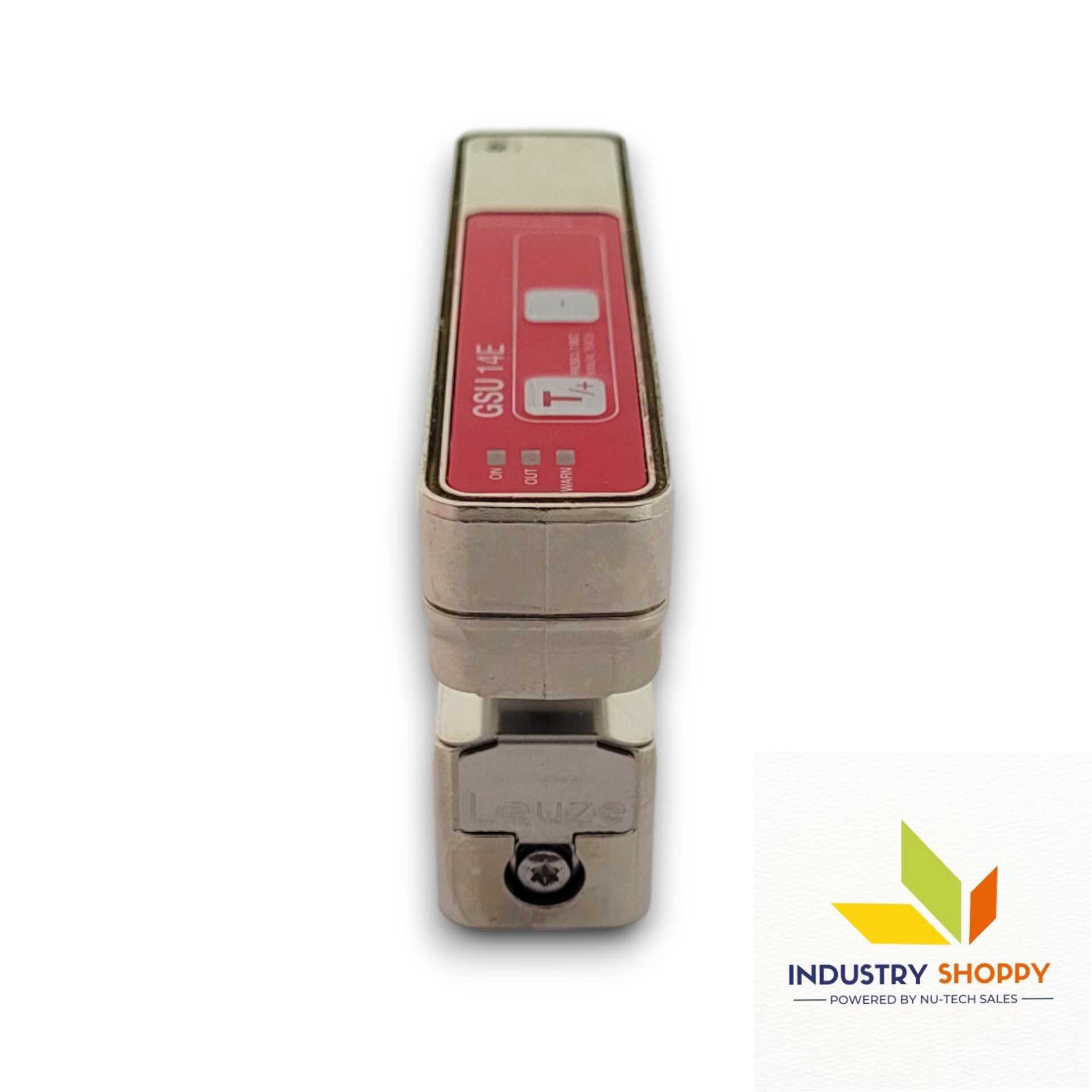

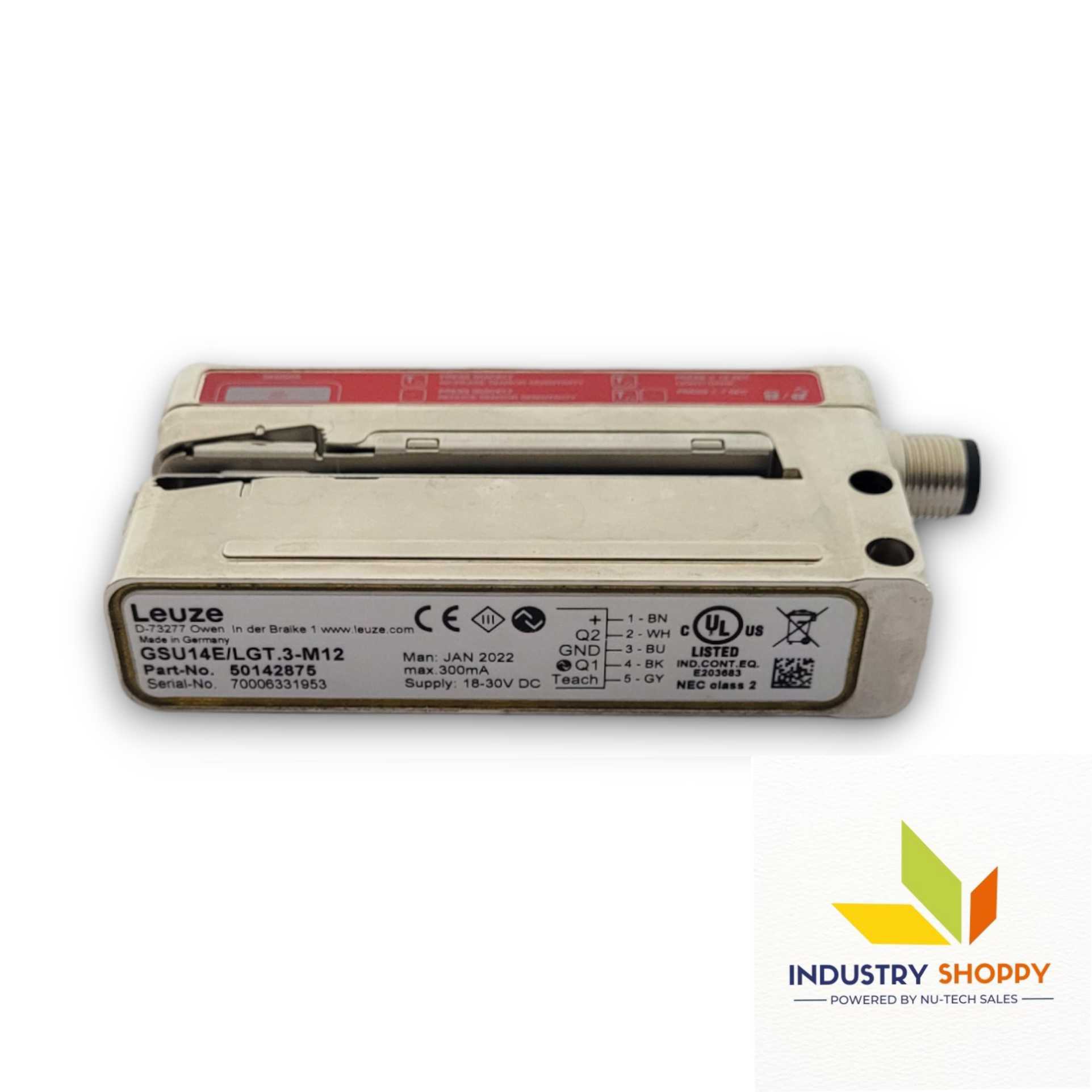

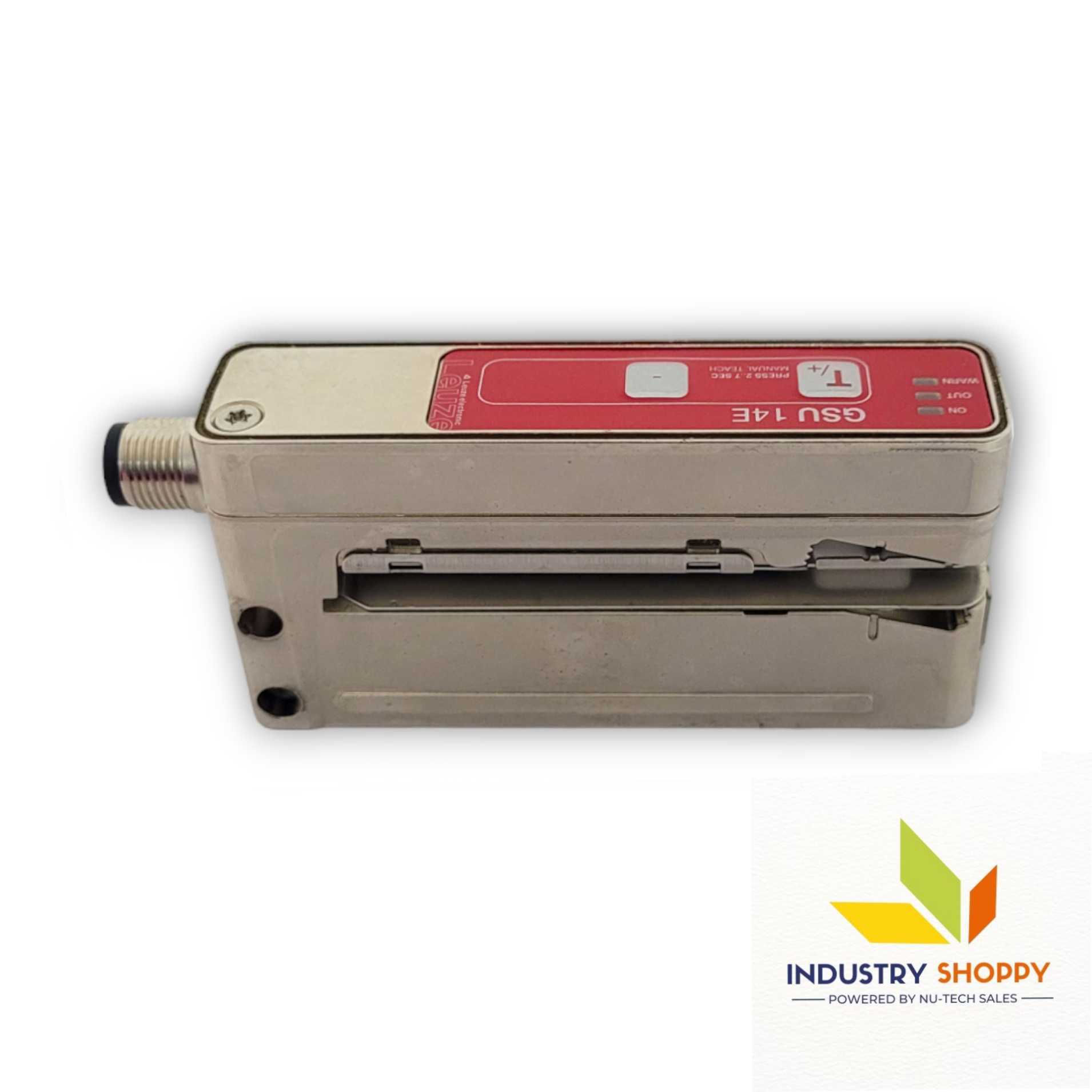

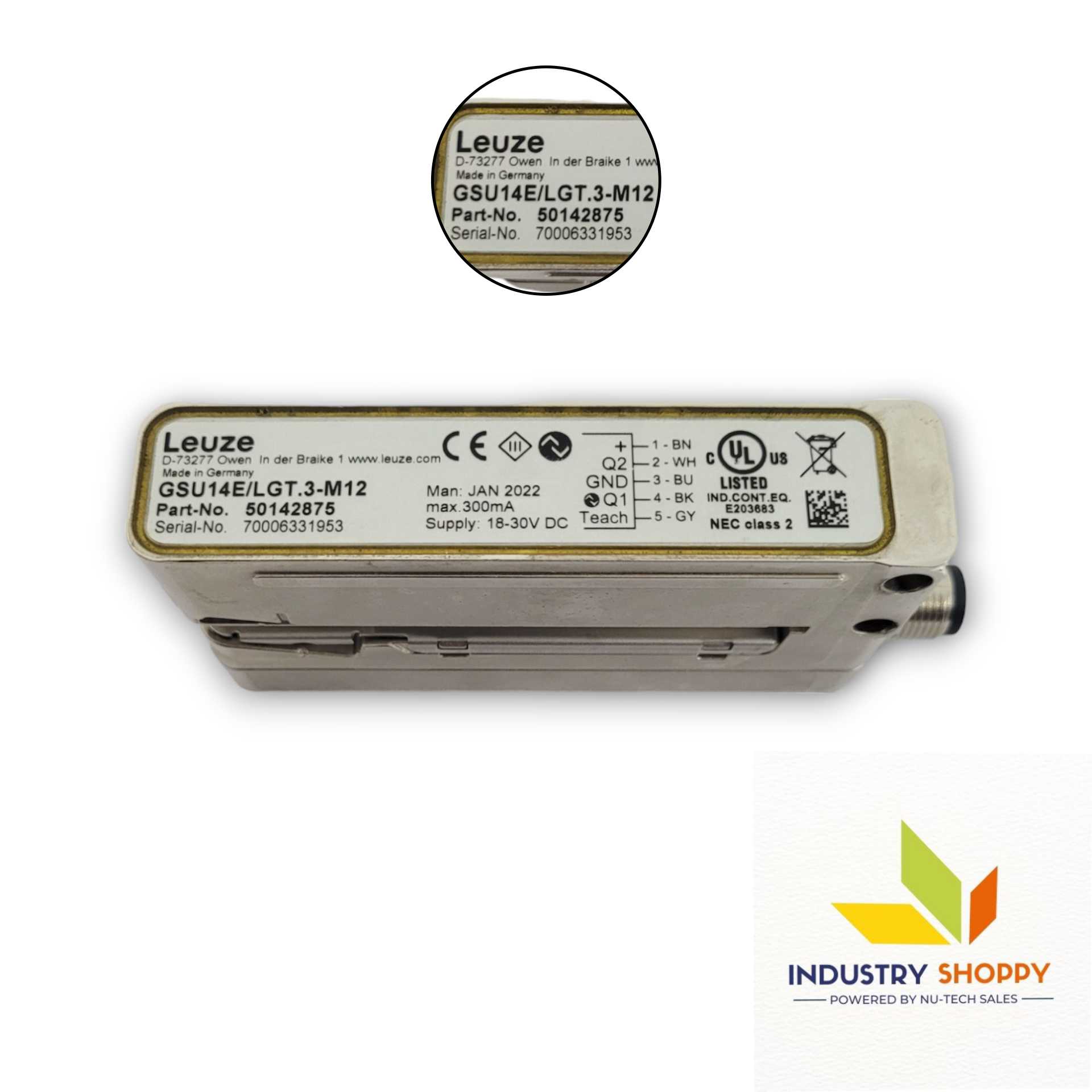

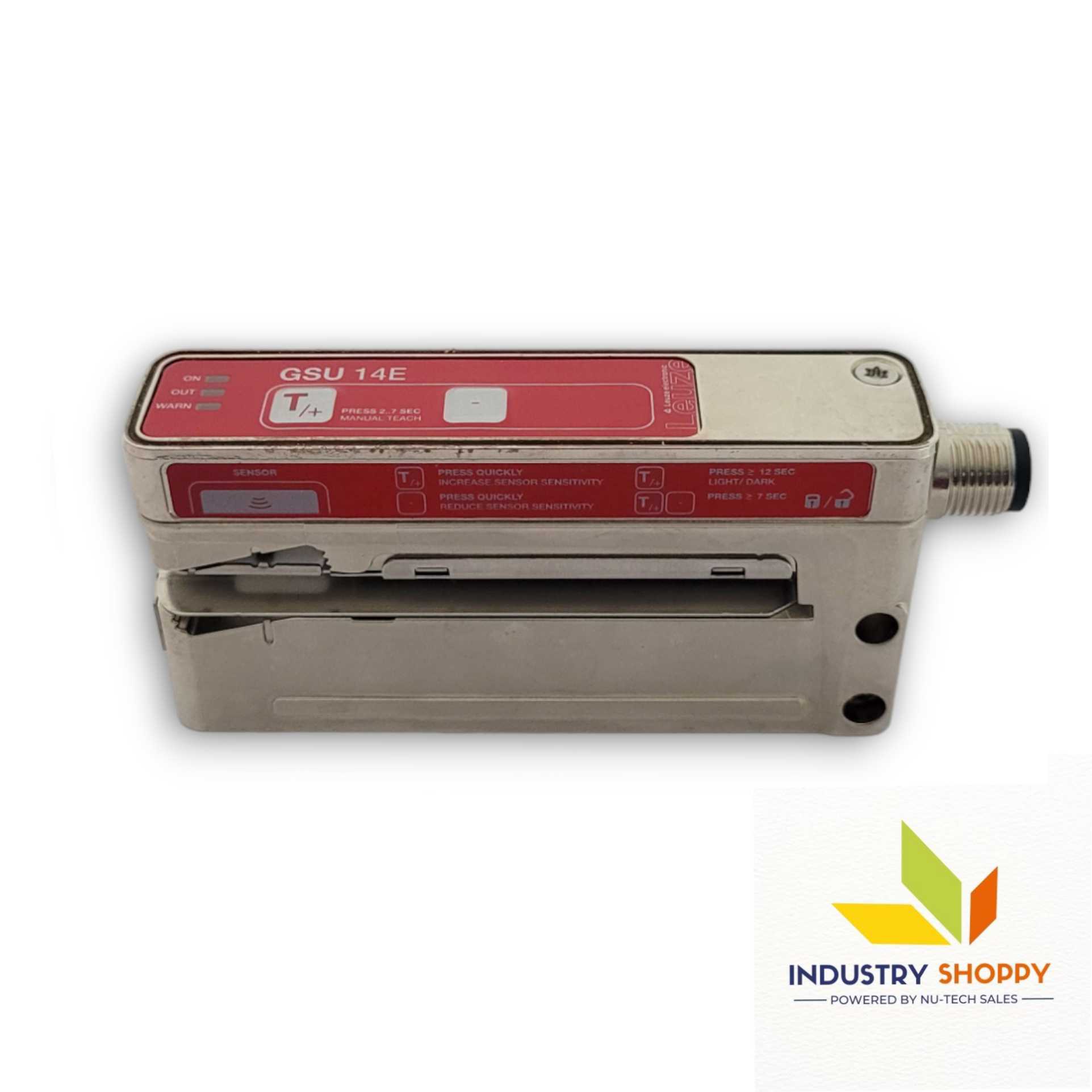

Leuze GSU14E/LGT.3-M12 Fork Sensor

The Leuze GSU14E/LGT.3-M12 Fork Sensor (GSU14ELGT3M12) Ultrasonic Fork Sensor, part number 50142875, belongs to the Series 14 and operates on the principle of ultrasonics. The GSU14E/LGT.3-M12 Ultrasonic Fork Sensor is versatile, capable of detecting both transparent and non-transparent labels. It boasts a minimum label width of 4mm and a gap of 2mm, ensuring accurate detection in various applications.

Operating within a supply voltage range of 18 to 30V DC, it ensures reliable detection with minimal residual ripple. Equipped with a teach input type and digital switching output, it offers high switching currents and voltages for effective performance.

Constructed with a robust metal housing and a fork design, it boasts precise dimensions of 22mm width, 46.9mm height, and 96mm length. With operational controls via control buttons and dynamic teach features, it's suitable for varied industrial environments.

Designed for durability, the sensor withstands ambient temperatures ranging from 0 to 60°C during operation and -40 to 70°C during storage, ensuring consistent performance in demanding conditions.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


ParameterSpecification
Product NumberGSU14E/LGT.3-M12
Part Number50142875
Series14
Principle of physicsUltrasonics
ApplicationDetection of non-transparent labels, Detection of transparent labels
Label width, min.4 mm
Label gap, min.2 mm
MediumTransparent and not transparent
Supply voltage UB18 ... 30 V, DC
Residual ripple0 ... 10 %, From UB
Open-circuit current0 ... 60 mA, Typical value
TypeTeach input
Voltage typeDC
Switching voltage (Teach input)high: ≥9V, low: ≤2 V
Input resistance15,000 Ω
Active switching stateHigh
Number of digital switching outputs2 Piece(s)
Type (Output)Digital switching output
Voltage type (Output)DC
Switching current, max.100 mA
Switching voltage (Output)high: ≥(UB-2V), low: ≤2 V
Load capacity0.01 µF
Switching elementTransistor, Push-pull
Switching principleIO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label); NPN light switching (switching in the gap), PNP dark switching (switching on the label)
Switching frequency2,000 Hz
Response time0.2 ms
Readiness delay300 ms
Max. conveyor speed during teach-in50 m/min
IO-Link typeIO-Link
COM modeCOM3
ProfileSmart sensor profile
Min. cycle timeCOM3 = 0.5 ms
Frame type2.5
SpecificationV1.1
Device ID2520
SIO-mode supportYes
FunctionSignal IN, Signal OUT, Voltage supply

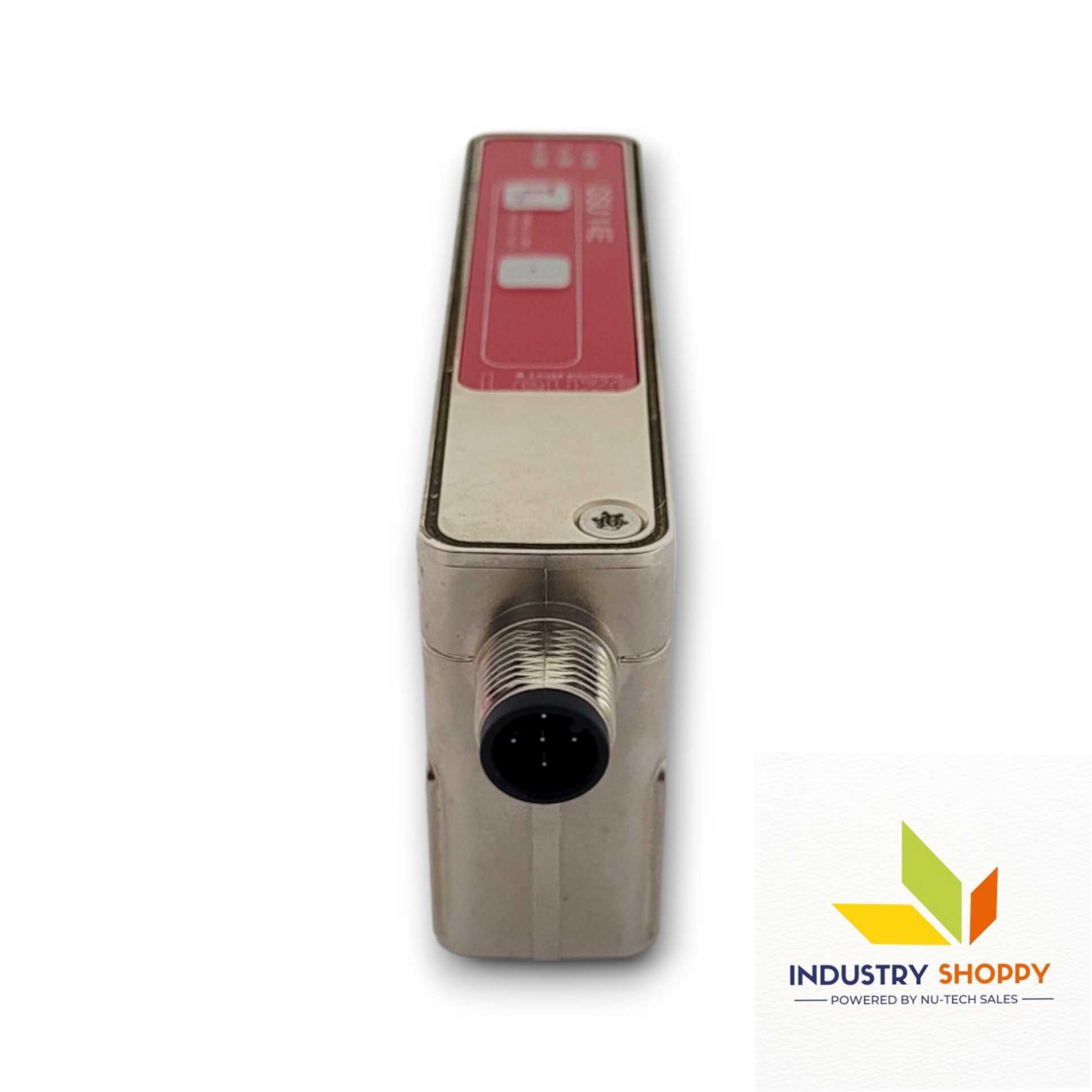

Type of connectionConnector
Thread sizeM12
Type (Connector)Male
Material (Connector)Metal
Number of pins5-pin
EncodingA-coded
Plug outletHorizontal (parallel to belt movement)
DesignFork
Mouth width4 mm
Mouth depth80 mm
Dimension (W x H x L)22 mm x 46.9 mm x 96 mm
Housing materialMetal
Metal housingDiecast zinc, galvanic nickel coating
Housing colorSilver
Type of fasteningMounting thread, Through-hole mounting
Type of displayLED
Number of LEDs3 Piece(s)

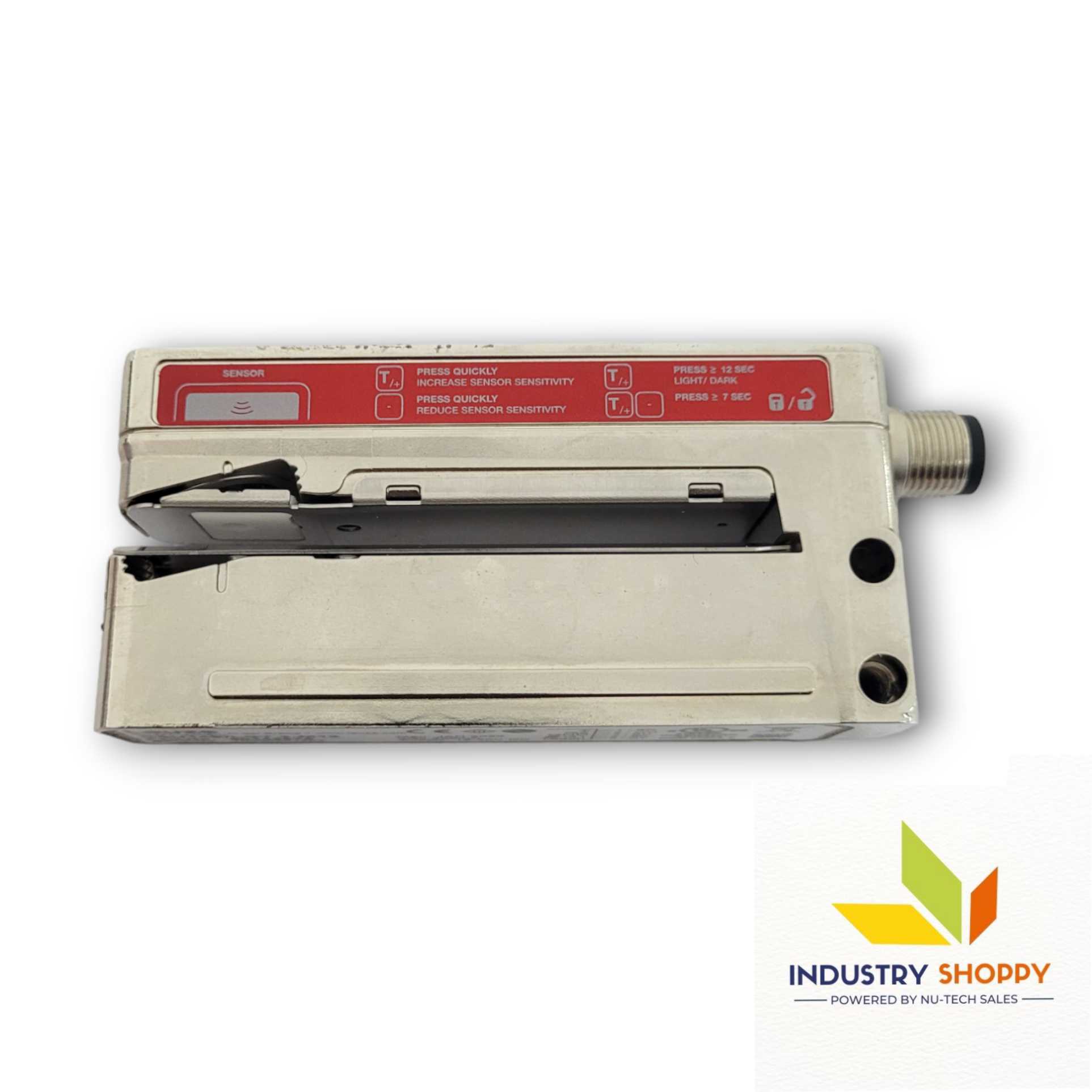

Operational controlsControl buttons
Function of the operational controlDynamic teach on label carrier and label
Ambient temperature, operation0 ... 60 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP 65
Protection classIII
Certificationsc UL US
Standards appliedEN 60947-5-2:2007+A1:2012
US patentsUS 6,314,054 B
Country of originMalaysia
