Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze GS63B/6D-S8 Fork Photoelectric Sensor
Leuze

Leuze GS63B/6D-S8 Fork Photoelectric Sensor

Product SKU: NTSSEN00287
Available:
Only 6 items in stock
6 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 30 mA
  • No. of Pins  : 4 Pins
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 8,245.00
Rs. 22,110.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

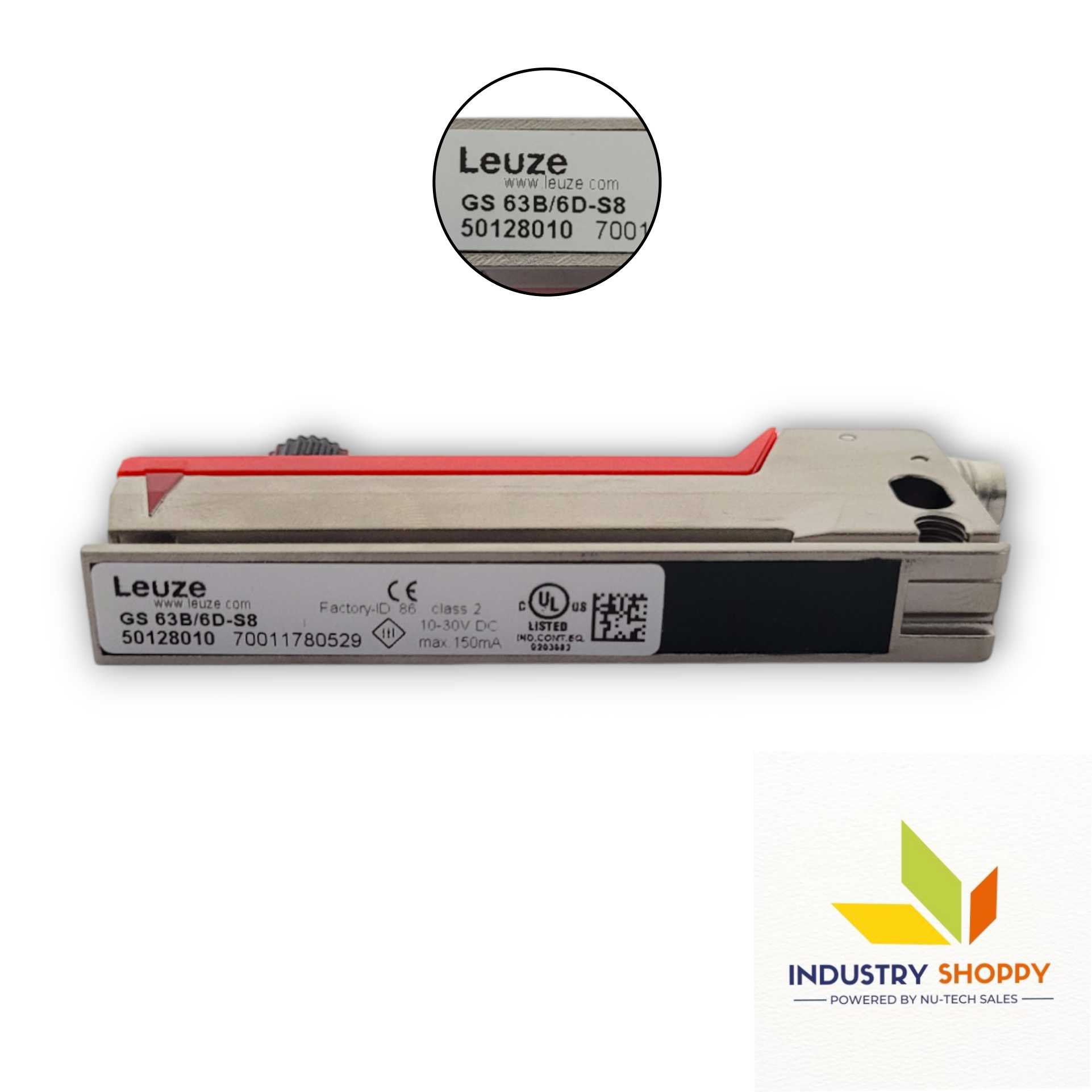

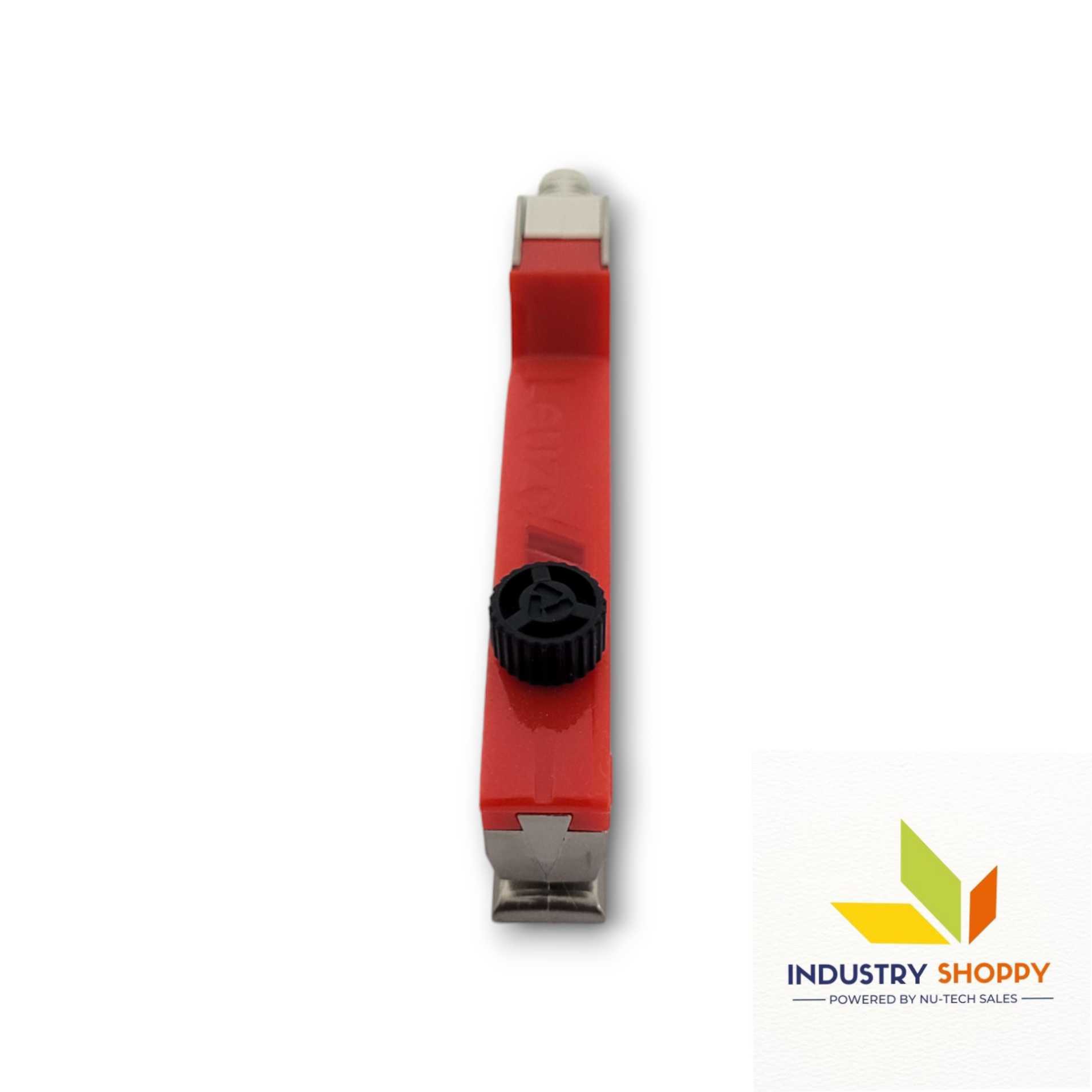

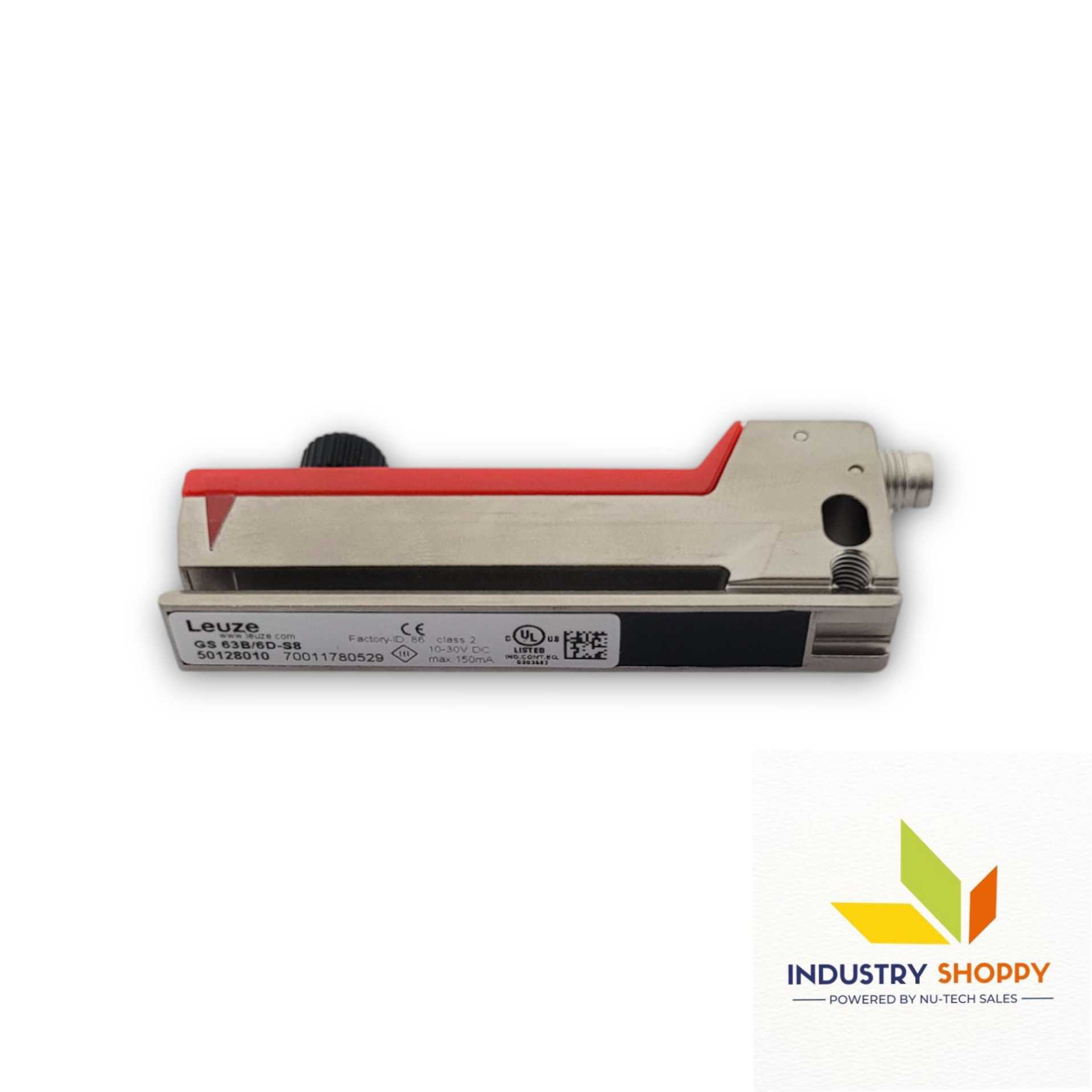

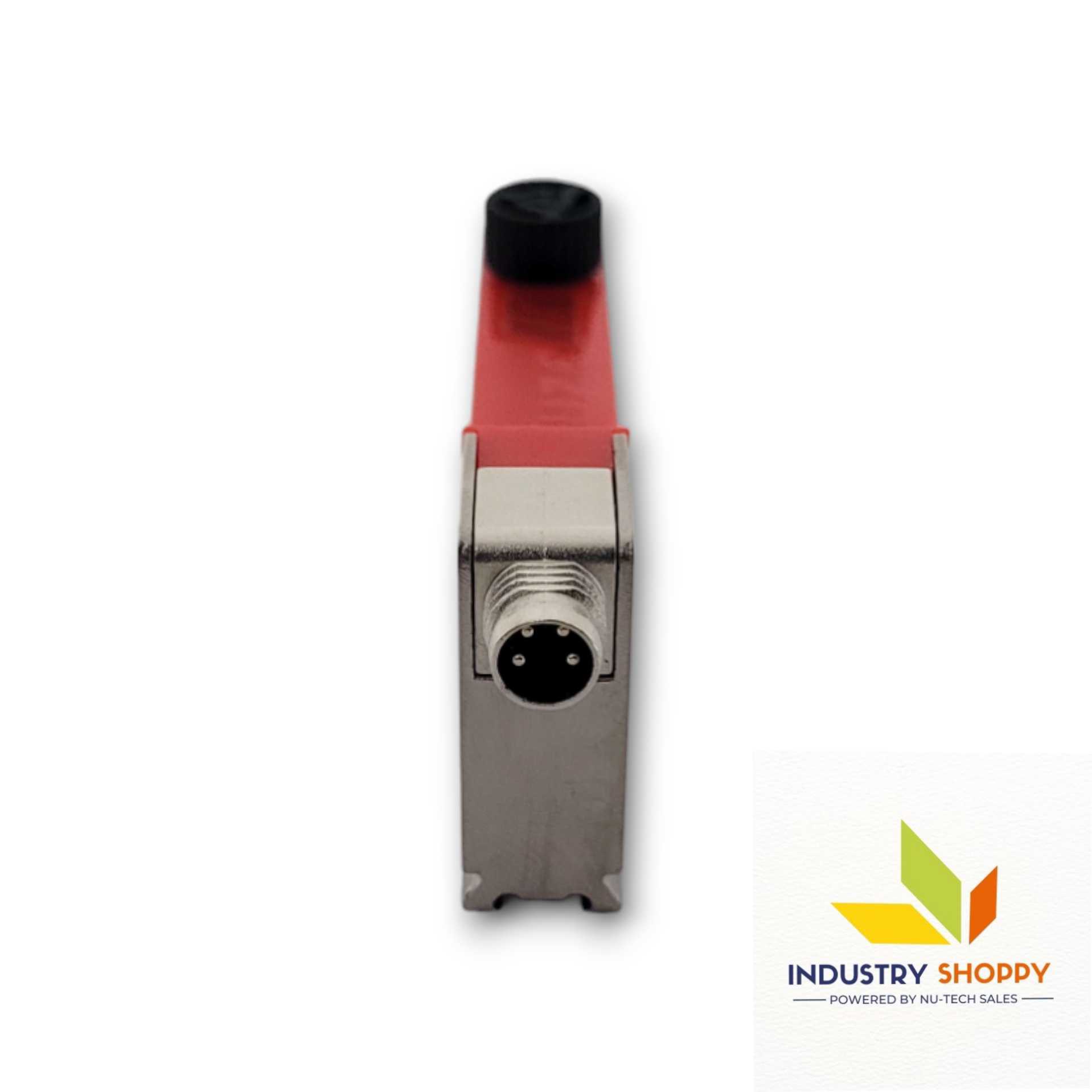

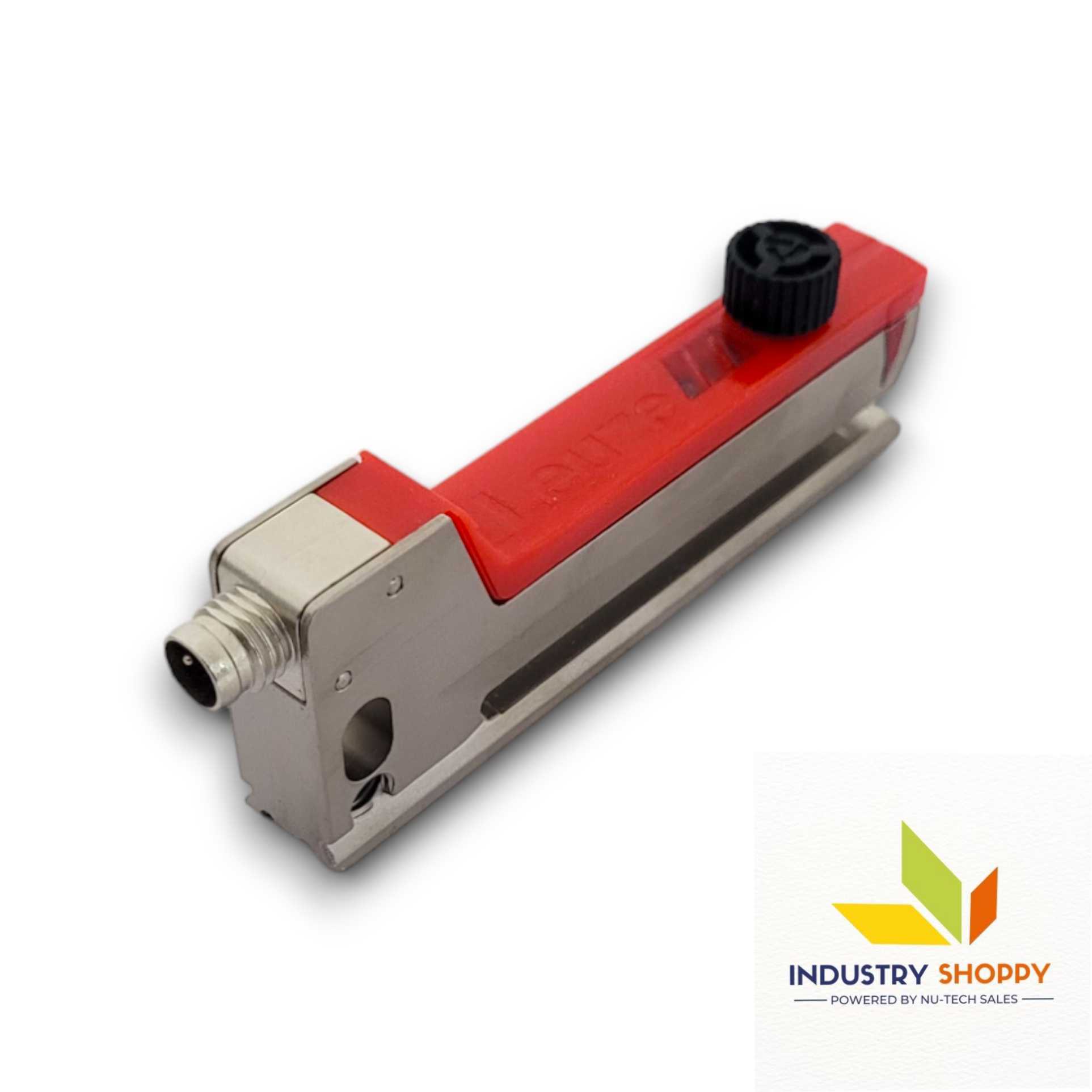

Leuze GS63B/6D-S8 Fork Photoelectric Sensor

The Leuze GS63B/6D-S8 Fork Photoelectric Sensor (Part No.: 50128010) is a high-performance sensor designed for precise detection of non-transparent labels in industrial applications. Featuring a compact fork design with a 3 mm mouth width and 61 mm depth, this sensor is ideal for high-speed labeling tasks.

It uses an infrared LED light source (940 nm) with pulsed signal transmission to ensure accurate detection of labels with a minimum width and gap of 2 mm. The sensor responds in just 0.05 ms and switches at 10,000 Hz, making it ideal for high-speed production lines. The GS63B/6D-S8 withstands harsh environments with its durable diecast zinc housing and IP67-rated protection.

 It operates on a 10–30 V DC supply with integrated polarity reversal and short-circuit protection for added safety. Equipped with an 8-pin M8 connector, it allows for seamless integration into industrial setups. Compliant with IEC 60947-5-2 standards and approved by c UL US, this reliable sensor is perfect for applications requiring precision and durability in label detection.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberGS 63B/6D-S8
Part Number5011128010
Series63
Principle of physicsOptical
ApplicationDetection of non-transparent labels
Label width, min.2 mm
Label gap, min.2 mm
MediumNot transparent
Light sourceLED, Infrared
Wavelength940 nm
Transmitted-signal shapePulsed
Supply voltage UB10 ... 30 V, DC
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 30 mA
TypeDigital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V), low: ≤2 V
Switching elementTransistor, Push-pull
Switching principleSwitching signal on label
Switching frequency10,000 Hz
Response time0.05 ms
Readiness delay300 ms
Max. conveyor speed during teach-in20 m/min
FunctionSignal OUT, Voltage supply
Type of connectionConnector
Thread sizeM8
Type (Connector)Male
Material (Connector)Metal
Number of pins4-pin
Plug outletHorizontal (parallel to belt movement)
DesignFork
Mouth width3 mm
Mouth depth61 mm
Dimension (W x H x L)11 mm x 30 mm x 80 mm
Housing materialMetal, Plastic
Metal housingDiecast zinc, chemically nickel-plated
Plastic housingPC
Lens cover materialPlastic/PC
Housing colorRed, Silver
Type of fasteningThrough-hole mounting, Via optional mounting device
Type of displayLED
Number of LEDs2 Piece(s)
Operational controlsMultiturn potentiometer
Ambient temperature, operation-20 ... 60 °C
Ambient temperature, storage-30 ... 70 °C
Degree of protectionIP 67
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
Country of originChina
