68% Rs. 17,730.00
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze GS63B/6D.3 Photoelectric Sensor
Leuze

Leuze GS63B/6D.3 Fork Photoelectric Sensor

Product SKU: NTSSEN00427
Available:
Only 15 items in stock
15 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Part Number : 50146327
  • Supply voltage UB : 10 ... 30 V, DC
  • Open-circuit current : 0 ... 30 mA
  • Type of connection :  Cable
  • Warranty : 12 Months
Rs. 8,450.00
Rs. 26,180.00

+ GST @18% = Rs. 9,971.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

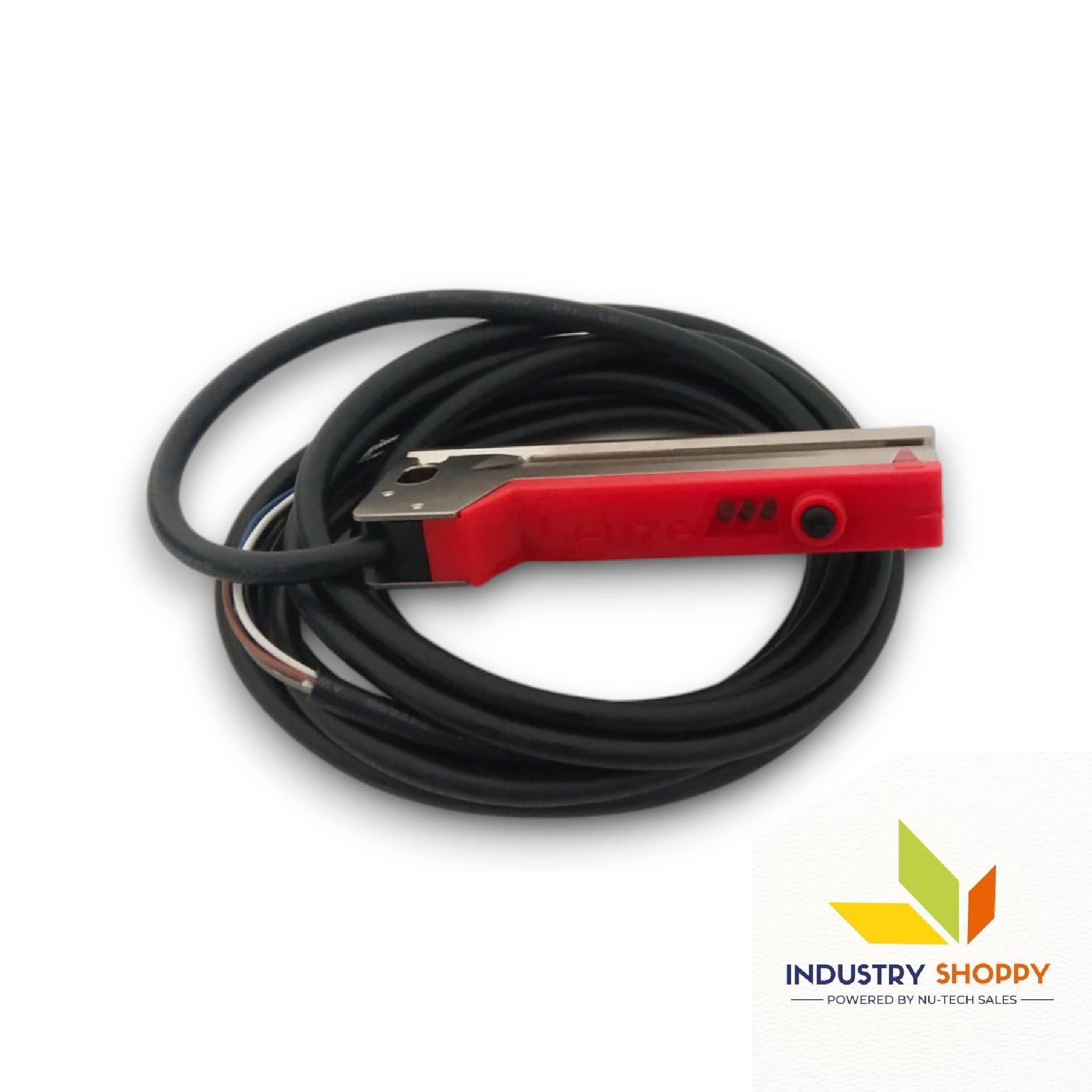

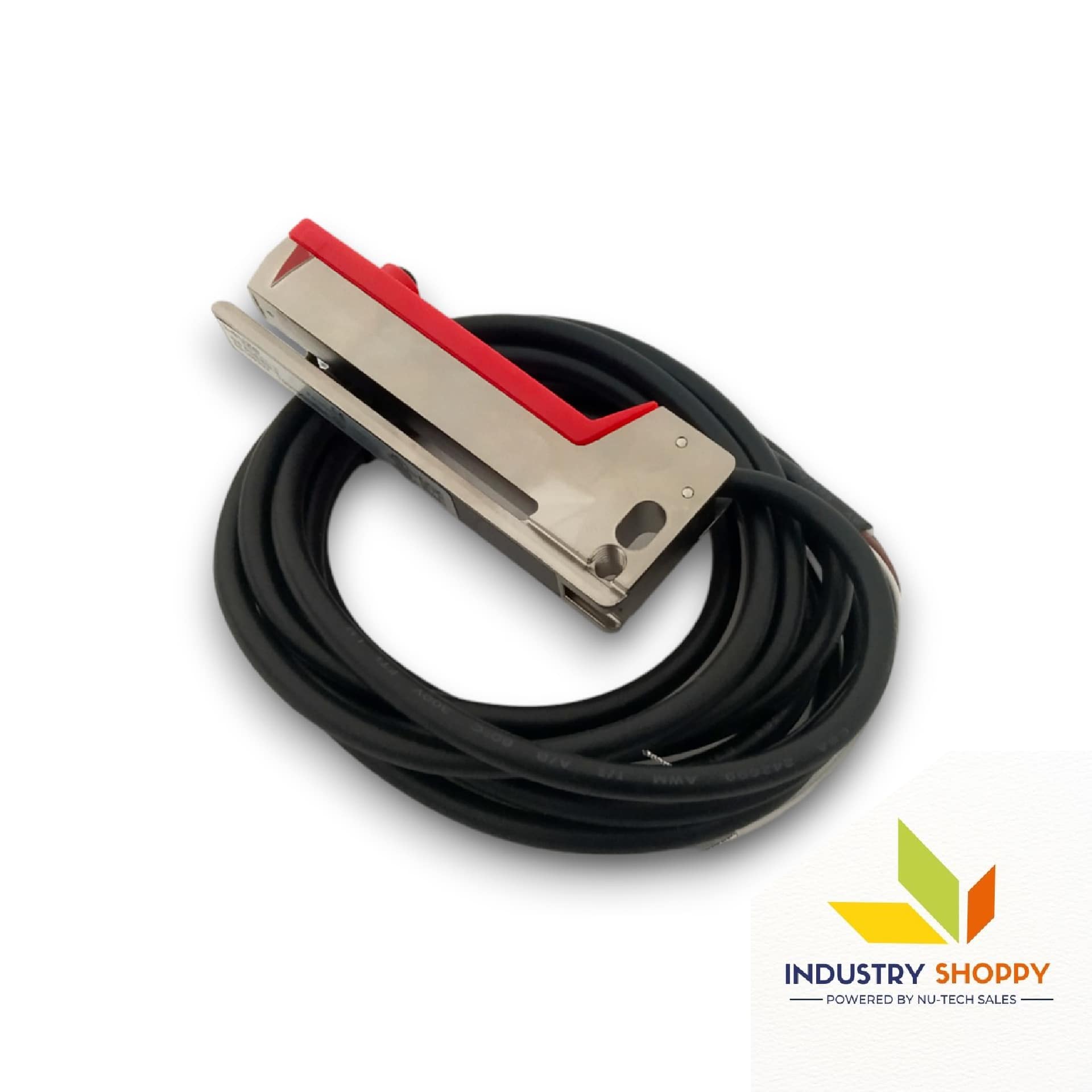

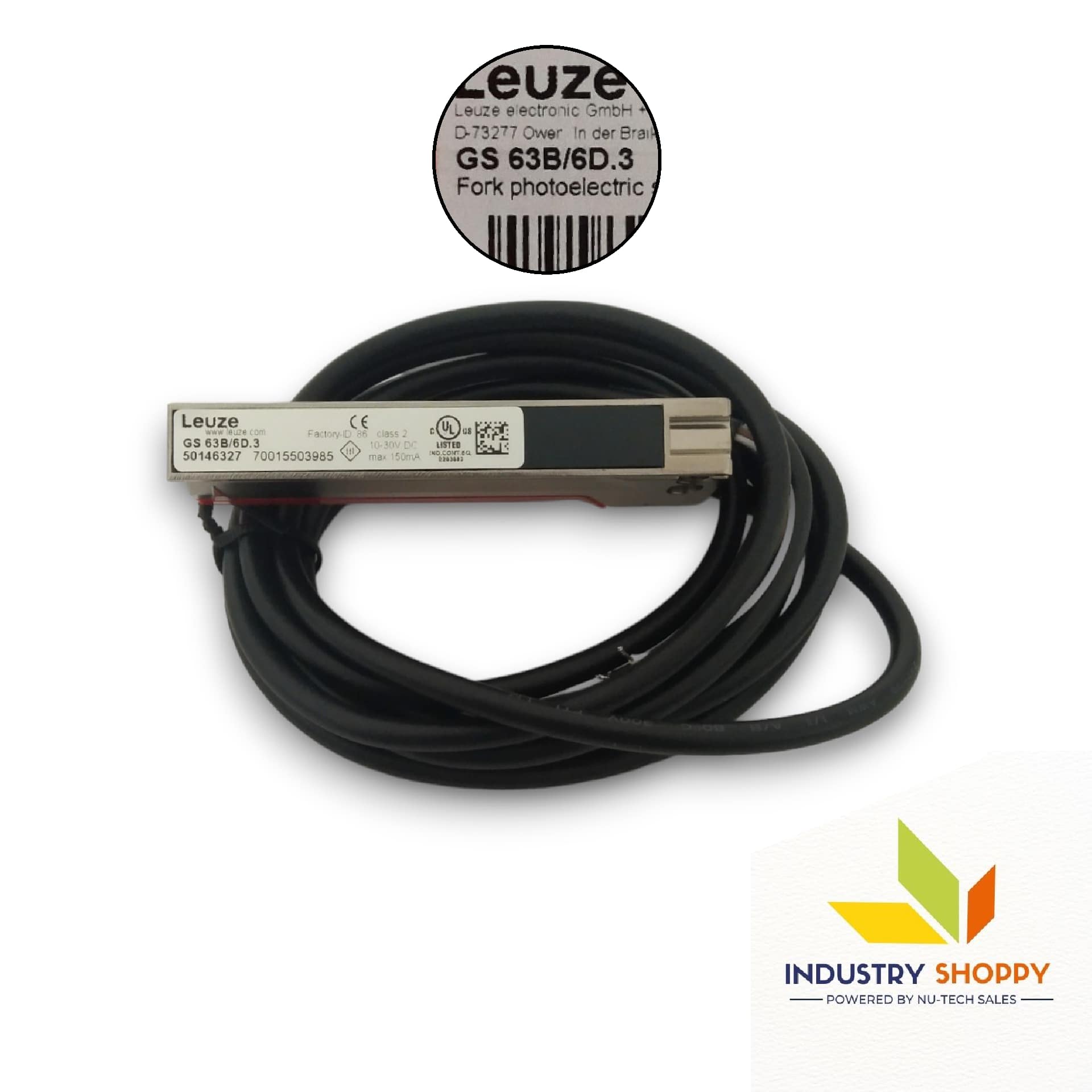

Leuze GS63B/6D.3 Fork Photoelectric Sensor

The Leuze GS63B/6D.3 Fork Photoelectric Sensor (Part No.: 50146327) is optimized for non-transparent label detection, making it ideal for high-speed labelling and packaging systems. Its robust fork design features a 3 mm mouth width and 61 mm depth, enabling reliable detection of labels and gaps as small as 2 mm.

Utilizing a 940 nm infrared LED with pulsed transmission, the sensor ensures precise and interference-resistant performance. It features a switching frequency of 10,000 Hz and a response time of just 0.05 ms, enabling ultra-fast operations. A teach input simplifies calibration and setup.

The sensor includes a push-pull transistor output, a 2,000 mm cable, and three LED indicators for operational status feedback. Its diecast zinc housing and IP67 protection ensure durability in harsh industrial environments.

Operating on 10–30 V DC and supporting up to 100 mA switching current, the GS63B/6D.3 complies with IEC 60947-5-2, making it a reliable solution for precision automation.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberGS63B/6D.3
BrandLeuze
Part Number50146327
Series63
Principle of PhysicsOptical
ApplicationDetection of non-transparent labels
Label Width, Min.2 mm
Label Gap, Min.2 mm
MediumNot transparent
Light SourceLED, Infrared
Wavelength940 nm
Transmitted-Signal ShapePulsed
Protective CircuitPolarity reversal protection, Short circuit protected
Supply Voltage UB10 ... 30 V DC
Residual Ripple0 ... 15 % from UB
Open-Circuit Current0 ... 30 mA
Type (Input/Output)Teach input, Digital switching output
Voltage TypeDC
Switching Voltage (Teach Input)High: ≥8 V, Low: ≤2 V
Active Switching StateHigh
Switching Current, Max.100 mA
Switching Voltage (Output)High: ≥(UB-2V), Low: ≤2 V
Switching ElementTransistor, Push-pull
Switching PrincipleSwitching signal on label
Switching Frequency10,000 Hz
Response Time0.05 ms
Readiness Delay300 ms
Max. Conveyor Speed During Teach-in20 m/min
Number of Connections1 Piece
FunctionSignal OUT, Teach input, Voltage supply
Type of ConnectionCable
Cable Length2,000 mm
Number of Conductors5-wire
DesignFork
Mouth Width3 mm
Mouth Depth61 mm
Dimension (W x H x L)11 mm x 30 mm x 80 mm
Housing MaterialMetal: Diecast zinc, chemically nickel-plated; Plastic: PC
Lens Cover MaterialPlastic/PC
Housing ColorRed / Silver
Type of FasteningThrough-hole mounting, Via optional mounting device
Type of DisplayLED
Number of LEDs3
Operational ControlsTeach button
Ambient Temperature (Operation)-20 ... 60 °C
Ambient Temperature (Storage)-30 ... 70 °C
Degree of ProtectionIP67
Protection ClassIII
Approvalsc UL US
Standards AppliedIEC 60947-5-2
Country of OriginChina
