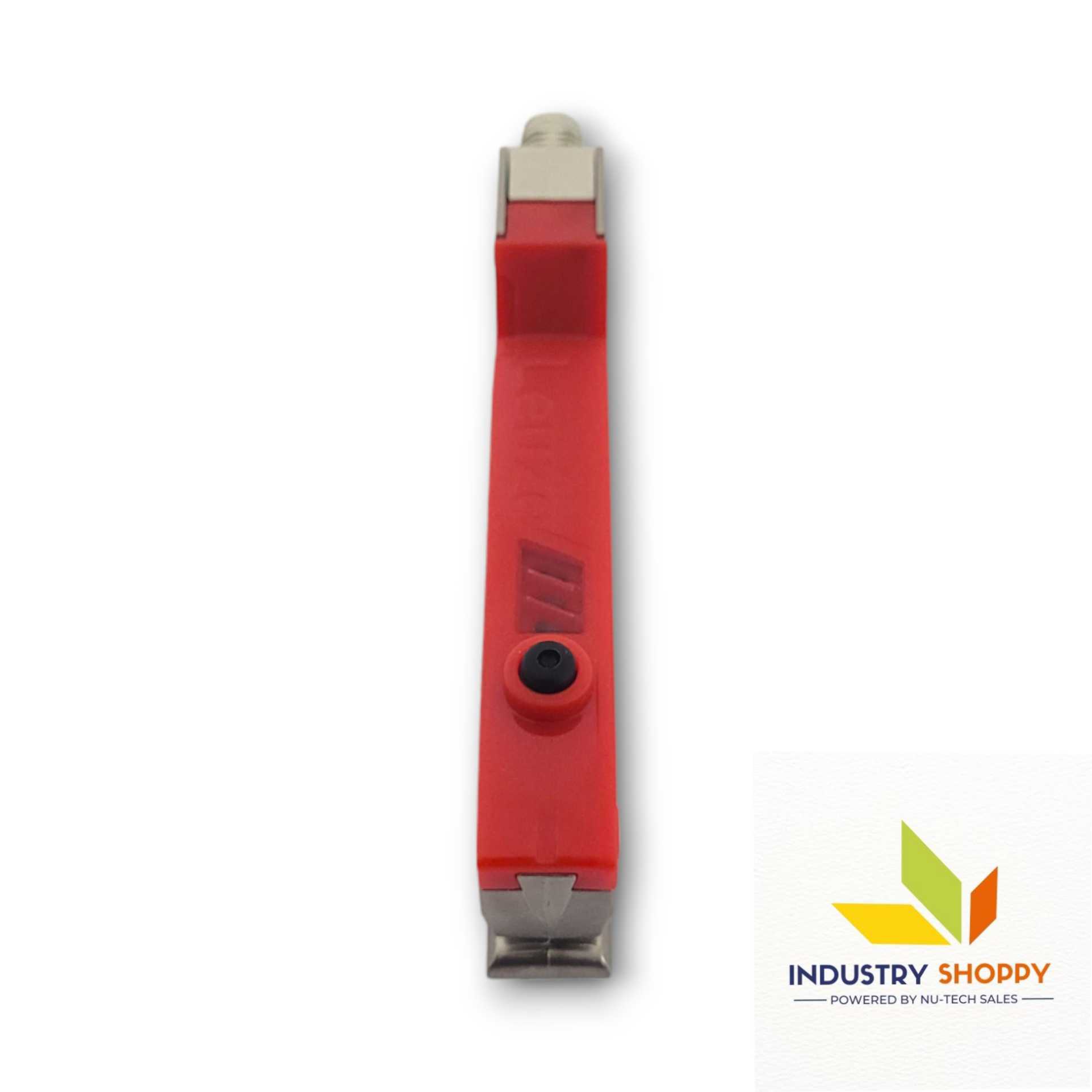

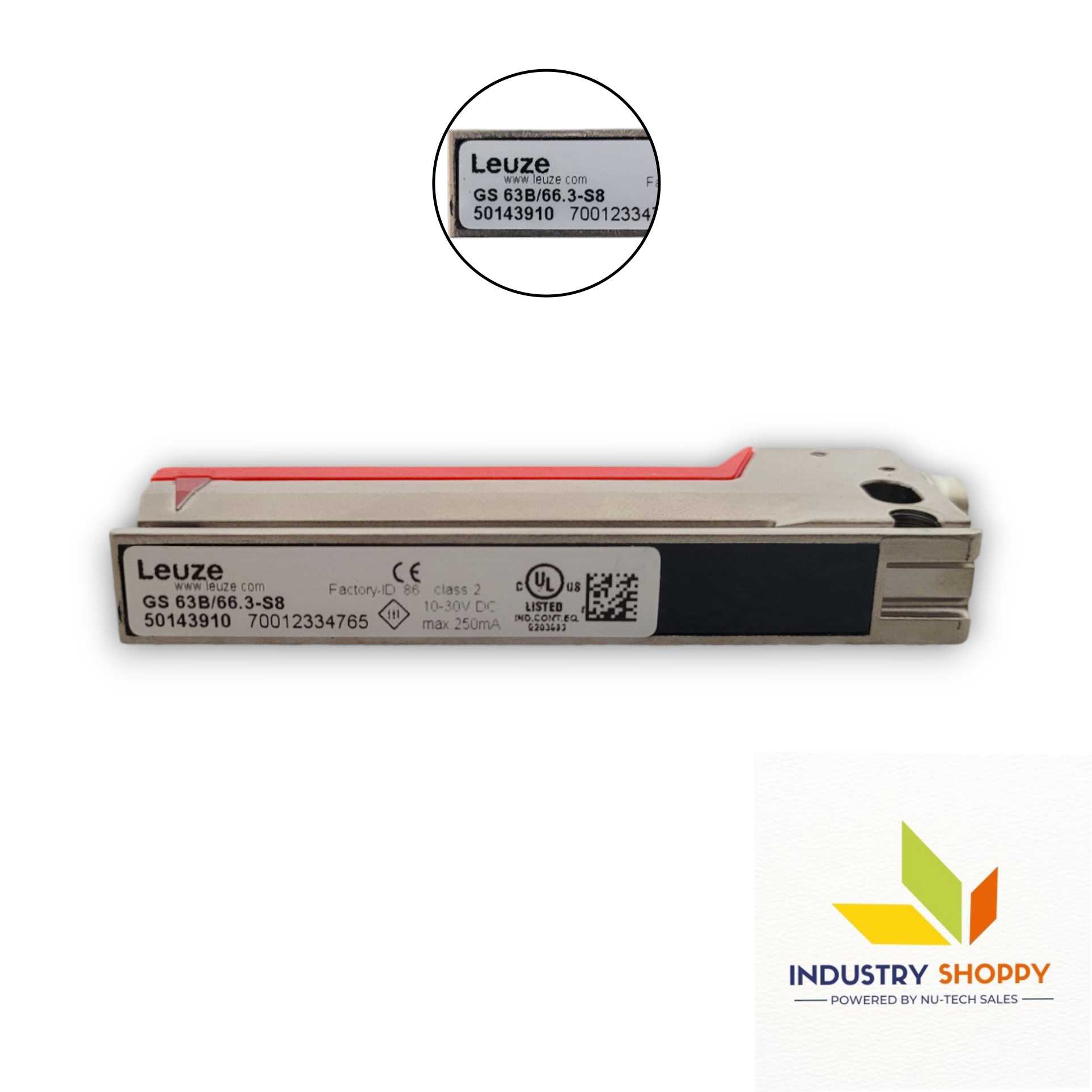

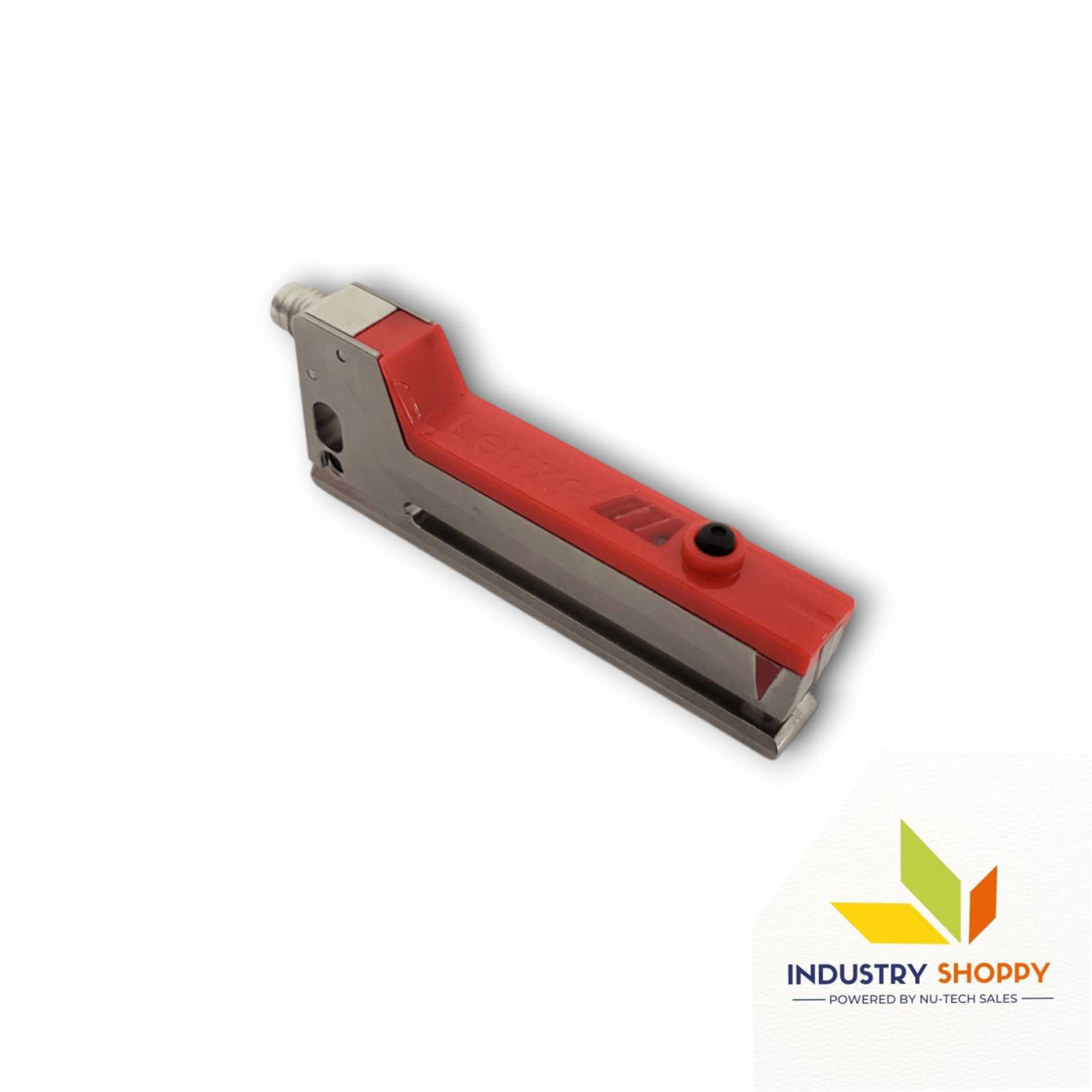

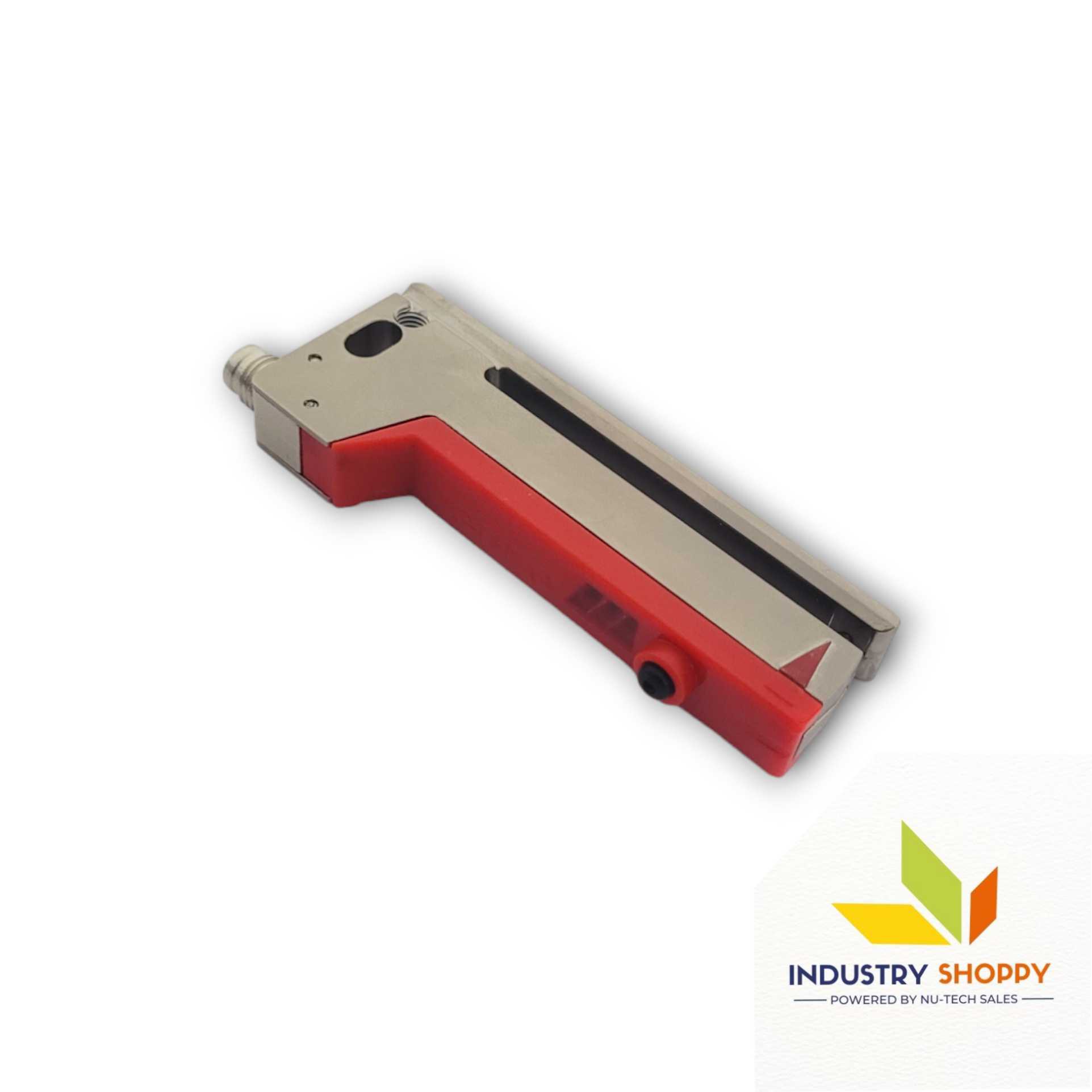

Leuze GS63B/66.3-S8 Fork Photoelectric Sensor

The Leuze GS63B/66.3-S8 Fork Photoelectric Sensor (Part No.: 50143910) is a high-performance sensor specifically designed for the detection of non-transparent labels in industrial environments. This sensor offers a fork-shaped design with a 3 mm mouth width and 61 mm depth, ensuring reliable and precise label detection.

With dual digital switching outputs, the sensor provides versatile functionality, detecting both label gaps and the label itself. Featuring an infrared LED light source at 940 nm with pulsed signal transmission, it ensures reliable performance for labels with a minimum width and gap of 2 mm. Its high switching frequency of 10,000 Hz and response time of 0.05 ms enable seamless operation in high-speed labeling systems.

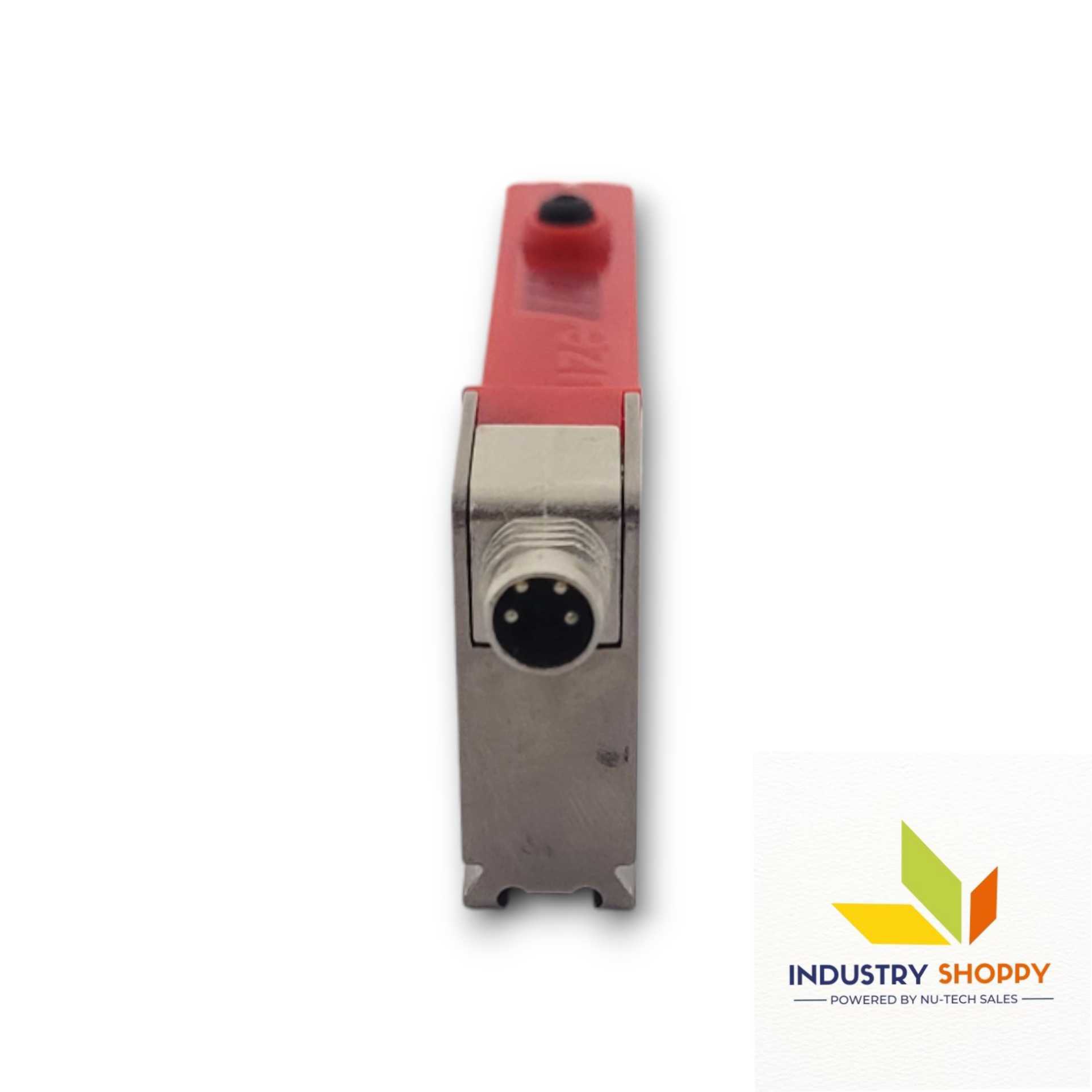

The GS63B/66.3-S8 uses an M8 4-pin male connector for quick integration and protects itself with built-in reverse polarity and short-circuit protection circuits, ensuring safe and reliable operation. Its rugged diecast zinc housing, rated IP67, provides durability in harsh industrial conditions. Operational adjustments are made simple with a teach button and a clear LED display. This sensor complies with IEC 60947-5-2 standards and carries c UL US approvals, making it an ideal choice for dynamic label detection applications in demanding industrial settings.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberGS 63B/66.3-S8
Part Number50143910
Series63
Principle of physicsOptical
ApplicationDetection of non-transparent labels
Label width, min.2 mm
Label gap, min.2 mm
MediumNot transparent
Light sourceLED, Infrared
Wavelength940 nm
Transmitted-signal shapePulsed
Supply voltage UB10 ... 30 V, DC
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 30 mA
TypeDigital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V), low: ≤ 2 V
Switching elementTransistor, Push-pull
Switching principleSwitching signal in label gap / Switching signal on label
Switching frequency10,000 Hz
Response time0.05 ms
Readiness delay300 ms
Max. conveyor speed during teach-in20 m/min
FunctionSignal OUT, Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4-pin
Plug outletHorizontal (parallel to belt movement)
DesignFork
Mouth width3 mm
Mouth depth61 mm
Dimension (W x H x L)11 mm x 30 mm x 80 mm
Housing materialMetal, Plastic
Metal housingDiecast zinc, chemically nickel-plated
Plastic housingPC
Lens cover materialPlastic/PC
Housing colorRed, Silver
Type of fasteningThrough-hole mounting / Via optional mounting device
Type of displayLED
Number of LEDs2 Piece(s)
Operational controlsTeach button
Ambient temperature, operation-20 ... 60 °C
Ambient temperature, storage-30 ... 70 °C
Degree of protectionIP 67
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
Country of originChina
