Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze EI1058-S10x20C-2500H-050R Rotary Encoder
Leuze

Leuze EI1058-S10x20C-2500H-050R Rotary Encoder

Product SKU: NTSRE00020
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Leuze
  • Part Number : 50150178
  • Switching frequency : 300,000 Hz
  • Voltage supply range  : 5 ... 28 V, DC
  • Connection types  : Cable
  • Housing material : Metal
  • Warranty : 12 Months
Rs. 5,450.00
Rs. 43,290.00

+ GST @18% = Rs. 6,431.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

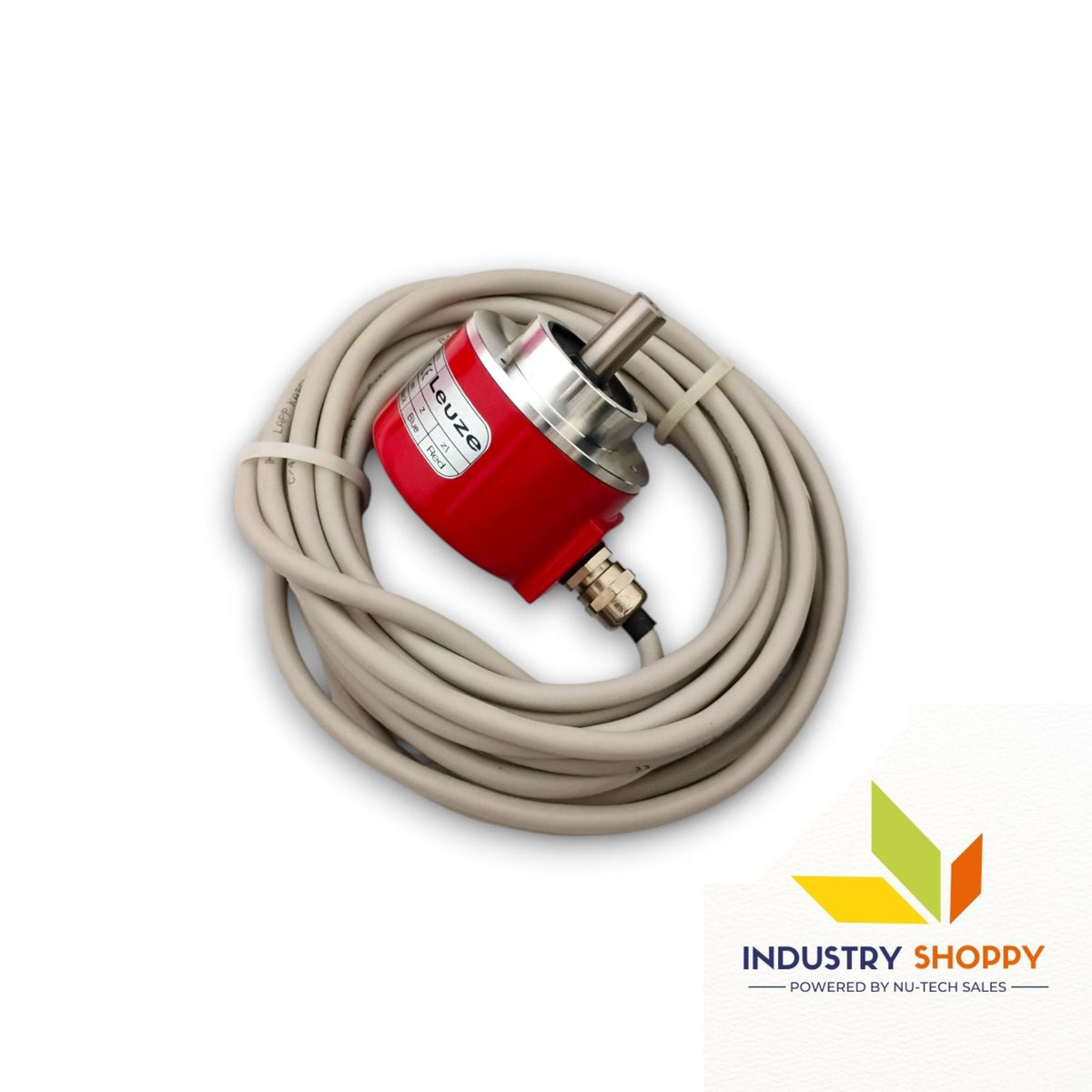

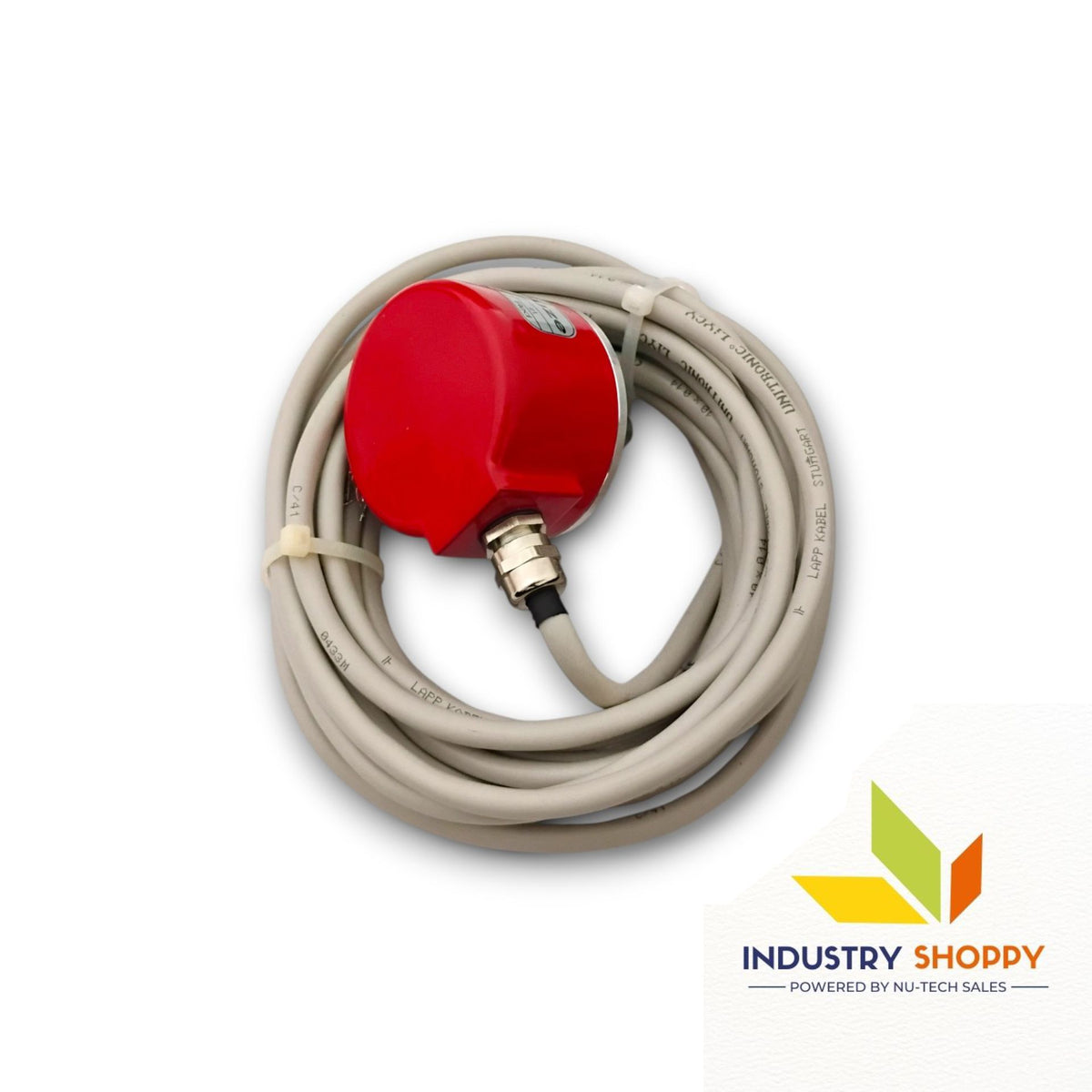

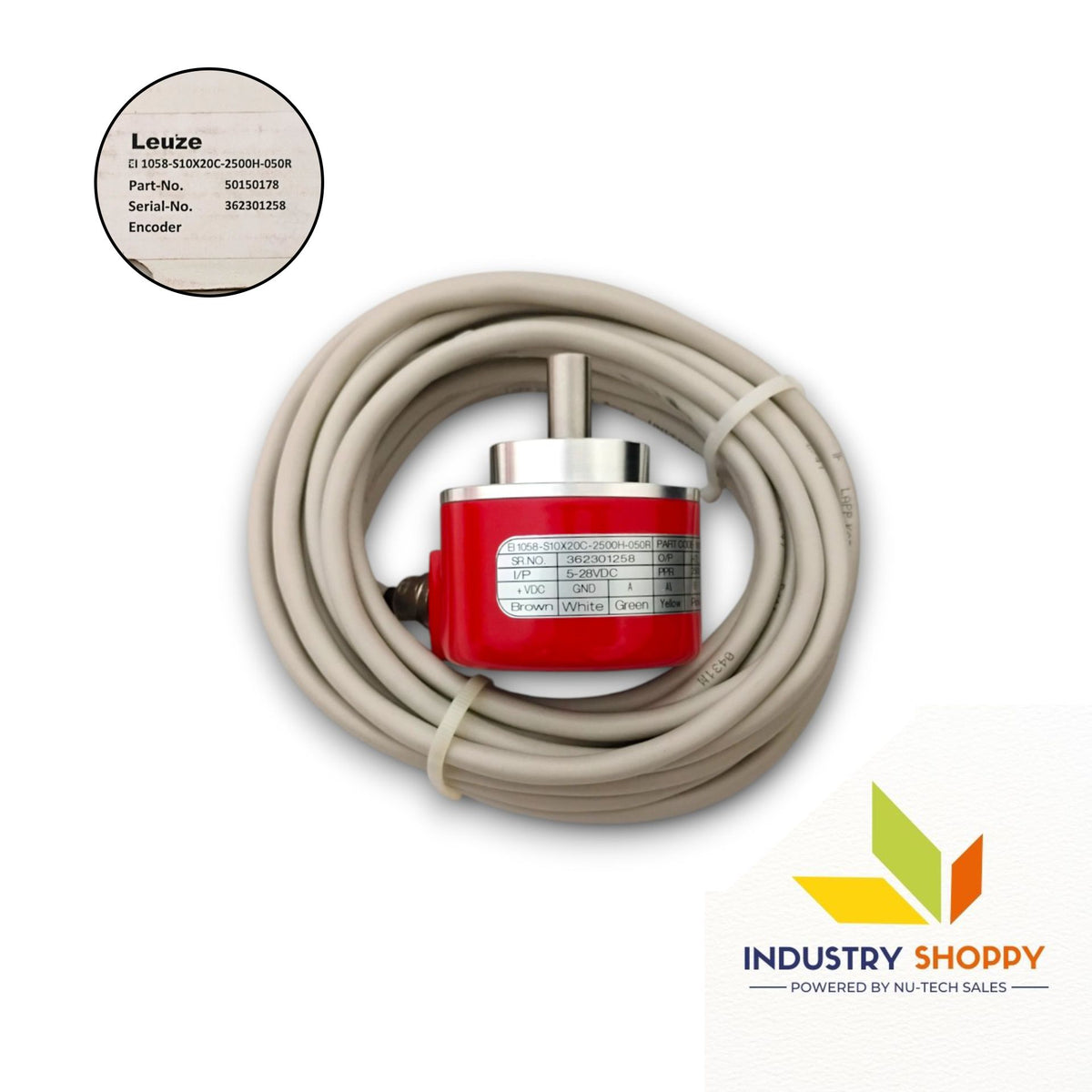

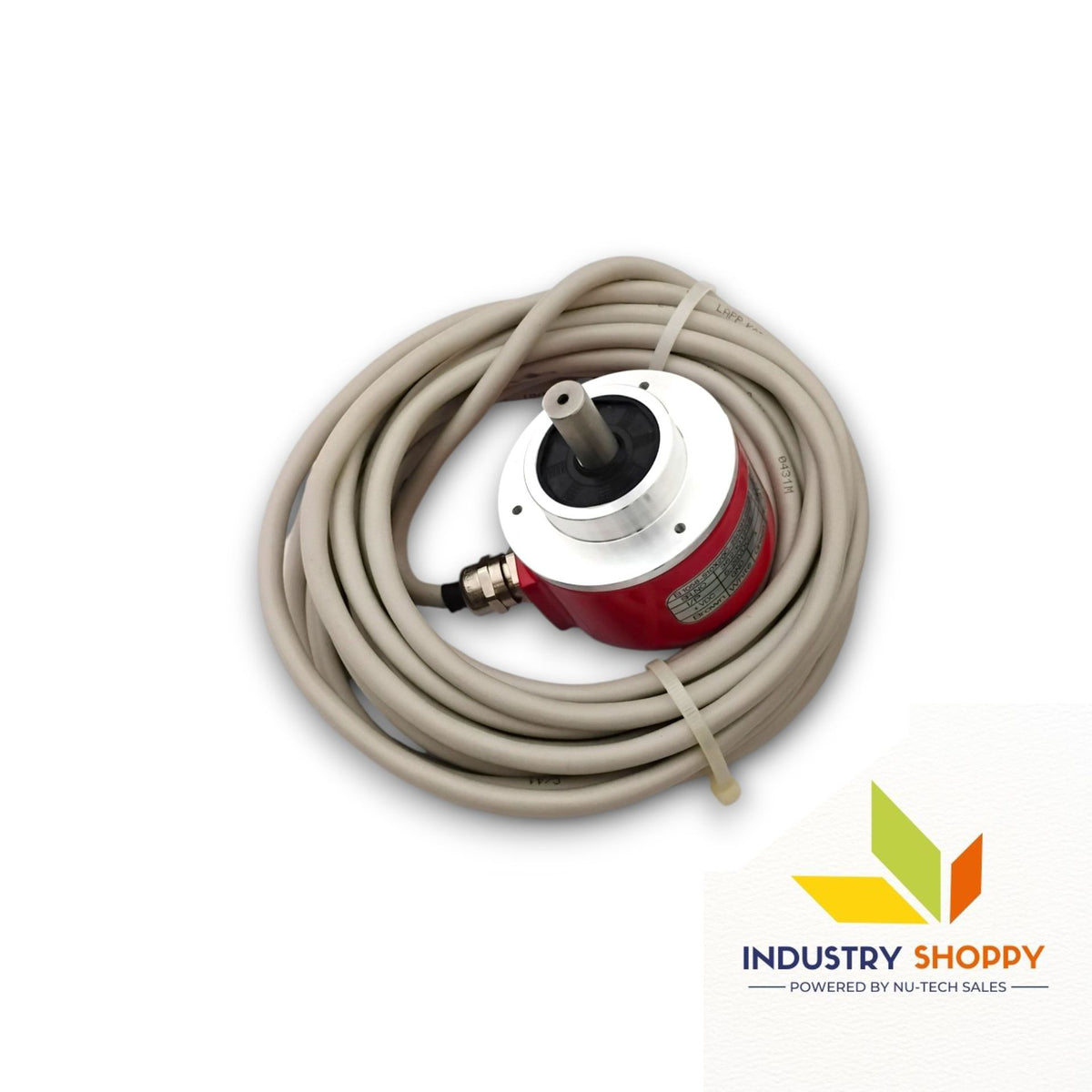

Leuze EI1058-S10x20C-2500H-050R Rotary Encoder

The Leuze EI1058-S10x20C-2500H-050R Rotary Encoder (50150178), part of the renowned EI 1xxx series, is a high-precision incremental rotary encoder from the EI 1xxx series, designed for accurate motion feedback in industrial automation and control systems.

This encoder offers an enhanced resolution of 2,500 pulses per revolution (p/r), enabling finer position and speed measurement compared to standard models. It supports a maximum operating speed of 6,000 rpm and features a high switching frequency of 300 kHz, ensuring fast and reliable signal processing. With an HTL output and a wide supply range of 5–28 V DC, it integrates easily with PLCs and control units.

The unit is built with a durable aluminum housing and clamping flange, featuring a 10 mm shaft diameter. It can withstand axial loads up to 60 N and radial loads up to 120 N, making it suitable for demanding mechanical environments.

Equipped with a 5 m radial cable (8-wire) and IP65 protection, it ensures flexible installation and resistance to dust and splashes. Ideal for motors, conveyors, and precision automation systems.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Facebook, YouTube,

BrandLEUZE
Product NumberEI1058-S10x20C-2500H-050R
Part Number50150178

Series

EI 1xxx
TypeIncremental rotary encoder

Max. operating speed

6,000 r/min
Resolution2,500 p/r

Supply voltage UB

5 ... 28 V, DC
Open-circuit current0 ... 150 mA

Switching frequency

300,000 Hz

Type

HTL

Function

Signal OUT, Voltage supply
Type of connectionCable
Cable length5,000 mm
Connectorradial
Sheathing materialPVC
Cable colorGray
Number of conductors8 -wire
Wire cross section0.14 mm²

Housing material

Metal
Metal housingAluminum
Flange typeClamping flange

Design

Shaft
Dimension (Ø x L)10 mm
Dimension (Ø x L)20 mm
Start-up torque0.5 N·m
Shaft load - axial60 N
Shaft load - radial120 N

Ambient temperature, operation

-40 ... 70 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 65
