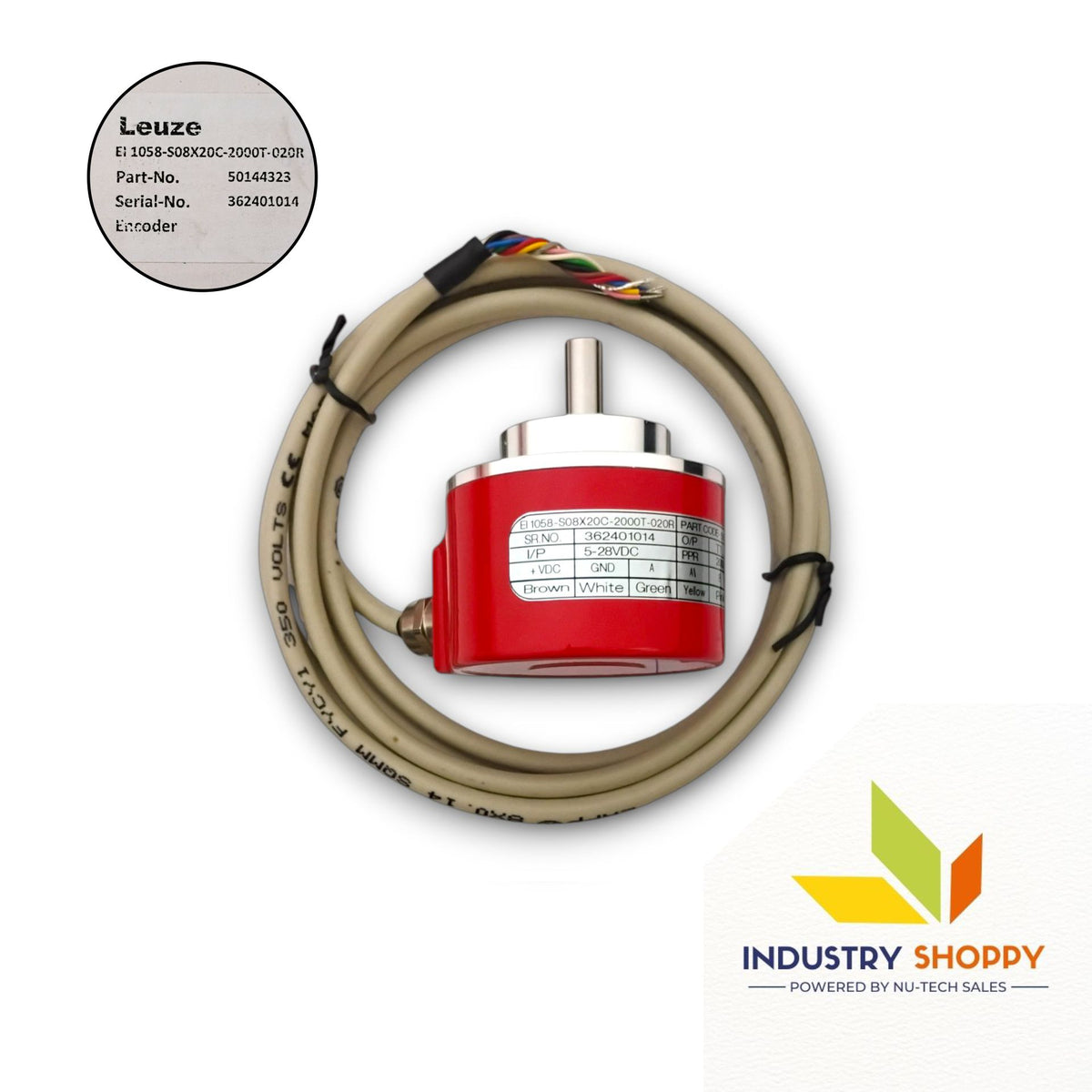

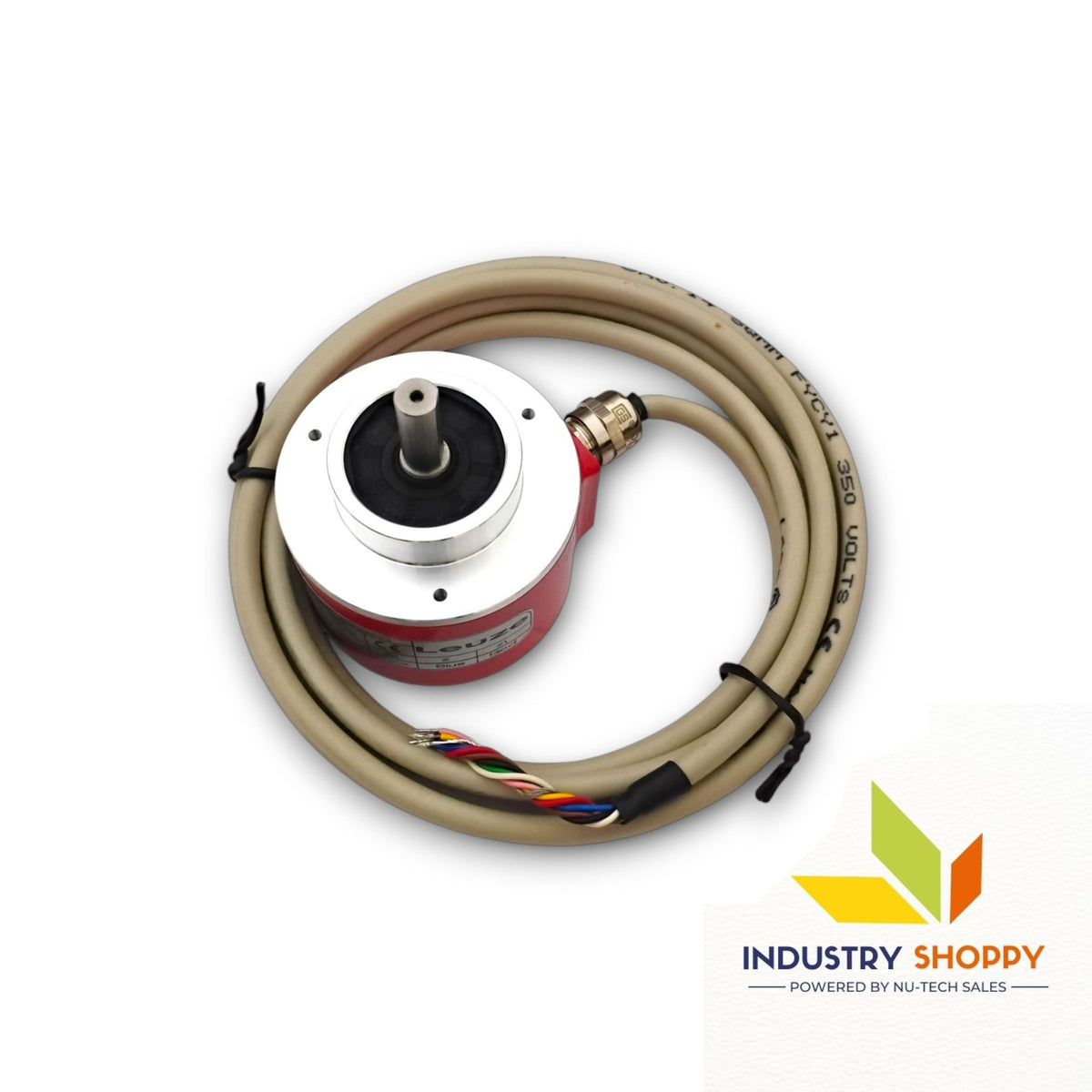

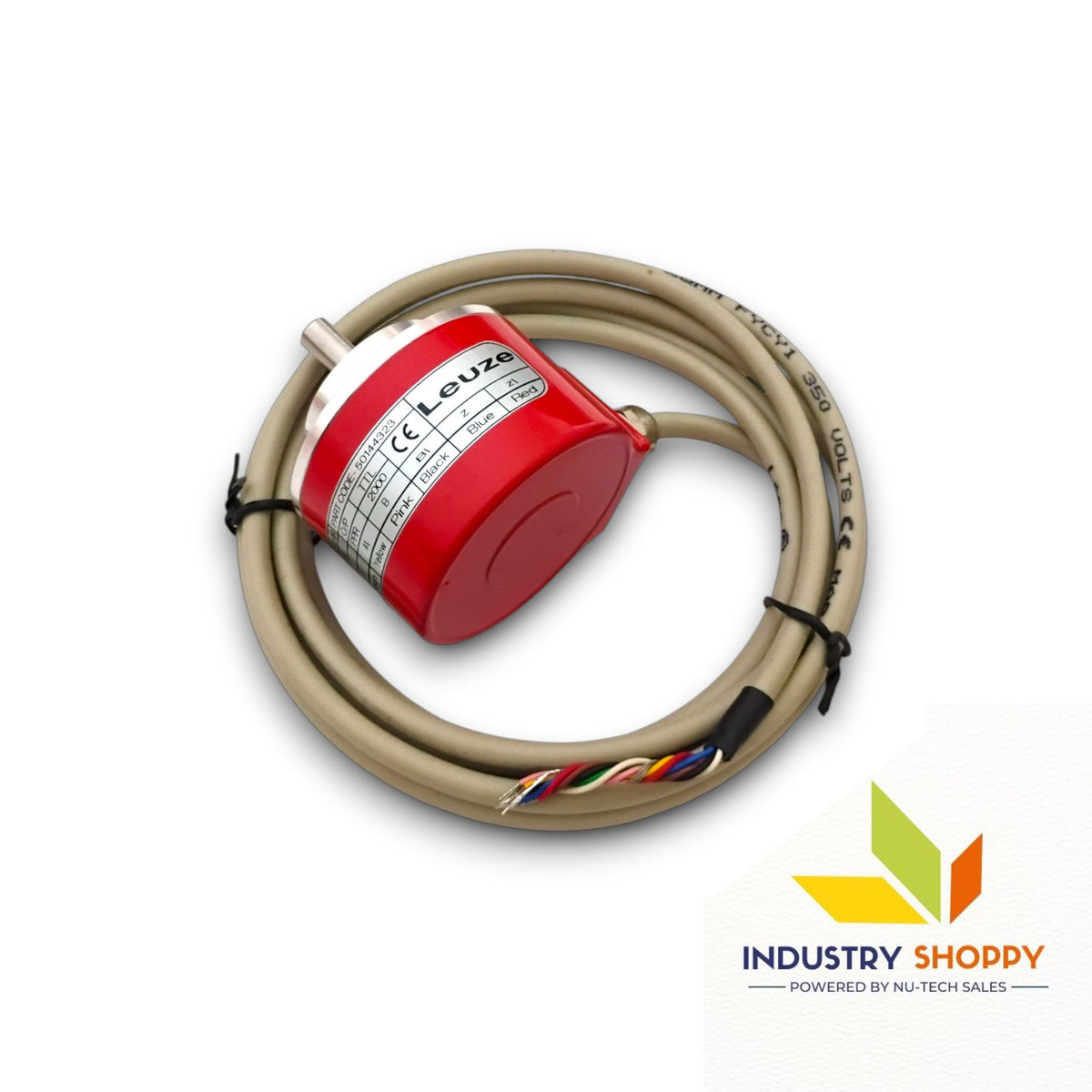

Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze EI1058-S08x20C-2000T-020R Rotary Encoder
Leuze

Leuze EI1058-S08x20C-2000T-020R Rotary Encoder

Product SKU: NTSRE00021
Available:
Only 4 items in stock
4 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Leuze
  • Part Number : 50144323
  • Switching frequency : 300,000 Hz
  • Voltage supply range  : 5 ... 28 V, DC
  • Connection types  : Cable
  • Housing material : Metal
  • Warranty : 12 Months
Rs. 5,150.00
Rs. 31,200.00

+ GST @18% = Rs. 6,077.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Leuze EI1058-S08x20C-2000T-020R Rotary Encoder

The Leuze EI1058-S08x20C-2000T-020R Rotary Encoder (50144323), part of the renowned EI 1xxx series, is a reliable and high-performance solution for precise motion control applications. Designed with a robust aluminium housing and clamping flange mounting, it ensures durability in demanding industrial environments.

This encoder offers a resolution of 2,000 pulses per revolution (p/r) and supports a maximum operating speed of 6,000 rpm, enabling accurate position and speed feedback.

Equipped with TTL output, it delivers stable and fast signal transmission with a switching frequency of 300 kHz. The 8 mm shaft diameter and radial cable outlet provide flexible installation. Operating within a wide voltage range of 5–28 V DC and temperature range of -40°C to +70°C, it ensures consistent performance. With IP65 protection, it is suitable for harsh industrial conditions.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Facebook, YouTube,

BrandLEUZE
Product NumberEI 1058-S08x20C-2000T-020R
Part Number50144323

Series

EI 1xxx
TypeIncremental rotary encoder

Max. operating speed

6,000 r/min
Resolution2,000 p/r

Supply voltage UB

5 ... 28 V, DC
Open-circuit current0 ... 150 mA

Switching frequency

300,000 Hz

Type

TTL

Function

Signal OUT, Voltage supply
Type of connectionCable
Cable length2,000 mm
Connectorradial
Sheathing materialPVC
Cable colorGray
Number of conductors8 -wire
Wire cross section0.14 mm²

Housing material

Metal
Metal housingAluminum
Flange typeClamping flange

Design

Shaft
Dimension (Ø x L)8 mm
Dimension (Ø x L)20 mm
Start-up torque0.5 N·m
Shaft load - axial60 N
Shaft load - radial120 N

Ambient temperature, operation

-40 ... 70 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 65
Standards appliedIEC 61000-6-2:2016, IEC 61000-6-4:2016 + A1
