Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera TCG057QVLAC-G00P LCD Module
Kyocera

Kyocera TCG057QVLAC-G00P LCD Module

Product SKU: NTSLCD0369
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand   :  Kyocera
  • Size   :   5.7"
  • Condition : New
  • Panel Type   : a-Si TFT-LCD, LCM
  • Operating Mode  : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 15,850.00
Rs. 25,000.00

+ GST @18% = Rs. 18,703.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

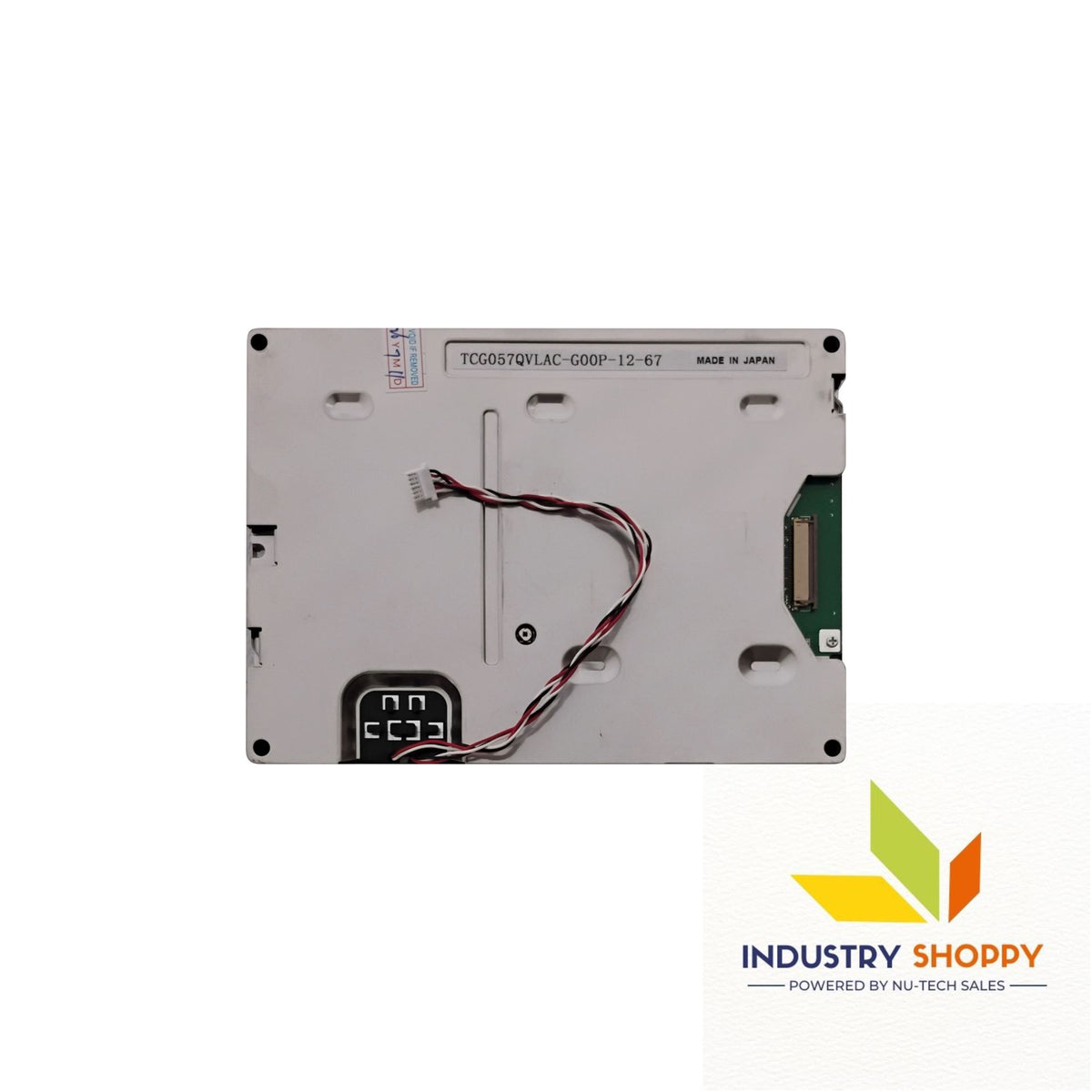

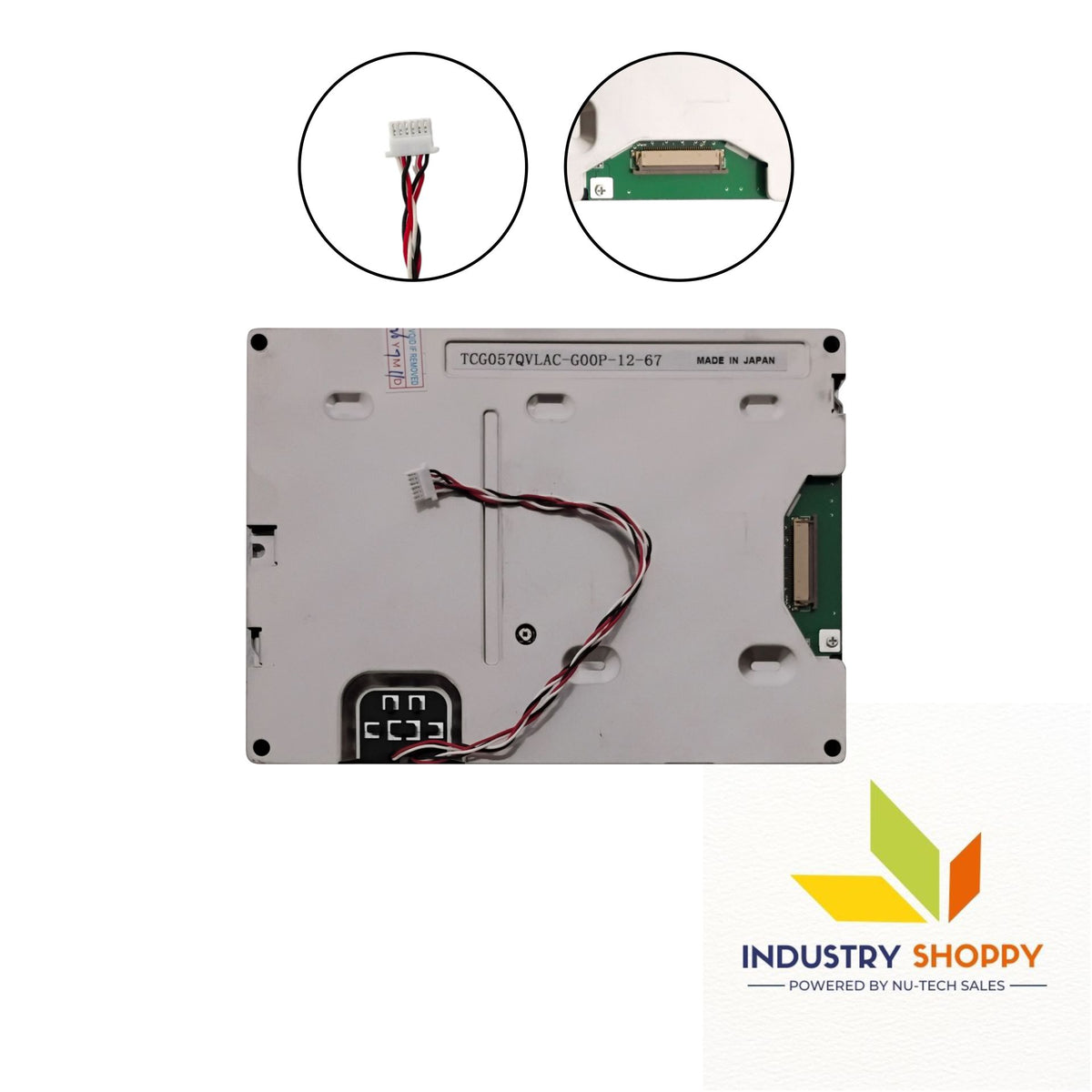

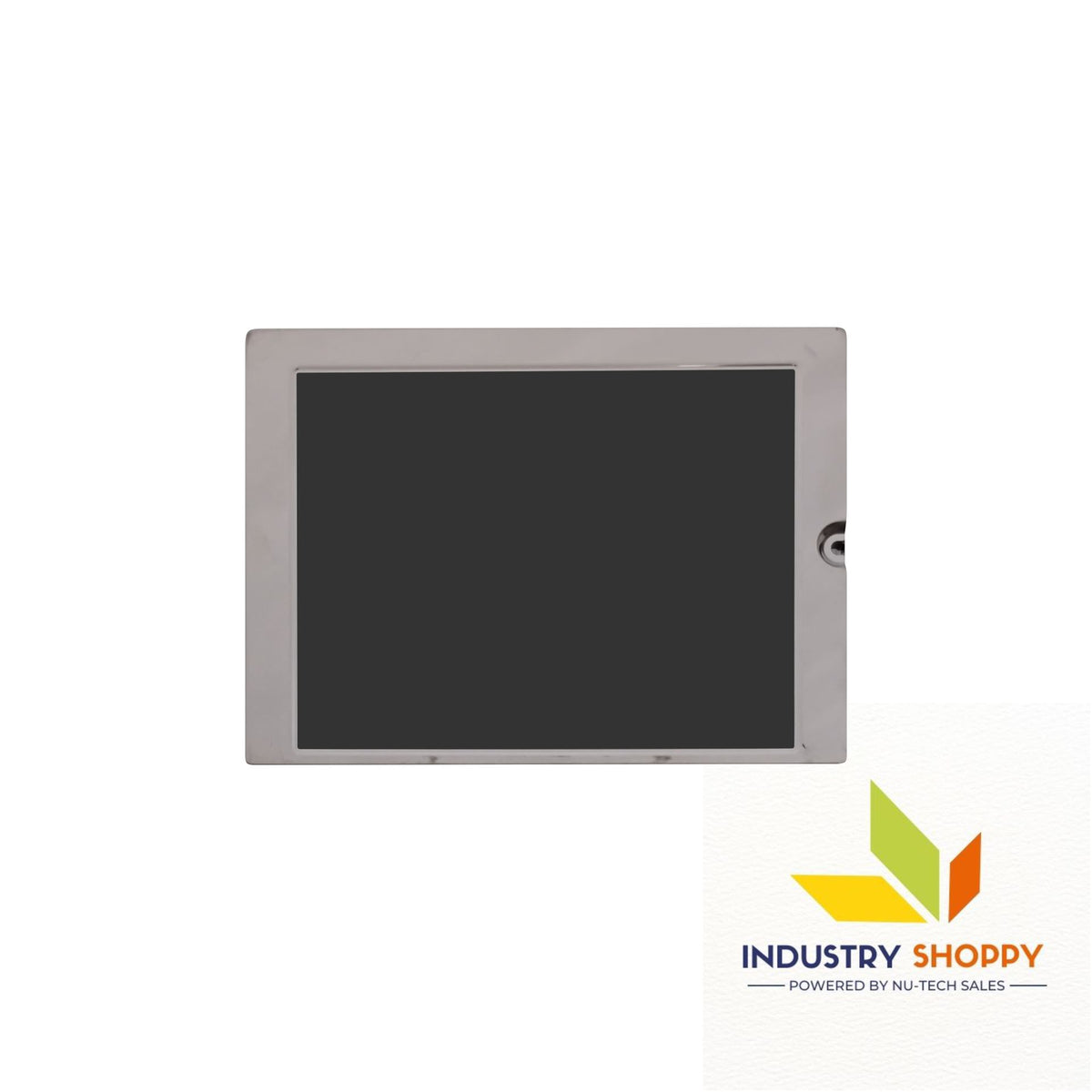

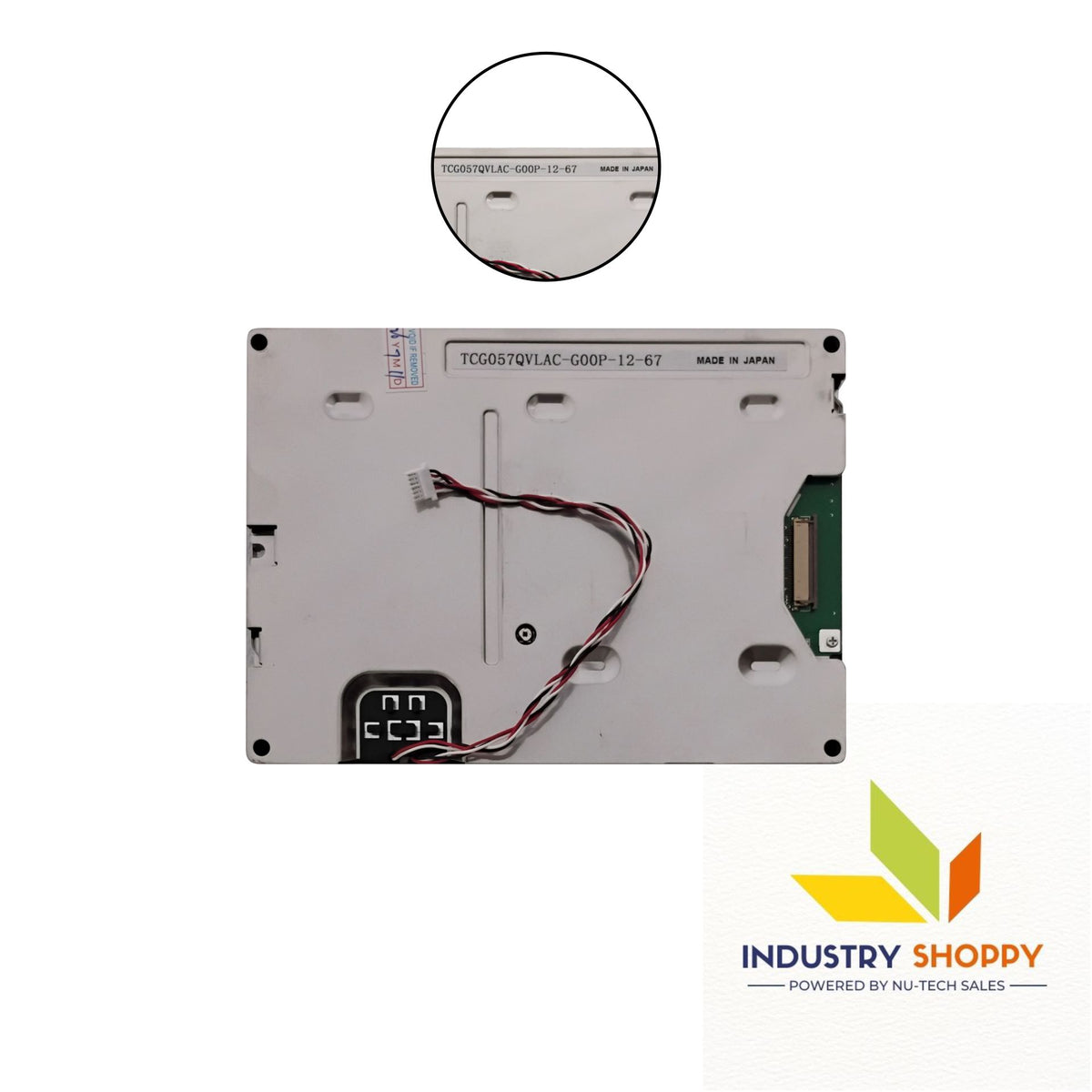

Kyocera TCG057QVLAC-G00P LCD Module

The Kyocera TCG057QVLAC-G00P LCD Module is designed for industrial equipment, control panels, instrumentation, and embedded display applications requiring reliable visual performance. It features a 320 × 240 QVGA resolution with a 4:3 aspect ratio, providing clear and consistent image reproduction.

The display offers a 350 cd/m² typical luminance and 450:1 contrast ratio for good readability in industrial environments. Its TN, normally white, transmissive panel supports a 70/70/50/70-degree viewing angle. The module uses a parallel RGB interface with 1-channel 6-bit color and a 33-pin, 0.5 mm connector.

A 3.3V power supply and 60 Hz frame rate support stable operation. The WLED backlight has an estimated 50,000-hour life and operates without an integrated driver. It supports an operating temperature range of -10°C to 70°C.


Technical Precautions:
  • It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,

BrandKYOCERA
Diagonal Size5.7"
Resolution320(RGB)×240, QVGA, 4:3
Active Area115.2(W)×86.4(H) mm
Outline Dimension144(W)×104.8(H)×13.5(D) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio450:1 (Typ.) (TM)
Viewing Angle70/70/50/70 (Typ.)(CR≥5)
Response Time10/25 (Typ.)(Tr/Td) mm
Panel TypeTN, Normally White, Transmissive
TreatmentGlare (Haze 0%)
Operating Modea-Si TFT-LCD, LCM
Support ColorMonochrome
Signal Interface TypeParallel RGB (1 ch, 6-bit), 33 pins 0.5mm Connect
Frame Rate60 Hz
Power Supply3.3V (Typ.)
Backlight3 strings WLED, 50K hrs, Without Driver
Operating Temp.-10 ~ 70 °C
Storage Temp.-30 ~ 80 °C
