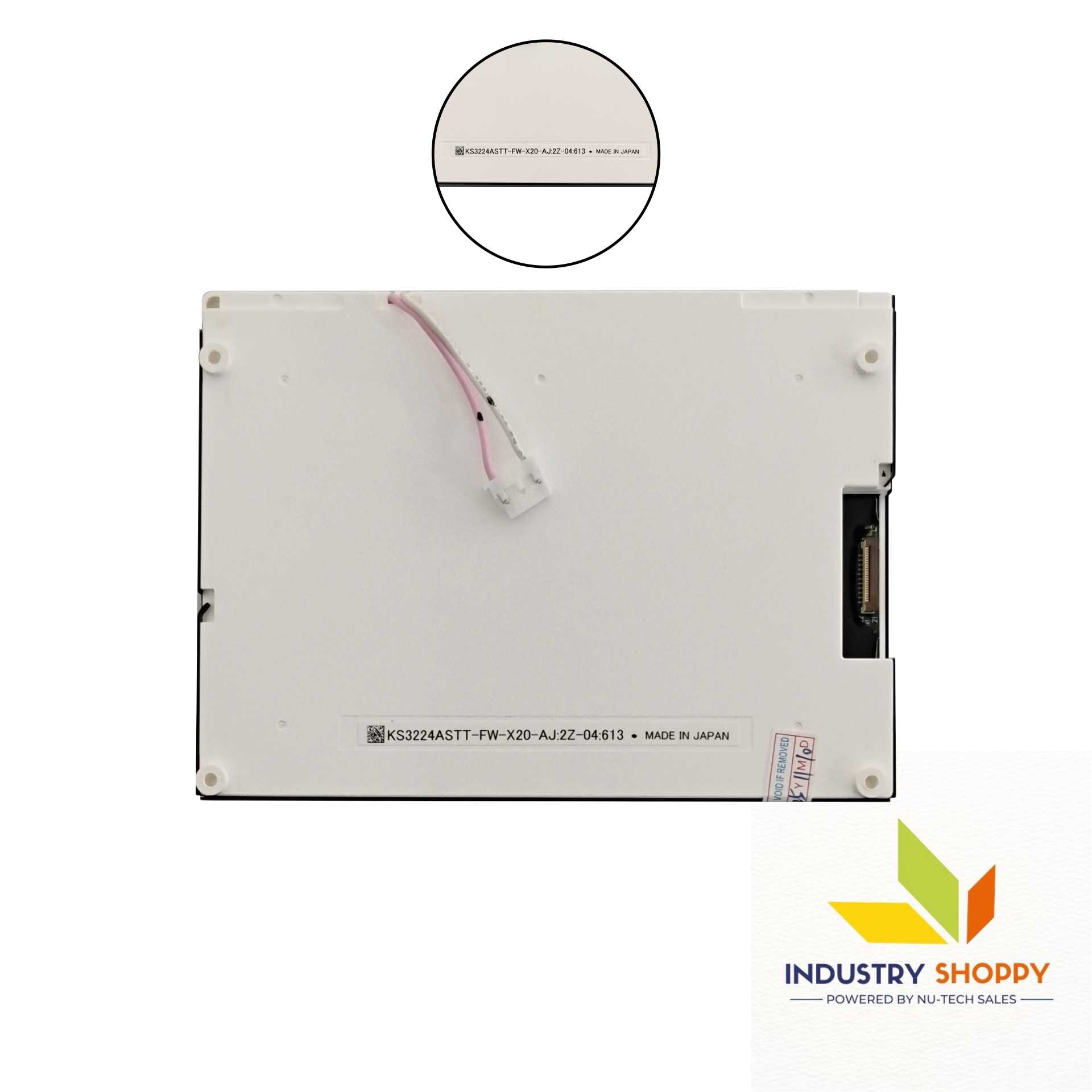

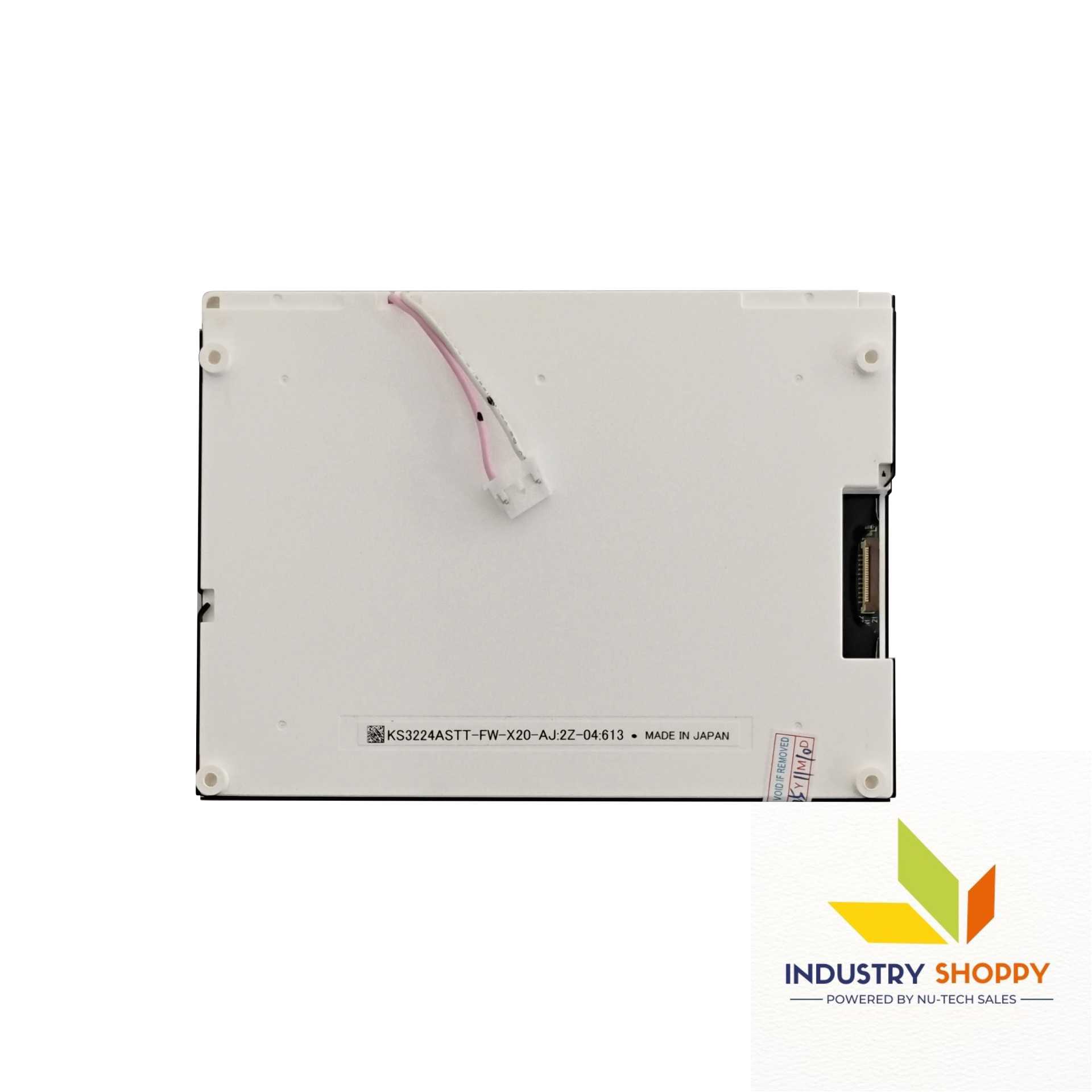

Kyocera KS3224ASTT-FW-X20 LCD Module

Kyocera KS3224ASTT-FW-X20 LCD Module

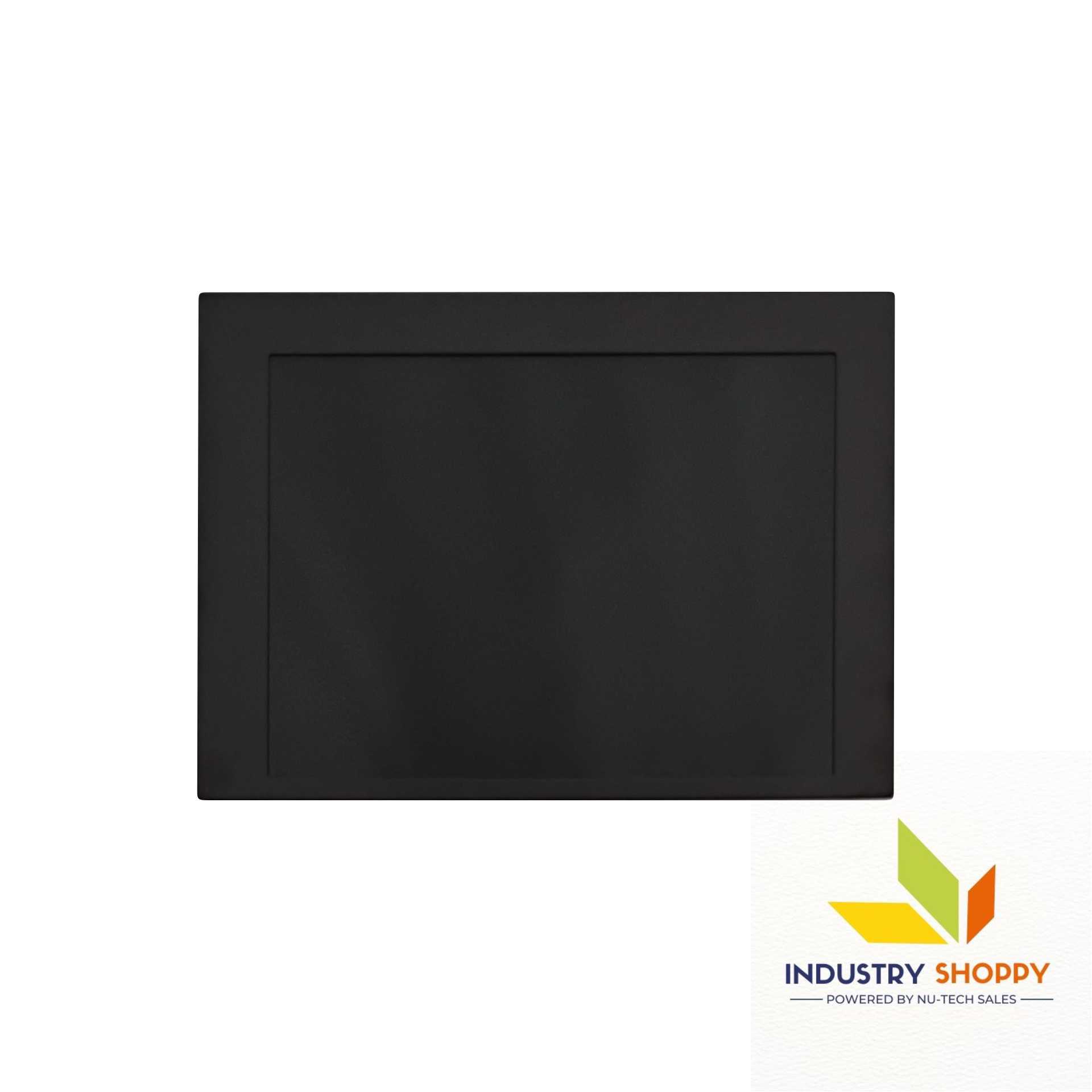

The Kyocera KS3224ASTT-FW-X20 LCD Module is a reliable monochrome solution designed for industrial, commercial, and embedded systems requiring stable visual performance. Its 320×240 (QVGA) resolution with 70 PPI ensures clear rendering of text, icons, and graphical data, making it suitable for equipment panels and measurement devices. The display features a practical 115.18(W) × 86.38(H) mm active area, offering ample visual workspace in a compact footprint.

Built on STN-LCD technology, this module delivers excellent power efficiency and long-term durability, ideal for continuous-use applications. The monochrome support enhances readability under varying lighting conditions, while the Parallel Data (1ch, 4-bit) interface ensures easy integration with standard controllers. Operating at a smooth 75 Hz frame rate, the display provides stable, flicker-free performance.

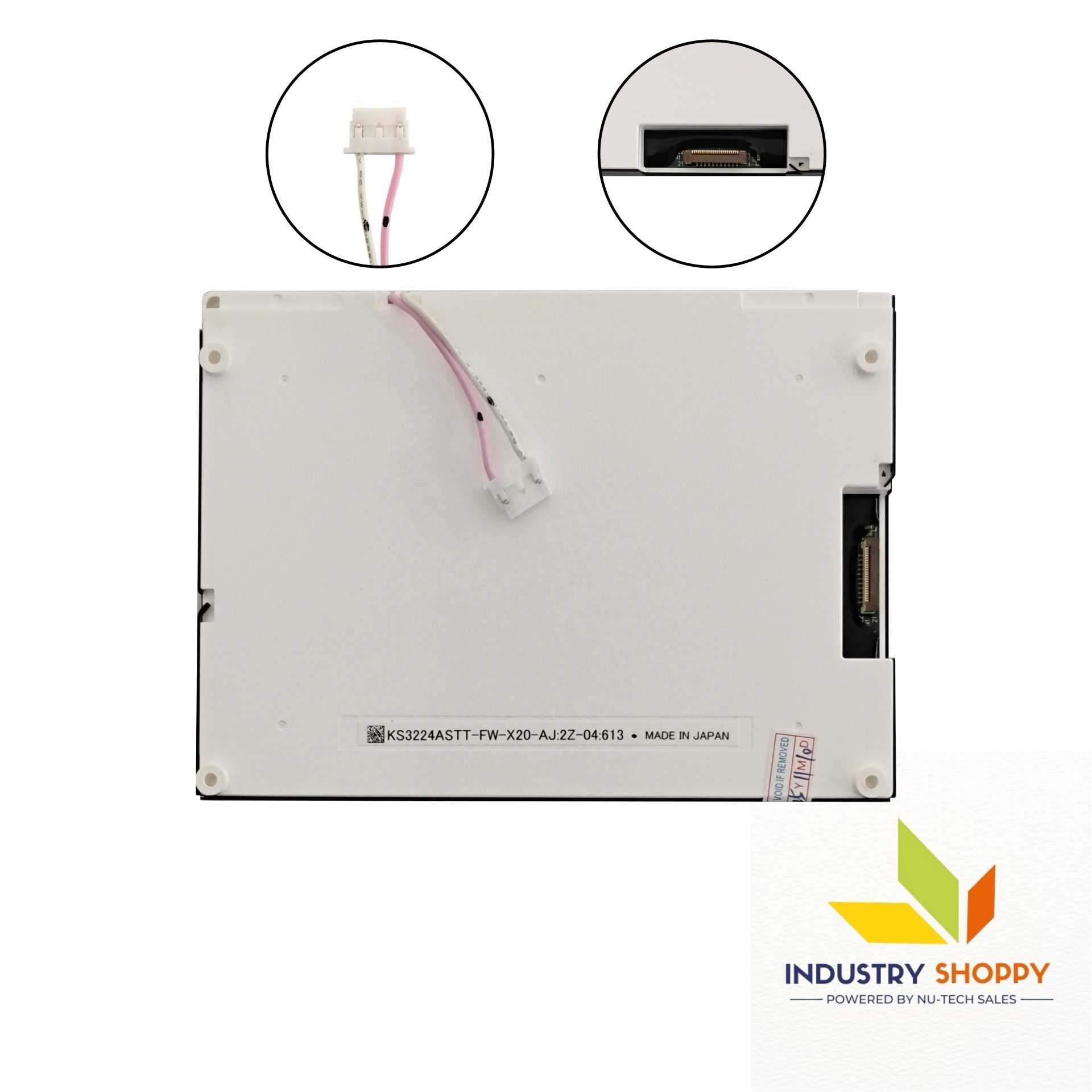

A durable CCFL backlight (without driver) provides uniform illumination, while the module maintains consistent operation within a 0°C to 60°C temperature range. Its robust construction ensures reliability even in demanding environments, making it a dependable choice for medical devices, industrial handhelds, and instrumentation systems.

Overall, this KYOCERA 5.7-inch LCD prioritizes stability, readability, and long-term reliability—key factors for mission-critical applications.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
