Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera KG057QV1CA-G050 LCD Module
Kyocera

Kyocera KG057QV1CA-G050 LCD Module

Product SKU: NTSLCD0155
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Kyocera
  • Size : 5.7″
  • Condition : New
  • Panel Type : FSTN-LCD, LCM
  • Work Mode : STN, Transmissive
  • Warranty : 03 Months
Rs. 12,300.00
Rs. 16,400.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

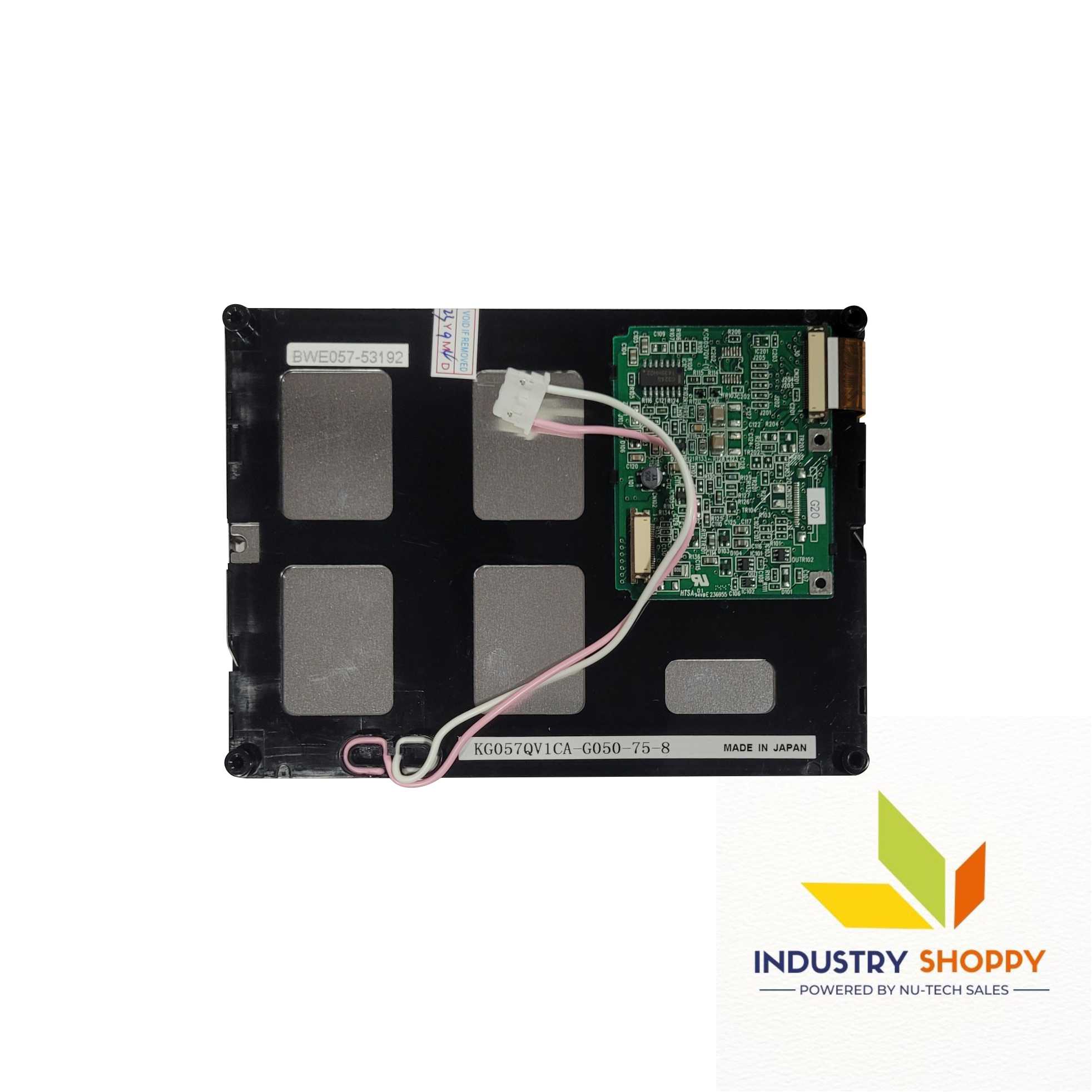

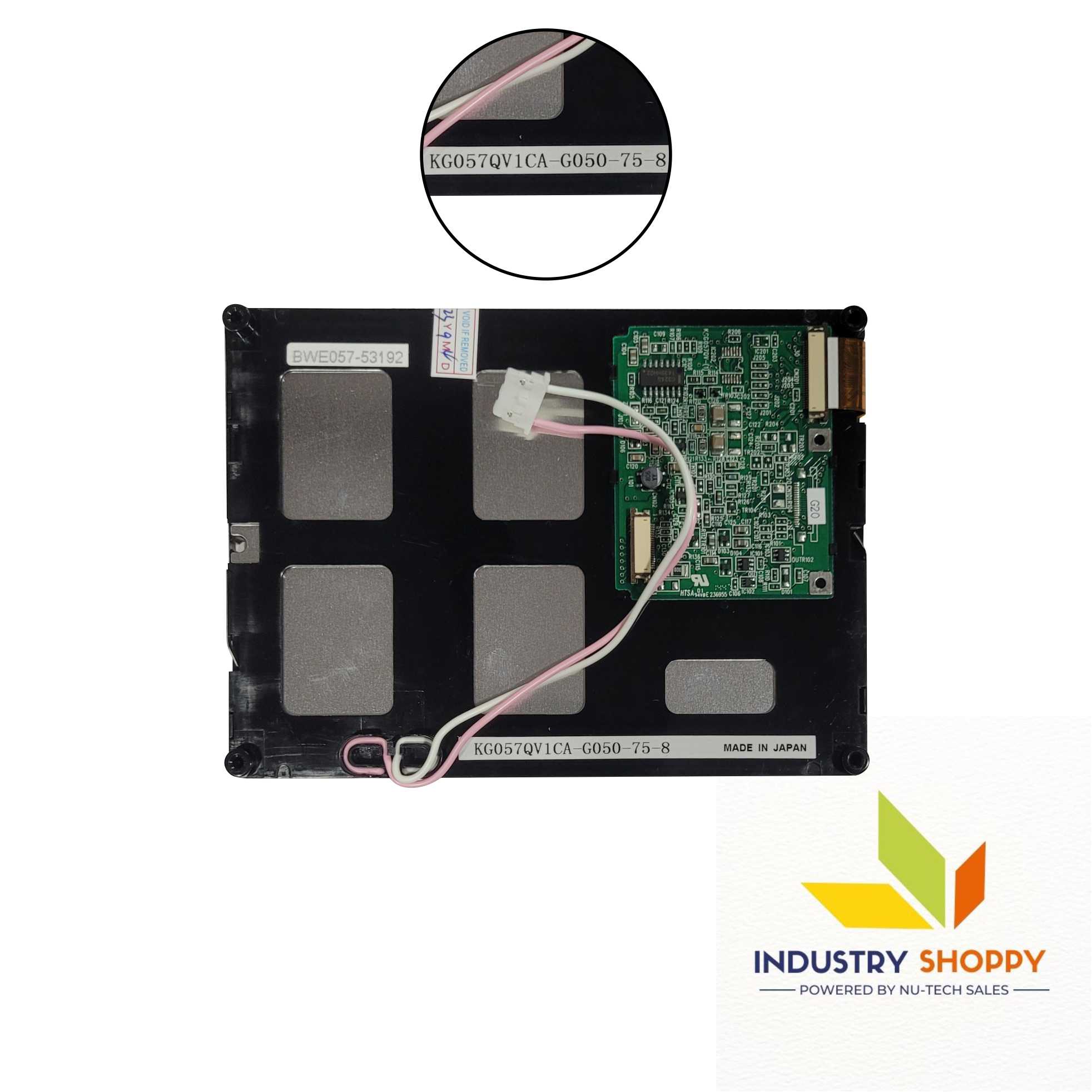

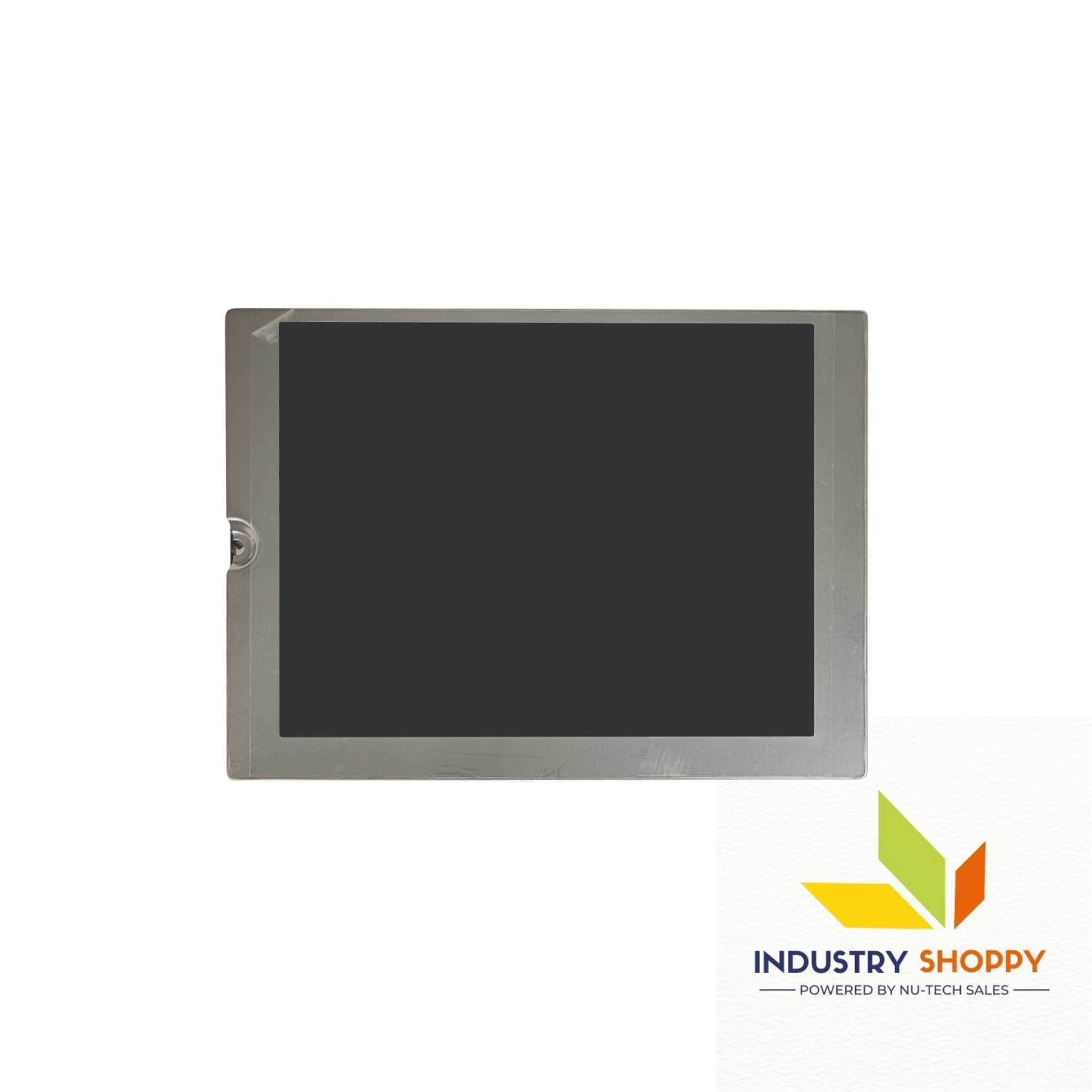

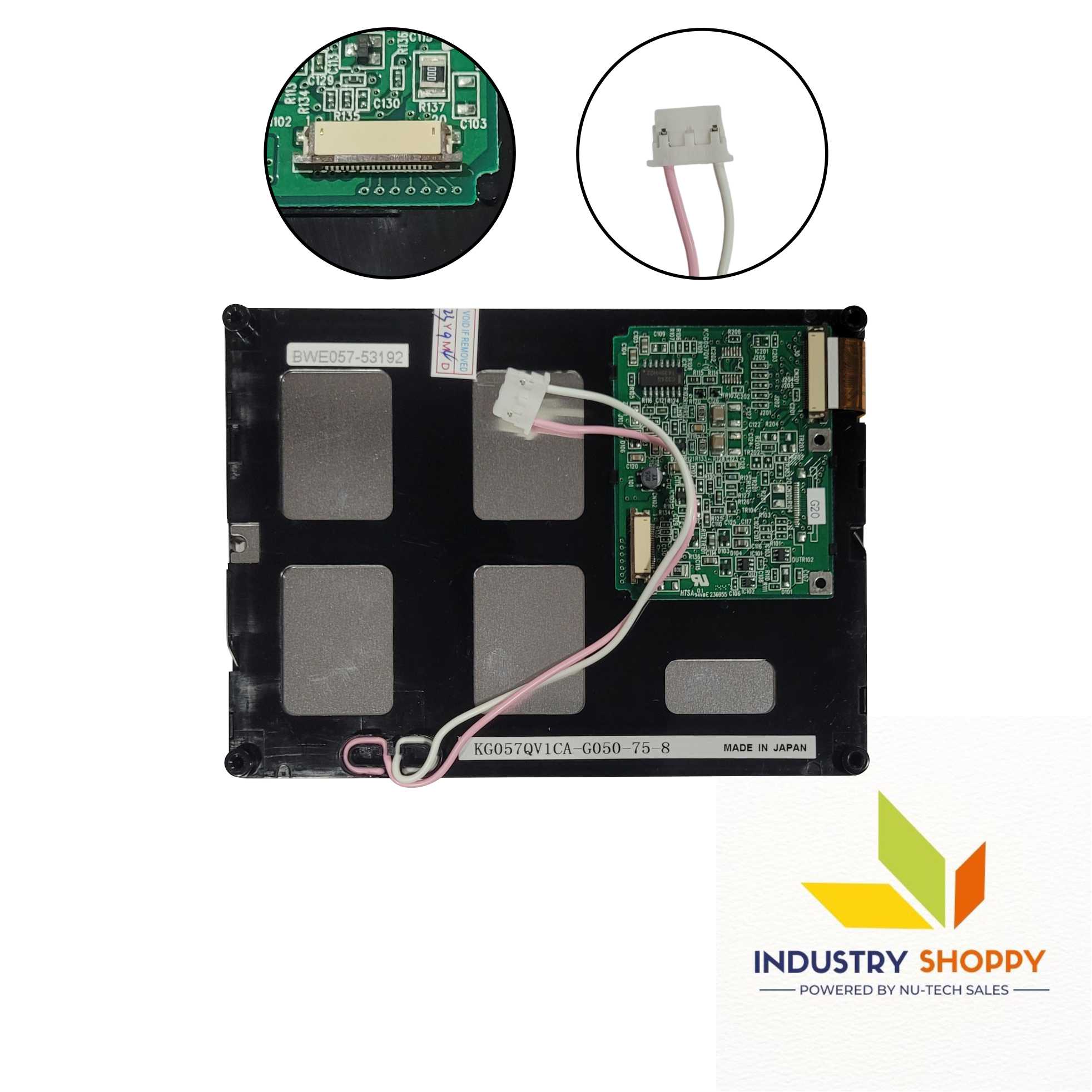

Kyocera KG057QV1CA-G050 LCD Module


The Kyocera KG057QV1CA-G050 LCD Module  is 5.7-inch FSTN-LCD module is a straightforward yet robust solution for applications that prioritize low power consumption and simple monochrome display requirements. Featuring a QVGA resolution of 320 × 240 with a 70 PPI pixel density, it provides basic graphical fidelity suitable for text-heavy interfaces, simple diagnostics, or legacy system integration.

The Kyocera 5.7-inch display integrates a 115.2(W) × 86.4(H) mm active area into a compact 144 × 104.8 × 13.2 mm frame, allowing it to fit efficiently into space-constrained control panels and embedded systems. It delivers a typical luminance of 220 cd/m², offering decent visibility in environments with moderate ambient light. However, its modest 40:1 contrast ratio and limited viewing angles (45/45/30/40° at CR≥2) confine its optimal use to head-on viewing in well-controlled lighting. Despite these limitations, it serves reliably in applications where consistent positioning and readability are prioritized over wide-angle performance.

The FSTN technology does offer improved clarity over standard STN panels, but the panel’s glare surface (Haze 0%) may cause some reflectivity in bright environments.This monochrome display operates in STN, transmissive mode, providing balanced visibility and energy efficiency. Though it features a slow 500 ms response time, it remains suitable for static or infrequently changing content.

The backlight is powered by a single CCFL tube, rated for up to 58,000 hours of lifespan, supporting extended operational use. It accepts a 3.3V or 5.0V power supply, providing flexibility in different system architectures.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandKyocera
Diagonal Size5.7"
Resolution320×240, QVGA 70 PPI
Active Area115.2(W)×86.4(H) mm
Outline Dimension144 × 104.8 × 13.2 (H×V×D) mm
Luminance220 cd/m² (Typ.)
Contrast Ratio40:1 (Typ.) (TM)
Viewing Angle45/45/30/40 (Typ.) (CR≥2)
Response Time500 ms (Typ.) (Tr+Td)
Panel TypeFSTN-LCD, LCM
TreatmentGlare (Haze 0%)
Operating ModeSTN, Transmissive
Support ColorMonochrome
Signal Interface Type-
Frame Rate75 Hz
Power Supply3.3/5.0 V (Typ.) (VDD)
Backlight1 pcs CCFL, 58K hours
Operating Temp.0 ~ 60 °C
