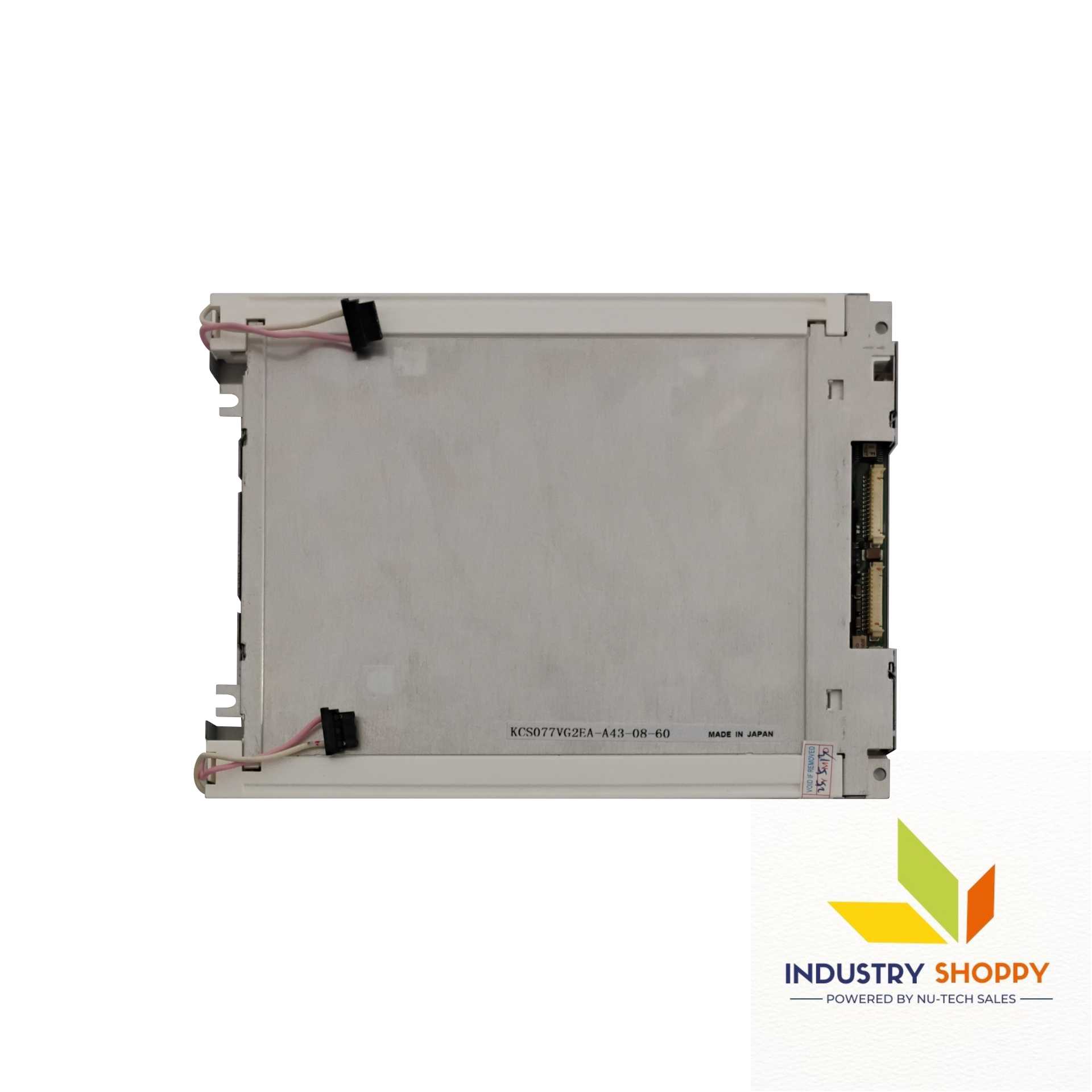

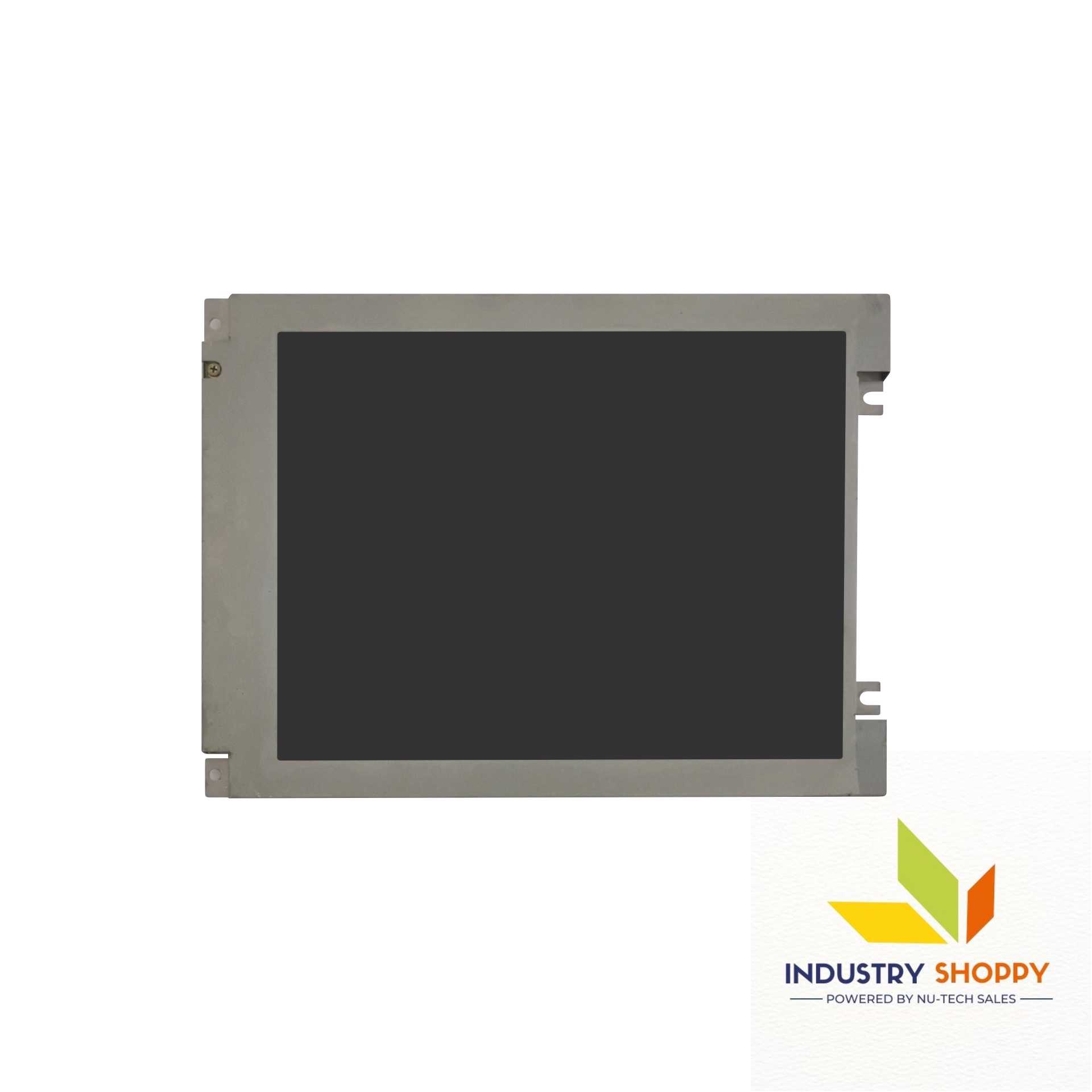

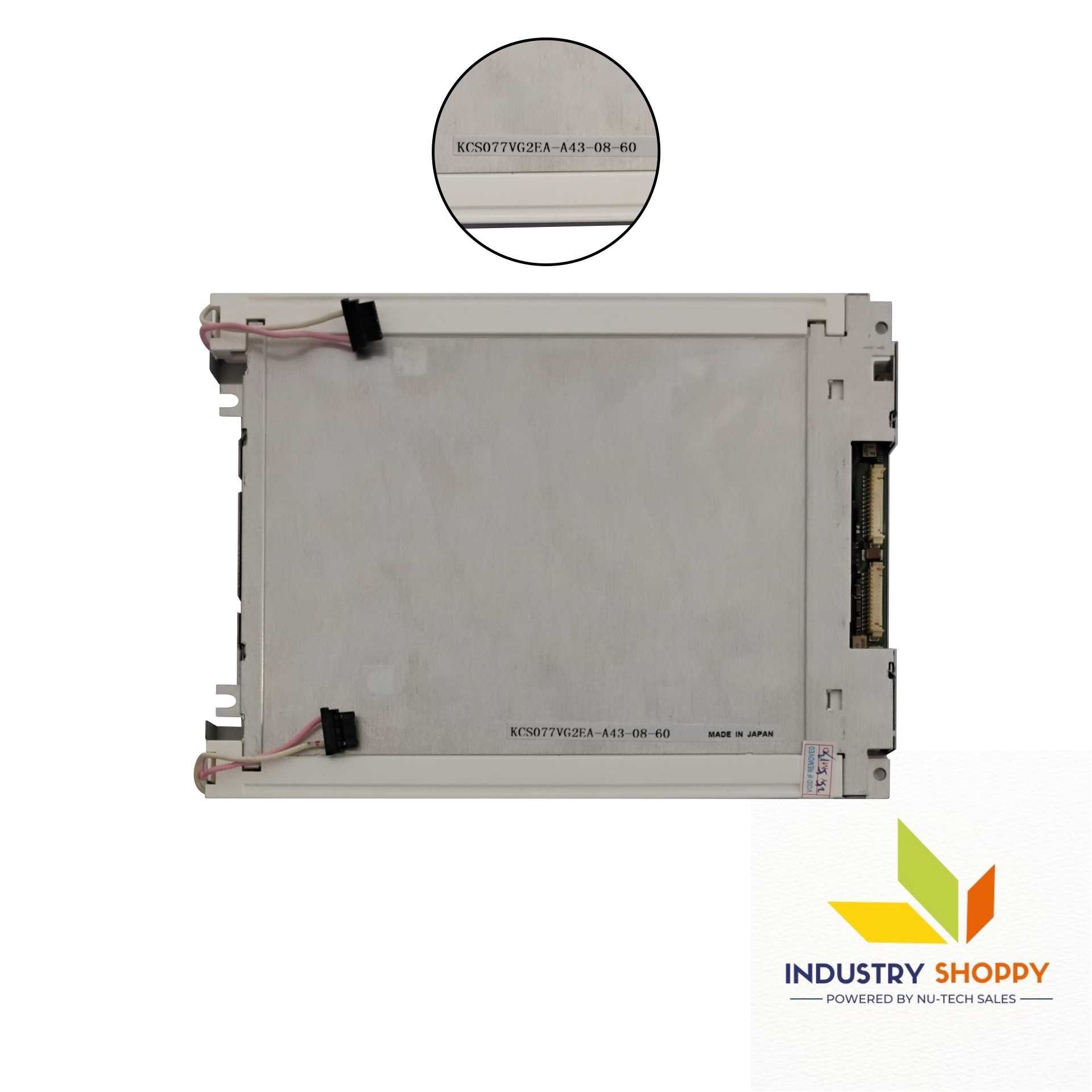

Kyocera KCS077VG2EA-A43 LCD Module

Kyocera KCS077VG2EA-A43 LCD Module

The Kyocera KCS077VG2EA-A43 LCD Module is a durable and efficient display designed for industrial and specialized embedded applications. With a VGA resolution of 640(RGB)×480 and a pixel density of 103 PPI, it offers adequate visual clarity for text-based and control interfaces. The active area spans 157.42(W) × 118.06(H) mm, while its overall outline dimensions are 199 × 147 × 10.5 mm, making it well-suited for fixed display enclosures.

Though the contrast ratio of 25:1 and luminance of 200 cd/m² are modest, the panel’s CSTN technology ensures stable performance in non-graphic-intensive environments. Furthermore, the response times of 160/140 ms (Tr/Td) make it adequate for static or slow-refresh applications. The panel supports 40% NTSC color and operates in STN mode, Normally Black, Transmissive, with a glare surface finish (0% haze). It connects via a 29-pin parallel data interface and runs at 5V (typical).

Additionally, its dual CCFL backlight offers up to 40,000 hours of life and can be optionally upgraded. It operates between 0–50°C, making it ideal for controlled environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
