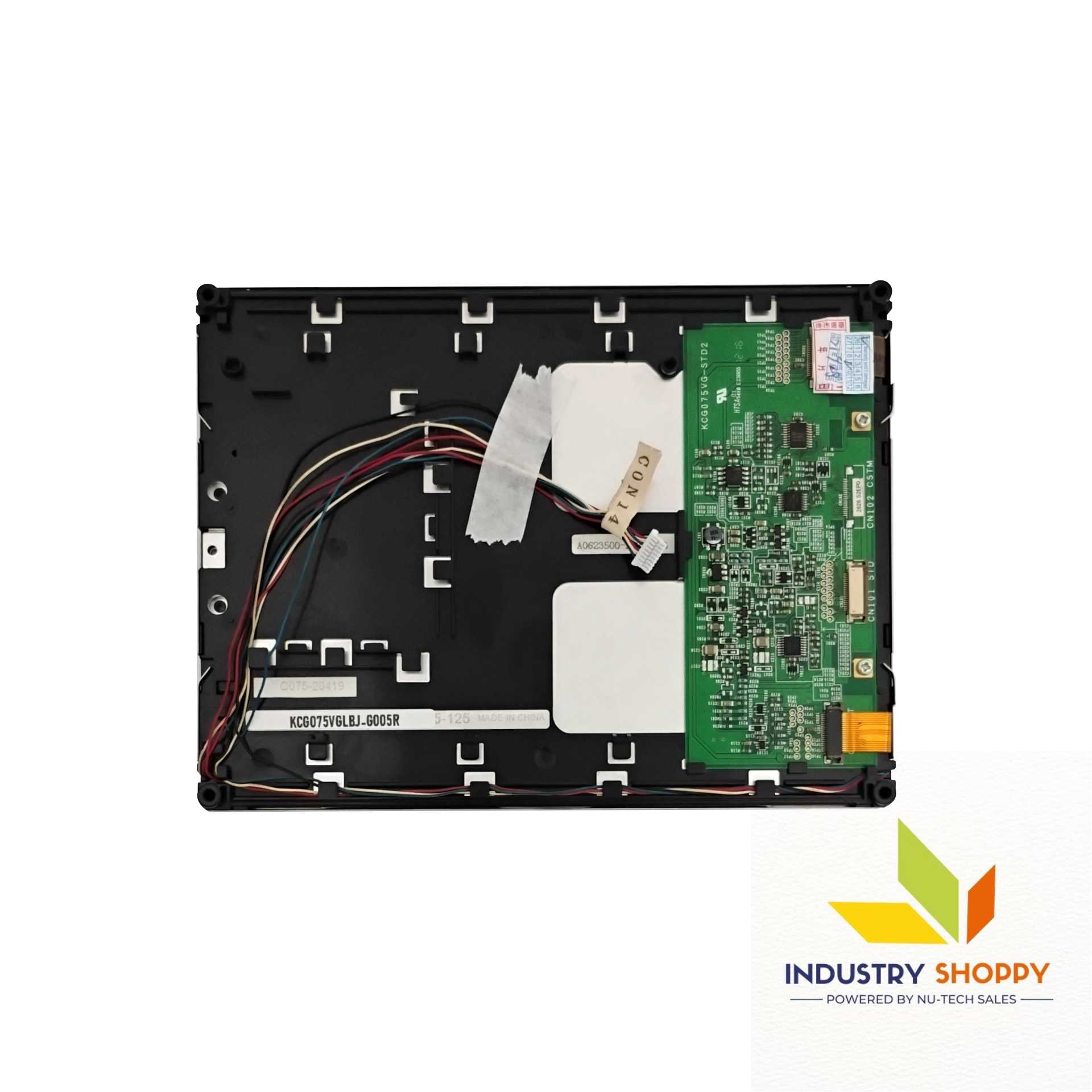

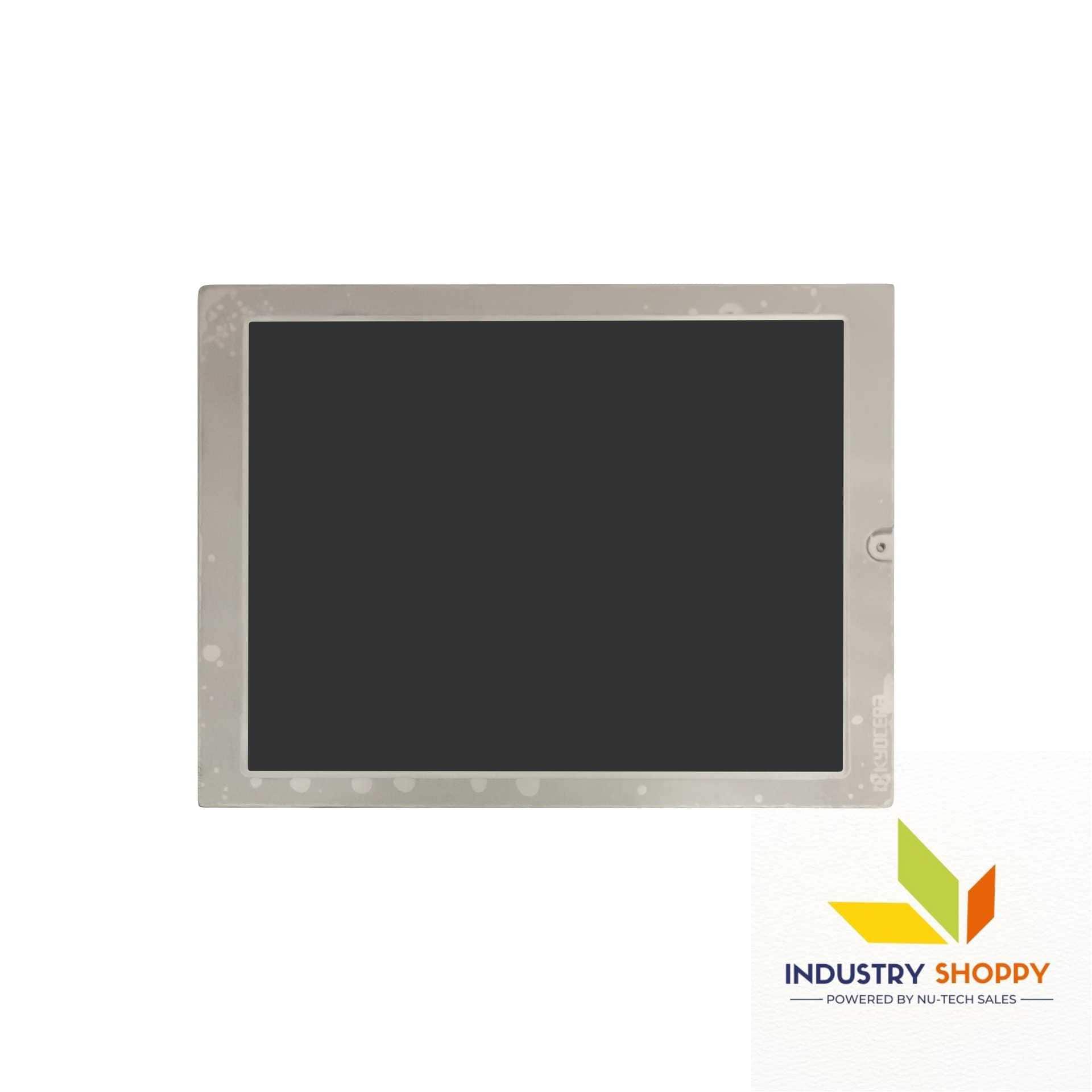

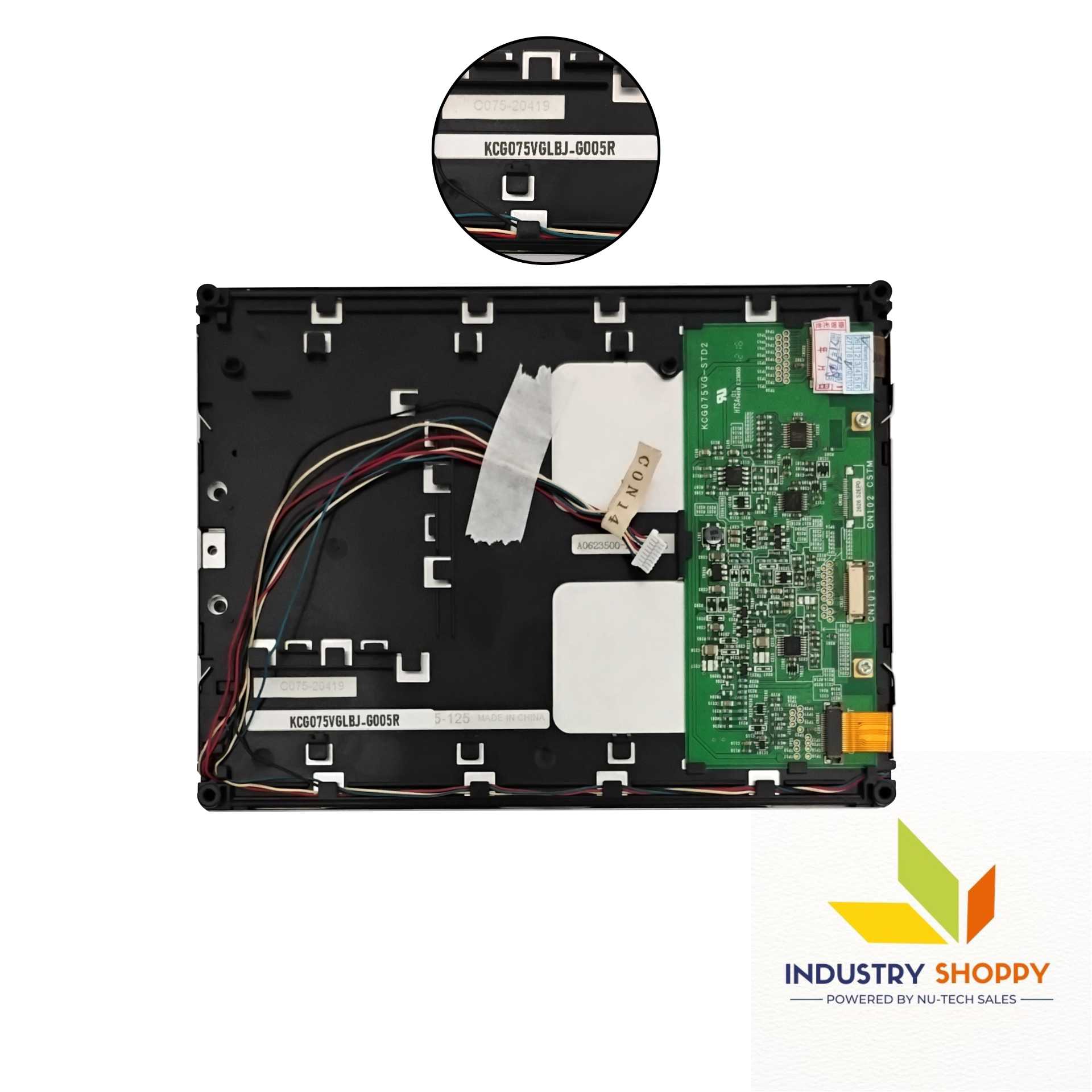

Kyocera KCG075VGLBJ-G005R LCD Module

Kyocera KCG075VGLBJ-G005R LCD Module

The Kyocera KCG075VGLBJ-G005R LCD Module 7.5-inch CSTN-LCD module is a compact and efficient display designed for reliable performance in embedded and industrial environments. With a 640(RGB)×480 VGA resolution at 107 PPI, it delivers clear visuals suitable for control interfaces, measurement devices, and handheld systems. The display features a 151.68 × 113.76 mm active area, enclosed within a durable housing measuring 184 × 139.8 × 13.2 mm.

Its 150 cd/m² luminance and 30:1 contrast ratio offers adequate visibility for indoor use. The STN, Normally Black, Transmissive operating mode ensures stable readability with low power requirements. Although the response time of 270/280 ms is relatively high, it is appropriate for applications that do not require fast-moving graphics. The glare surface (0% haze) provides sharp visuals in controlled lighting conditions.

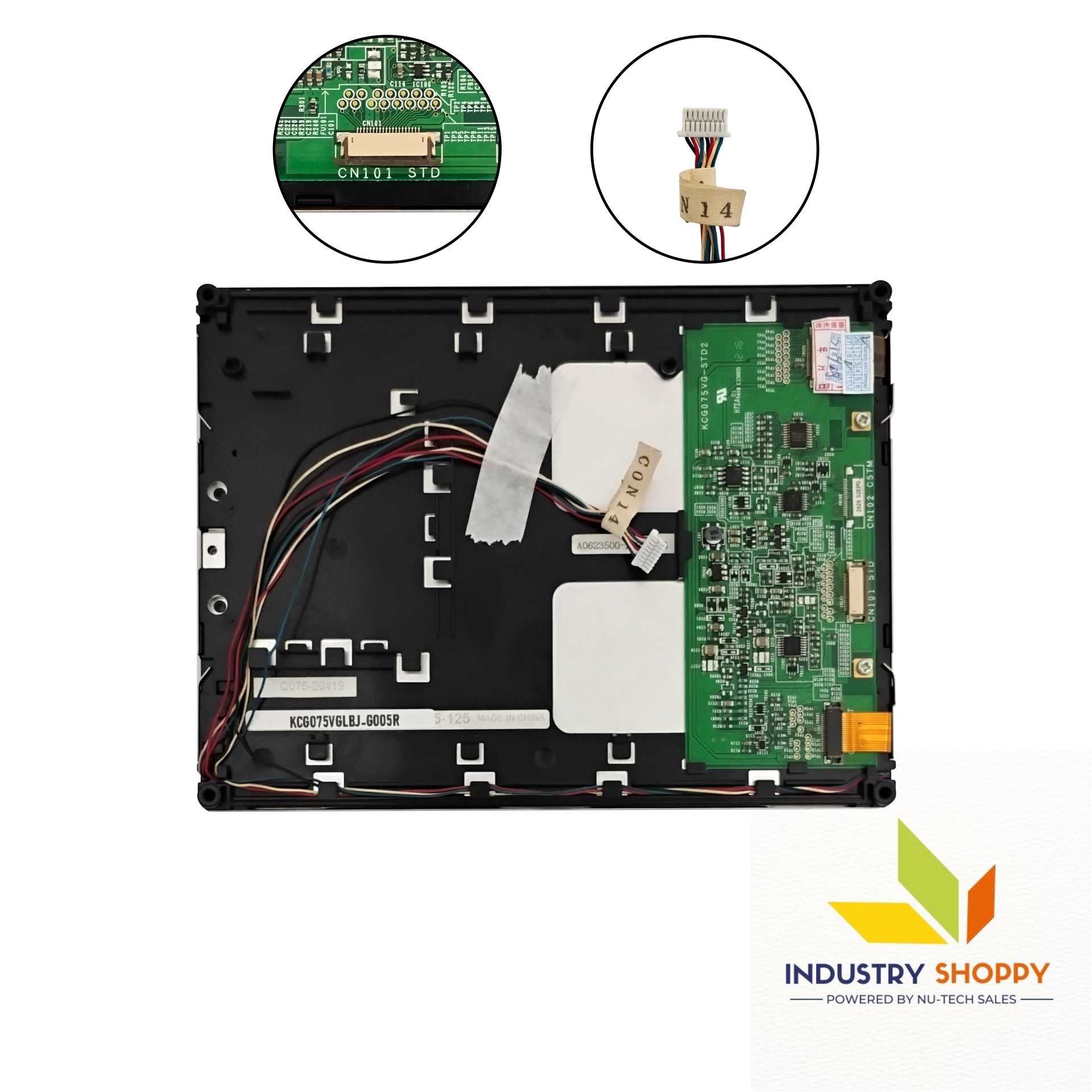

It supports color reproduction up to 48% NTSC, suitable for basic graphical interfaces. The parallel 8-bit data interface with a 20-pin connector ensures easy system integration. Its 4-string WLED backlight offers 50,000-hour lifespan, though an external driver is required. With an operating temperature range of 0–60°C and solid build quality, this display is well-suited for industrial panels, medical equipment, and instrumentation systems.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
