Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Kyocera KCG047QV1AA-A21 LCD Module
Sharp

Kyocera KCG047QV1AA-A21 LCD Module

Product SKU: NTSLCD0009
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : Kyocera
  • Size : 4.7″
  • Condition : New
  • Panel Type : CSTN-LCD, LCM
  • Work Mode : STN, Normally Black, Transmissive
Rs. 11,640.00
Rs. 13,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

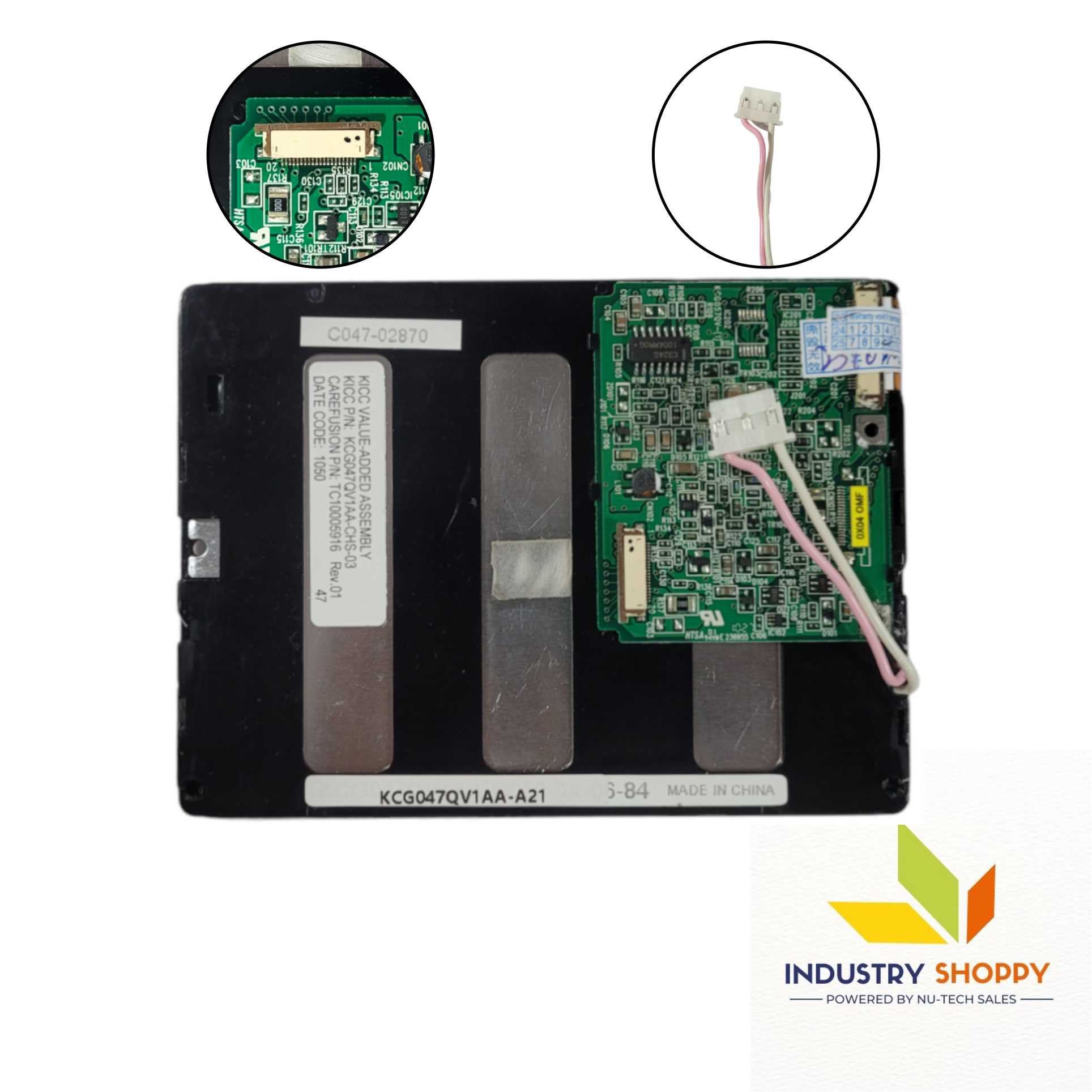

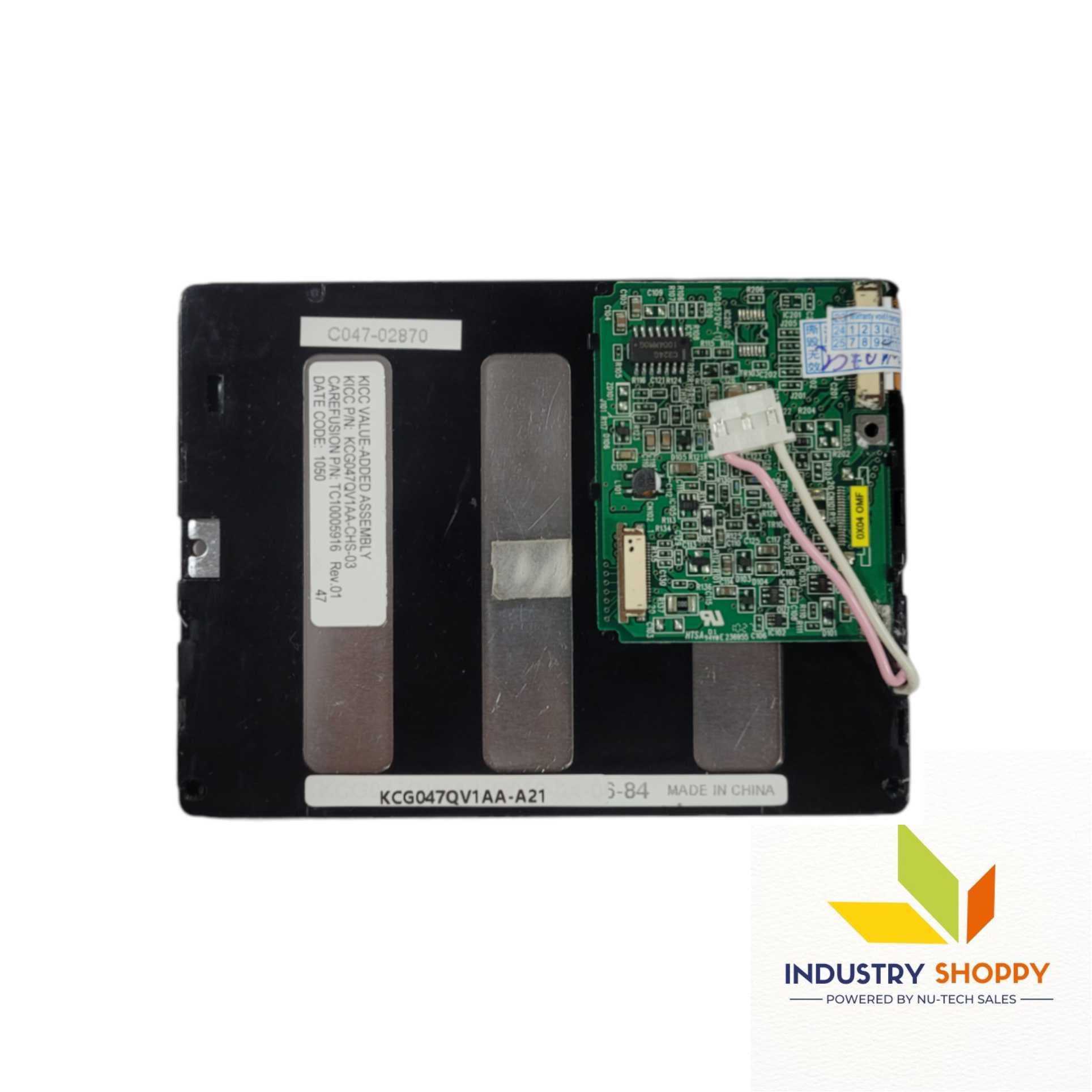

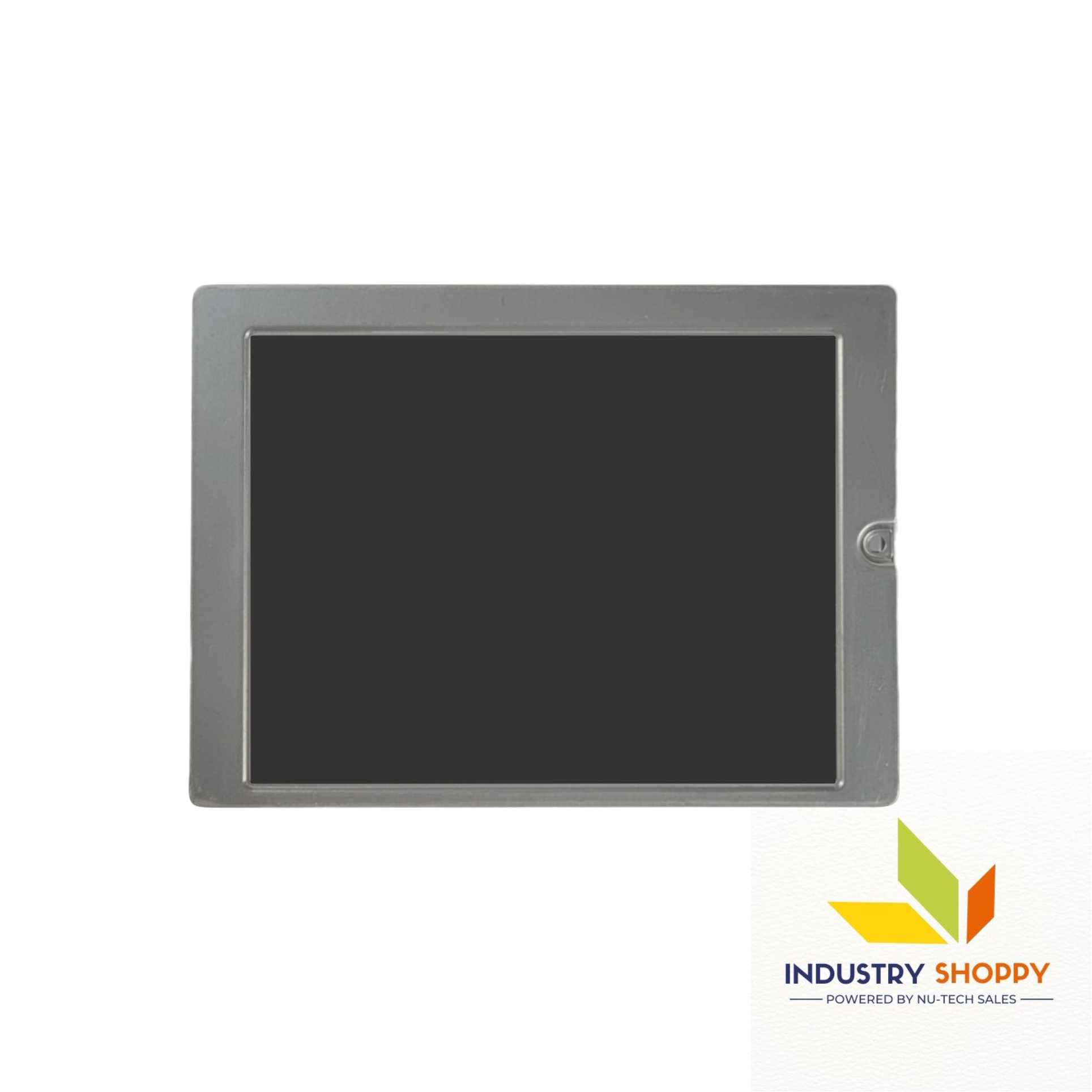

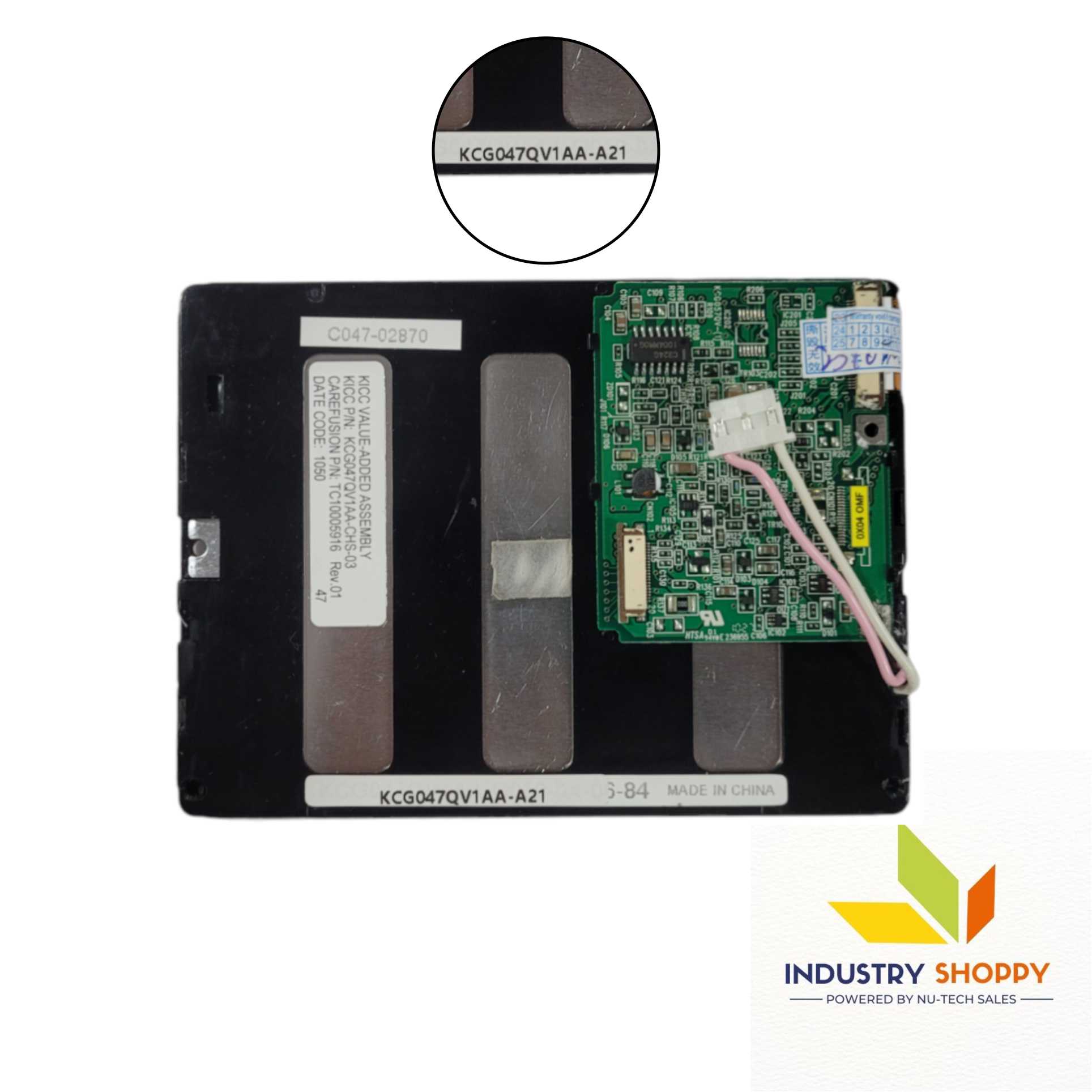

Kyocera KCG047QV1AA-A21 LCD Module

The Kyocera KCG047QV1AA-A21 LCD Module is a  4.7" CSTN-LCD Display. It is a versatile and durable display designed for various industrial applications. With a screen diagonal of 4.7 inches and a QVGA resolution of 320(RGB)×240, this display ensures clear and precise visuals with an 84PPI (pixels per inch) density. It boasts an active area of 95.98 mm (W) × 71.98 mm (H) and an overall dimension of 122.4 mm (H) × 90 mm (V) × 11.4 mm (D), making it compact yet highly efficient for integration into compact devices.

Featuring a luminance of 160 cd/m² and a contrast ratio of 30:1 (typical), this display delivers adequate brightness and readability under various lighting conditions. The viewing angles of 50° horizontal and 20°/30° vertical (typical, CR≥2) ensure acceptable visibility from different positions. Additionally, the display is equipped with an anti-glare surface, which minimizes reflections and improves screen clarity.

The display utilizes a CSTN (Color Super-Twisted Nematic) panel, supporting 33% NTSC color, and operates in normally black, transmissive mode. Its response time of 190ms for rise and 180ms for fall ensures smooth transitions, while the 75Hz frame rate supports fluid image display.

Powered by a 3.3V supply, this display features a CCFL backlight with a lifespan of 54,000 hours. Its parallel data interface (1 channel, 8-bit) with a 20-pin connector simplifies integration with various systems. The display can operate within temperatures ranging from 0°C to 50°C and can be stored at temperatures between -20°C and 60°C.


This module is suitable for use in demanding environments such as industrial control panels, medical devices, and monitoring equipment.
Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube


BrandKyocera
Diagonal Size4.7"
Resolution320(RGB)×240, QVGA 84 PPI
Active Area95.98(W)×71.98(H) mm
Outline Dimension122.4(H)×90(V)×11.4(D) mm
Luminance160 cd/m² (Typ.)
Contrast Ratio30:1 (Typ.) (TM)
Viewing Angle50/50/20/30 (Typ.) (CR≥2)
Response Time190/180 (Typ.) (Tr/Td) ms
Panel TypeCSTN-LCD, LCM
TreatmentAntiglare
Operating ModeSTN, Normally Black, Transmissive
Support ColorColor, 33% NTSC
Signal Interface TypeParallel Data (1ch, 8-bit), 20 pins Connector
Frame Rate75 Hz
Power Supply3.3 V (Typ.)
BacklightCCFL [1 pcs], 54K hours, Optional
Operating Temp.0 ~ 50 °C
Storage Temp.-20 ~ 60 °C
