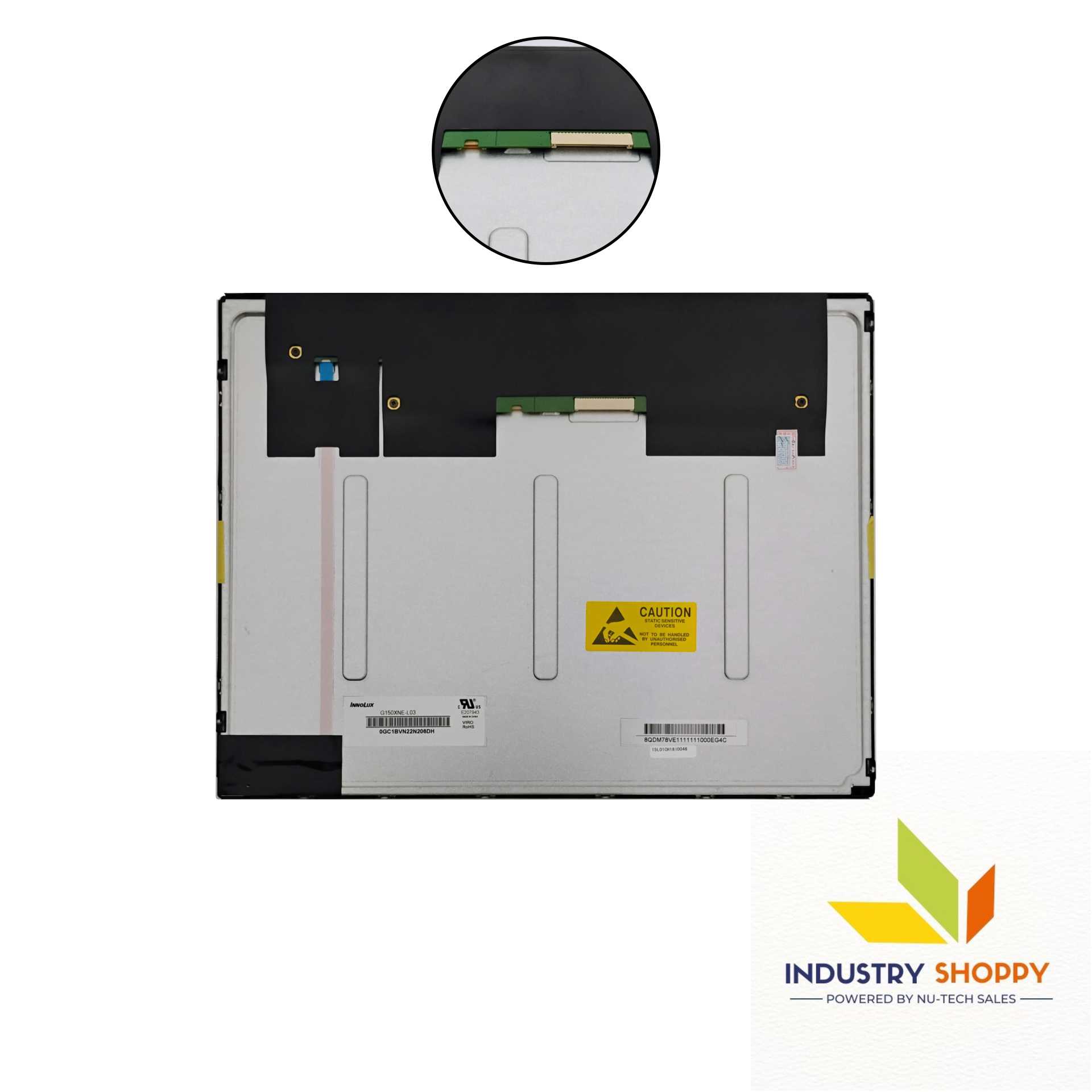

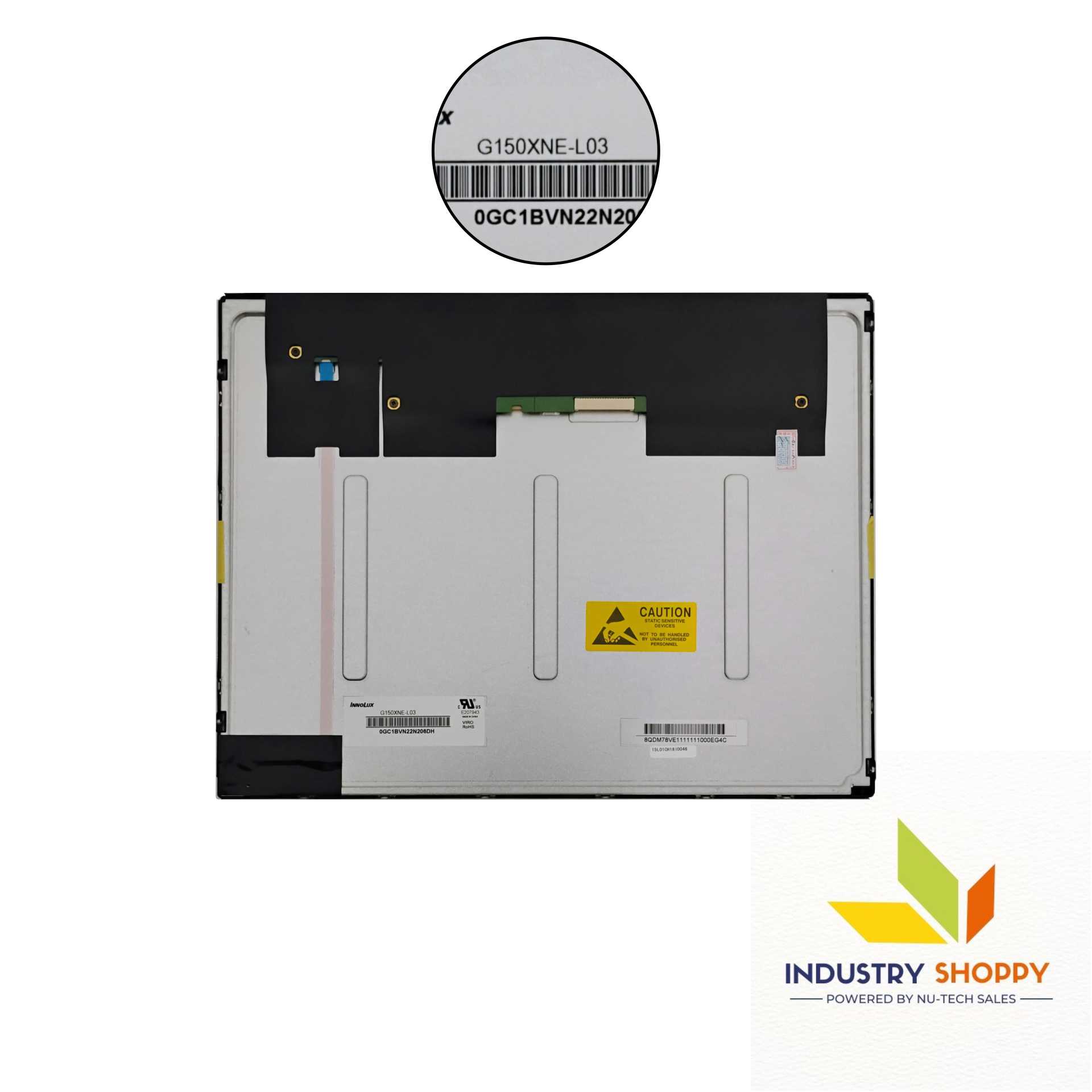

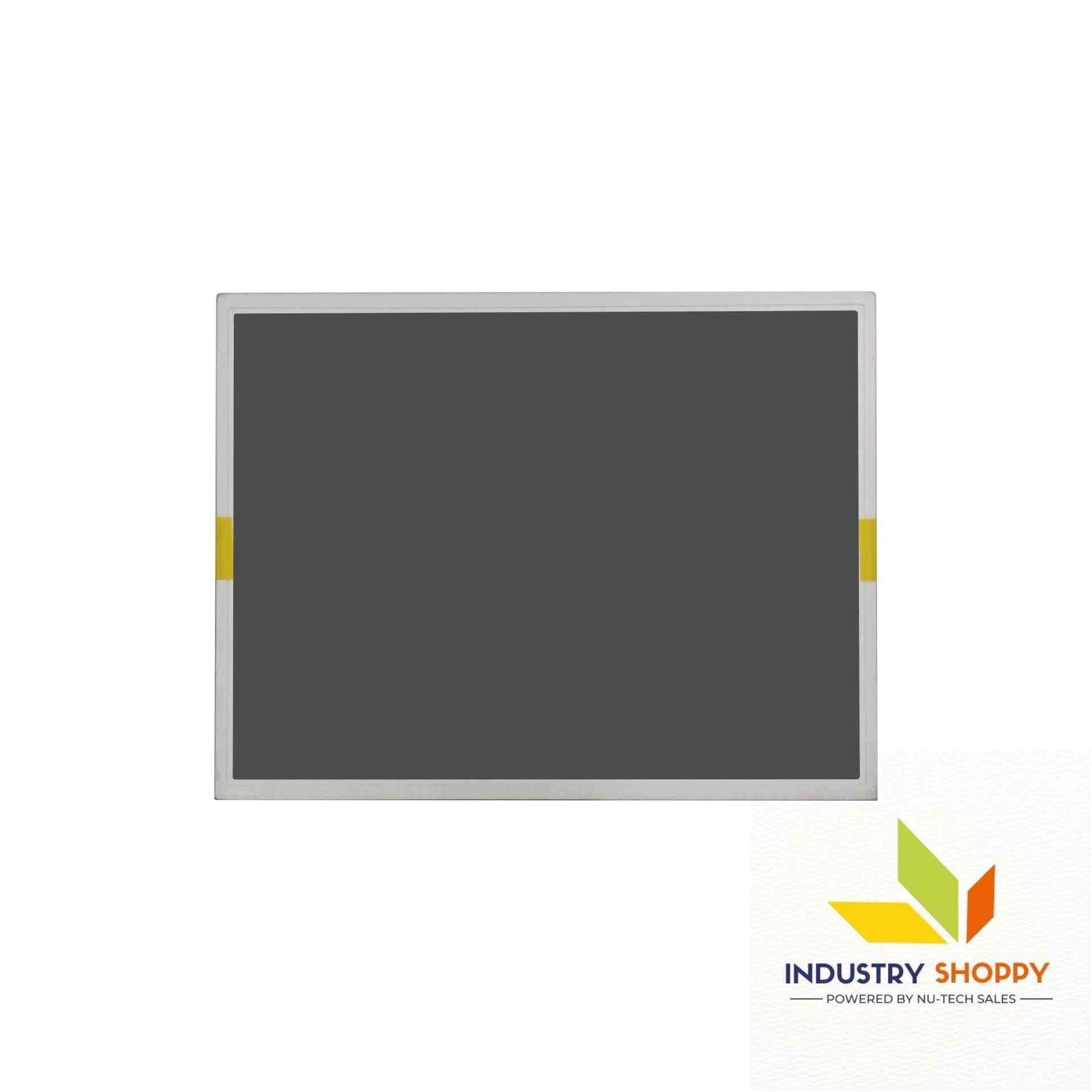

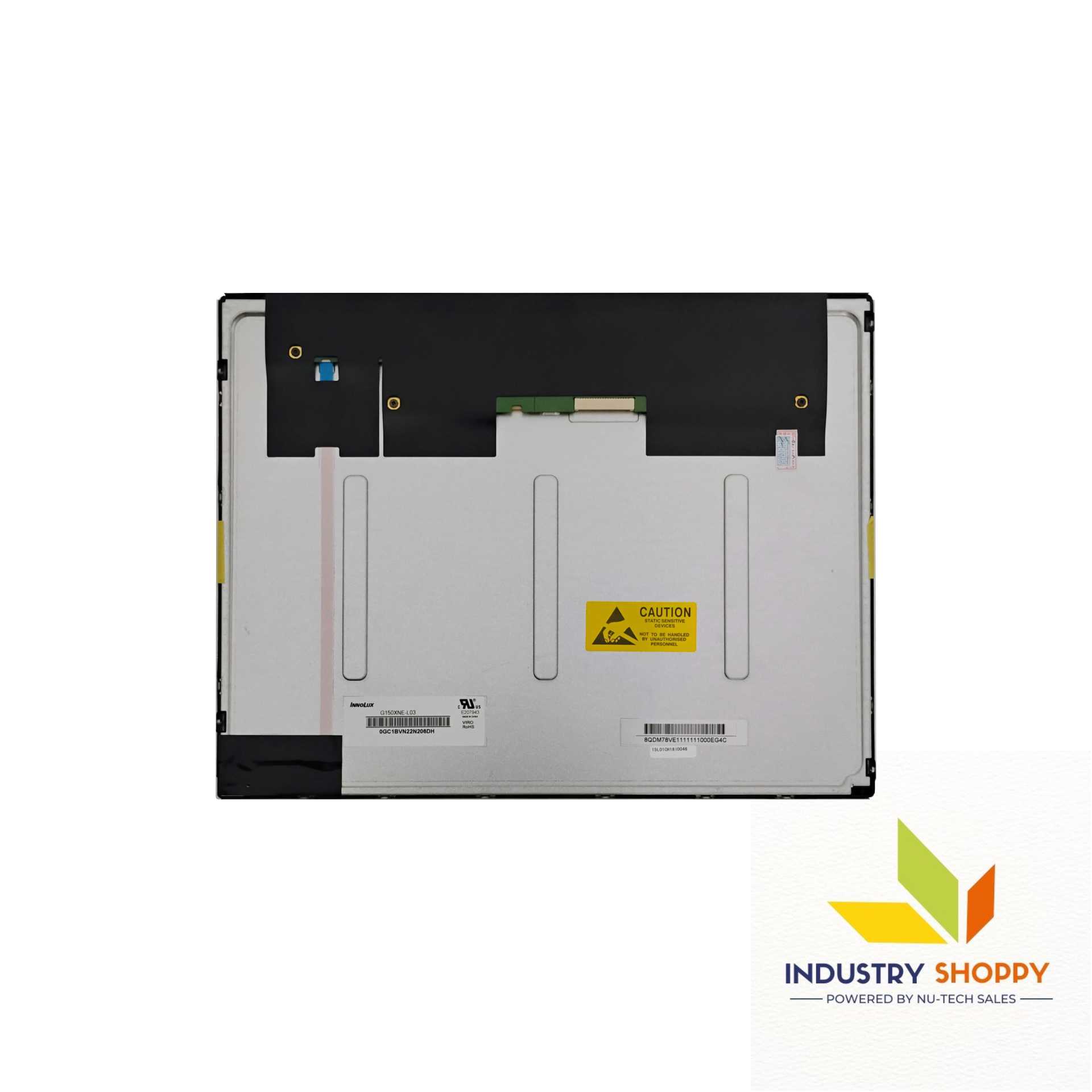

Innolux G150XNE-L03 LCD Module

• Brand :  Innolux
• Size : 15.0"
• Condition : New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : NPVA, Normally Black, Transmissive

Innolux G150XNE-L03 LCD Module

The Innolux G150XNE-L03 LCD Module 15.0" XGA Display is a high-performance panel designed for demanding applications, offering a resolution of 1024(RGB)×768 with an 85 PPI pixel density. Its active area spans 304.128 mm × 228.096 mm, housed within a sleek 326.5 mm × 253.5 mm × 9.6 mm outline dimension, making it ideal for integration into modern systems.

This display provides exceptional visual quality with a luminance of 300 cd/m² and an outstanding contrast ratio of 2000:1, ensuring crisp and vibrant images. The wide viewing angles of 88/88/88/88 degrees (CR≥10) allow for excellent visibility from nearly any direction. Its response time of 16/7 ms (Tr/Td) supports smooth motion rendering.

The panel features an a-Si TFT-LCD type, utilizing NPVA technology, operating in Normally Black, Transmissive mode for superior contrast and color depth. It supports 262K/16.7M colors covering 72% NTSC, and the LVDS interface (20-pin, 6/8-bit) ensures reliable data transmission. The WLED backlight includes an integrated LED driver with a long life of 70,000 hours. Operating within -20 to 70°C, it's also safe for storage between -30 to 70°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
