Innolux G057AGE-T01 LCD Module

Innolux G057AGE-T01 LCD Module

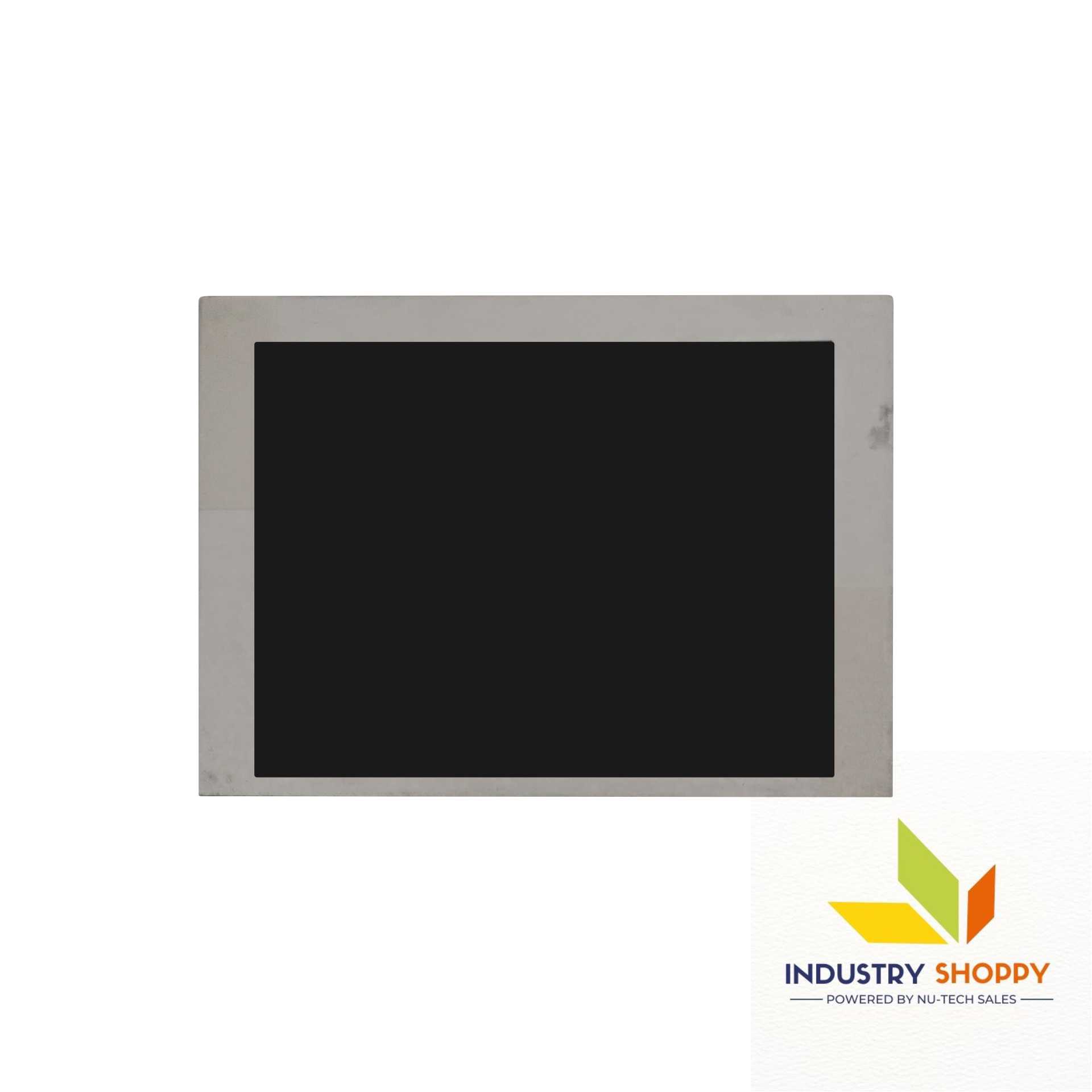

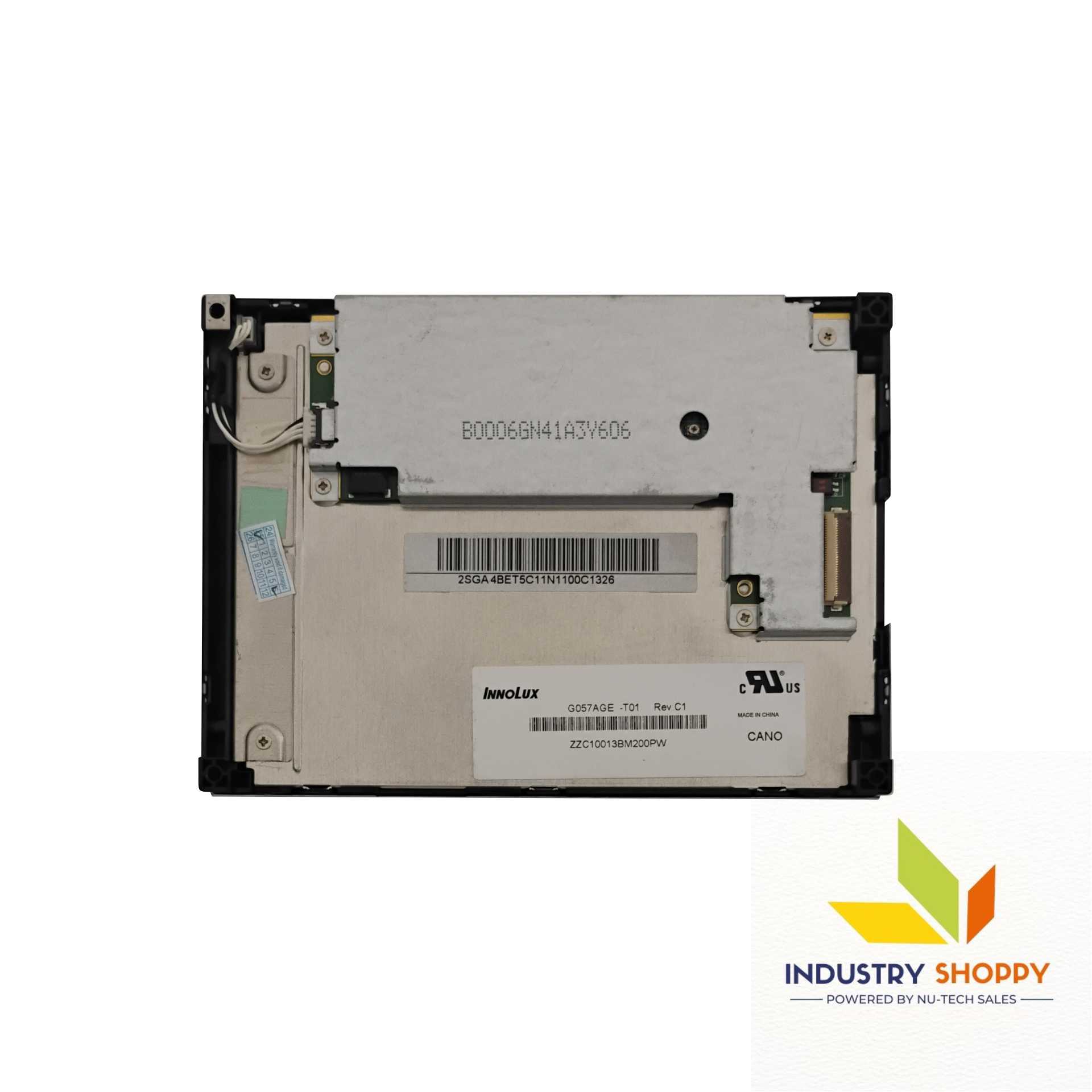

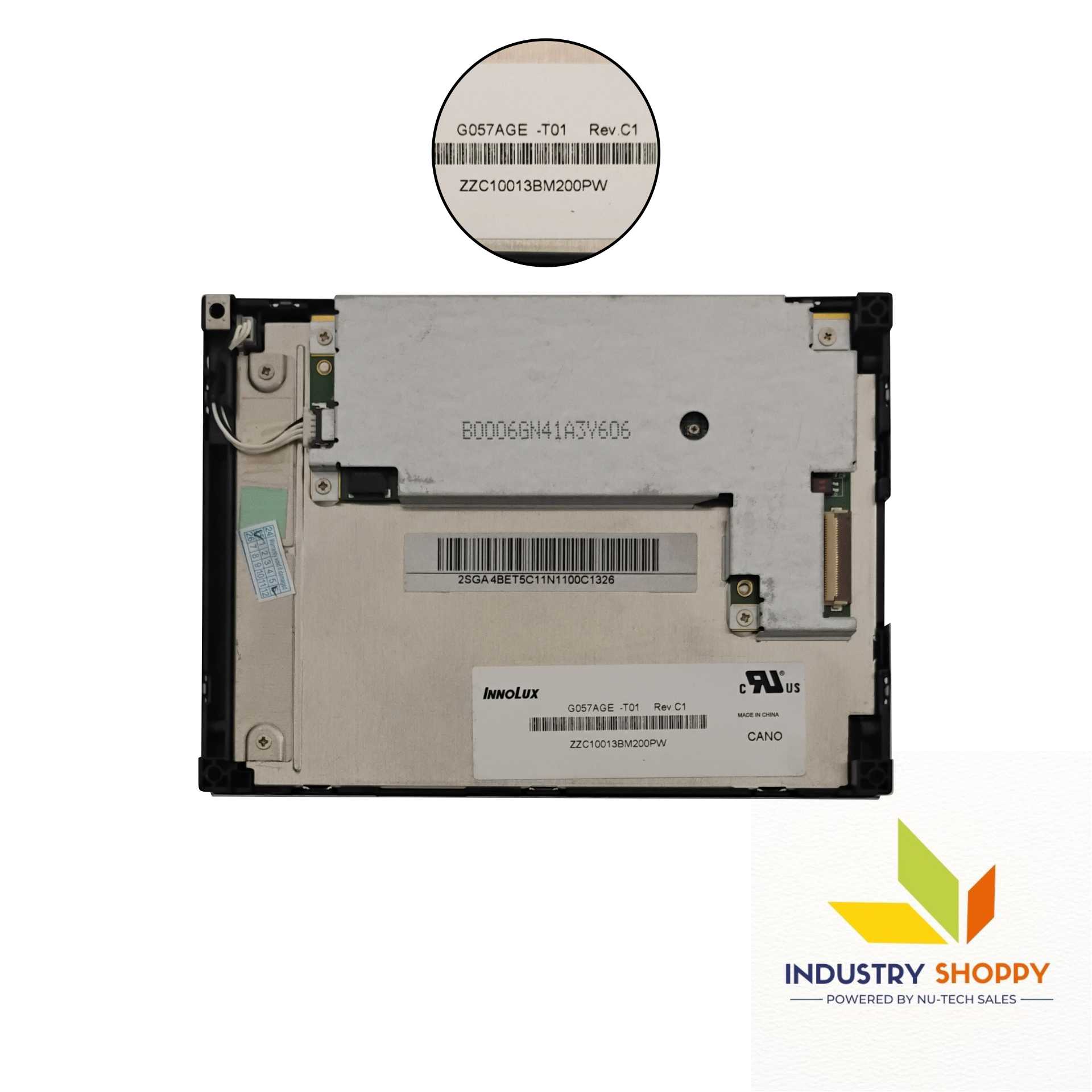

The Innolux G057AGE-T01 LCD Module is a high-brightness, compact a-Si TFT-LCD panel designed for industrial and outdoor applications. With a resolution of 320×240 at 70 PPI, it features a 115.2×86.4 mm active area within a 144×104.6×12.8 mm housing. Its antiglare surface (25% haze) reduces reflections, ensuring visibility in various lighting conditions.

The Innolux G057AGE-T01 LCD Module boasts 500 cd/m² luminance and a high contrast ratio of 800:1, delivering vivid images despite its QVGA resolution. A wide viewing angle of 80/80/70/70° (CR≥10) enhances usability in dynamic environments. The TN, Normally White, Transmissive mode provides excellent clarity, while the response time of 15/35 ms (Tr/Td) ensures smooth visual transitions.

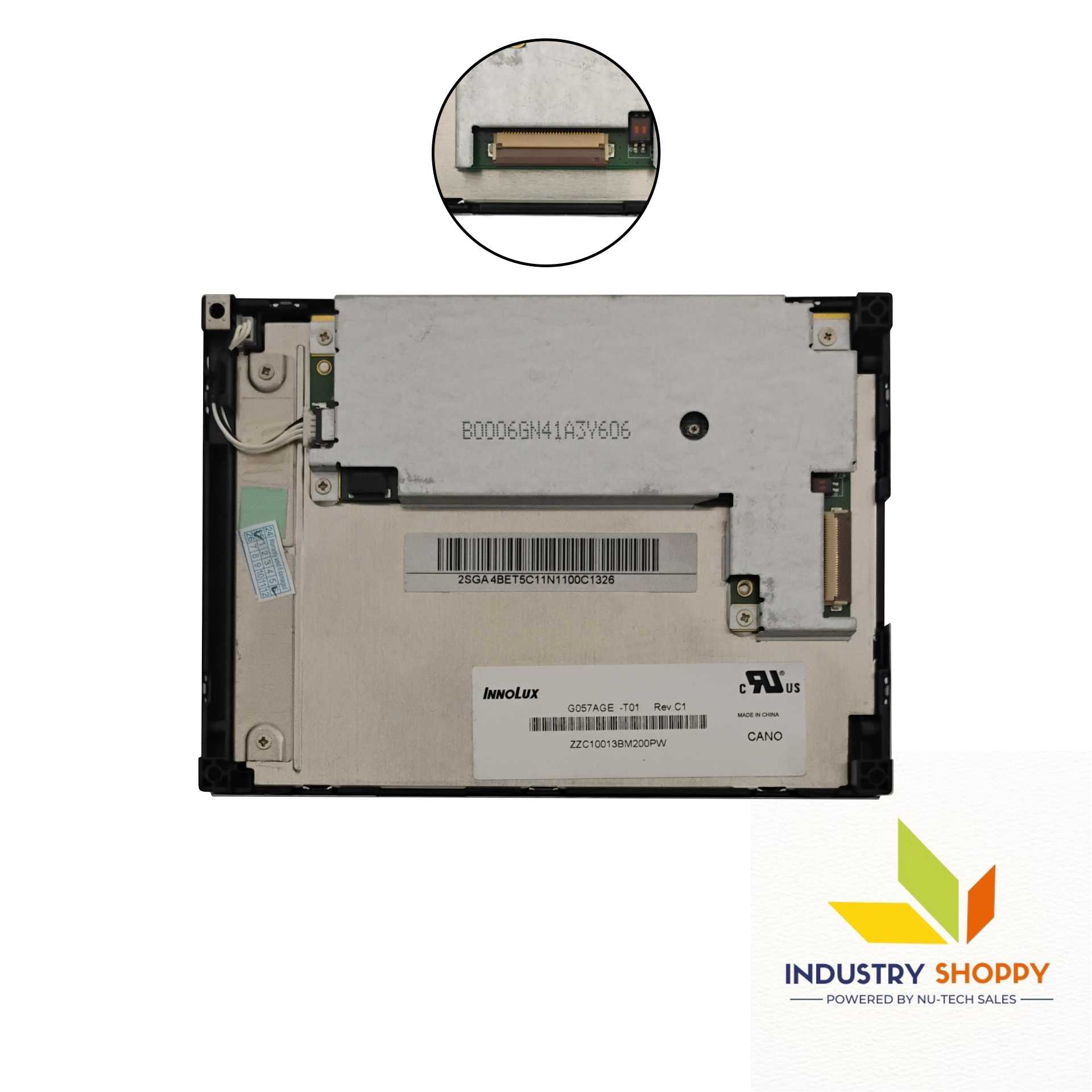

It supports 262K colors at 54% NTSC, connects via a TTL interface (6-bit, 33-pin connector), and operates at a 60Hz frame rate. Powered by 3.3V, it includes a long-life WLED backlight (50K hours) with a built-in LED driver. It withstands -30 to 85°C, making it highly reliable in harsh conditions.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
