Innolux EJ080NA-05A LCD Module

Innolux EJ080NA-05A LCD Module

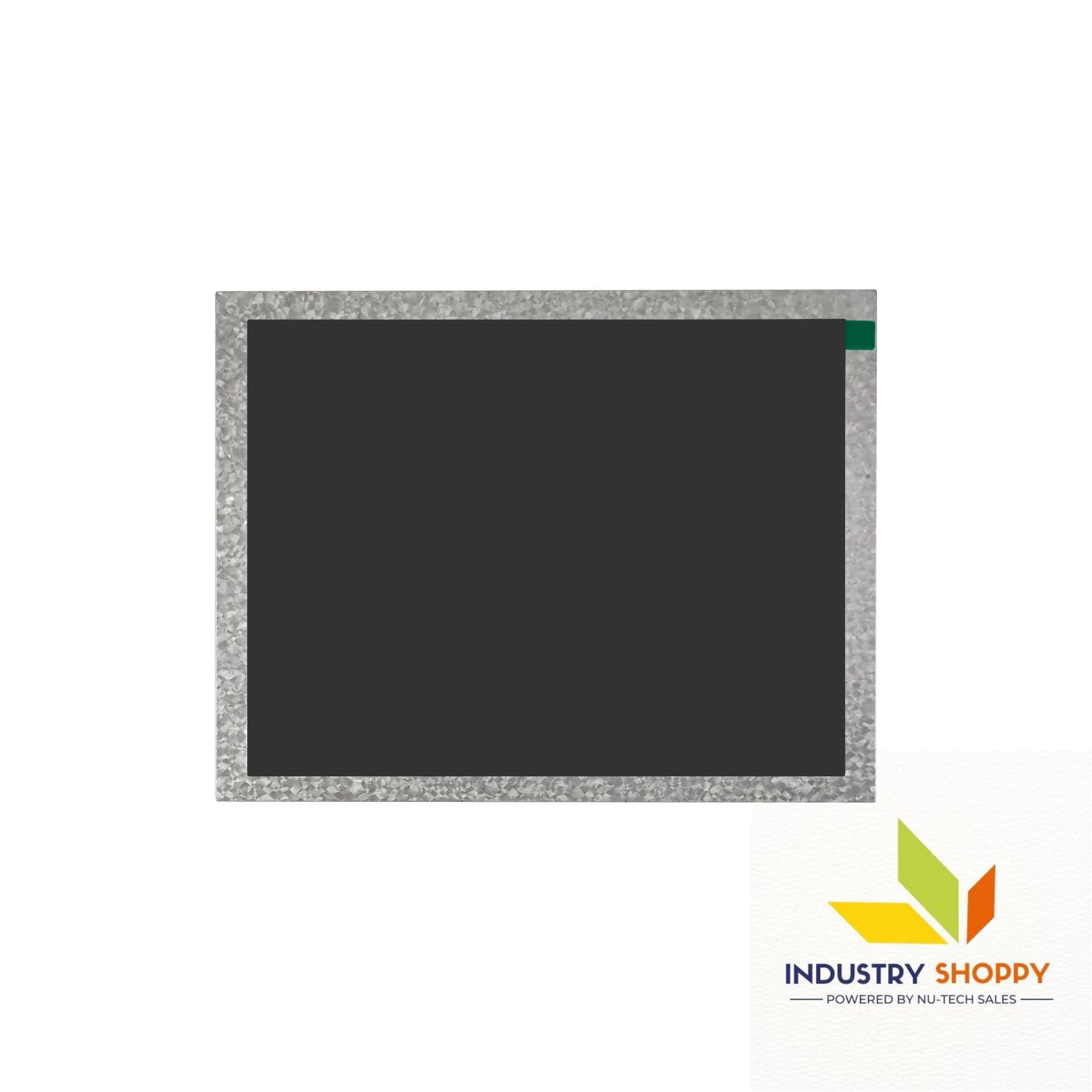

The Innolux EJ080NA-05A LCD Module (Chimei) 8.0-inch TFT-LCD module is a high-performance display designed for industrial, medical, and HMI applications requiring reliability and clarity. With a resolution of 800×600 SVGA and 125 PPI, this panel delivers sharp and detailed visuals suitable for data-rich interfaces. Its 250 cd/m² typical luminance and 500:1 contrast ratio ensures clear readability in various lighting conditions.

The display features a TN, Normally White, Transmissive operating mode, offering stable performance and fast response times of 10/15 ms (Tr/Td). The antiglare treatment enhances visibility by minimizing reflections, making it ideal for harsh or bright environments. Its wide 70/70/50/70 viewing angle (CR≥10) ensures consistent image quality from multiple directions.

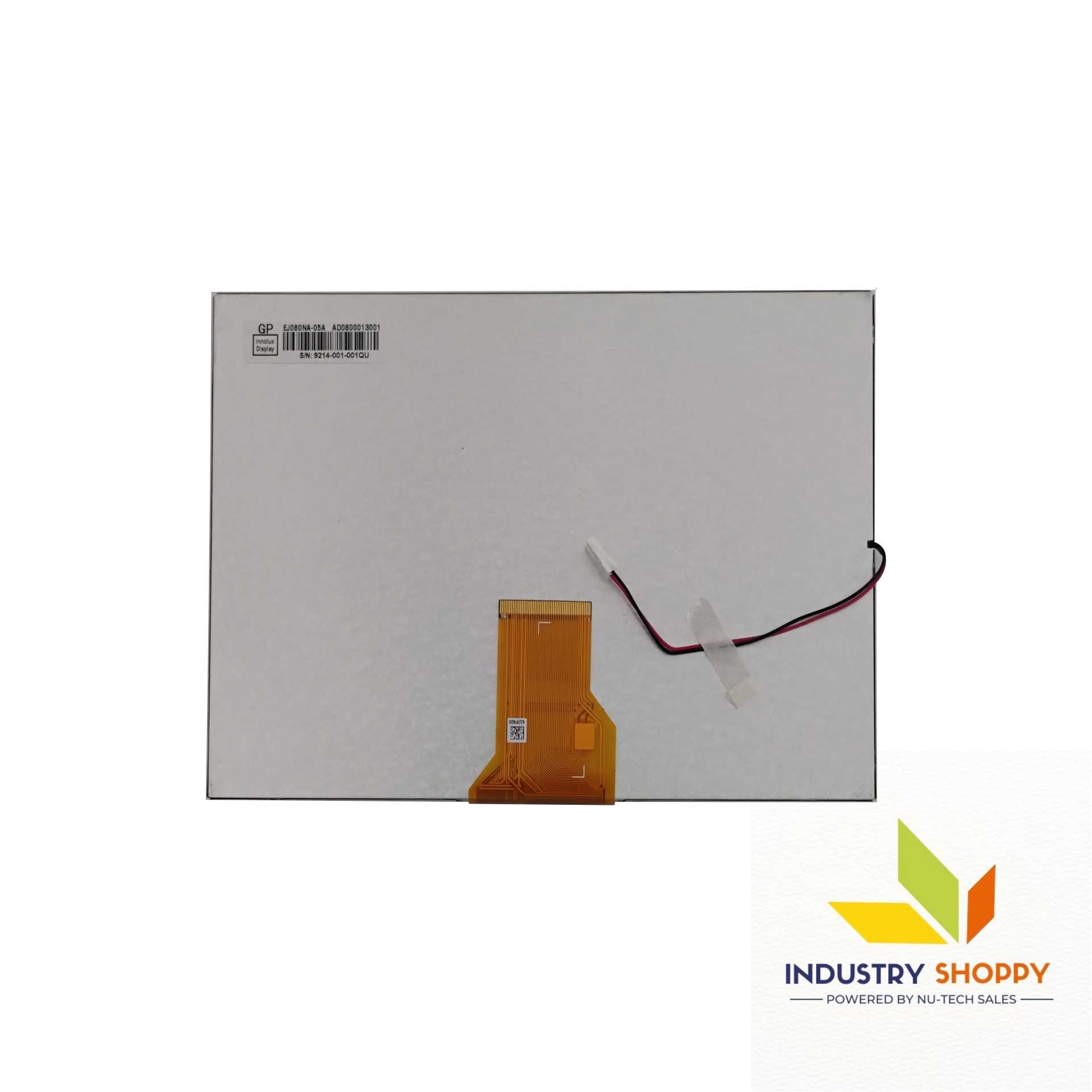

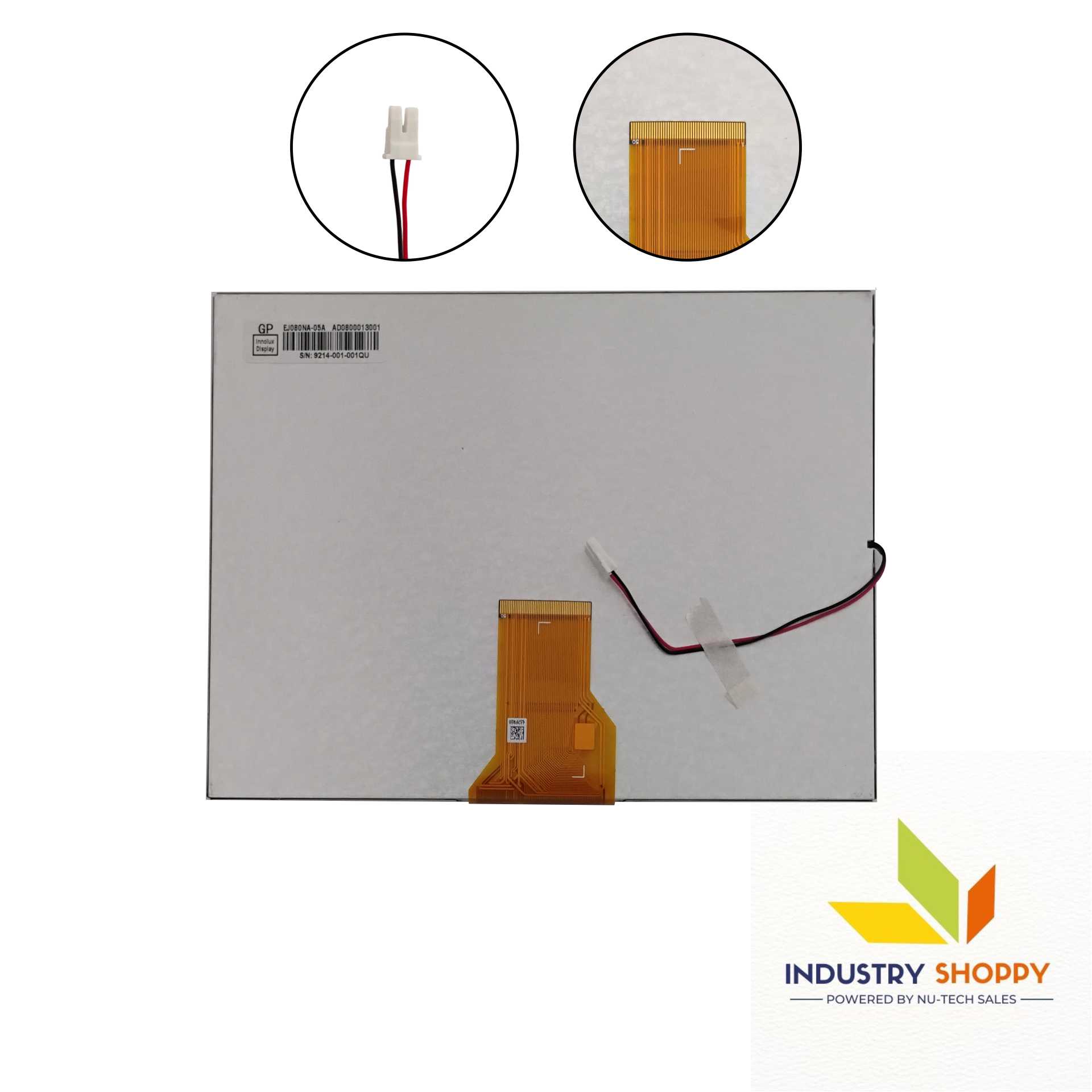

Built with a durable a-Si TFT-LCD structure, it supports 262K/16.7M colors, enabling vibrant and accurate color reproduction. The module uses a Parallel RGB (6/8-bit) interface with 50-pin FPC, ensuring easy system integration. Operating reliably between 20°C to 70°C and storage tolerance of –30°C to 80°C, this display suits demanding environments. The WLED backlight (3S9P) with 20K-hour lifespan ensures long-term, maintenance-free operation.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broke or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
