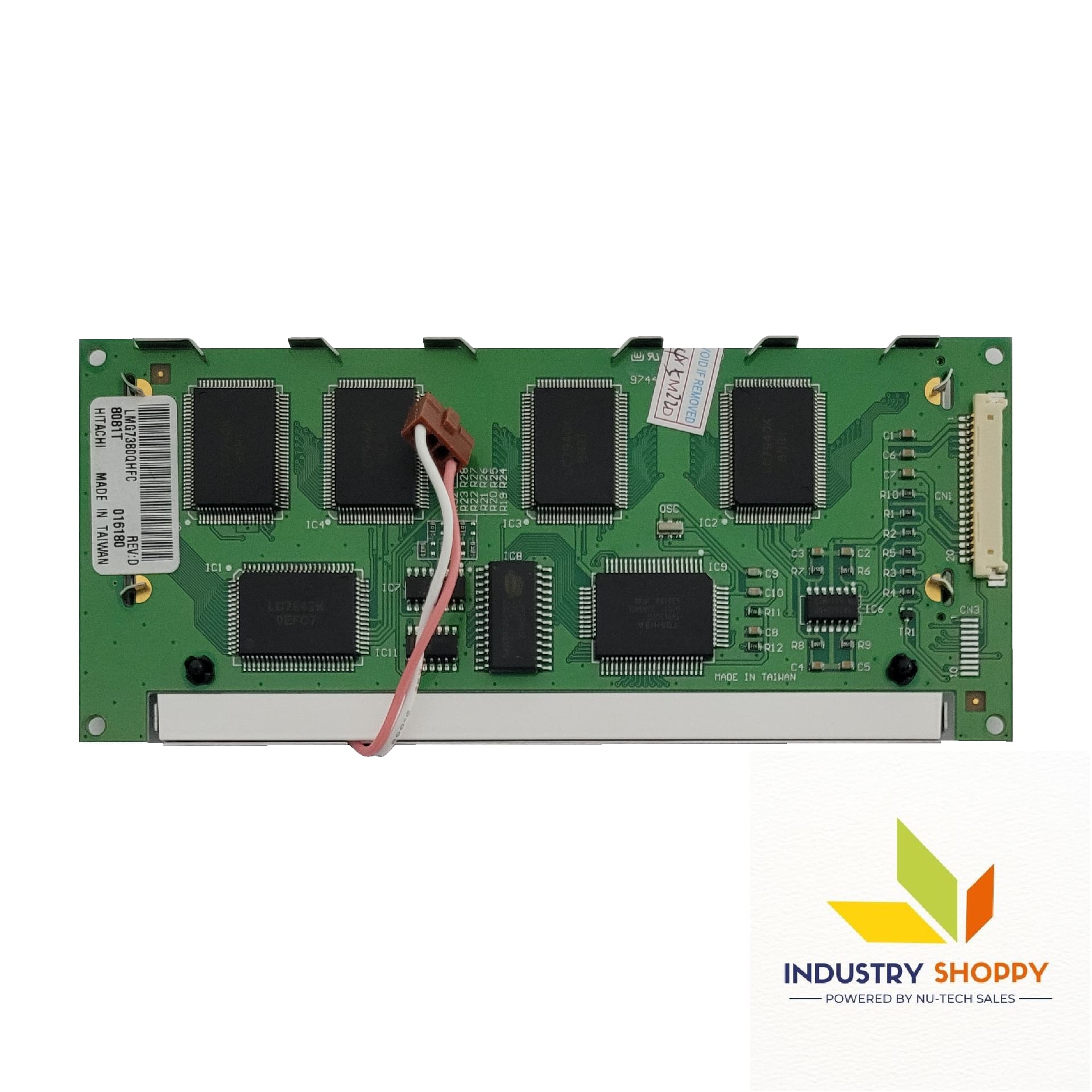

Hitachi LMG7380QHFC LCD Module

Hitachi LMG7380QHFC LCD Module

The Hitachi LMG7380QHFC LCD Module is 4.8" FSTN-LCD display module offers a 256×64 resolution with 54 PPI pixel density, making it suitable for applications requiring compact displays with clear, sharp characters. The active area measures 120.29 mm (W) x 30.05 mm (H), which ensures adequate screen space for displaying information in various devices. The outline dimensions are 160 mm (W) x 68 mm (H) x 12 mm (D), ensuring easy integration into your product designs.

With a luminance of 90 cd/m² and a contrast ratio of 20:1, this display delivers legible content in controlled lighting environments. The viewing angle of 40° (Typ.) and response time of 160/110 ms (Typ.) ensures responsive and clear display performance under different angles and usage conditions.

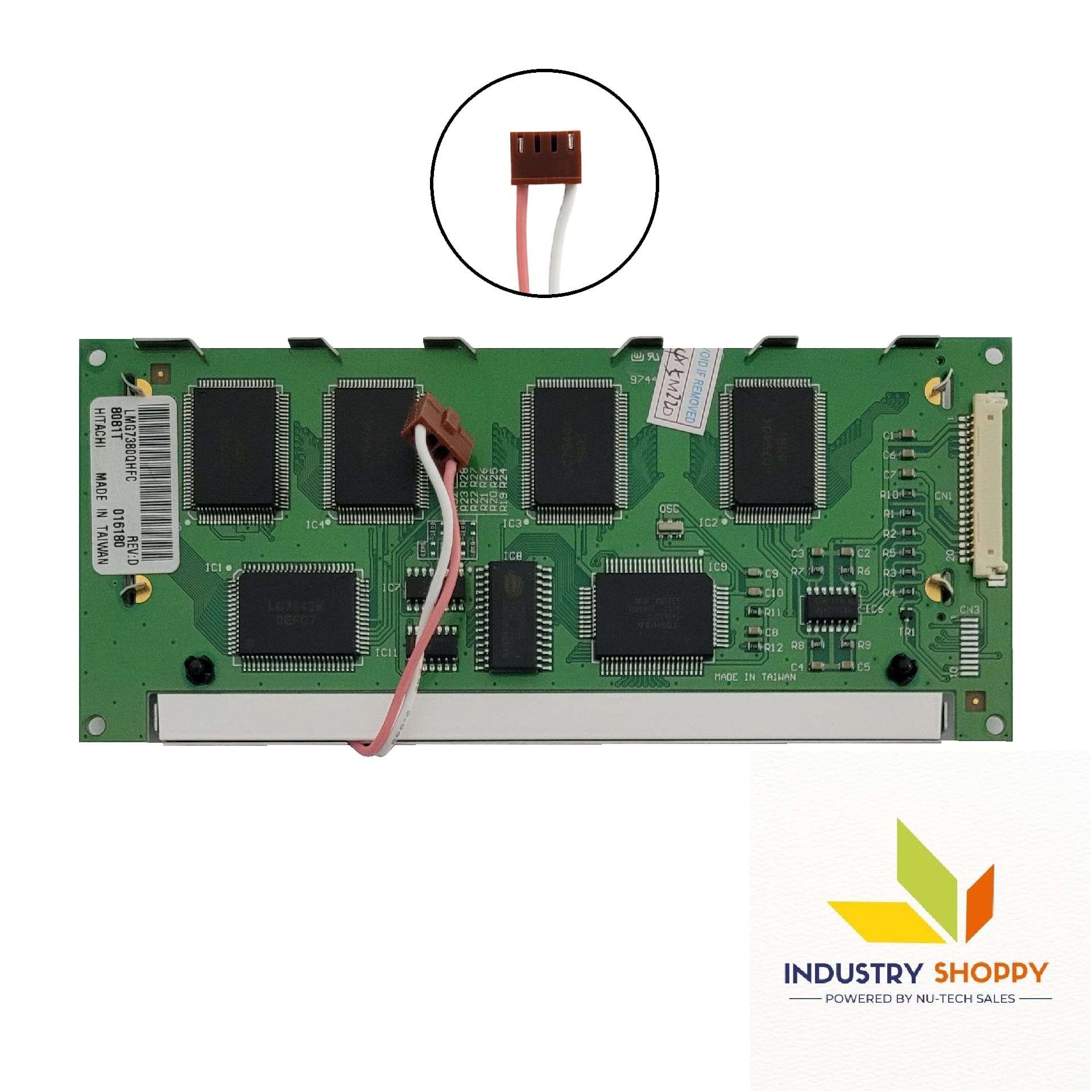

The STN (Super Twisted Nematic), Black/White (Positive) operating mode offers enhanced visibility in ambient light, while the 8-bit parallel interface ensures compatibility with most microcontrollers and processors. Powered by 5V DC, it includes CCFL backlighting but does not come with a driver.

Ideal for use in industrial equipment, handheld devices, and portable gadgets, it operates within a temperature range of 0 ~ 50 °C and stores safely from -20 ~ 60 °C.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broke or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
