EDT ET0570C9DN6 LCD Module

EDT ET0570C9DN6 LCD Module

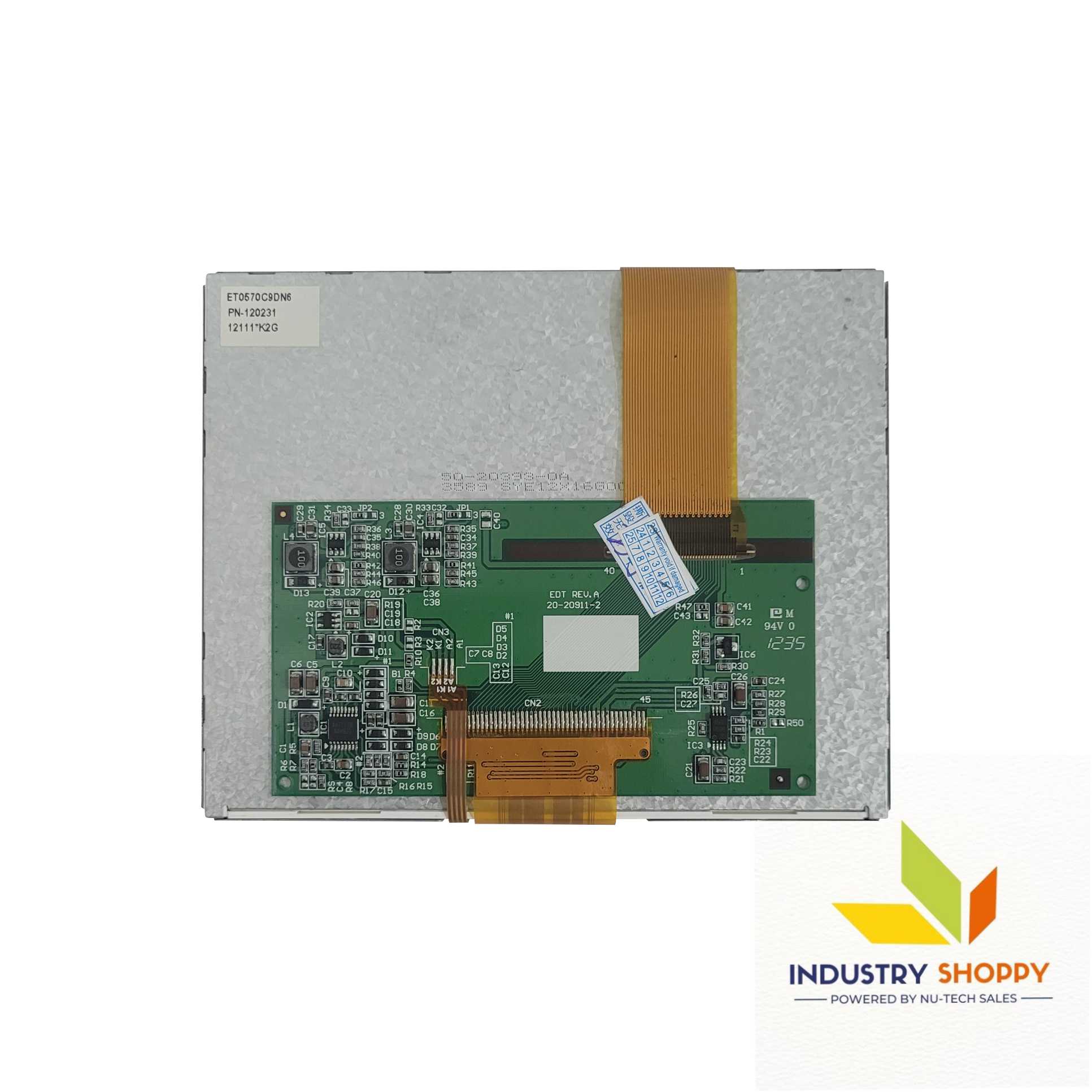

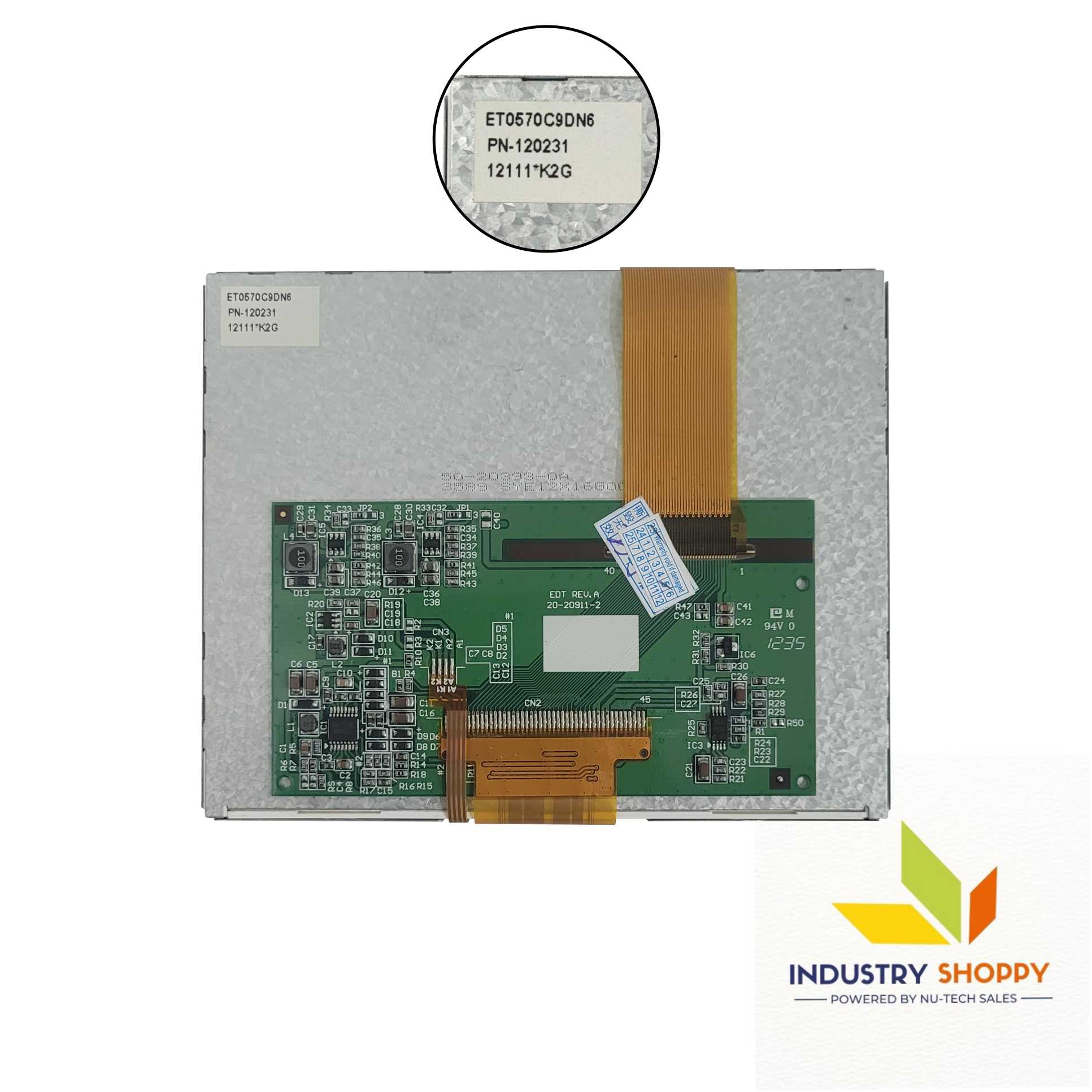

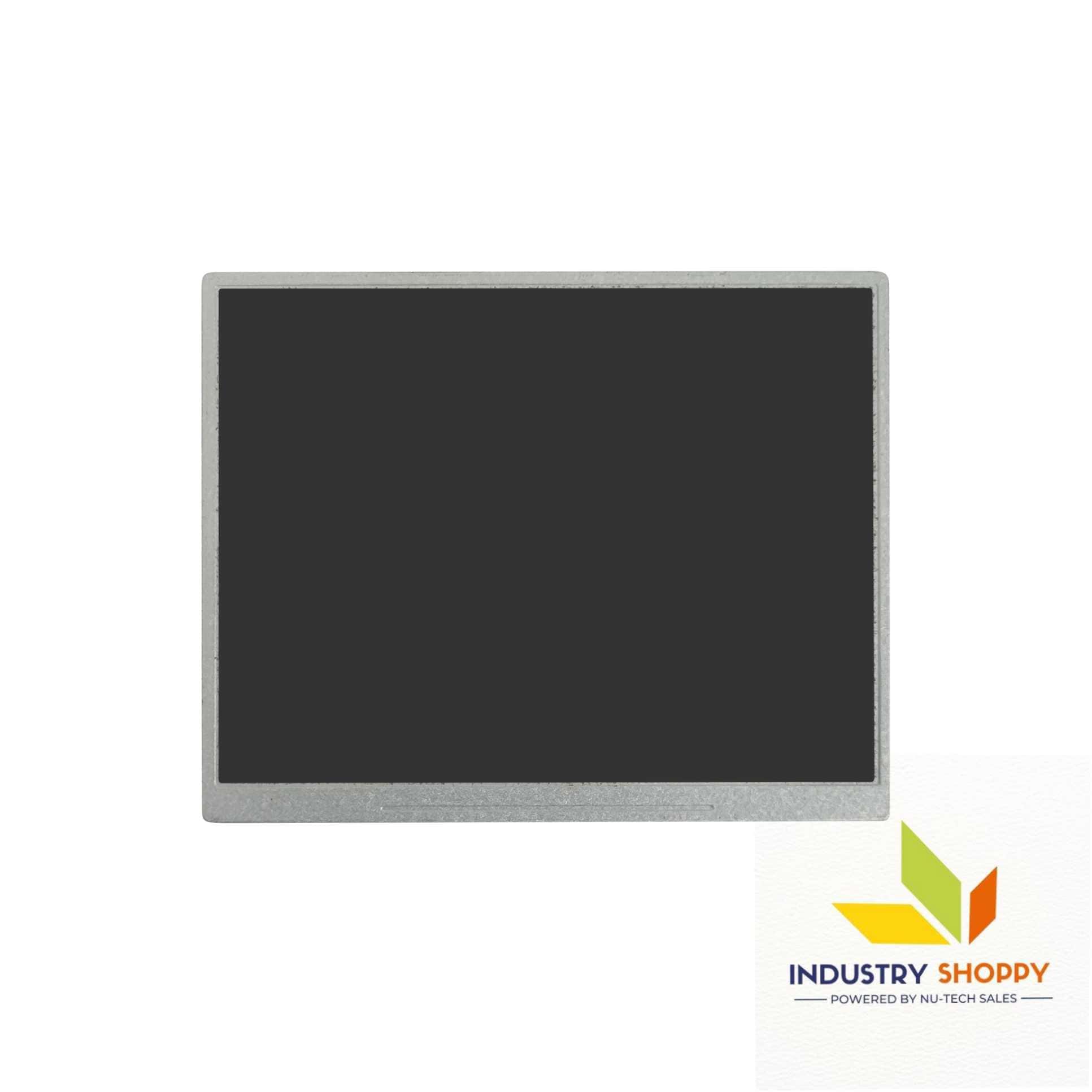

The EDT ET0570C9DN6 LCD Module is a 5.7-inch TFT LCD display designed for industrial and embedded system applications where clarity, color depth, and durability are critical. Featuring a 320 × 240 pixel (QVGA) resolution, the display offers sharp, vibrant visuals across its 115.2 mm × 86.4 mm active area. It delivers impressive brightness at 400 cd/m² and a contrast ratio of 500:1, ensuring visibility even under moderate ambient light. The module supports 262K colors via a 24-bit RGB interface, making it suitable for GUIs with rich visuals.

Its typical viewing angles of 70° (left/right), 50° (up), and 60° (down) make it readable from multiple directions. The display operates efficiently at 3.3V, with an integrated LED backlight, and responds quickly with a 30 ms response time. With a sturdy build and operating temperature range from –20°C to +70°C, it’s well-suited for use in control systems, test equipment, and compact user interfaces. The display’s compact 144 mm × 104.6 mm footprint facilitates easy integration into space-constrained designs.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.

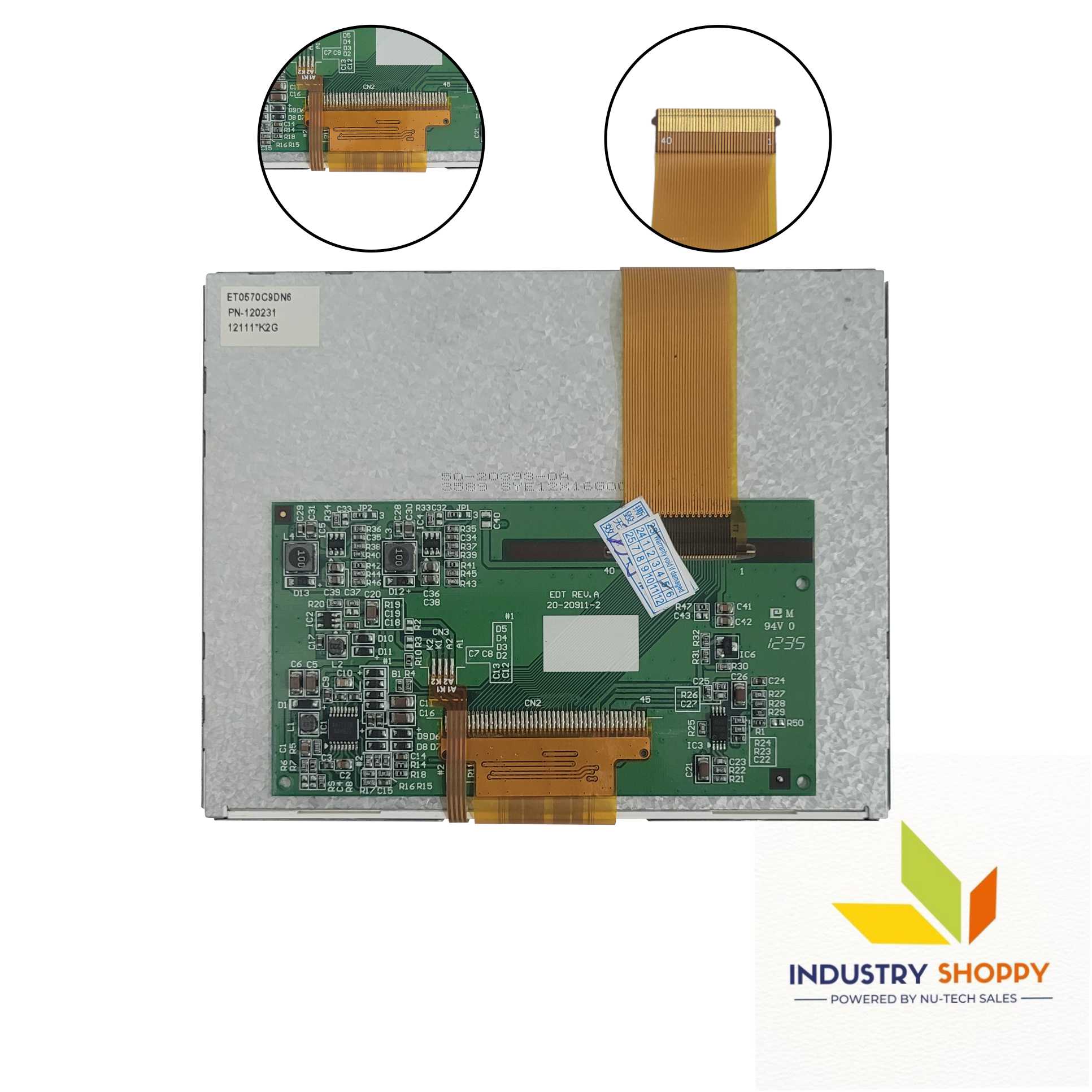

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
