Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta TP02G-AS1 HMI Panel
Delta

Delta TP02G-AS1 HMI Panel

Product SKU: NTSHMI00015
Available:
Only 12 items in stock
12 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Delta
  • Display  :  2.8″ STN LCD
  • Resolution (Pixels)  : 160×32: ASCII: 5×8, 8×8, 8×12, 8×16
  • Operating Temperature : 0 ~ 50°C; 20 ~ 90%RH (non-condensing)
Rs. 6,000.00
Rs. 8,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

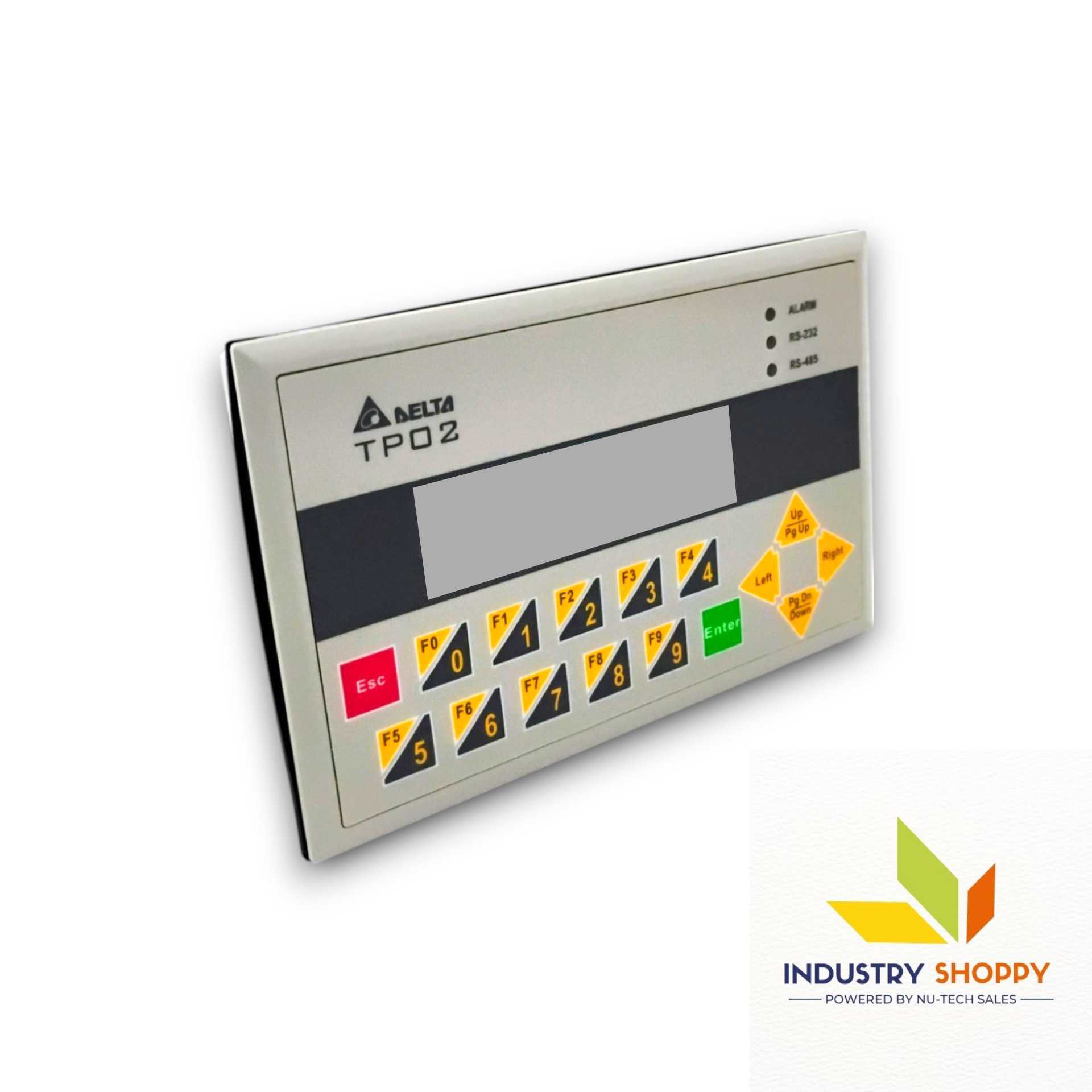

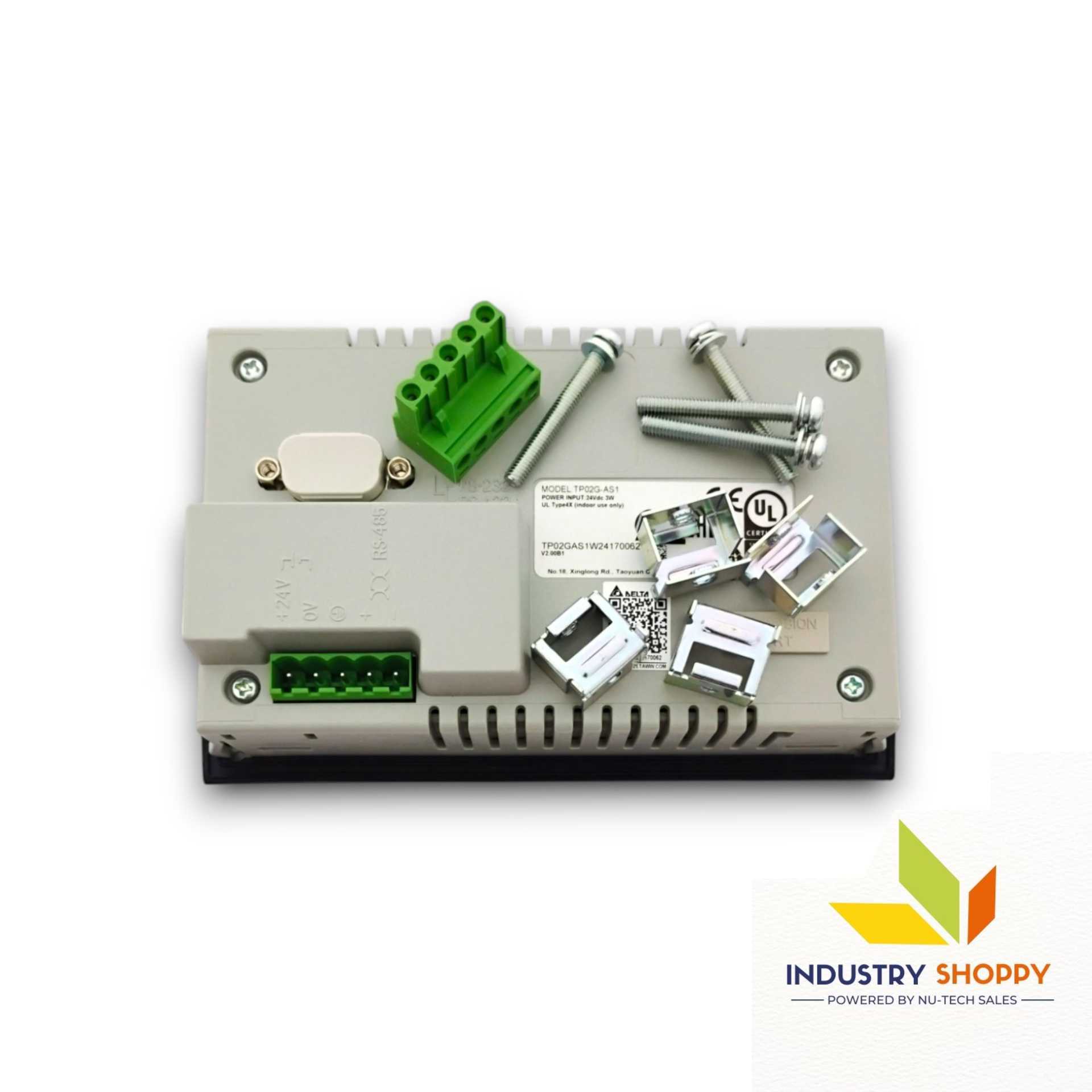

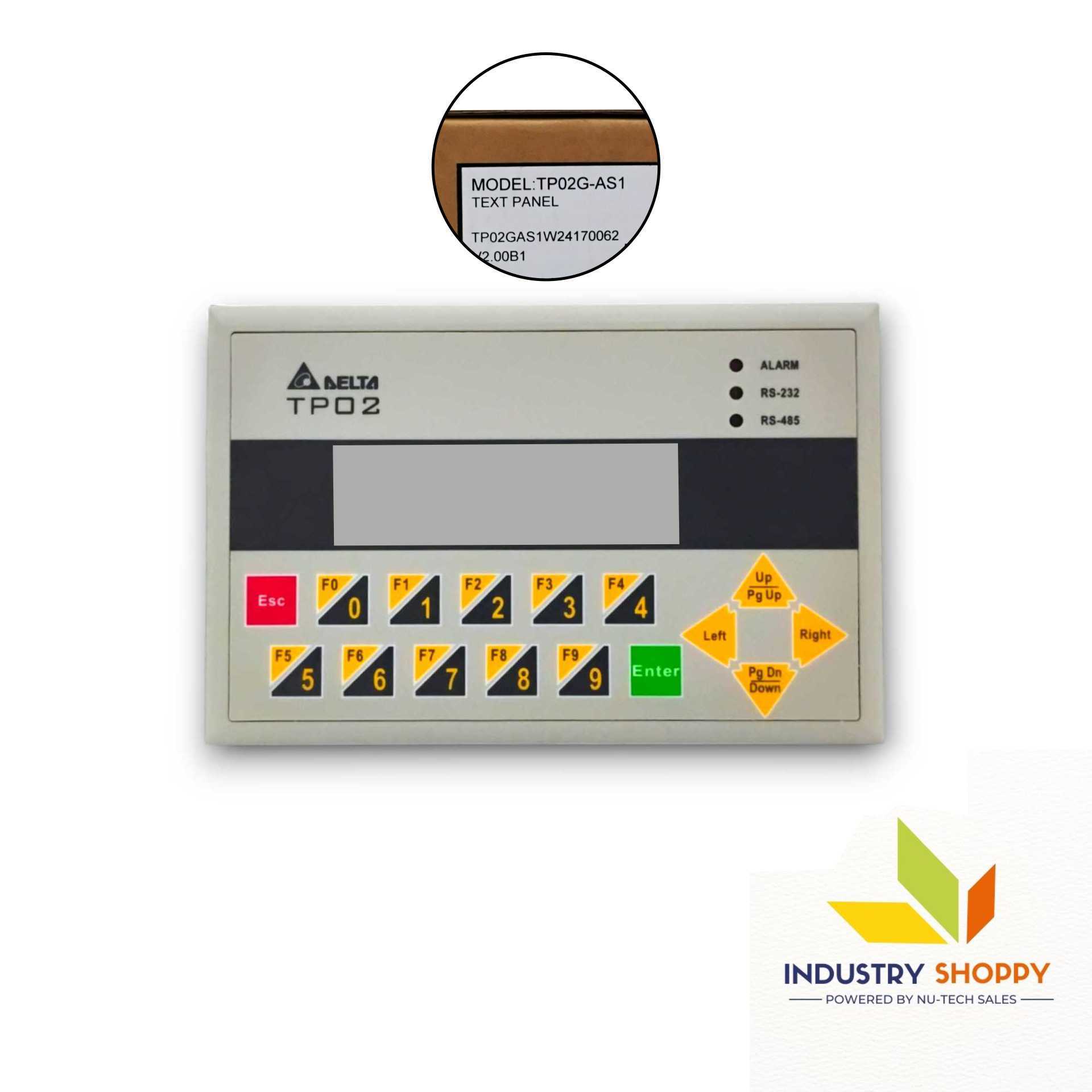

Delta TP02G-AS1 HMI Panel

The Delta TP02G-AS1 HMI Panel is a compact and efficient Human-Machine Interface (HMI) designed for industrial automation applications. It features a monochrome STN LCD display with an effective display area of 72 x 22 mm and a 160x32 resolution, ensuring clear text and graphical display. The LED backlight includes an automatic turn-off feature for energy efficiency, and the LCD contrast can be adjusted via software or function buttons.

This HMI is powered by a Hitachi HD64F3064F CPU and includes 32KB of RAM with a 256KB memory capacity, making it suitable for handling essential automation functions. The TP02G-AS1 features RS-232 and RS-485 communication interfaces, ensuring easy integration with various PLCs and automation systems.

Built for industrial environments, the TP02G-AS1 boasts an IP65-rated waterproof front panel, natural air cooling, and compliance with multiple EMC standards (CISPR11, EN61000-4-2, EN61000-4-3, EN61000-4-4). It can withstand vibrations (up to 1.0g) and shocks (15g peak, 11ms duration), making it highly durable.

Operating on 24V DC (3W max power consumption), the TP02G-AS1 is a rugged and reliable solution for industrial control applications. With a compact design (147×97×35.5mm) and lightweight (0.24kg), it is ideal for space-constrained installations.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Even though we consistently strive to ensure accuracy at every step, occasional errors may still occur. Nevertheless, we remain committed to minimizing these discrepancies. Furthermore, we emphasize the importance of vigilance to address any issues promptly. It remains essential to stay vigilant. Despite our best efforts, some inaccuracies may occasionally arise. Additionally, all trademarks and trade names displayed on our site are, without exception, the exclusive property of their respective owners.


As a result, it becomes crucial to exercise caution and maintain heightened awareness throughout the process. Moreover, staying consistently vigilant helps ensure accuracy at every stage. Consequently, we strongly recommend paying close attention to detail to avoid potential issues. Ultimately, this approach fosters smooth operations and minimizes the risk of errors.

Ultimately, combining vigilance with proactive efforts can help minimize potential errors.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


ModelTP02G-AS1
DisplayMonochromatic STN LCD
Effective Display Area(W) x (H) = 72 x 22 (unit: mm)
Display Resolution160×32: ASCII: 5×8, 8×8, 8×12, 8×16
LCD Contrast AdjustmentSet by Software, adjust the contrast by the press button in the function table
LCD Backlight TypeLED Backlight Automatic Turn-off Setting
Function / Numeric KeysF0 / 0 ~ F9 / 9, ESC, ENTER and Arrow Keys
External Input Power24V (3W Max.)
Memory Capacity256K Byte
CPUHitachi HD64F3064F
RAM of System32K Byte
Communication InterfaceCOM1: RS-232    COM2: RS-485
Waterproof Class of Front PanelIP65 / NEMA4
Operating Temperature for Hardware 0 ~ 50°C; 20 ~ 90%RH (non-condensing)
Storage Temperature for Hardware-20 ~ 60°C
Vibration5Hzf<9Hz = Continuous:1.75mm / Occasional: 3.5mm
 9Hz<150Hz = Continuous:0.5g / Occasional: 1.0g
Shock15g peak, 11ms duration, half-sine, three shocks in each direction per axis, on 3 mutually
 perpendicular axes (total of 18 shocks)
Radiated EmissionCISPR11, Class A
Electrostatic Discharge ImmunityEN61000-4-2
Radiated ImmunityEN61000-4-3
Electrical Fast TransientEN61000-4-4
Weight / Dimensions0.24kg; 147×97×35.5mm (Width(W) × Height(H) × Deep(D))
Cooling MethodNatural Air Cooling
