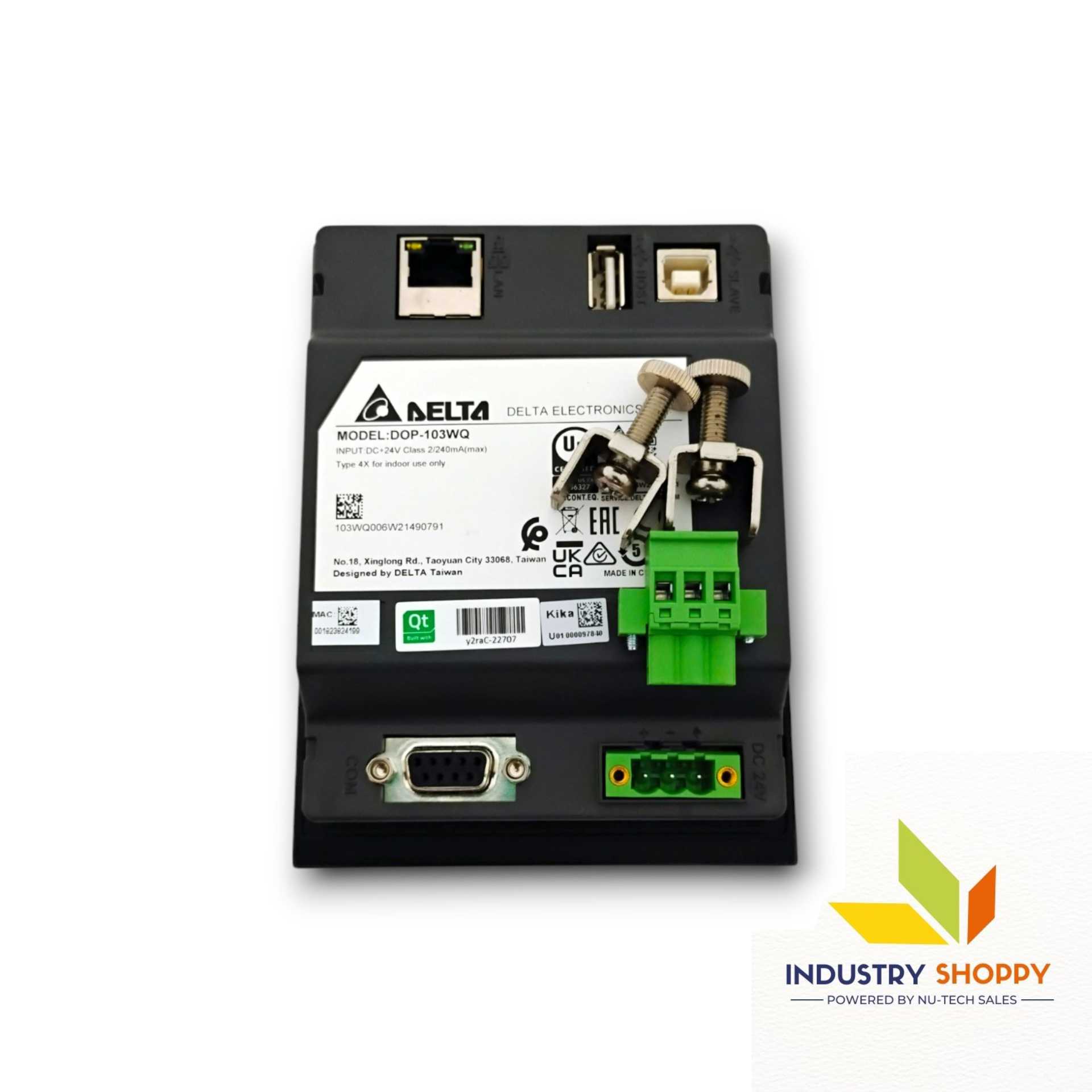

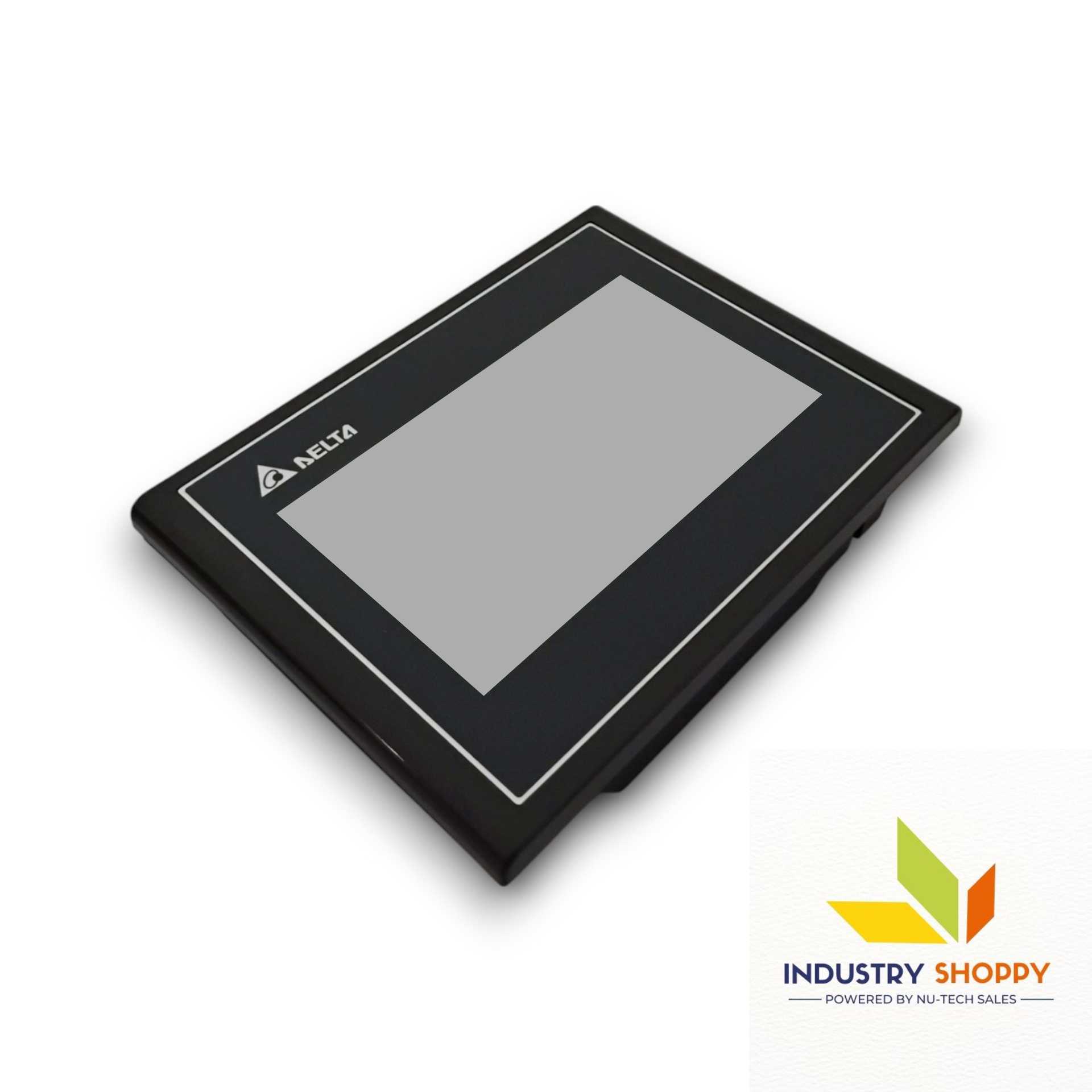

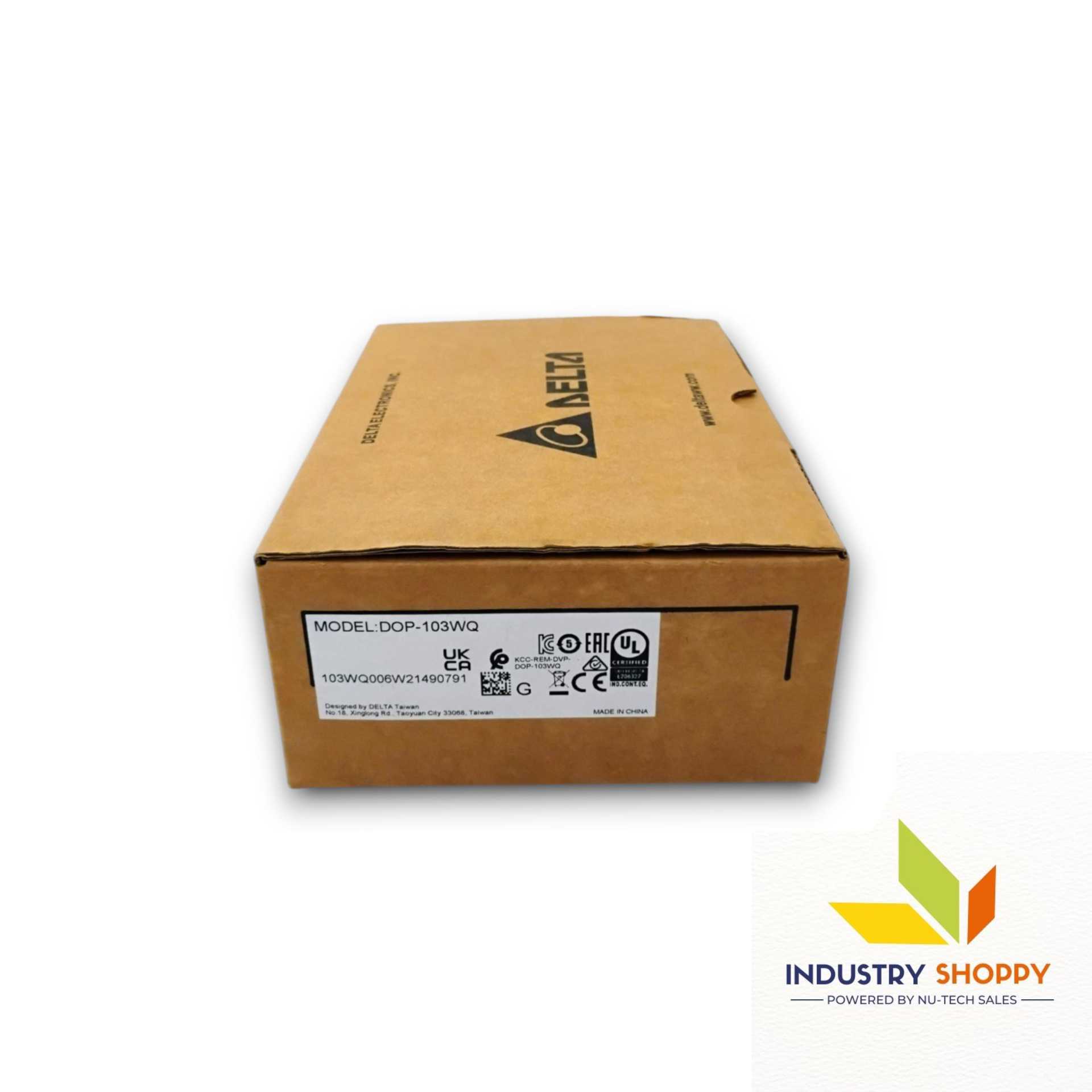

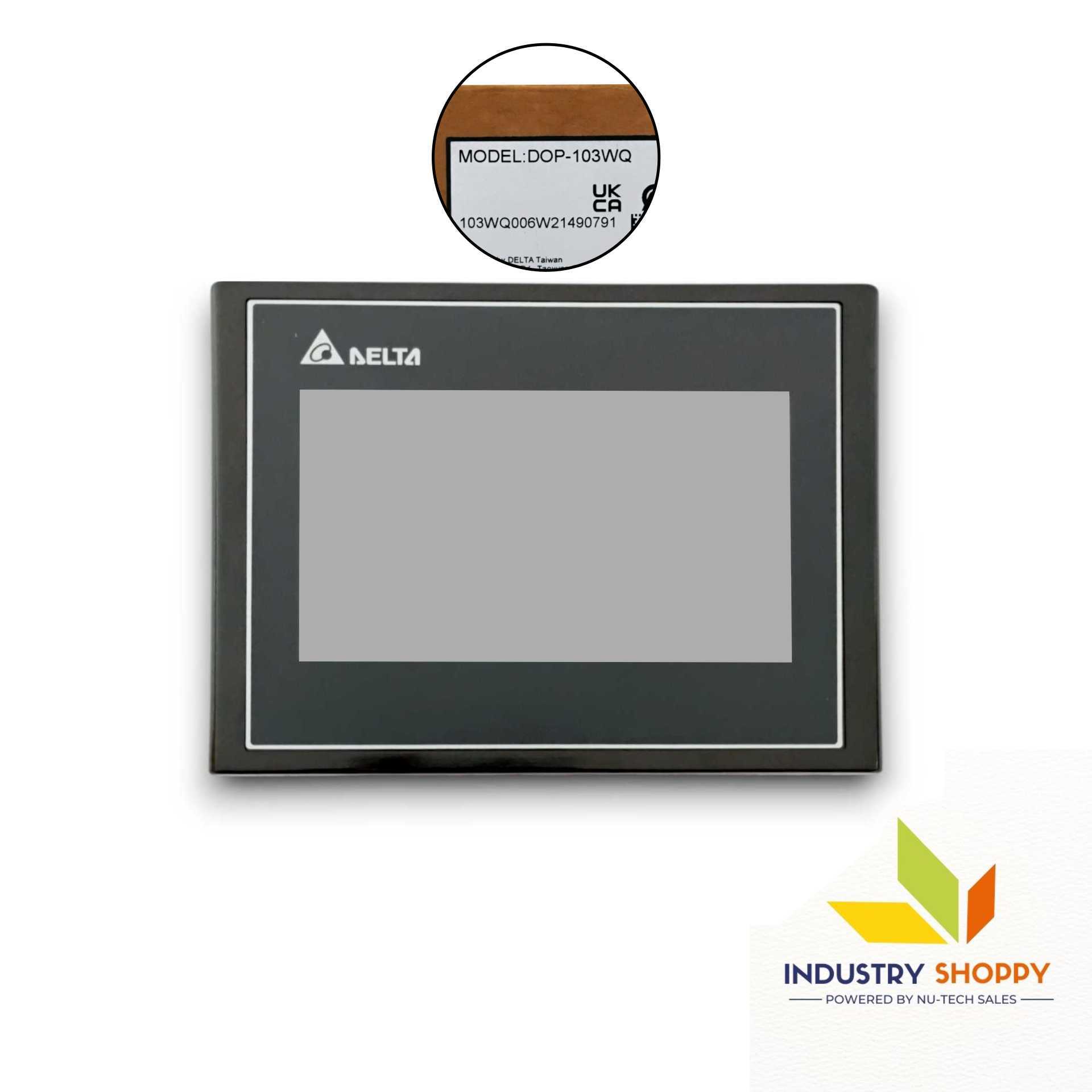

Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta DOP-103WQ HMI Panel
Delta

Delta DOP-103WQ HMI Panel

Product SKU: NTSHMI00005
Available:
Only 2 items in stock
2 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Delta
  • Display  :  4.3″ TFT LCD
  • Resolution   : 480x272 Pixels
  • Voltage  :  24V DC
  • Warranty : 12 Months
Rs. 15,410.00
Rs. 18,000.00

+ GST @18% = Rs. 18,183.80

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Delta DOP-103WQ HMI Panel


The Delta DOP-103WQ HMI Panel is a 4.3-inch Human-Machine Interface (HMI) designed for industrial automation applications. Featuring a 16-bit color TFT LCD with a 480x272 resolution, this LED-backlit display delivers 400 cd/m² brightness, ensuring clear visibility. The touch panel is a four-wire resistive type, rated for over 10 million press cycles, ensuring long-lasting durability.

Powered by an ARM Cortex-A8 800 MHz processor, the DOP-103WQ offers 256MB Flash ROM and 512MB RAM, enabling efficient data processing and responsiveness. It supports RS-232, RS-422, and RS-485 communication ports, allowing seamless connectivity with various industrial devices. The Ethernet interface supports 10/100 Mbps auto-sensing, facilitating network integration.

This HMI includes USB 2.0 (host and slave) interfaces for data transfer and peripheral connectivity. Its IP65-rated waterproof front panel ensures protection in harsh industrial environments. The multi-tone buzzer (2K–4K Hz) provides audio alerts, while the built-in RTC ensures accurate timekeeping.

With natural air circulation cooling, DC 24V operation voltage, and 5.8W power consumption, the DOP-103WQ is an energy-efficient, compact, and reliable HMI suitable for industrial automation, factory control systems, and process monitoring. It meets CE and UL certifications, ensuring compliance with international safety standards.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Even though we consistently strive to ensure accuracy at every step, occasional errors may still occur. Nevertheless, we remain committed to minimizing these discrepancies. Furthermore, we emphasize the importance of vigilance to address any issues promptly. It remains essential to stay vigilant. Despite our best efforts, some inaccuracies may occasionally arise. Additionally, all trademarks and trade names displayed on our site are, without exception, the exclusive property of their respective owners.

As a result, it becomes crucial to exercise caution and maintain heightened awareness throughout the process. Moreover, staying consistently vigilant helps ensure accuracy at every stage. Consequently, we strongly recommend paying close attention to detail to avoid potential issues. Ultimately, this approach fosters smooth operations and minimizes the risk of errors.

Ultimately, combining vigilance with proactive efforts can help minimize potential errors.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


ParameterDetails
ModelDOP-103WQ
BrandDelta
SeriesDOP
Display4.3" TFT LCD
Color16-bit
Back LightLED Back Light
Resolution (Pixels)480 × 272
Back Light Brightness (cd/m²)400 cd/m² (Typ.)
Back Light Life (Hours)20,000
Display Area95.04 × 53.856 mm
MCUARM Cortex-A8 (800 MHz)
Flash ROM (Bytes)256 MB
RAM (Bytes)512 MB
Touch PanelFour-wire resistor, >10,000,000 pressing times
BuzzerMulti-Tone Frequency (2K ~ 4K Hz) / 80 dB
Ethernet Interface10/100 Mbps Auto sensing (with built-in isolated power circuit)
USB1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0
SDN/A
Serial COM1/2/3/4 PortCOM1: RS-232 (supports hardware flow control) / RS-485COM2: RS-422 / RS-485COM3: N/A
RTCBuilt-in
CoolingNatural air circulation
CertificationCE / UL (use shielding cables and line filters ≥ 300 ohm / 100 MHz)
WaterproofIP65 / NEMA4 / UL Type 4X (indoor use only)
Operation VoltageDC +24V (±15%), Class 2 or SELV circuit (isolated from mains by double insulation)
Voltage EnduranceAC500V for 1 min (between DC24 terminal and FG terminals)
Power Consumption5.8W (Max)
Backup Battery3V lithium battery CR2032 × 1
Backup Battery LifeApprox. 3 years or more at 25°C (depends on temperature and conditions)
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient Humidity10% ~ 90% RH (0~40°C), 10% ~ 55% RH (41~50°C), Pollution Degree 2
VibrationIEC 61131-2 compliant: 5–8.3 Hz = 3.5 mm, 8.3–150 Hz = 1 g
ShockIEC 60068-2-27 compliant: 15 g peak, 11 ms duration, XYZ directions (6 times)
Dimensions (W × H × D)137 × 103 × 37.1 mm
Mounting Dimensions (W × H)118.8 × 92.8 mm
Country of OriginChina
