Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing FAI4/BN-1E Photoelectric Sensor
Datasensing

Datasensing FAI4/BN-1E Photoelectric Sensor

Product SKU: NTSSEN00864
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
  • Brand : Data sensing
  • Nominal sensing distance : 200mm
  • Switching frequency : 250Hz
  • Connection type : NPN NO+NC
  • Supply voltage : 10…30VDC
  • Warranty : 12 Months
Rs. 4,470.00
Rs. 6,500.00

+ GST @18% = Rs. 5,274.60

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

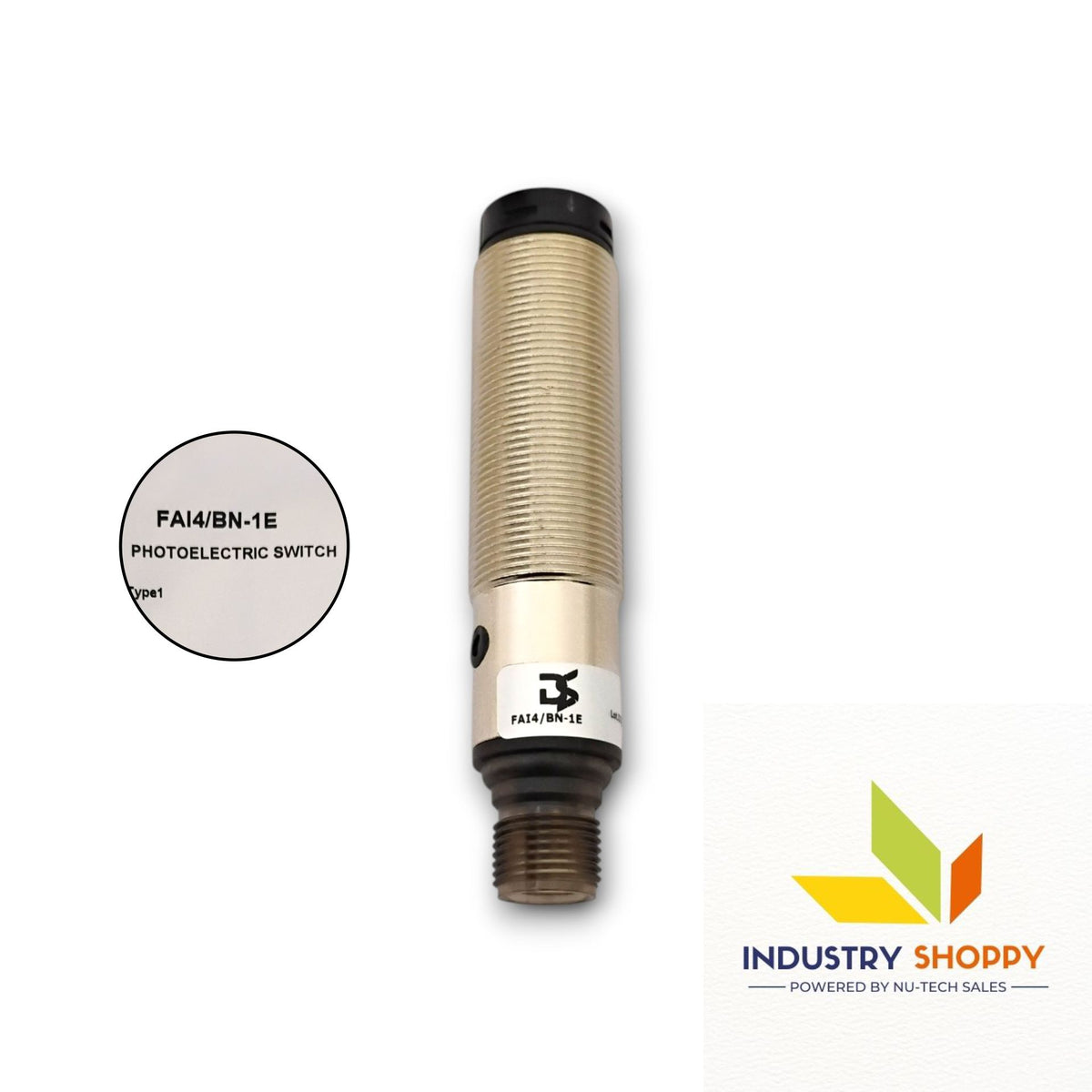

Datasensing FAI4/BN-1E Photoelectric Sensor

The Datasensing FAI4/BN-1E Photoelectric Sensor is a compact and reliable diffuse reflection photoelectric sensor designed for accurate short-range object detection in industrial automation, packaging, assembly, and conveyor applications. Operating on the diffuse reflection principle, the FAI4/BN-1E uses an 880 nm infrared LED emitter to ensure stable and dependable sensing performance. It is optimized for detecting a Kodak 90% white target (200 x 200 mm) and offers excellent repeatability with 5% repeat accuracy.

The sensor features NPN NO+NC outputs, providing flexible integration into a wide range of industrial control systems. With a 250 Hz switching frequency and 2 ms response time, it delivers reliable performance in standard automation processes. Advanced protection features, including short-circuit auto-reset protection, overvoltage protection, reverse polarity protection, and impulsive voltage protection, ensure long-term operational reliability.

Constructed with a durable nickel-plated brass housing and PC active head, the sensor is built to withstand harsh industrial environments. Its IP67 protection rating provides excellent resistance to dust and water ingress. Equipped with an M12 connector, CE and cULus approvals, and manufactured in Italy, the FAI4/BN-1E offers dependable performance and durability.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,

BrandDATASENSING
Product NumberFAI4/BN-1E

Nominal sensing distance

200mm
Thermal drift of Sr≤10% Sr
Repeat Accuracy5%
Sensitivity adjustmentTrimmer
Function PrincipleDiffuse reflection (short distance, ≤200mm)
Noteswhite target Kodak 90% 200 x 200mm
Optic positionAxial
Output typeNPN NO+NC
Output FunctionNO+NC
Switching frequency250Hz
Response time2ms
Operating Voltage10…30VDC
No-Load supply current≤ 30mA
Load current≤100mA
Leakage current≤10μA
Output voltage drop≤2V@Iload=100mA
Max ripple content≤10%
LED indicatorsYellow (Lon) or output status Lo/Do
Time delay before availability≤200ms
Short-circuit protectionShort circuit (autoreset), Overvoltage
Reverse Polarity ProtectionPolarity inversal, Inpulsive voltage
EmissionLED Infrared (880nm)
Interference to external light3000lux (incandescent lamp), 10000lux (sunlight)
DimensionsM18 x 1/L=81,6m
Housing materialNickel plated brass / PC plug
Weight100g
ConnectionsM12 plug
Active Head MaterialPC
Tightening torque25Nm
Operating temperature- 25°C…+ 70° C (Without freeze)
Diameter/DimensionM18
ApprovalsCE cULus
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

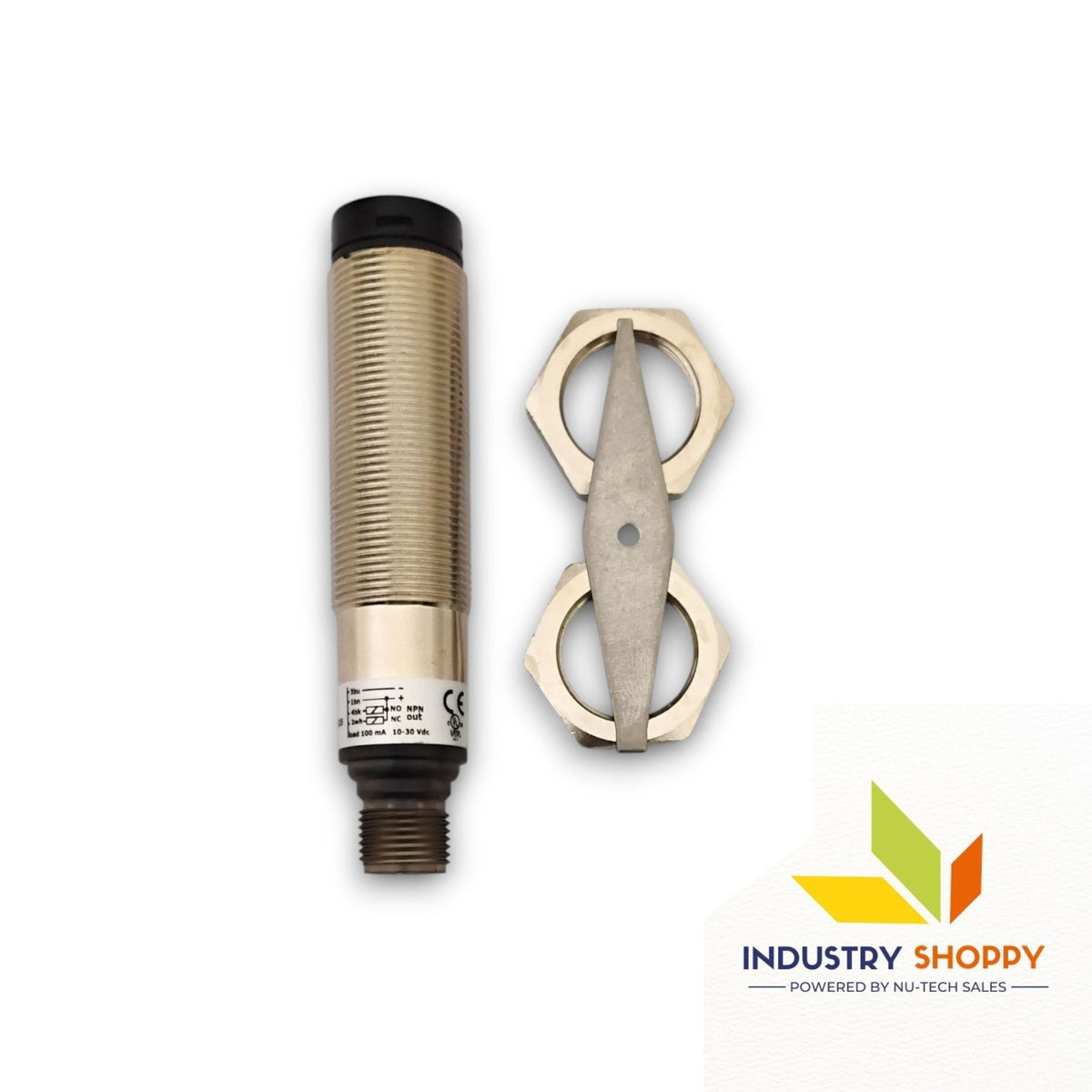

Supplied Accessoriesnuts M18 x 1, screwdriver
DimensionsM18 x 1/L=81,6m
Operating Temperature- 25°C…+ 70°C (Without freeze)
Mechanical ProtectionIP67
Country of originItaly
