Datalogic TL50-W-815 Color Mark Sensor

Product SKU: NTSSEN00103
Available:
Only 26 items in stock
26 items in stock
In stock
Pre-order
Out of stock
  • Brand : Datalogic
  • Supply voltage :  10 – 30 VDC
  • Response time : 0,033 (15kHz)
  • Output type  : NPN/PNP
  • Type of connection : M12 connector 4 pins
  • Warranty : 12 Months
Rs. 5,350.00
Rs. 7,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

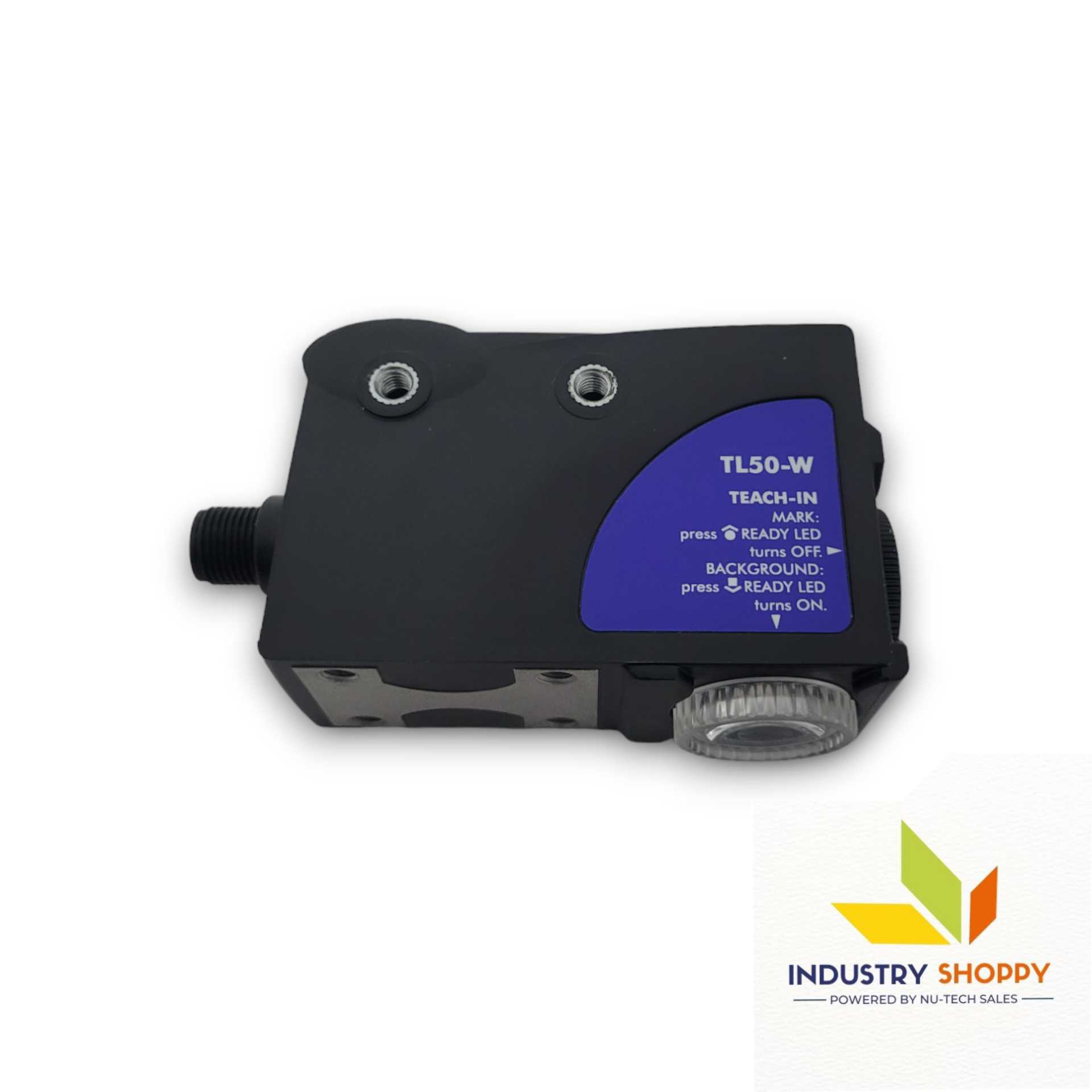

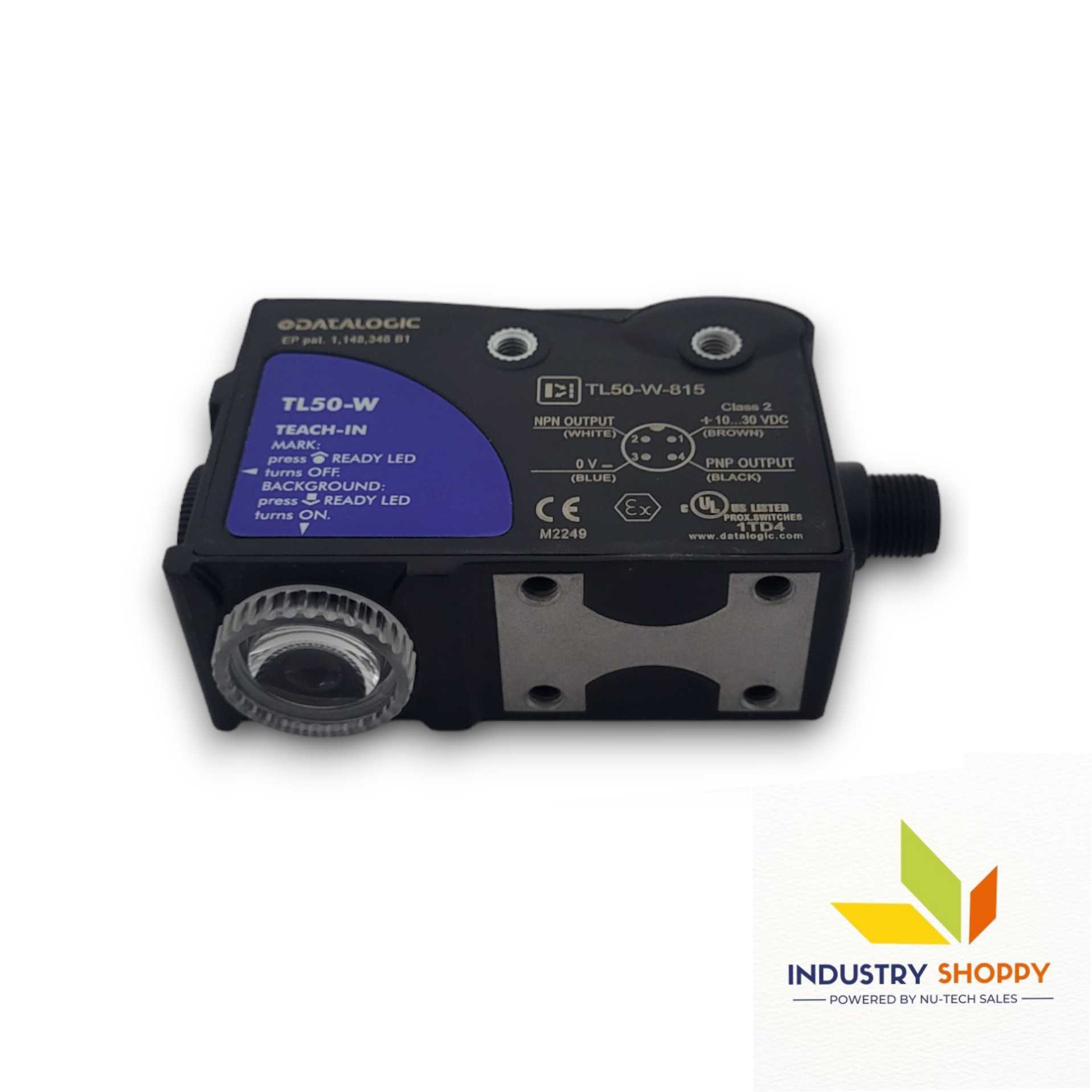

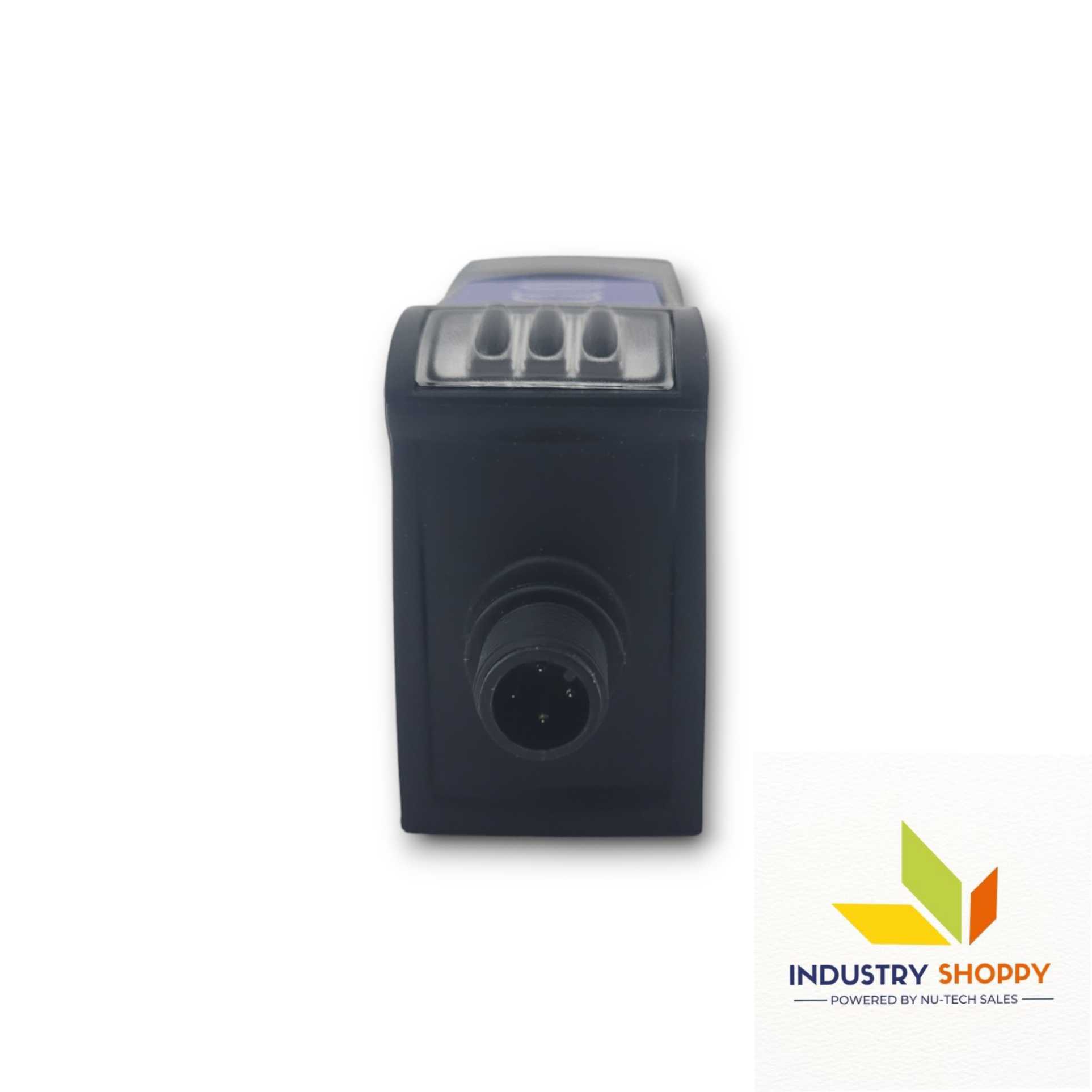

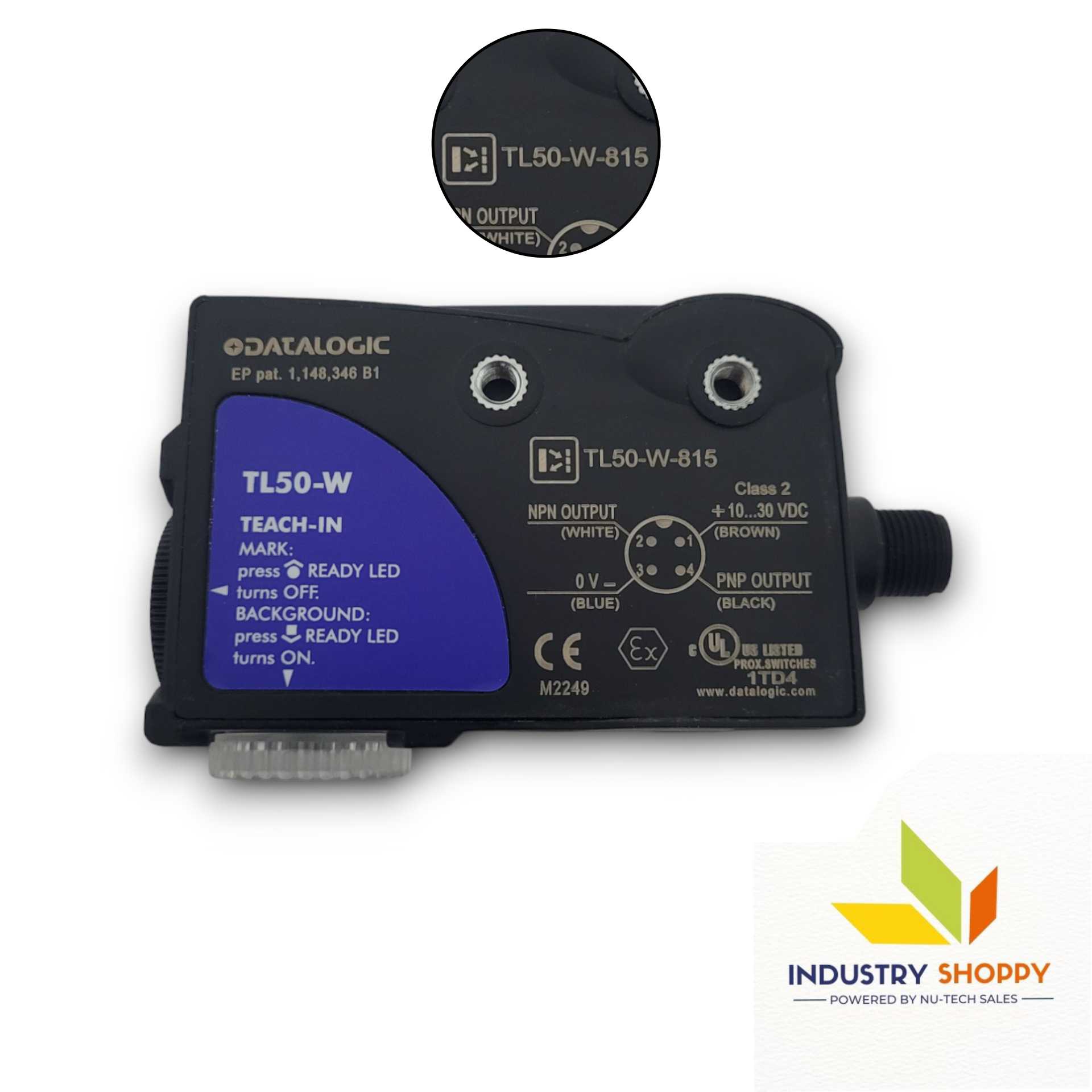

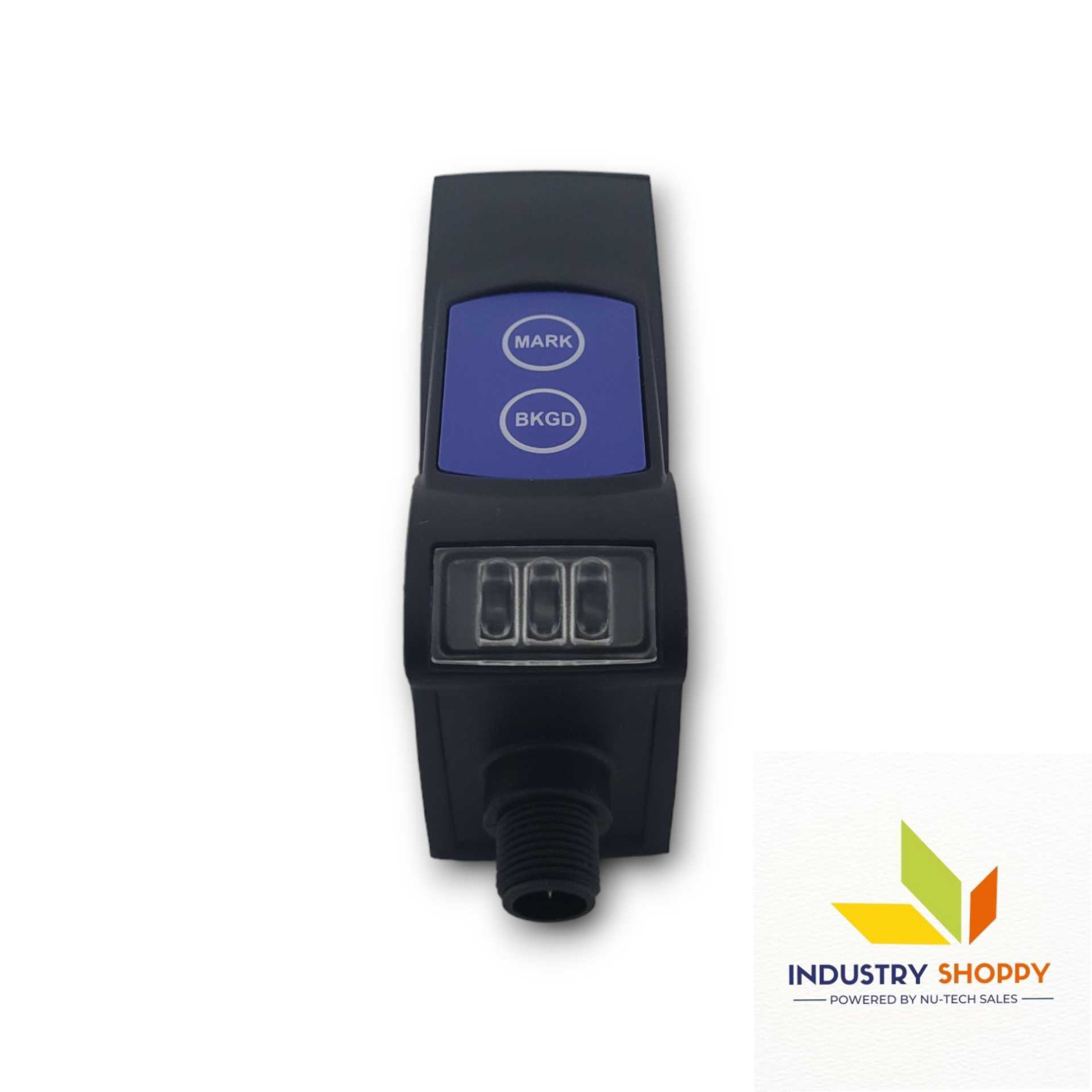

Datalogic TL50-W-815 Color Mark Sensor

The Datalogic TL50-W-815 Color Mark Sensor (954651000) is part of the TL50 series, is designed for contrast mark detection with a nominal sensing distance of 9mm and a spot dimension of 1.5 x 5mm. Equipped with axial optics and NPN/PNP Dark/Light selectable output types, it offers versatility in detection tasks.

This Sensor is constructed with plastic ABS/PMMA housing material and featuring a glass active head material, the sensor meets IP67 mechanical protection standards, ensuring durability and reliability in various industrial environments. With a wide operating temperature range from -10°C to +55°C, it performs consistently in challenging conditions.

Originating from Hungary and approved with CE and cULus certifications, the TL50-W-815 adheres to stringent quality standards. This makes it a reliable choice for industrial sensing applications.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberTL50-W-815
Part Number954651000
SeriesTL50
Nominal sensing distance9 mm
Spot dimension1.5 x 5 mm
Sensitivity adjustmentTeach-in
Function PrincipleContrast mark detection
DescriptionStandard case - vertical spot
Optic positionAxial
FunctionsContrast mark detection
Output typeNPN/PNP Dark/Light sel.
Output FunctionDark/Light sel.
Switching frequency15 kHz
Response time0.033 s (15 kHz)
Operating Voltage10…30 VDC
No-Load supply current≤ 50 mA
Output voltage drop≤2 V @ Iload=100 mA
LED indicatorsYellow (output state), Green (Ready), Orange (delay)
Short-circuit protectionYES
Reverse Polarity ProtectionYes
EmissionLED RGB
Interference to external lightAccording to EN 60947-5-2:2020
Impulsive Overvoltage ProtectionYes
Insulation resistance>20 MΩ 500 VDC, between electronics and housing
Contact resistance500 VAC 1 min., between electronics and housing
Dimensions31 x 53 x 80 mm
Housing MaterialPlastic - ABS / PMMA
ConnectionsM12 plug
Active Head MaterialGlass
Storage temperature-25 … +70 °C
Diameter/DimensionCubic
ApprovalsCE, cULus
Shocks and vibrations0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature-10 … +55 °C
Mechanical ProtectionIP67
