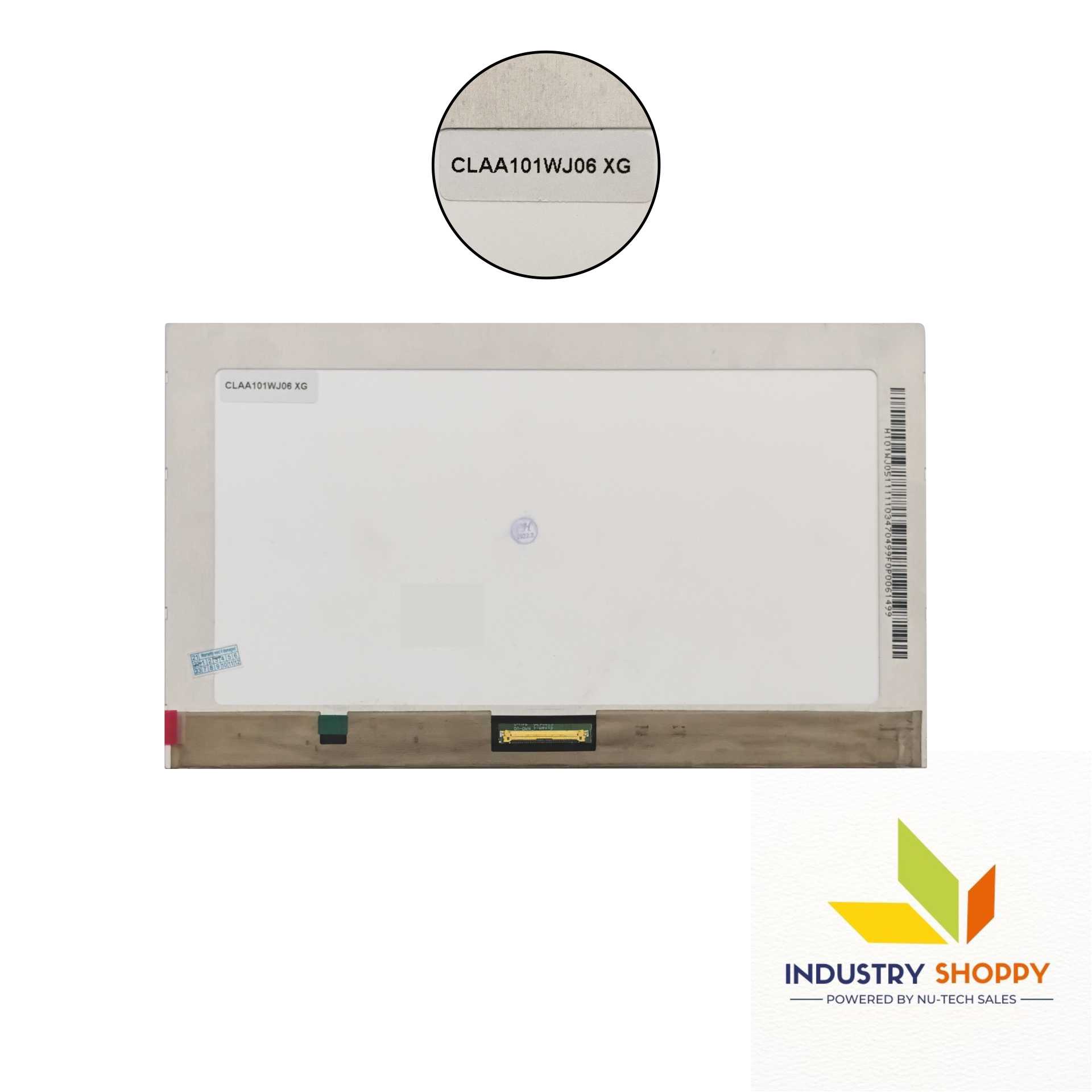

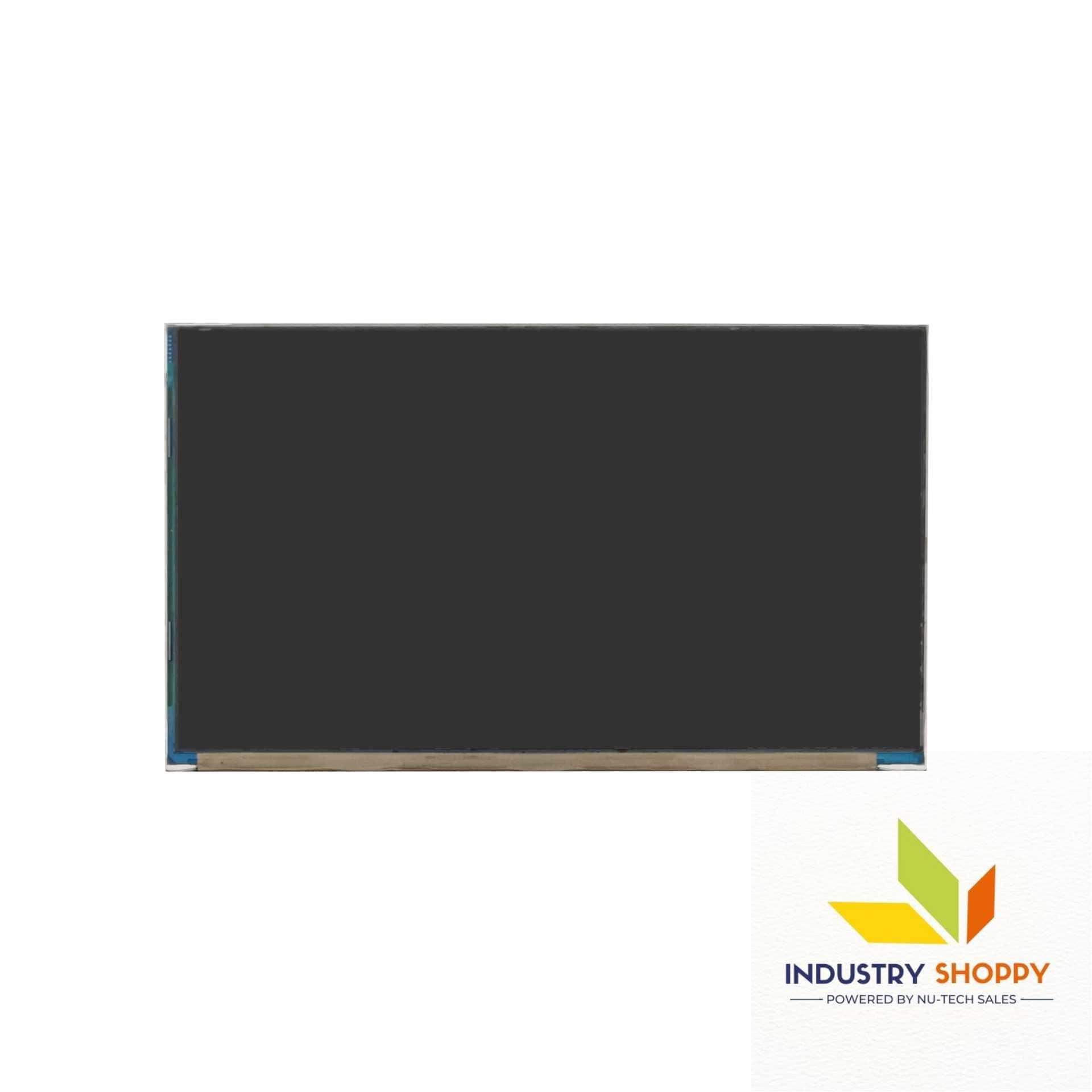

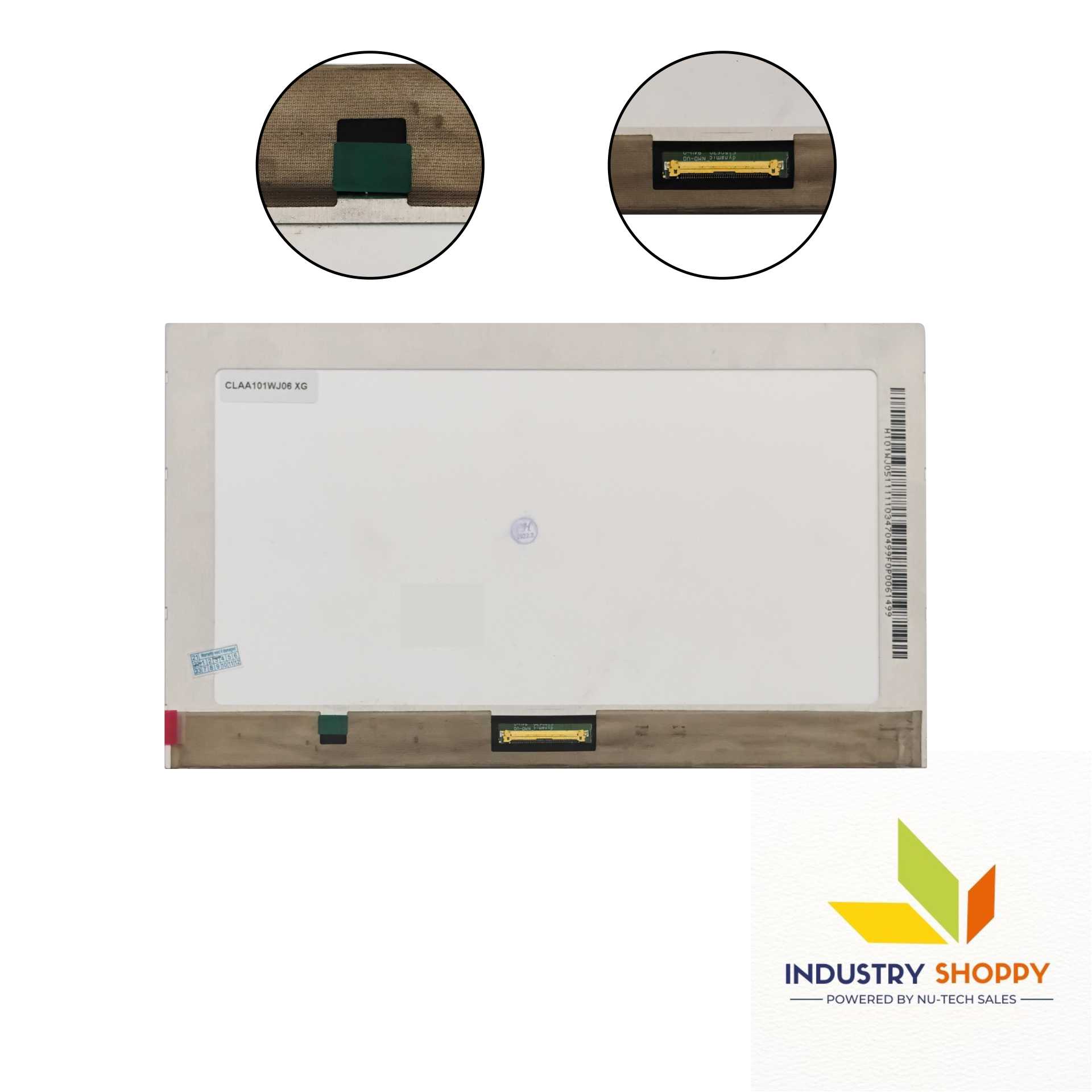

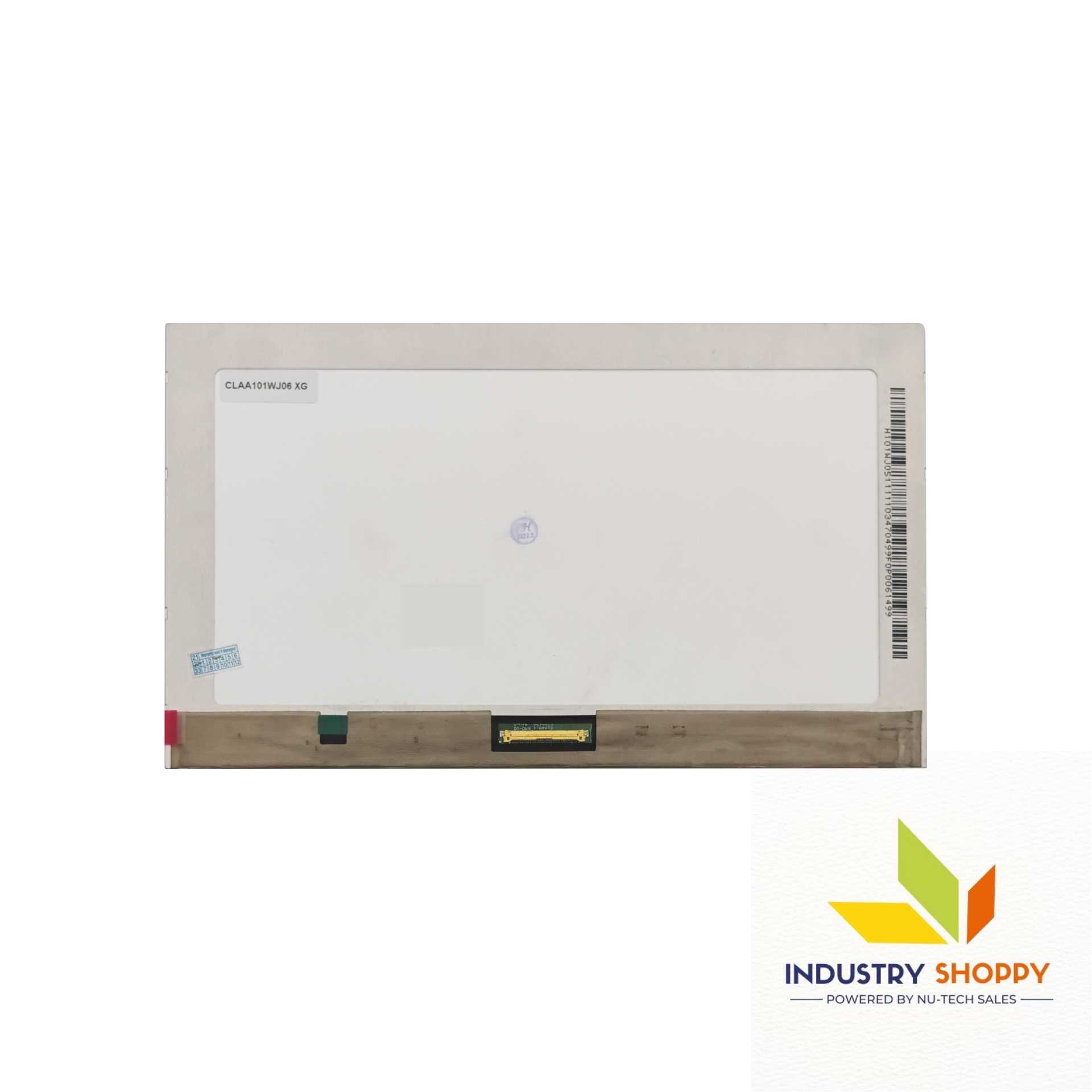

CPT CLAA101WJ06-XG LCD Module

CPT CLAA101WJ06-XG LCD Module

The CPT CLAA101WJ06-XG LCD Module is a high-performance display designed for industrial, commercial, and multimedia applications. With a 1366(RGB)×768 WXGA resolution and a pixel density of 155 PPI, it ensures sharp and detailed visuals, making content more engaging and immersive.

To begin with, the active area of 223.341(W)×125.568(H) mm provides ample space for displaying images and text with clarity. Additionally, the 400 cd/m² brightness ensures excellent visibility, even in environments with strong ambient light. Moreover, the 600:1 contrast ratio plays a crucial role in enhancing image sharpness and improving color differentiation, allowing for more vibrant and lifelike visuals.

Furthermore, the 85°/85°/85°/85° wide viewing angles guarantee consistent image quality from all directions, reducing distortions and maintaining color accuracy. In addition to that, the HFFS (High Fringe Field Switching) panel enhances color reproduction and contrast, ensuring deeper blacks and richer colors for a more dynamic viewing experience.

Not only does this display feature a MIPI (4 data lanes) 39-pin connector, which supports efficient signal transmission, but it also maintains a smooth 60Hz refresh rate, preventing lag or screen tearing. Moreover, the WLED backlight, designed to last 15,000 hours, contributes to long-term durability and energy efficiency.

Lastly, built for diverse applications, the display can operate between 0°C to 50°C, while its storage temperature range of -25°C to 65°C ensures resilience in various conditions. Additionally, its hard coating treatment provides enhanced durability against scratches and wear, making it a reliable and long-lasting solution.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
