Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumar IGYX-18N17B3-L Sensor
Baumer

Baumer IGYX18N17B3/L Proximity Sensor

Product SKU: NTSSEN00051
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
  • Brand : Baumer
  • Supply voltage : 10 … 30 V, DC
  • Sensing distance  : 8 mm
  • Type of connection : Cable, L=2 m
  • Warranty : 12 Months
Rs. 760.00
Rs. 1,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifiactions
  • Shipping & Returns

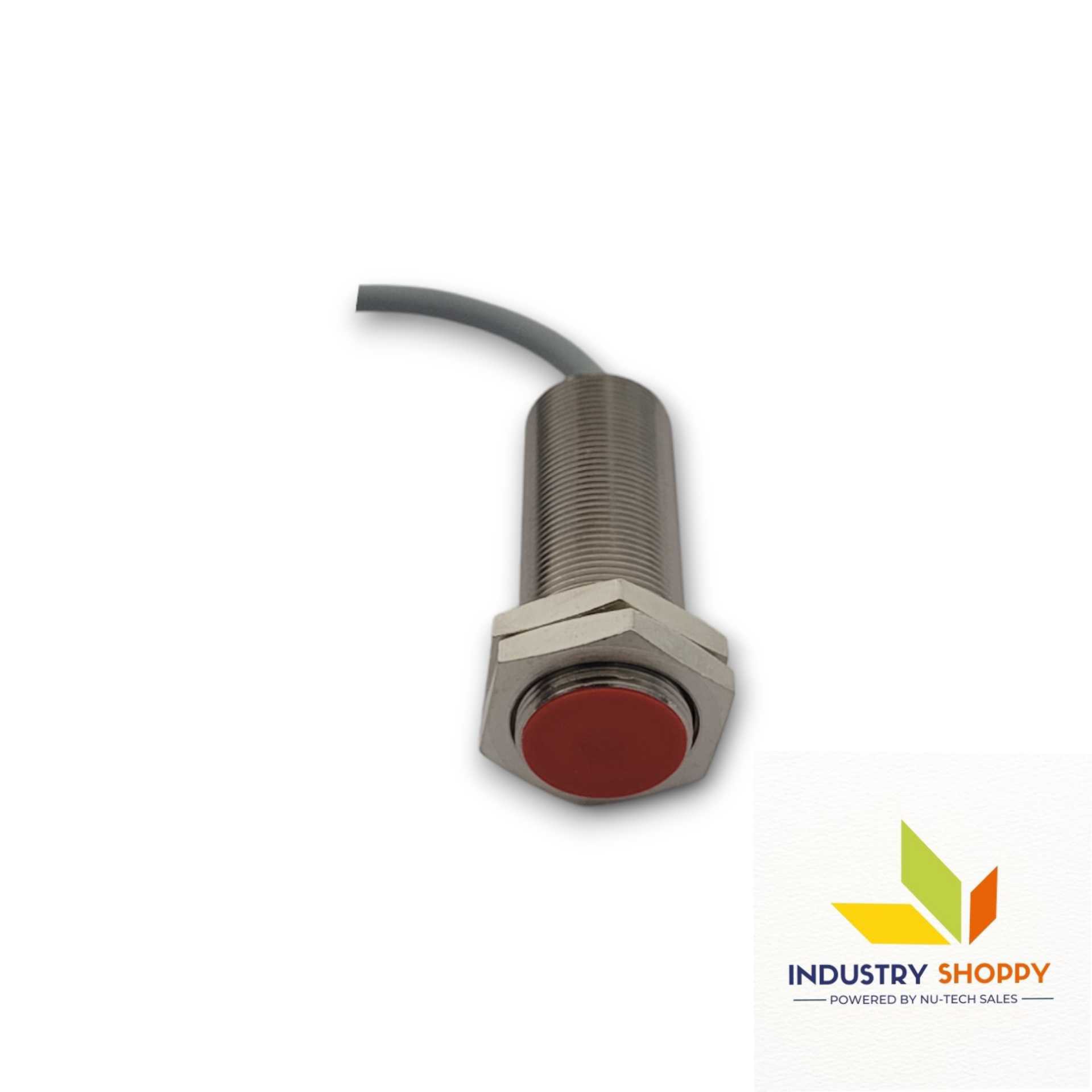

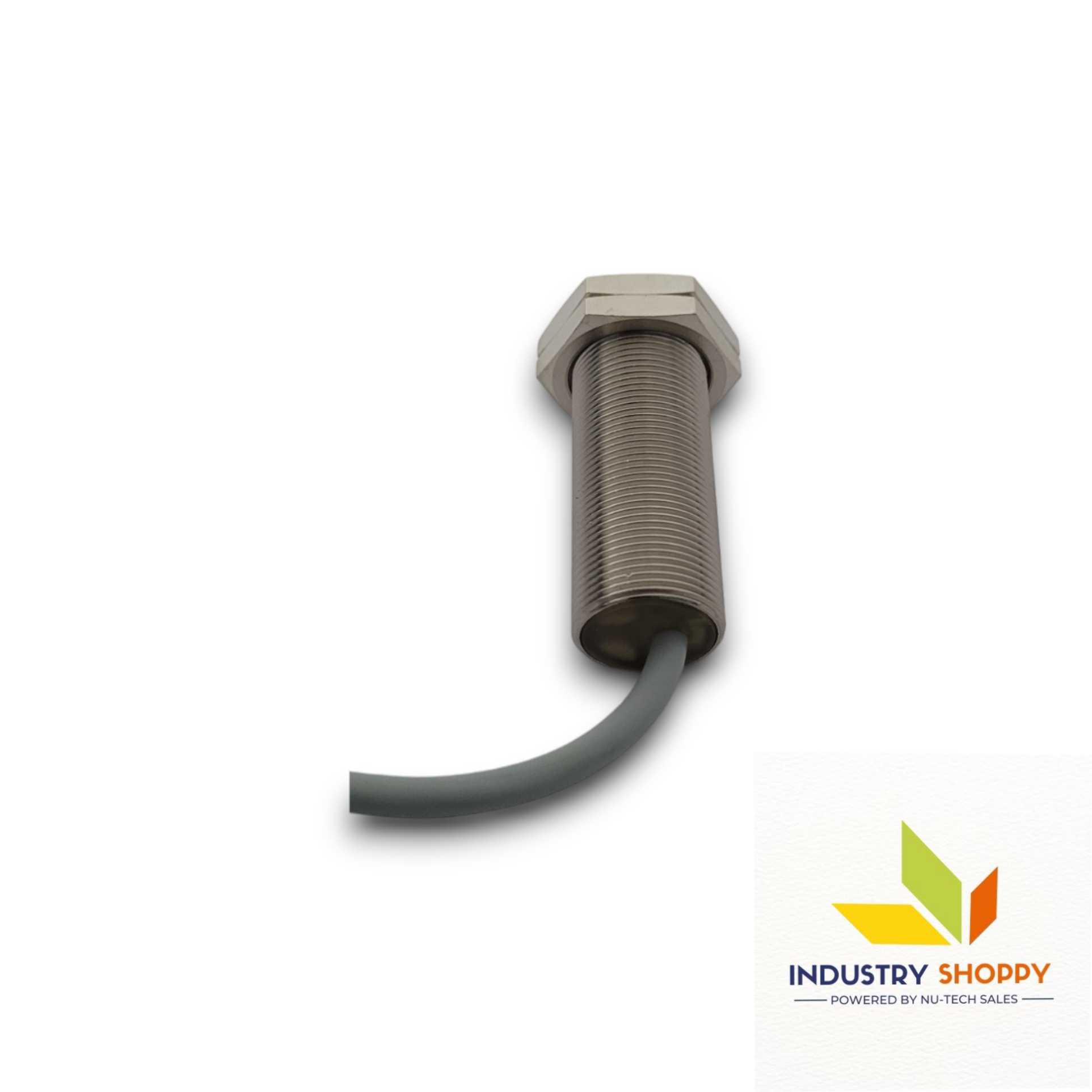

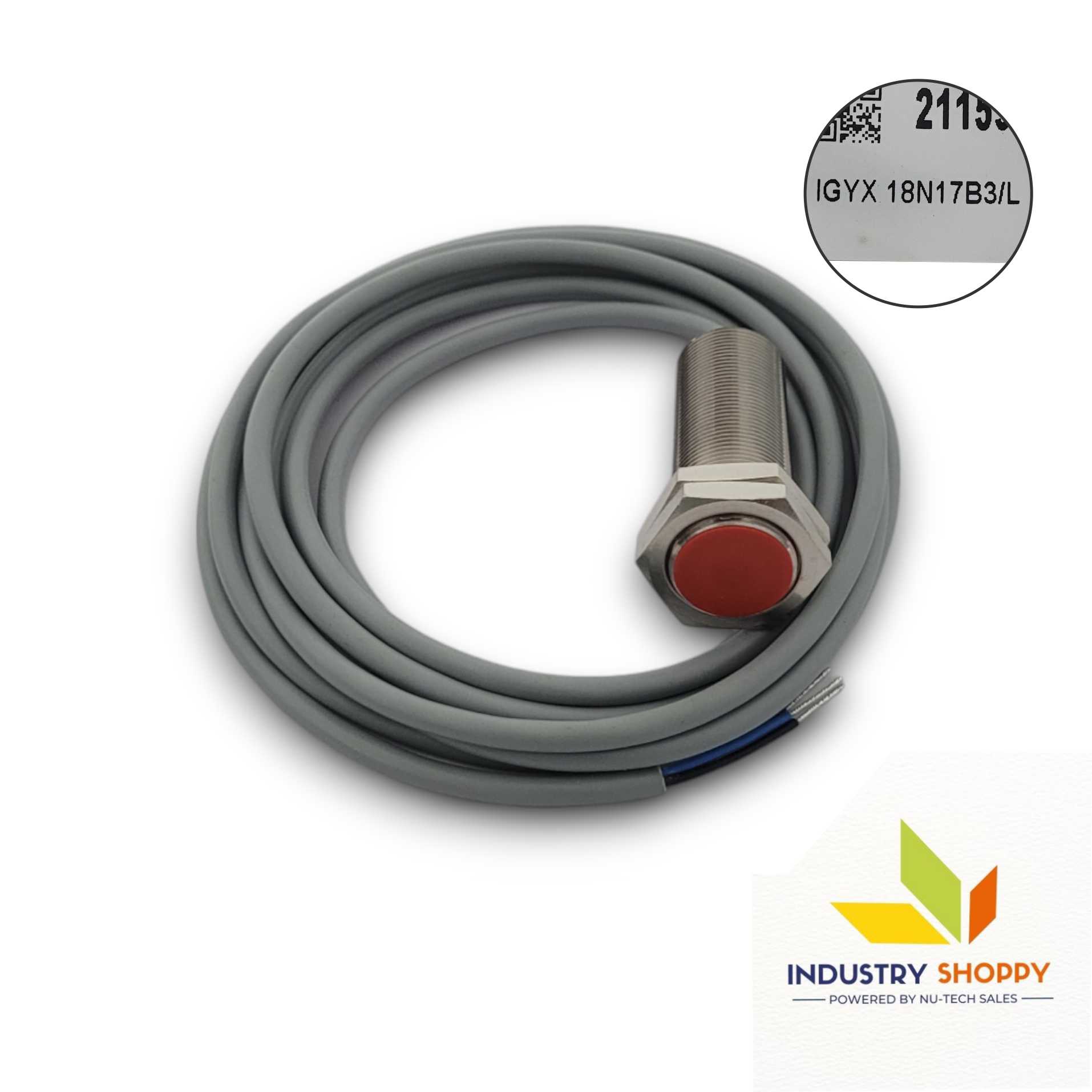

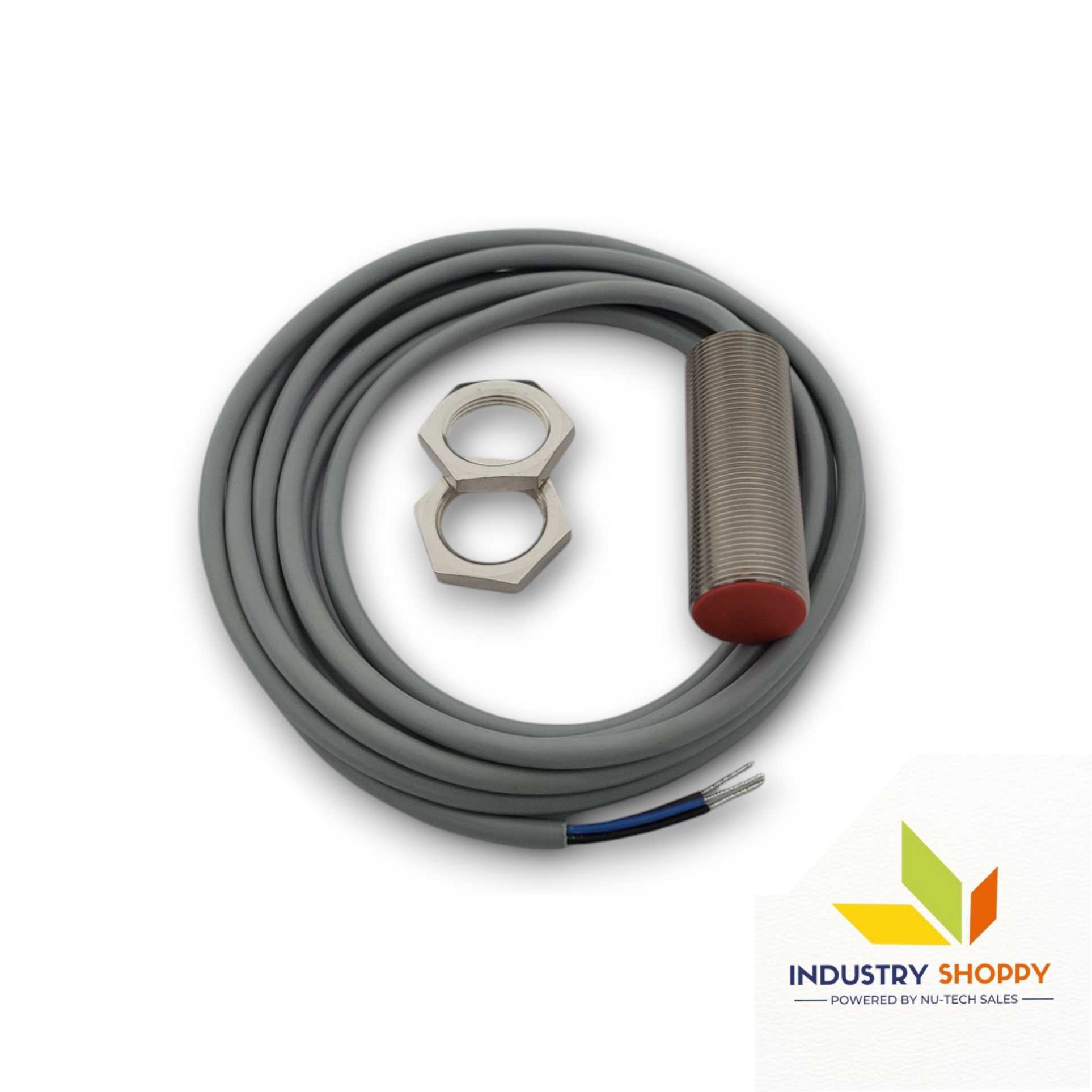

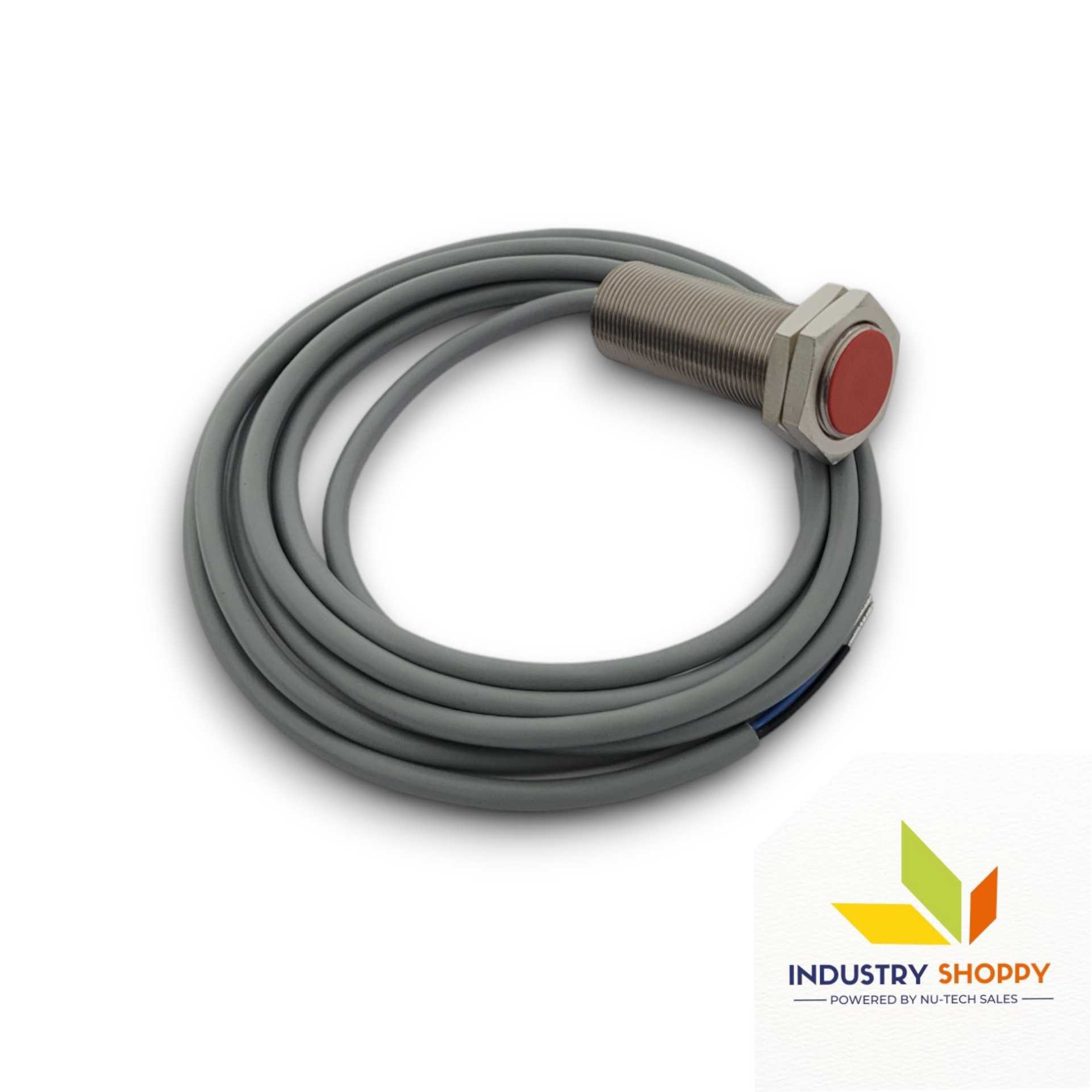

Baumer IGYX18N17B3/L Proximity Sensor

The Baumer IGYX18N17B3/L Proximity Sensor, Part Number 11078881, is an inductive proximity switch designed for quasi-flush mounting. It offers a nominal sensing distance (Sn) of 8 mm and an assured sensing distance (Sa) of 6.4 mm. The sensor has a temperature drift of ± 10% of Sr (0 ... +60 °C) and a hysteresis range of 3 to 20% of Sr. It features a red LED output indicator and a switching frequency of 400 Hz.

The Baumer IGYX18N17B3/L Proximity Sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA when unloaded. It uses an NPN make function (NO) output circuit, with a voltage drop (Vd) of less than 2.5 VDC and an output current of up to 200 mA. The device includes short circuit and reverse polarity protection. Its cylindrical threaded design is constructed from brass, nickel-plated housing, with a PBT red sensing face, and it has a housing length of 50 mm.

The IGYX 18N17B3/L connects via a 2-meter-long cable and can withstand a maximum tightening torque of 25 Nm. It operates in temperatures ranging from -25 to +75 °C and meets IP67 protection standards. This sensor is manufactured in Macedonia.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,




Product NumberIGYX 18N17B3/L
Part Number11078881
TypeInductive Proximity Switch
Mounting typeQuasi-flush
Nominal sensing distance Sn8 mm
Assured sensing distance Sa6.4 mm
Temperature drift±10 % of Sr (0 ... +60 °C)
Hysteresis3 … 20 % of Sr
Output indicatorLED red
Switching frequency400 Hz
Voltage supply range +Vs10 … 30 VDC
Current consumption max. (no load)15 mA
Output circuitNPN make function (NO)
Voltage drop Vd<2.5 VDC
Output current200 mA
Short circuit protectionYes
Reverse polarity protectionYes
DesignCylindrical threaded
Material (sensing face)PBT, red
Housing materialBrass, nickel plated
Dimension18 mm
Housing length50 mm
Connection typesCable, L = 2 m
Tightening torque max.25 Nm
Operating temperature-25 … +75 °C
Protection classIP67
Country of originMacedonia
