Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer IGYX08P17B3/L Inductive Proximity Sensor
Baumer

Baumer IGYX08P17B3/L Proximity Sensor

Product SKU: NTSSEN00020
Available:
Only 13 items in stock
13 items in stock
In stock
Pre-order
Out of stock
  • Brand :  Baumer
  • Power Supply  :  10 … 30 VDC
  • Output circuit  :  PNP make function (NO)
  • Connection types  :  Connector M8
  • Warranty : 12 Months
Rs. 670.00
Rs. 1,200.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Baumer IGYX08P17B3/L Proximity Sensor

The Baumer IGYX08P17B3/L Proximity Sensor (IGYX08P17B3L) is a robust, high-frequency inductive proximity switch, engineered for reliable detection of metallic objects in industrial environments. It features a flush-mount cylindrical threaded design with a housing diameter of 8 mm and length of 30 mm, ensuring compact integration. With a nominal sensing distance (Sn) of 2 mm and assured sensing distance (Sa) of 1.6 mm, it maintains dependable switching even in precise positioning tasks.

The device offers high switching frequency up to 3 kHz, ideal for fast-moving applications. It operates on a 10–30 VDC supply voltage, with a maximum current consumption of just 15 mA (no load). Its PNP normally open (NO) output can drive loads up to 200 mA, while offering short-circuit and reverse polarity protection, ensuring operational safety and longevity.

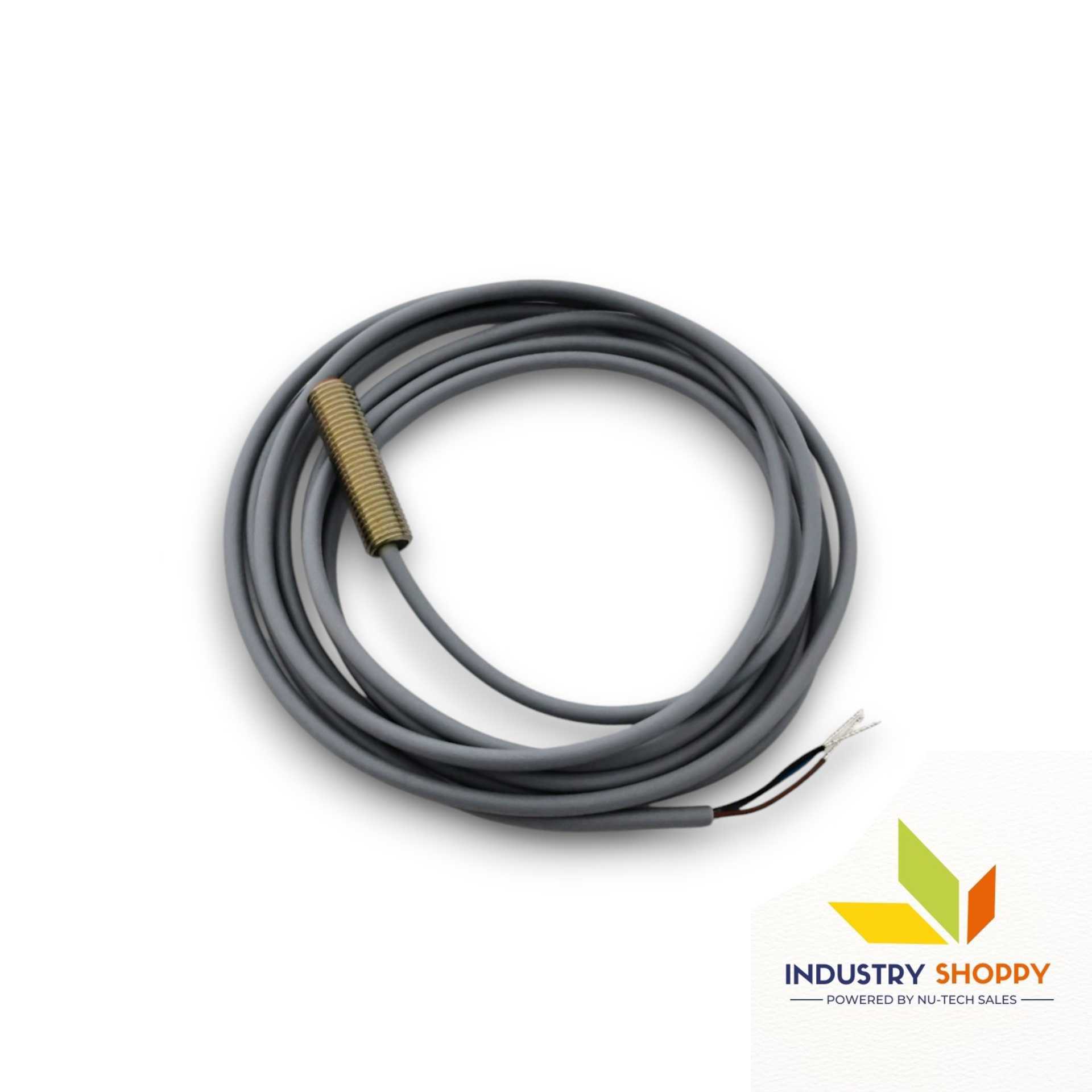

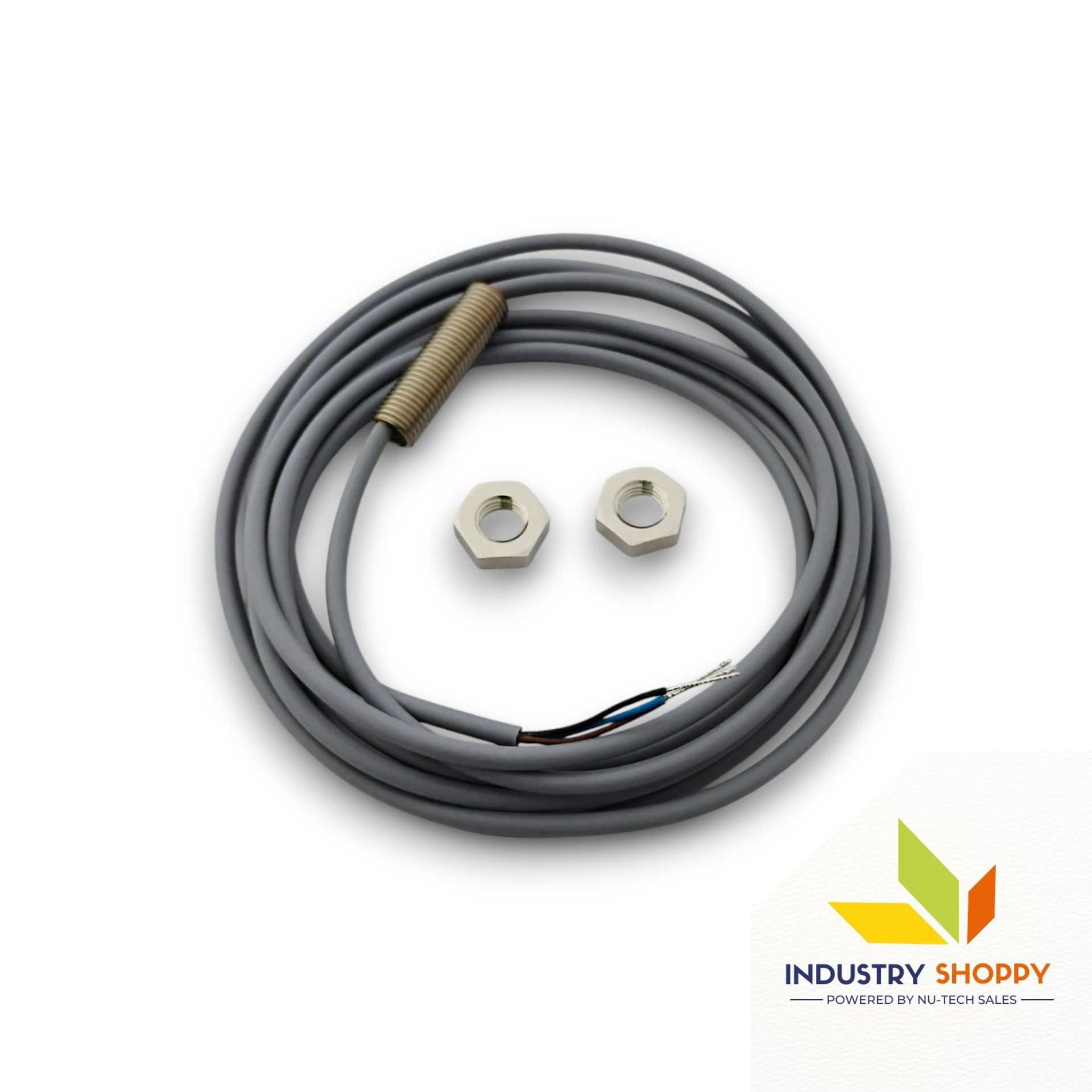

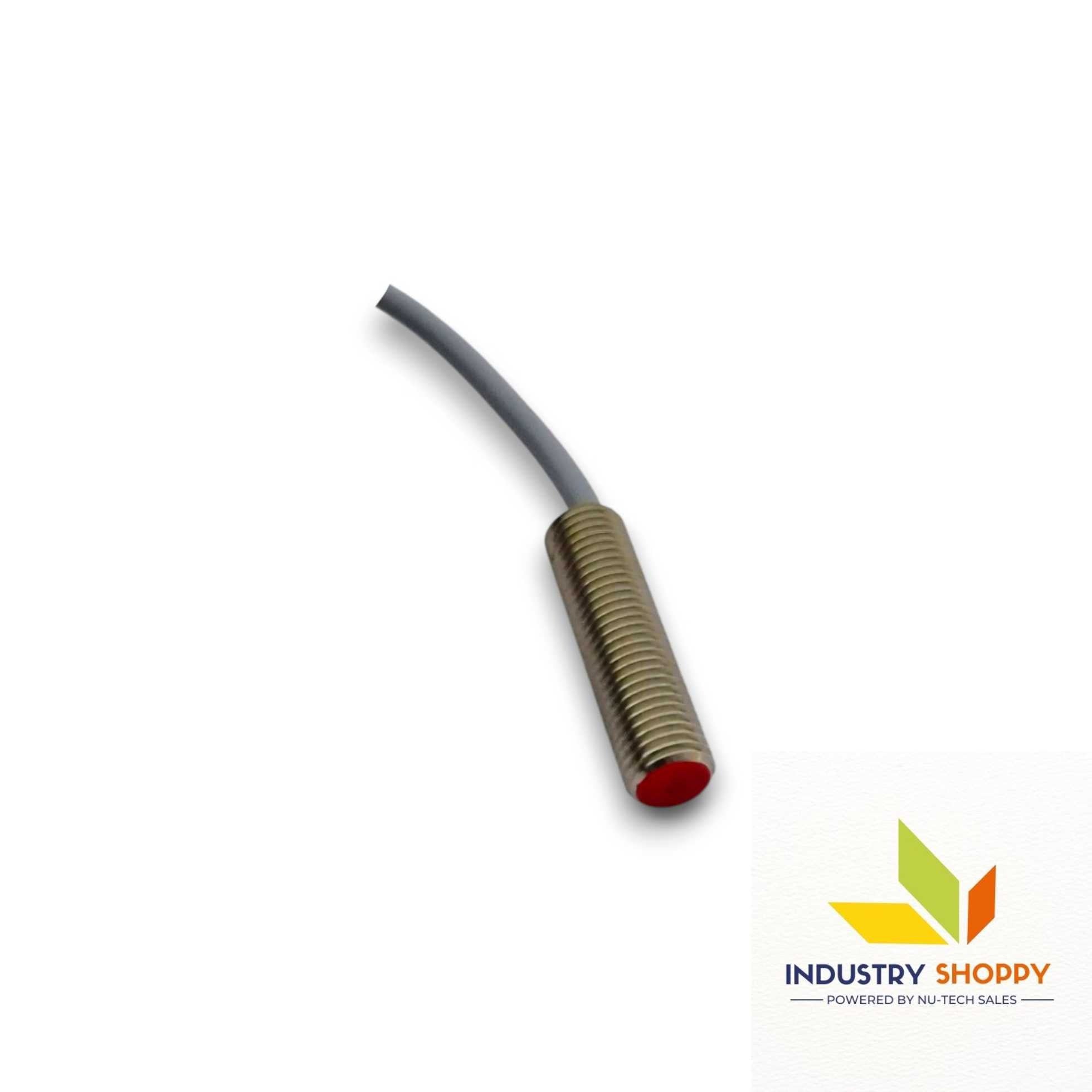

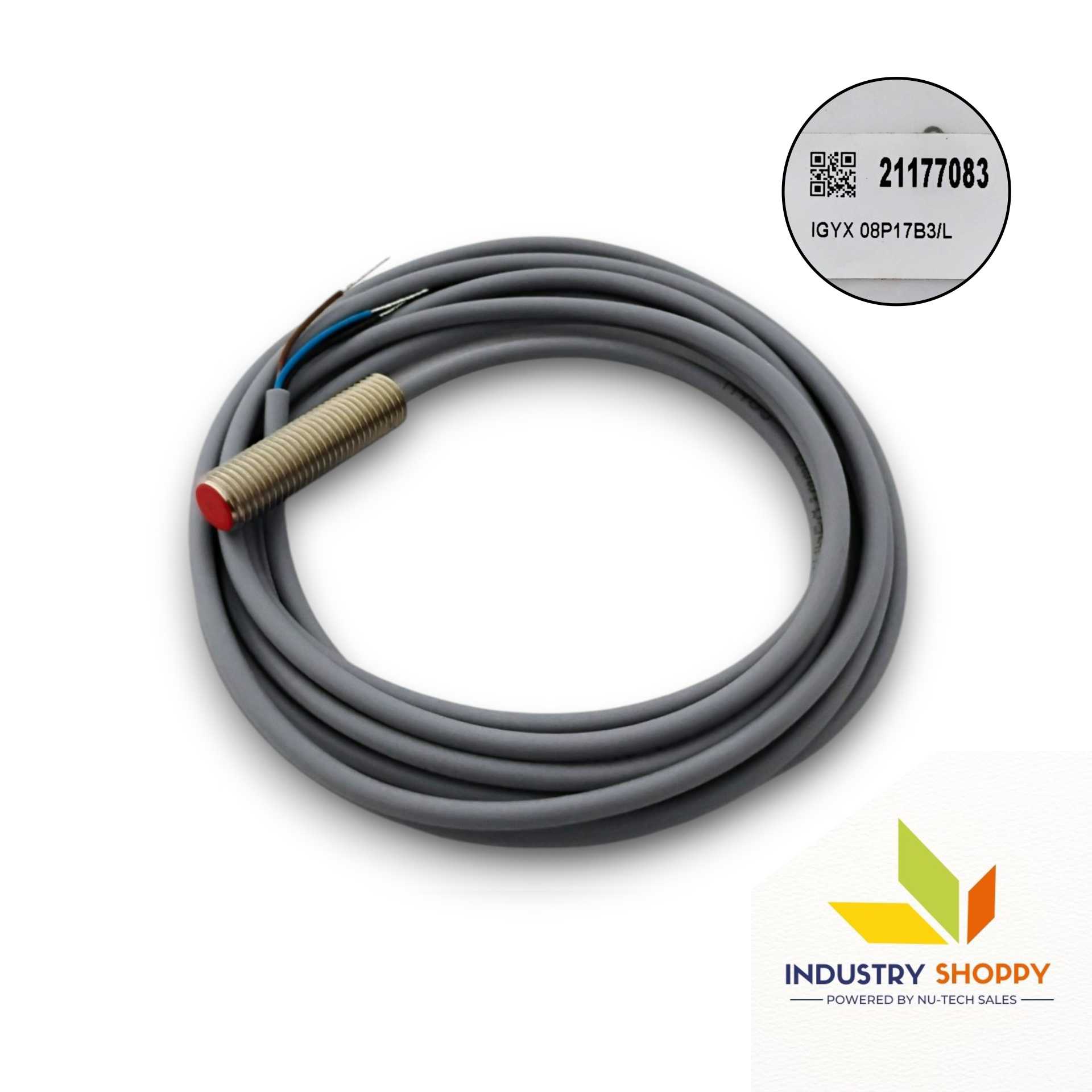

Built for durability, the housing is made of stainless steel, and the sensing face is constructed from red PBT, providing resistance against wear and harsh environments. A 3-port red LED clearly indicates switching status, while the 2-meter pre-attached cable ensures easy electrical integration.

Capable of withstanding temperatures from -25°C to +75°C and rated to IP67, the sensor delivers excellent protection against dust and water, making it perfect for demanding industrial applications requiring compact, fast, and rugged sensing.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


Product NumberIGYX 08P17B3/L
Part Number21176699
TypeInductive proximity switch
Mounting typeFlush
Nominal sensing distance Sn2 mm
Assured sensing distance Sa1.6 mm
Temperature drift±10 % of Sr (0 … +60 °C)
Hysteresis3 … 20 % of Sr
Output indicator3-port LED red
Switching frequency3 kHz
Voltage supply range +Vs10 … 30 VDC
Current consumption max. (no load)15 mA
Output circuitPNP make function (NO)
Voltage drop Vd< 2.5 VDC
Output current200 mA
Short circuit protectionYes
Reverse polarity protectionYes
DesignCylindrical threaded
Material (sensing face)PBT, red
Housing materialStainless steel
Dimension8 mm
Housing length30 mm
Connection typesCable, L=2 m
Tightening torque max.5 Nm
Operating temperature-25 … +75 °C
Protection classIP 67
