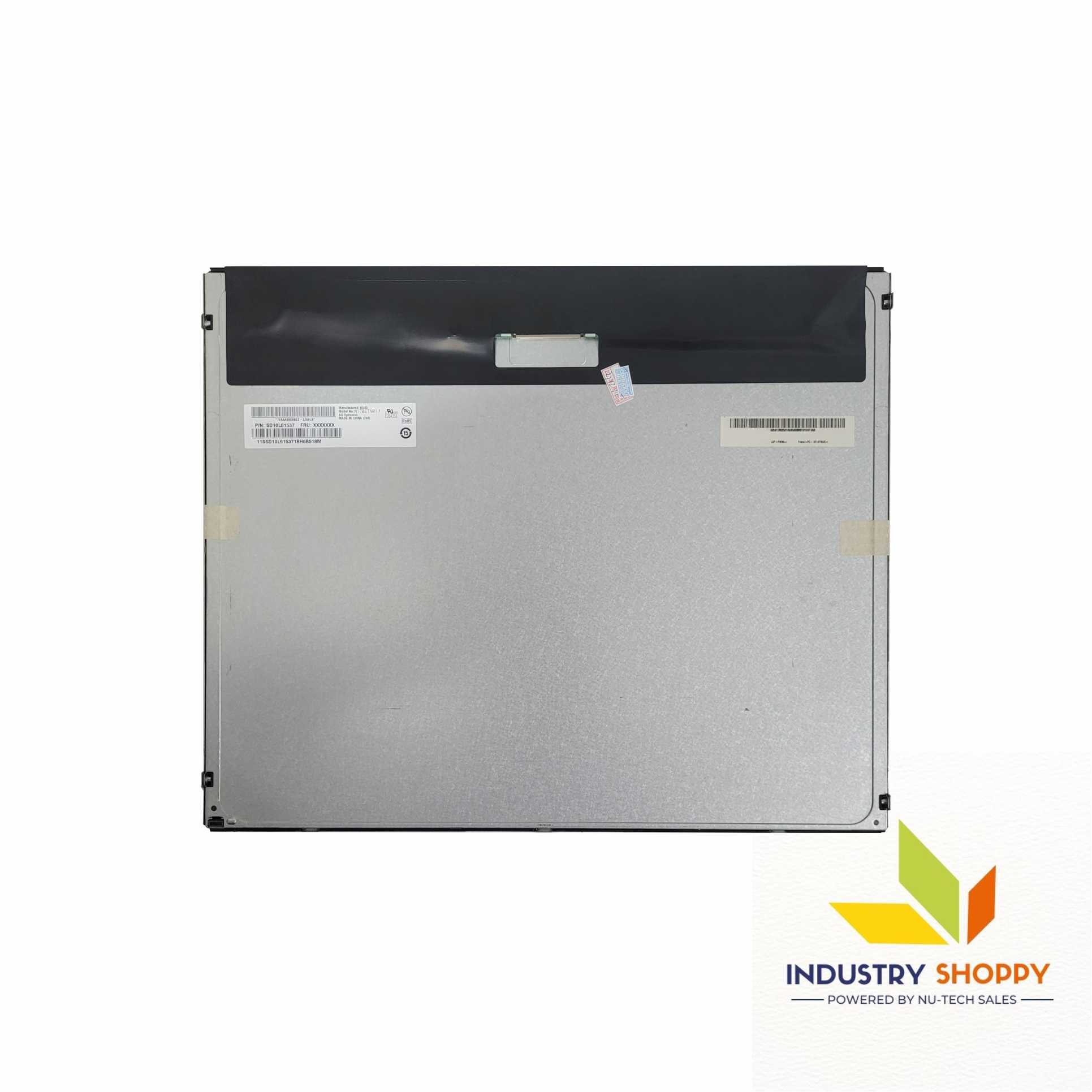

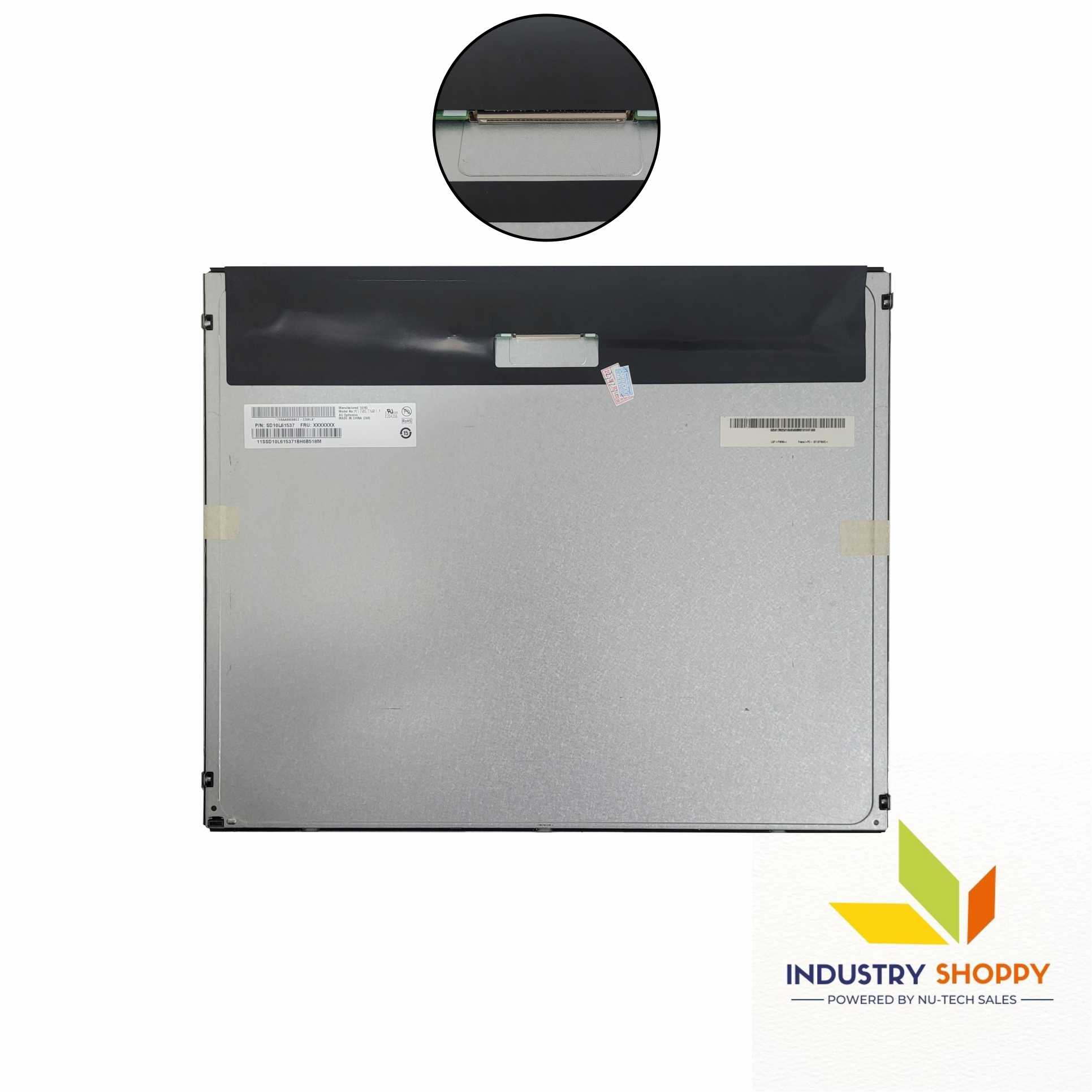

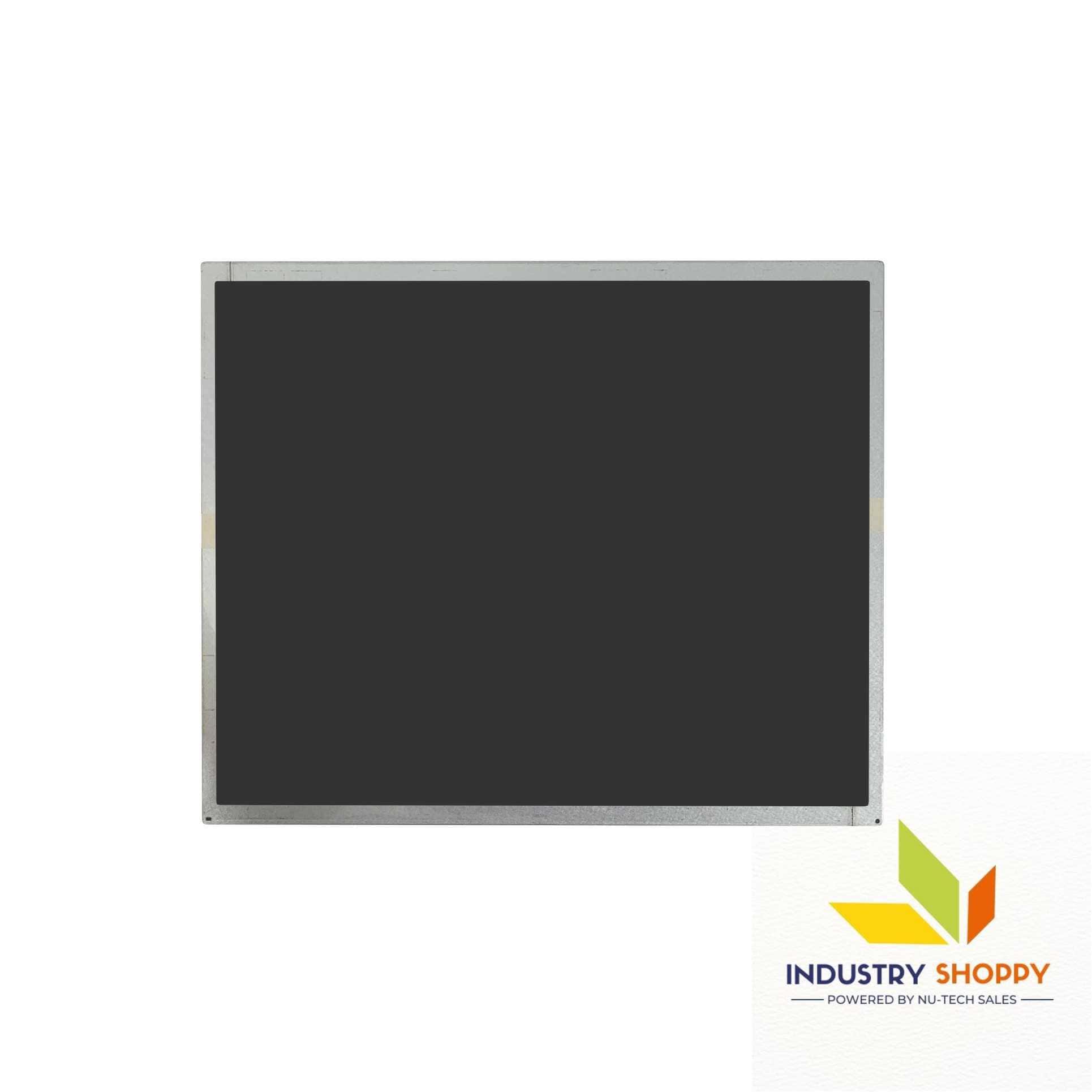

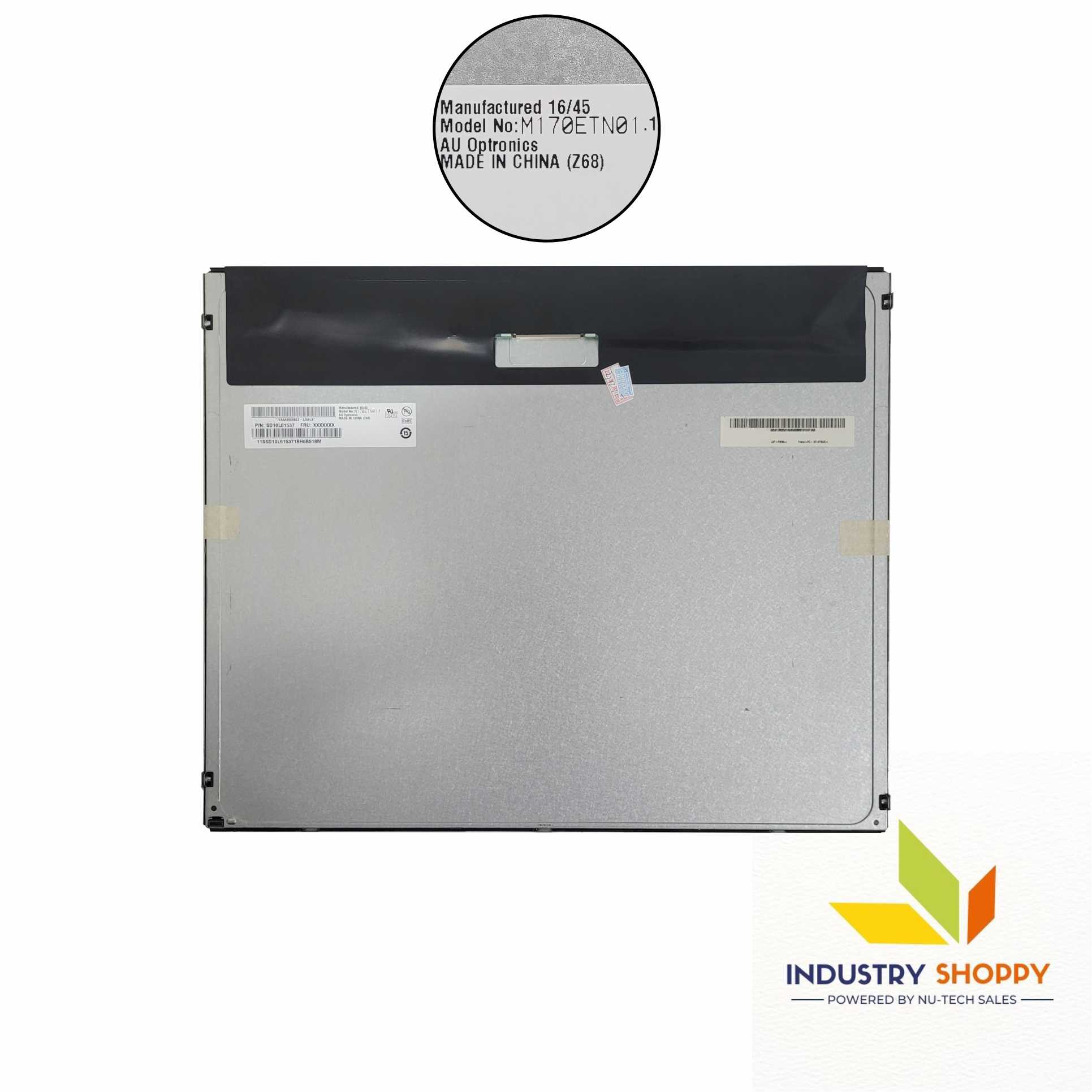

AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO M170ETN01.1 LCD Module
AUO

AUO M170ETN01.1 LCD Module

Product SKU: NTSLCD0114
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand :  AUO
  • Size : 17.0"
  • Condition  :  New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 3 Months
Rs. 14,840.00
Rs. 20,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

AUO M170ETN01.1 LCD Module

The AUO M170ETN01.1 is a high-performance 17.0-inch LCD module designed for industrial and commercial applications. With a 1280×1024 SXGA resolution, this a-Si TFT-LCD panel delivers crisp and detailed visuals, making it ideal for applications requiring high clarity and reliability. Its 337.92×270.336 mm active area ensures an immersive display experience with excellent image reproduction.

Equipped with a contrast ratio of 1000:1 and 250 cd/m² brightness, this LCD panel offers vibrant colors and sharp contrasts for superior visibility. The 85° wide viewing angles ensure clear display quality from different perspectives, making it suitable for medical displays, industrial control systems, and professional monitors. The 3.8ms response time enhances motion clarity, reducing blurring in dynamic content.

This LVDS 2-channel, 8-bit interface display supports 16.7M colors with 72% NTSC color gamut, ensuring precise color accuracy. Its WLED backlight has a lifespan of 30,000 hours, ensuring long-term performance without frequent replacements. With antiglare hard coating (3H) treatment, the screen minimizes reflections, providing comfortable viewing. The robust design and wide operating temperature range (0°C to 50°C) make it a reliable choice for industrial and commercial applications.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandAUO
Diagonal Size17.0"
Resolution1280(RGB)×1024, SXGA  96PPI
Active Area337.92(W)×270.336(H) mm
Outline Dimension358.5(W)×296.5(H) ×10.8(D) mm
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Response Time 3.8/1.2 (Typ.)(Tr/Td)
Panel Type a-Si TFT-LCD, LCM
Treatment Antiglare, Hard coating (3H)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M   72% NTSC
Signal Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Frame Rate 60Hz
Power Supply 5.0V (Typ.)
Backlight9S4P WLED , 30K hours , Without Driver
Operating Temp.0 ~ 50 °C
Storage Temp.-20 ~ 60 °C
