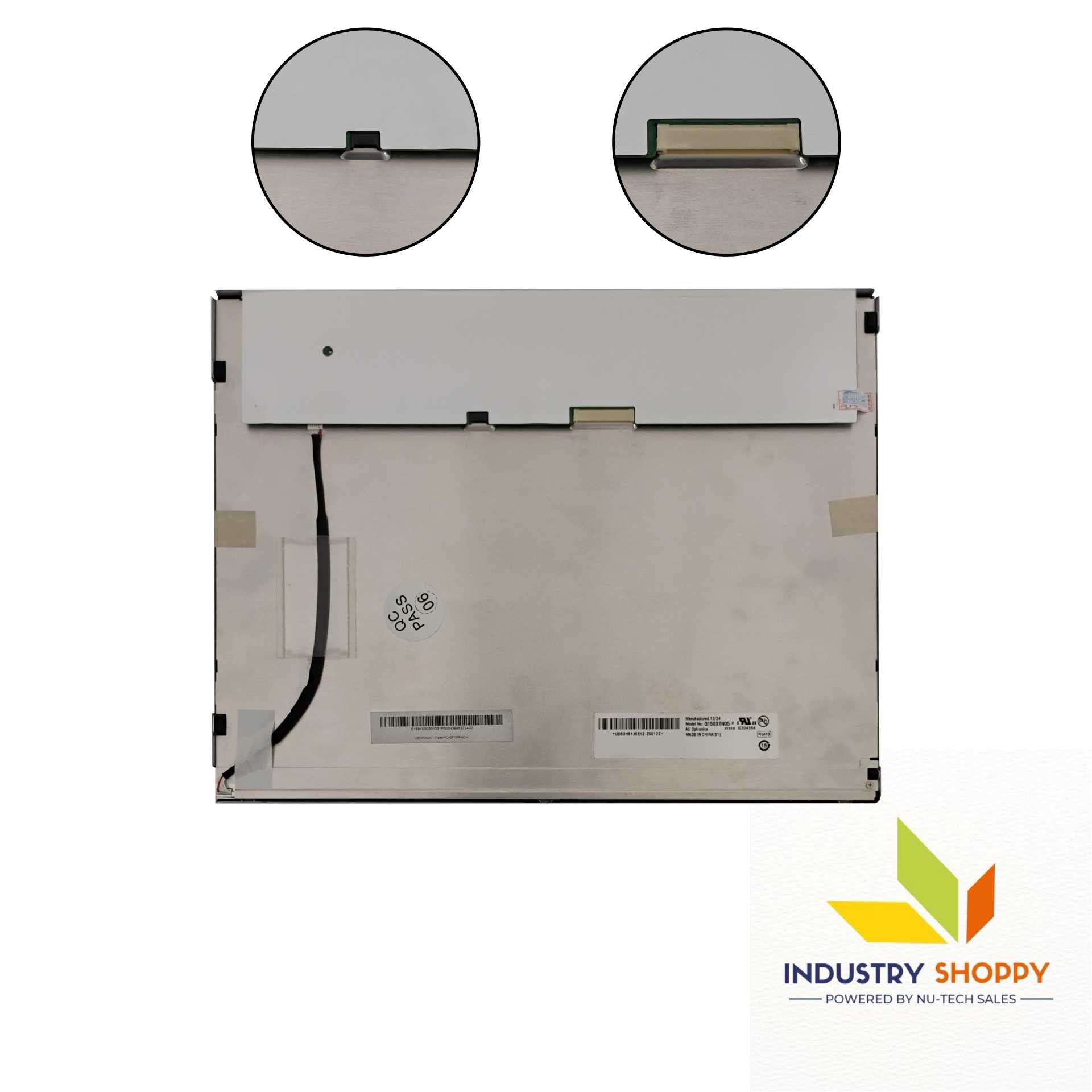

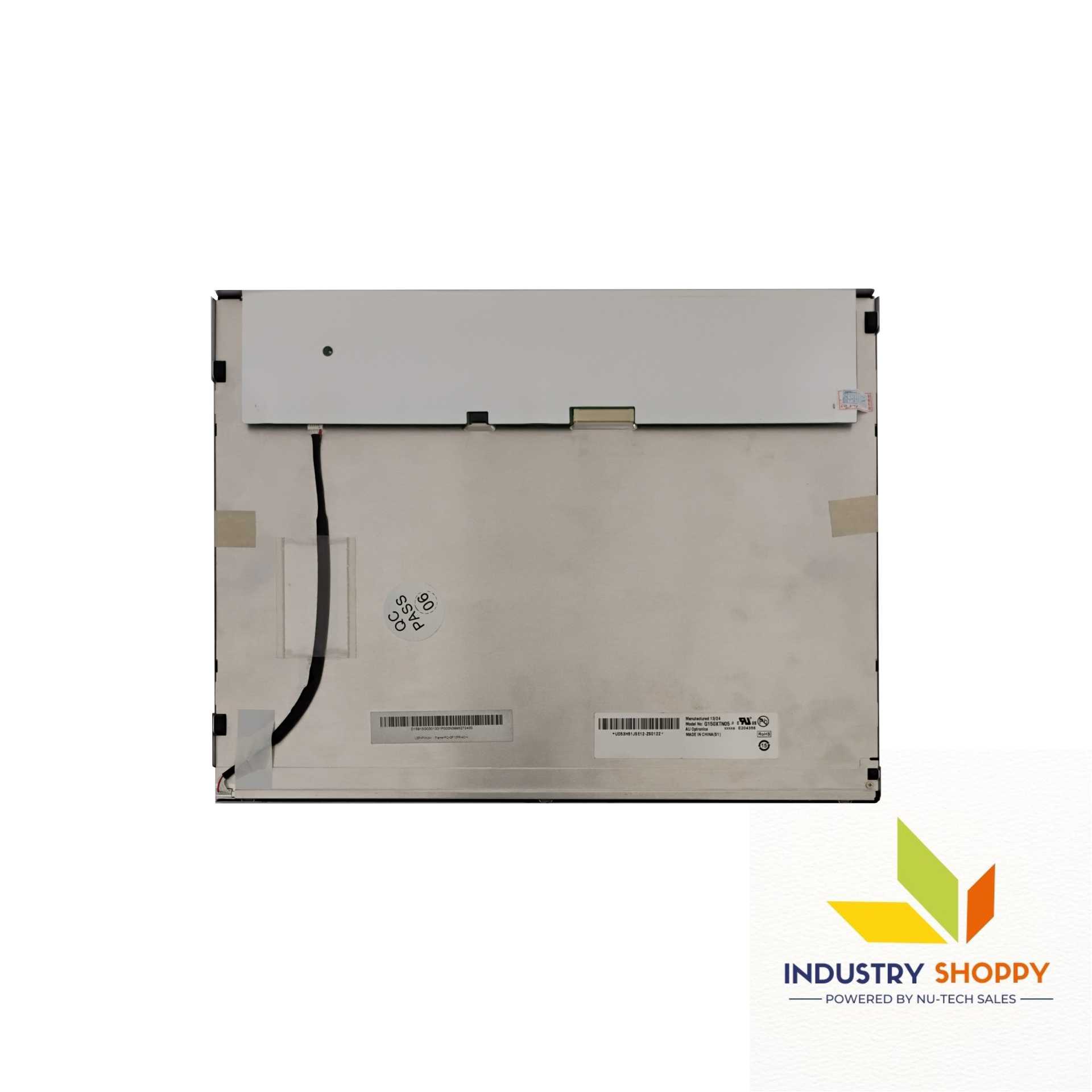

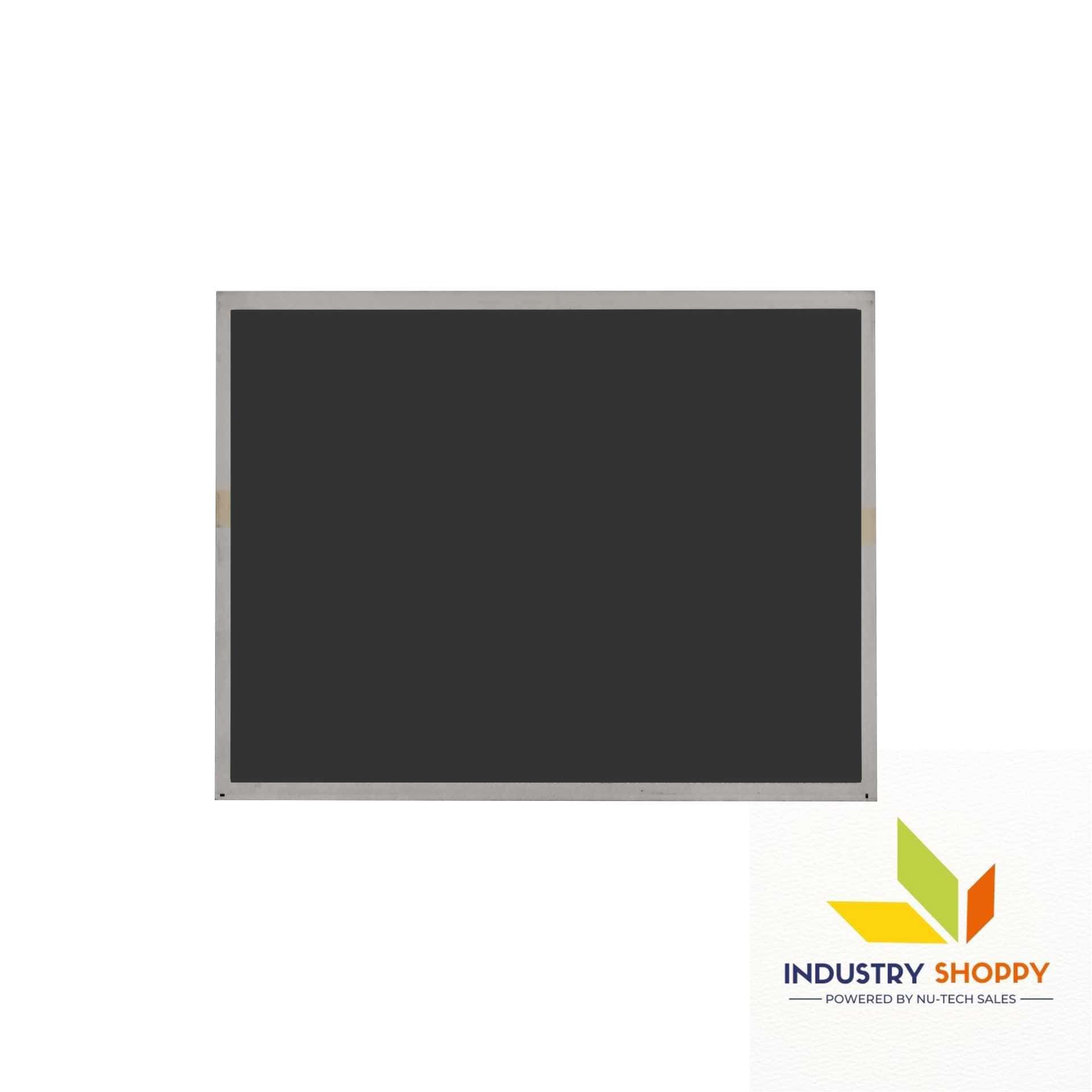

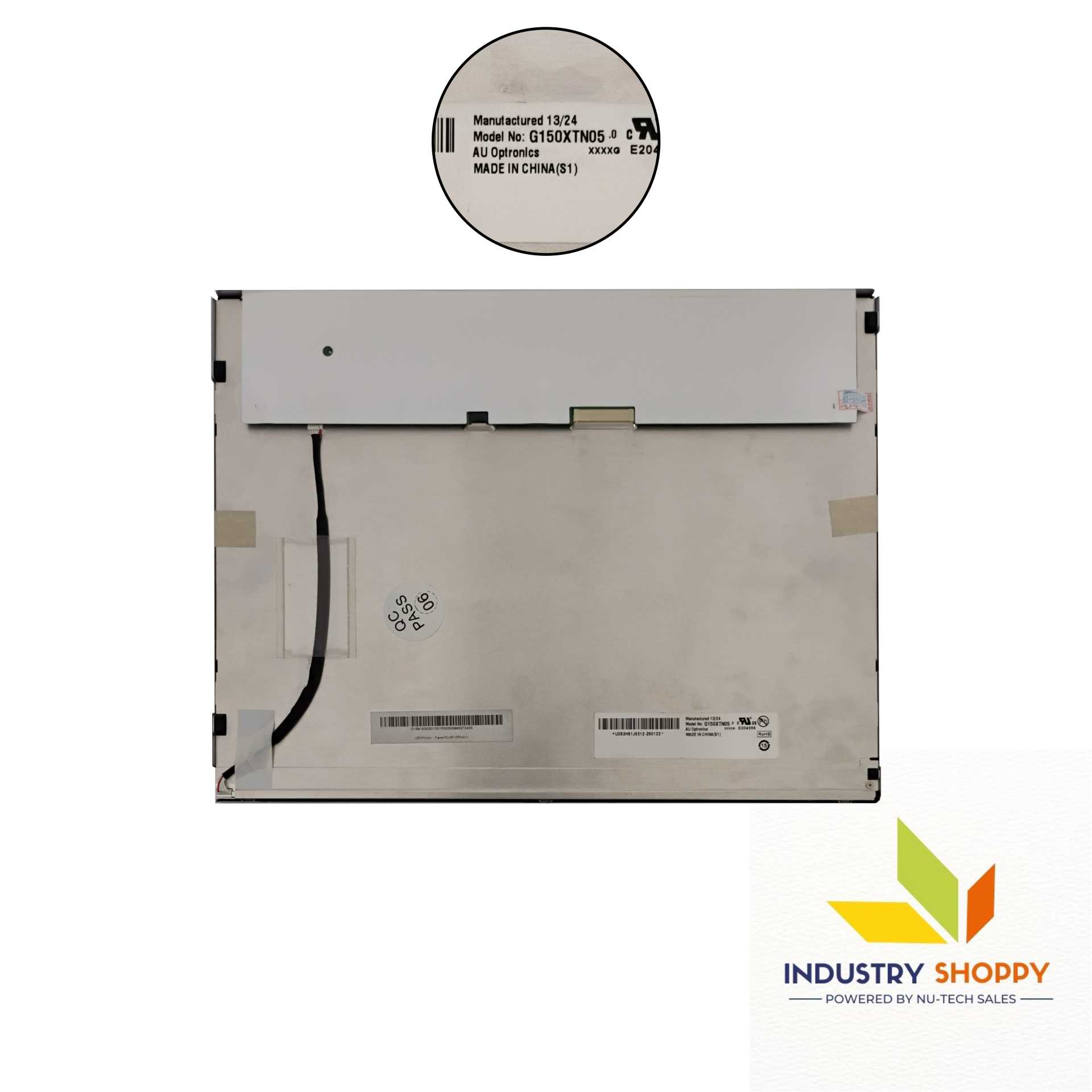

AUO G150XTN05.0 LCD Module

AUO G150XTN05.0 LCD Module

The AUO G150XTN05.0 LCD Module is 15.0" TFT-LCD display features a resolution of 1024×768 (XGA) and a pixel density of 85 PPI, offering clear and crisp images. The active area is 304.128(W)×228.096(H) mm, providing a large display surface for versatile applications. The display boasts an impressive luminance of 1200 cd/m² (typical) and a contrast ratio of 700:1 (typical), ensuring high brightness and rich contrast for vivid images.

The viewing angle of 70/70/60/60 ensures good visibility from multiple directions. The display features a response time of 5.7/2.3 ms (Tr/Td), offering quick image transitions. It utilizes a-Si TFT-LCD technology with antiglare treatment, making it more durable and easier to use in bright environments.

This screen operates in TN mode, with support for 262K/16.2M colors and 65% NTSC color gamut. The signal interface is LVDS (1 ch, 6/8-bit), and the power supply is 3.3V (typical). The WLED backlight has a lifespan of 50K hours, and the display can operate in temperatures ranging from -30°C to 85°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
