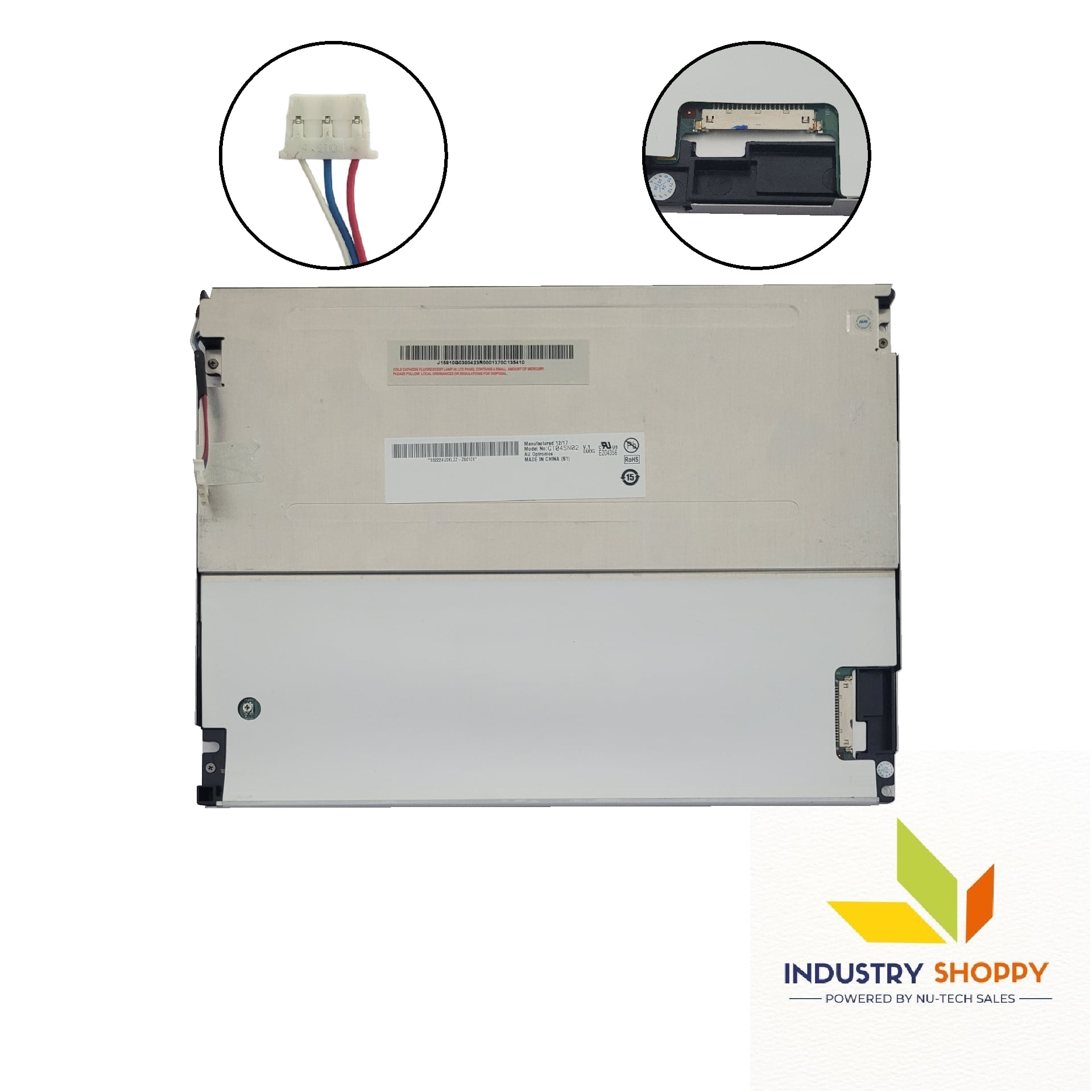

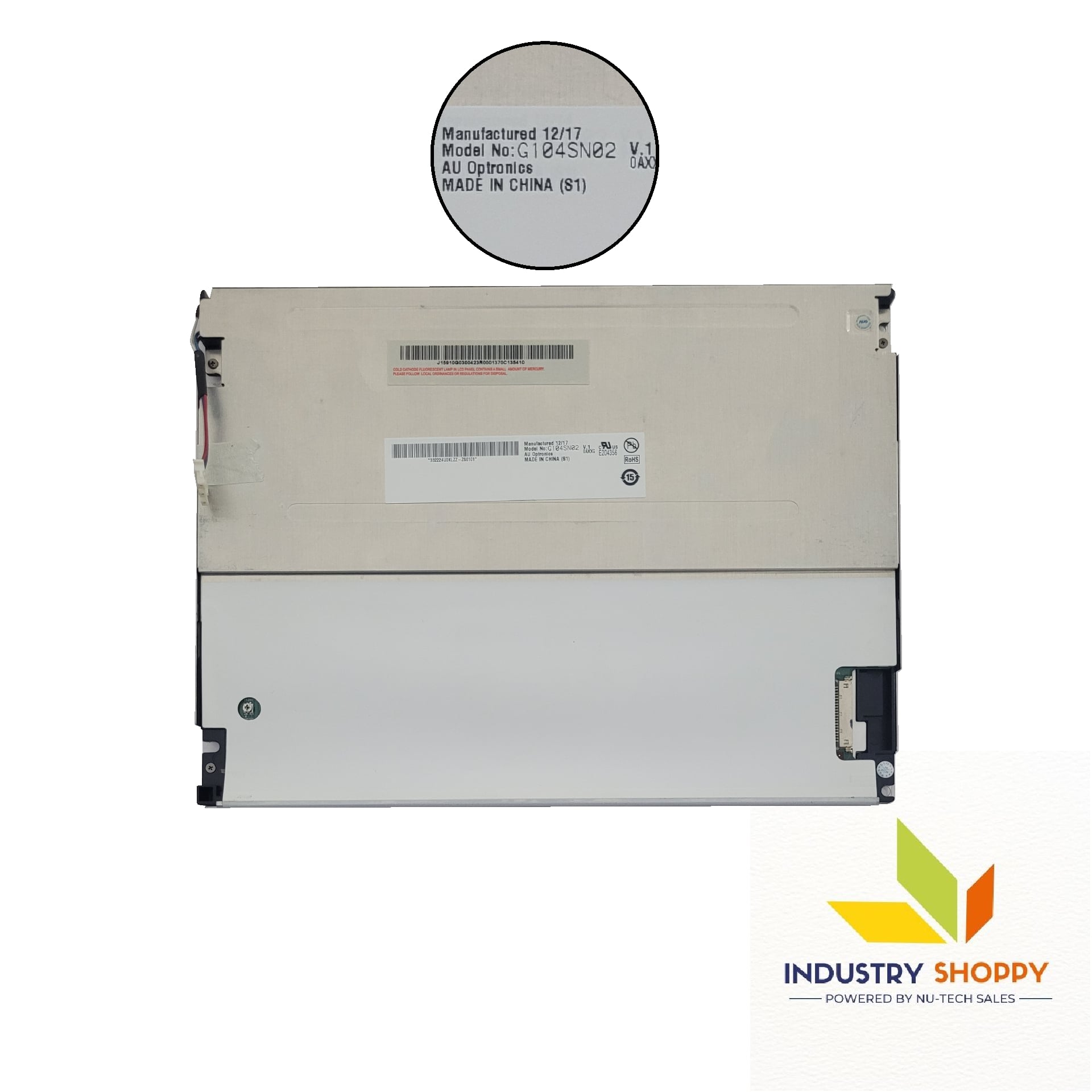

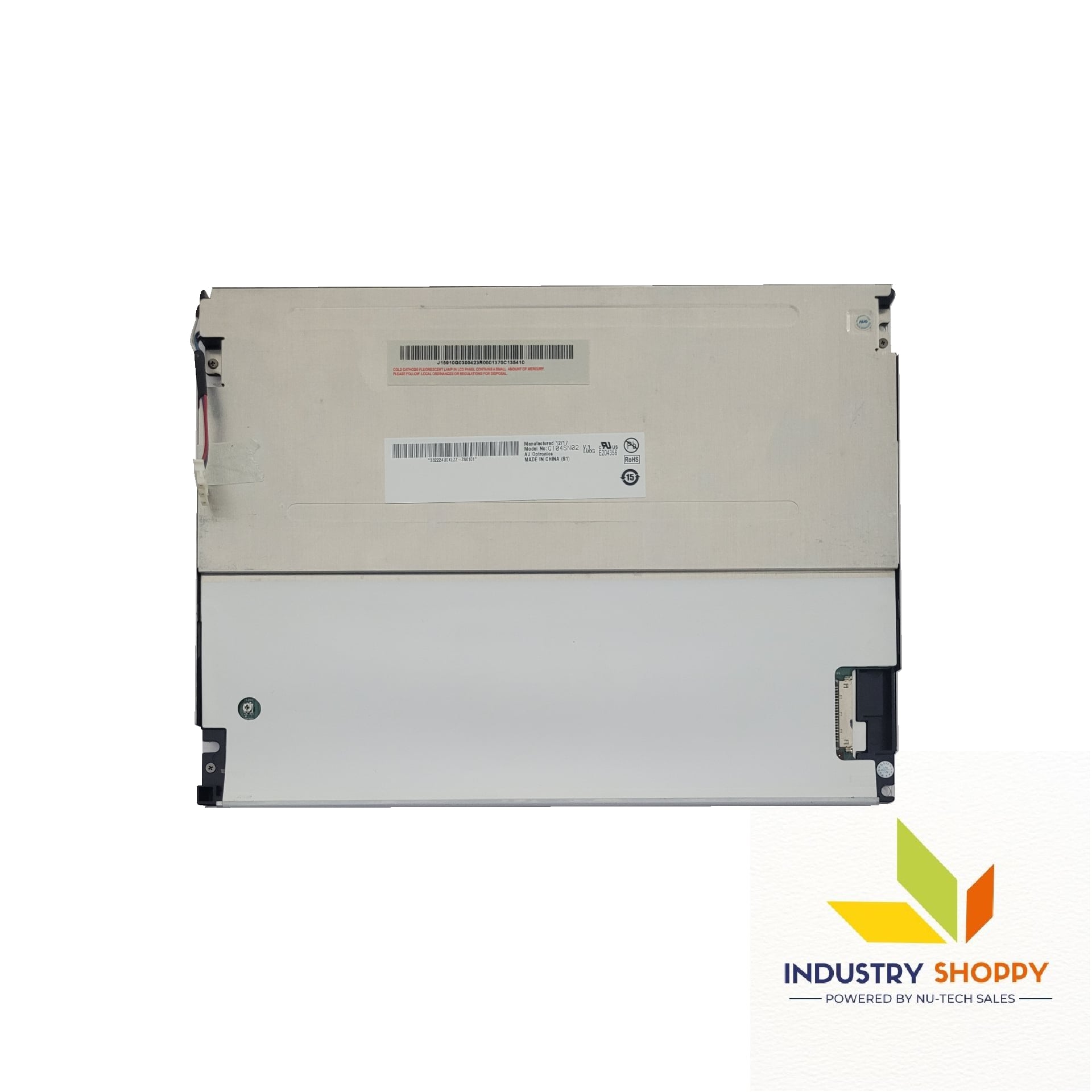

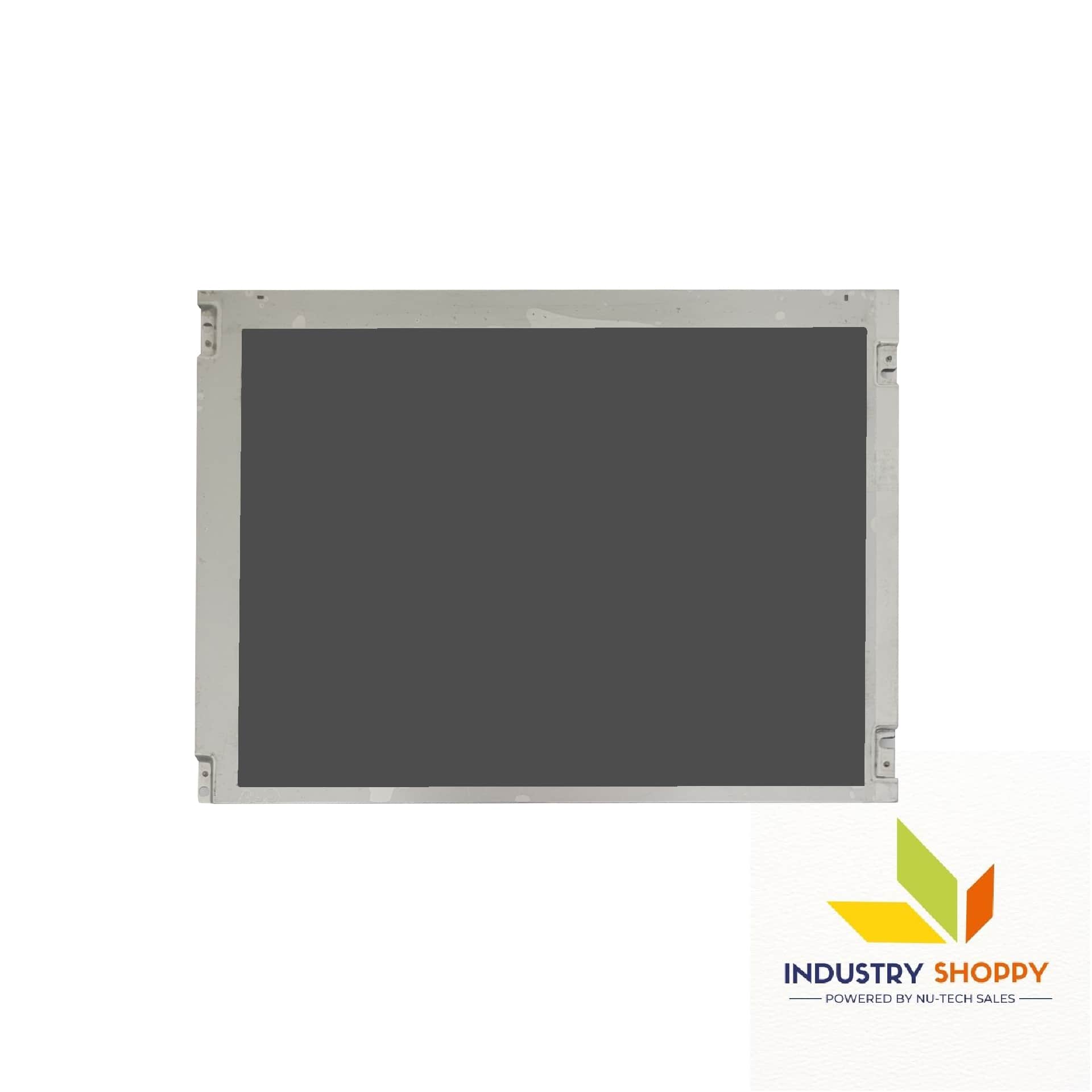

AUO G104SN02-V.1 LCD Module

• Brand :  AUO
• Size : 10.4"
• Condition :  New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : TN, Normally White, Transmissive

AUO G104SN02-V.1 LCD Module

The AUO G104SN02-V.1 LCD Module is a 10.4" TFT-LCD display features an 800(RGB)×600 SVGA resolution with a 96PPI pixel density, ensuring clear and detailed visuals suitable for various applications. With an active area of 211.2(W)×158.4(H) mm, it offers ample space for displaying content, making it ideal for industrial, medical, and commercial displays.

The display delivers a luminance of 400 cd/m², ensuring bright visibility in environments with controlled lighting. The contrast ratio of 500:1 provides clear differentiation between dark and light areas, enhancing the overall visual experience. Additionally, the viewing angles of 80/80/60/80 ensure that the display remains sharp and clear from multiple directions. As a result, users can enjoy consistent image quality regardless of their position in relation to the screen. Furthermore, this combination of contrast and viewing angle performance makes the display suitable for a wide range of applications, from industrial to commercial uses. Therefore, the AUO 10.4" display excels in providing both vibrant and accessible visuals in various environments.

Using a-Si TFT-LCD technology with an RGB Vertical Stripe treatment, the panel provides high-quality color representation. The TN (Twisted Nematic) operating mode ensures a fast response time of 10/20 ms, minimizing motion blur and making it suitable for dynamic content.

The display is powered by 3.3V with CCFL backlighting (2 pcs), offering a 50K-hour lifespan. It operates in a temperature range of -30 ~ 85°C, ensuring durability in challenging environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
