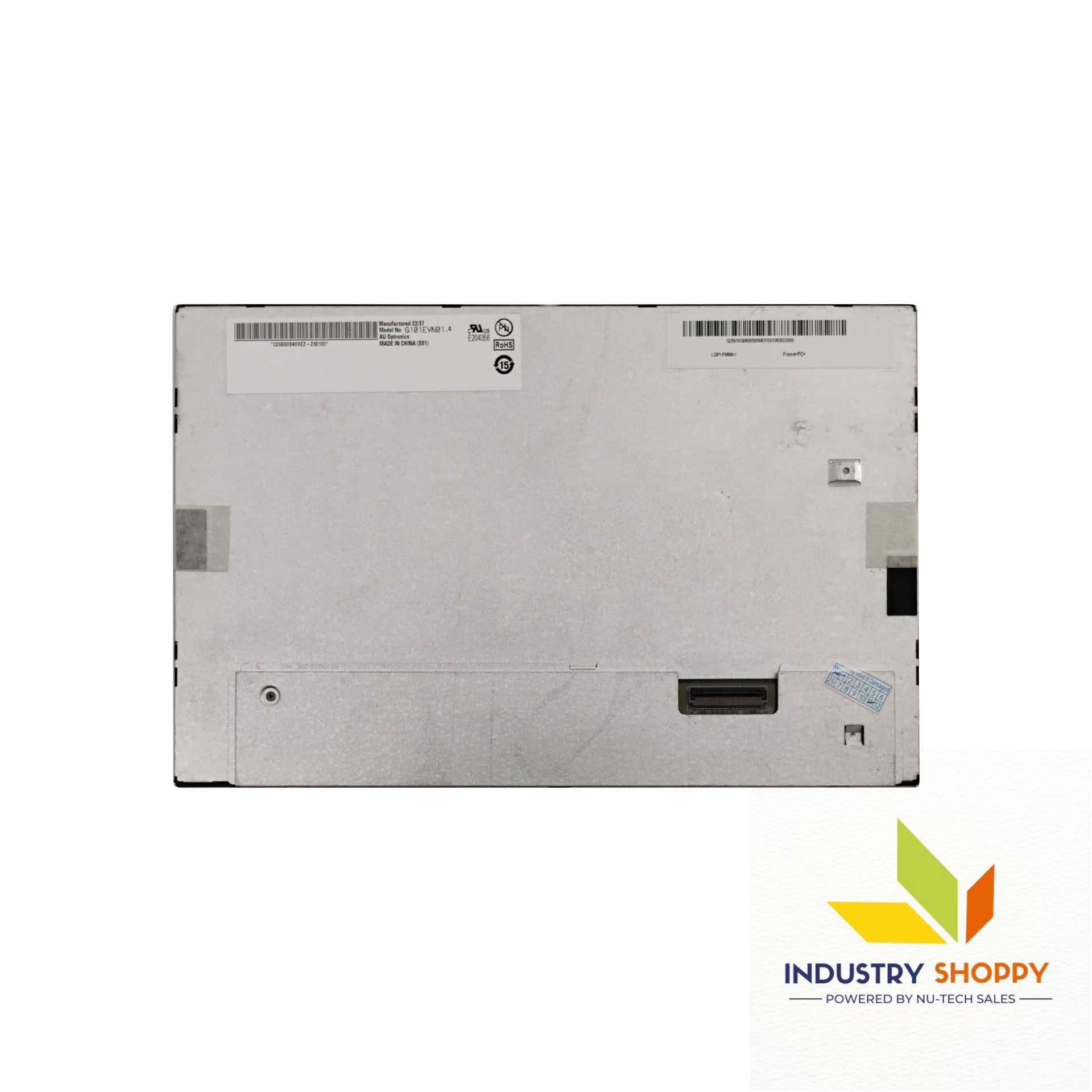

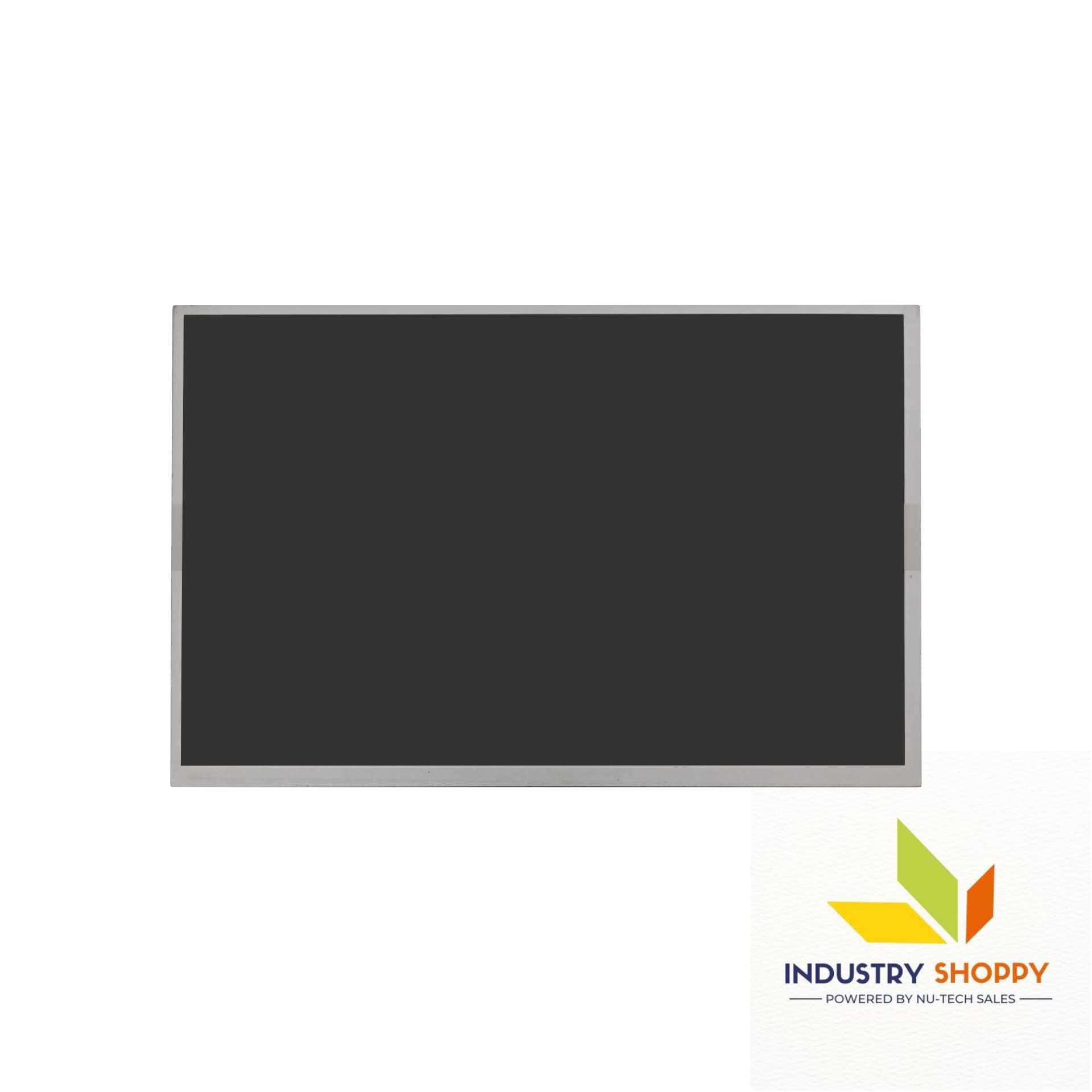

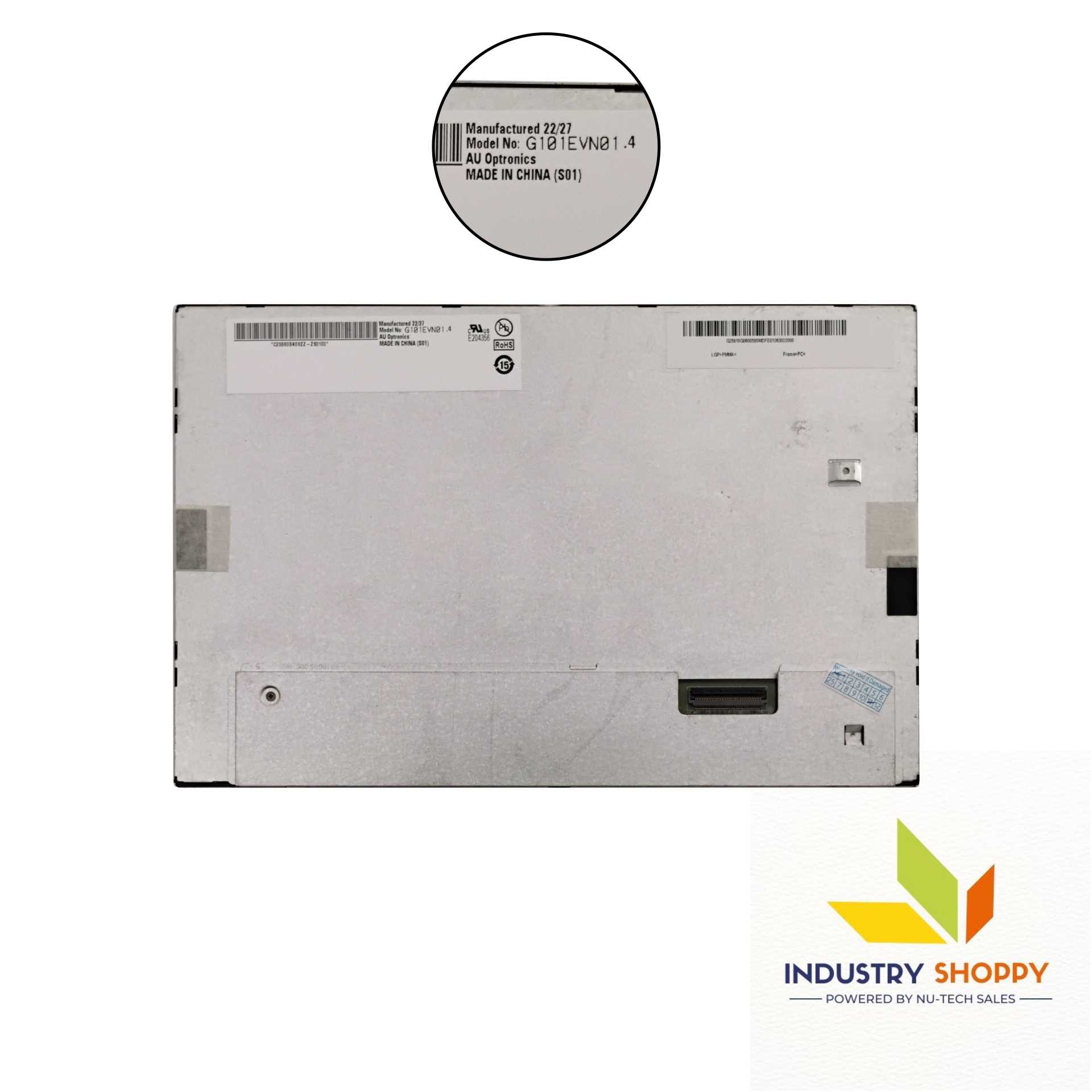

AUO G101EVN01.4 LCD Module

• Brand : AUO
• Size : 10.1″
• Condition : New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : WLED , 50K hours , With LED Driver

AUO G101EVN01.4 LCD Module

The AUO G101EVN01.4 LCD Module is 10.1-inch a-Si TFT-LCD panel offers a high-resolution display with 1280(RGB)×800 pixels (WXGA), resulting in a sharp 149 PPI for crisp image quality. Its active area measures 216.96(W)×135.6(H) mm, providing a broad and clear visual workspace.

A major highlight is its contrast ratio of 1300:1 (Typ.), ensuring deep blacks and vivid colors. Additionally, the wide viewing angles of 85°/85°/85°/85° (CR≥10) allow excellent visibility from all directions, making it ideal for professional and multimedia applications. The response time is 25 ms (Tr+Td), suitable for smooth transitions in dynamic content.

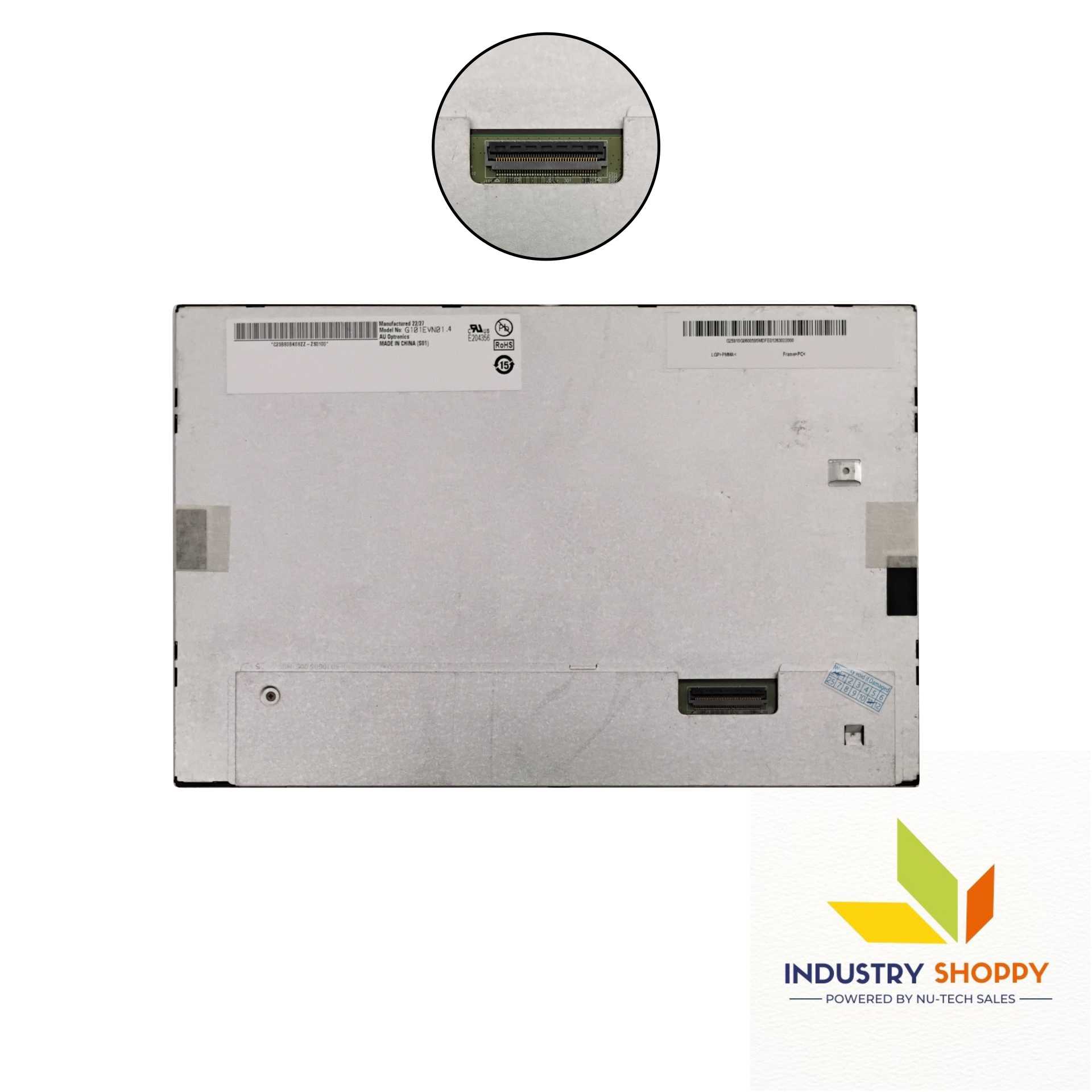

Supporting 262K/16.2M colors, it offers rich color reproduction. The panel uses an LVDS (1 ch, 6/8-bit) 40-pin connector for efficient signal transmission. With a power supply of 3.3V (Typ.), it features a durable WLED backlight rated for 50K hours and comes with an integrated LED driver.

Designed for reliability, it operates in a temperature range of -20°C to 70°C and can be stored safely between -30°C to 80°C, making it versatile for various industrial and commercial uses.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
