G084SN05-V.9
AUO G084SN05-V.9 LCD Module
AUO G084SN05-V.9 LCD Module
AUO G084SN05-V.9 LCD Module
G084SN05-V.9
AUO G084SN05-V.9 LCD Module
AUO G084SN05-V.9 LCD Module
AUO G084SN05-V.9 LCD Module
AUO

AUO G084SN05-V.9 LCD Module

Product SKU: NTSLCD0044
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand :  AUO
  • Size : 8.4"
  • Condition  :  New
  • Panel Type : TFT-LCD , LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 13,820.00
Rs. 14,835.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

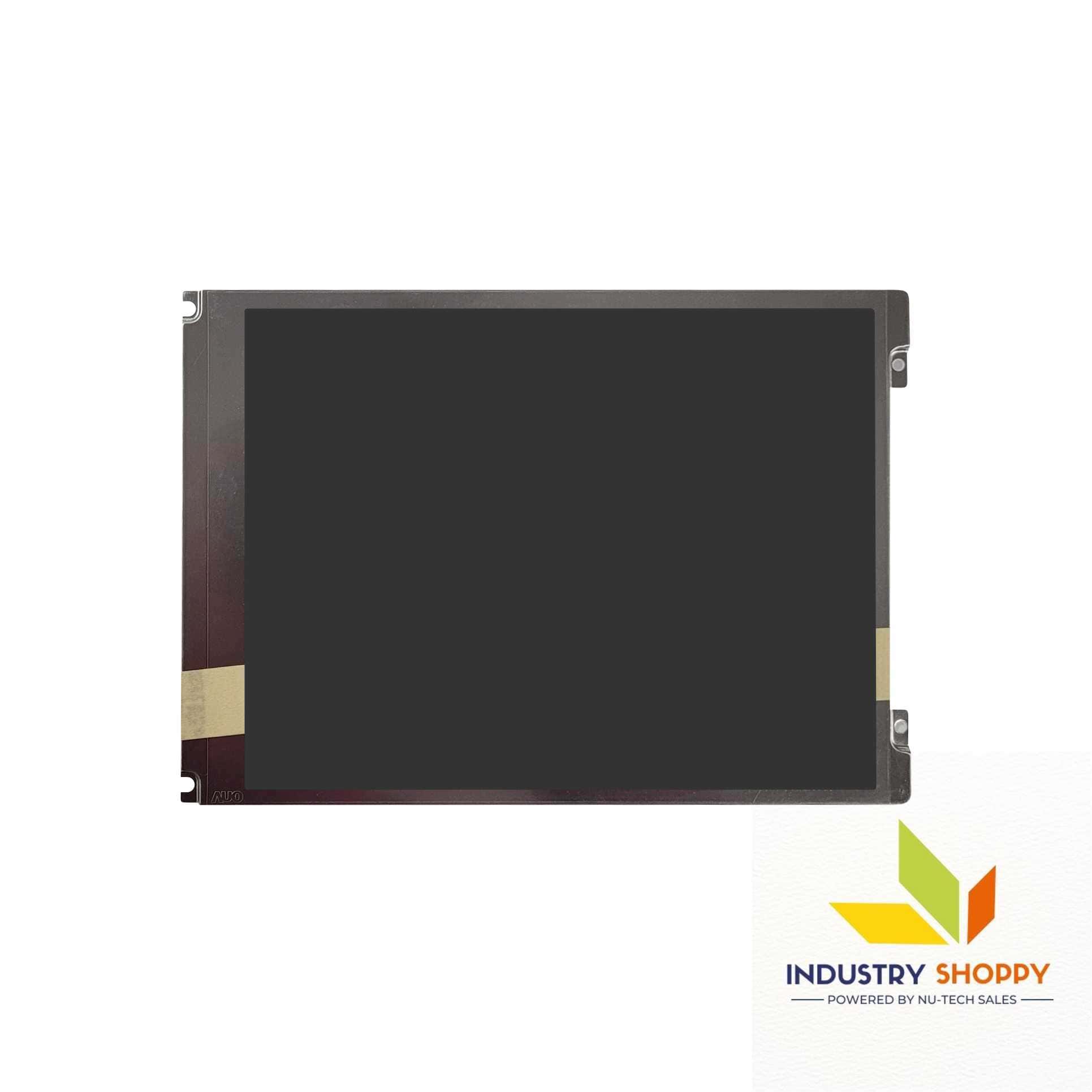

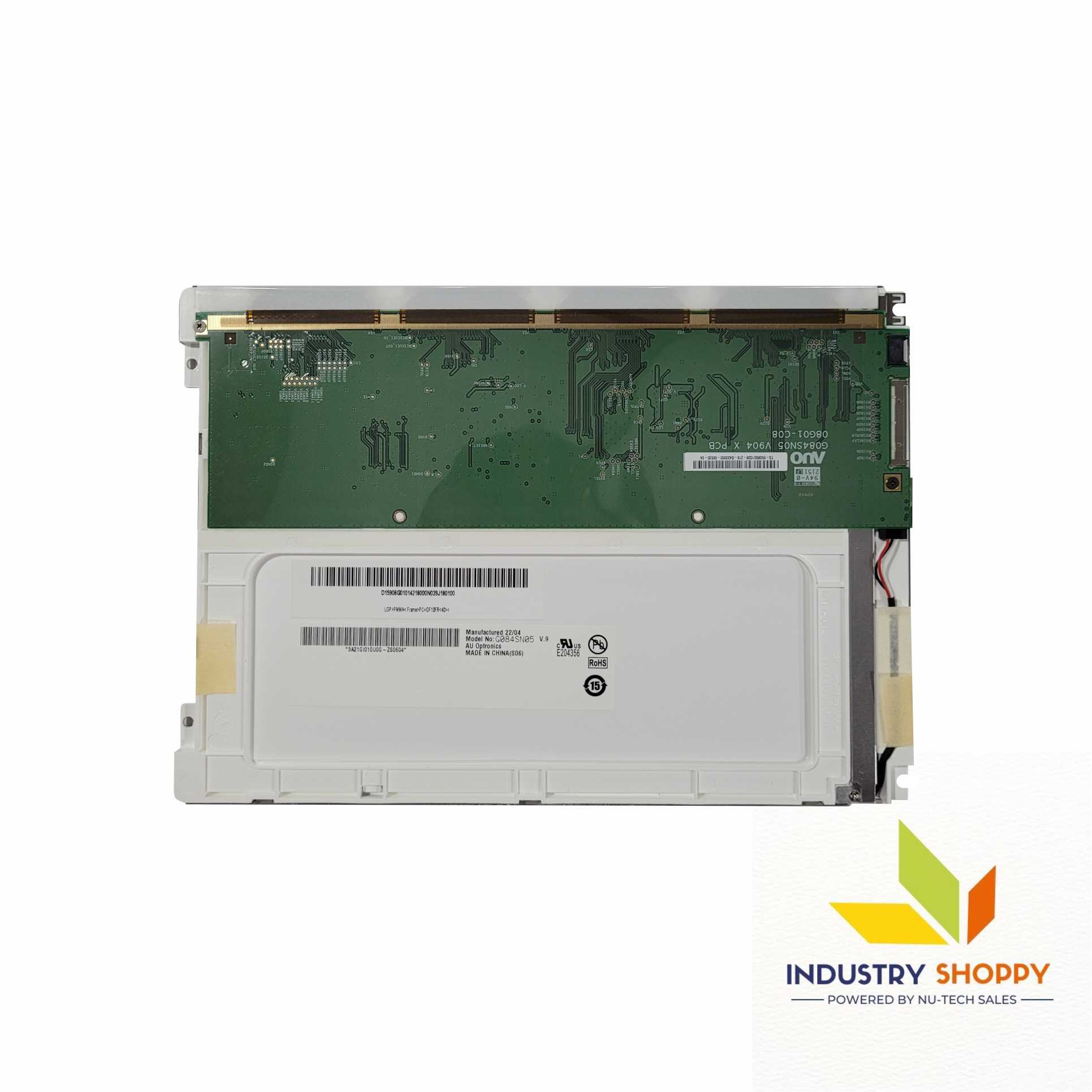

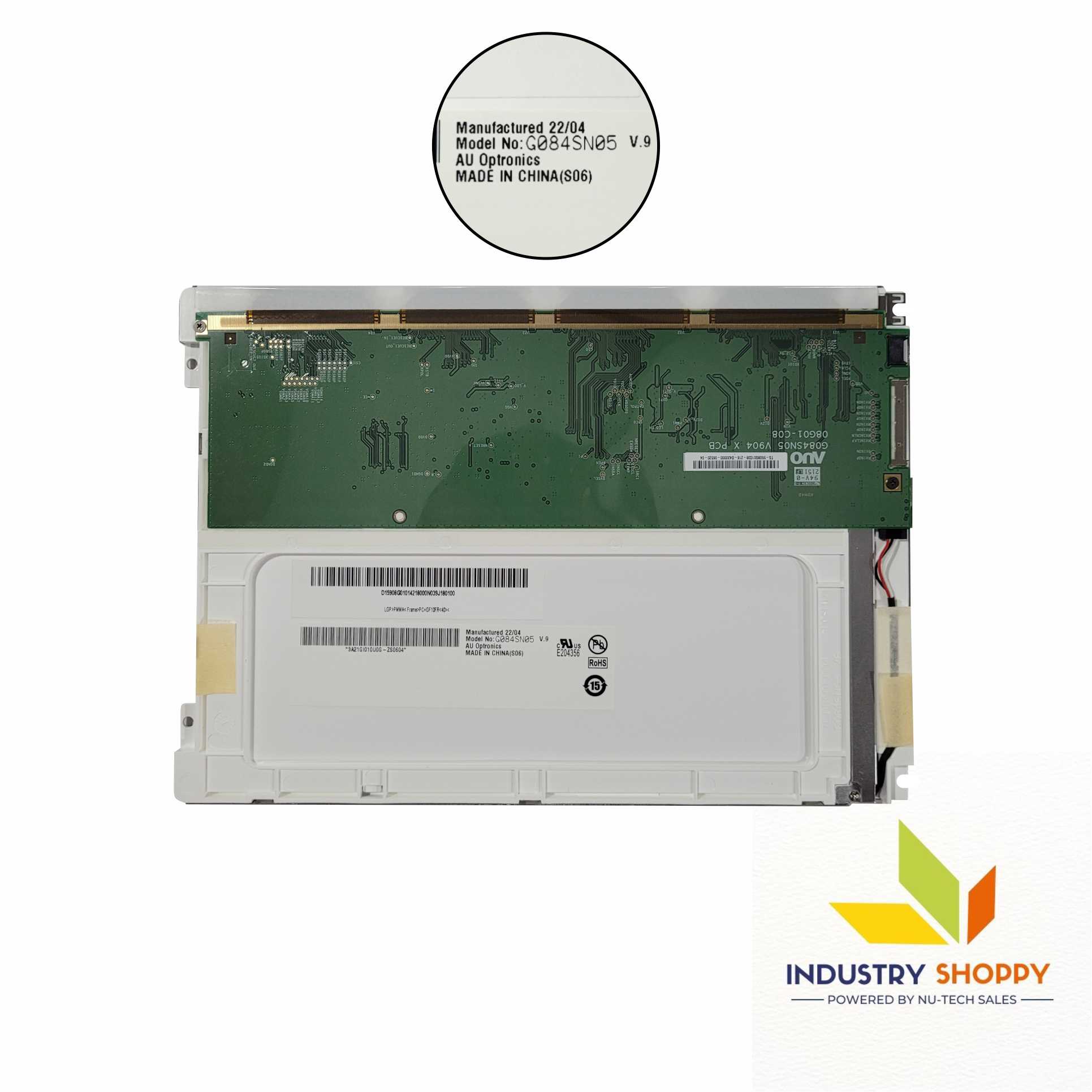

AUO G084SN05-V.9 LCD Module

The AUO G084SN05-V.9 LCD Module is 8.4-inch TFT-LCD panel delivers a crisp SVGA resolution of 800(RGB)×600 pixels at a pixel density of 119 PPI. It features a 170.4 mm × 127.8 mm active area within a compact 203 mm × 142.5 mm × 8 mm outline, making it ideal for industrial and embedded applications.

Powered by a-Si TFT-LCD technology, the panel operates in TN mode with a normally white, transmissive structure. Its antiglare surface and 3H hard coating enhance visibility and durability in high-use environments.

With a typical brightness of 450 cd/m² and a 600:1 contrast ratio, it delivers clear and vivid images. The wide viewing angles of 80° from the left, right, and top, and 60° from the bottom (CR≥10), ensure consistent display performance from multiple directions.

The display supports 262K and 16.2 million colors, covering 45% of the NTSC color gamut. It operates at a 60Hz frame rate and uses a 20-pin LVDS interface supporting both 6-bit and 8-bit color depth. It requires a 3.3V typical power input.

Backlighting is provided by a dual-string WLED system with a built-in LED driver, rated for 50,000 hours of operation. The panel is built for tough environments, operating in temperatures from -30°C to 85°C and withstanding storage conditions in the same range.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers acts wisely inputted all the required details of this item according to the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube


BrandAUO
Diagonal Size8.4"
Resolution800(RGB)×600, SVGA 119 PPI
Active Area170.4(W)×127.8(H) mm
Outline Dimension203(H)×142.5(V)×8(D) mm
Luminance450 cd/m² (Typ.)
Contrast Ratio600:1 (Typ.) (TM)
Viewing Angle80/80/80/60 (Typ.) (CR≥10)
Response Time20/10 (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M, 45% NTSC

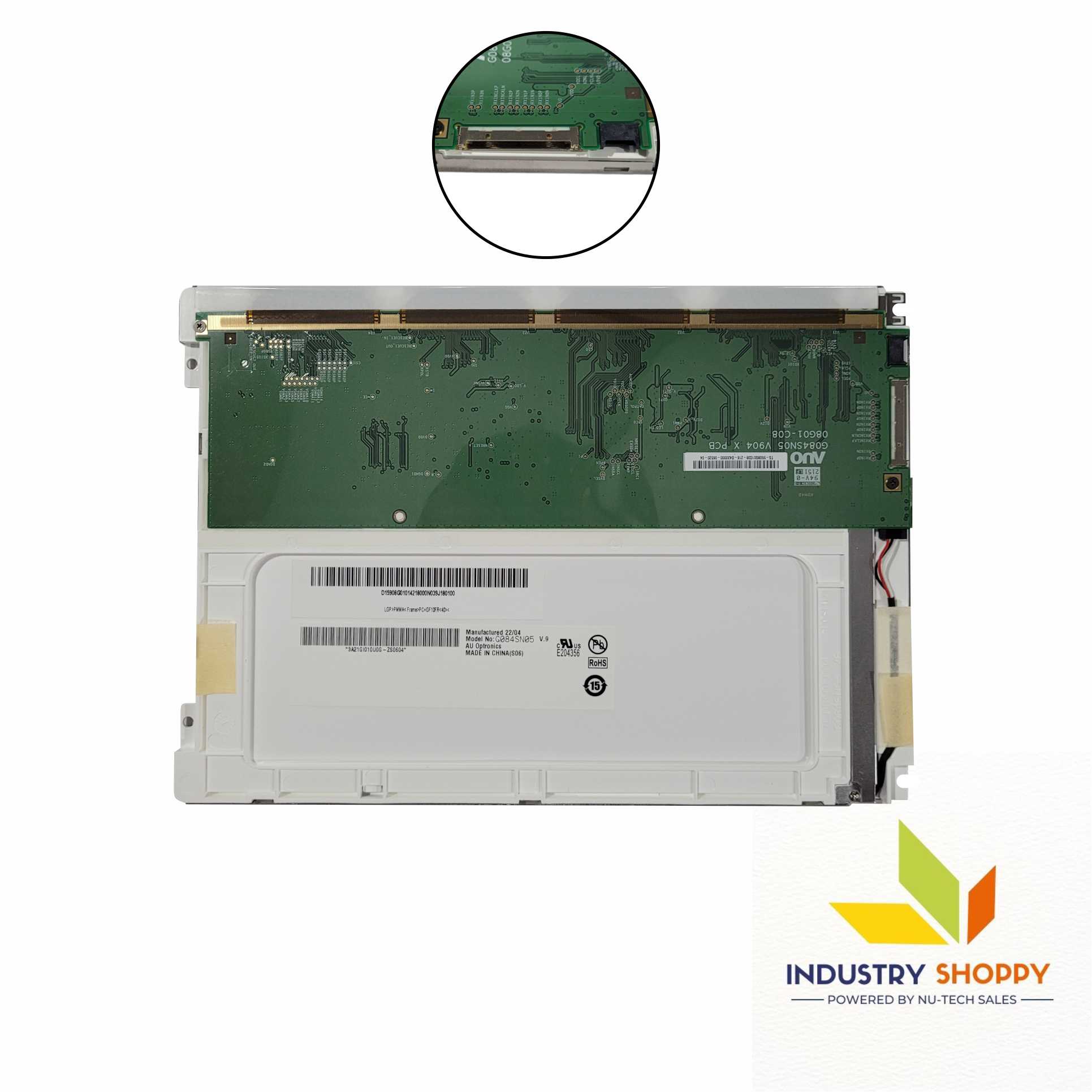

Signal Interface TypeLVDS (1 ch, 6/8-bit), 20 pins Connector
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
BacklightWLED [2 strings], 50K hours, With LED Driver
Operating Temp.-30 ~ 85 °C
Storage Temp.-30 ~ 85 °C
