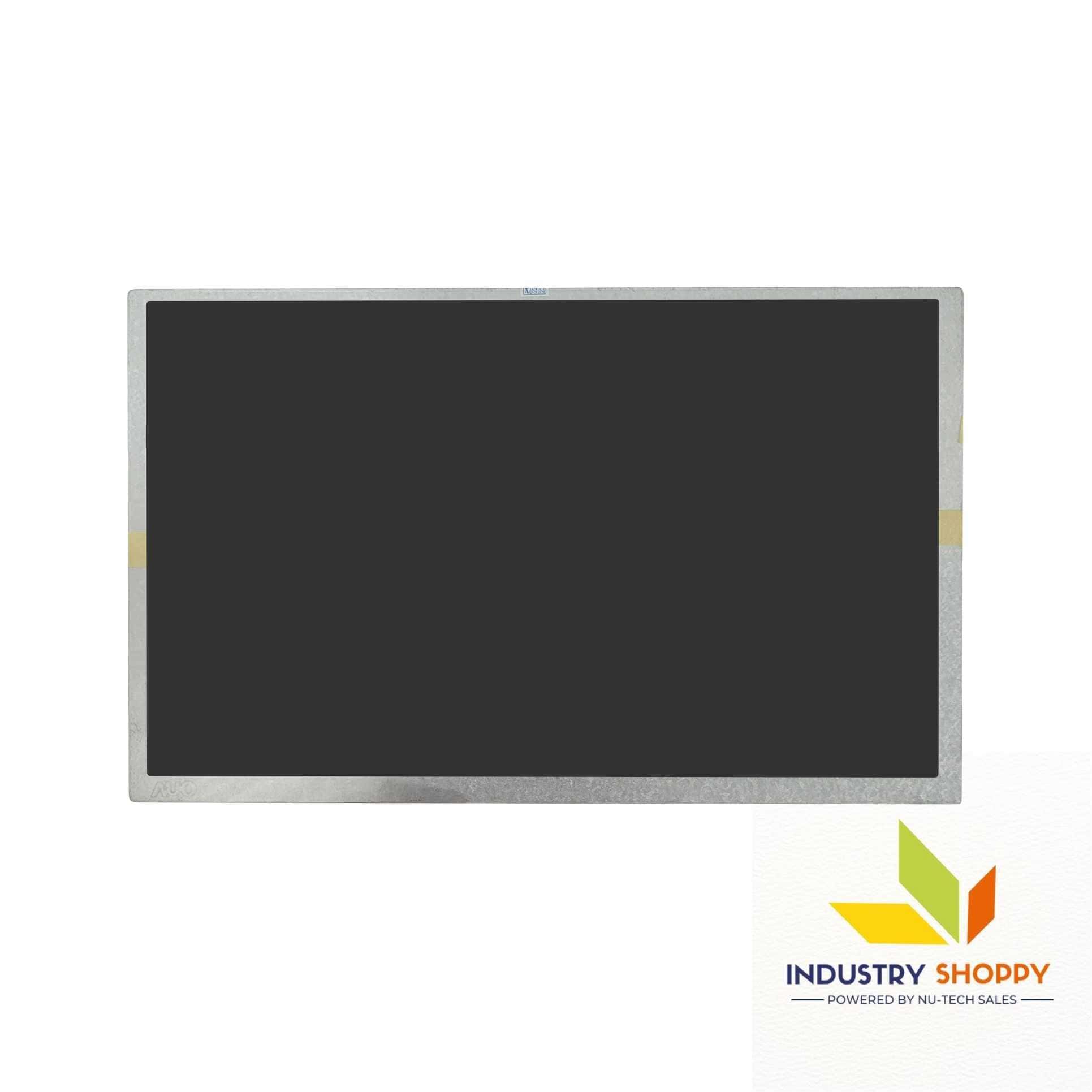

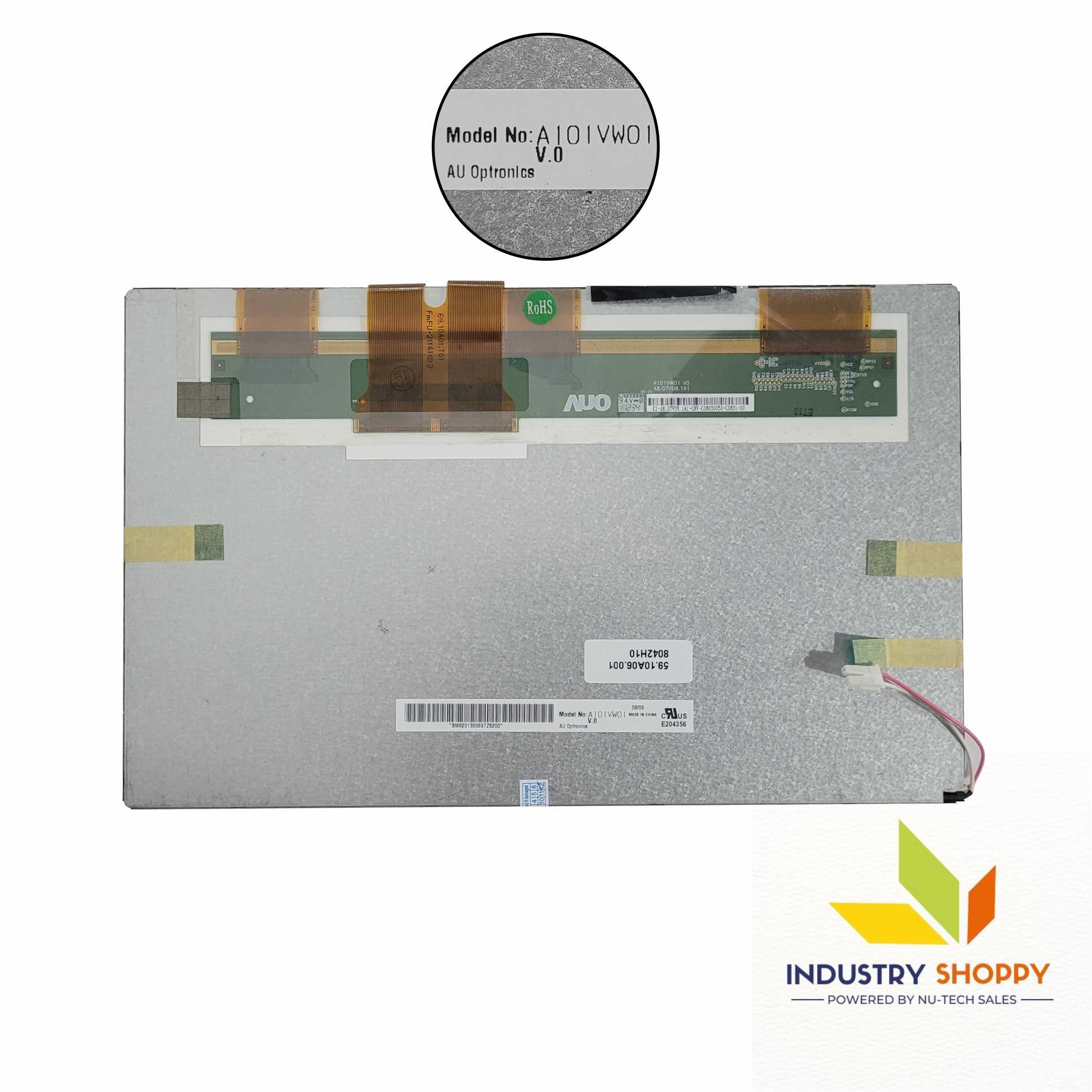

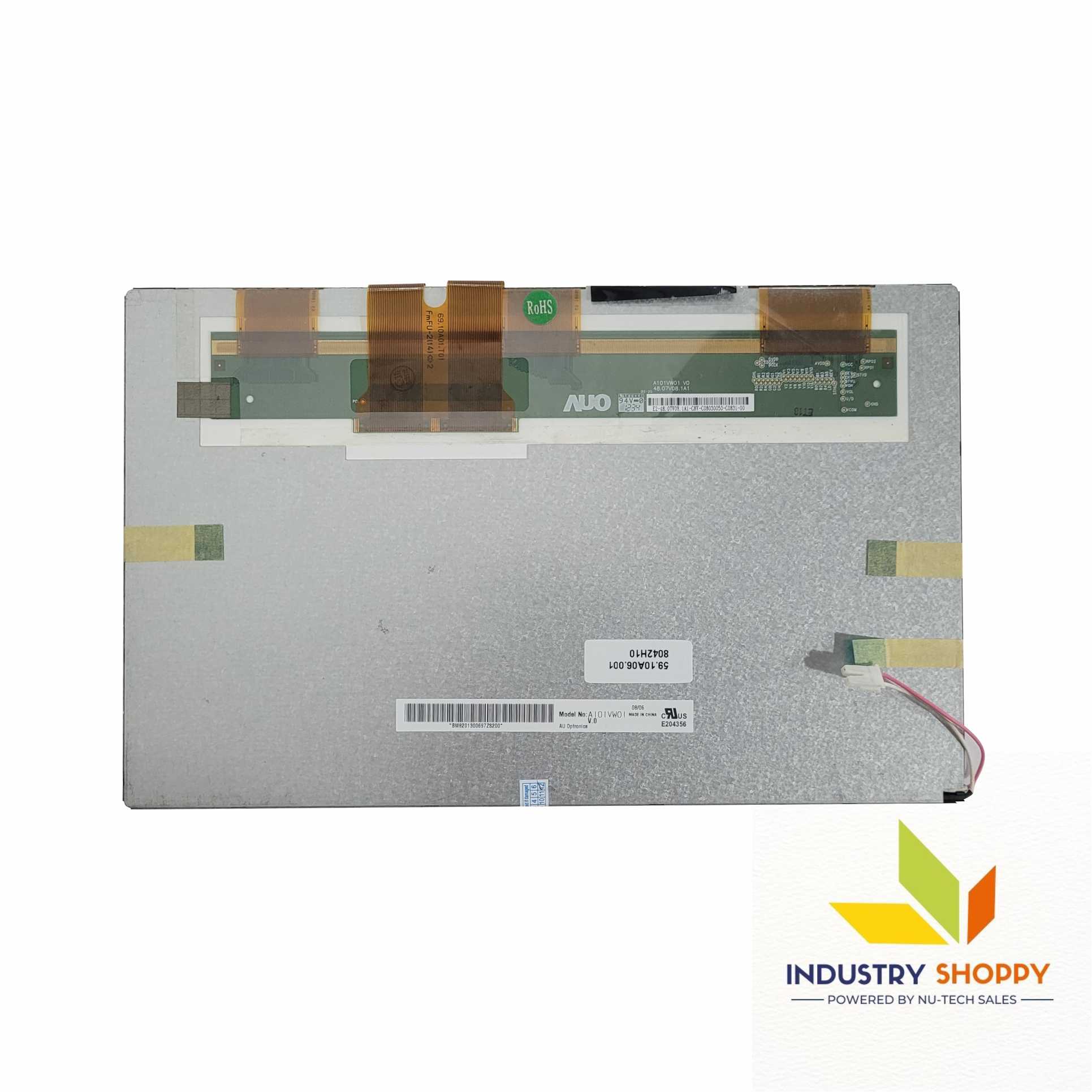

AUO A101VW01-V.0 LCD Module

The AUO A101VW01-V.0 LCD Module (A101VW01V.0) is AUO 10.1-inch TFT-LCD module is engineered for embedded and industrial applications requiring reliable visual output and efficient integration. Featuring an 800(RGB)×480 WVGA resolution at 92 PPI, the display renders sharp text and graphics across a sizable 219.6 mm × 131.76 mm active area. The module’s 235 mm × 145.9 mm × 6.2 mm profile supports easy installation in confined spaces.

With a typical brightness of 350 cd/m² and a 400:1 contrast ratio, this panel ensures clear visibility under standard indoor lighting conditions. The viewing angles—65° left/right, 45° down, and 65° up—maintain consistent image quality from various perspectives, ideal for user-facing interfaces.

The display uses TN (Twisted Nematic) technology in a normally white, transmissive mode and features an antiglare coating that reduces reflective glare in bright environments. It supports 262K colors, offering acceptable color depth for data visualization and general interface design.

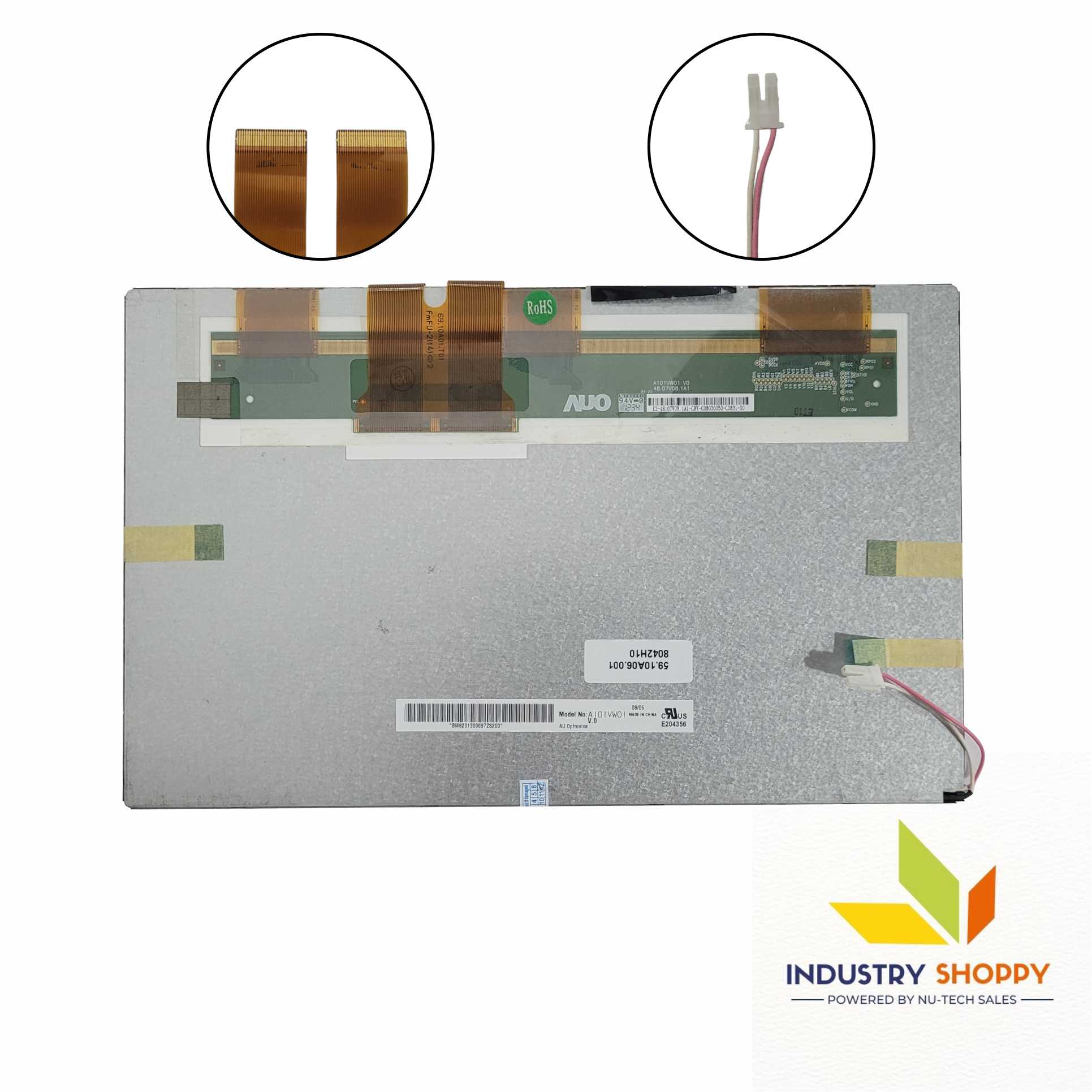

A 60-pin FPC connector facilitates a Parallel RGB (1 channel, 6-bit) signal interface, while the power system supports multiple voltages (3.3V, 8.8V, 15V, -7.0V, 3.7V). The backlight system utilizes a single CCFL, rated for 30,000 hours, though an external driver is required.

Designed for rugged environments, the panel functions reliably within -10°C to 60°C and tolerates storage from -20°C to 70°C, withstanding vibrations up to 2.9G (28.4 m/s²).

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandAUO
Diagonal Size10.1"
Resolution800(RGB) × 480, WVGA, 92 PPI
Active Area219.6(W) × 131.76(H) mm
Outline Dimension235(W) × 145.9(H) × 6.2(D) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio400:1 (Typ.) (TM)
Viewing Angle65/65/45/65 (Typ.) (CR≥10)
Response Time12/18 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare
Operating ModeTN, Normally White, Transmissive
Support Color262K
Signal Interface TypeParallel RGB (1 ch, 6-bit), 60 pins FPC
Frame Rate60 Hz
Power Supply3.3 / 8.8 / 15 / -7.0 / 3.7 V (Typ.)
Backlight1 pcs CCFL, 30K hours, Without Driver
Operating Temperature-10 ~ 60 °C
Storage Temperature-20 ~ 70 °C, Vibration Level: 2.9G (28.4 m/s²)
