AUO A070VW05-V.0 LCD Module

AUO A070VW05-V.0 LCD Module

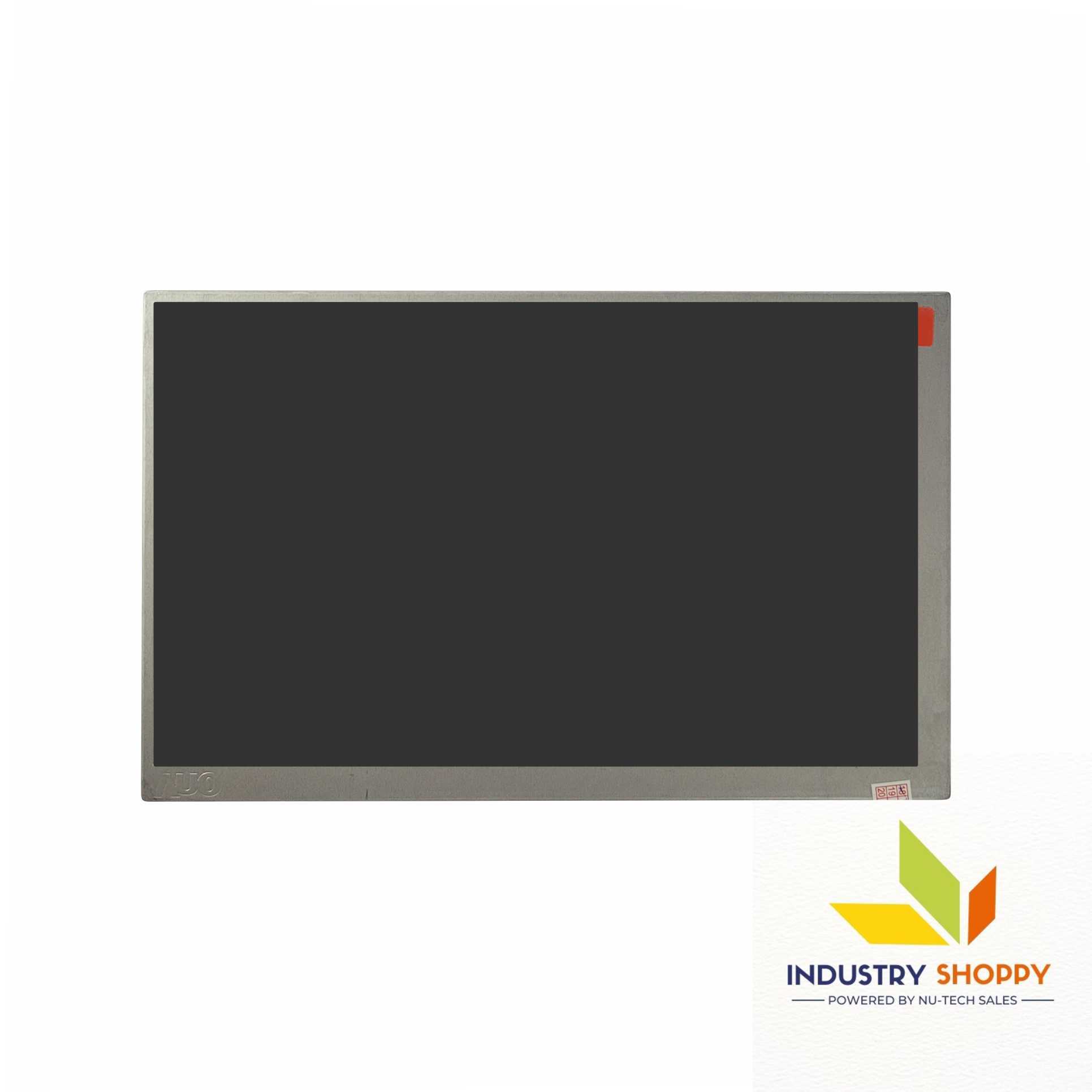

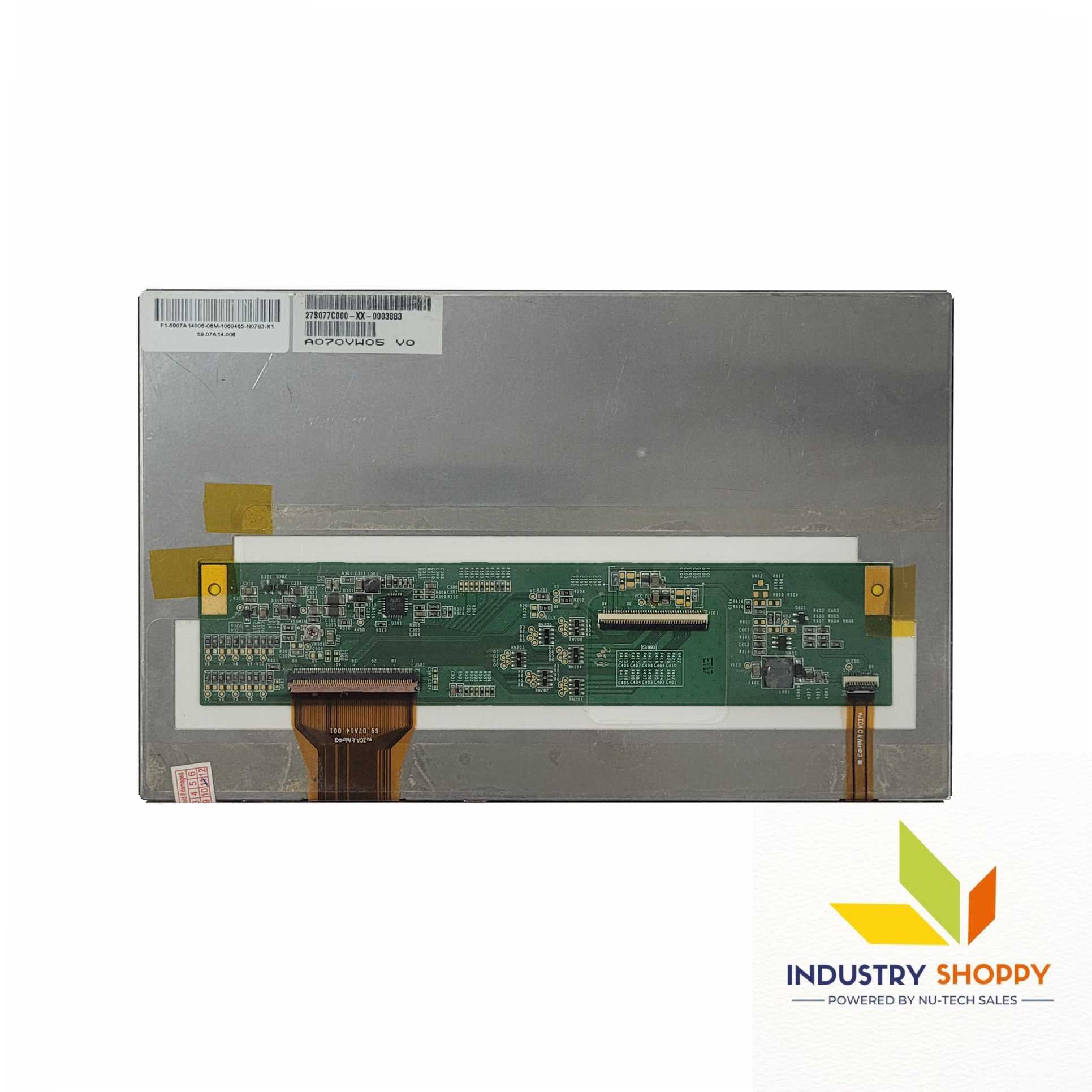

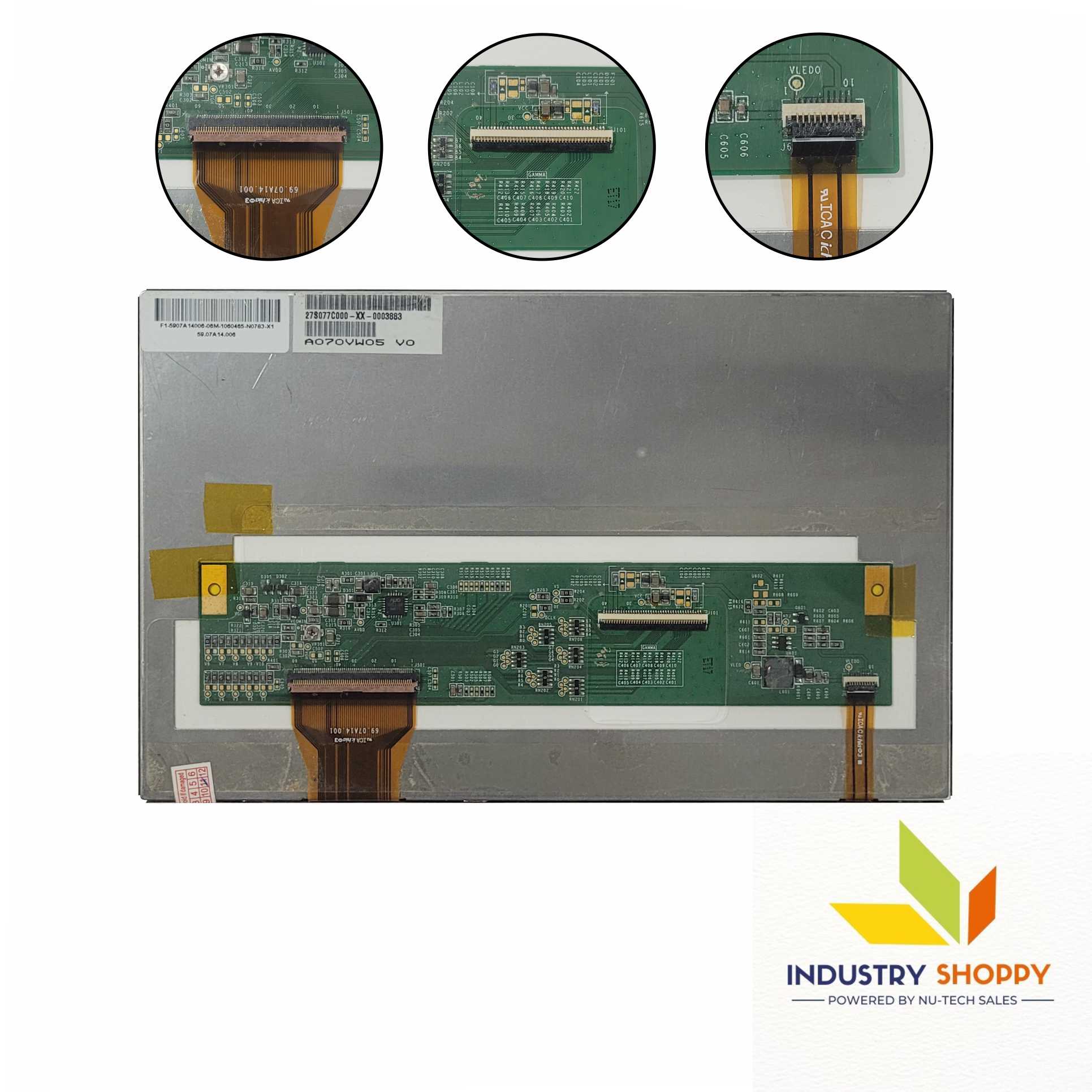

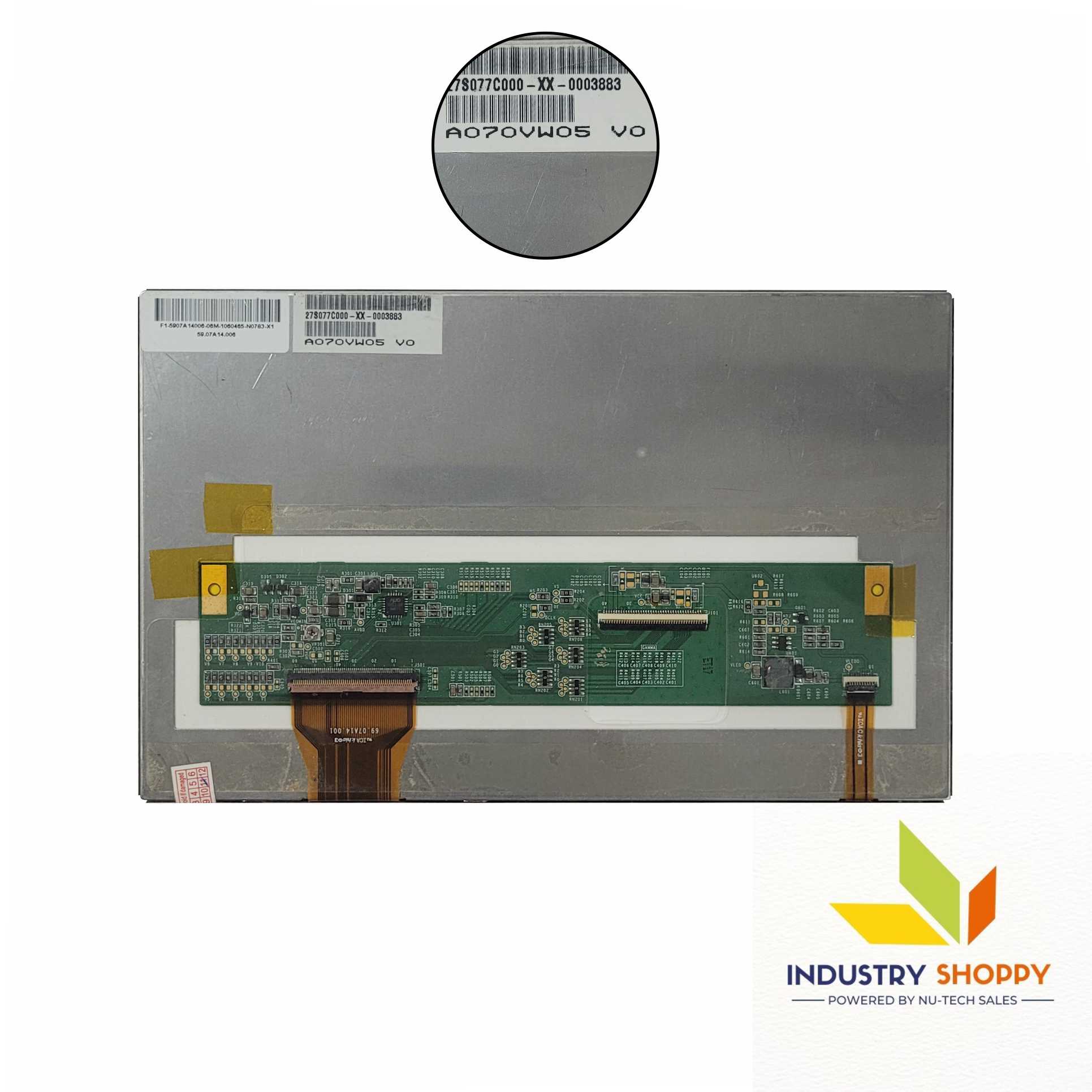

The AUO A070VW05-V.0 LCD Module (A070VW05V.0) is 7.0" WVGA TFT-LCD Module offers a balance of performance and durability, ideal for embedded applications and industrial settings. With a resolution of 800 x 480 and a 133 PPI, it ensures clear visuals across its 152.4 x 91.44 mm active area. Its compact 165 x 104 x 5.77 mm outline is well-suited for integration into space-constrained devices.

With a luminance of 375 cd/m² and a 500:1 contrast ratio, this display provides good visibility in most lighting conditions, while its antiglare coating reduces reflections, making it suitable for environments with varying light levels. The display also boasts wide viewing angles of 70° horizontally and 70° vertically (with a 45° viewing angle in the vertical direction, CR≥10), ensuring consistent clarity from multiple viewing positions.

The panel operates in a TN (Twisted Nematic) mode with a normally white, transmissive configuration. Its response time is 12 ms (rise) and 18 ms (fall), ensuring smooth transitions for most static or low-motion content. Powered by 3.3V, it connects via a 40-pin parallel RGB interface, providing flexibility for embedded system integration. The WLED backlight ensures longevity, rated for a lifetime with an integrated LED driver. The module operates in temperatures ranging from -20°C to 70°C and stores from -30°C to 80°C, making it suitable for rugged environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
