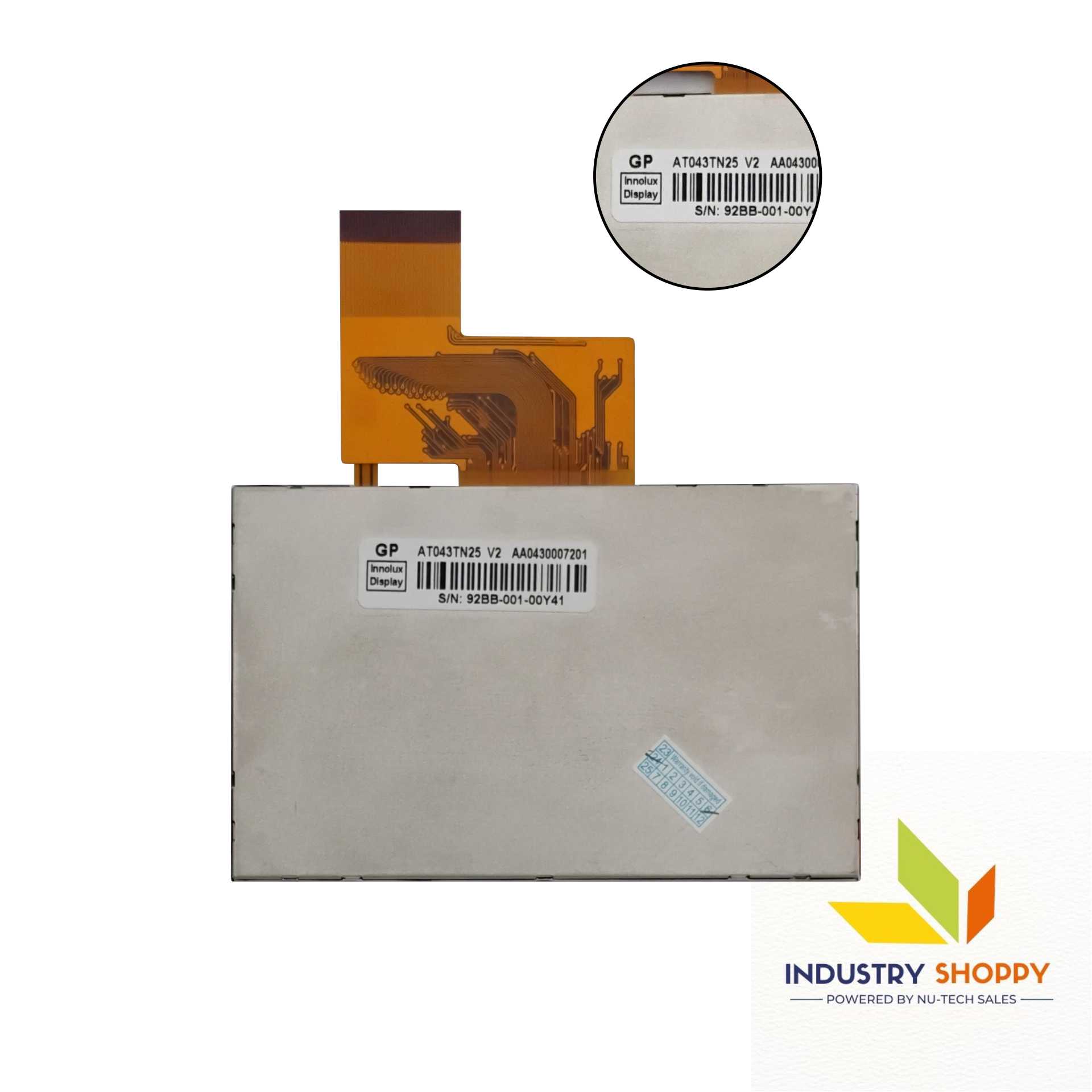

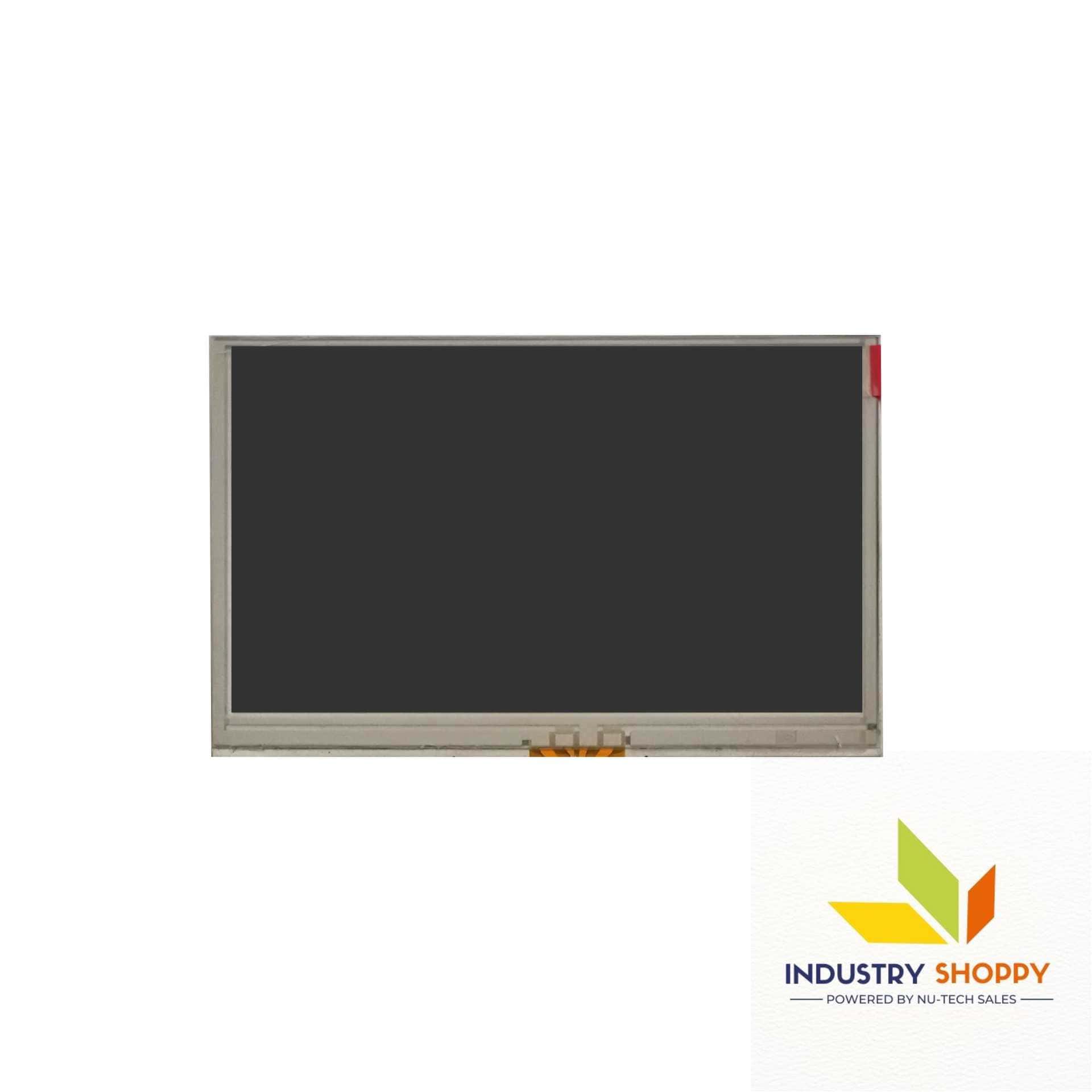

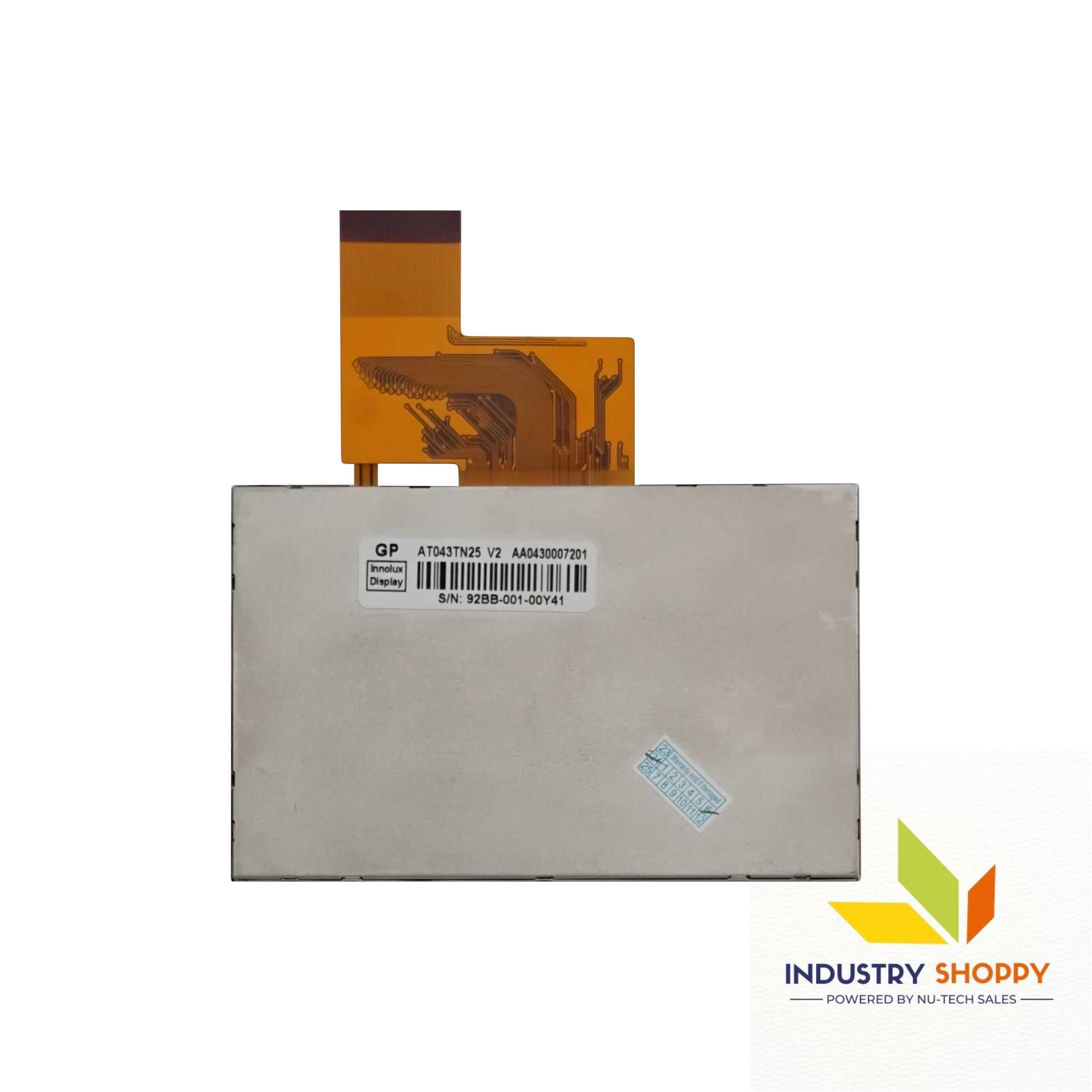

Innolux AT043TN25-V.2 LCD Module With Touch

Innolux AT043TN25-V.2 LCD Module With Touch

The Innolux AT043TN25-V.2 LCD Module with Touch is a 4.3" display boasts a resolution of 480(RGB)×272 pixels, offering a sharp 128PPI density for clear and vibrant visuals. Furthermore, its active area of 95.04(W)×53.856(H) mm ensures optimal screen usage, while the compact outline dimensions of 105.5(W)×67.2(H)×3.1(D) mm allow easy integration into slim and portable devices.

Additionally, the display achieves a luminance of 500 cd/m² (Typ.), ensuring excellent brightness even in challenging lighting conditions. Combined with a contrast ratio of 500:1 (Typ.), it delivers good depth and clarity. The viewing angles of 70/70/50/70 degrees further enhance its readability from multiple perspectives.

Utilizing a-Si TFT-LCD technology with an antiglare treatment, this panel operates in TN mode, providing a Normally White, Transmissive display characteristic. Moreover, it supports 16.7M colors at 50% NTSC, ensuring rich color reproduction.

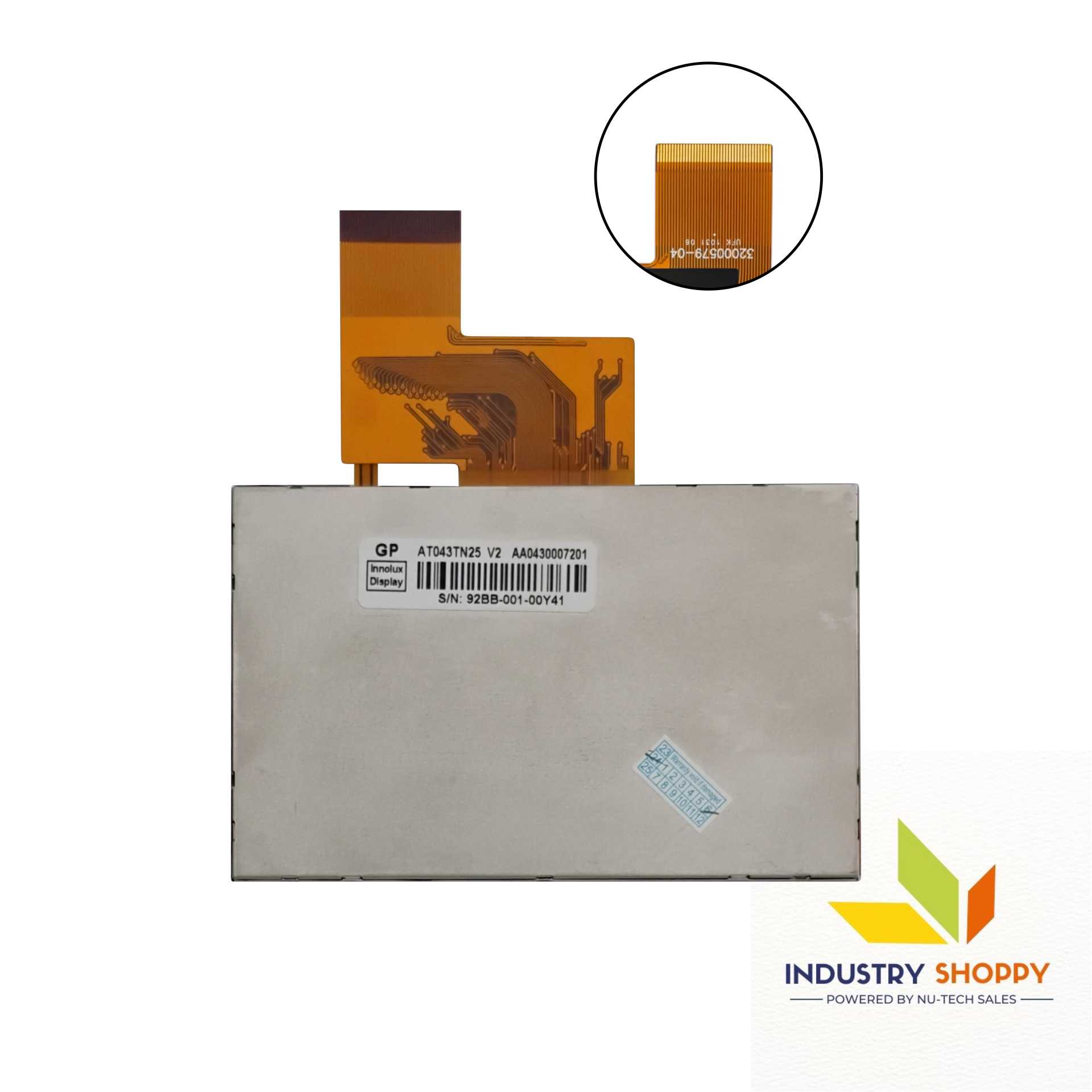

For connectivity, it uses a Parallel RGB interface (1 channel, 8-bit) through a 40-pin FPC connector. With a frame rate of 60Hz and powered by a 3.3V supply, it is highly efficient. Additionally, the WLED backlight ensures 20K hours of service life, though it comes without an integrated driver. Finally, it operates reliably across -20 to 70°C and stores safely between -30 and 80°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
