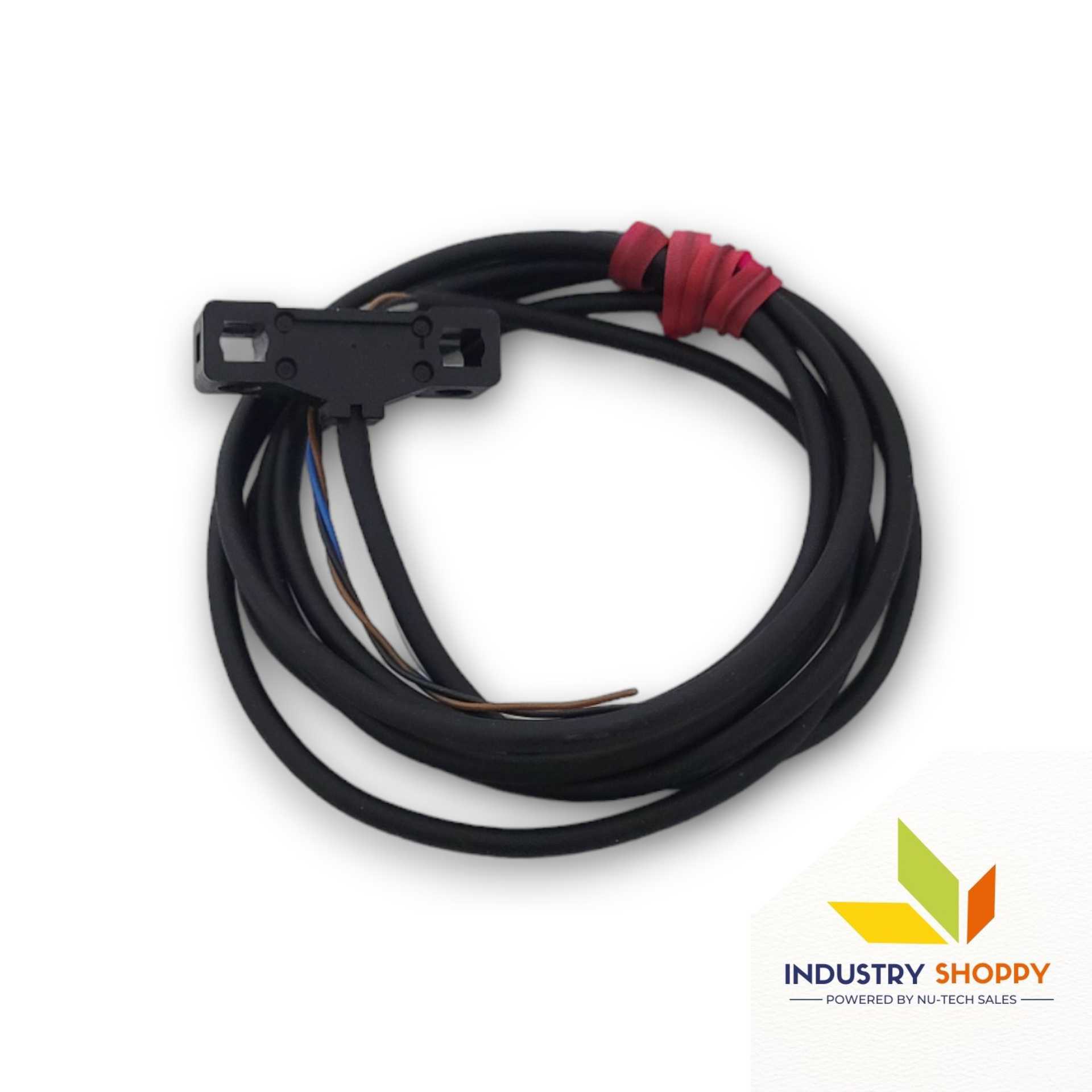

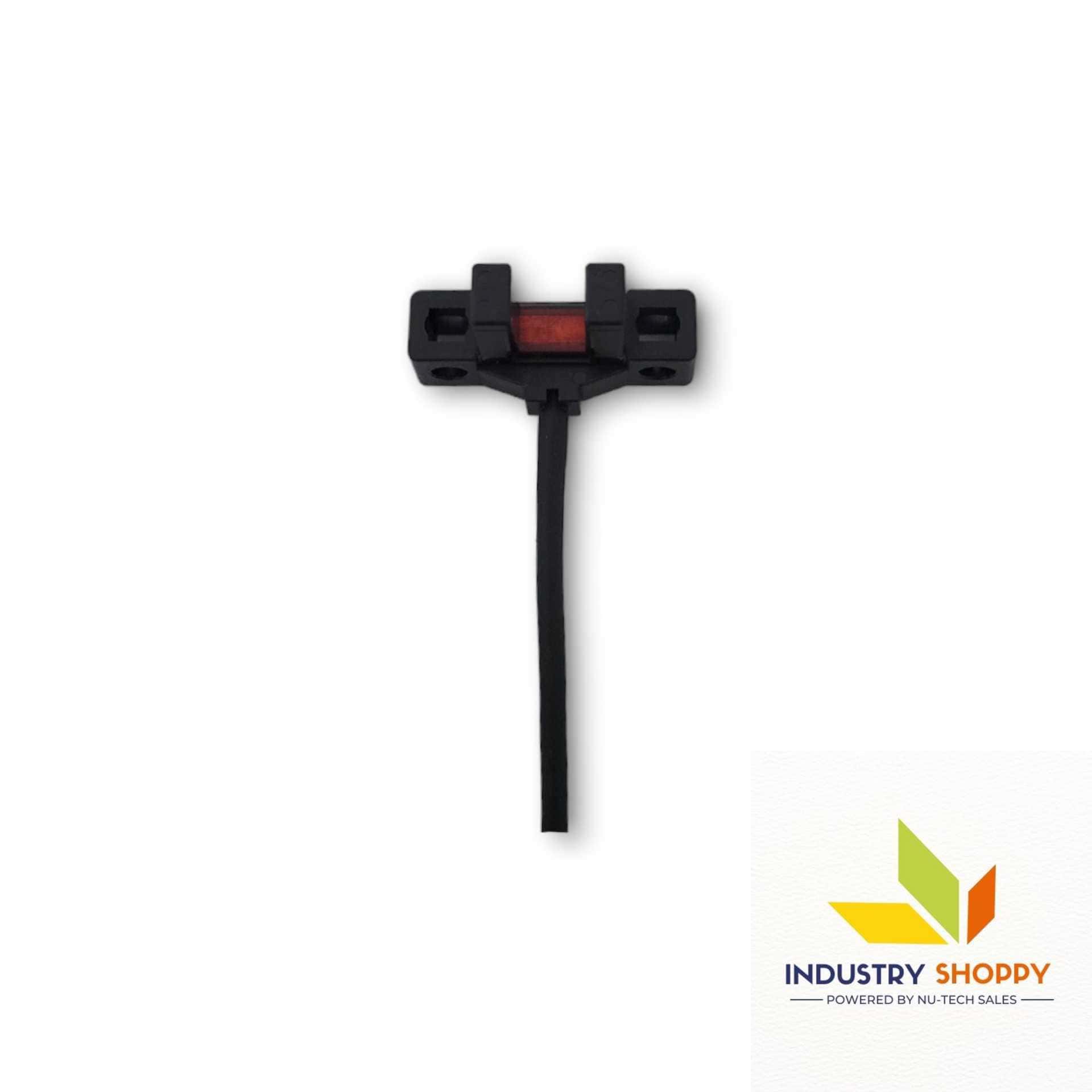

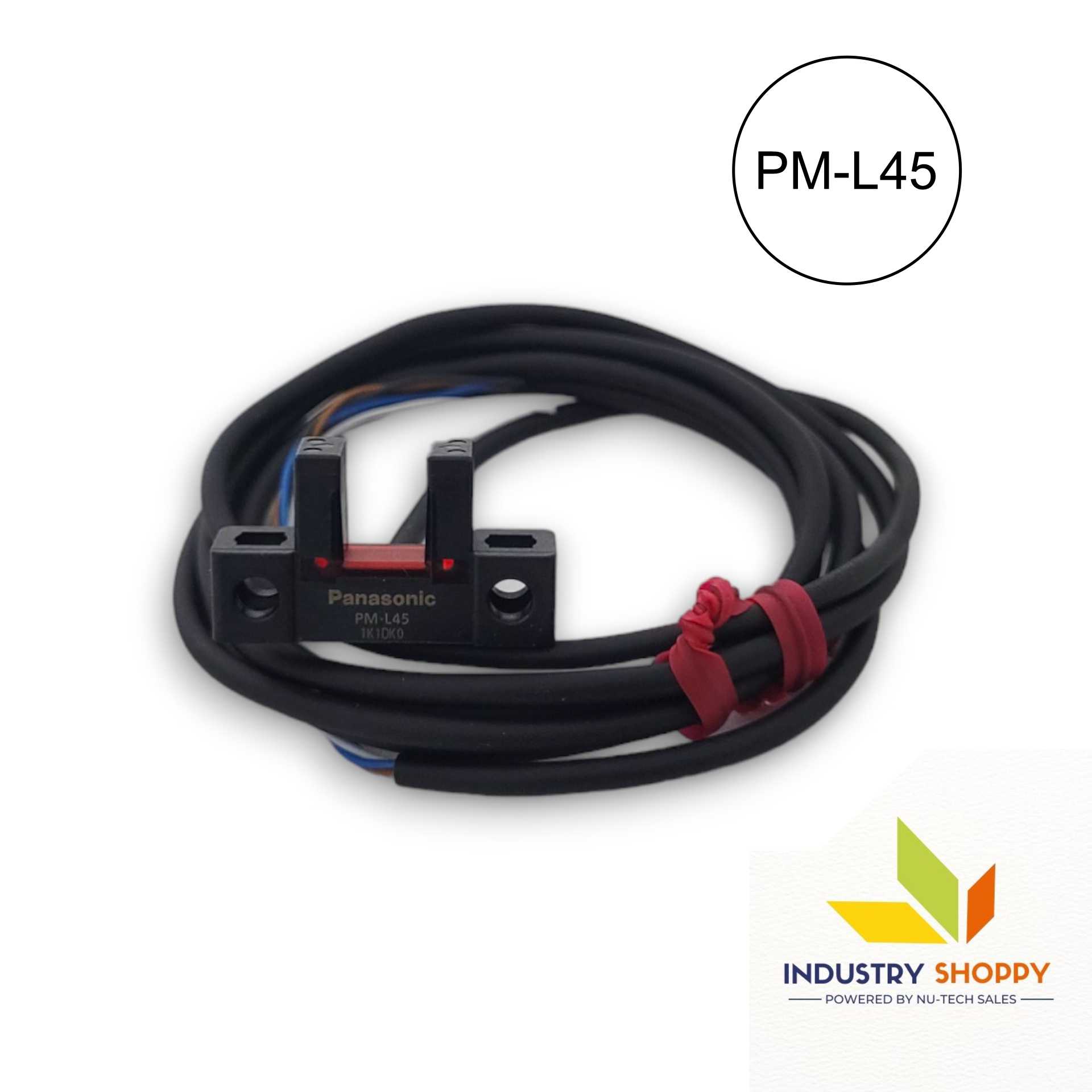

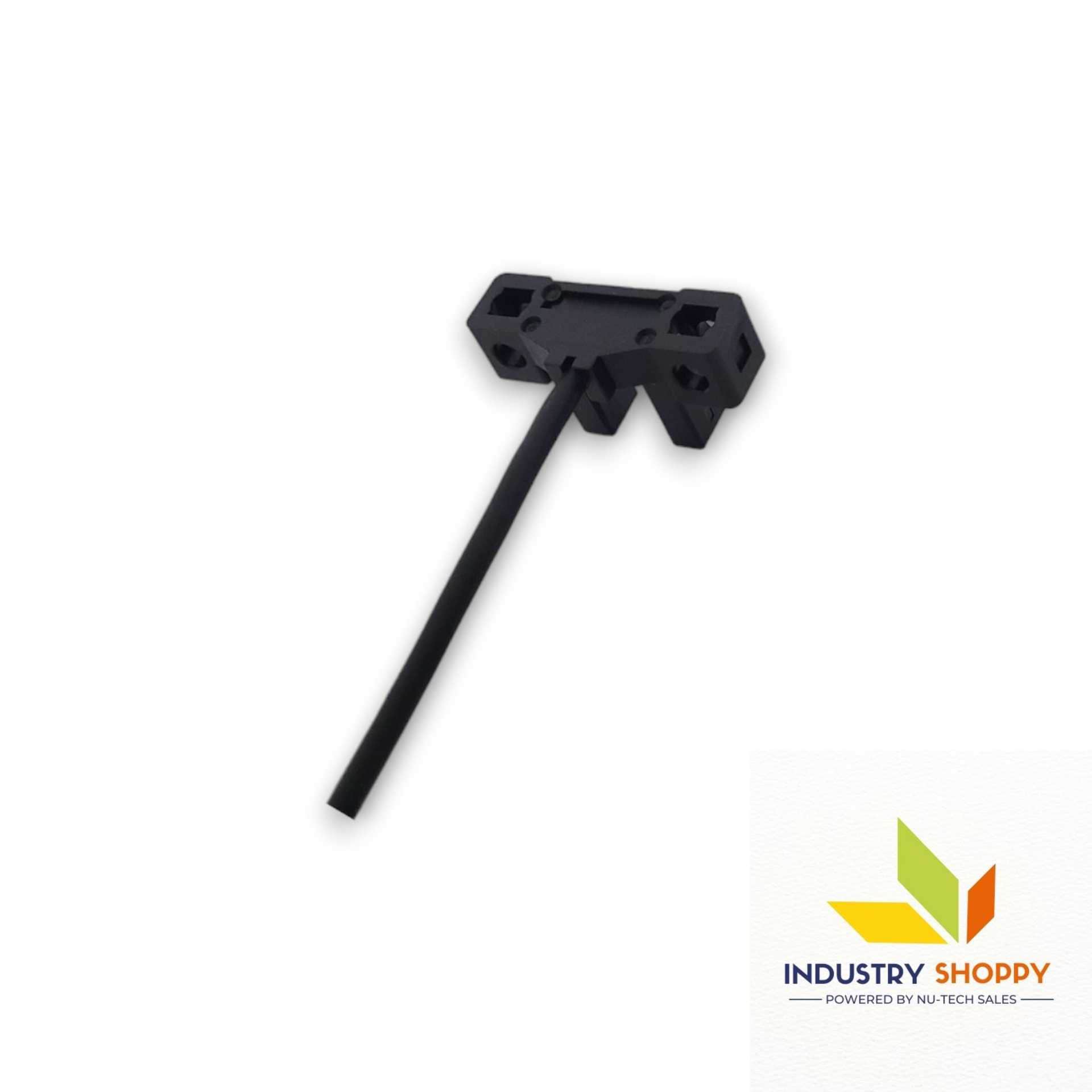

Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic PM-L45 Photoelectric Sensor
Panasonic

Panasonic PM-L45 Photoelectric Sensor

Product SKU: NTSSEN00057
Available:
Only 47 items in stock
47 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Type : U-Shaped Photoelectric
  • Output    : NPN open-collector transistor
  • Supply Voltage :    5..24 VDC
  • Current Consumption  :  15 mA or less
  • Warranty : 12 Months
Rs. 840.00
Rs. 1,650.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic PM-L45 Photoelectric Sensor

The Panasonic PM-L45 Photoelectric Sensor, designated by Product Number PM-L45 and Part Number PML45, conforms to CE Marking Directives including EMC and RoHS. The PM-L45 sensor offers a fixed sensing range of 6 mm (0.236 in). It can detect opaque objects as small as 0.8 × 1.2 mm (0.031 × 0.047 in). The sensor provides hysteresis of 0.05 mm (0.002 in) or less. Additionally, it offers repeatability of 0.01 mm (0.0004 in) or less.

The Panasonic PM-L45 Photoelectric Sensor delivers reliable performance with an operating voltage of 5 to 24 V DC and a ±10% ripple tolerance, while drawing 15 mA or less. It utilizes an NPN open-collector transistor output, capable of sinking up to 50 mA with a maximum applied voltage of 30 V DC. The sensor supports both Light-ON and Dark-ON operation modes, and integrates short-circuit protection for enhanced safety.

Built for demanding environments, the PM-L45 operates efficiently across temperatures from -25 to +55 ℃ (-13 to +131 ℉) and withstands storage conditions ranging from -30 to +80 ℃ (-22 to +176 ℉). Its rugged design ensures consistent performance in challenging industrial settings, making it a dependable choice for compact automation systems.

It boasts IP64 protection against ingress of dust and moisture, making it suitable for diverse industrial settings. The sensor's construction includes PBT enclosure and polycarbonate display section, contributing to its durability and reliability in demanding applications.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberPM-L45
Part NumberPML45
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm / 0.236 in (fixed)
Minimum Sensing Object0.8 × 1.2 mm / 0.031 × 0.047 in opaque object
Hysteresis≤ 0.05 mm / 0.002 in
Repeatability≤ 0.01 mm / 0.0004 in
Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption15 mA or less
OutputNPN open-collector transistor:
• Max. sink current: 50 mA
• Applied voltage: ≤ 30 V DC (between output and 0 V)
• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA)
Output Operation2 outputs: Light-ON / Dark-ON
Output Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤ 20 µs
Light interrupted: ≤ 80 µs
Max. response frequency: 3 kHz (tested with rotating disc method)
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +80 °C (-22 to +176 °F)
Ambient Humidity5–85 % RH, Storage: 5–95 % RH
Ambient IlluminanceFluorescent light: ≤ 1,000 lx at the light-receiving face
Voltage Withstandability1,000 V AC for 1 min (between all supply terminals and enclosure)
Insulation Resistance≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure)
Vibration Resistance10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. acceleration 196 m/s², X/Y/Z directions, 2 hrs each
Shock Resistance15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each
Emitting ElementInfrared LED (Peak wavelength: 855 nm, non-modulated)
MaterialEnclosure: PBT
Display section: Polycarbonate
Cable0.09-mm² 4-core cabtyre cable, PVC, 1 m (3.281 ft) long
Wiring LengthExtension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable
Note: If extended ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end; for safety applications, do not exceed 30 m (98.425 ft)
Country of originChina
