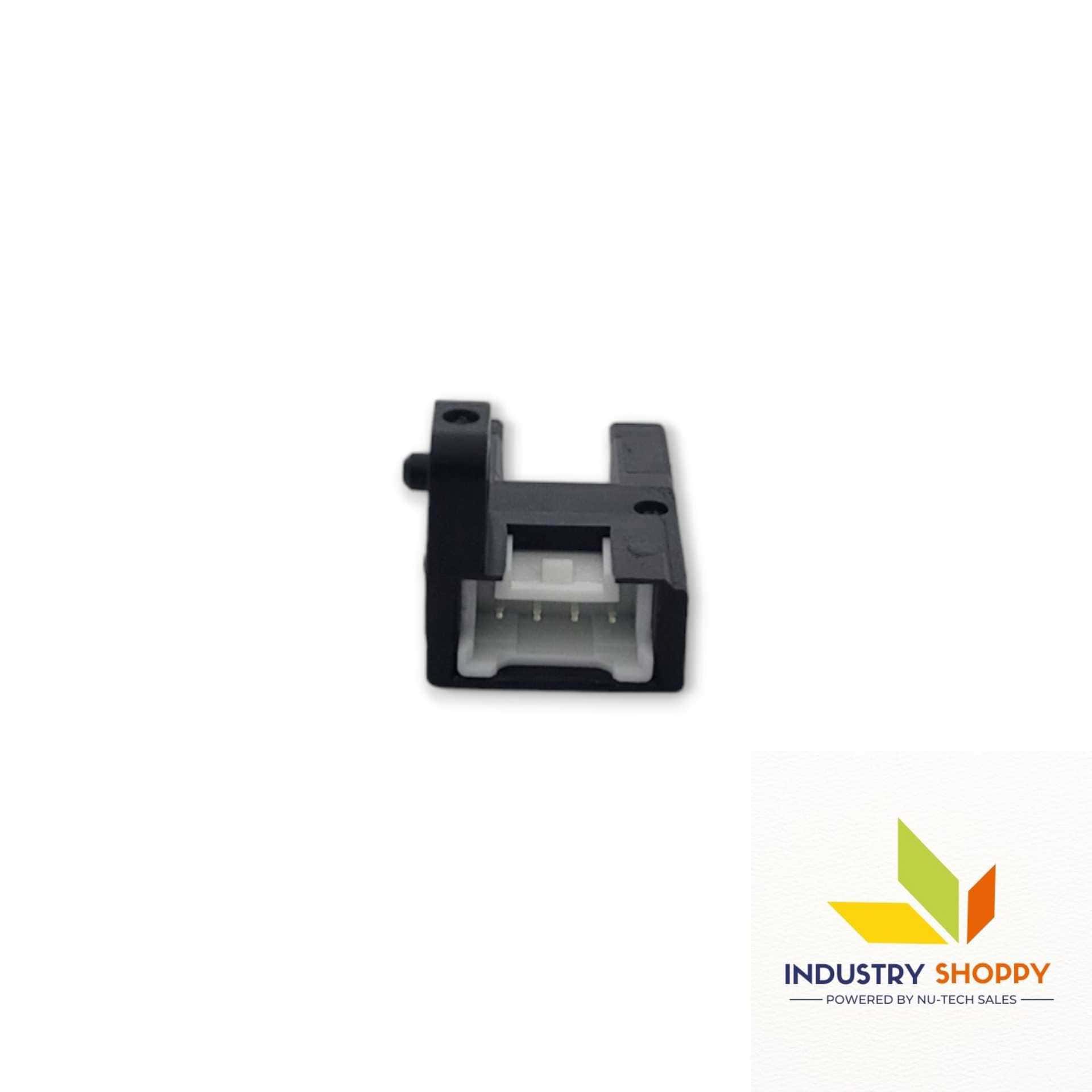

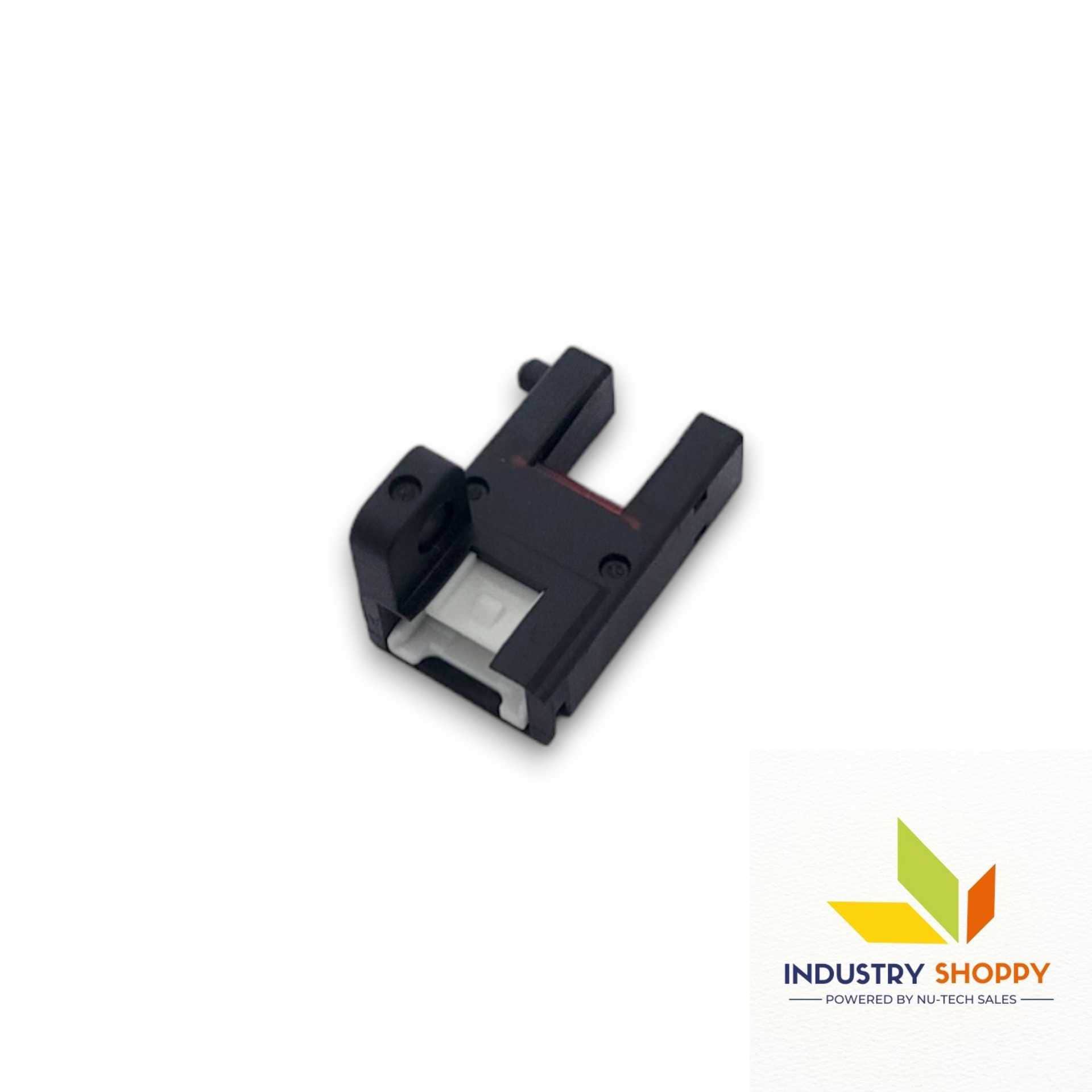

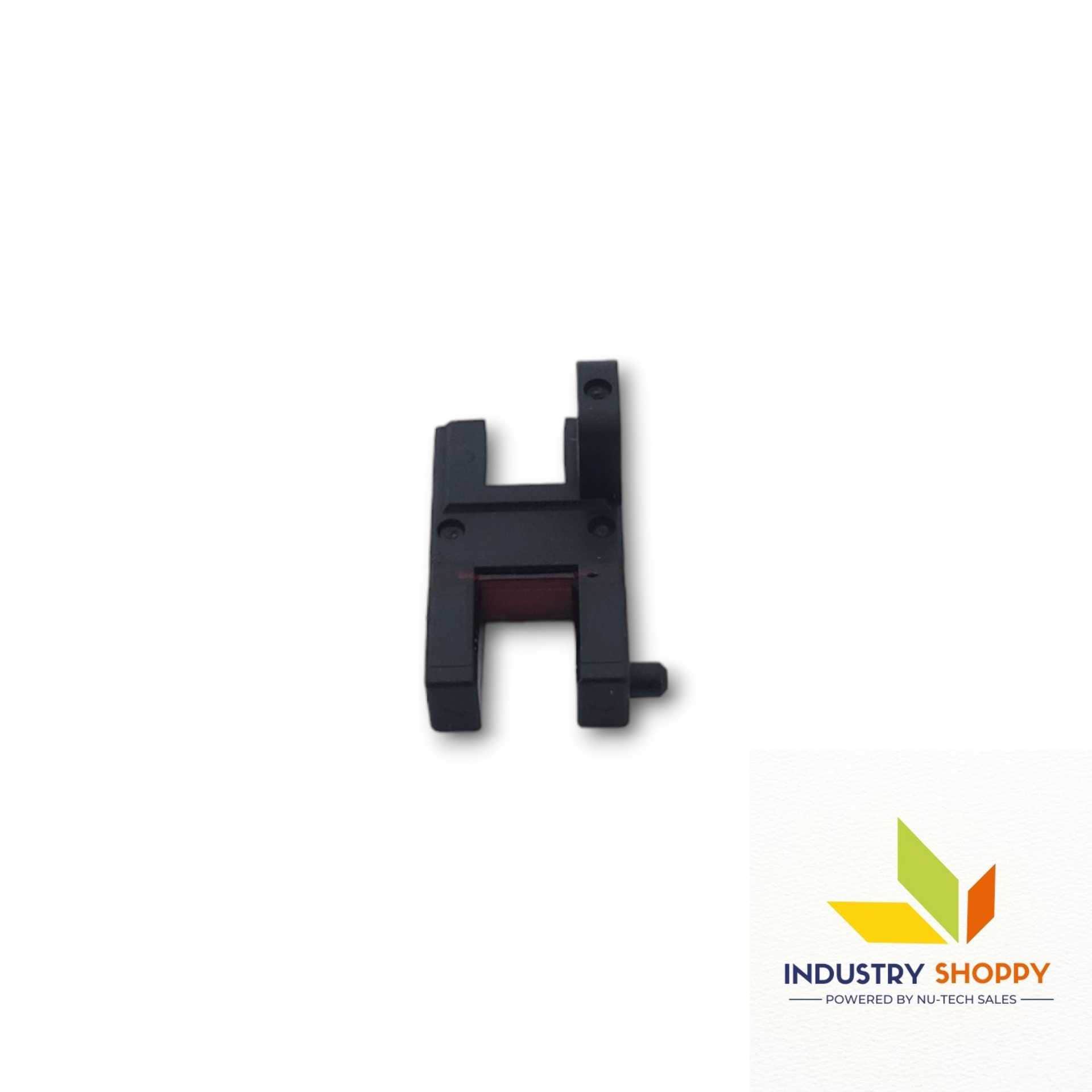

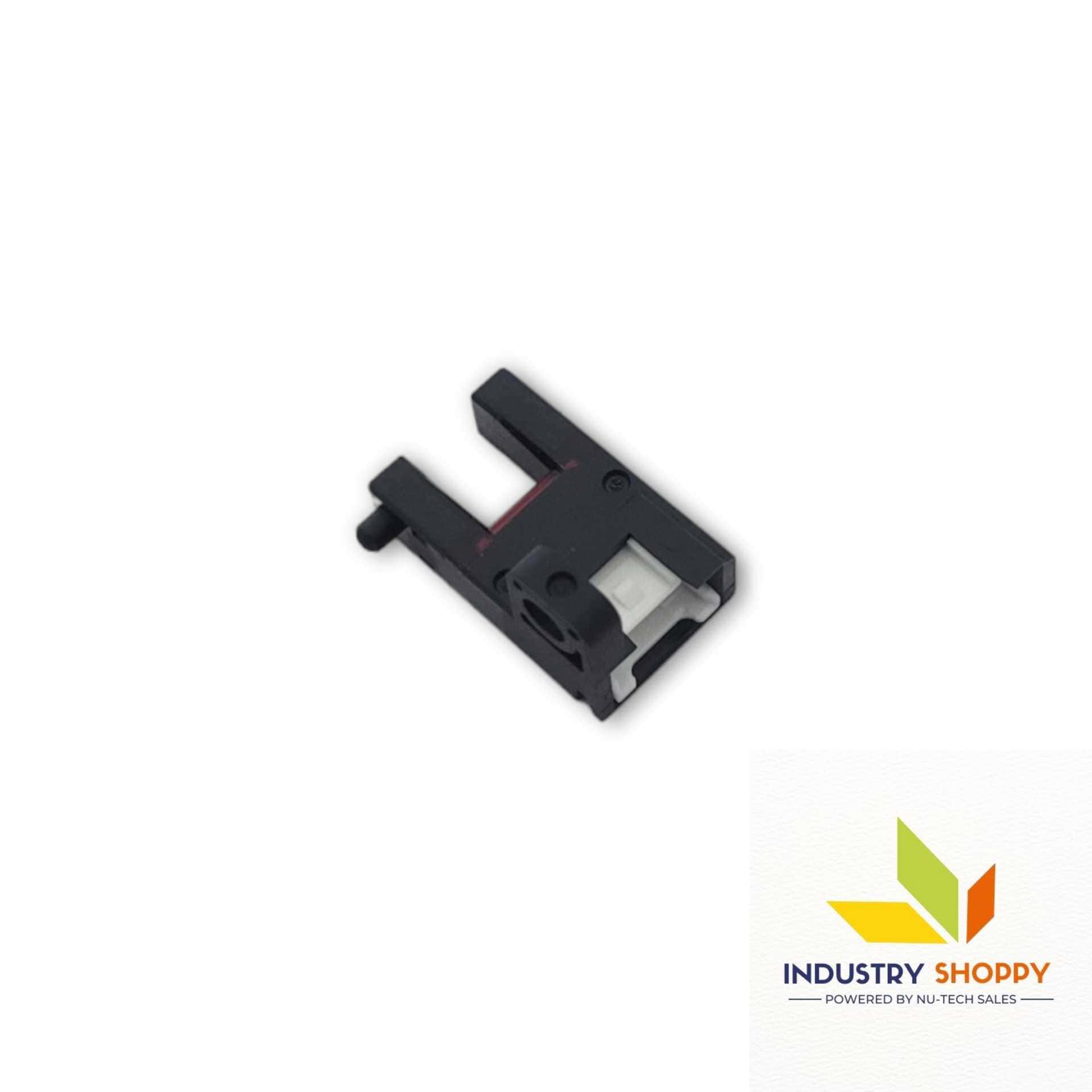

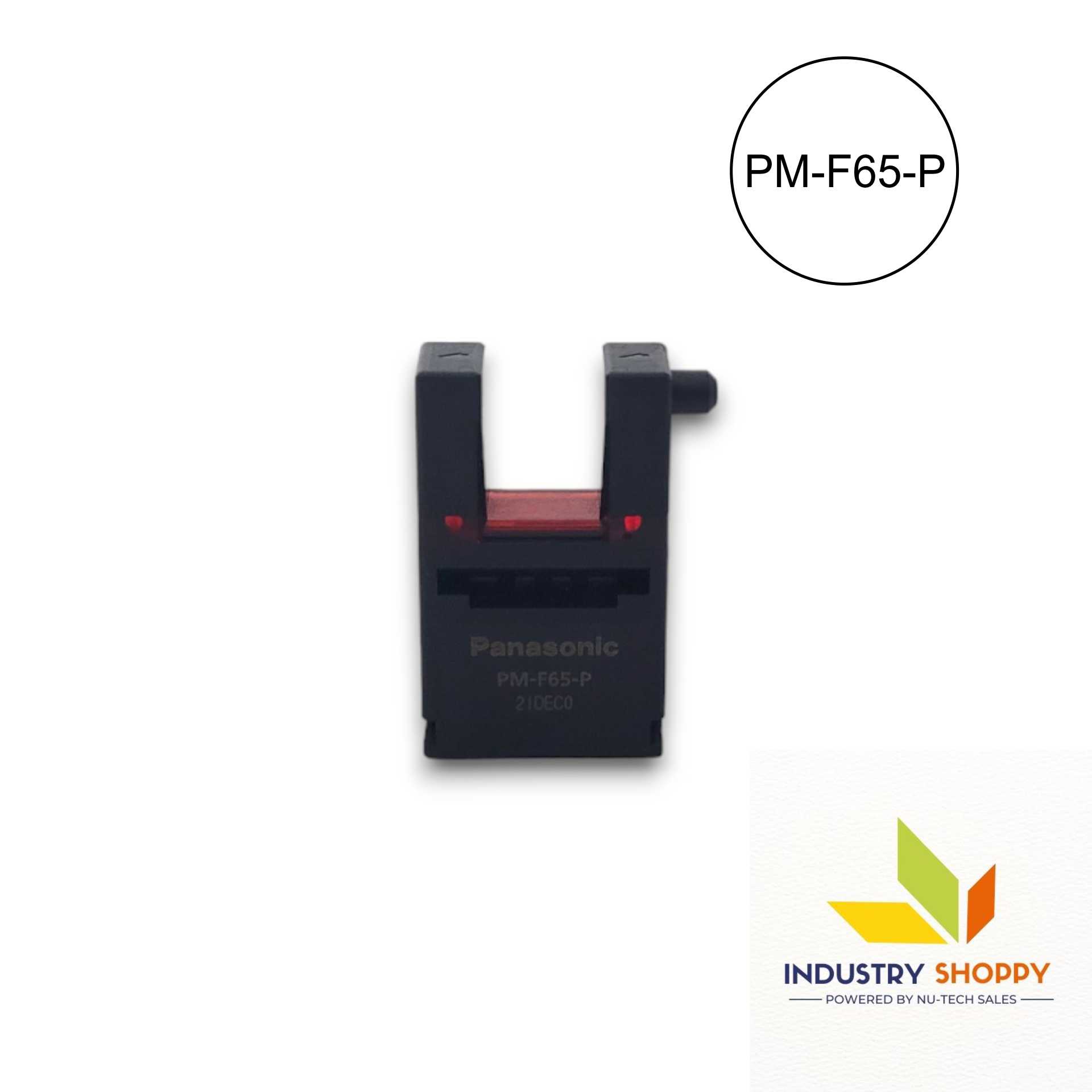

- Panasonic PM-F65-P Photoelectric Sensor Panasonic PM-F65-P Photoelectric Sensor










Panasonic PM-F65-P Photoelectric Sensor
- Brand : Panasonic
- Type : U-Shaped Photoelectric
- Output : PNP open-collector transistor
- Supply Voltage : 5..24 VDC
- Current Consumption : 15 mA or less
- Warranty : 12 Months
- Description
- Specifiactions
- Shipping & Returns
- Reviews
Panasonic PM-F65-P Photoelectric Sensor
The Panasonic PM-F65-P Photoelectric Sensor, with a fixed sensing range of 6 mm (0.236 in), can detect minimum objects of 0.8 × 1.2 mm (0.031 × 0.047 in). It operates on a supply voltage of 5 to 24 V DC with a current consumption of 15 mA or less, ensuring efficient performance. The sensor boasts high precision with a hysteresis of 0.05 mm (0.002 in) or less and repeatability of 0.01 mm (0.0004 in) or less.
The Panasonic PM-F65-P Micro Photoelectric Sensor features a PNP open-collector transistor output with a maximum source current of 50 mA and includes Light-ON/Dark-ON output operations along with built-in short-circuit protection. It has a rapid response time of 20 μs or less under light received conditions and 80 μs or less under light interrupted conditions, with a maximum response frequency of 3 kHz. Additionally, it includes an orange LED for operation indication and has an IP40 protection rating.
Designed to withstand harsh conditions, the Panasonic PM-F65-P Micro Photoelectric Sensor can operate within a temperature range of -25 to +55°C (-13 to +131°F) and humidity levels of 5 to 85% RH. It endures vibrations from 10 to 2,000 Hz with 1.5 mm (0.059 in) double amplitude and shock accelerations up to 15,000 m/s² (1,500 G). With voltage withstand ability of 1,000 V AC for one minute and insulation resistance of 20 MΩ or more, this sensor is both reliable and durable.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Product Number | PM-F65-P |
Part Number | PMF65P |
CE Marking Directives | EMC Directive, RoHS Directive |
Sensing Range | 6 mm / 0.236 in (fixed) |
Minimum Sensing Object | 0.8 × 1.2 mm / 0.031 × 0.047 in opaque object |
Hysteresis | ≤ 0.05 mm / 0.002 in |
Repeatability | ≤ 0.01 mm / 0.0004 in |
Supply Voltage | 5 to 24 V DC ±10 %, Ripple P-P 10 % or less |
Current Consumption | 15 mA or less |
Output | PNP open-collector transistor: |
• Max. source current: 50 mA | |
• Applied voltage: ≤ 30 V DC (between output and +V) | |
• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA) | |
Output Operation | 2 outputs: Light-ON / Dark-ON |
Output Short-Circuit Protection | Incorporated |
Response Time | Light received: ≤ 20 µs |
Light interrupted: ≤ 80 µs | |
Max. response frequency: 3 kHz (tested with rotating disc method) | |
Operation Indicator | Orange LED (lights up under light received condition) |
Pollution Degree | 3 |
Protection | IP40 (IEC) |
Ambient Temperature | -25 to +55 °C (-13 to +131 °F), Storage: -30 to +80 °C (-22 to +176 °F) |
Ambient Humidity | 5–85 % RH, Storage: 5–95 % RH |
Ambient Illuminance | Fluorescent light: ≤ 1,000 lx at the light-receiving face |
Voltage Withstandability | 1,000 V AC for 1 min (between all supply terminals and enclosure) |
Insulation Resistance | ≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure) |
Vibration Resistance | 10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. acceleration 196 m/s², X/Y/Z directions, 2 hrs each |
Shock Resistance | 15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each |
Emitting Element | Infrared LED (Peak wavelength: 855 nm, non-modulated) |
Material | Enclosure: PBT |
Display section: Polycarbonate | |
Cable Length | Extension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable |
Note: If extended ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end | |
Country of Origin | China |
