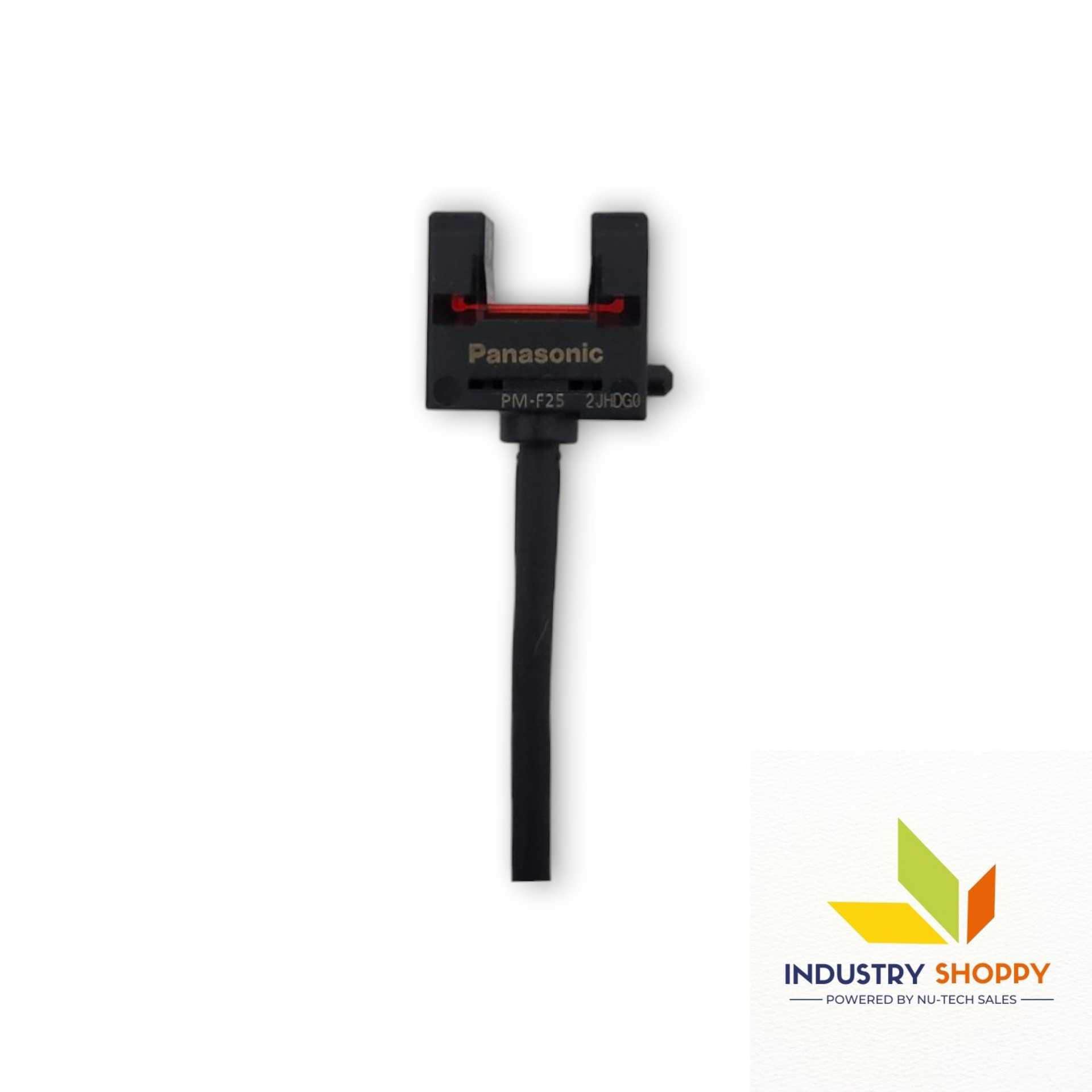

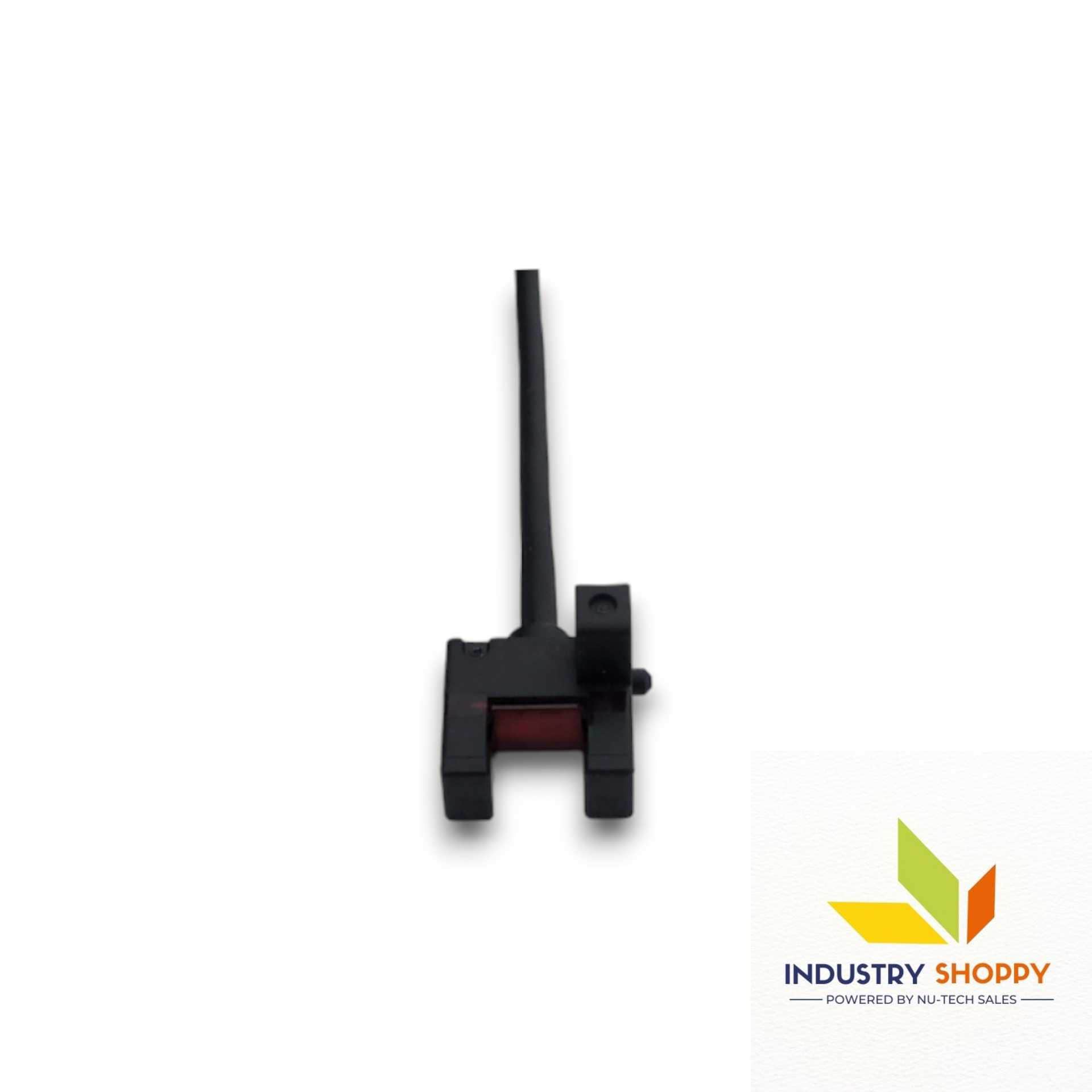

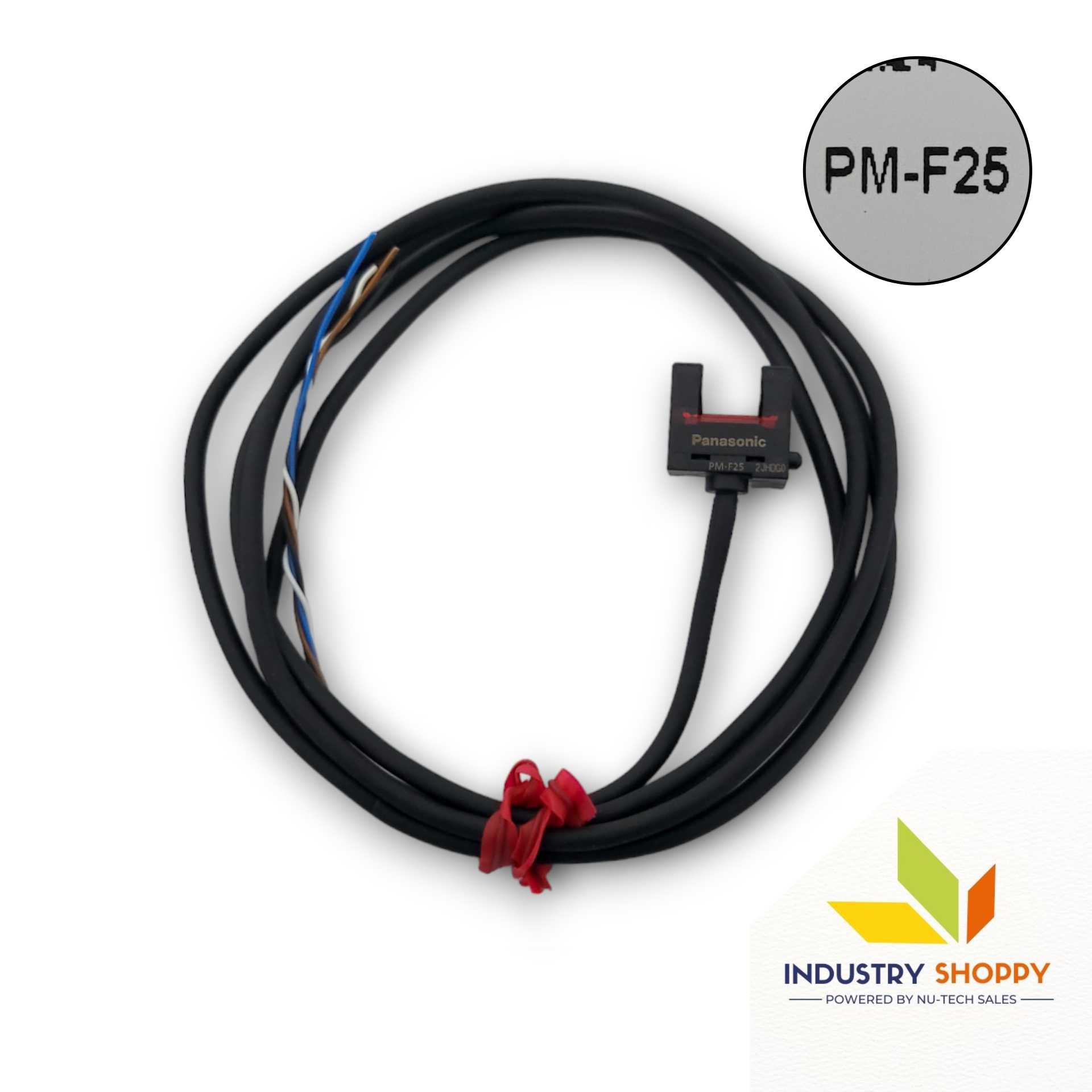

Panasonic PM-F25 Photoelectric Sensor
- Brand : Panasonic
- Type : U-Shaped Photoelectric
- Supply Voltage : 5 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : NPN open-collector transistor
- Cable : 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
- Warranty : 12 Months
For International buyers : IndustryShoppy.com
- Description
- Specifications
- Shipping & Returns
- Reviews
Panasonic PM-F25 Photoelectric Sensor
The Panasonic PM-F25 Photoelectric Sensor is engineered for precision and reliability in various industrial applications. It features a fixed sensing range of 6 mm and can detect minimum objects as small as 0.8 x 1.2 mm. The sensor operates with minimal hysteresis of 0.05 mm and offers repeatability within 0.01 mm.
The Panasonic PM-F25 Photoelectric Sensor operates on 5–24 V DC with a maximum current consumption of 15 mA. It features an NPN open-collector output (max. 50 mA sink current) with Light-ON/Dark-ON modes and built-in short-circuit protection. Built for harsh environments, it offers IP64 protection, operates from -25 to +55°C, and withstands storage temperatures from -30 to +80°C. An orange LED indicates status, while the rugged design resists vibrations (10–2,000 Hz) and shocks up to 15,000 m/s².
Featuring a rugged design, the sensor utilizes a PBT enclosure and a polycarbonate display section, ensuring durability and resistance to demanding industrial environments. The sensor comes with a 1-meter long PVC cable, extendable up to 100 meters with appropriate cabling. Originating from China, this sensor meets stringent EMC and RoHS directives, ensuring compliance with international standards.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Product Number | PM-F25 |
Part Number | UPMF25 |
CE Marking Directives | EMC Directive, RoHS Directive |
Sensing Range | 6 mm / 0.236 in (fixed) |
Minimum Sensing Object | 0.8 × 1.2 mm / 0.031 × 0.047 in opaque object |
Hysteresis | ≤ 0.05 mm / 0.002 in |
Repeatability | ≤ 0.01 mm / 0.0004 in |
Supply Voltage | 5 to 24 V DC ±10 %, Ripple P-P 10 % or less |
Current Consumption | 15 mA or less |
Output | NPN open-collector transistor: |
• Max. sink current: 50 mA | |
• Applied voltage: ≤ 30 V DC (between output and 0 V) | |
• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA) | |
Output Operation | 2 outputs: Light-ON / Dark-ON |
Output Short-Circuit Protection | Incorporated |
Response Time | Light received: ≤ 20 µs |
Light interrupted: ≤ 80 µs | |
Max. response frequency: 3 kHz (tested with rotating disc method) | |
Operation Indicator | Orange LED (lights up under light received condition) |
Pollution Degree | 3 |
Protection | IP64 (IEC) |
Ambient Temperature | -25 to +55 °C (-13 to +131 °F) |
Storage: -30 to +80 °C (-22 to +176 °F) | |
Note: If used at ≥ +50 °C (+122 °F), mount on metal body | |
Ambient Humidity | 5–85 % RH, Storage: 5–95 % RH |
Ambient Illuminance | Fluorescent light: ≤ 1,000 lx at receiver face |
Voltage Withstandability | 1,000 V AC for 1 min (between all supply terminals and enclosure) |
Insulation Resistance | ≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure) |
Vibration Resistance | 10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. accel. 196 m/s², X/Y/Z directions, 2 hrs each |
Shock Resistance | 15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each |
Emitting Element | Infrared LED (Peak wavelength: 855 nm, non-modulated) |
Material | Enclosure: PBT |
Display section: Polycarbonate | |

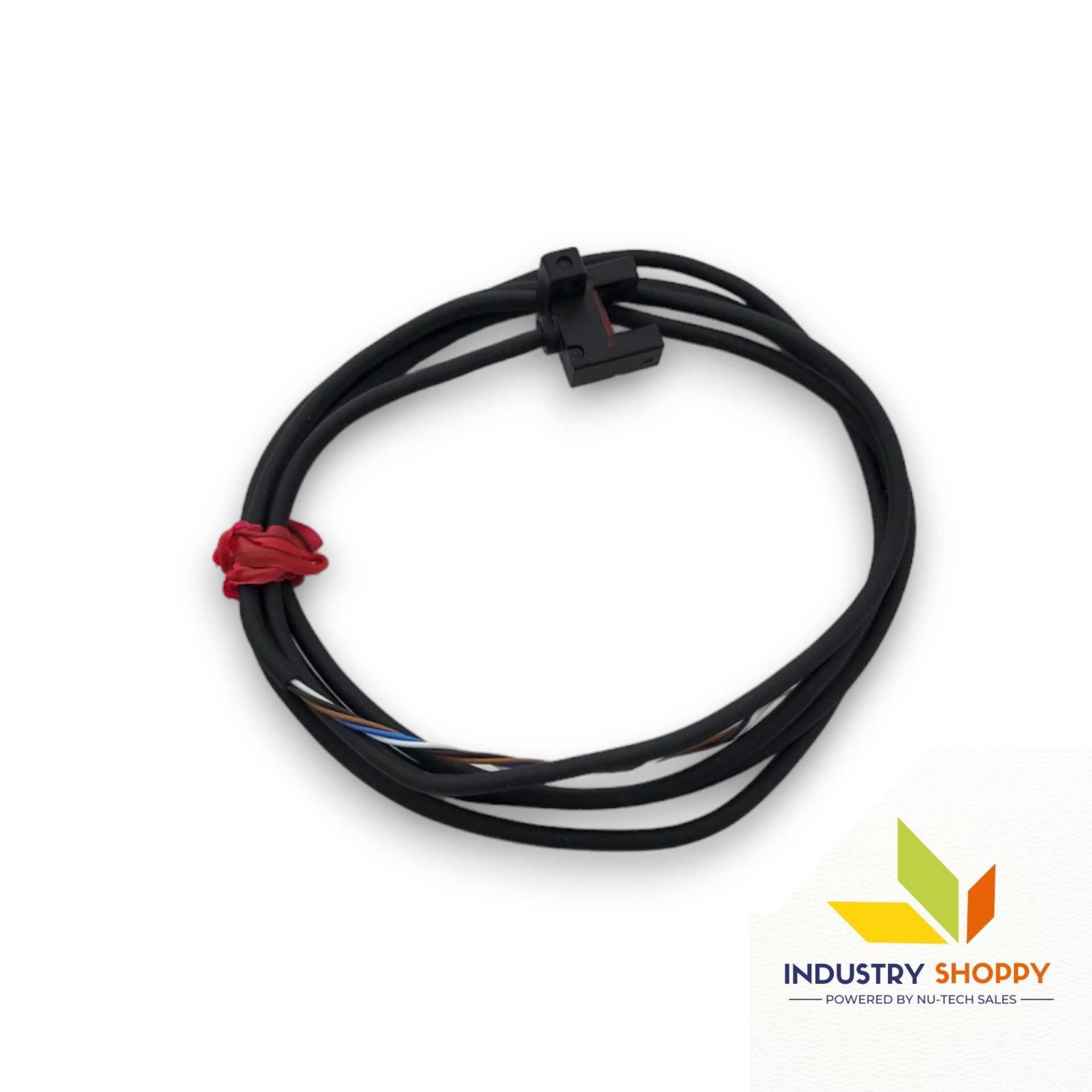

Cable | 0.09 mm², 4-core cabtyre cable, PVC, 1 m (3.281 ft) |
Wiring Length | Extension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable |
Note 1: If ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end | |
Note 2: For safety applications, do not exceed 30 m (98.425 ft) | |
Country of Origin | China |
