- Panasonic NA2-N20 Slim Body Area Sensor Panasonic NA2-N20 Slim Body Area Sensor












Panasonic NA2-N20 Slim Body Area Sensor
- Brand : Panasonic
- Output : NPN open-collector transistor
- Supply Voltage : 12..24 VDC
- Response time : 10 ms or less (12 ms or less when the interference prevention function is used)
- Warranty : 12 Months
For International buyers : IndustryShoppy.com
- Description
- Specifications
- Shipping & Returns
- Reviews

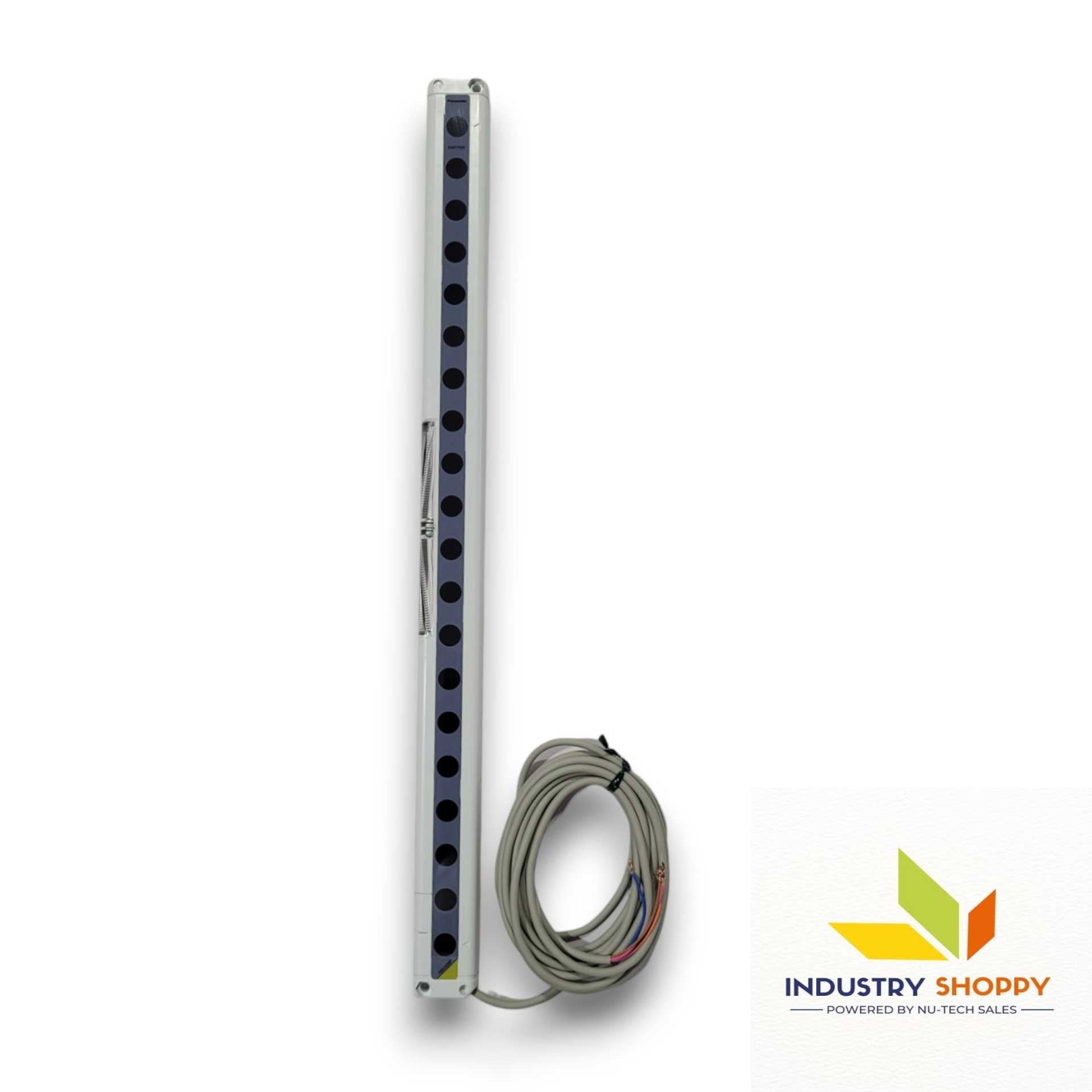

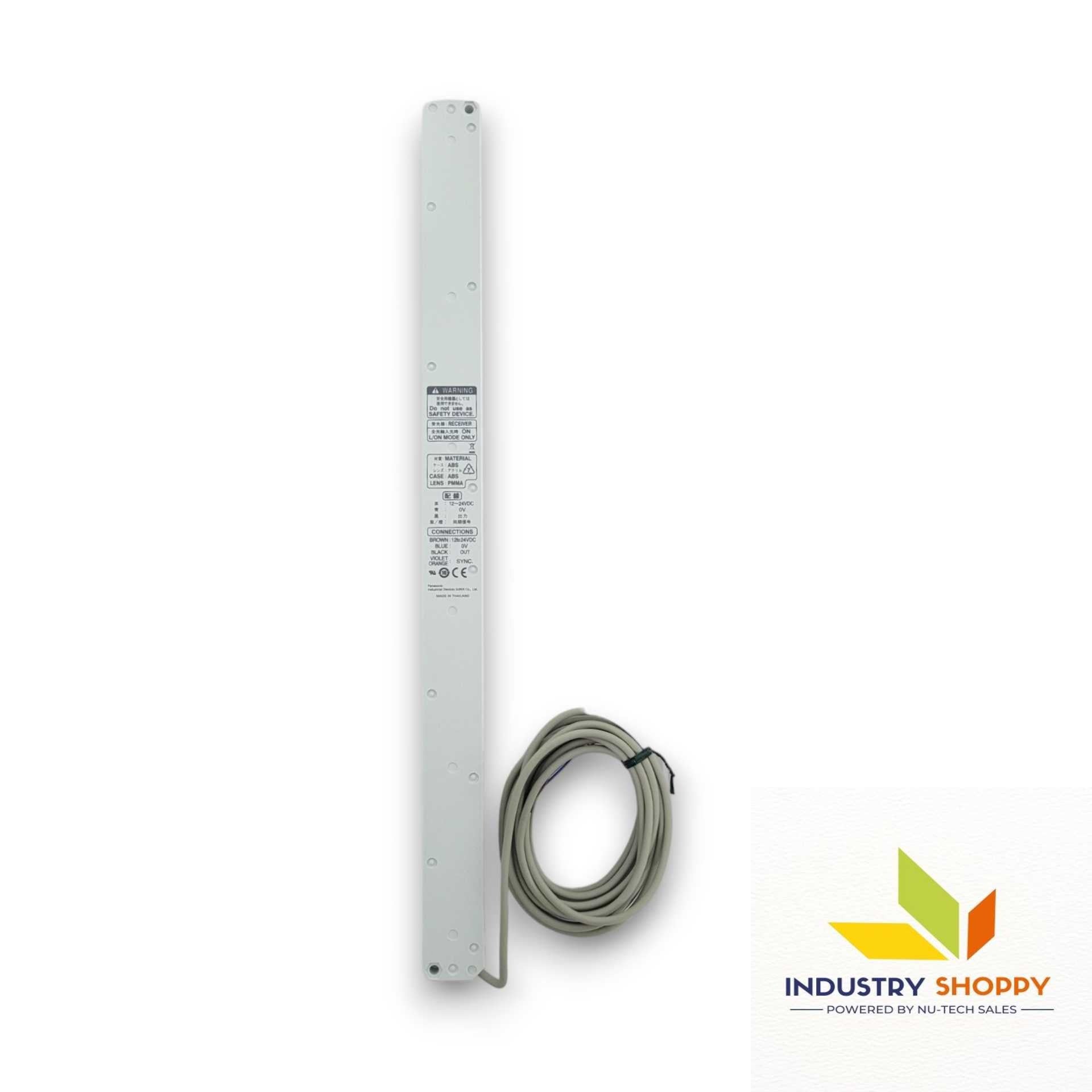

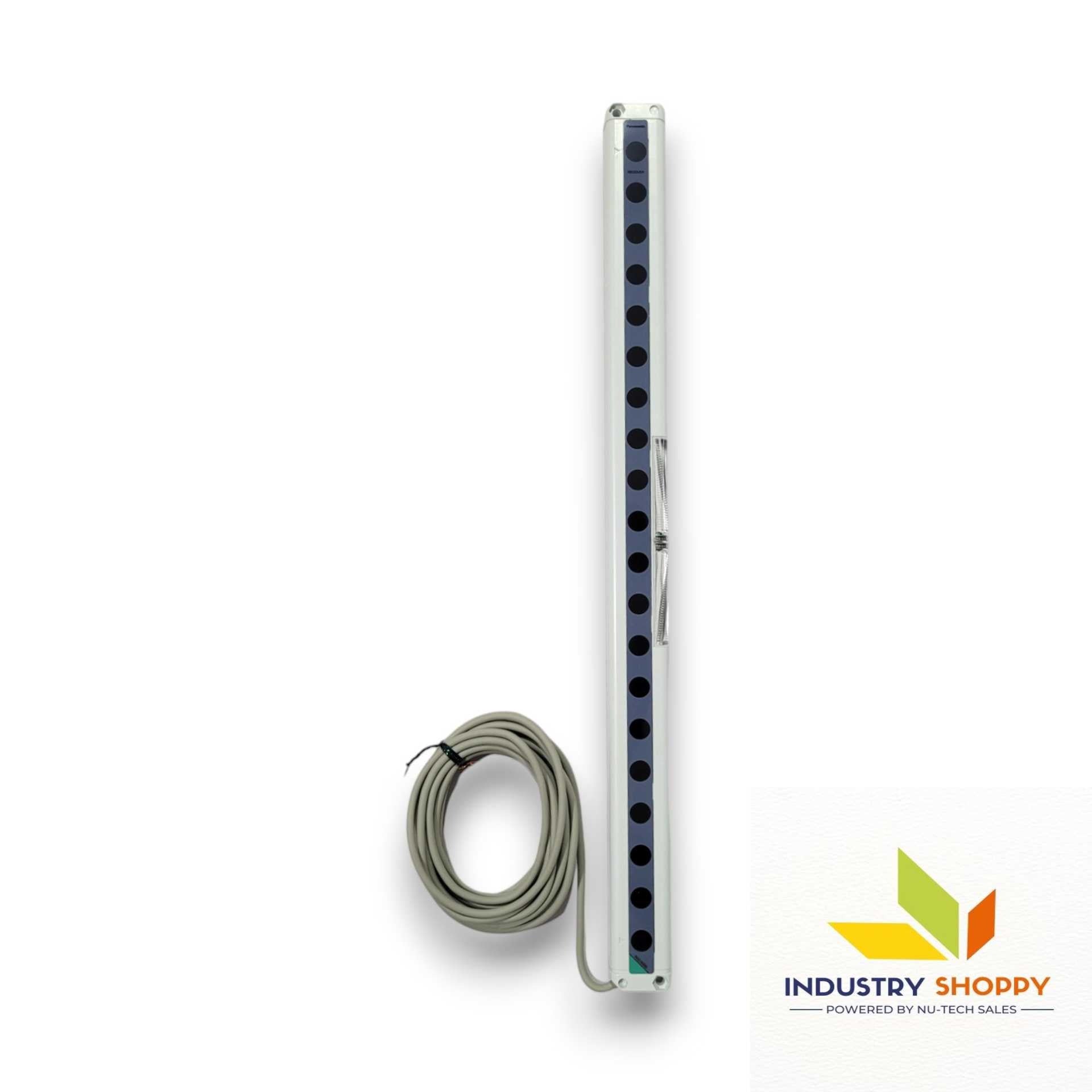

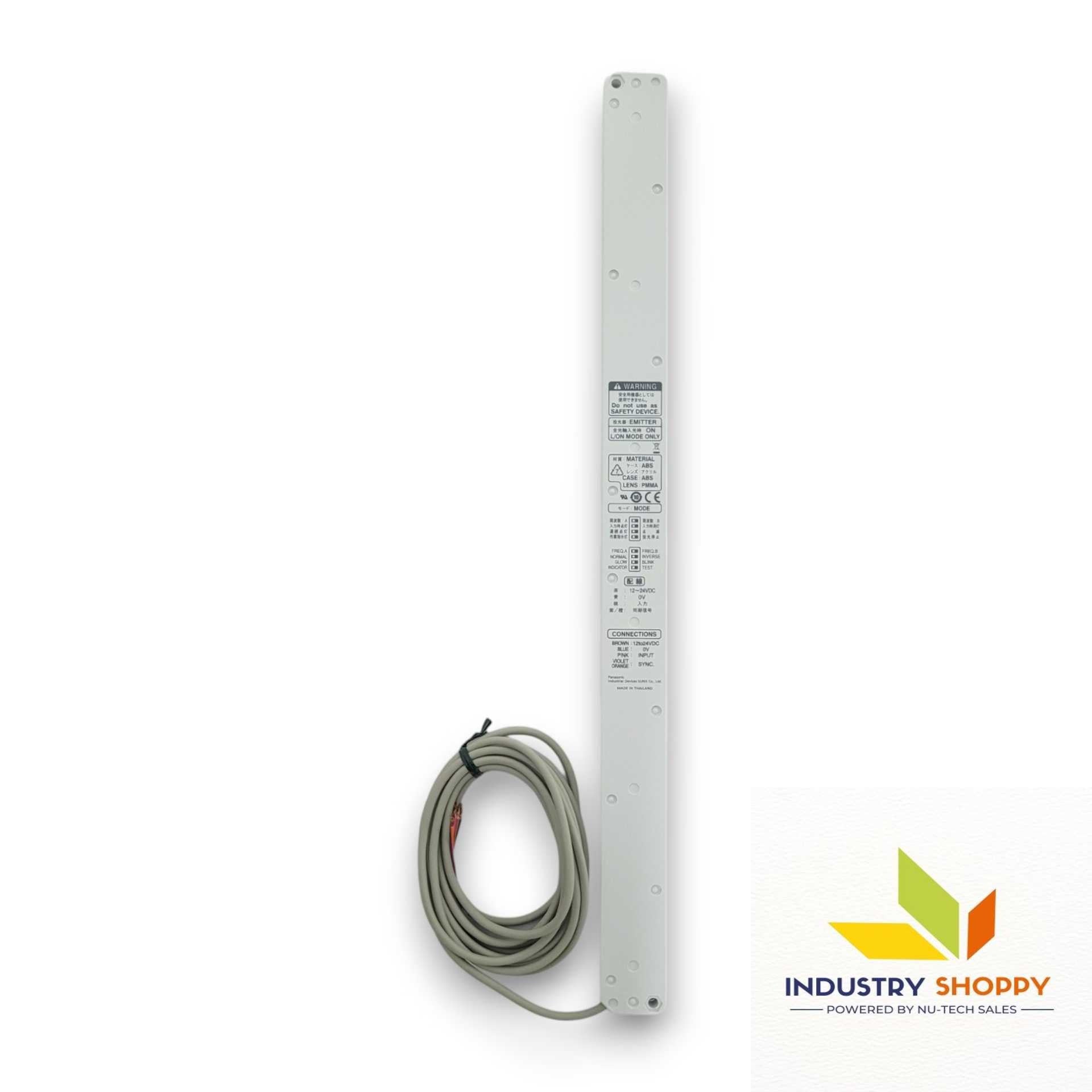

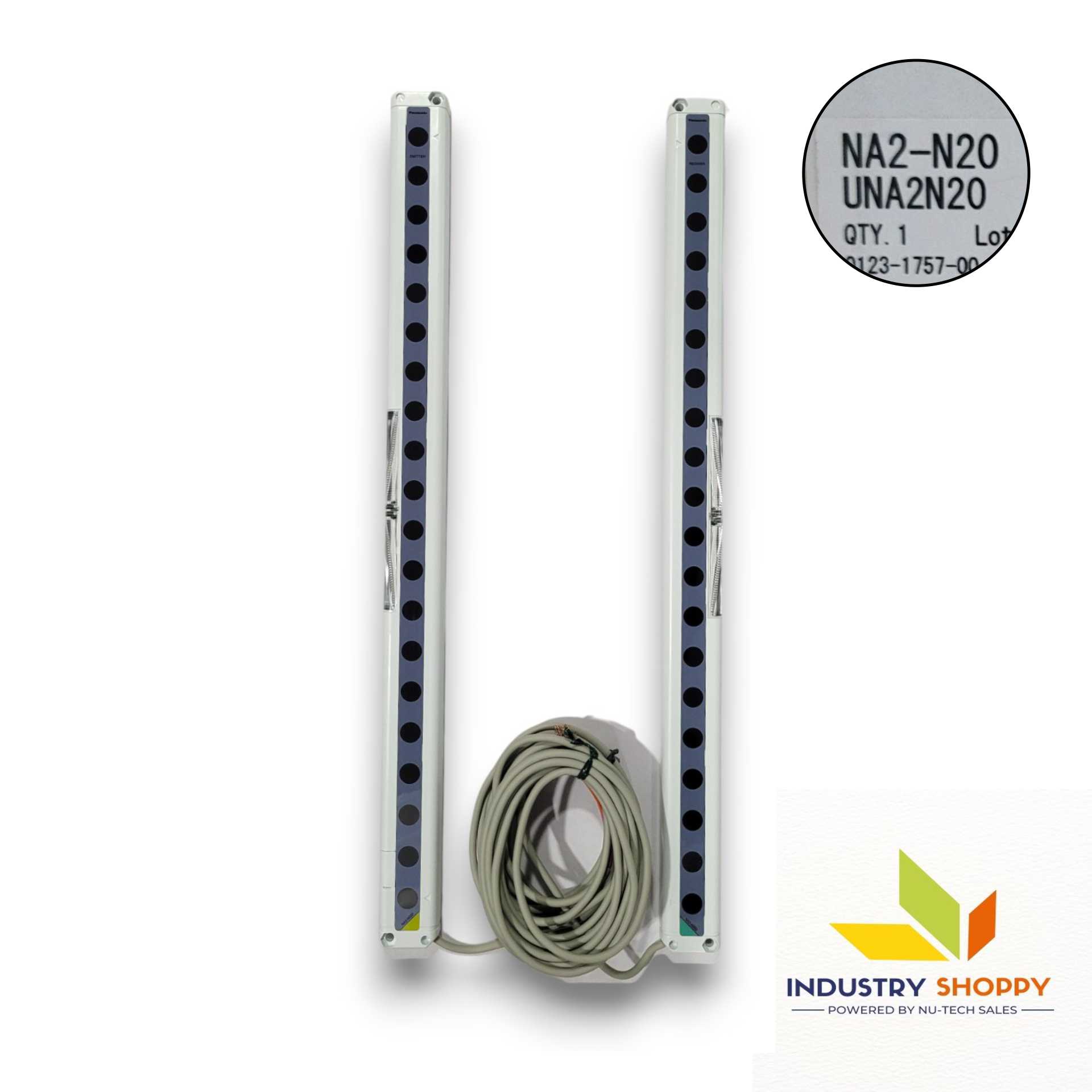

Panasonic NA2-N20 Slim Body Area Sensor
The Panasonic NA2-N20 Slim Body Area Sensor is a high-performance Slim Body Area Sensor compliant with CE Marking Directive, featuring a sensing height of 380 mm and a sensing range of 5 m. It offers precise detection capabilities with a beam pitch of 20 mm, suitable for objects with a diameter of 30 mm or more.
The Panasonic NA2-N20 Slim Body Area Sensor operates within a supply voltage range of 12 to 24 V DC, consuming power ranging from 0.9 W to 1.0 W depending on the job indicator status. Equipped with NPN open-collector transistors for output, it ensures reliable operation with short-circuit protection and a fast response time of 10 ms or less.
Indicators on the receiver include a red LED for operation status, a green LED for stable beam indication, and a red job indicator with various lighting modes. The emitter features two green LEDs for emission indication and a red job indicator with similar functionality. With incorporated interference prevention and test input functions, this sensor is designed for industrial environments with protection ratings up to IP40.
It features a cable extension capability of up to 25 meters, ensuring flexibility in installation and usage. Originating from Thailand, it adheres to international standards for quality and performance.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

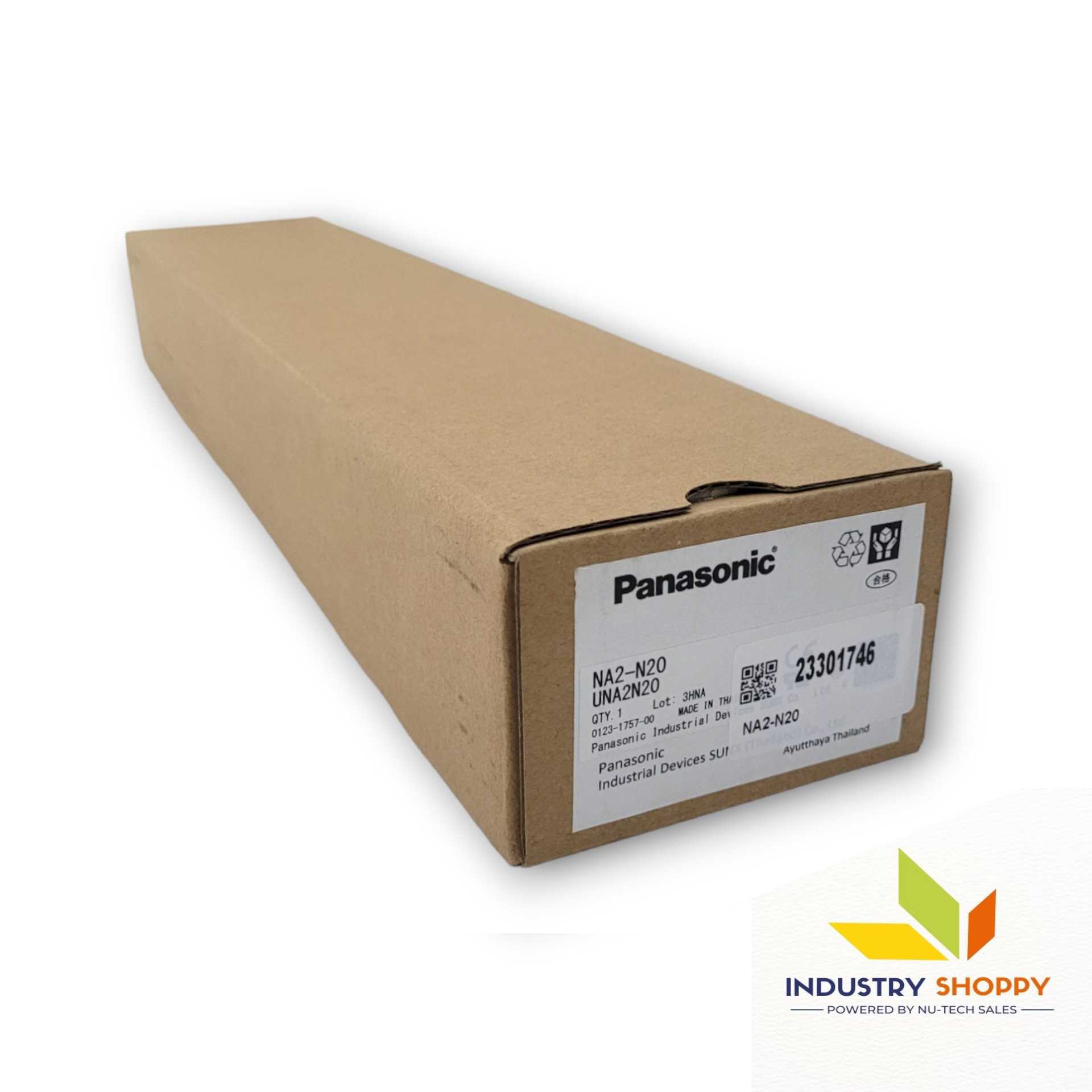

Product Number | NA2-N20 |
Part Number | UNA2N20 |
CE Marking Directive Compliance | EMC Directive, RoHS Directive |
Sensing Height | 380 mm / 14.961 in |
Sensing Range | 5 m / 16.404 ft |
Beam Pitch | 20 mm / 0.787 in |
Sensing Object | Ø30 mm / Ø1.181 in or more opaque object (completely beam interrupted) |
Supply Voltage | 12 to 24 V DC ±10 %, Ripple P-P 10 % or less |
Power Consumption (Emitter, Job Indicator On) | 1.0 W or less |
Power Consumption (Emitter, Job Indicator Off) | 0.9 W or less |
Power Consumption (Receiver, Job Indicator On) | 1.0 W or less |
Power Consumption (Receiver, Job Indicator Off) | 0.9 W or less |
Output | NPN open-collector transistor |
- Max. sink current: 100 mA | |
- Applied voltage: ≤ 30 V DC (between output and 0 V) | |
- Residual voltage: ≤ 2 V (100 mA), ≤ 1 V (16 mA) | |
Output: Utilization Category | DC-12 or DC-13 |
Output: Operation | ON when all beam channels are received; OFF when one or more channels are interrupted |
Output: Short-Circuit Protection | Incorporated |
Response Time | ≤ 10 ms (≤ 12 ms with interference prevention) |
Indicators – Receiver | Red LED (operation, lights when interrupted) |
Green LED (stable incident beam) | |
Red LED (job indicator: lights/blinks/off as selected) | |
Both red & green blink simultaneously when short-circuit protection operates | |
Indicators – Emitter | Green LED ×2 (emission; 1 LED = Frequency A, 2 LEDs = Frequency B) |
Red LED (job indicator: lights/blinks/off as selected) | |
Interference Prevention | Incorporated |
Test Input (Emission Halt) | Incorporated |
Pollution Degree | 3 (Industrial environment) |
Protection | IP40 (IEC) |
Ambient Temperature | -10 to +55 °C (+14 to +131 °F), Storage: -10 to +60 °C (+14 to +140 °F) |
Ambient Humidity | 35–85 % RH, Storage: 35–85 % RH |
Ambient Illuminance | Incandescent light ≤ 3,000 lx at receiver face |
Voltage Withstandability | 1,000 V AC for 1 min. (between all supply terminals and enclosure) |
Insulation Resistance | ≥ 20 MΩ with 250 V DC megger (between supply terminals and enclosure) |
Vibration Resistance | 10–150 Hz, 0.75 mm (5 G max.), X/Y/Z directions, 2 hrs each |
Shock Resistance | 500 m/s² (≈50 G), X/Y/Z directions, 3 times each |
Emitting Element | Infrared LED, peak wavelength 870 nm (modulated) (changed from Mar 2017 production) |
Material | Enclosure: Heat-resistant ABS |
Lens cover: Polyester | |
Indicator cover: Acrylic | |
Cable | 0.2 mm² 4-core cabtyre cable, 3 m (9.843 ft) |
Cable Extension | Up to 25 m (82.021 ft) possible with ≥ 0.2 mm² cable |
Country of Origin | Thailand |
