Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic EX-14A-PN Photoelectric Sensor
Panasonic

Panasonic EX-14A-PN Photoelectric Sensor

Product SKU: NTSSEN00082
Available:
Only 15 items in stock
15 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output :  PNP open-collector transistor
  • Supply Voltage :  10..30 VDC
  • Operation indicator :  Red LED (lights up when the output is ON)
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 3,300.00
Rs. 4,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

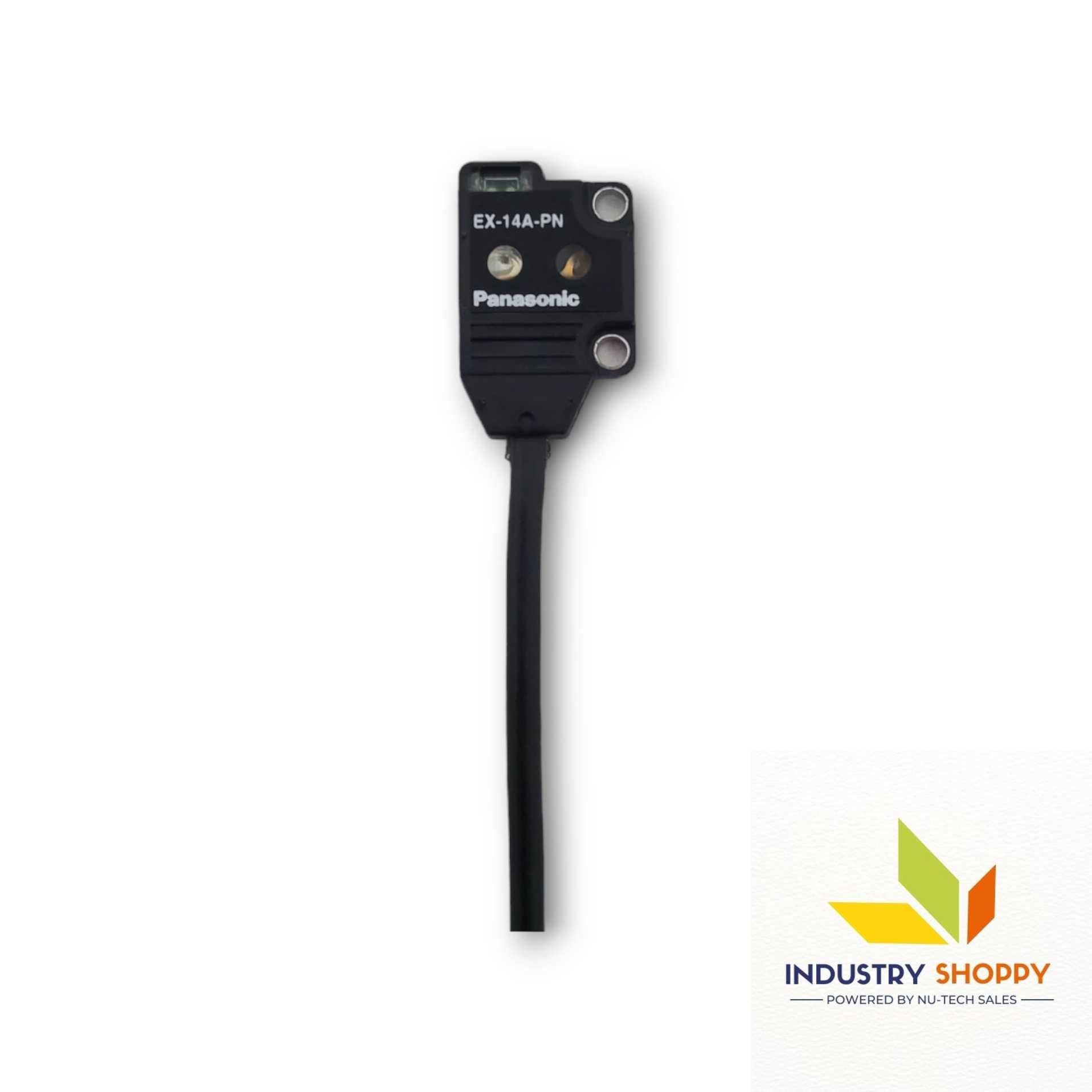

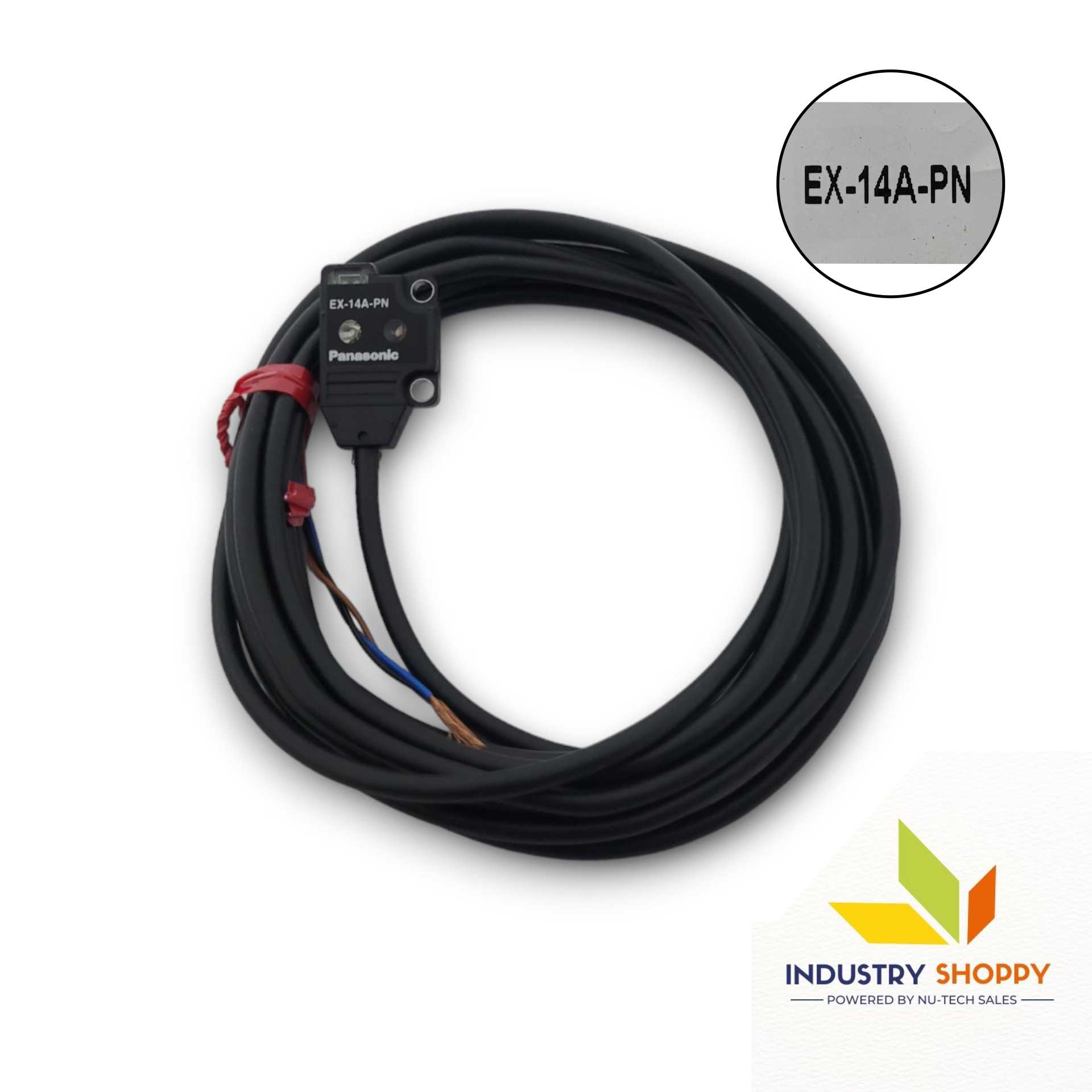

    Panasonic EX-14A-PN Photoelectric Sensor

    The Panasonic EX-14A-PN Photoelectric Sensor (EX14APN, UEX14APN) is a compact photoelectric sensor designed for short-range object detection, with an adjustable sensing range of 2 to 25 mm. The Panasonic EX-14A-PN sensor uses a red LED (680 nm, modulated) for precise close-range detection, ideal for white non-glossy paper (50 × 50 mm). It features a PNP open-collector output with a maximum source current of 50 mA.

    Operating on 12 to 24 V DC, it consumes 13 mA or less and has a response time of 0.5 ms. Orange and green LEDs indicate operation and stability. With IP67 protection, the sensor is built for industrial environments and can withstand vibration (10-500 Hz) and shock (500 m/s²). It includes short-circuit protection, 1,000 V AC withstandability, and 20 MΩ insulation resistance.

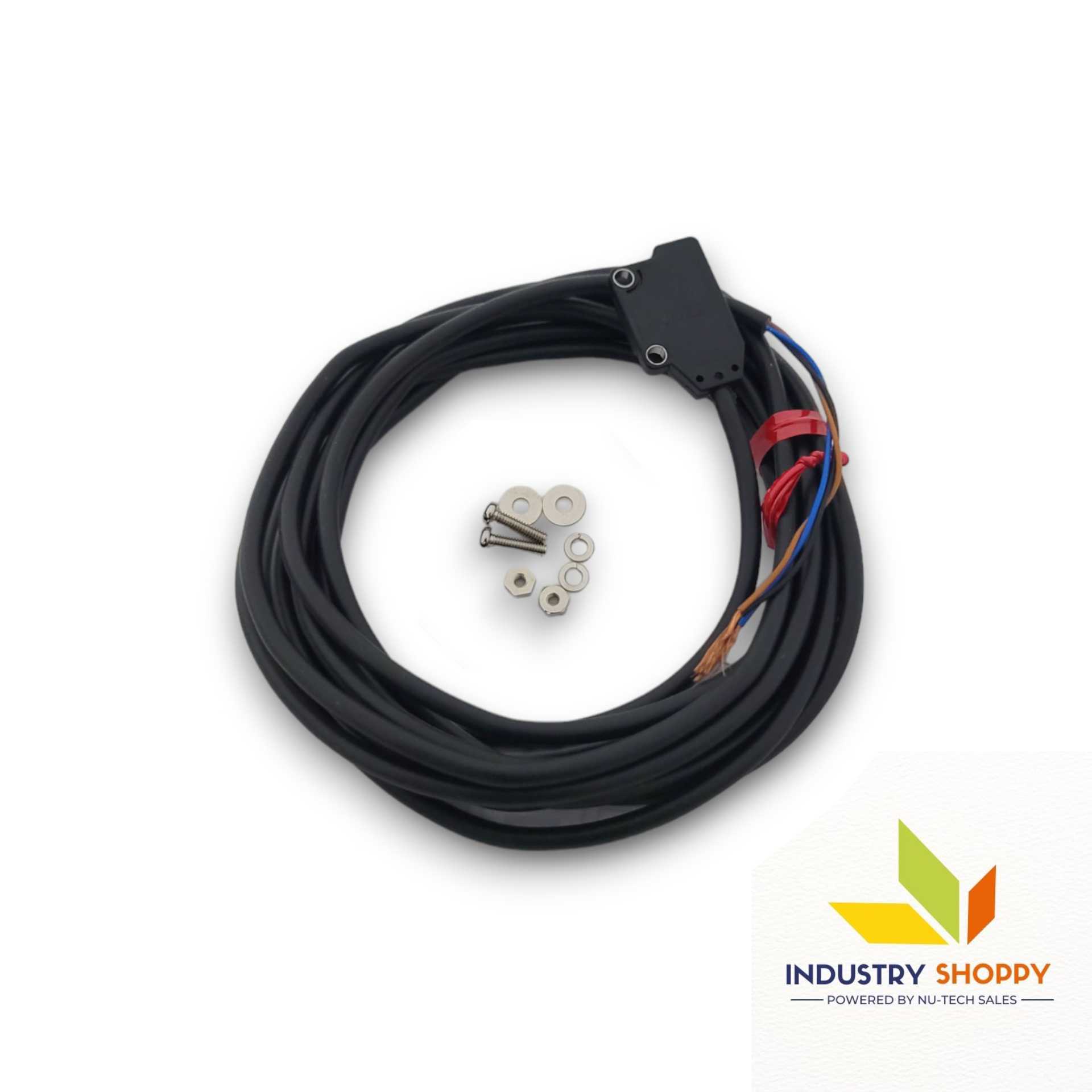

    Constructed with polyethylene terephthalate and polyalylate, it is durable and comes with a 2-meter oil-resistant cabtyre cable, extendable up to 50 meters.


     Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NameEX-14A-PN
    Part NumberUEX14APN
    CE Marking Directive ComplianceEMC Directive: EN 60947-5-2
    RoHS Directive
    ISO 13849-1 (Category 1, PLc) (from Dec 2021 production)
    Sensing Range2 to 25 mm (0.079 to 0.984 in)
    (Conventional point: 10 mm / 0.394 in; specified for white non-glossy paper 50 × 50 mm)
    Minimum Sensing ObjectØ0.1 mm (Ø0.004 in) copper wire (completely beam-interrupted, at 10 mm setting distance)
    Hysteresis15 % or less of operation distance (specified for white non-glossy paper 50 × 50 mm)
    Repeatability (Perpendicular to Sensing Axis)0.1 mm (0.004 in) or less
    Supply Voltage12 to 24 V DC ±10 %, Ripple P-P ≤ 10 %
    Current Consumption13 mA or less
    OutputPNP open-collector transistor
    - Max source current: 50 mA
    - Applied voltage ≤ 30 V DC
    - Residual voltage: 2 V (50 mA), 1 V (16 mA)
    Output Utilization CategoryDC-12 or DC-13
    Output Short-Circuit ProtectionIncorporated
    Response Time0.5 ms or less
    Operation IndicatorOrange LED (lights up when output is ON)
    Incident Beam Indicator–
    Stability IndicatorGreen LED (lights up under stable light received or dark condition)
    Pollution Degree3 (Industrial environment)
    ProtectionIP67 (IEC)
    Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F)
    Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85 % RH (operating & storage)
    Ambient IlluminanceIncandescent light ≤ 3,000 lx at light-receiving face
    Voltage Withstandability1,000 V AC, 1 min, between all supply terminals connected together and enclosure
    Insulation Resistance≥ 20 MΩ with 250 V DC megger
    Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, 20 G max, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (50 G approx.), X/Y/Z directions, 3 times each
    Emitting ElementRed LED, modulated, Peak wavelength: 680 nm (0.027 mil)
    MaterialEnclosure: Polyethylene terephthalate
    Lens: Polyalylate
    Cable0.1 mm², 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft)
    Cable ExtensionUp to 50 m (164.042 ft) with ≥ 0.3 mm² cable
    (Safety applications: do not exceed 30 m / 98.425 ft)
    Country of OriginChina
