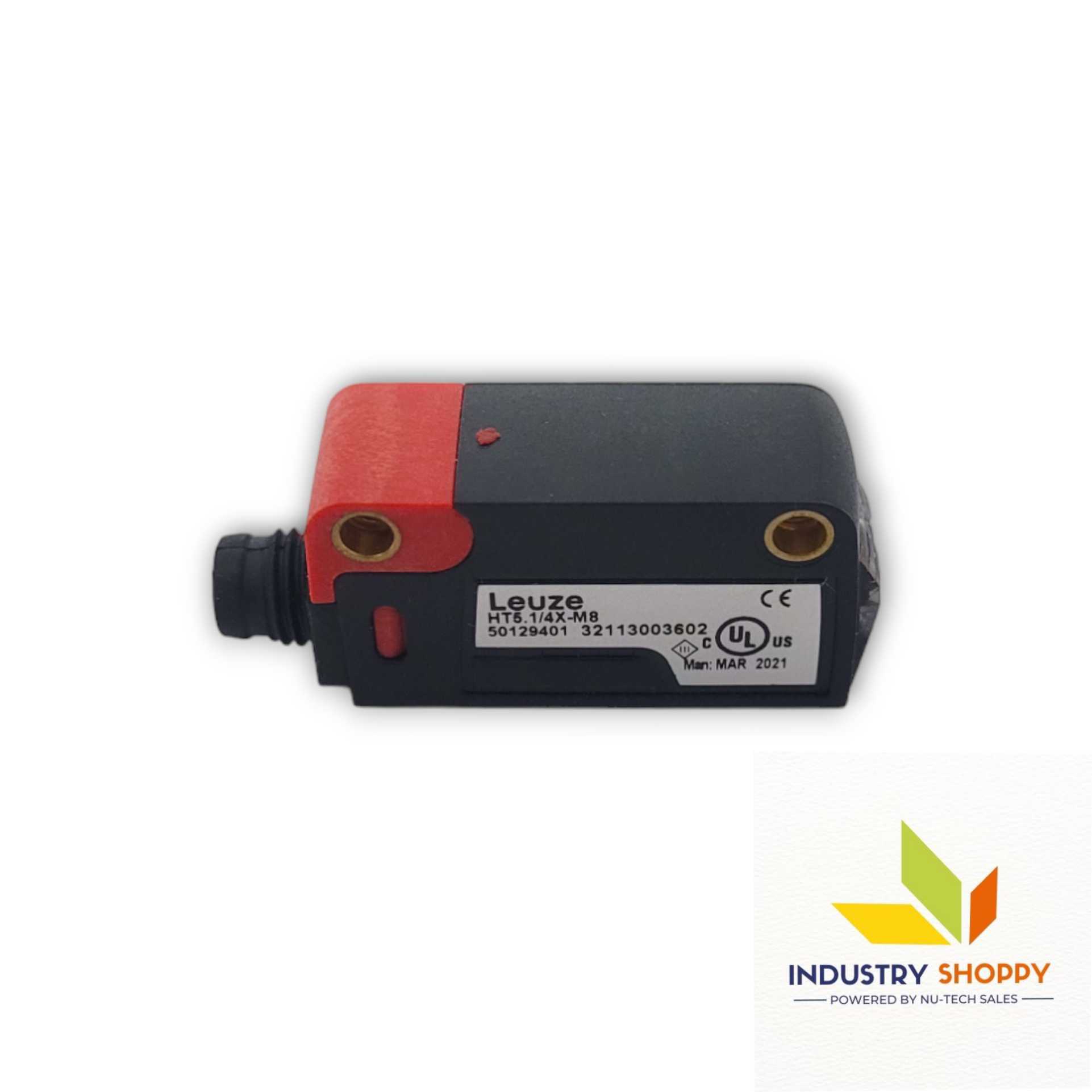

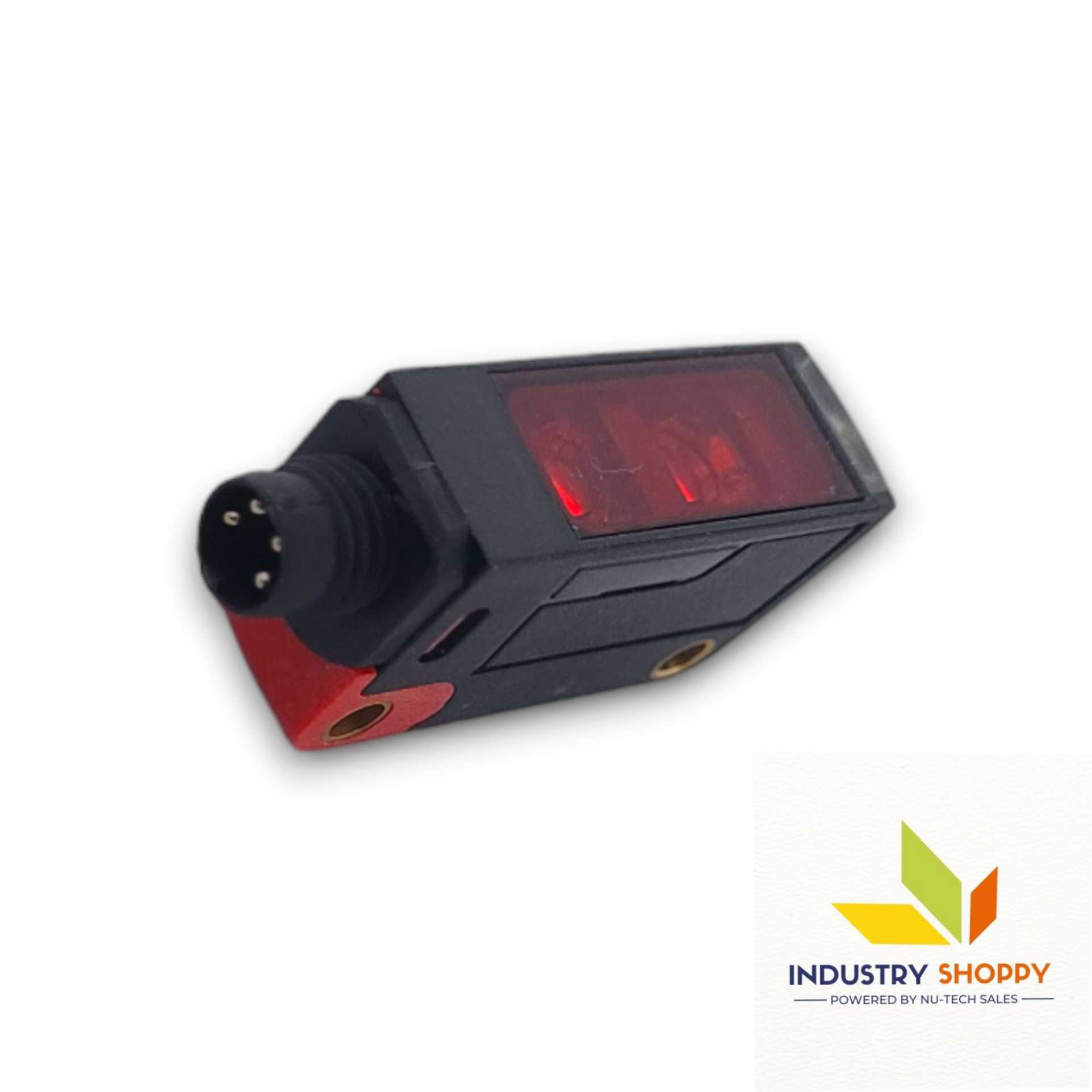

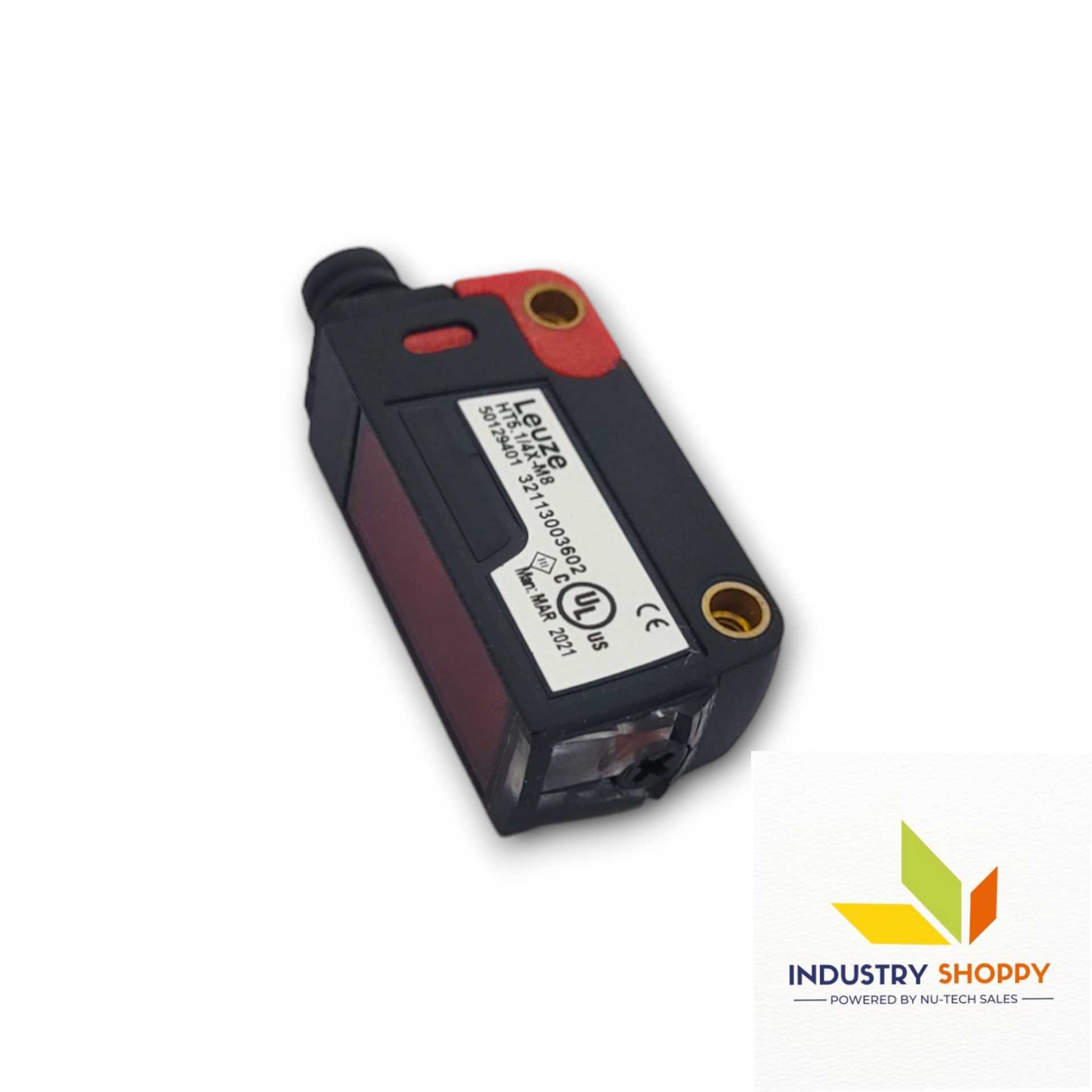

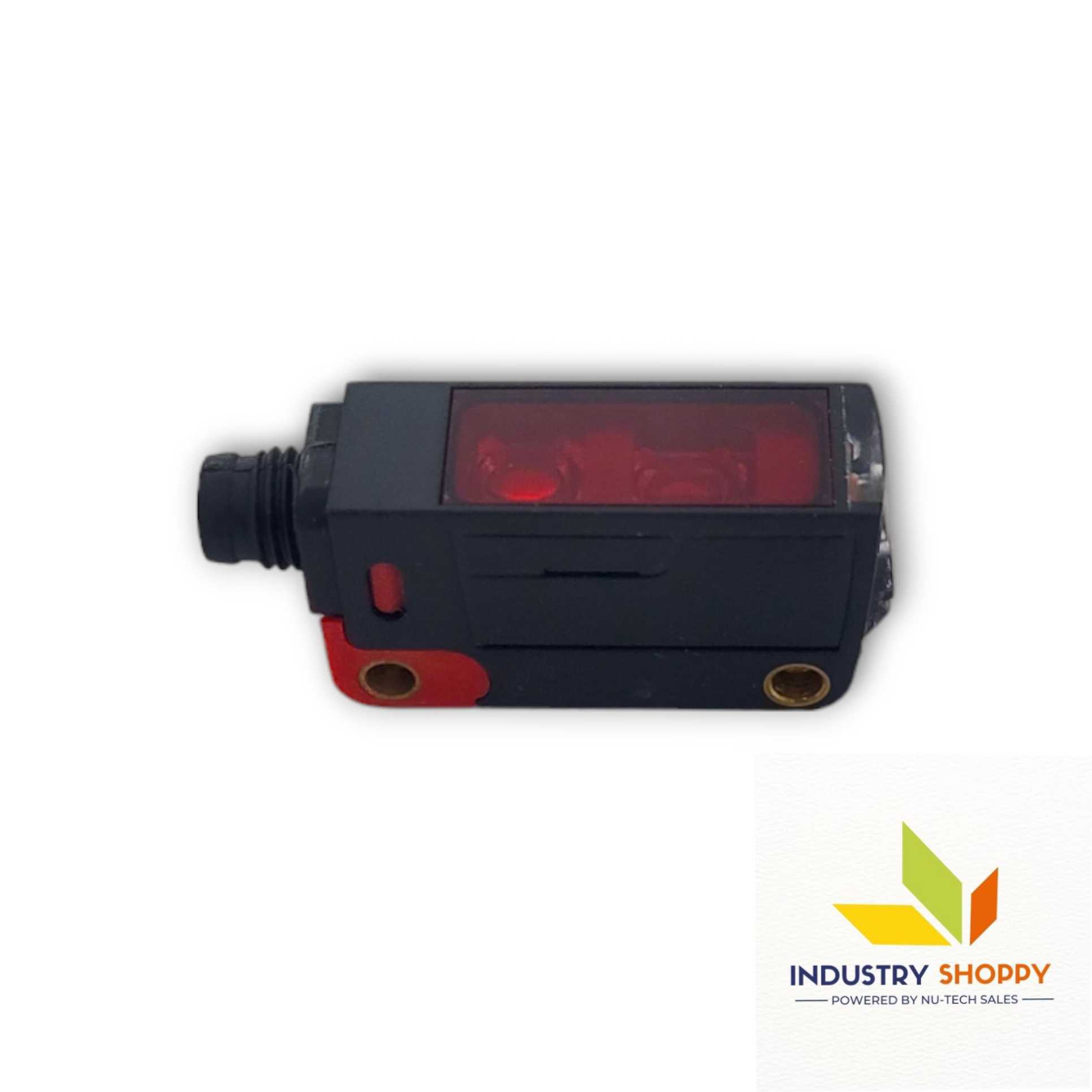

Leuze HT5.1/4X-M8 Diffuse sensor

The Leuze HT5.1/4X-M8 Diffuse sensor (HT514XM8), with part number 50129401, operates on the diffuse reflection principle with background suppression. It offers a guaranteed operating range with precise detection capabilities for white, gray, and black surfaces. With a focused beam path and a red LED light source emitting at 645 nm, it ensures accurate detection within an adjustment range of 15 to 400 mm.

The Leuze HT5.1/4X-M8 Diffuse sensor is compact design, weighing just 10 g, and its plastic housing make it suitable for various industrial applications. The sensor has an open-circuit current ranging from 0 to 15 mA, ensuring efficient power consumption. Its switching element is a PNP transistor, facilitating reliable switching operations. The sensor swiftly responds to changes in light intensity with a frequency of 1,000 Hz.

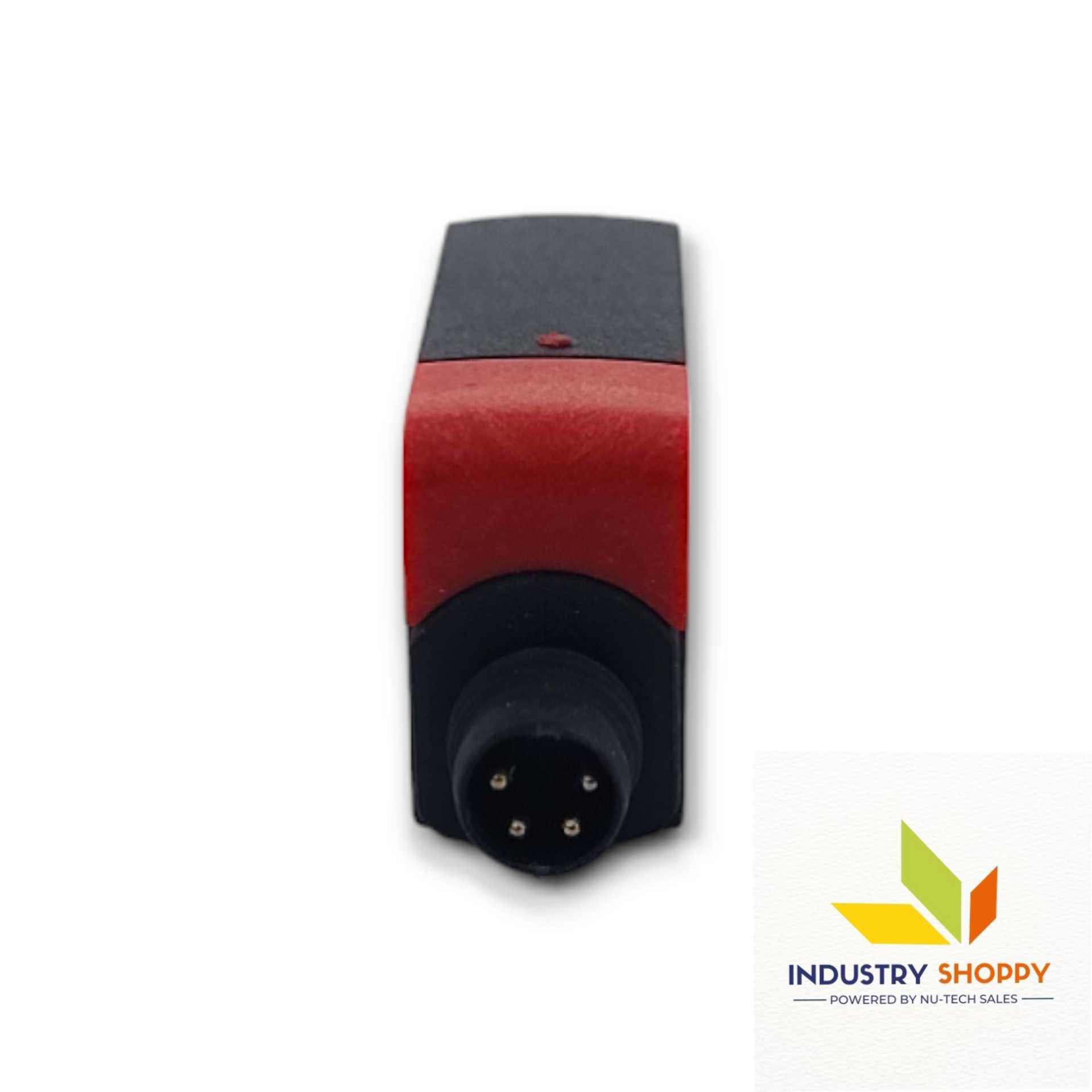

It features a male M8 connector for easy connection, and operational controls include a multiturn potentiometer for range adjustment. With an operational temperature range from -40 to 60 °C and storage temperature range from -40 to 70 °C, it's designed to withstand challenging environmental conditions.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


Product NumberHT5.1/4X-M8
Part Number50142519
Series5
Operating PrincipleDiffuse reflection principle with background suppression
Black-White Error< 15% up to 200 mm
Operating Range, White 90%0.005 … 0.4 m
Operating Range, Gray 18%0.01 … 0.3 m
Operating Range, Black 6%0.015 … 0.2 m
Operating Range Limit0.005 … 0.4 m
Adjustment Range15 … 400 mm
Beam PathFocused
Light SourceLED, Red
Wavelength645 nm
LED GroupExempt group (in acc. with EN 62471)
Light Spot GeometryRound
FocusFixed
Focal Distance200 mm
Supply Voltage UB10 … 30 V DC, incl. residual ripple
Residual Ripple0 … 15 % from UB
Open-Circuit Current0 … 15 mA
Switching ElementTransistor, PNP
Switching PrincipleLight switching
Switching Frequency1,000 Hz
Response Time0.5 ms
Readiness Delay300 ms
FunctionSignal OUT / Voltage supply
Type of ConnectionConnector
Thread SizeM8
Connection TypeMale
MaterialPlastic
No. of Pins4-pin
Dimensions (W × H × L)11.4 × 32.1 × 17.8 mm
Housing MaterialPlastic
Plastic HousingPC-ABS
Lens Cover MaterialPlastic / PMMA
Housing ColorBlack / Red
Type of FasteningTwo M3 threaded sleeves / Optional mounting device
Type of DisplayLED
Operational ControlsMultiturn potentiometer
Function of Operational ControlRange adjustment
Ambient Temperature, Operation-40 … 60 °C
Ambient Temperature, Storage-40 … 70 °C
Degree of ProtectionIP67
Protection ClassIII
CertificationscUL US
Standards AppliedIEC 60947-5-2
