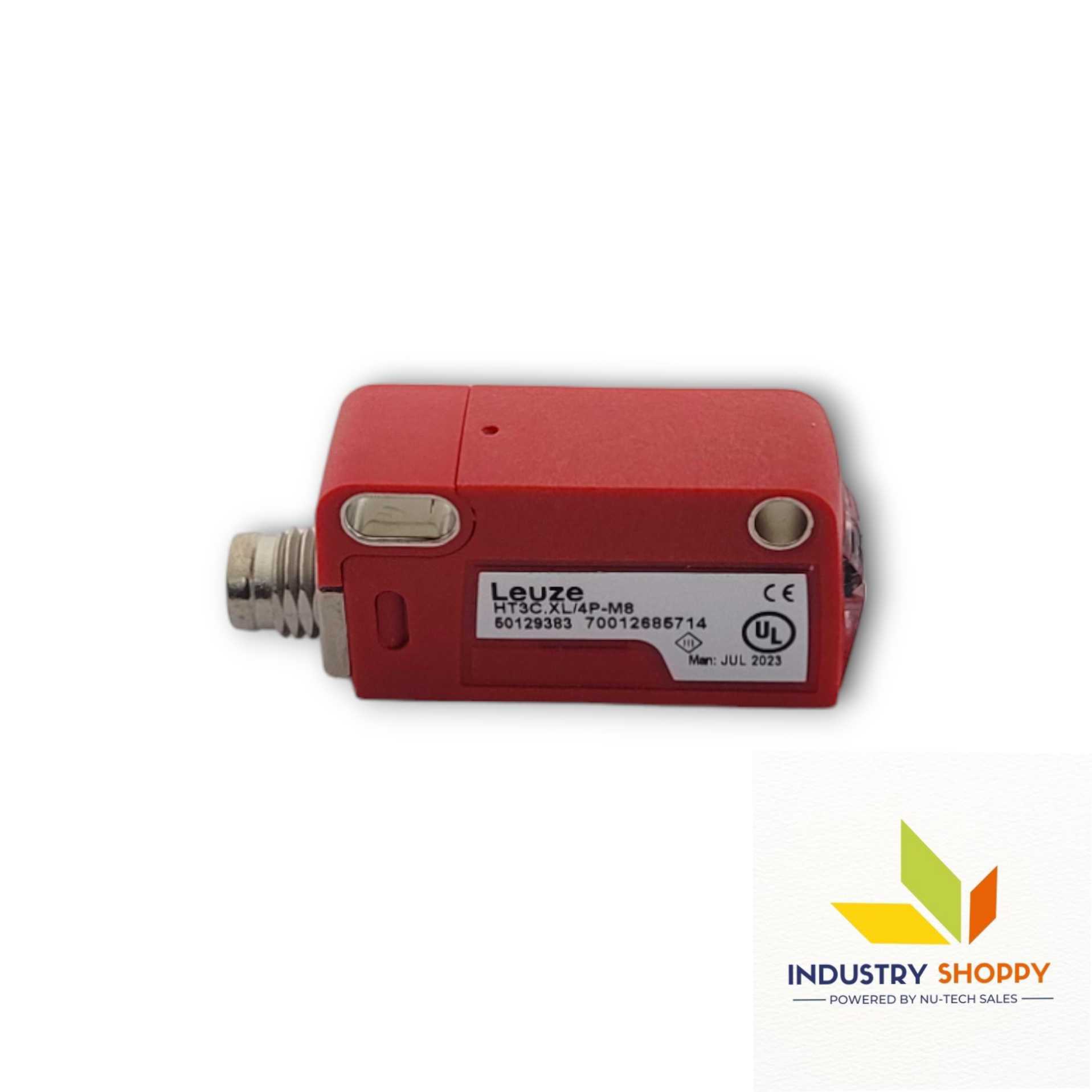

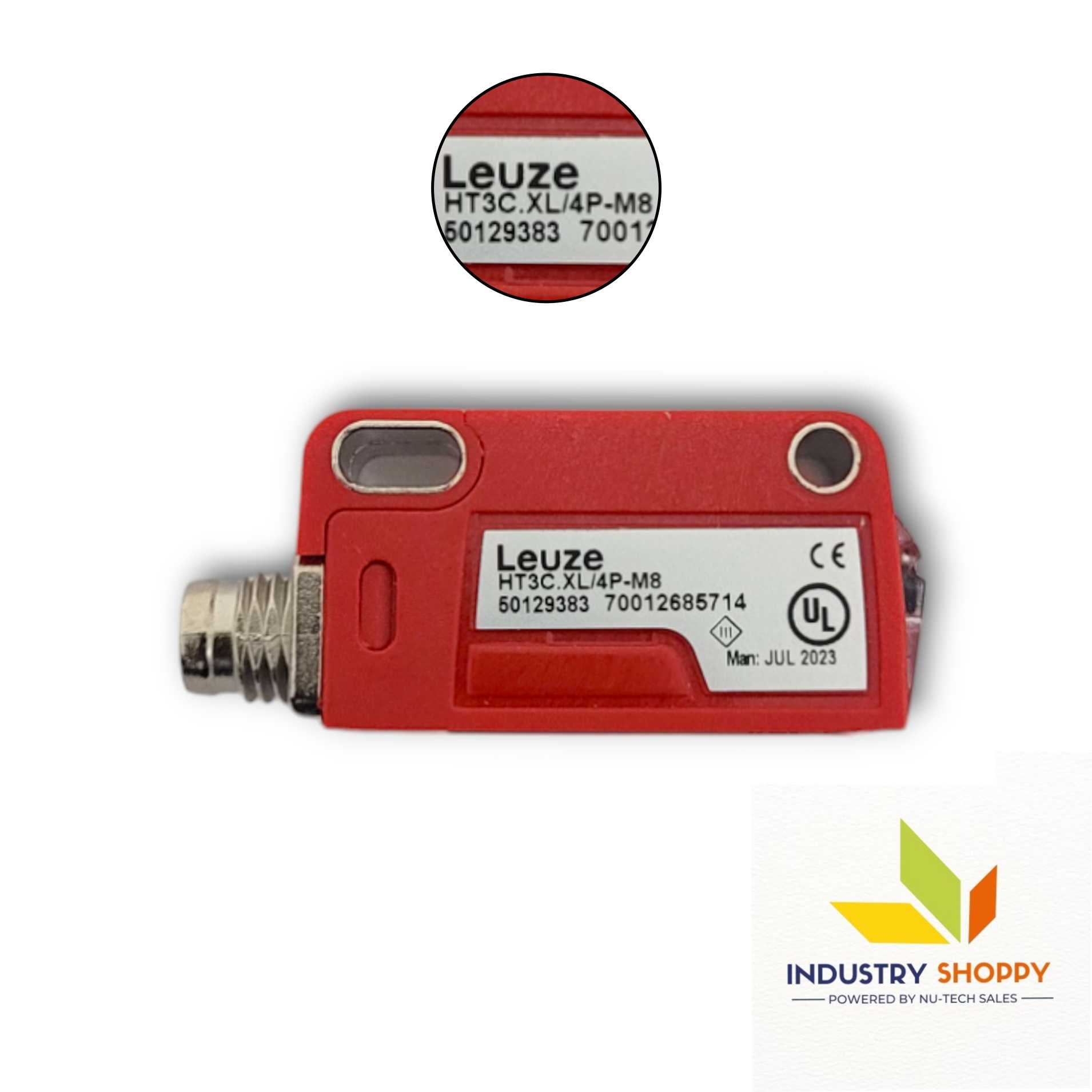

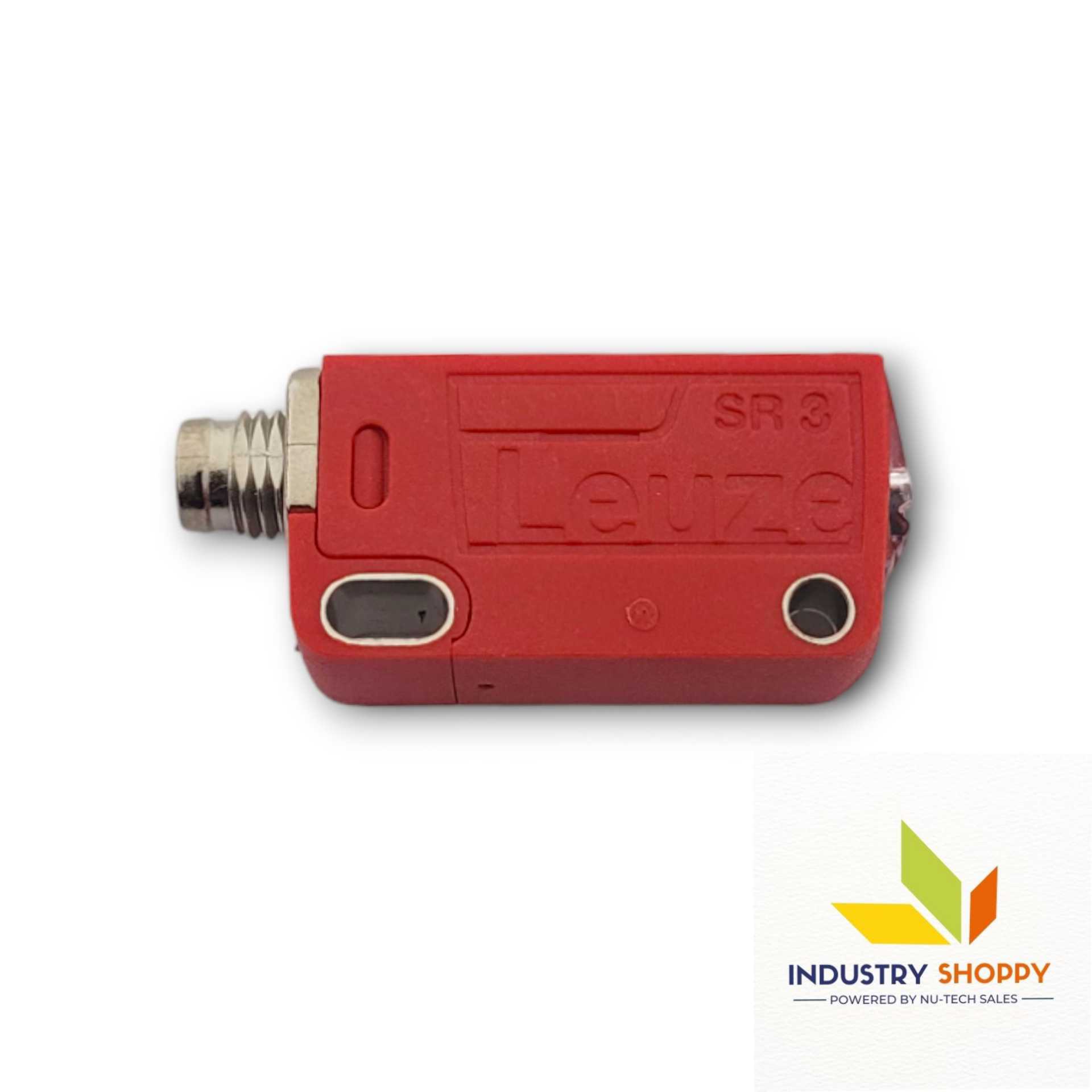

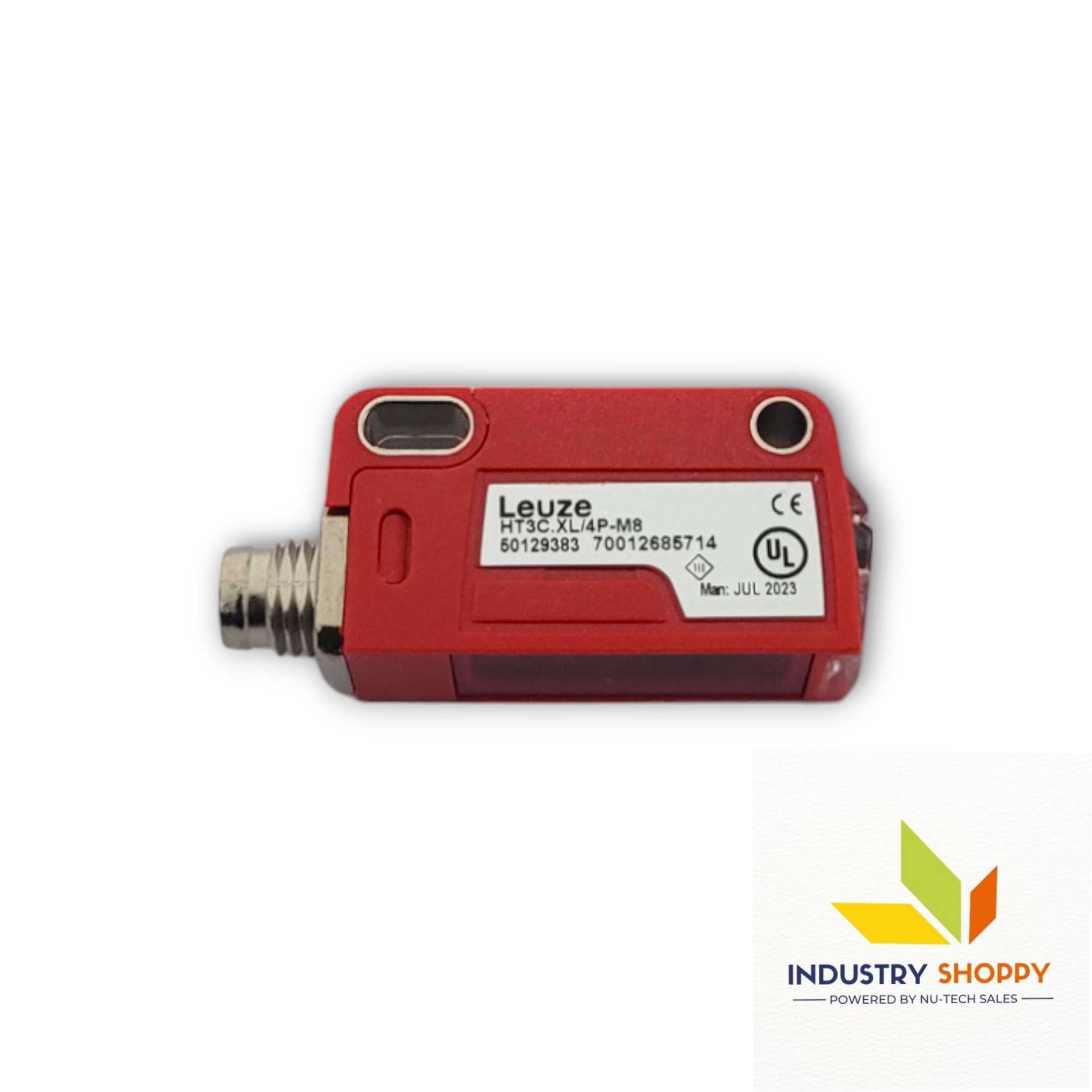

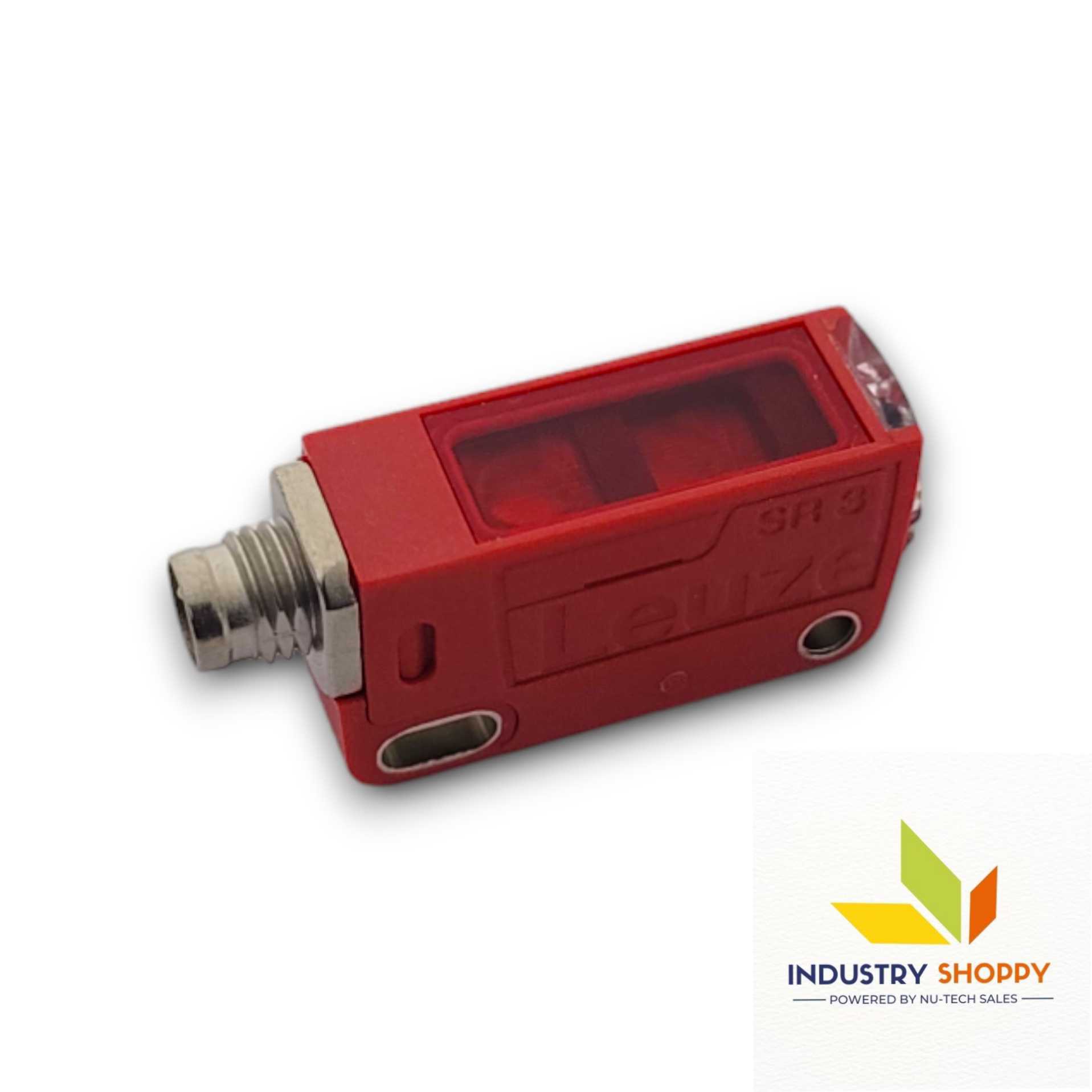

Leuze HT3C.XL/4P-M8 Photoelectric Sensor

Leuze HT3C.XL/4P-M8 Photoelectric Sensor

The Leuze HT3C.XL/4P-M8 Photoelectric Sensor, part number 50129383, belongs to the HT3C series and operates on the diffuse reflection principle with background suppression. The sensor guarantees a reliable operating range from 0.005 to 0.05 meters for white (90% reflective), 0.005 to 0.045 meters for gray (18% reflective), and 0.005 to 0.04 meters for black (6% reflective) objects. It offers a typical operating range limit of up to 0.1 meters for white objects. The adjustment range spans from 20 to 100 mm, providing flexibility in different settings.

The Leuze HT3C.XL/4P-M8 Photoelectric Sensor is equipped with a red LED light source. The LED operates at a wavelength of 633 nm. The sensor projects a rectangular light spot measuring 3 mm x 40 mm at a distance of 50 mm. It operates on a supply voltage of 10 to 30 V DC. The open-circuit current ranges from 0 to 15 mA.

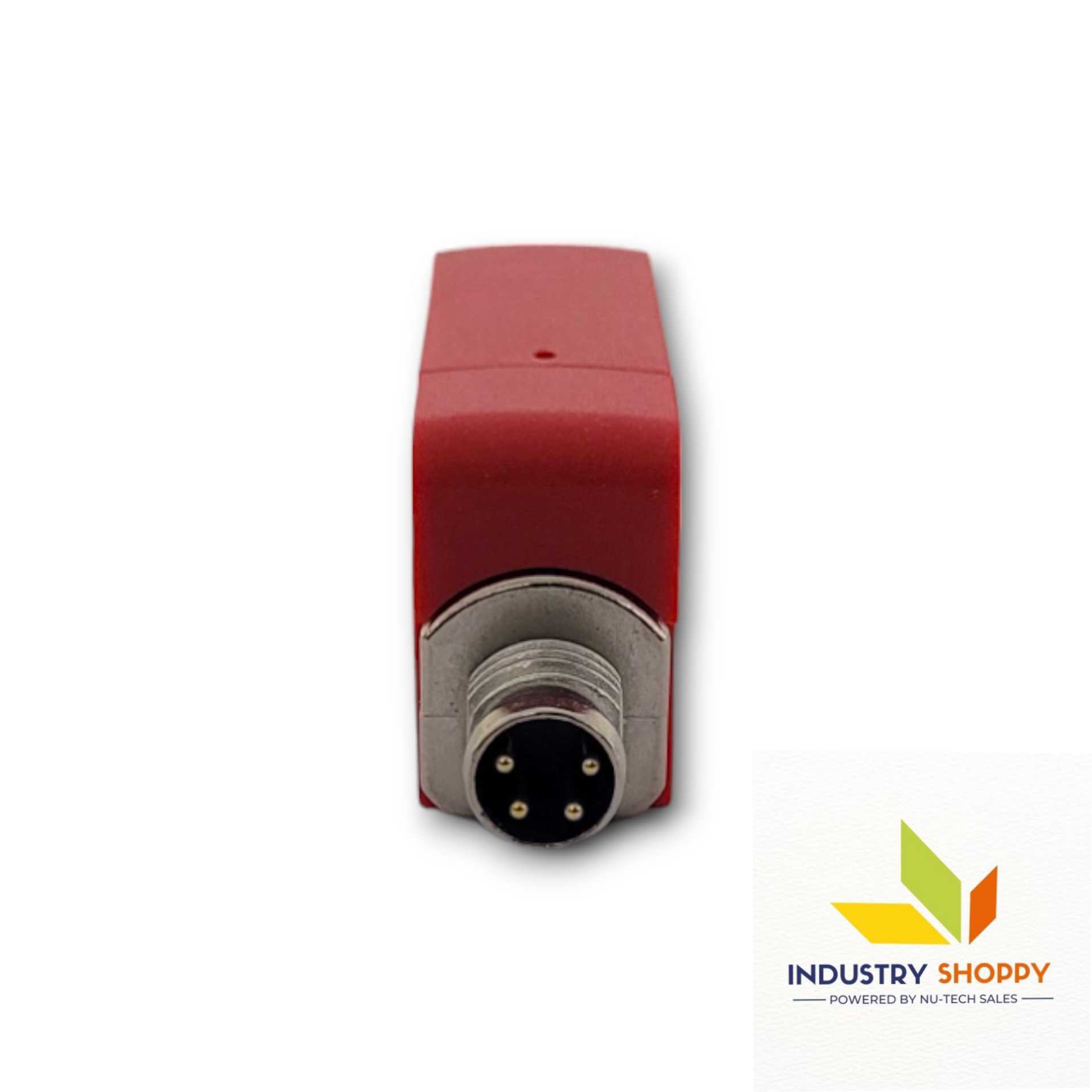

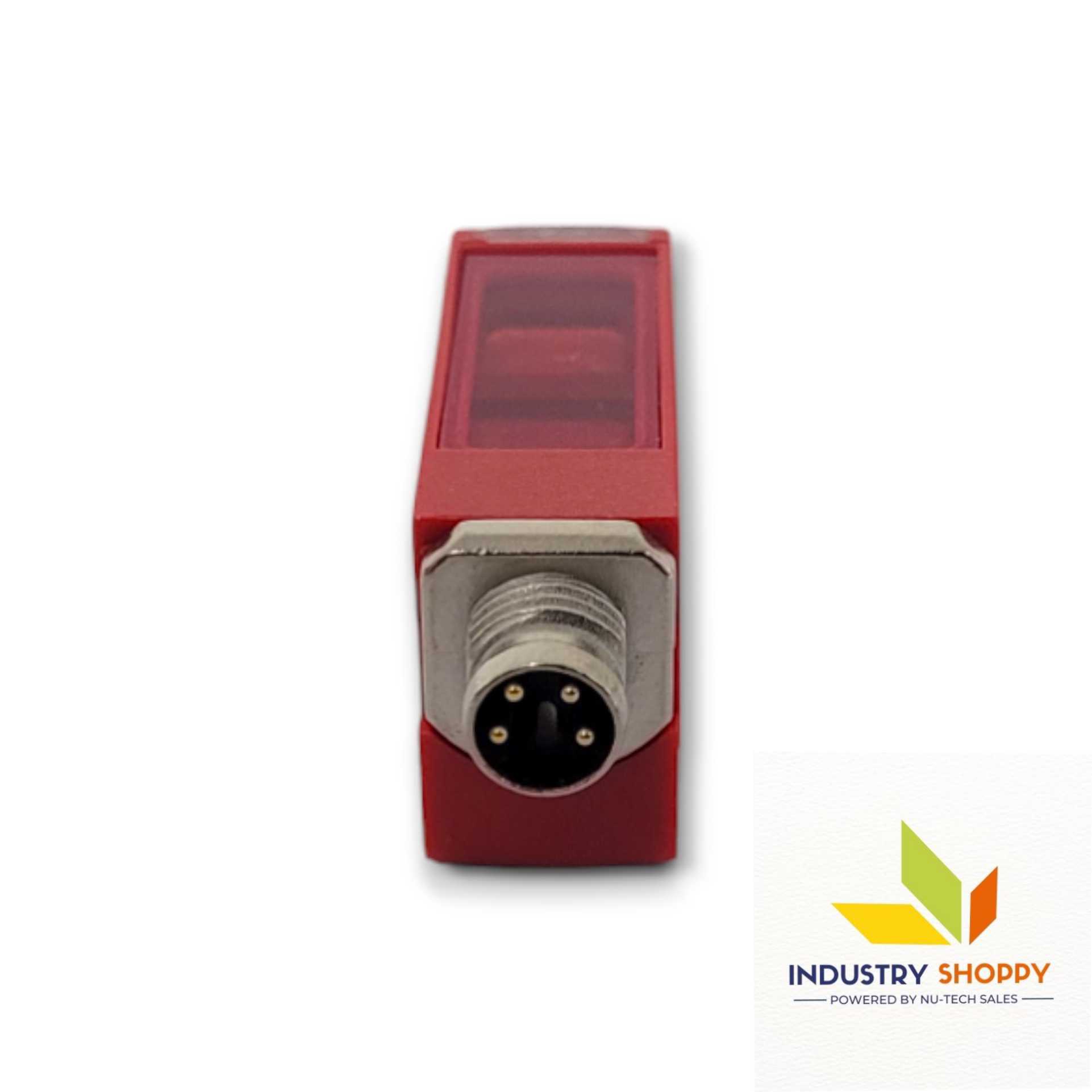

The sensor uses a PNP transistor for switching. The Leuze HT3C.XL/4P-M8 Photoelectric Diffuse Sensor has a robust design with a plastic housing made of PC-ABS, a plastic/PMMA lens cover, and a through-hole mounting type. It features an IP67/IP69K degree of protection, ensuring durability in harsh environments. A 4-pin M8 male connector enables easy integration, while a multiturn potentiometer allows users to adjust the sensing range precisely.
