Leuze HT3C/4P Diffuse Sensor

Leuze HT3C/4P Diffuse Sensor

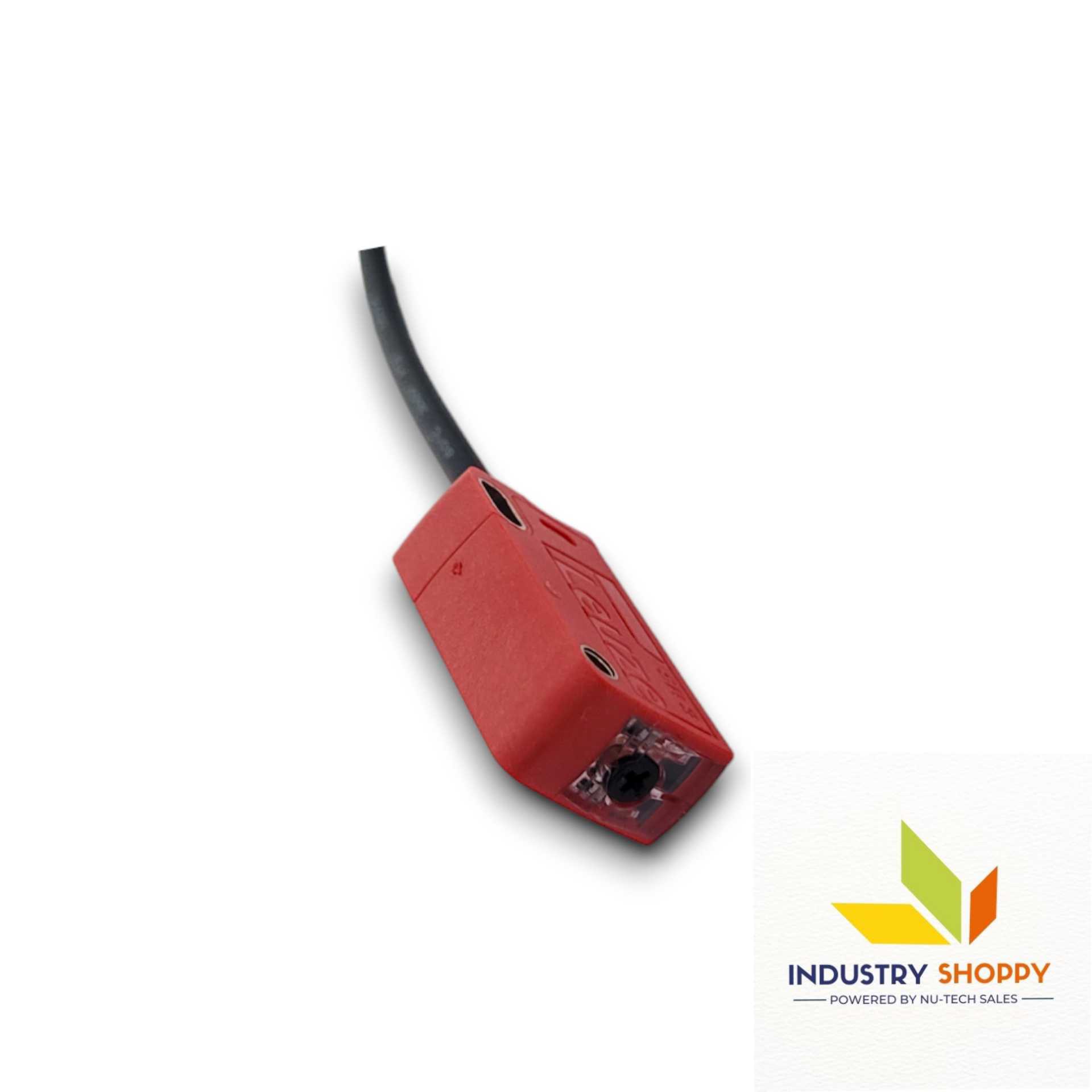

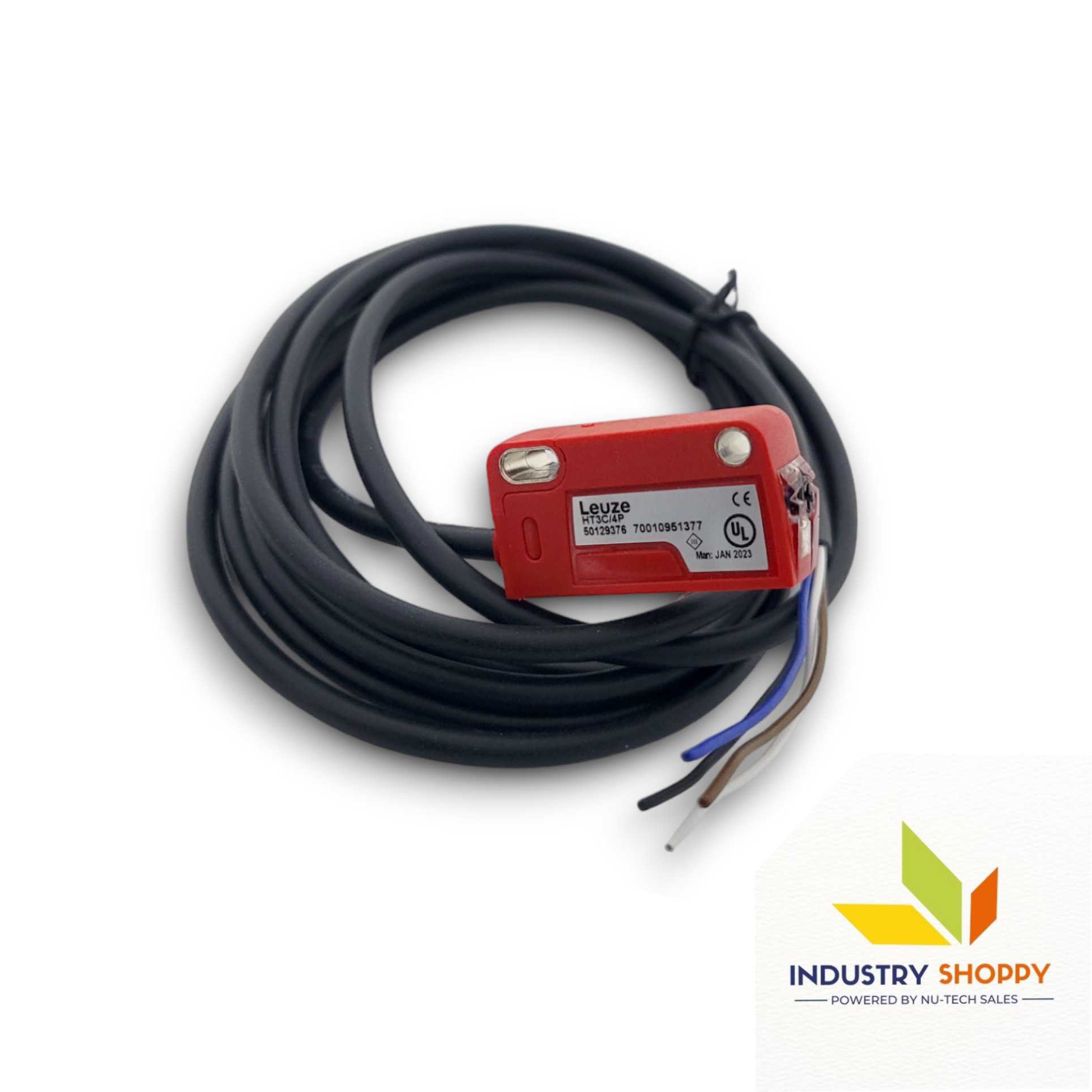

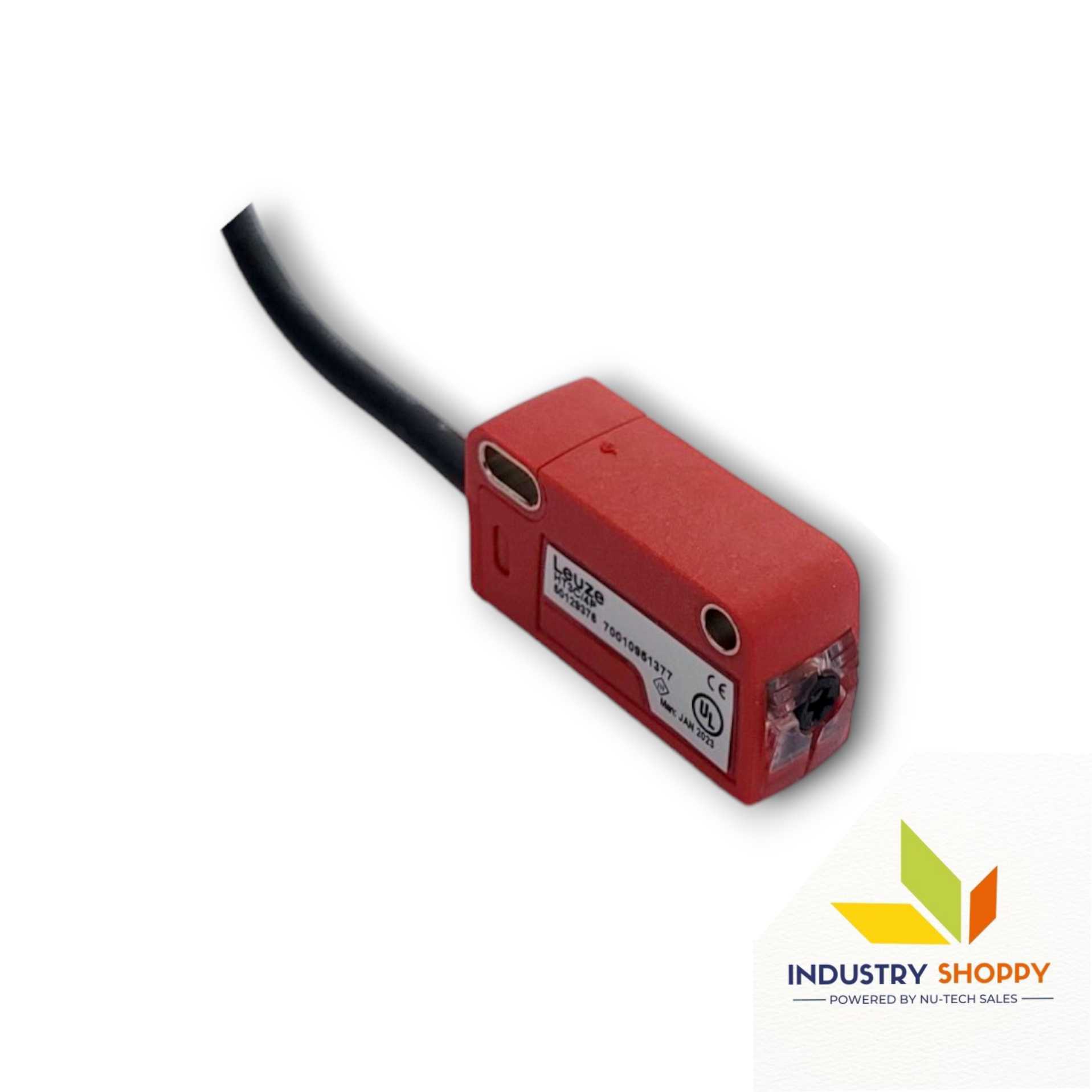

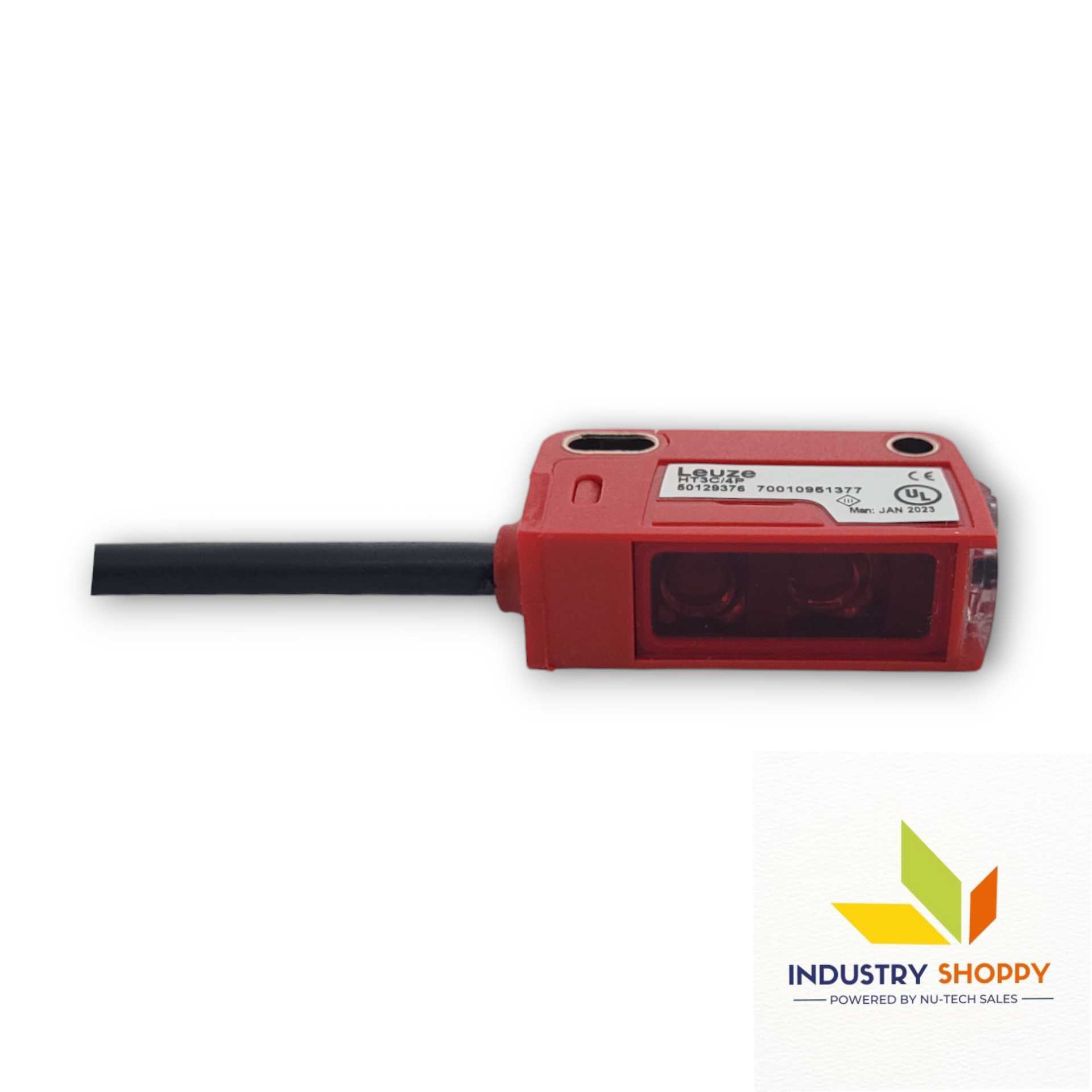

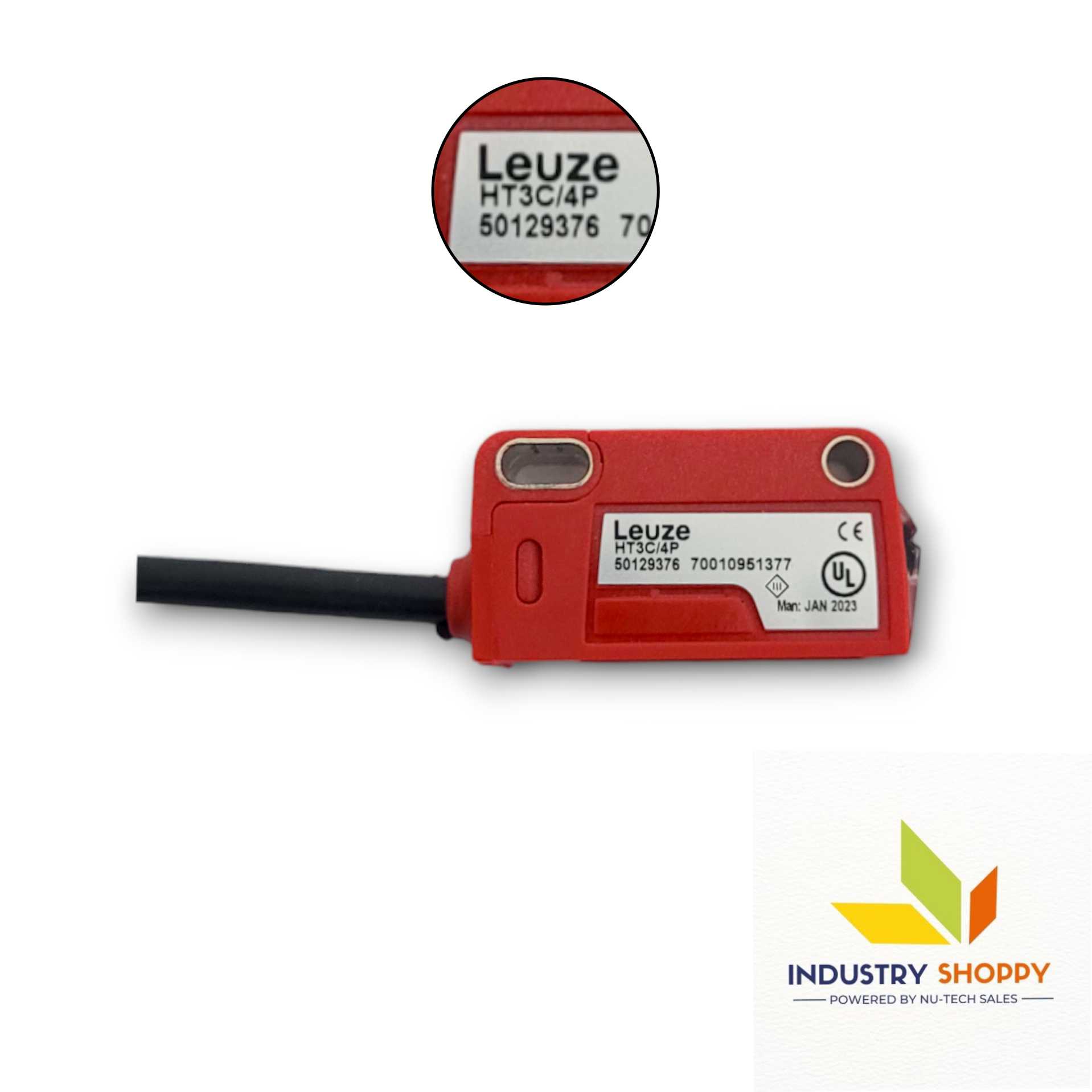

The Leuze HT3C/4P Diffuse Sensor with part number 50129376. It's a member of the 3C series, operates on the diffuse reflection principle with background suppression. It's specifically engineered to minimize errors in detecting black-white contrast, ensuring accuracy within a range of up to 220 mm.

The Leuze HT3C/4P Diffuse Sensor operating range guarantees reliable performance, spanning from 0.005 to 0.45 meters. This allows for versatile detection capabilities across different materials, including those with varying levels of reflectivity. The residual ripple ranges from 0 to 15% relative to UB. The open-circuit current ranges from 0 to 15 mA. It employs a transistor with PNP configuration for switching. The switching principle includes both light and dark switching.

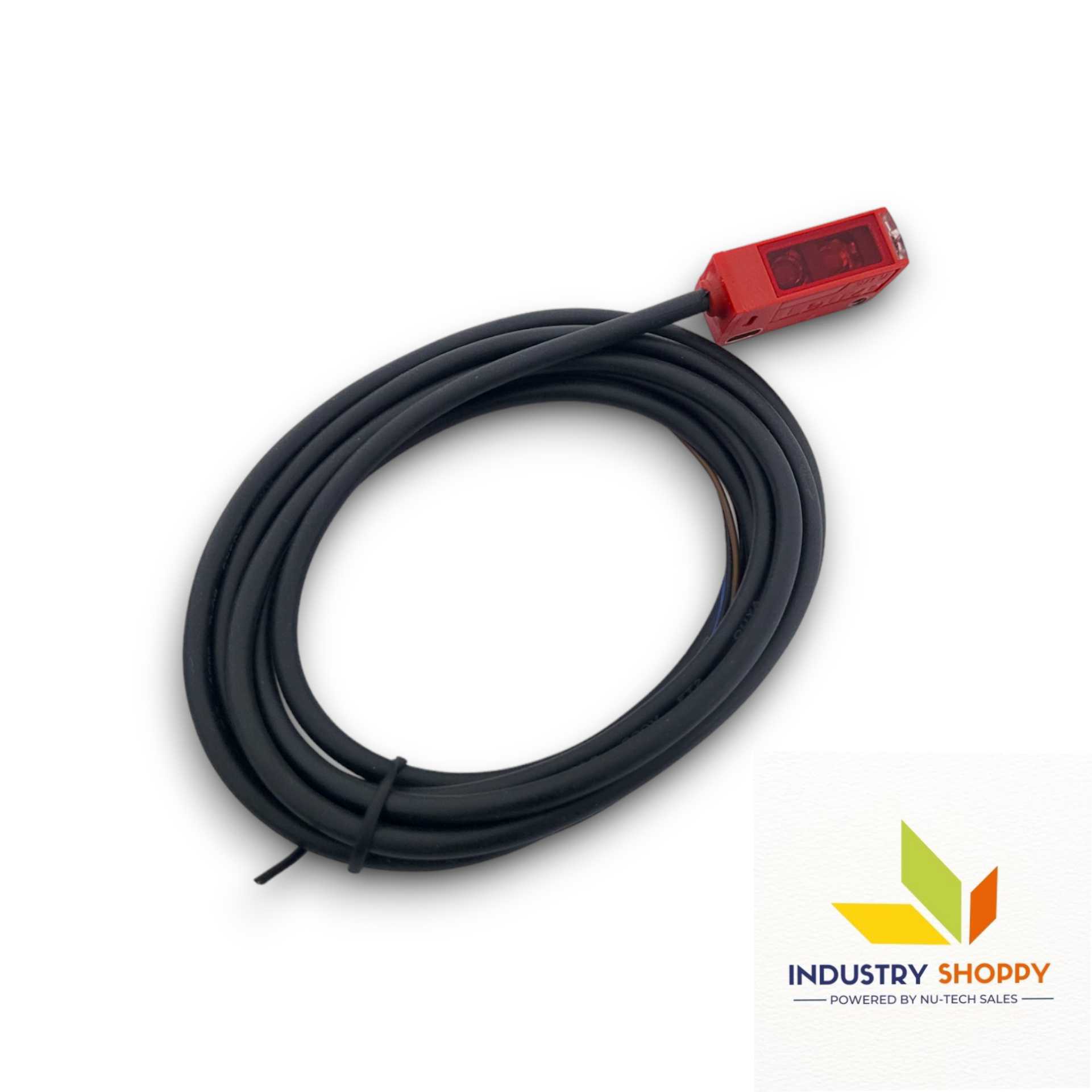

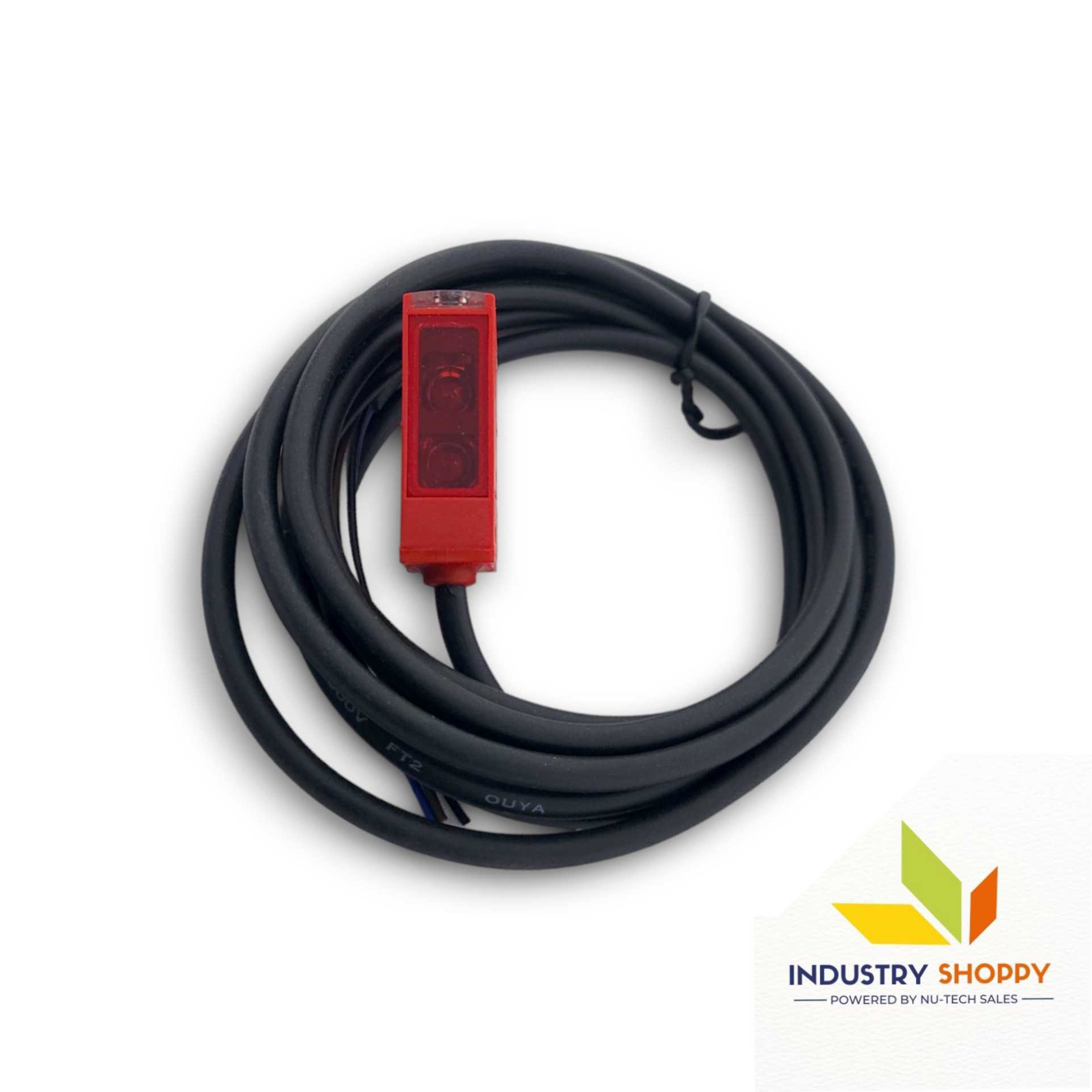

The Leuze HT3C/4P Diffuse Sensor function includes signal output and voltage supply. It utilizes a cable connection. The cable length measures 2,000 mm. The sheathing material is PUR. The cable color is black. Featuring a focused beam path and a fixed focus with a focal distance of 200 mm, the sensor emits a red LED light at a wavelength of 633 nm. This ensures precise detection while maintaining stability in diverse industrial environments.
