Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars KS-C2W Contrast Sensor
Jars

Jars KS-C2W Contrast Sensor

Product SKU: NTSSEN00022
Available:
Only 19 items in stock
19 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  JARS
  • Power Supply  :  10 … 30 VDC
  • Light source : Infrared LED (660 nm)
  • Sensing object : Opaque object
  • Warranty : 12 Months
Rs. 3,880.00
Rs. 5,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

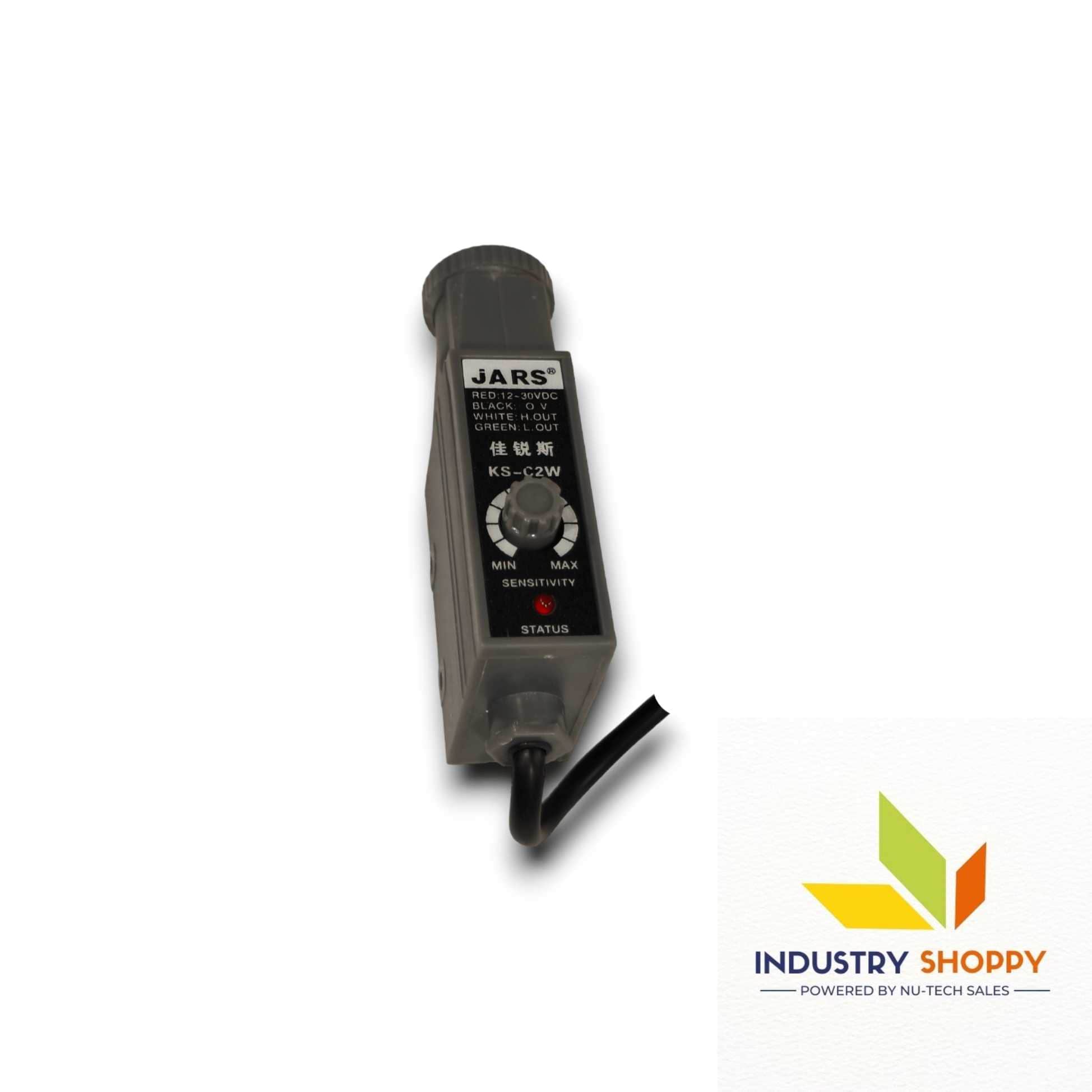

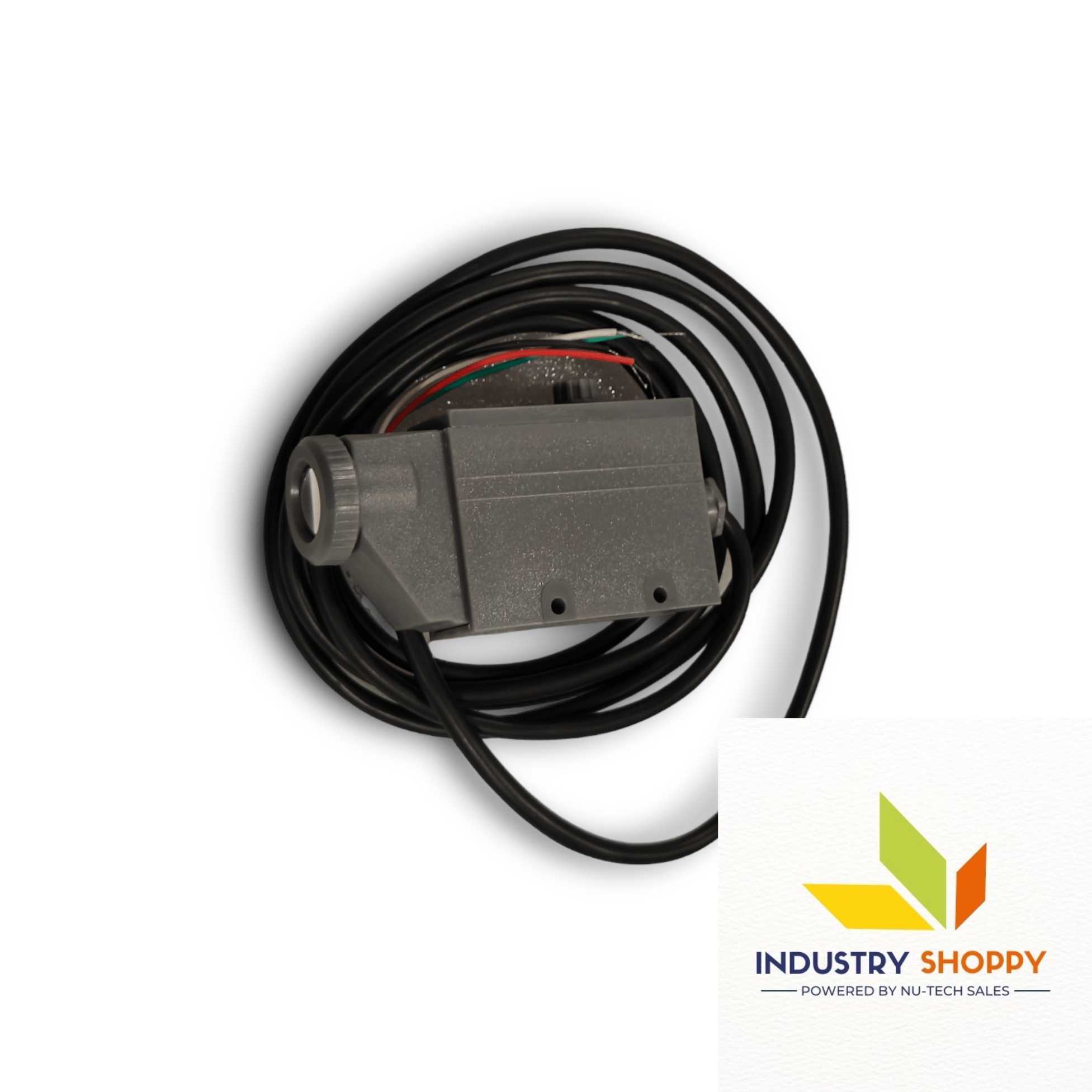

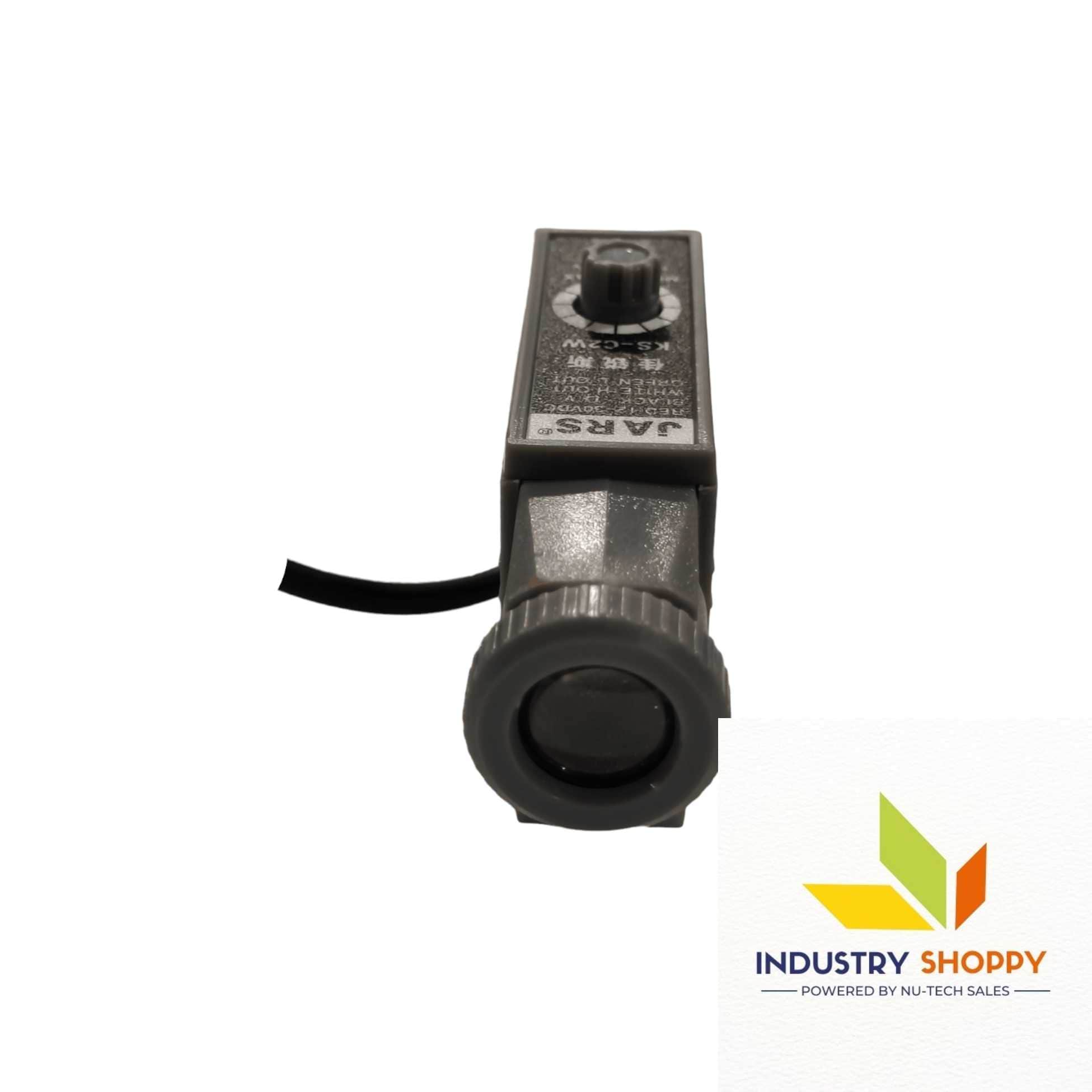

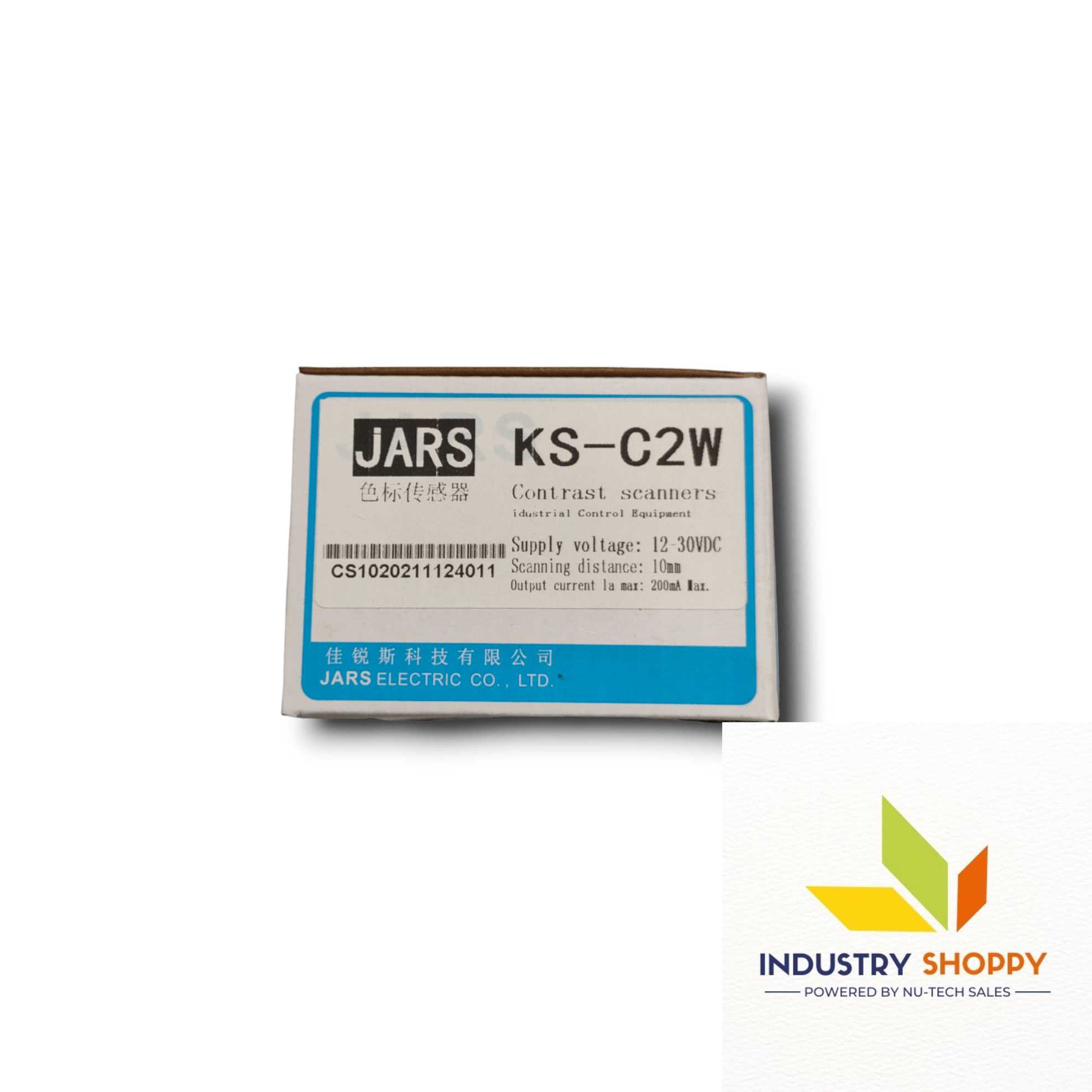

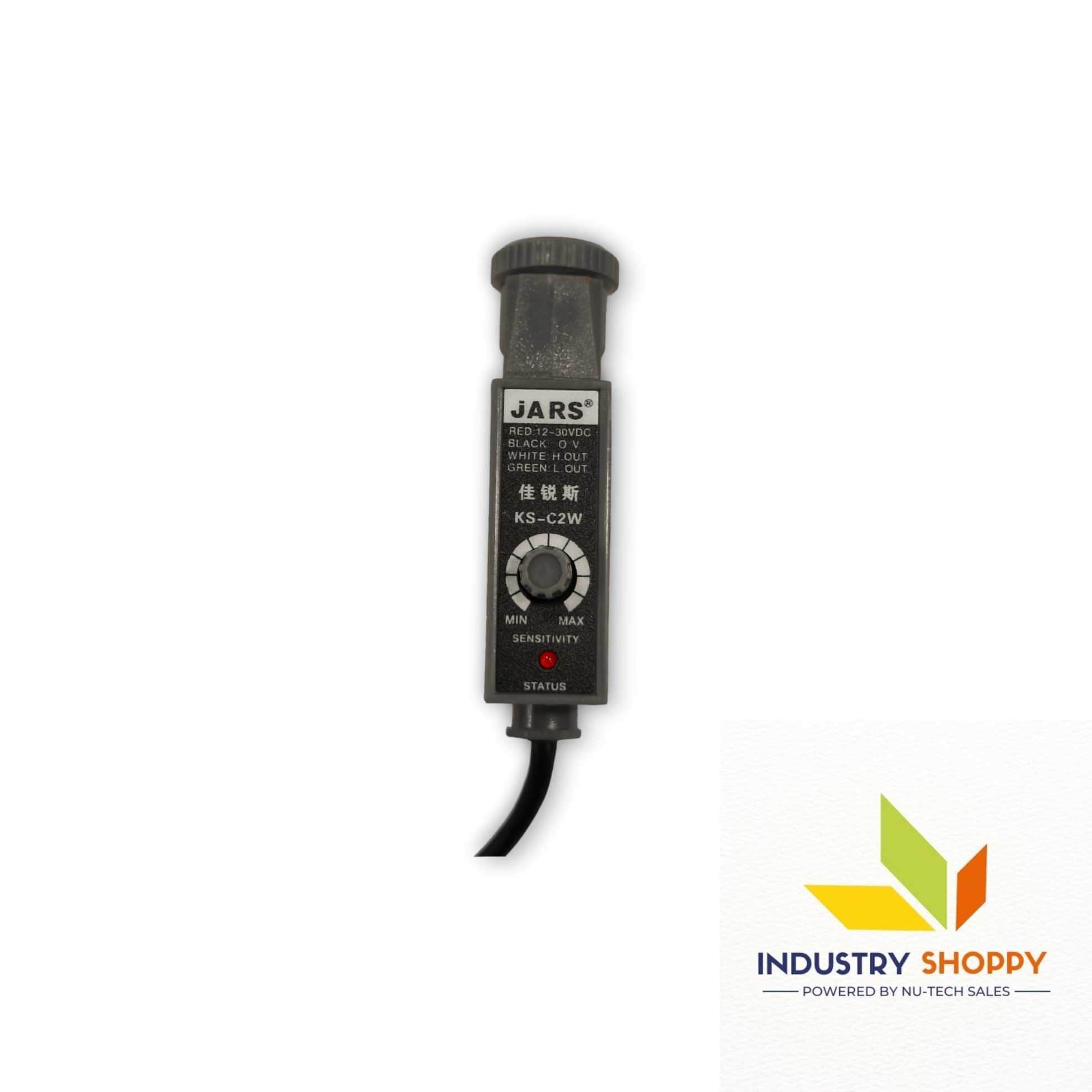

Jars KS-C2W Contrast Sensor

The Jars KS-C2W Contrast Sensor, part of the KS-C2 series, features a compact 26×63×60 mm body with a coaxial reflex sensing method. It uses a multi-color light source—red, green, blue, and white—with a light spot size of Φ0.5 to Φ1.5 mm for precise detection.

It detects opaque objects at a distance of 10 mm ±2 mm, and the sensitivity is adjustable for varying conditions. The sensor is powered by a 10–30 VDC ±10% supply and supports a response frequency of 0.1–1 ms, making it suitable for high-speed applications. The light source is an infrared LED (660 nm). Protection features include reverse polarity, surge suppression, and short-circuit protection.

The sensor ensures reliability with 50 MΩ insulation resistance and 1000 VAC dielectric strength. It maintains detection performance within ±10–15% variation across a wide temperature range of -30°C to 65°C. Rated at IP67, the sensor is dust-tight and water-resistant. The sensor uses a durable aluminium die-cast (ABS) housing and equips a PMMA sensing surface for enhanced longevity. Ideal for environments with high humidity (35% to 95%), it delivers robust, stable sensing across diverse industrial conditions.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


BrandJARS
Product NameKS-C2W
Model NumberKS-C2 series
External Dimensions26 × 63 × 60 mm
Sensing MethodCoaxial reflex
Light Source ChromatogramRed, Green, Blue, White
Light Spot (Diameter)Ø0.5 – Ø1.5 mm
Detection Distance10 mm ± 2 mm
Sensitivity AdjustmentAdjustable
Supply Voltage10–30 VDC ±10%
Sensing ObjectOpaque object
Response Frequency0.1–1 ms
Light SourceInfrared LED (660 nm)
Leakage CurrentN.P Type: 20 mA max; A Type: 1.7 mA max
Protection CircuitReverse polarity protection, Surge suppressor, Short-circuit protection
Insulation Resistance≥ 50 MΩ at 500 V DC between energized parts and case
Dielectric Strength1000 VAC max, 50/60 Hz for 1 min between energized parts and case
Temperature Influence±10% max of sensing distance at 23°C (-25°C to 60°C); ±15% max at -30°C to 65°C
Voltage Influence±10% max of sensing distance in rated voltage range; ±15% overall
IP RatingIP67
MaterialCase: Aluminum die-cast (ABS); Sensing surface: PMMA
Operating Temperature-30 to 65 °C (no icing or condensation)
Operating HumidityStorage: 35–95% (without condensation)
