Product SKU: NTSSEN00304
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand : Datalogic
  • Supply voltage :  10 – 30 VDC
  • Response time : 500µs
  • Output type  : PNP NO+NC
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 4,465.00
Rs. 5,780.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Datalogic S5N-PA-5-T01-PP Photoelectric Sensor

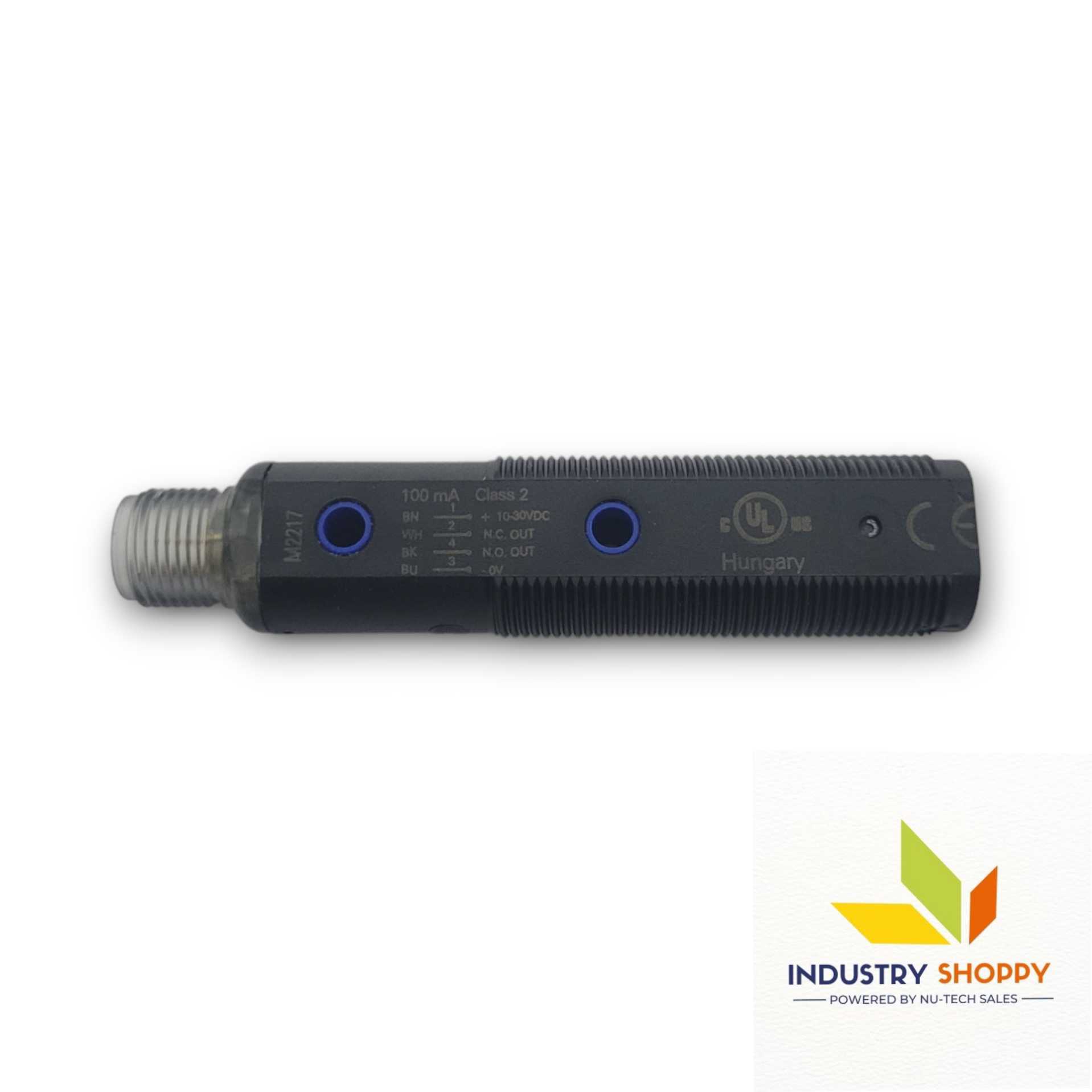

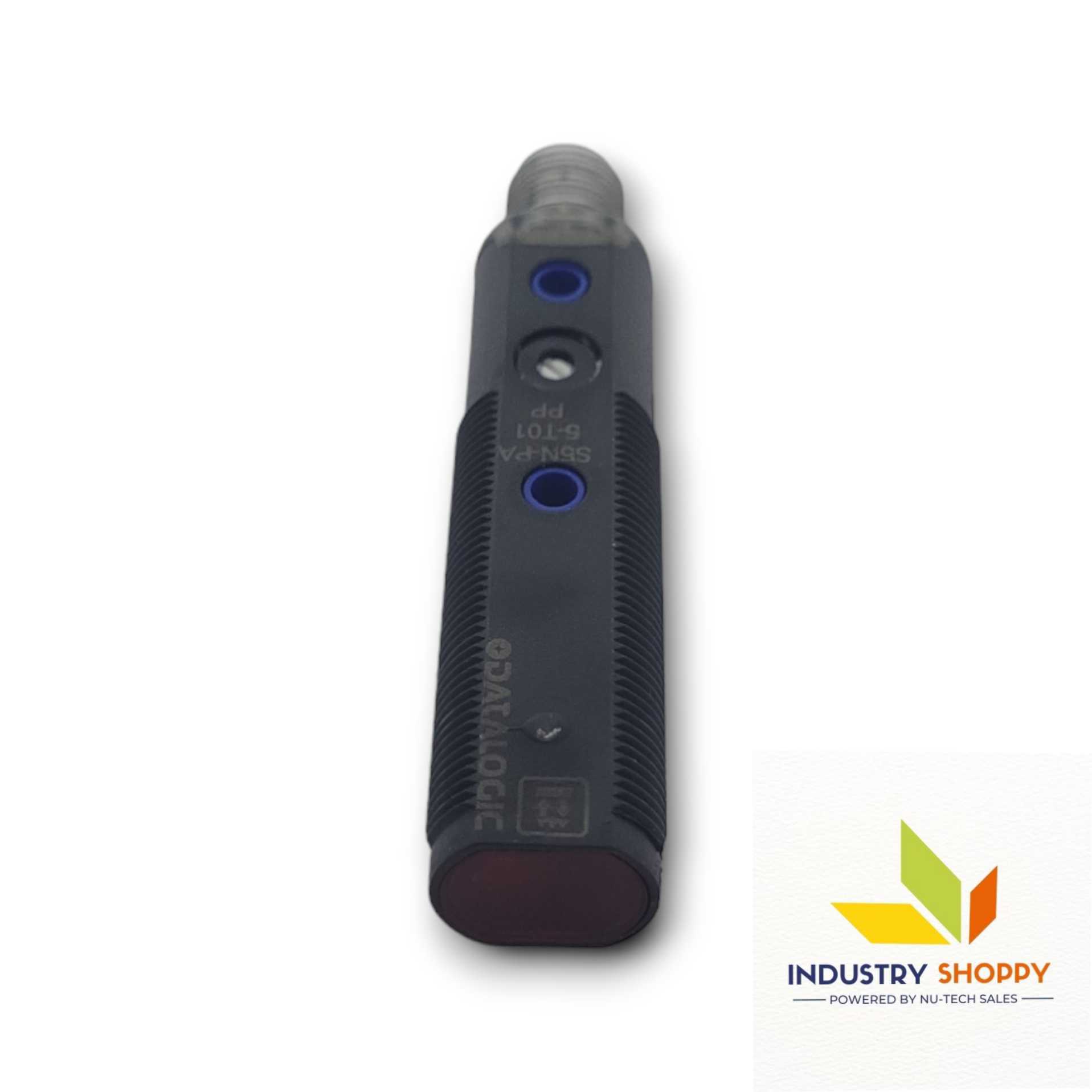

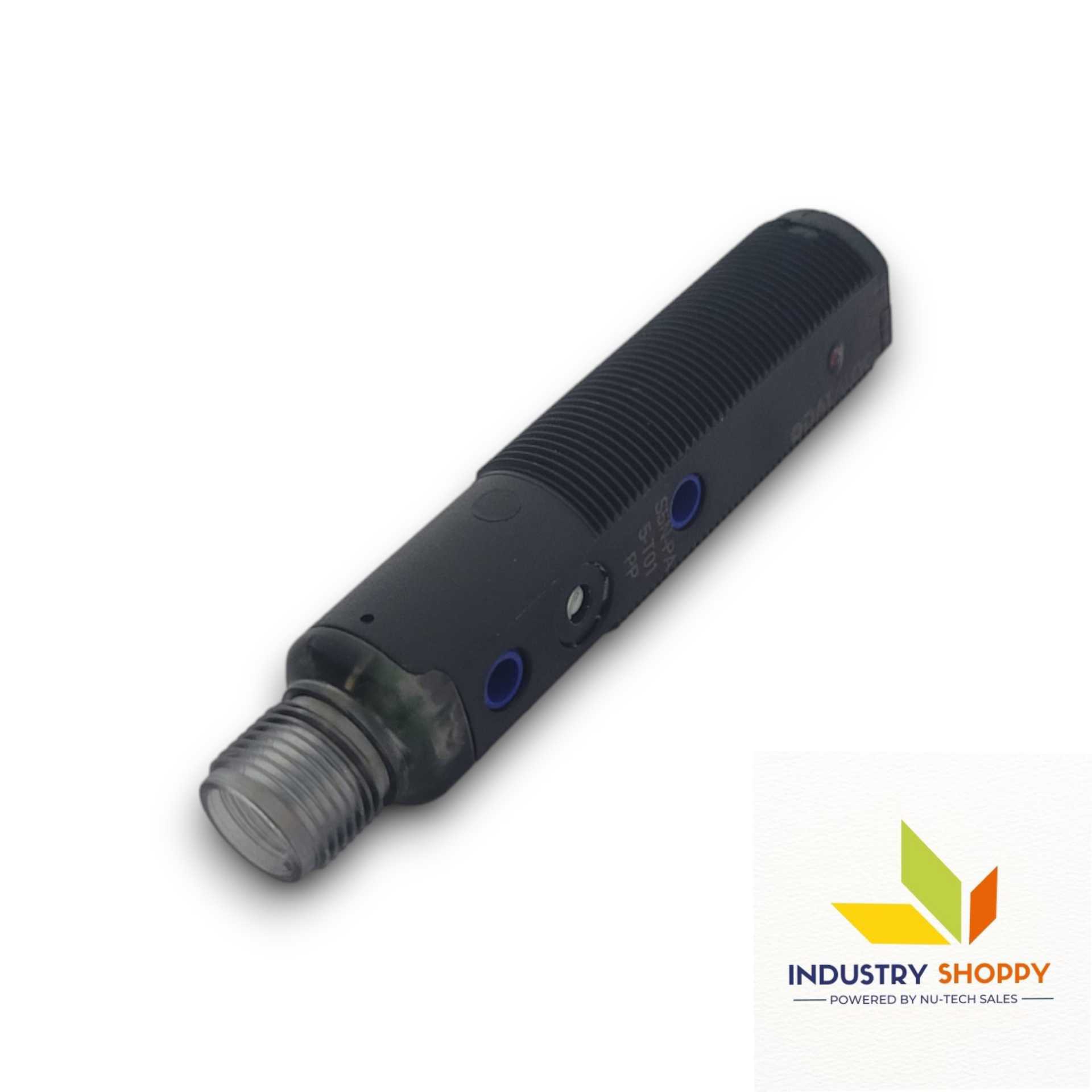

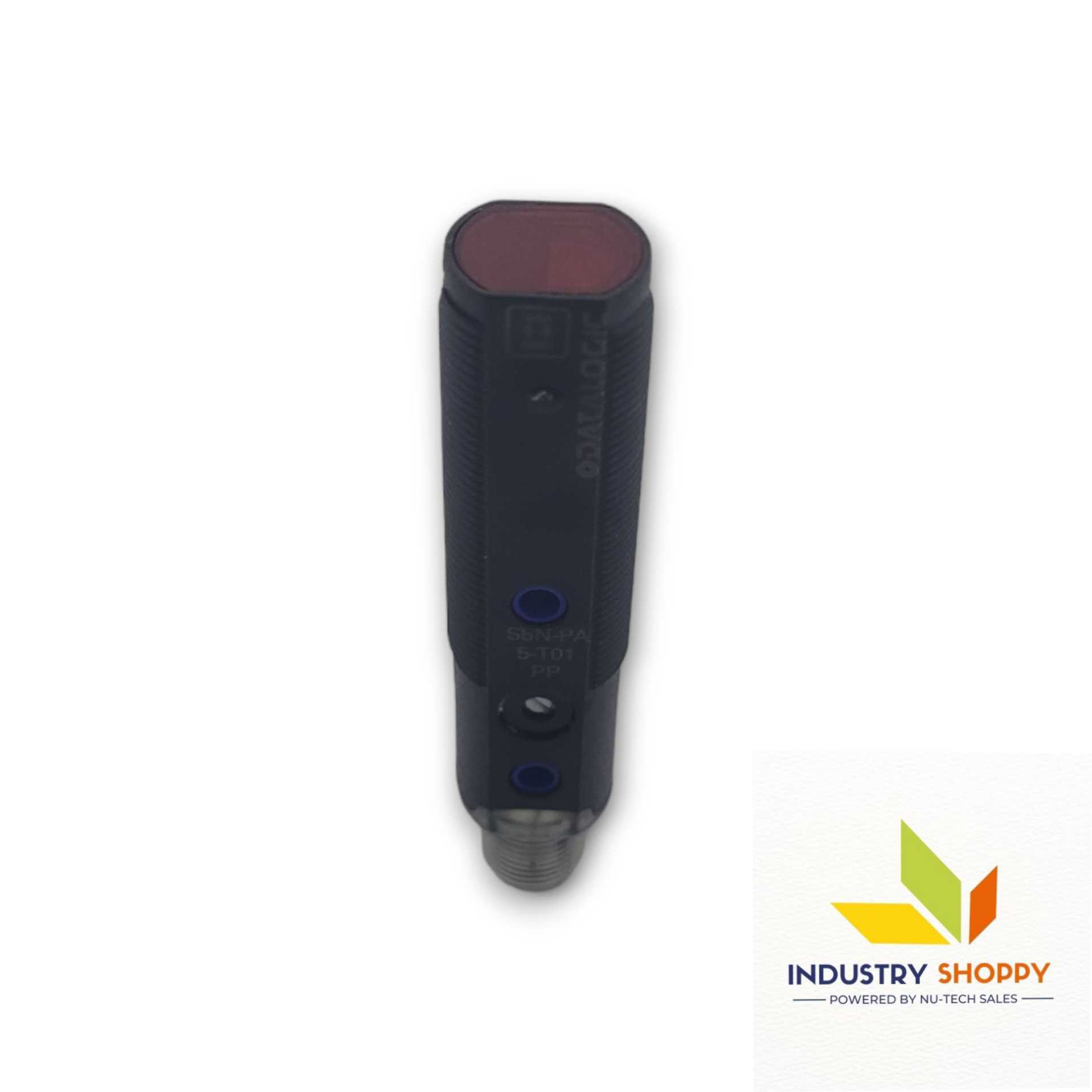

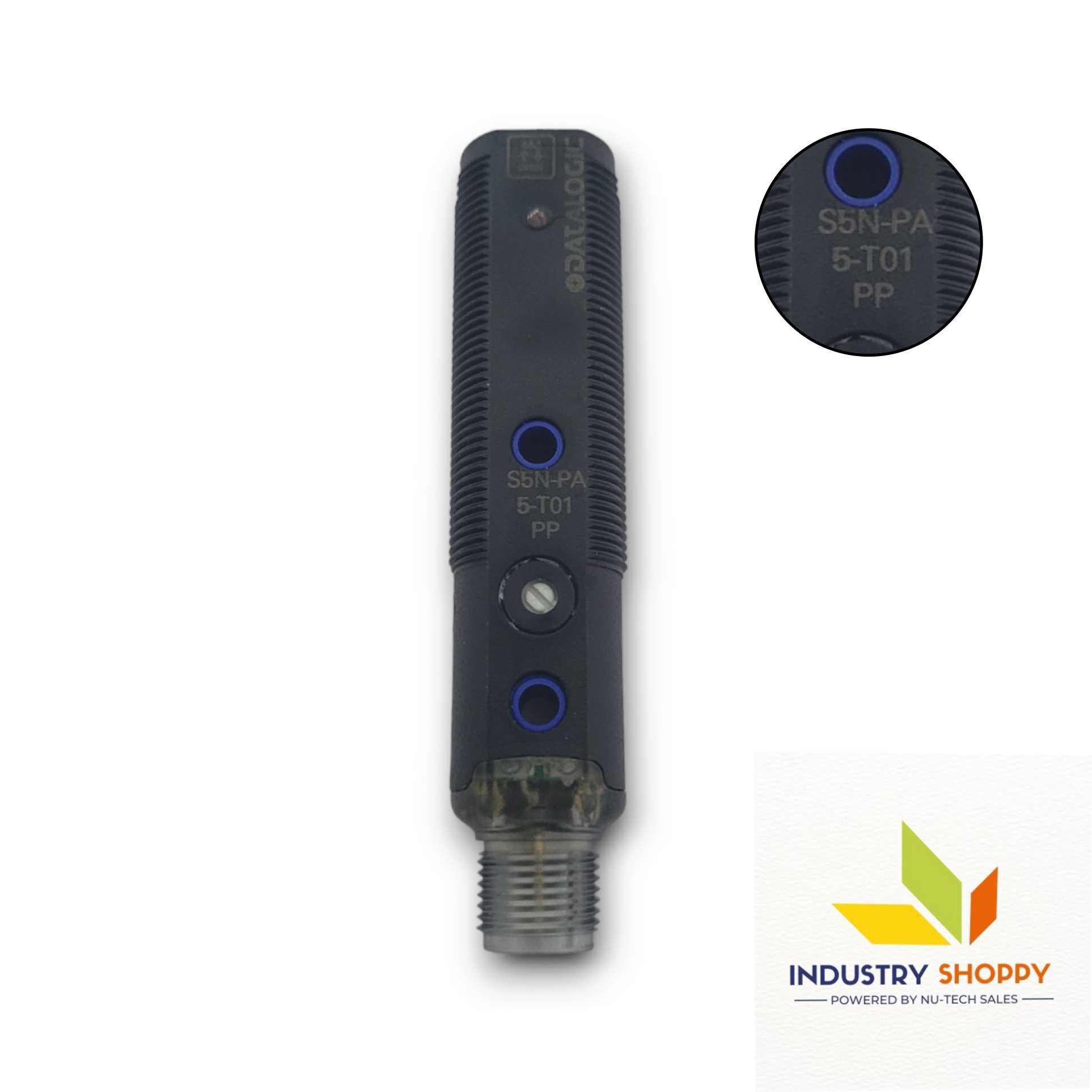

The Datalogic S5N-PA-5-T01-PP Photoelectric Sensor (S5NPA5T01PP) and Part Number 952001271, is part of the S5N series, featuring a cylindrical sensor design with a radially positioned axial optic at 90°.Operating as a polarized retroreflective sensor for clear objects, it offers a nominal sensing distance of 1.7m with sensitivity adjustment via a trimmer.

The Datalogic S5N-PA-5-T01-PP  Sensor outputs PNP NO+NC signals with a switching frequency of 1 kHz and a rapid response time of 500µs.It operates on a voltage range of 10 to 30VDC. The sensor consumes ≤ 35 mA of no-load supply current. It also consumes ≤100mA of load current. The sensor provides short-circuit and reverse polarity protection, ensuring reliable performance in various industrial applications.

The Datalogic S5N-PA-5-T01-PP Photoelectric Sensor has a durable plastic (PBT/PMMA) housing. Its active head is also made of PMMA. It withstands environmental challenges like shocks and vibrations up to 0.5 mm amplitude at frequencies from 10 to 55 Hz. The sensor meets CE cULus approvals and EMC compatibility standards. Manufacturers in Hungary, it includes nuts for easy installation.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberS5N-PA-5-T01-PP
Part Number952001271
SeriesS5N
Optic functionCylindrical Sensor
Nominal sensing distance1.7 m
Sensitivity adjustmentTrimmer
Function PrinciplePolarized retroreflective for clear object
DescriptionTubular M18 - axial optic
Optic positionRadial 90°
FunctionsPolarized retroreflective for clear object
Output typePNP NO+NC
Output FunctionNO+NC
Switching frequency1 kHz
Response time500 µs
Operating Voltage10…30 VDC
No-Load supply current≤ 35 mA
Load current≤ 100 mA
Leakage current≤ 10 µA
Output voltage drop≤ 2 V @ Iload=100 mA
LED indicatorsYellow OUTPUT LED, Green STABILITY LED
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionLED Red
Interference to external lightAccording to EN 60947-5-2:2020
Impulsive Overvoltage ProtectionYes
Insulation resistance>20 MΩ 500 VDC, between electronics and housing
Contact resistance500 VAC 1 min., between electronics and housing
DimensionsØ18 × 67 mm
Housing MaterialPlastic - PBT / PMMA

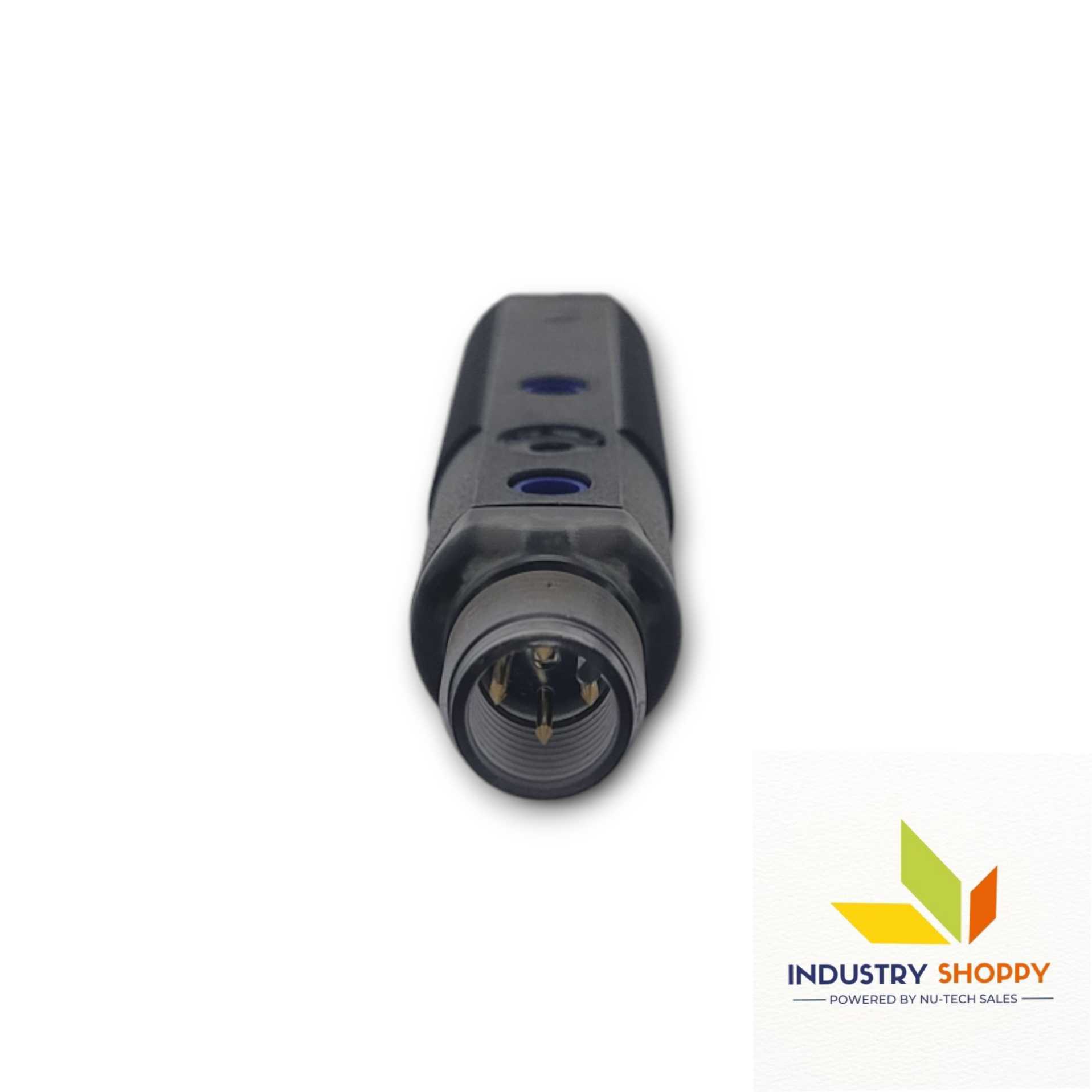

ConnectionsM12 plug
Active Head MaterialPMMA
Storage temperature-25…+70 °C
MaterialPlastic - PBT / PC
Diameter/DimensionM18
ApprovalsCE, cULus
EMC compatibilityEN 60947-5-2
Shocks and vibrations0.5 mm amplitude, 10…55 Hz frequency, for every axis (EN60068-2-6)

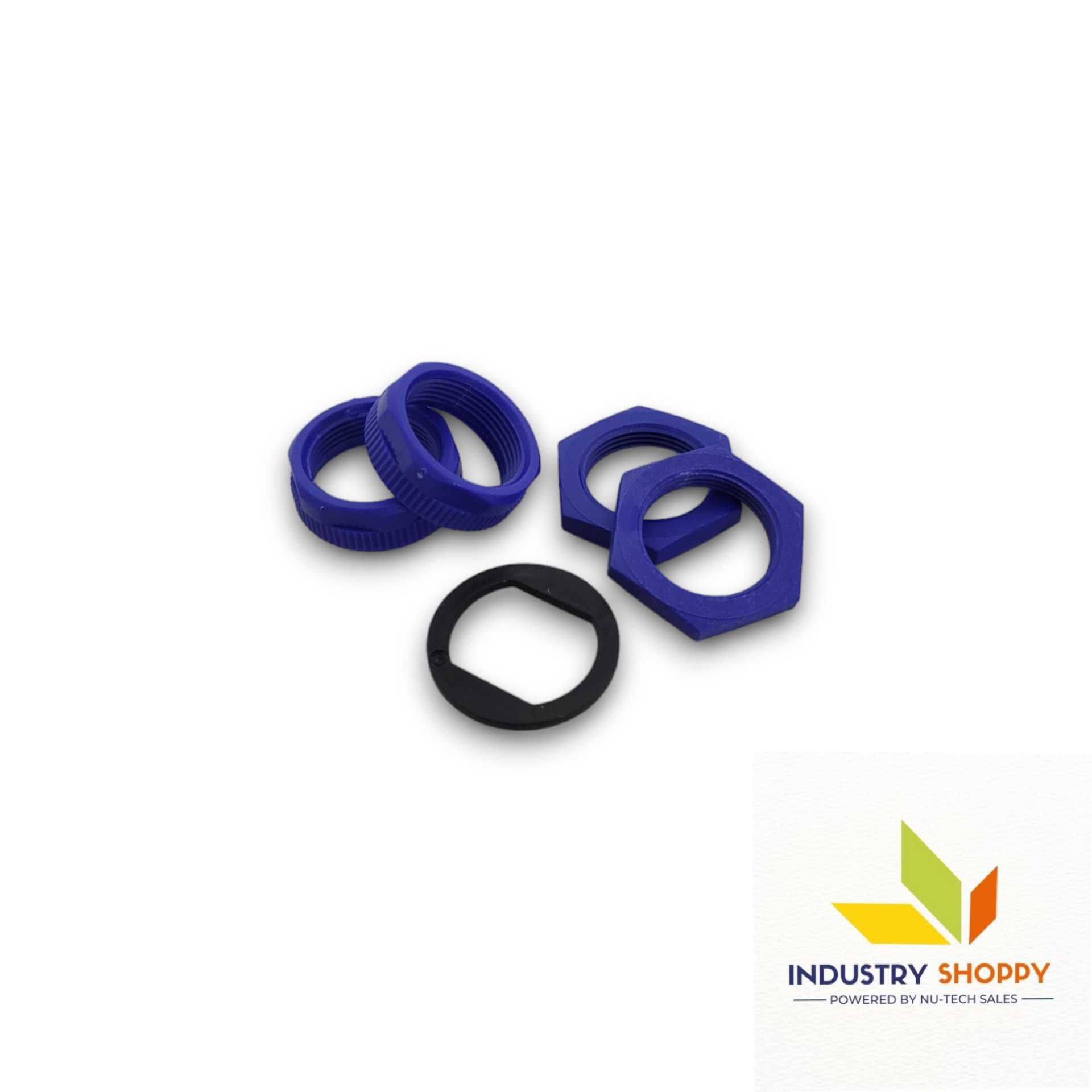

Supplied AccessoriesNuts M18 × 1
Mechanical ProtectionIP67
Country of originHungary
