34% Rs. 1,890.00
S100-PR-2-T10-PH

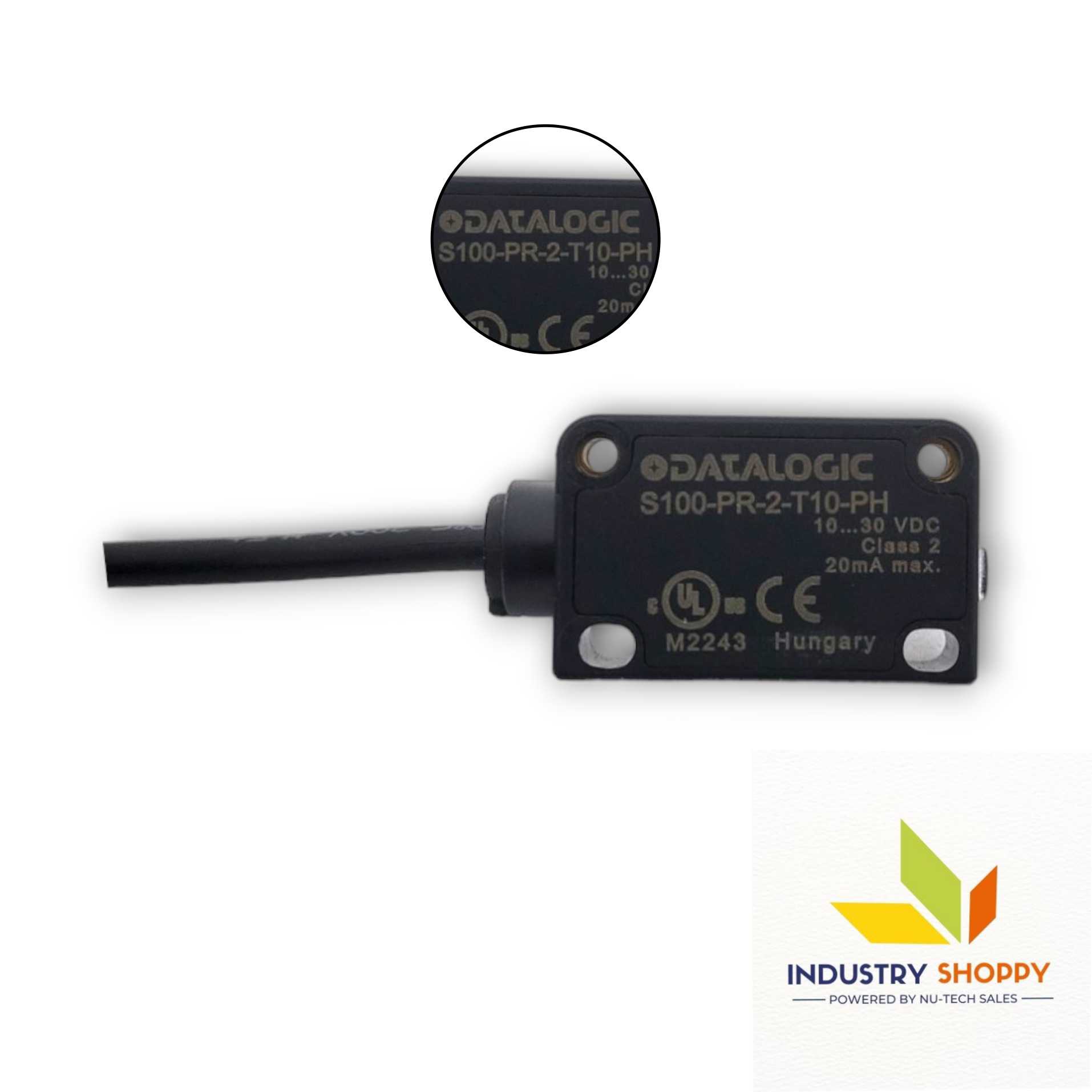

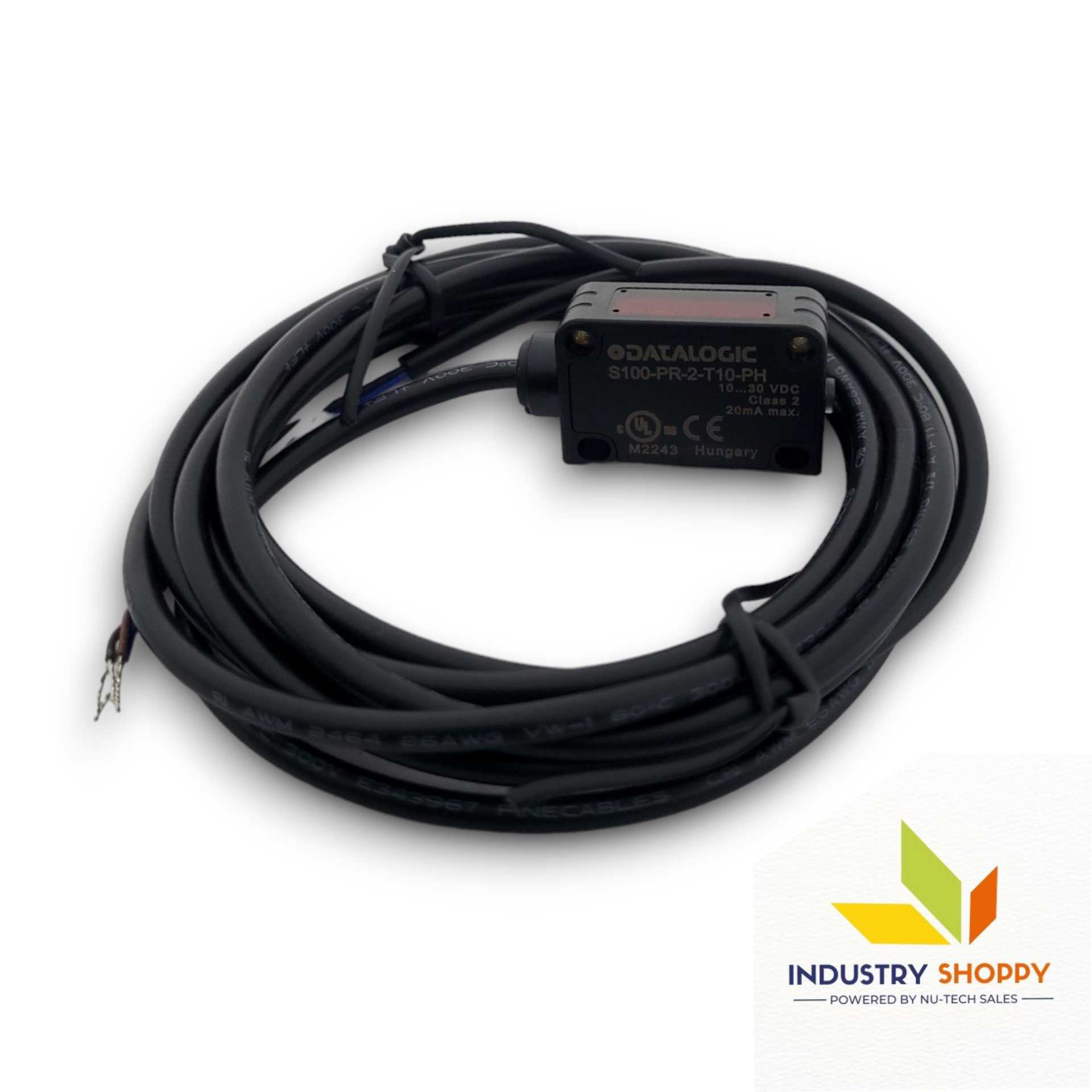

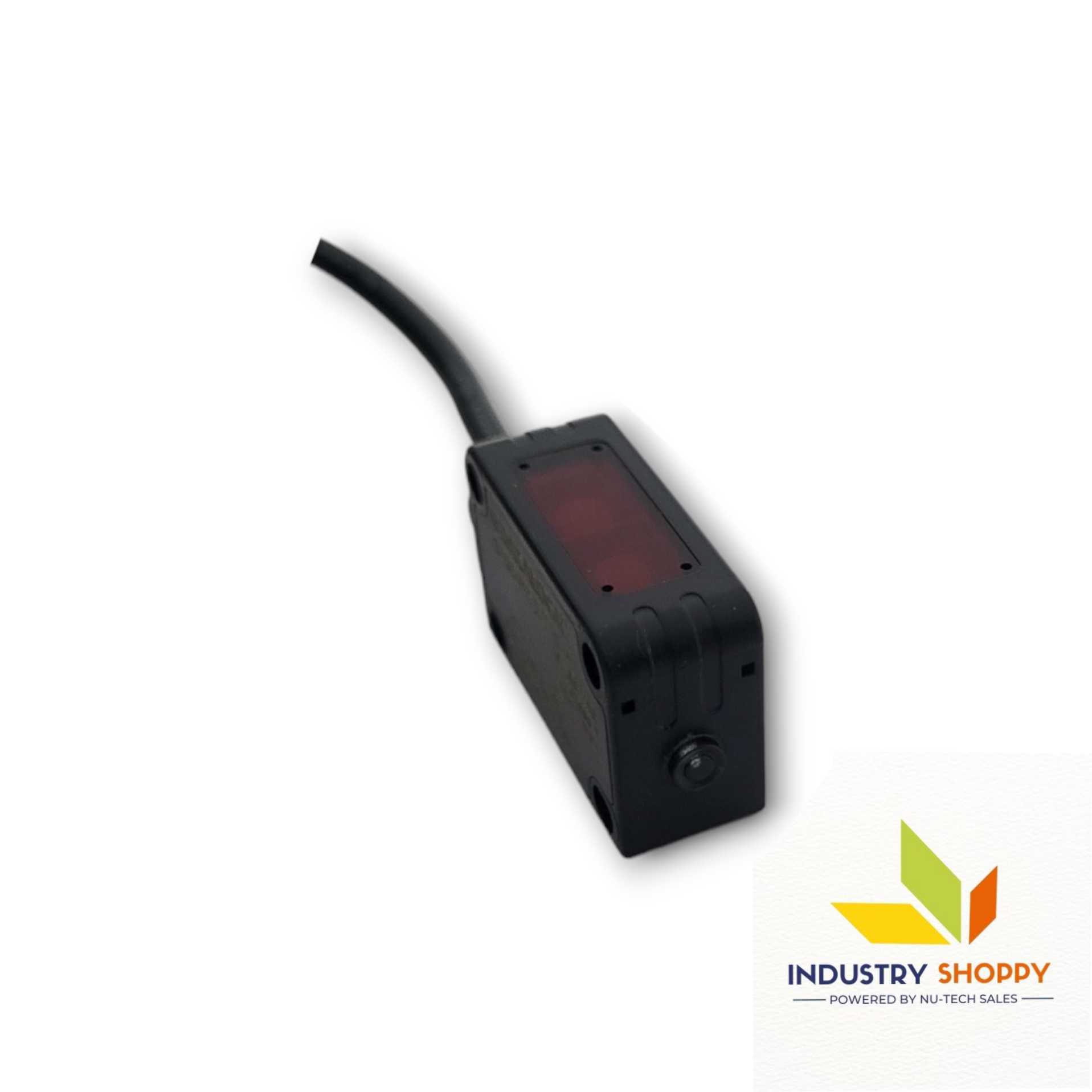

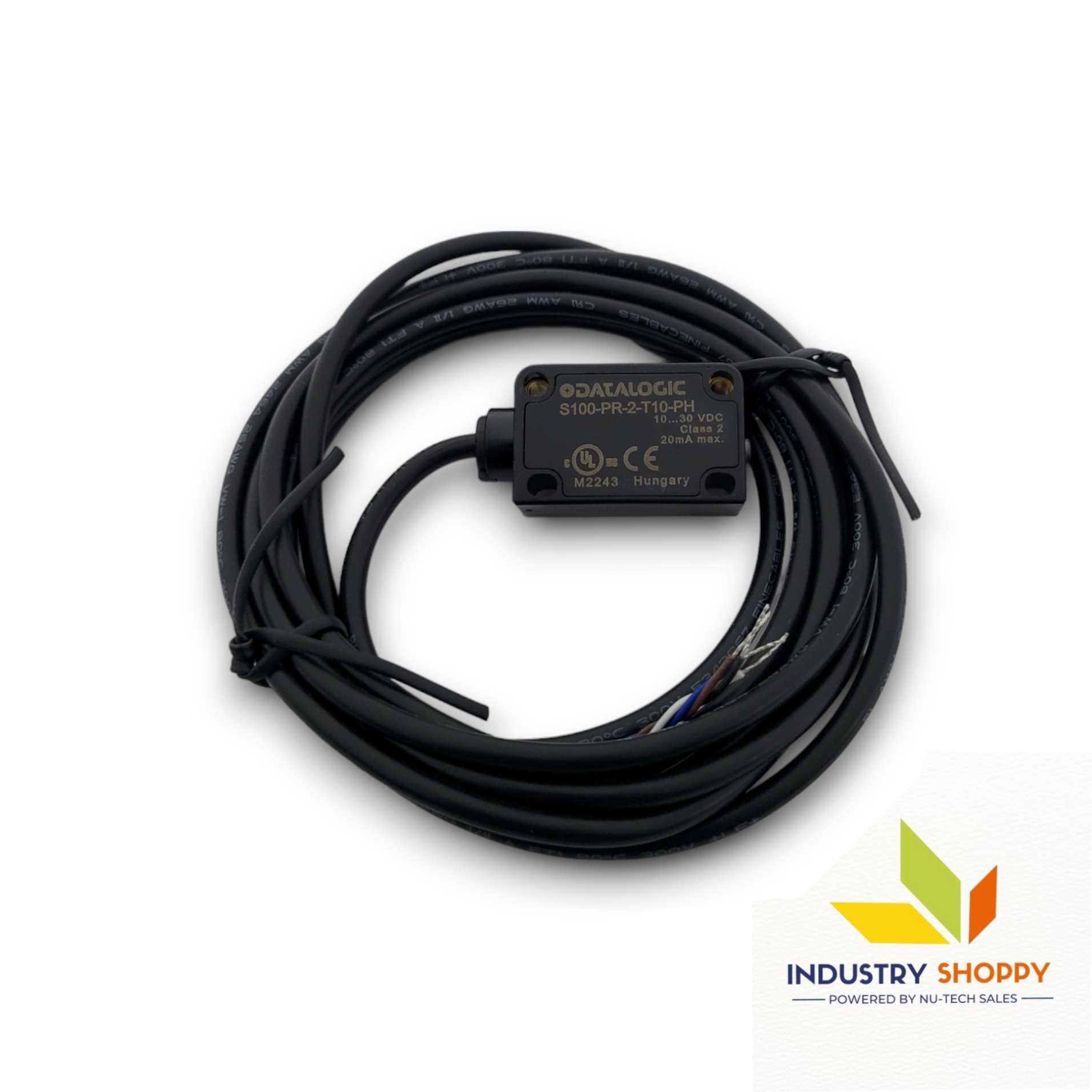

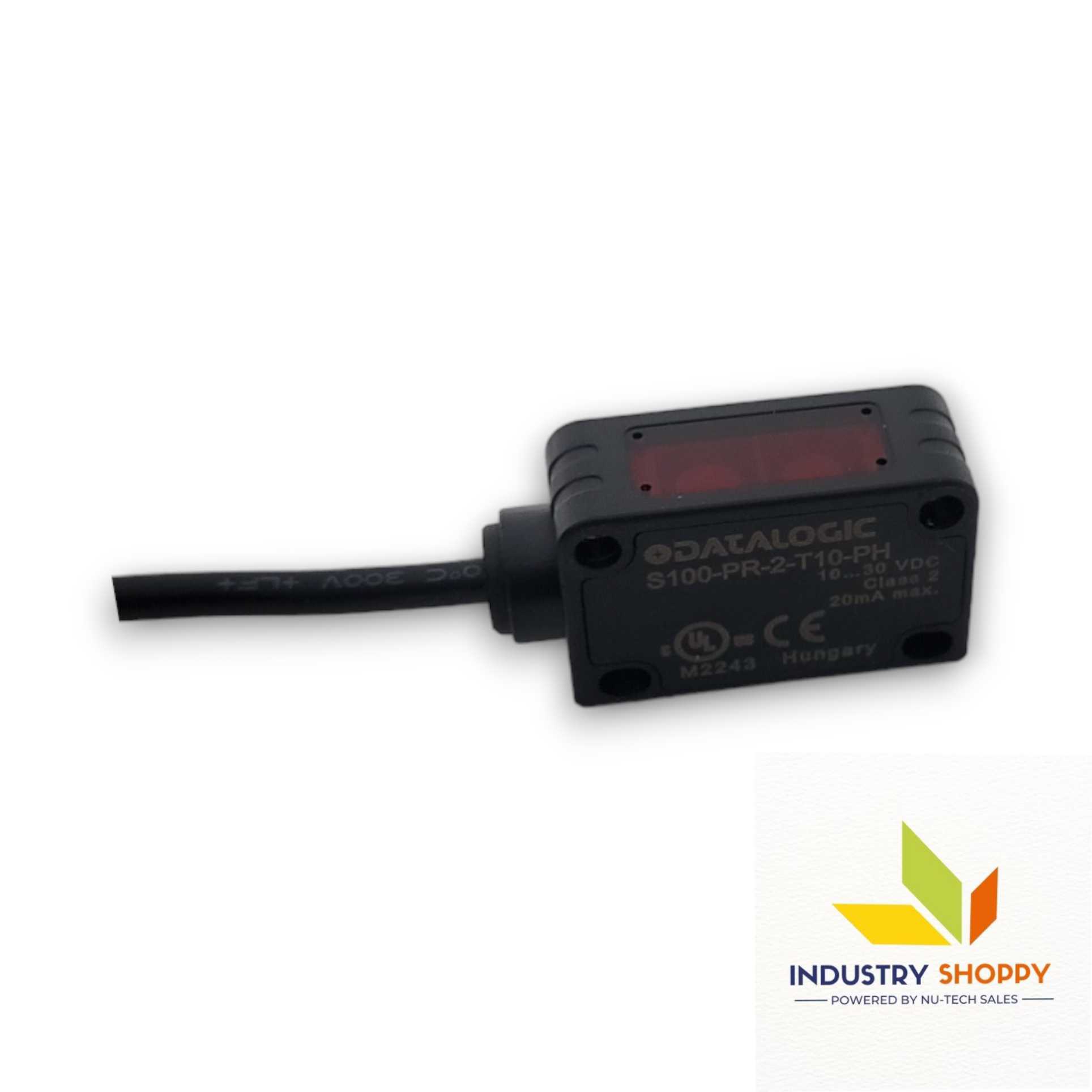

Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
S100-PR-2-T10-PH
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
Datalogic S100-PR-2-T10-PH Photoelectric Sensor
DataLogic

Datalogic S100-PR-2-T10-PH Photoelectric Sensor

Product SKU: NTSSEN00292
Available:
Only 8 items in stock
8 items in stock
In stock
Pre-order
Out of stock
  • Brand : Datalogic
  • Supply voltage :  10 – 30VDC
  • Open-circuit current : 0 … 100 mA max.
  • Output type  : PNP
  • Type of connection : Cable Type
  • Warranty : 12 Months
Rs. 3,750.00
Rs. 5,640.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Datalogic S100-PR-2-T10-PH Photoelectric Sensor



The Datalogic S100-PR-2-T10-PH Photoelectric Sensor (S100PR2T10PH), with Part Number 950811360, boasts a nominal sensing distance of 2m. It operates on a polarized retroreflective principle, ideal for clear objects, and features external teach sensitivity adjustment for versatile applications. This sensor utilizes a PNP output type, offering a switching frequency of 500Hz and a rapid response time of 1ms.

The Datalogic S100-PR-2-T10-PH Photoelectric Sensor has crafted with durability in mind, the sensor's housing is made from ABS material, while its active head is composed of PMMA. It comes with various protection features including short-circuit, reverse polarity, and impulsive overvoltage protection. With dimensions of 12x32x20 cubic units, it is compact yet robust. Approved by CE and cULus, this sensor is manufactured in Hungary, ensuring quality.

Operating within a temperature range of -25°C to +55°C (excluding freezing conditions), the sensor provides reliable performance in diverse environments. With an IP67 rating for mechanical protection, it withstands dust and water ingress effectively. Additionally, it can endure vibrations up to 0.5 mm amplitude at frequencies ranging from 10 to 55 Hz on all axes, meeting EN60068-2-6 standards.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberS100-PR-2-T10-PH
Part Number950811130
Nominal sensing distance2 m
Sensitivity adjustmentExt. Teach
Function PrinciplePolarized retroreflective for clear object
DescriptionMiniature universal multi-holes
Optic positionRadial 90°
FunctionsPolarized retroreflective for clear object
Output typePNP
Switching frequency500 Hz
Response time1 ms
Operating Voltage10 … 30 VDC
No-Load supply current≤ 30 mA
Load current≤ 100 mA
Output voltage drop≤ 2 V @ Iload=100 mA
LED indicatorsYellow (status output)
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionLED Infrared
Interference to external lightaccording to EN 60947-5-2 : 2020
Impulsive Overvoltage ProtectionYes
Insulation resistance>20 MΩ 500 VDC, between electronics and housing
Contact resistance500 Vac 1 min., between electronics and housing
Dimensions12 x 32 x 20 mm
Housing MaterialABS
Connections2 m cable
Active Head MaterialPMMA
Storage temperature-25 … +70 °C
Diameter/DimensionCubic
ApprovalsCE, cULus
Shocks and vibrations0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Operating Temperature-25 … +55 °C (Without freeze)
Mechanical ProtectionIP67
Country of originHungary
