Wecon PI3070ie HMI Operator Panel

• Brand  :  Wecon
• Display Size  :  7" Screen
• TFT Resolution  :  800*480
• Brightness (cd/m2)  :  250

  Wecon PI3070ie HMI Operator Panel

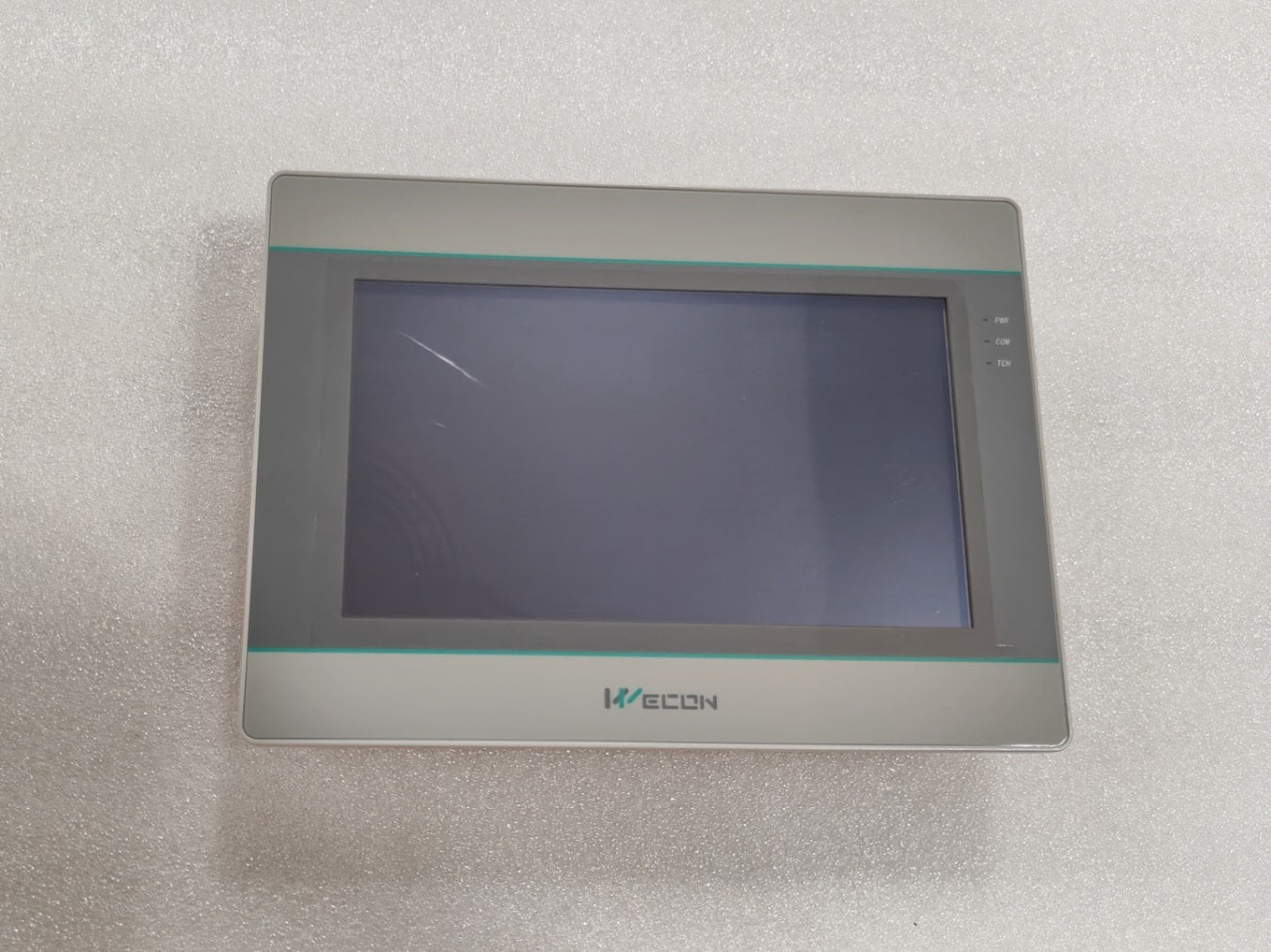

The Wecon PI3070ie HMI Operator Panel is a 7-inch Linux-based industrial HMI designed for efficient and reliable automation control. Featuring a TFT display with an 800×480 resolution and 16M colors, it provides clear and vibrant visuals. The 250 cd/m² brightness and LED backlight with a 50,000-hour lifespan ensure long-term usability.

Powered by a Cortex A35 1.2GHz processor, the PI3070ie offers stable performance with 64MB memory and 128MB flash storage. The high-precision four-wire resistive touch panel ensures accurate input, making it ideal for industrial environments.

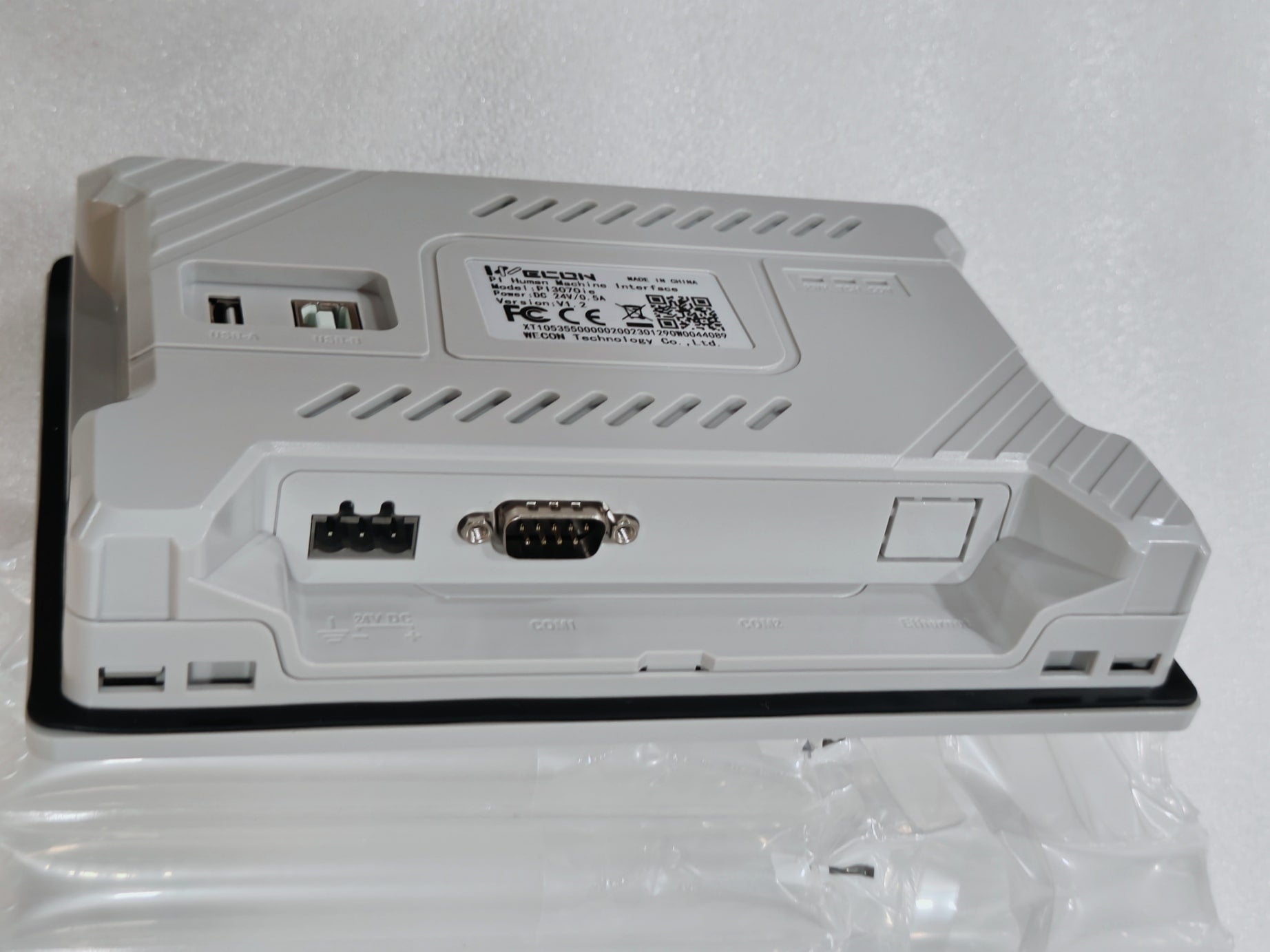

For connectivity, the HMI includes COM1: RS422/RS485 and CN2: RS232 communication interfaces, along with USB 2.0 Host and USB 2.0 Client ports. It operates on DC 24V (input range: 12-28V) with power consumption under 15W.

Built with a grey PC+ABS shell, the PI3070ie is IP65-rated (front panel) for dust and water resistance. It withstands -10 to 60°C operating temperatures and 10-90% RH humidity (non-condensing). The device is also vibration-resistant (10-25Hz, 2G in X, Y, Z directions for 30 minutes), ensuring durability in tough environments.

With an overall size of 201.2W × 147.2H × 39.0D mm and a mounting cutout of 192.0W × 138.0H mm, the panel-mountable PI3070ie is easy to install. It is programmed using PIStudio and meets CE and FCC Class A standards, making it a reliable HMI for industrial applications.
