44% Rs. 2,215.00
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic

Panasonic EX-31B Photoelectric Sensor

Product SKU: NTSSEN00370
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Output : NPN open-collector transistor
  • Supply Voltage : 12..24 VDC
  • Current consumption Emitter  :  10 mA or less
    Receiver: 10 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 2,785.00
Rs. 5,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic EX-31B Photoelectric Sensor

    The Panasonic EX-31B Photoelectric Sensor, compliant with the EMC Directive and RoHS Directive, provides reliable sensing capabilities. With a sensing range of 500 mm (19.685 in), it can detect opaque objects with a diameter of 2 mm (0.079 in) or more. Offering precise detection, it maintains repeatability of 0.05 mm (0.002 in) or less perpendicular to the sensing axis.

    Powered by a supply voltage of 12 to 24 V DC, both the emitter and receiver have a current consumption of 10 mA or less. Output is managed by an NPN open-collector transistor, supporting a maximum sink current of 50 mA. It operates with a dark-ON output operation and features short-circuit protection.

    The Panasonic EX-31B Photoelectric Sensor, designed for industrial environments, boasts an IP67 protection rating and operates within a temperature range of -25 to +55 degrees Celsius (-13 to +131 degrees Fahrenheit). It can withstand ambient humidity levels of 35 to 85% RH and incandescent light up to 3,000 lx. Constructed with die-cast zinc (nickel plated) for the enclosure, polycarbonate for the lens, and polycarbonate for the enclosure cover, the sensor ensures durability.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NumberEX-31B
    Part NumberUEX31B
    Regulatory complianceEMC Directive, RoHS Directive
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range500 mm 19.685 in
    Sensing Objectdia. 2 mm dia. 0.079 in or more opaque object (Completely beam interrupted objects)
    Hysteresis-
    Repeatability (Perpendicular to Sensing Axis)0.05 mm 0.002 in or less
    Supply Voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
    Current ConsumptionEmitter: 10 mA or less
     Receiver: 10 mA or less
    OutputNPN open-collector transistor
     - Maximum sink current: 50 mA
     - Applied voltage: 30 V DC or less (between output and 0 V)
     - Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
    Output: Utilization CategoryDC-12 or DC-13
    Output: Output OperationDark-ON
    Output: Short-Circuit ProtectionIncorporated
    Response Time0.5 ms or less
    Operation IndicatorOrange LED (lights up when the output is ON)
     (incorporated on the receiver)
    Stability IndicatorGreen LED (lights up under stable light received condition orstable dark condition, incorporated on the receiver)
    Sensitivity Adjuster-
    Pollution Degree3 (Industrial environment)
    ProtectionIP67 (IEC)
    Ambient Temperature-25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit
    Ambient Humidity35 to 85 % RH, Storage: 35 to 85 % RH
    Ambient IlluminanceIncandescent light: 3,000 lx or less at the light-receiving face
    Voltage Withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
    Insulation Resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
    Vibration Resistance10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
    Shock Resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
    Emitting ElementRed LED (modulated)
    MaterialEnclosure: Die-cast zinc (Nickel plated)
     Lens: Polycarbonate
     Enclosure cover: Polycarbonate
    Cable0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
    Cable ExtensionExtension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver).

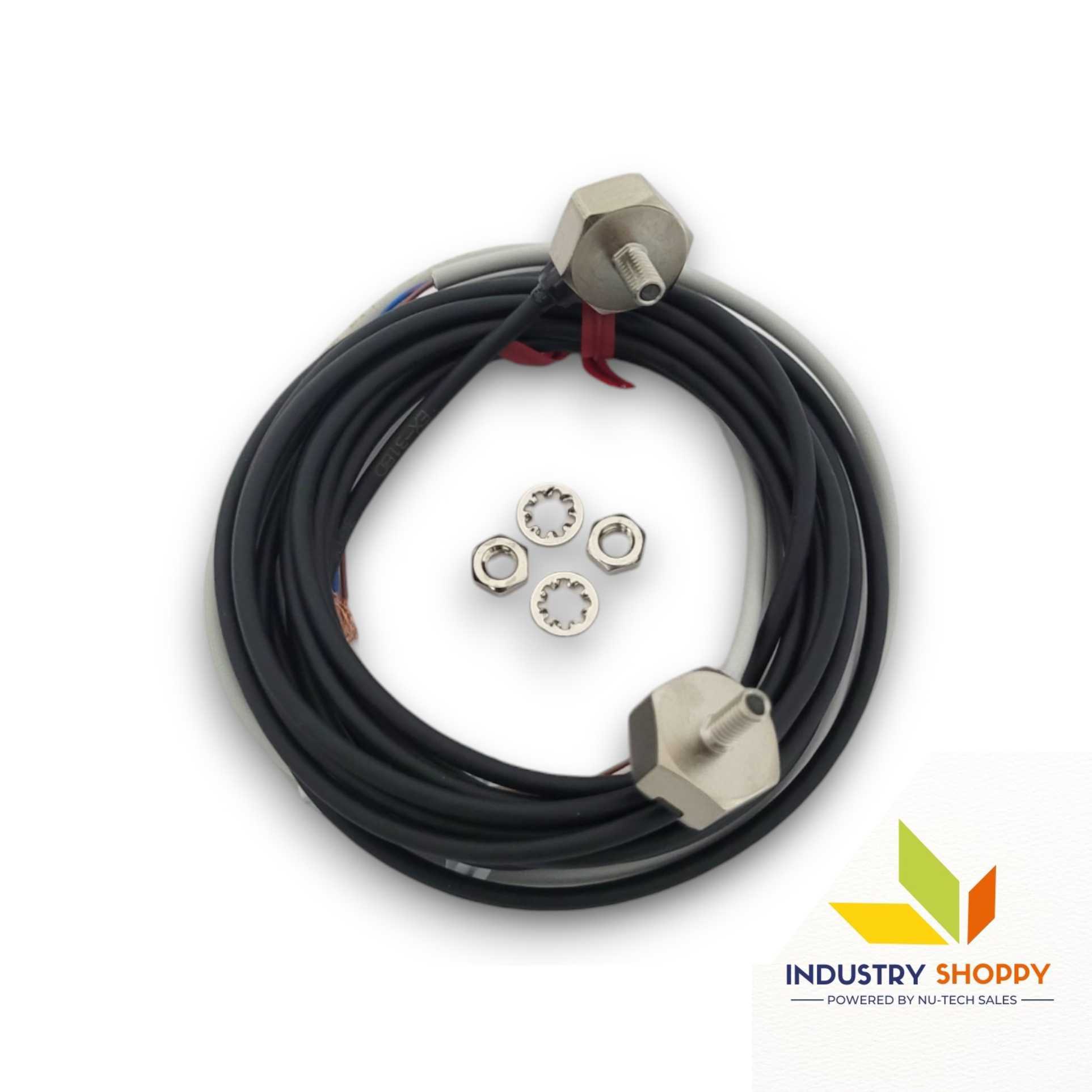

    AccessoryNut: 2 pcs
     Toothed lock washer: 2 pcs
    Country of originJapan
